Vivax ACP-12CH35GEK User manual

ACP-12CH35GEK
Service
manual
ENG
RoHS

ACP-12CH35GEK/I
ON/OFF MODE
FAN SWING
SLEEP TIMER
+
-
AUTO
COOL
DRY
FAN
HEAT
T-ON T-OFF SWING
SLEEP
LOCK
SPEED
ACP-12CH35GEK/O

6DIHW\3UHFDXWLRQV
Installing, starting up, and servicing air conditioner can be
hazardous due to system pressure, electrical components,
and equipment location, etc.
Only trained, qualified installers and service personnel are
allowed to install, start-up, and service this equipment.
Untrained personnel can perform basic maintenance fun-
ctions such as cleaning coils. All other operations should
be performed by trained service personnel.
When handling the equipment, observe precautions in the
manual and on tags, stickers, and labels attached to the
equipment. Follow all safety codes. Wear safety glasses
andwork gloves. Keep quenching cloth and fire extinguisher
nearby when brazing.
Read the instructions thoroughly and follow all warnings or
cautions in literature and attached to the unit. Consult local
building codes and current editions of national as well as
local electrical codes.
Recognize the following safety information:
Incorrect handling could result in
personal injury or death.
Incorrect handling may result in
minor injury,or damage to product
or property.
Warning
Caution
Caution
Warning
All electric work must be performed by a licensed technician
according to local regulations and the instructions given in
this manual.
Before installing, modifying, or servicing system, main
electrical disconnect switch must be in the OFF position.
There may be more than 1 disconnect switch. Lock out
and tag switch with a suitable warning label.
Never supply power to the unit unless all wiring and tub-
ing are completed, reconnected and checked.
This system adopts highly dangerous electrical voltage.
Incorrect connection or inadequate grounding can cause
personal injury or death. Stick to the wiring diagram and
all the instructions when wiring.
Have the unit adequately grounded in accordance with
local electrical codes.
All installation or repair work shall be performed by your dea-
ler or a specialized subcontractor as there is the risk of fire,
electric shock, explosion or injury.
Have all wiring connected tightly. Loose connection may
lead to overheating and a possible fire hazard.
Make sure the outdoor unit is installed on a stable, level
surface with no accumulation of snow, leaves, or trash
beside.
Make sure the ceiling/wall is strong enough to bear the
weight of the unit.
Make sure the noise of the outdoor unit does not disturb
neighbors.
Follow all the installation instructions to minimize the risk
of damage from earthquakes, typhoons or strong winds.
Avoid contact between refrigerant and fire as it generates
poisonous gas.
Apply specified refrigerant only. Never have it mixed with
any other refrigerant. Never have air remain in the
refrigerant line as it may lead to rupture and other hazards.
Make sure no refrigerant gas is leaking out when install-
ation is completed.
Should there be refrigerant leakage, the density of refri-
gerant in the air shall in no way exceed its limited value,
or it may lead to explosion.
Keep your fingers and clothing away from any moving
parts.
Clear the site after installation. Make sure no foreign ob-
jects are left in the unit.
Always ensure effective grounding for the unit.
Never install the unit in a place where a combustible gas
might leak, or it may lead to fire or explosion.
Properly insulate any tubing running inside the room to
prevent the water from damaging the wall.
Make a proper provision against noise when the unit is
installed at a telecommunication center or hospital.
Provide an electric leak breaker when it is installed in a
watery place.
Never wash the unit with water.
Should any emergency occur, stop the unit and discon-
nect the power immediately.
Handle unit transportation with care. The unit should not
be carried by only one person if it is more than 20kg.
Never touch the heat exchanger fins with bare hands.
Never touch the compressor or refrigerant piping without
wearing glove.
Do not have the unit operate without air filter.
6DIHW\3UHFDXWLRQV

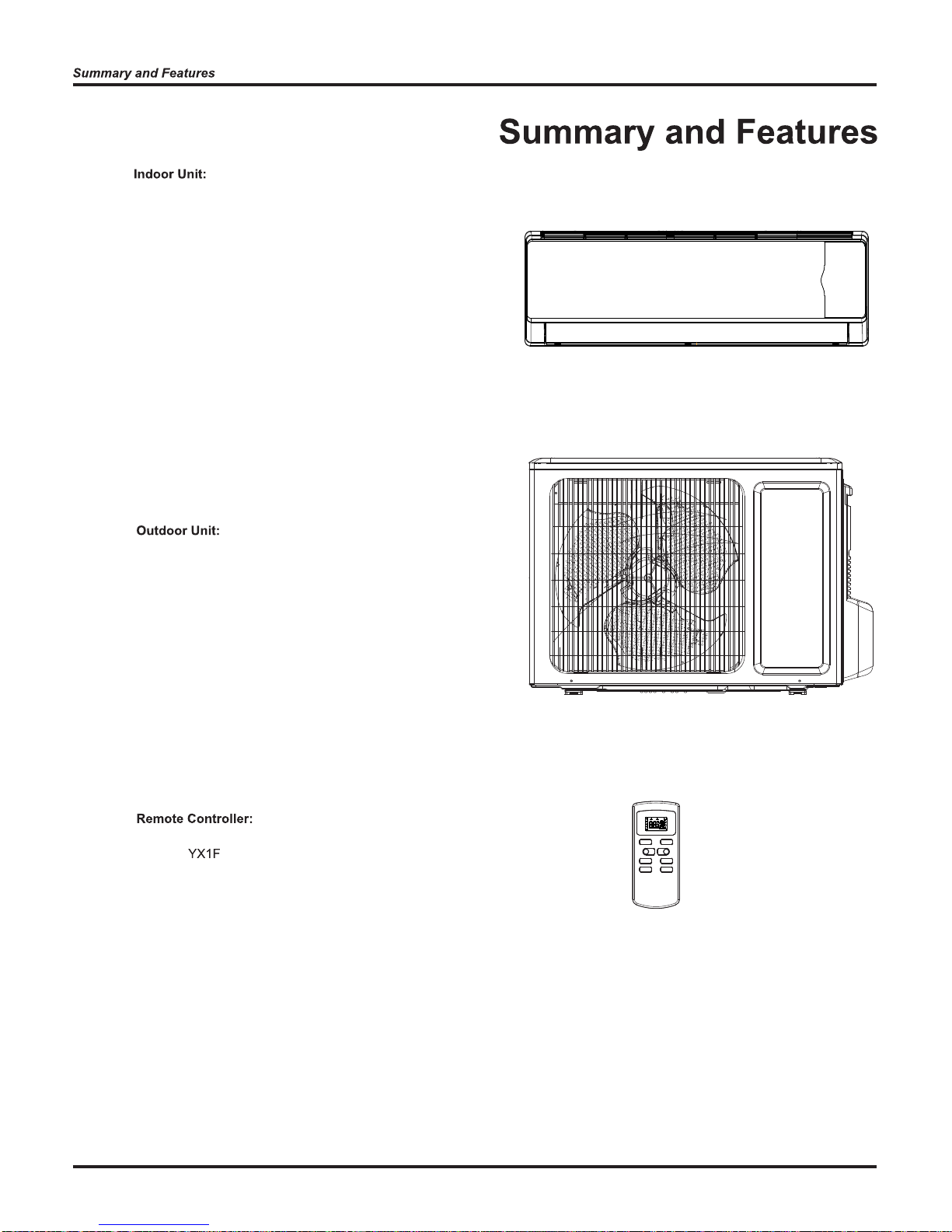

ACP-12CH35GEK
ACP-12CH35GEK/I

ACP-12CH35GEK/O

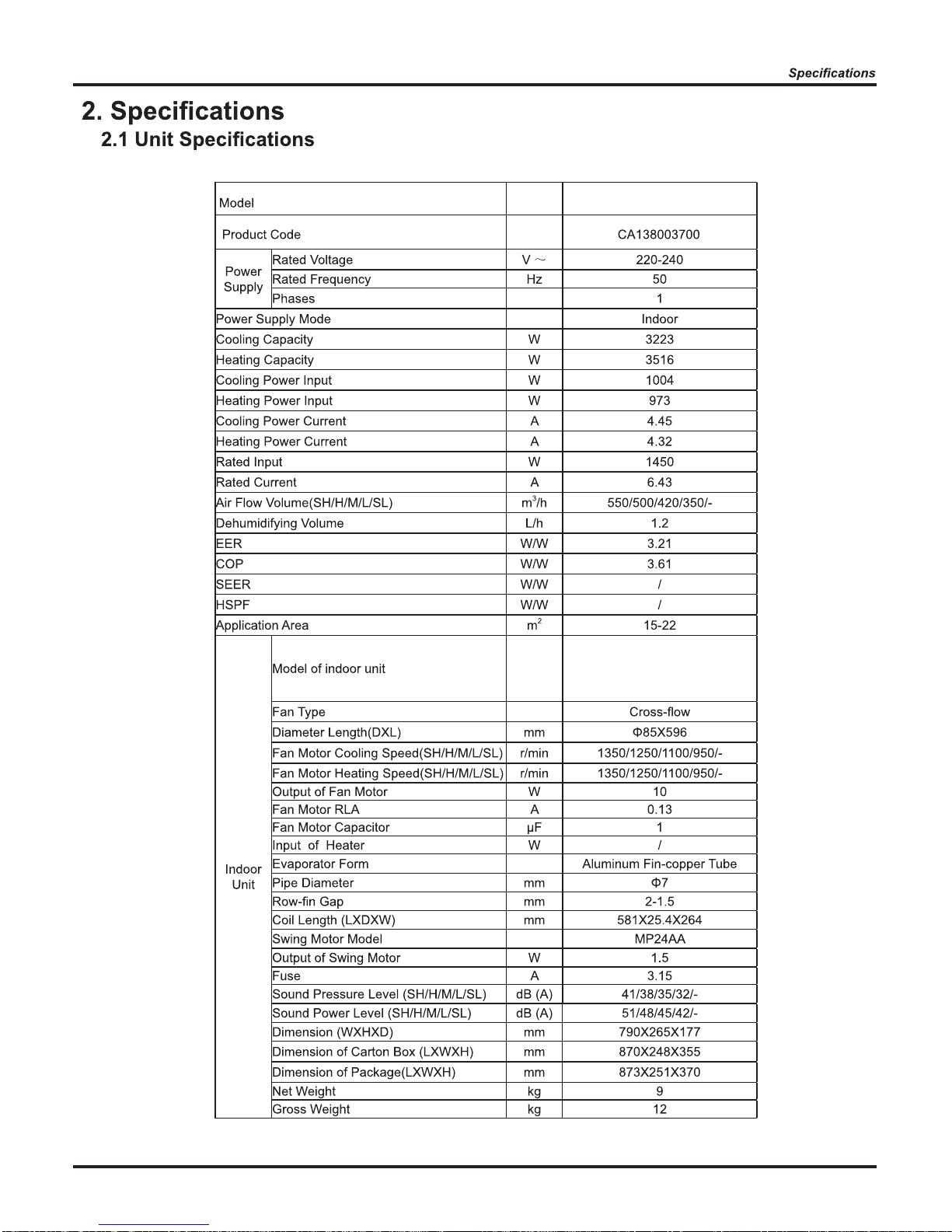

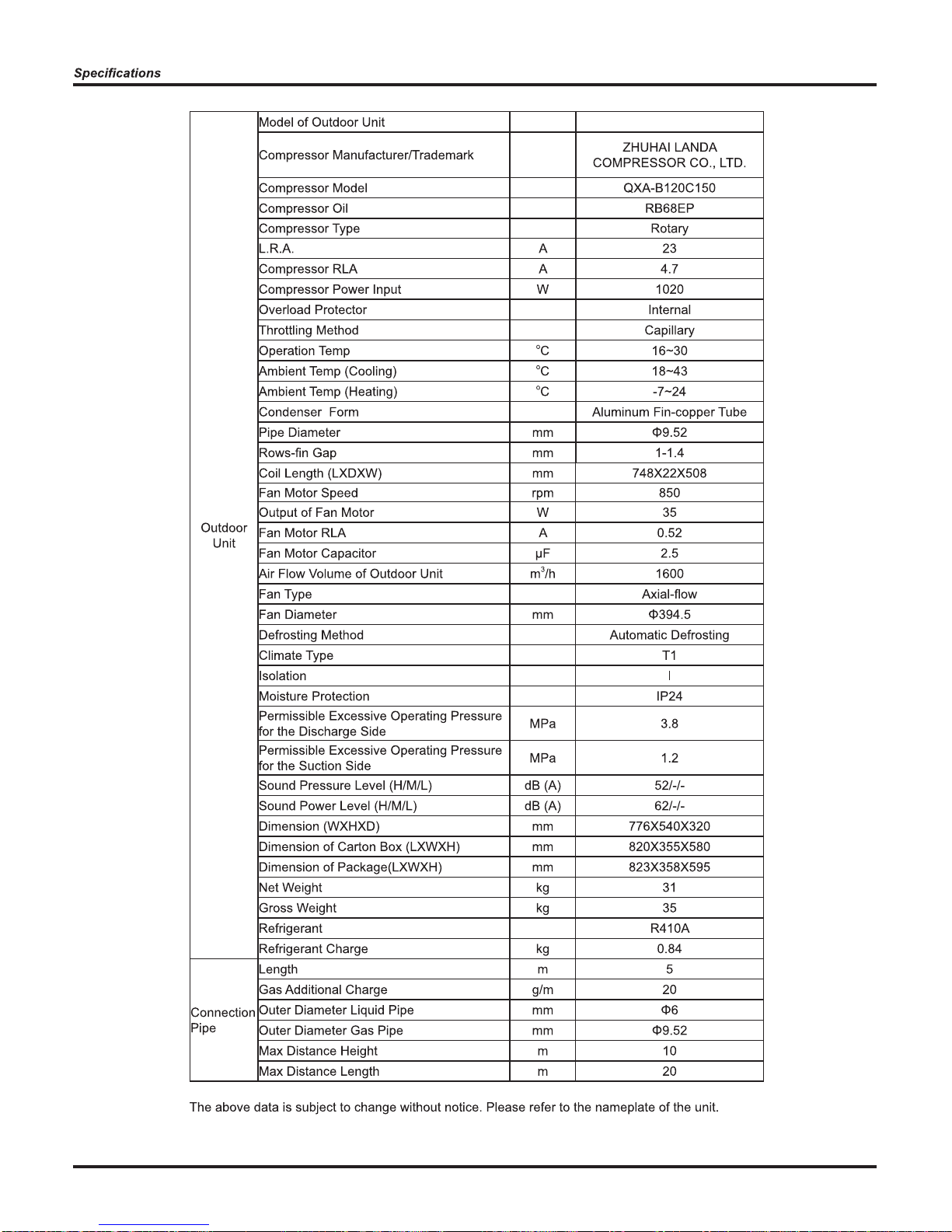

6SHFL¿FDWLRQV

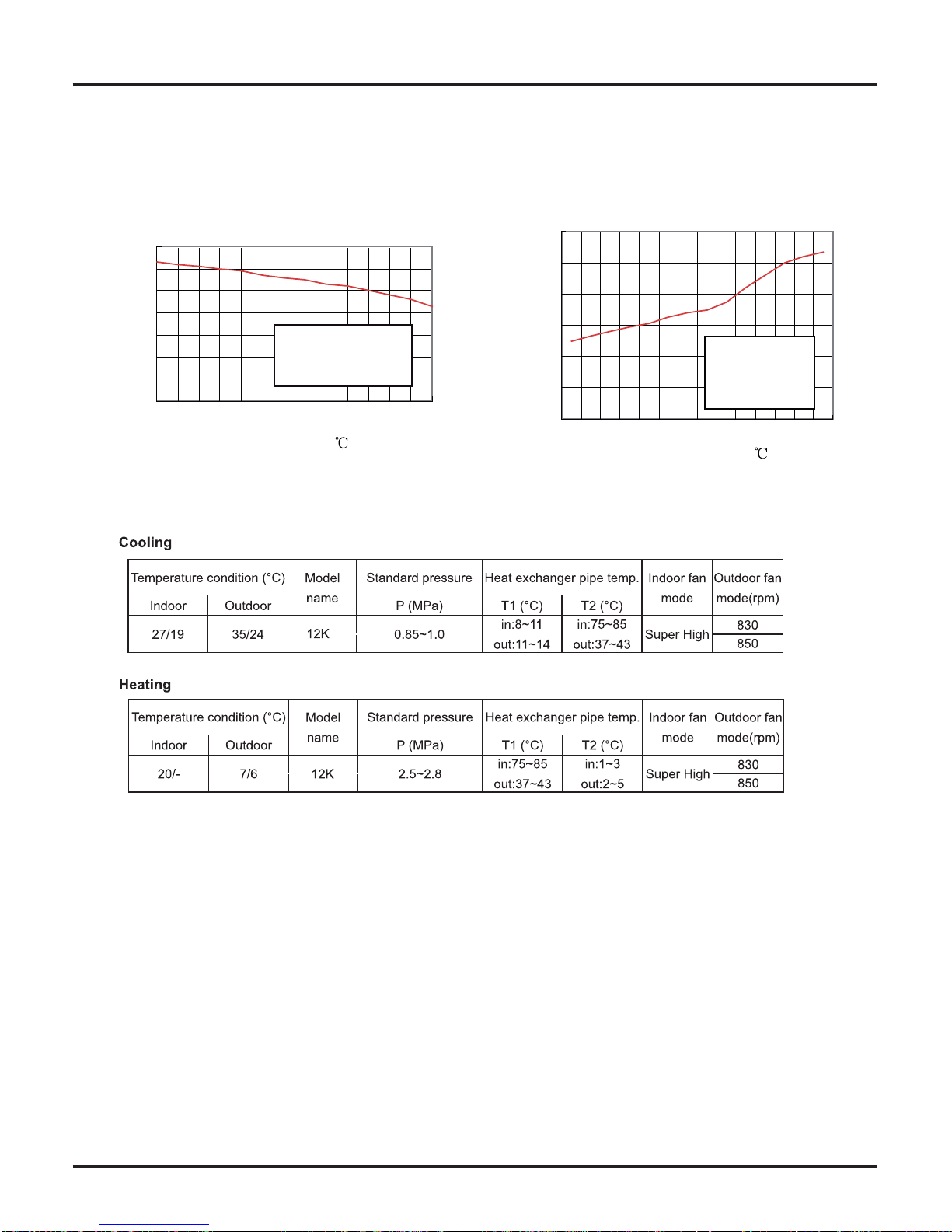

&DSDFLW\9DULDWLRQ5DWLR$FFRUGLQJWR7HPSHUDWXUH
33UHVVXUHRIDLUSLSHFRQQHFWLQJLQGRRUDQGRXWGRRUXQLWV
7,QOHWDQGRXWOHWSLSHWHPSHUDWXUHRIHYDSRUDWRU
7,QOHWDQGRXWOHWSLSHWHPSHUDWXUHRIFRQGHQVHU
127(6
0HDVXUHVXUIDFHWHPSHUDWXUHRIKHDWH[FKDQJHUSLSHDURXQGFHQWHURIKHDWH[FKDQJHUSDWK8EHQW
7KHUPLVWRUWKHPRPHWHU
&RQQHFWLQJSLSLQJFRQGLWLRQP
2SHUDWLRQ'DWD
Cooling Heating
Cooling & Heating Models
40
50
60
70
80
90
100
110
32 33 34 35 36 37 38 39 40 41 42 43 44 45
Outdoor temp.( )
Capacity ratio(%)
0
20
40
60
80
100
120
-15 -13-11 -9 -7 -5 -3 -1 1 3 5 7 9 11
Outdoor temp.( )
Capacity ratio(%)
Condition
Indoor:DB27••WB19••
Indoor air flow: Super High
Pipe length:5m
Condition
Indoor:DB20••
Indoor air flow:
Super High
Pipe length:5m

&RQVWUXFWLRQ9LHZV
&RQVWUXFWLRQ9LHZV
,QGRRU8QLW
2XWGRRU8QLW
8QLWPP
8QLWPP
12K09K
W
H
D
ABC
Models W H D A B C
12K 790 265 177 35 605 150
ABC
712
776
510
320
257
682
045

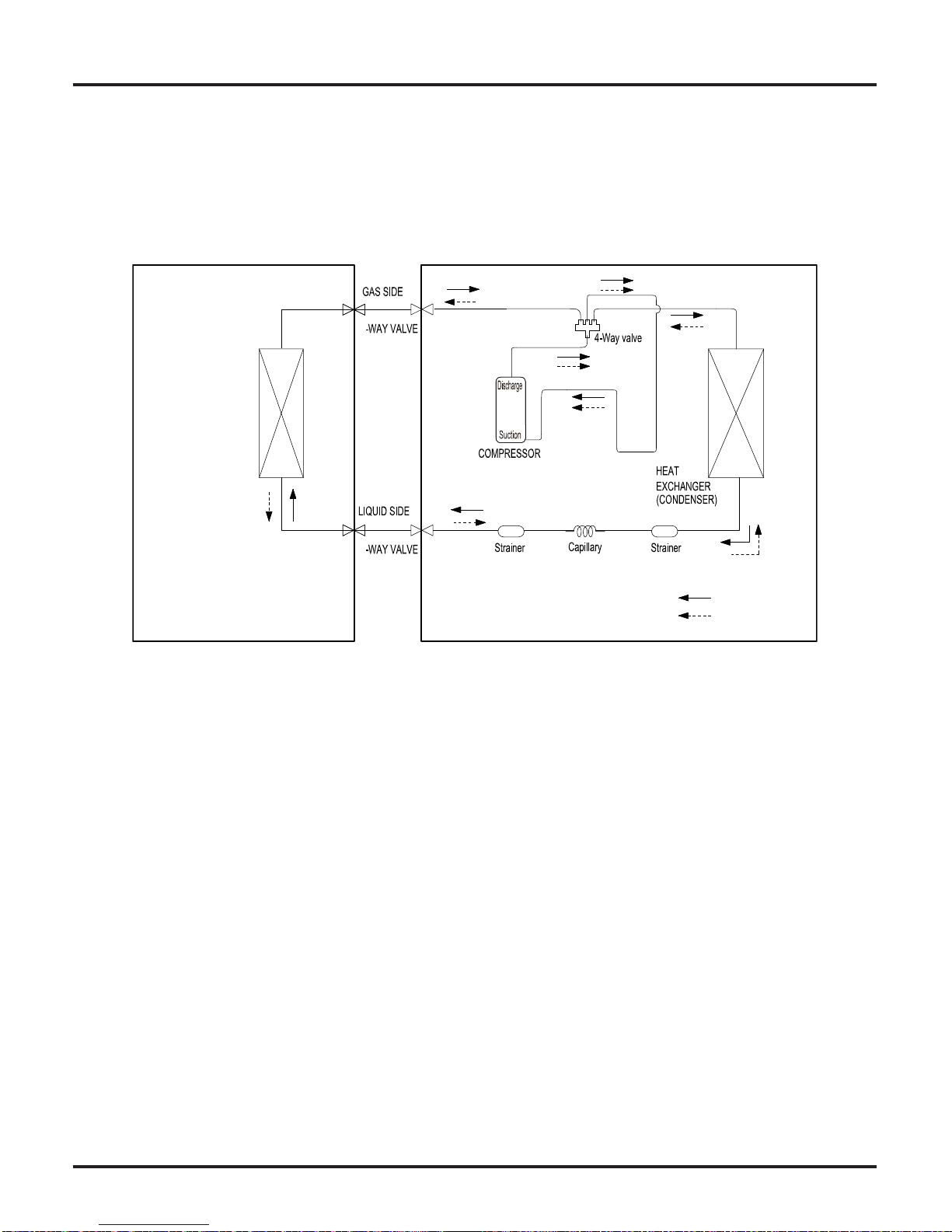

5HIULJHUDQW6\VWHP'LDJUDP
5HIULJHUDQW6\VWHP'LDJUDP
&RROLQJ+HDWLQJ0RGHOV
5HIULJHUDQWSLSHGLDPHWHU
/LTXLGPP
*DVPP
*DVPP*:+1%.11%$
INDOOR UNIT OUTDOOR UNIT
HEAT
EXCHANGER
(EVAPORATOR)
COOLING
HEATING
3
2

6FKHPDWLF'LDJUDP
6FKHPDWLF'LDJUDP

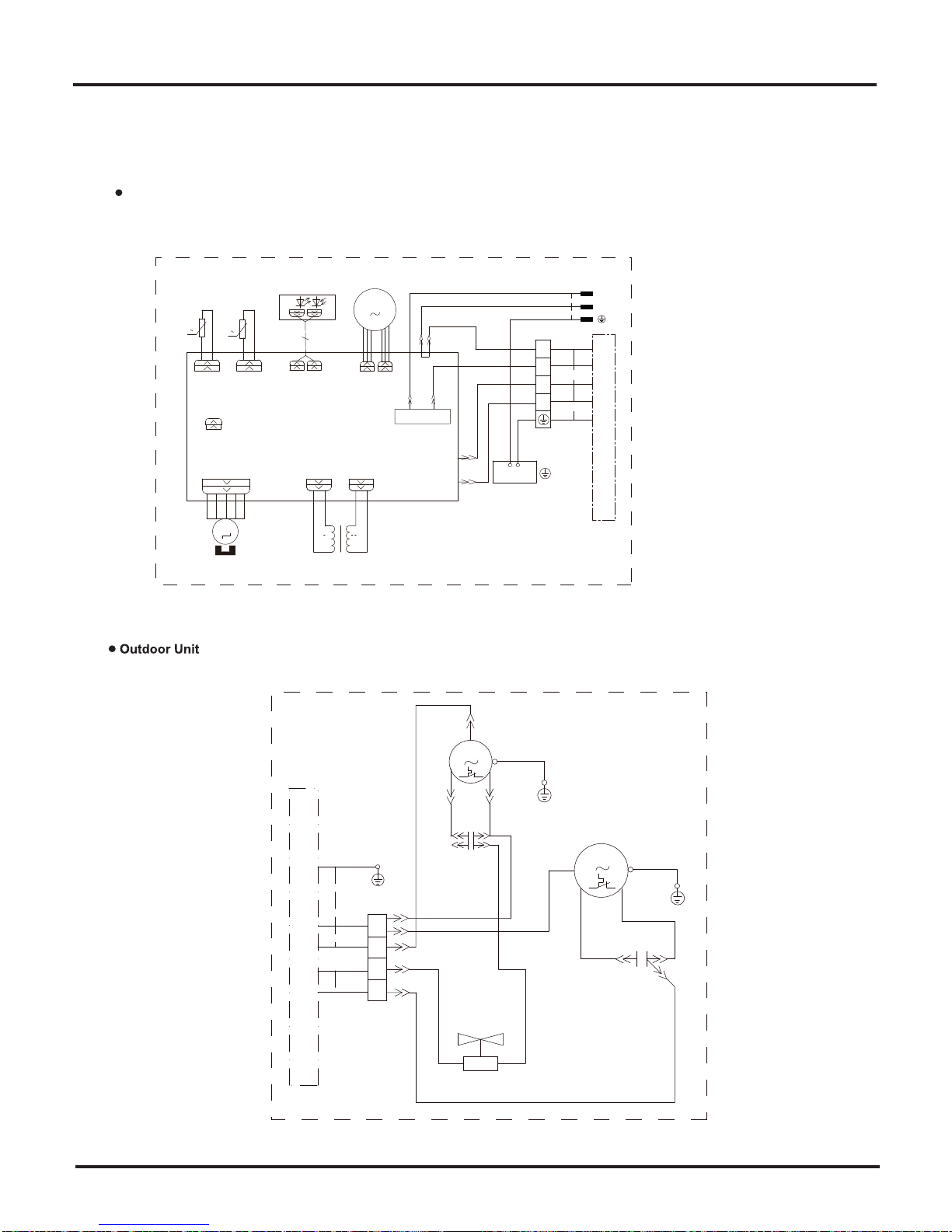

(OHFWULFDO:LULQJ
,QGRRU8QLW
Model: ACP-12CH35GEK/I
TR_IN TR_OUT
TC
MOTOR
STEPPING
M2
SWING-UD
PGF
PG
M1
N
2
XT1
YEGN(GN)
BN(BK)
BU(WH)
BU
BK
POWER
CONN WIRE
4
OUTDOOR UNIT
N1
W2BK
W1BU
ROOM DISP1
AP1
ROOM
DISPLAY FAN MOTOR
OFAN
EVAPORATOR
W5OG
W4VT
AP2
PRINTED CIRCUIT BOARD
TUBE
RT2
PIPE
TEM.SENSOR
RT1
TEM.SENSOR
TRANSFORMER
YEGN
5
4V
VT
OG
YEGN
W3
DISP2
K1
AC-L COMP
CAP
JUMP
0
0
II
N
L
I
TERMINAL BLOCK
COMPRESSOR
YEGN
BU(BK)
BN
RD
OG
INDOOR UNIT
BU
OG
VT
BK
BU
YEGN
BK YE BU
YEGN
2
PE
C2
E
PE
E
R(M,V)
PE
C1
4
5
C(T,U)
S(W,X)
XT1
4YV
FAN MOTOR
N(1)
M
COMP
Model: ACP-12CH35GEK/O

6FKHPDWLF'LDJUDP
3ULQWHG&LUFXLW%RDUG
.
TOP VIEW
BOTTOM VIEW
1
2
3456 789
10
1112
13
1 Compressor control relay
2 Protective tube
3 Indoor fan controls terminal
4 Terminal of power neutral wire interface
5 4-way valve control terminal and relay K115
6 Outdoor fan control terminal and relay K114
7 Auto button
8 Up&down swing control terminal
9 Interface feedback from indoor fan
10 Display control terminal
11 Interface of pipe temperature sensor
12 Interface of ambient temperature sensor
13 Input interface TR-IN and output interface
TR-OUT of linear transformer
ACP-12CH35GEK

)XQFWLRQDQG&RQWURO
)XQFWLRQDQG&RQWURO

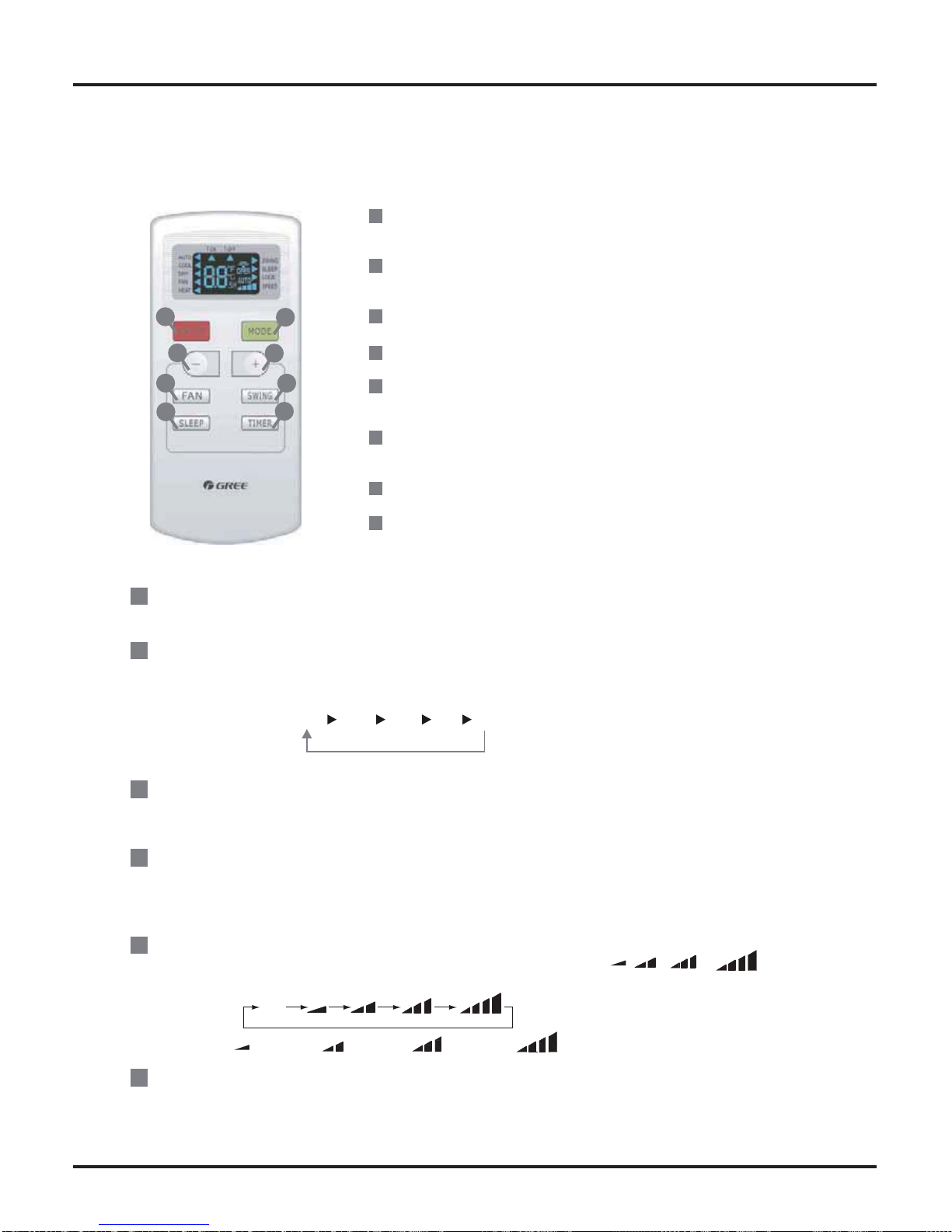

5HPRWH&RQWURO2SHUDWLRQV
2
7
4
3
8
6
5
1
Press it to start or stop operation.
ON/OFF
1
MODE
Press it to select operation mode(AUTO/COOL/DRY/FAN/HEAT).
2
+:Press it to increase temperature setting.
3
-: Press it to decrease temperature setting.
4
FAN
Press it to set fan speed.
5
TIMER
Press it set auto-on/auto-off timer.
8
SLEEP
7
Press it set swing angle.
6
SWING
Press this button to start the unit operation .Press this button again to stop the unit operation.
ON/OFF :
MODE :
Press this button to increase set temperature.Holding it down above 2 seconds rapidly increases set temperature. In
AUTO mode, set temperature is not adjustable.
Press this button to decrease set temperature.Holding it down above 2 seconds rapidly decreases set temperature. In
AUTO mode, set temperature is not adjustable.
.
Auto
4deepS2deepS1deepS Speed 3
Press this key to activate or deactivate the swing.
1
2
3
4
5
6
AUTO COOL DRY FAN HEAT
*
*Note:Only for models with heating function.
:
:
FAN
+
-
:
SWING
:
This button is used for setting Fan Speed in the sequence that goes from AUTO, ,then back
,,to
Each time you press the button,a mode is selected in a sequence that goes from AUTO,COOL,DRY, FAN,and HEAT
as the following:
*,
to Auto.

)XQFWLRQDQG&RQWURO
Press this button to go into the SLEEP operation mode. Press it again to cancel. This function is available in COOL , HEAT
(Only for models with heating function) or DRY mode to maintain the most comfortable temperature for you.
SLEEP:
7
●
●
●
●
●

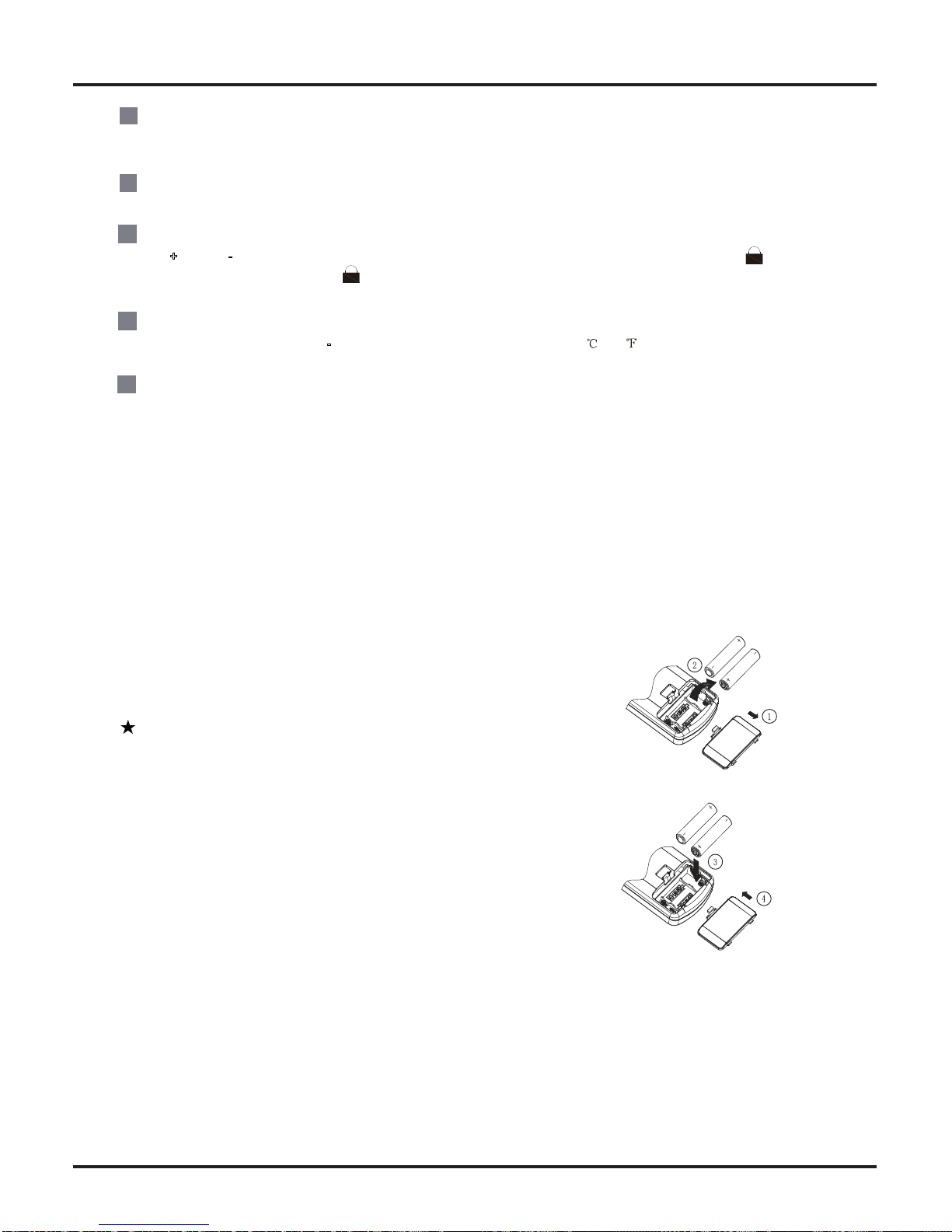

1.Remove the battery cover plate from the rear of the remote controller. (As shown in the figure)
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
4. Close the battery cover plate.
When replacing the batteries, do not use old or different types of batteries
If the remote controller will not be used for a long time, please
otherwise, it may cause malfunction.
remove batteries
to prevent batteries from leaking.
The operation should be performed in its receiving range.
It should be kept 1m away from the TV set or stereo sound sets.
If the remote controller does not operate normally, please take the batteries out
and replace them after 30 seconds. If still not operating properly.
Notes:
replace the batteries.
Fig.1
Fig.2
TIMER:
Press this button to initiate auto-on/auto-off timer. To cancel auto-timer program, press this button twice.
8
4
Replacement of Batteries
Press " + " and " - " buttons simultaneously to lock or unlock the keypad. If the remote controller is locked , is displayed
I n this case, press ing any button, blinks three times.
At unit OFF, press "MODE " and " - " buttons simultaneously to switch between and .
Combination of "+" and "-" buttons:About lock
9
Combination of "MODE " and "-" buttons: About switch between fahrenheit and cenrigrade
10
About Lamp
Under switch-on or switch-off state, you may hold "+" and "FAN"buttons simultaneously for seconds to set the lamp on or
3
off and send the code. After being energized, the lamp is defaulted on.
Combination of "+" and "FAN" buttons:
11

)XQFWLRQDQG&RQWURO
1 Temperature Parameters
Indoor preset temperature (Tpreset)
Indoor ambient temperature (Tamb.)
2 Basic functions (The temperature in this manual is expressed by Centigrade. If Fahrenheit, is used, the switchover between
them is Tf=TcX1.8+32.)

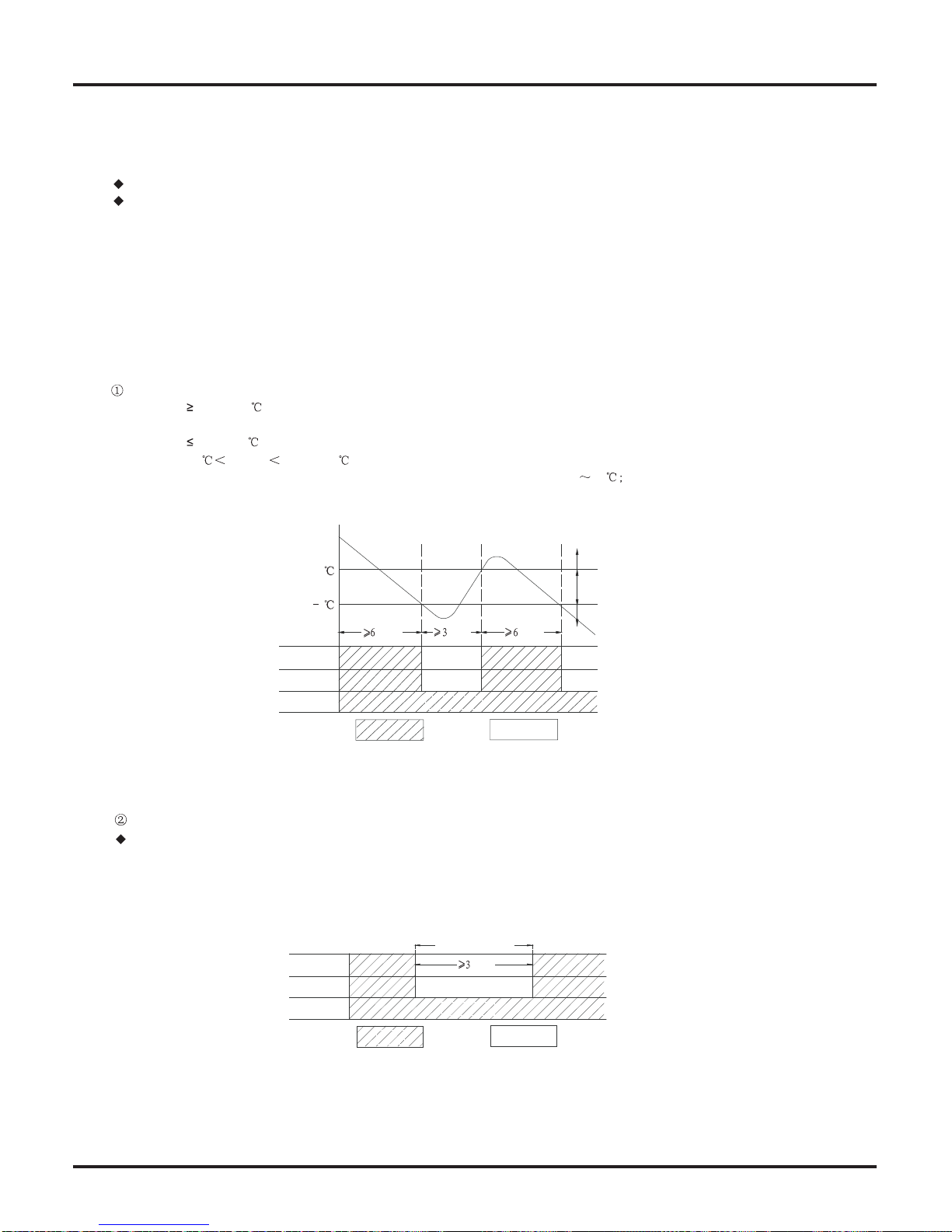

(1)Cooling mode
Cooling conditions and process
When Tamb. Tpreset+1 , the unit starts cooling operation. In this case, the compressor and the outdoor fan operate and the
indoor fan operates at set speed.
When Tamb. Tpreset-1 , the compressor and the outdoor fan stop while the indoor fan runs at set speed.
When Tpreset-1 Tamb. Tpreset+1 , the unit will maintain its previous running state.
Tpreset+1
T
preset 1
Tamb Start cooling
Original operating status
Stop cooling
min
. min. min.
Compressor
Outdoor fan
Indoor fan Set Fan speed
Run Stop
In cooling mode, the four-way valve is de-energized; temperature setting range is 16 30 the indoor unit displays operation
icon, cooling icon and set temperature.
Protection Functions
Freeze potection
If the system is under freeze protection, the compressor and the outdoor fan stop operation, and the indoor fan operates at set
speed. If freeze protection is eliminated and the compressor has been out of operation for 3 minutes, the unit will resume its
previous running state.
Freeze protection period
Compressor
Outdoor fan
Indoor fan
min
S
et Fan Speed
Run Stop
Once the unit is energized, the compressor shall never be restarted except 3mins interval at least. For the first energization,
if the unit is at off status before power failure, the compressor can be restarted without 3-min delay. But if the unit is at on
status before power failure, the compressor shall be restarted with 3mins delay. Once the compressor is started up, the
compressor won't stop running within 6mins with the change of room temperature.
.
'HVFULSWLRQRI(DFK&RQWURO2SHUDWLRQ

)XQFWLRQDQG&RQWURO
(2)Dry Mode
Dry Conditions and Process
When Tamb. Tpreset+2 , the unit will run in dry and cooling mode, in that case the compressor and outdoor fan will run and
the indoor fan will run at low speed.
When Tpreset-2 Tamb. Tpreset+2 , the unit will run in dry mode, in that case, the indoor fan will run at low speed, the
compressor and the outdoor fan will be stopped in 6 min. After 4 min, the compressor and the outdoor fan will be restarted. Dry
process is cycled as the above.
When Tamb. Tpreset-2 , the compressor and the outdoor fan will stop working and the indoor fan will run at low speed.
In this mode, the four-way valve is de-energized, and setting temperature range is between 16 30 . The displayer will display
running and drying icons and setting temperature.
Tpreset+2
T
preset 2
Cooling
Dehumidfying
Stop
min . min.
min. min.
Outdoor fan
Compressor
Indoor fan Low speed
Run Stop
Protection
Freeze potection
If freeze protection of the system is detected in dry and cooling mode, the compressor and the outdoor fan will stop
running and the indoor fan will run at low speed. When the freeze protection is released and the compressor has been
stopped for 3 min, the complete unit will resume its previous running state. Upon the condition that the compressor runs for 6
min and stops for 4 min is met and freeze protection is detected, the compressor and the outdoor fan will stop running and
the indoor fan will run at low speed. When the freeze protection is released and the compressor has been stopped for 4
min, the complete unit will resume its previous running state.
Other protection
Other protections are the same as those in cooling mode.
T
amb.
(3)Heating mode
Heating conditions and process
When Tamb. Tpreset+2 , the unit will run in heating mode, in that case, the four-way valve, the compressor and the outdoor
fan will run simultaneously. The indoor fan will delay at most 2mins to run. The indoor fan will run 2 mins delayed at most.
When Tamb Tpreset+4 , the compressor and the outdoor fan will stop and the four-way valve will remain energized(keep
energizing) and the indoor fan will blow residual heat.
When T
preset
+2 T
amb. T preset
+4 , the unit will maintain its previous running state.
Under this mode, the four-way valve is energized, and setting temperature range is 16 30 . The displayer will display running
and heating icons and setting temperature.
Tpreset
Tpreset
Compressor
Outdoor unit
Indoor unit
4-way valve
min
stop heating
original operation status
start heating
Tamb.
min
min
min
setting
fan speed
setting
fan speed
min
Run Stop

)XQFWLRQDQG&RQWURO
Defrosting Conditions and Process
The unit with intelligent defrosting function can defrost according to frosting conditions. Dual8 displays H1.
Protection Function
High Temp Resistance Protection
If it is detected that the evaporator tube temperature is superheating, the outdoor fan will stop working. When the tube temperature
resumes to normal condition, the outdoor fan will resume running.
Noise Silencing Protection
If the unit is stopped by pressing ON/OFF or during switchover of modes, the reversing valve will be stopped after 2 min.
(4)Fan mode
In this mode, indoor fan runs at setting speed, and the compressor, the outdoor fan, the four-way valve and the electric heating tube
will stop running.
In this mode, temperature setting range is 16 30 . Displayer displays running icons and the setting temperature.
(5)Auto Mode
In this mode, the air conditioner will automatically select its running mode (cooling, heating or fan) with the change of ambient
temperature. The displayer will display the running icons, actual running mode icon and setting temperature. There is 30s delay
protection for mode switching. Protection functions are the same as those in any other mode.
3 Other Control
(1)Timer function
The mainboard combines general timer and clock timer functions. Timer functions are selected by equipping remote controller with
different functions.
General Timer:
Timer ON can be set under off state of unit. If timer ON reaches, the controller will run under previous setting mode. Timing interval
is 0.5hr and the setting range is 0.5-24hr.
Timer OFF can be set under on state of unit. If timer OFF reaches, the unit is turned off. Timing interval is 0.5hr within the range of
0.5-24hr.
Clock Timer:
If timer on is set under running state of unit, the system will continue running. If timer on is set under off state of unit, the system will
run in presetting mode when timer on reaches.
If timer off is set under off state of unit, the system will keep standby state. If timer off is set under on state of unit, the system will
stop running when timer off reaches.
Timer Change:
If the system is under timer state, the unit can be turned on/off by ON/OFF button of remote controller. Timing can also be reset and
then the system runs according to the final setting.
If timer on and timer off is set at the same time under running state of system, the system will keep present running state till timer off
reaches and then it will stop running.
If timer on and timer off are set at the same time under off state of system, the system will keep stopping till timer on reaches and
then it will start running.
In the future, the system will run in presetting mode when timer on reaches and stop when timer off reaches every day. If timer on
and timer off have the same setting, timer off is prevails.
(2)Auto Button
If press this button, the system will run in auto mode, and the indoor fan motor will run at auto speed; meanwhile, the swing motor
will be running. Repress this button to turn off the unit.
(3)Buzzer
When the controller is energized or receives any command or signal from the buttons or the remote controller, the buzzer will give
out a beep.
(4)Sleep Function
Choose the sleeping curve according to the preset temperature.
(5)Turbo Function
This function can be set in cooling or heating mode.

)XQFWLRQDQG&RQWURO
(8)Up & Down Swing
After energization, up & down swing motor will rotate guide louver anticlockwise to position 0 to close air outlet.
After turning on the unit, if swing function has not been set, up & down guide louver will clockwise turn to position D in heating mode,
or clockwise turn to level position L in other modes.
If the unit is turned on with swing function setting, the guide louver will swing between W and D. There are 7 kinds of swing states of
guide louver: There are position L, A, B, C, D, and it swings and stops between L and D ( angle between L and D is equiangular).
Upon stop of unit, the guide louver will close to position O. Swing action is valid only when swing command is set and indoor fan is
running.
Note: If the position is set between L and B, A and C or B and D by remote controller, the guide louver will swing between L and D.
(9)Display
Running icon and Mode icon
Upon energization, the unit will display all icons. Under standby state, running indicating icon is displayed in red. If the unit is started
by remote controller, running indicating icon gives off light; Meanwhile, the present setting running mode icon will be displayed(mode
LED: cooling, heating and dry mode). If the light button is turned off, all icons display will be closed.
Dual-8 Display
After starting the unit for the first time, the nixie tube will display present setting temperature in default (16-30 ) the nixie tube will
default to display the preset temperature. When displaying setting temperature signal is received, the nixie tube will display setting
temp. If displaying ambient temperature signal is received, the nixie tube will display present indoor ambient temperature. If other
states are set by remote controller, the display will keep previous. If remote controller receives valid signal during displaying ambient
temperature, ambient temperature will be displayed after setting temperature is displayed for 5s. F1 is displayed for ambient
temperature sensor malfunction, F2 for tube temp sensor malfunction of indoor unit and C5 for jumper cap has malfunction.
Some models: The remote controller will display present setting temp when this display is set. The controller will display ambient
temp for 5s and then setting temp only when indoor ambient temp displaying state is switched from other displaying states by
remote controller.
(
6
)
Dry Function
This function can be set in cooling or dry mode.
(7)Automatic Control of Fan Speed
In this mode, the indoor fan will automatically select high, medium or low speed with the change of ambient temperature.
0 (0 degree)
(10)Locked protection to PG motor
When starting the fan, if motor’s rotational speed is slow for a period of time, the unit will display Locked and stop running to avoid
auto protection for motor. If the unit is on currently, error code H6 will be displayed by the dual-8 nixie tube. If the unit is off currently,
this locked malfunction information won’t be displayed.
(11)Power-off memory
Memory content includes mode, up&down swing, light, setting temp and setting fan speed.
Upon power failure, the unit after power recovery will automatically start to run according to memory content. The system, last
remote-control command without timer setting, will memorize the last remote-control signal and run according to it. If the last remote
controller command has general timer function and the system is de-energized before setting time, the system will memorize the last
timer function in remote controller command after re-energization and time will be recalculated. If there is function in the last remote
controller command but setting time has reached, the system will act as timer on/off setting before de-energization. After
re-energization, the system memorizes the running states before power failure without timer action.
C
lock timer can not be memorized.
A
L
B
C
D

,QVWDOODWLRQ0DQXDO
,QVWDOODWLRQ0DQXDO
1RWLFHVIRULQVWDOODWLRQ
&DXWLRQ
7KHXQLWVKRXOGEHLQVWDOOHGRQO\ E\DXWKRUL]HGVHUYLFHFHQWHUDFFRUGLQJWRORFDO RUJRYHUQPHQWUHJXODWLRQVDQGLQ
FRPSOLDQFHZLWKWKLVPDQXDO
%HIRUHLQVWDOOLQJSOHDVHFRQWDFWZLWKORFDODXWKRUL]HGPDLQWHQDQFHFHQWHU,IWKHXQLWLVQRWLQVWDOOHGE\WKHDXWKRUL]HG
VHUYLFHFHQWHUWKHPDOIXQFWLRQPD\QRWEHVROYHGGXHWRLQFRYHQLHQWFRQWDFWEHWZHHQWKHXVHUDQGWKHVHUYLFHSHUVRQQHO
:KHQUHPRYLQJWKHXQLWWRWKHRWKHUSODFHSOHDVH¿UVWO\FRQWDFWZLWKWKHORFDODXWKRUL]HGVHUYLFHFHQWHU
:DUQLQJ%HIRUHREWDLQLQJDFFHVVWRWHUPLQDOVDOOVXSSO\FLUFXLWVPXVWEHGLVFRQQHFWHG
)RUDSSOLDQFHVZLWKW\SH<DWWDFKPHQWWKHLQVWUXFWLRQVVKDOOFRQWDLQWKHVXEVWDQFHRIWKHIROORZLQJ,IWKHVXSSO\FRUG
LVGDPDJHGLWPXVWEHUHSODFHGE\WKHPDQXIDFWXUHULWVVHUYLFHDJHQWRUVLPLODUO\TXDOL¿HGSHUVRQVLQRUGHUWRDYRLGD
KD]DUG
7KHDSSOLDQFHPXVWEHSRVLWLRQHGVRWKDWWKHSOXJLVDFFHVVLEOH
7KHWHPSHUDWXUHRIUHIULJHUDQWOLQHZLOOEHKLJKSOHDVHNHHSWKHLQWHUFRQQHFWLRQFDEOHDZD\IURPWKHFRSSHUWXEH
7KHLQVWUXFWLRQVVKDOOVWDWHWKHVXEVWDQFHRIWKHIROORZLQJ7KLVDSSOLDQFHLVQRWLQWHQGHGIRUXVHE\SHUVRQVLQFOXGLQJ
FKLOGUHQZLWKUHGXFHGSK\VLFDOVHQVRU\RUPHQWDOFDSDELOLWLHV RUODFNRIH[SHULHQFHDQGNQRZOHGJHXQOHVVWKH\KDYH
EHHQJLYHQVXSHUYLVLRQRULQVWUXFWLRQFRQFHUQLQJ XVHRIWKHDSSOLDQFHE\DSHUVRQ UHVSRQVLEOHIRUWKHLUVDIHW\&KLOGUHQ
VKRXOGEHVXSHUYLVHGWRHQVXUHWKDWWKH\GRQRWSOD\ZLWKWKHDSSOLDQFH
,QVWDOODWLRQ6LWH,QVWUXFWLRQV
3URSHULQVWDOODWLRQVLWHLVYLWDOIRUFRUUHFWDQGHI¿FLHQWRSHUDWLRQRIWKHXQLW$YRLGWKHIROORZLQJVLWHVZKHUH
VWURQJKHDWVRXUFHVYDSRXUVÀDPPDEOHJDVRUYRODWLOHOLTXLGVDUHHPLWWHG
KLJKIUHTXHQF\HOHFWURPDJQHWLFZDYHVDUHJHQHUDWHGE\UDGLRHTXLSPHQWZHOGHUVDQGPHGLFDOHTXLSPHQW
VDOWODGHQDLUSUHYDLOVVXFKDVFORVHWRFRDVWDODUHDV
WKHDLULVFRQWDPLQDWHGZLWKLQGXVWULDOYDSRXUVDQGRLOV
WKHDLUFRQWDLQVVXOSKXUHVJDVVXFKDVLQKRWVSULQJ]RQHV
FRUURVLRQRUSRRUDLUTXDOLW\H[LVWV
,QVWDOODWLRQ6LWHRI,QGRRU8QLW
7KHDLULQOHWDQGRXWOHWVKRXOGEHDZD\IURPWKHREVWUXFWLRQV(QVXUHWKHDLUFDQEHEORZQWKURXJKWKHZKROHURRP
6HOHFWDVLWHZKHUHWKHFRQGHQVDWHFDQEHHDVLO\GUDLQHGRXWDQGZKHUHLWLVHDVLO\FRQQHFWHGWRRXWGRRUXQLW
6HOHFWDSODFHZKHUHLWLVRXWRIUHDFKRIFKLOGUHQ
6HOHFWDSODFHZKHUHWKHZDOOLVVWURQJHQRXJKWRZLWKVWDQGWKHIXOOZHLJKWDQGYLEUDWLRQRIWKHXQLW
%HVXUHWROHDYHHQRXJKVSDFHWRDOORZDFFHVVIRUURXWLQHPDLQWHQDQFH7KHLQVWDOODWLRQVLWHVKRXOGEHFPRUPRUH
DERYHWKHÀRRU
6HOHFWDSODFHDERXWPRUPRUHDZD\IURP79VHWRUDQ\RWKHUHOHFWULFDSSOLDQFH
6HOHFWDSODFHZKHUHWKH¿OWHUFDQEHHDVLO\WDNHQRXW
0DNHVXUHWKDWWKHLQGRRUXQLWLVLQVWDOOHGLQDFFRUGDQFHZLWKLQVWDOODWLRQGLPHQVLRQLQVWUXFWLRQV
'RQRWXVHWKHXQLWLQWKHODXQGU\RUE\VZLPPLQJSRROHWF

,QVWDOODWLRQ0DQXDO
,QVWDOODWLRQ6LWHRI2XWGRRU8QLW
6HOHFWDVLWHZKHUHQRLVHDQGRXWÀRZDLUHPLWWHGE\WKHXQLWZLOOQRWDQQR\QHLJKERUV
6HOHFWDVLWHZKHUHWKHUHLVVXI¿FLHQWYHQWLODWLRQ
6HOHFWDVLWHZKHUHWKHUHLVQRREVWUXFWLRQEORFNLQJWKHLQOHWDQGRXWOHW
7KHVLWHVKRXOGEHDEOHWRZLWKVWDQGWKHIXOOZHLJKWDQGYLEUDWLRQ
6HOHFWDGU\SODFHEXWGRQRWH[SRVHXQGHUWKHGLUHFWVXQOLJKWRUVWURQJZLQG
0DNHVXUHWKDWWKHRXWGRRUXQLW LQVWDOODWLRQGLPHQVLRQVKRXOGDFFRUGZLWKLQVWDOODWLRQGLPHQVLRQGLDJUDP FRQYHQLHQWIRU
PDLQWHQDQFHUHSDLU
7KHKHLJKWGLIIHUHQFHRIFRQQHFWLQJWKHWXELQJZLWKLQPWKHOHQJWKRIFRQQHFWLQJWKHWXELQJZLWKLQP.RUP.
6HOHFWDSODFHZKHUHLWLVRXWRIUHDFKIRUWKHFKLOGUHQ
6HOHFWDSODFHZKHUHWKHXQLWGRHVQRWKDYHQHJDWLYHLPSDFWRQSHGHVWULDQVRURQWKHFLW\
6DIHW\3UHFDXWLRQVIRU(OHFWULF$SSOLDQFHV
$GHGLFDWHGSRZHUVXSSO\FLUFXLWVKRXOGEHXVHGLQDFFRUGDQFHZLWKORFDOHOHFWULFDOVDIHW\UHJXODWLRQV
'RQ¶WGUDJWKHSRZHUFRUGZLWKH[FHVVLYHIRUFH
7KHXQLWVKRXOGEHUHOLDEO\HDUWKHGDQGFRQQHFWHGWRDQH[FOXVLYHHDUWKGHYLFHE\WKHSURIHVVLRQDOV
7KHDLUVZLWFKPXVWKDYHWKHIXQFWLRQVRIPDJQHWLFWULSSLQJDQGKHDWWULSSLQJWRSUHYHQWVKRUWFLUFXLWDQGRYHUORDG
7KHPLQLPXPGLVWDQFHEHWZHHQWKHXQLWDQGFRPEXVWLYHVXUIDFHLVP
7KHDSSOLDQFHVKDOOEHLQVWDOOHGLQDFFRUGDQFHZLWKQDWLRQDOZLULQJUHJXODWLRQV
$QDOOSROHGLVFRQQHFWLRQVZLWFKZLWKDFRQWDFWVHSDUDWLRQRIDWOHDVWPPLQDOOSROHVVKRXOGEHFRQQHFWHGLQ¿[HGZLULQJ
1RWH
0DNHVXUHWKHOLYHZLUHQHXWUDOZLUHDQGHDUWKZLUHLQWKHIDPLO\SRZHUVRFNHWDUHSURSHUO\FRQQHFWHG7KHUHVKRXOGEHUHOLDEOH
FLUFXLWLQWKHGLDJUDP
,QDGHTXDWHRULQFRUUHFWHOHFWULFDOFRQQHFWLRQVPD\FDXVHHOHFWULFVKRFNRU¿UH
(DUWKLQJ5HTXLUHPHQWV
$LUFRQGLWLRQHULVW\SH,HOHFWULFDSSOLDQFH3OHDVHHQVXUHWKDWWKHXQLWLVUHOLDEO\HDUWKHG
7KH\HOORZJUHHQZLUHLQDLUFRQGLWLRQHULVWKHHDUWKLQJZLUHZKLFKFDQQRWEHXVHGIRURWKHUSXUSRVHV,PSURSHUHDUWKLQJPD\
FDXVHHOHFWULFVKRFN
7KHHDUWKUHVLVWDQFHVKRXOGDFFRUGWRWKH1DWLRQDO&ULWHULRQ
7KHXVHUSRZHUPXVWRIIHUWKHUHOLDEOHHDUWKLQJWHUPLQDO3OHDVHGRQ¶WFRQQHFWWKHHDUWKLQJZLUHZLWKWKHIROORZLQJ
:DWHUSLSH*DVSLSH
&RQWDPLQDWLRQSLSH2WKHUSODFHVWKDWSURIHVVLRQDOSHUVRQQHOFRQVLGHUWKHPXQUHOLDEOH
7KHPRGHODQGUDWHGYDOXHVRIIXVHVVKRXOGDFFRUGZLWKWKHVLONSULQWRQIXVHFRYHURUUHODWHG3&%
 
 

,QVWDOODWLRQ0DQXDO
,QVWDOODWLRQ'UDZLQJ
Space to the wall
Space to the ceiling
Space to the wall
Space to the wall
Air outlet side
Space to the floor
Space to the obstruction
Air outlet side
Space to the wall
Air inlet side
300cm
Above
250
cm
Above
15cm Above
15cm
Above
15cm Above
200cm Above
30cm Above
50cm Above
50cm Above
30cm Above
The dimensions of the space necessary for proper
installation of the unit include the minimum
permissible distances to adjacent parts.
ƽ
Schematic diagram being reference only (outdoor unit is with variation),
please refer to real product for authentic information.
