VOLT®Woodsman Single Source LED Downlight
VAL-1813-40-BBZ

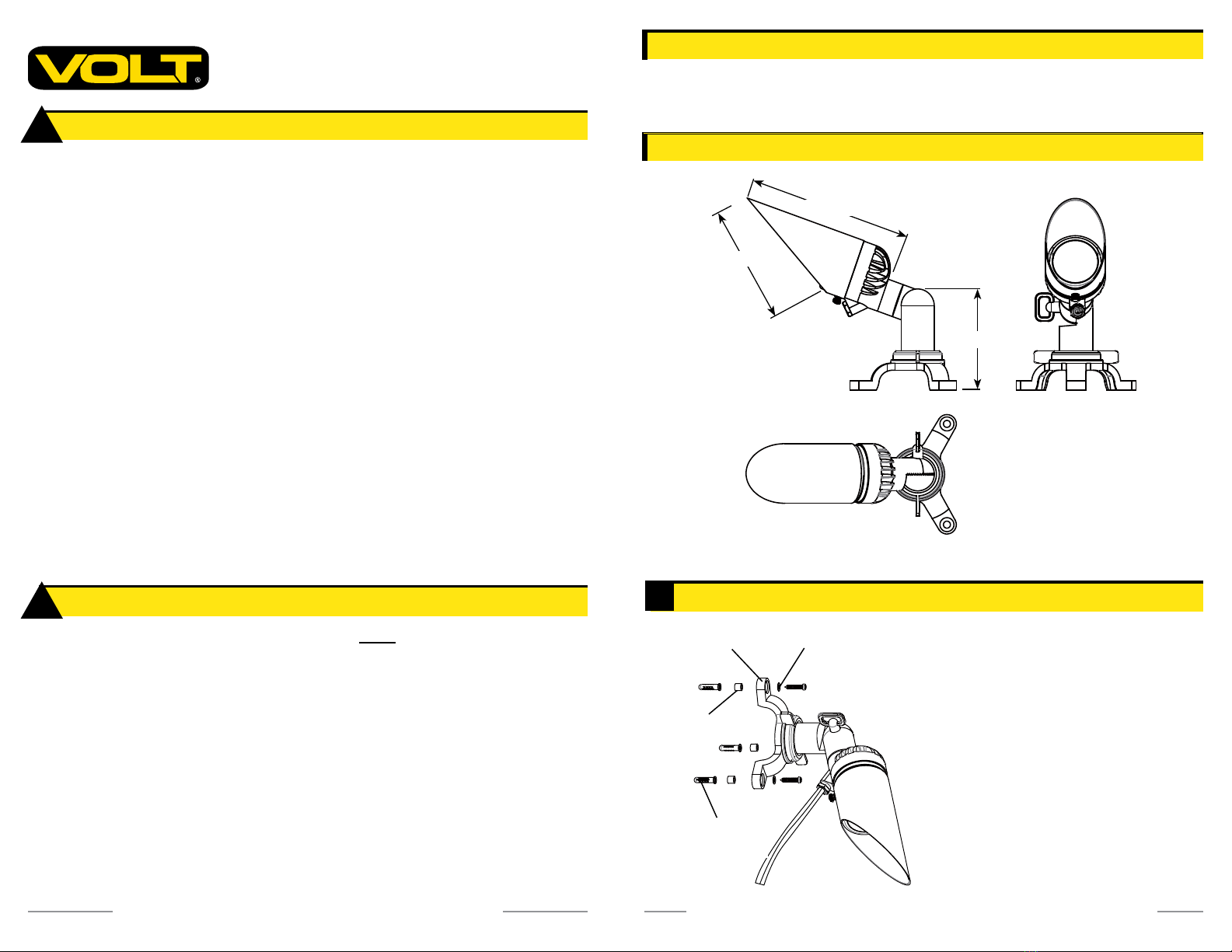

Package Contents
Product Dimensions
Important: Please Read Before Installation
Important Safety Instructions
INSTALLATION INSTRUCTIONS
This xture is intended for installation in accordance with local codes and
the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the
warranty.
These instructions do not intend to cover all variations in installation,
operation maintenance or mounting situations.
1. Make sure that the power is turned OFF before installing or servicing
this xture.
2. Warning: this xture is not intended to be installed within 10 feet [3
meters] of a pool, spa or fountain.
3. This xture is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 12 volts.
4. Underground Low Energy Cable must not be buried over 6” (15.2 cm)
in order to connect to the main low voltage cable.
5. Wiring connections must be made with wire connectors that are
suitable for outdoor use.
6. Position the wire connector so that it is located within 6 inches (15.2
cm) from a building structure, a luminaire, or tting.
LIGHTED LAMP IS HOT!
WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before reducing lamp.
2. Lamp gets HOT quickly!
3. Do not touch the hot lens, guard or cowl.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time.
6. Use a soft cloth.
7. Oil from skin may damage lamp.
8. Do not operate the xture with a damaged or missing lens or shield.
A. (1) Fixture
!
!
www.voltlighting.com [email protected] • 813.978.3700
Install Fixture
1
- 2 - - 3 -
Determine the desired location
for the xture. Place the washers
onto the self-tapping screws. Pass
the self-tapping screws through
the holes of the feet of xture and
spacers. Thread the self-tapping
screws into the desired location to
secure the xture.
NOTE: Anchors are required for
brick walls or concrete walls. To
determine the locations for the
anchors place the feet of the xture
onto your desired location and mark
points from the holes of the feet.
Self-tapping Screw
(not supplied)
Washer (not supplied)
Anchor (optional,
not supplied)
Foot
Spacer
Fixture
4 1/8”
6 5/8”
4.68”

INSTALLATION INSTRUCTIONS
www.voltlighting.com [email protected] • 813.978.3700
Wire Connections
2
Remove Glare Guard
Remove Fixture Lens
4
5
- 4 - - 5 -
Adjust Glare Guard Direction
3
Install / Replace Optic
VOLT®Woodsman Single Source LED Downlight
VAL-1813-40-BBZ
Strip both leads from the
luminaire pigtail. Using
two wire connectors (sold
separately), connect the leads
from the luminaire to the
main supply cable leads.
Pigtail
Main Supply Cable
Wire Connectors
Unlock the knob and rotate
the glare guard to your desired
direction. Hand tighten
the knob once your desired
direction is achieved.
Glare Guard
Knob
Loosen the set screw and
remove the glare guard from
the xture.
Glare Guard
Set Screw
Fixture
Loosen the xture lens and remove
it from the xture.
Fixture Lens
Fixture

INSTALLATION INSTRUCTIONS
www.voltlighting.com [email protected] • 813.978.3700
- 6 - - 7 -
VOLT®Woodsman Single Source LED Downlight
VAL-1813-40-BBZ
Replace Optic
6
Loosen the screws, and remove the
optic from the xture.
Install the new optic in the xture
and reverse Step 6 - Step 4. Conrm
the optic is properly aligned over the
LED board before tightening down.
Improper alignment when tightening
the screws can cause the optic to
break.
Screw
Optic
LED Board
Fixture
