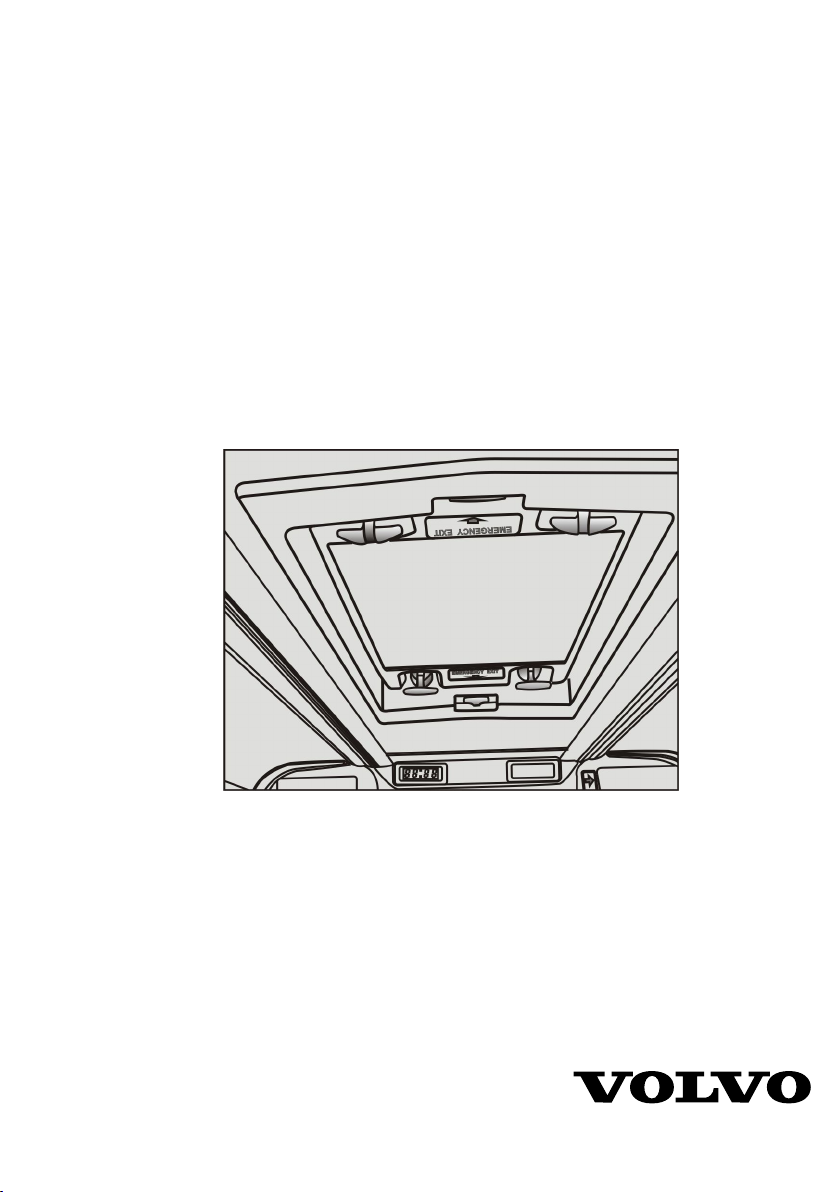

Volvo 9700 User manual

OperatingInstructions
ManualRoofHatch,Operation
9700Bus
T8061505

Foreword
Thismanualcontainsinformationconcerningtheoperationandfunction
oftheManualRoofHatchesountedonthe9700US/CAN.
Illustrationsinthismanualareusedforreferenceonlyandmaydiffer
slightlyfromtheactualvehicle.However,keycomponentsaddressedin
thisdocumentarerepresentedasaccuratelyaspossible.
TheNationalHighwayTrafcSafetyAdministration(NHTSA)and
Prevostshouldbeinformedimmediatelyifyoubelievethatthevehicle
hasadefectthatcouldcauseacrash,injuryordeath.
ContactNHTSAbycallingtheAutoSafetyHotlineat1(888)327–4236,
bywritingtoNHTSA,U.SDepartmentofTransportation,Washington,
DC20590,byTTYat1(800)424–9153,orvisittheirwebsiteat
www.nhtsa.dot.gov.
VolvoBusCorporation
Göteborg,Sweden
Ordernumber:88994761
©2010V olvoBusCorporation,Göteborg,Sweden
Allrightsreserved.Nopartofthispublicationmaybereproduced,stored
inretrievalsystem,ortransmittedinanyformsbyanymeans,electronic,
mechanical,photocopying,recordingorotherwise,withouttheprior
writtenpermissionofV olvoBusCorporation

Contents
Introduction....................................................................................................1
Introduction...................................................................................................1
ManualRoofHatches........................................................................................2
Normaloperation............................................................................................2
OpeningtheRoofHatchforanemergency............................................................3
ReassemblingtheRoofHatch............................................................................5
Index..............................................................................................................9

SafetyInformation
IMPORTANT:Beforedrivingthisvehicle,
becertainthatyouhavereadandthat
youfullyunderstandeachandeverystep
ofthedrivingandhandlinginformation
inthismanual.Becertainthatyoufully
understandandfollowallsafetywarnings.
Itisimportantthatthefollowinginformation
beread,understoodandalwaysfollowed.
Thefollowingtypesofadvisoriesareused
throughoutthismanual:
DANGER
Dangerindicatesanunsafepracticethat
couldresultinseriouspersonalinjuryor
death.Adangeradvisorybannerisin
whitetypeonablackbackgroundwitha
blackborder.
WARNING
Warningindicatesanunsafepracticethat
couldresultinpersonalinjury.Awarning
advisorybannerisinblacktypeonagray
backgroundwithablackborder.
CAUTION
Cautionindicatesanunsafepracticethat
couldresultindamagetotheproduct.A
cautionadvisoryisinblacktypeona
whitebackgroundwithablackborder.
Note:Noteindicatesaprocedure,practice,
orconditionthatmustbefollowedinorder
forthevehicleorcomponenttofunctionin
themannerintended.

Introduction1
Introduction
Thisbookletisintendedtohelpthedriver
abouthowtooperateproperlyandtakecare
ofthemanualroofhatches.

2ManualRoofHatches
Normaloperation
Openningthehatch
Whenfreshairintakeisrequired,e.g.,when
theAirConditioningsystemisnotworking,
itispossibletoopentheroofhatchesfrom
inside.Toopenthehatchprocedureas
follows:
•Tounlocktheroofhatchpullthetwoblack
handlestowardscenterofthehatch
•Pushuptheroofhatchonthesidewere
wasunlocked
•Dothesameforoppositeend.
Note:Donotopentheroofhatchwhenthe
AirConditioningSystemisworking.
T8061506
Closingthehatch.
Toclosethehatchproceedasfollows
•Takethetwoblackhandlesandpulldown
•Pulldownagaintheroofhatchuptored
tabappears,thismeansthatthehatchis
properlyclosed
•Dothesamefortheoppositeend.
T8061507
T8061507

ManualRoofHatches3
OpeningtheRoofHatchforanemergency
Interior
Incaseofanemergency,toopenthehatch
fromtheinside,performthefollowingsteps:
1Pullouttheredemergencyhandleatboth
endsofthehatch.
2Pushouttheroofhatch.
Note:Whentheroofhatchisopenedbecause
anemergency,astripxedatoneendavoids
thatthehatchgetsmiss.
T8061509
T8061510
T8061511

4ManualRoofHatches
Exterior
Incaseofanemergency,toopenthehatch
fromtheoutside,performthefollowingsteps:
1Pulloutbothredemergencyhandles,
locatedattherightsideoftheframeofthe
roofhatch
2Pullouttheroofhatch.
T8061298

ManualRoofHatches5
ReassemblingtheRoofHatch
Toreassemblytheroofhatchafteritwas
openedforanemergency,proceedasfollows:
Puttheroofhatchinapositionwereitwill
possibletohaveaccesstothemechanisms.
Pulluptheblackhandleandpulldownthe
mechanism,doitforeachmechanism
T8061512
Turnthelugsuntiltheholesarehorizontally
T8061513
T8061514
Movetherodtoallowtoinserttheroofhatch
mechanismsintheirposition,doitforeach
end
T8061515

6ManualRoofHatches
Placethemechanismintotheirpositions(two
byeachend)
T8061516
Insertthelargerendoftherodinthemiddle
ofthelugtouselikeaguide,dothesamefor
theotherendoftheroofhatch
T8061517
Now,carefullyinsertbothendsoftherod
insidetheholesoftheframeandmechanisms
T8061568

ManualRoofHatches7
Whentherodiscompletelyinsertedinits
position,secureitwiththeplasticbracket
T8061518
Placetheemergencyredhandlesintheir
originalpositions
T8061519
Closethehatchasthenormalclosing
procedure
Note:Alwayscheckthattheroofhatchis
closeproperlybycheckingtheredtabsare
visible.
T8061520
