Volvo FM Series Quick start guide

D
Service Manual
Trucks
Group 37
Release 01
Wiring diagram
FM
FH VAL-BAS4, VAL-CHD2
CHID A678743–
CHID B532897–
CHID CKD882147–
20160445

D
Foreword
The descriptions and service procedures contained in this manual are based on designs
and methods studies carried out up to September 08.
The products are under continuous development. Vehicles and components produced
after the above date may therefore have different specifications and repair methods.
When this is judged to have a significant bearing on this manual, supplementary service
bulletins will be issued to cover the changes.
The new edition of this manual will update the changes.
In service procedures where the title incorporates an operation number, this is a
reference to V.S.T. (Volvo Standard Times).
Service procedures which do not include an operation number in the title are for general
information and no reference is made to V.S.T.
The following levels of observations, cautions and warnings are used in this Service
Documentation:
Note: Indicates a procedure, practice, or condition that must be followed in order to have
the vehicle or component function in the manner intended.
Caution: Indicates an unsafe practice where damage to the product could occur.
Warning: Indicates an unsafe practice where personal injury or severe damage to the
product could occur.
Danger: Indicates an unsafe practice where serious personal injury or death could occur.
Volvo Truck Corporation
Göteborg, Sweden
Order number: 20160445
© 08 Volvo Truck Corporation, Göteborg, Sweden
All rights reserved. No part of this publication may be reproduced, stored in
retrieval system, or transmitted in any forms by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written
permission of Volvo Truck Corporation. ENG31153.ihval

D
Contents
Example of wiring diagram ................................................................... 2
Component wiring diagram index ........................................................ 5
Component wiring diagrams ................................................................ 8
Illustrations index .............................................................................. 119
Illustrations ......................................................................................... 120
Fuses ................................................................................................... 211
Relays ................................................................................................. 213
Wiring harness illustration index ..................................................... 215
Ground connections .......................................................................... 218
List of ground connections ................................................................. 220
List of connectors .............................................................................. 221
List of components ............................................................................ 231
Abbreviations ..................................................................................... 237
Cable colour code .............................................................................. 239
Feedback
1

D
Group 37 Wiring diagram FM, FH Example of wiring diagram
Example of wiring diagram
Component wiring diagram title, variant/subtitle and
symbol.
Coordinates (B 1).
30 Voltage battery, kl.30.
15 Voltage with starter key in drive position, kl.15.
DR Voltage with starter key in drive position, preheat
position and start position, kl.DR.
61 Voltage when alternator charges, kl.61.
Splice.
Fuse.
Reference arrow, for diagram BA, coordinates 0 C,
component A17, connector PA pin 29.
2

D
Group 37 Wiring diagram FM, FH Example of wiring diagram
The maximum of variants are drawn, think about that all
wires and components are not standard for all markets or
vehicle models.
Switch.
Relay.
Conductor on circuit card.
Connector MB terminal 9.
Wire area and colour.
Thin lines, wires.
3

D
Group 37 Wiring diagram FM, FH Example of wiring diagram
Earth connection point 4, earth connection 1 and wire 2.
Earth connection to circuit card.
Earth connection without wire.
Same splice can be drawn on several diagrams. The wire
from the splice to the earth connection point will only be
drawn and coded on one diagram. On the other diagrams
will only the earth connection point be written besides the
splice.
4

D
Group 37 Wiring diagram FM, FH Component wiring diagram index
Component wiring diagram index
AA Power supply, starting system ................................................................ page 9

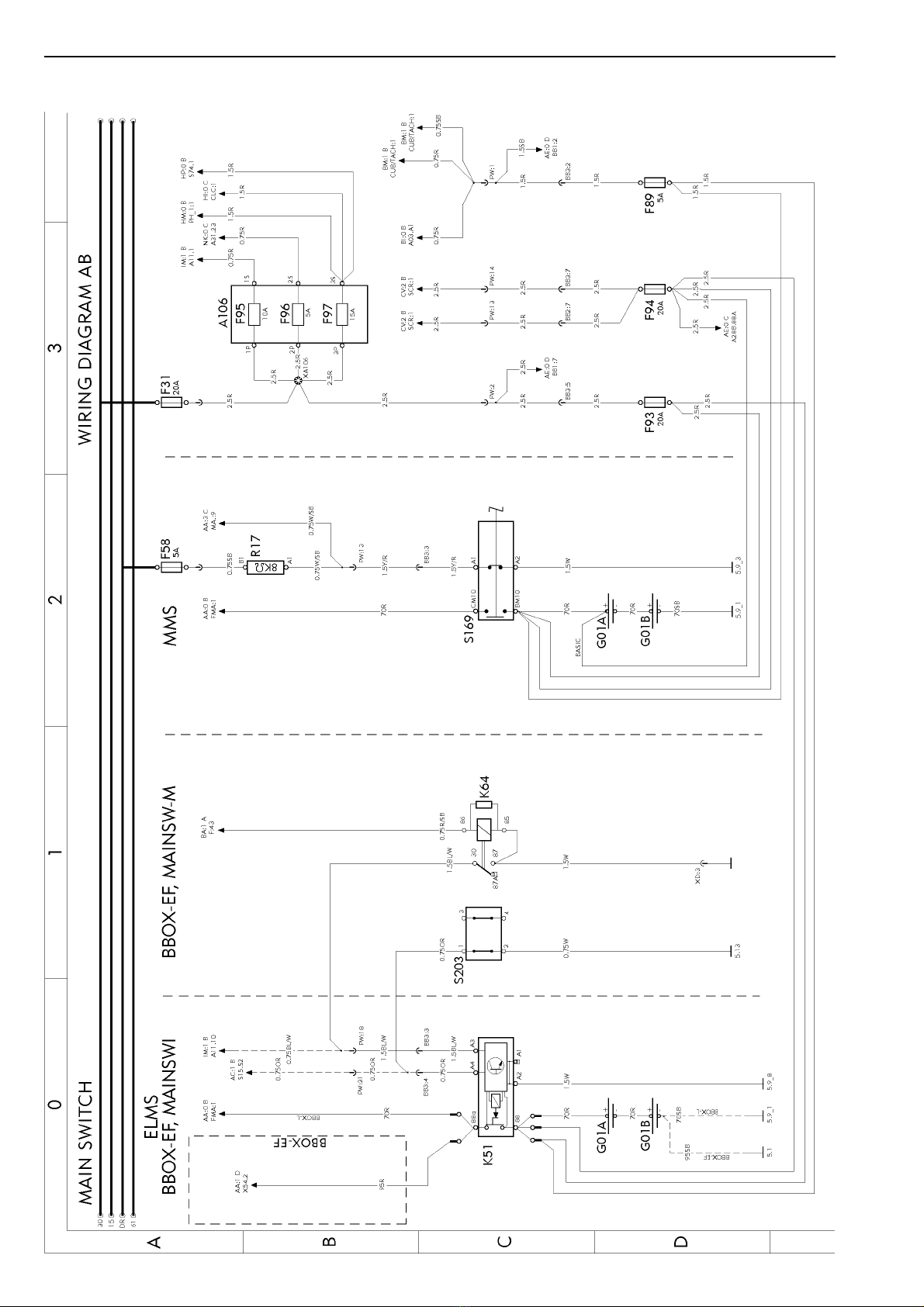

AB Main switch ............................................................................................. page 10
AC Power distribution ................................................................................... page 11
AE ADR, main switch ................................................................................... page 12
BA Vehicle ECU ............................................................................................ page 13
BE Driver Assistance System, ACC ............................................................. page 14

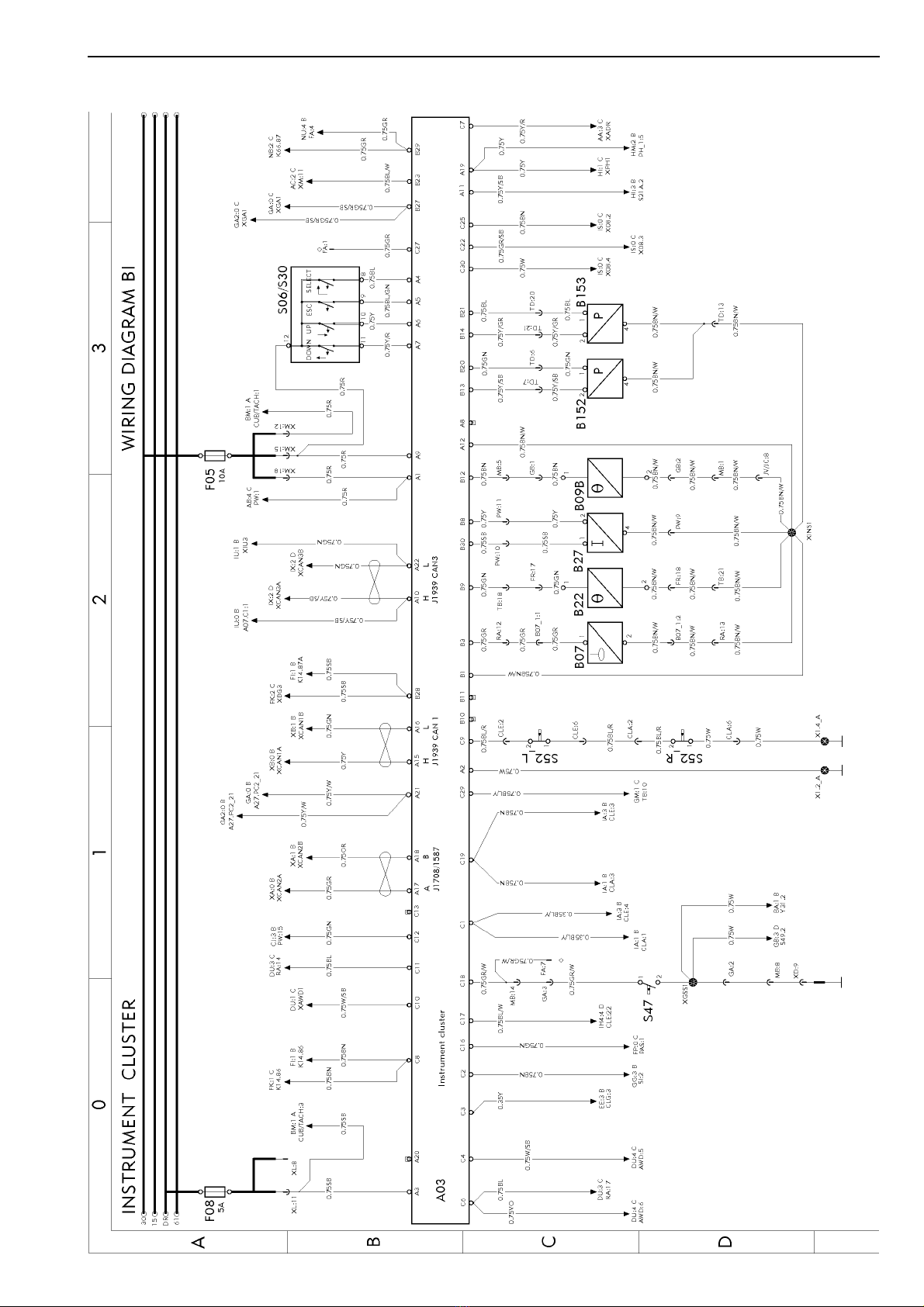

BI Instrument cluster ................................................................................... page 15

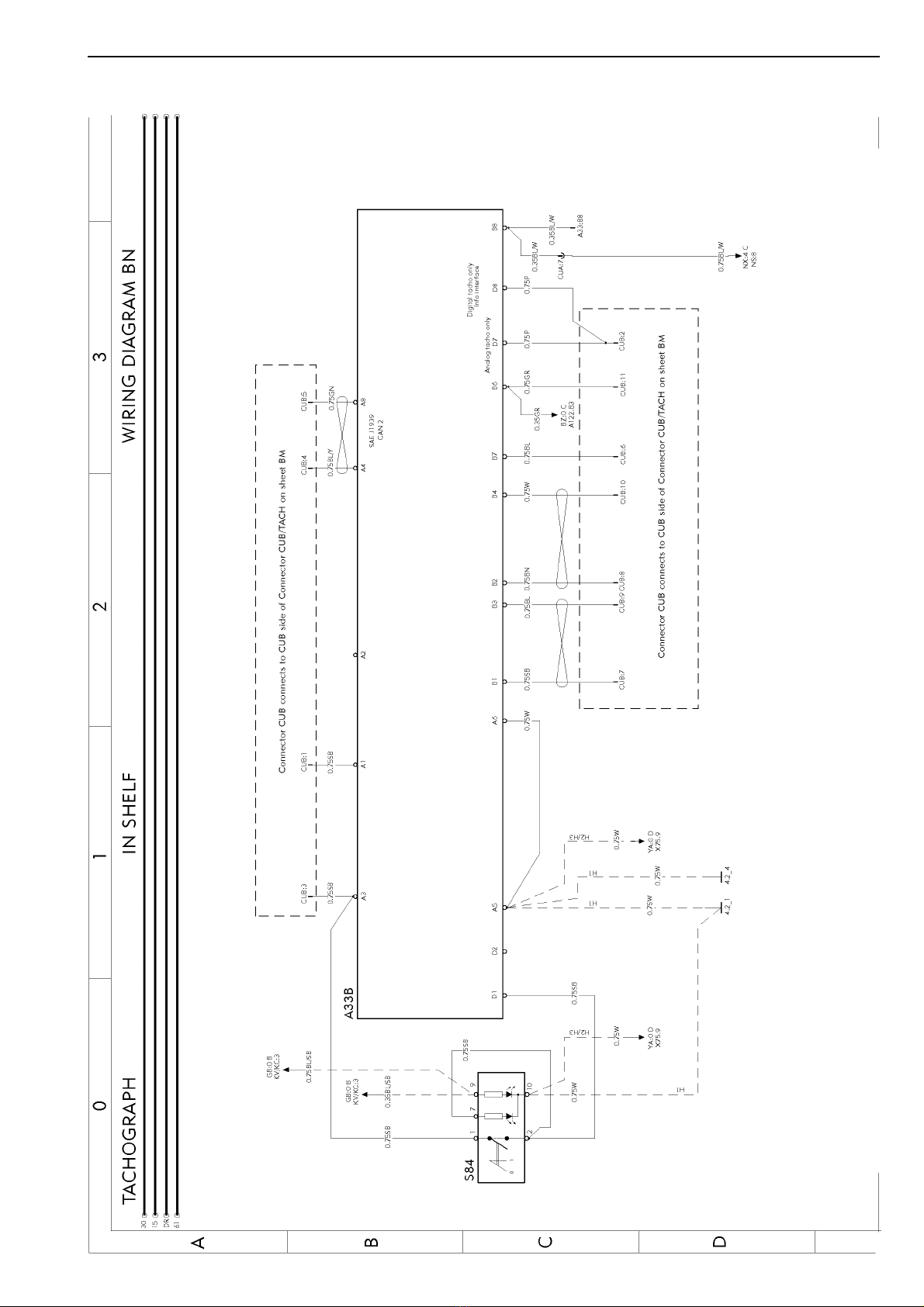

BM Tachograph in dash ................................................................................ page 16
BN Tachograph in shelf ................................................................................. page 17
BU Dynafleet TIS-BAS/TIS-MED/TIS-HIGH ................................................. page 18
BX FMS Gateway ......................................................................................... page 19
BZ Toll collect ............................................................................................... page 20
BZ RHD Toll collect ............................................................................................... page 21
CH Engine interface EM-JPN07 ................................................................... page 22
CJ Engine interface ...................................................................................... page 23
CO Engine D9B, D11B, D13A ....................................................................... page 24
Engine D13B, EGR-C, EM-EC06 ........................................................... page 25
Engine D13B, EGR-C, EM-EC06 ........................................................... page 26
Engine D13B, EM-JPN07 ....................................................................... page 27
Engine D13B, EM-JPN07 ....................................................................... page 28
Engine D16C4 ........................................................................................ page 29
Engine D16E .......................................................................................... page 30
CP 12V trailer ABS converter, VERS-AUS, TABS-12V ................................. page 31
CV SCR ........................................................................................................ page 32
DC Gear selector ECU (I-SHIFT/POWERTRONIC) ..................................... page 33
DI Powertronic ............................................................................................. page 34
DI RHD Powertronic ............................................................................................. page 35
DM Retarder manual gearshift ...................................................................... page 36
DP I-shift ...................................................................................................... page 37
DQ Power take off ......................................................................................... page 38
DU Diff-lock ................................................................................................... page 39
EE ABS basic, E-version .............................................................................. page 40
EE RHD ABS basic, E-version .............................................................................. page 41
EO EBS ECU ................................................................................................ page 42
EO RHD EBS ECU ................................................................................................ page 43
EP EBS modulators ...................................................................................... page 44
FA Air-suspension ....................................................................................... page 45
5

D
Group 37 Wiring diagram FM, FH Component wiring diagram index
FA RHD Air-suspension ....................................................................................... page 46
FG Load indicator ......................................................................................... page 47
FI Bogie lift A-ride ....................................................................................... page 48
FK Bogie lift A-ride with axle load limiter ...................................................... page 49
FM Axle lock, self steered axle ..................................................................... page 50
FO Electronic steered axle ........................................................................... page 51
FP Dual steered front axle ........................................................................... page 52
FQ Air dryer .................................................................................................. page 53
FU Central lubrication system ...................................................................... page 54
GA LCM head lights, FH ............................................................................... page 55
GA2 LCM head lights, FM .............................................................................. page 56
GA3 LCM head lights, FM VAL-BAS2 ............................................................. page 57
GB LCM trailer .............................................................................................. page 58
GB2 LCM trailer, VAL-BAS2 ........................................................................... page 59
GC LCM rear lights ....................................................................................... page 60
GC RHD LCM rear lights ....................................................................................... page 61
GE Rear lights overhang ............................................................................... page 62
GF Rear lights, India/Korea .......................................................................... page 63
GG Trailer connections, RIGID ...................................................................... page 64
GH Trailer connections, TRACTOR ............................................................... page 65
GK Trailer connections (AUS only) ............................................................... page 66
GL Identification lamps ................................................................................. page 67
GL2 Identification lamps, sunvisor H1 ............................................................ page 68
GM Wiper, rainsensor .................................................................................... page 69
GQ Horn ........................................................................................................ page 70
GR Trailer connections TREL14 ................................................................... page 71
GU Headlights adjust .................................................................................... page 72
HE Fan in dash board ................................................................................... page 73
HG Climate unit, CU,-BAS,-MCC,-ECC ........................................................ page 74
HI Air heater, UADR .................................................................................... page 75
HI2 Air heater, ADR ....................................................................................... page 76
HM Water heater ........................................................................................... page 77
HP Short stop cab heater ............................................................................. page 78
HY Climat unit, CU,-HEAT,-ACMAN,-ACAUT. ............................................... page 79
HY RHD Climat unit, CU,-HEAT,-ACMAN,-ACAUT. ............................................... page 80
IA El. heated/adj. seat ................................................................................ page 81
IE El. heat/adj. mirrors, El. window winders ............................................... page 82
6

D
Group 37 Wiring diagram FM, FH Component wiring diagram index
IF Foldable mirror bracket ........................................................................... page 83
IH Interior light, FM, FH H1 ......................................................................... page 84
IH2 Interior light, FH, INLI-NLD ..................................................................... page 85
IH3 Interior light, FM, FH INLI-NL/INLI-BAS ................................................. page 86
IH4 Interior light, H2/H3 ................................................................................. page 87
IK Alcolock, start prevention system ........................................................... page 88
IM Central locking, immobiliser .................................................................... page 89
IQ El. sunroof, cig. lighter, refrigerator ........................................................ page 90
IQ2 Cig. lighter VAL-BAS2 ............................................................................ page 91
IR 12V power supply ................................................................................... page 92
IR2 Power outlets .......................................................................................... page 93
IS SRS. Air-bag ........................................................................................... page 94
IU Audio ....................................................................................................... page 95
IU RHD Audio ....................................................................................................... page 96
IV Amplifier .................................................................................................. page 97
IX Integrated telephone ............................................................................... page 98
IZ Backup camera ....................................................................................... page 99
KA Cab tilt .................................................................................................... page 100
KE Load light, 5:th wheel lamp ..................................................................... page 101
KI Light sign ................................................................................................ page 102
KM Beacon warning light .............................................................................. page 103
ME Extra fuse block, key switch relay ........................................................... page 104
MF Extra fuse block, SPDU-S ....................................................................... page 105
NA Body builder (BB), auxsw-6 and swapbody ............................................ page 106
NB Body builder (BB), tailprep and swapbody .............................................. page 107
NC Body builder (BB), ELCE-CK, BBM, PTO2 ............................................. page 108
NI Extra spotlamps front/roof, max 4x70W .................................................. page 109
NK Burglar alarm .......................................................................................... page 110
NU Body builder (BB), SPEED-DU ............................................................... page 111
NX Body builder (BB), SPDU-S .................................................................... page 112
OA Tyre pressure monitoring (TPM) ............................................................. page 113
XA Bus J1708/J1587 .................................................................................... page 114
XB Bus J1939 ............................................................................................... page 115
XC Bus J1939–7, OBD ................................................................................. page 116
YA Ground connector ................................................................................... page 117
ZA RHD Ground/Misc. ......................................................................................... page 118
7

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
Component wiring diagrams
8

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021430
9

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021658
10

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021431 11

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021432
12

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021433 13

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021434
14

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021435 15

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021436
16

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021437 17

D
Group 37 Wiring diagram FM, FH Component wiring diagrams
T3021438
18
