Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
F-32383 (2-06)
SPECIFICATIONS:
One 40 quart 2/3jacketed tilting steam kettle mounted on
a 24" wide gas boiler base, Vulcan-Hart Model No. 1T4024G.
Steam jacketed kettle mounted on 28" high base cabinet with
stainless steel frame, front full height door, stainless steel side
and aluminized rear panel with 6" adjustable legs with flanged
feet for anchoring. Fully welded hemispheric bottom kettle
with type 304 stainless steel jacket and type 316 stainless
steel liner. Jacket tested to 50 psi (3.4 kg/cm2). Steam control
valve on right trunnion leg. 12" single temperature deck mounted
faucet. 200,000 BTU/hr. gas steam boiler. Requires 120 volt,
60 Hz, 1 phase control circuit, 3 amp.
Exterior dimensions:
Cabinet: 24"w x 35.4"d x 28"h on 6" adjustable legs. Overall
height to the lip of the kettle - 471/2", to the top of the flue
- 585/8".
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
CSA design certified. Classified by U L to NSF Std. #4. Meets
ASME code.
MODEL 1T4024G
40 QUART 2/3JACKETED TILTING
KETTLE ON GAS BOILER BASE
MODEL: 1T4024G 40 Quart 2/3 Jacketed Tilting Kettle On Gas Boiler Base
STANDARD FEATURES
■2/3jacketed tilting steam kettle, 40 quart capacity.
■Steam jacketed kettle mounted on 28" high base cabinet
with stainless steel frame, front full height door, stainless
steel side and aluminized rear panel with 6" adjustable legs
with flanged feet for anchoring.
■Fully welded hemispheric bottom kettle with type 304
stainless steel jacket and type 316 stainless steel liner.
Jacket tested to 50 psi (3.4 kg/cm2).
■Steam control valve on right trunnion leg.
■12" single temperature deck mounted faucet.
■CSD-1 code compliant boiler.
■Electronic ignition.
■200,000 BTU/hr. gas steam boiler.
■Requires a 120 volt, 60 Hz, 1 phase control circuit, 3 amp.
■One year limited parts and labor warranty.
OPTIONS
■■Correction package.
- Cabinet door with hasp (lock by others).
- Security type tamper resistant fasteners.
■■Tilting kettle strainer.
■■12" dual temperature faucet.
■■Mount and interconnect kettle with boiler base at factory.
Includes steam supply piping. Shipped on one skid.
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■Stainless steel back panel.
■■Lift-off cover.
■■Contour measuring strip.
■■Single perforated stainless steel basket.
■■Water filter system, SPS620V. Includes second year extended
limited water associated parts and labor warranty.

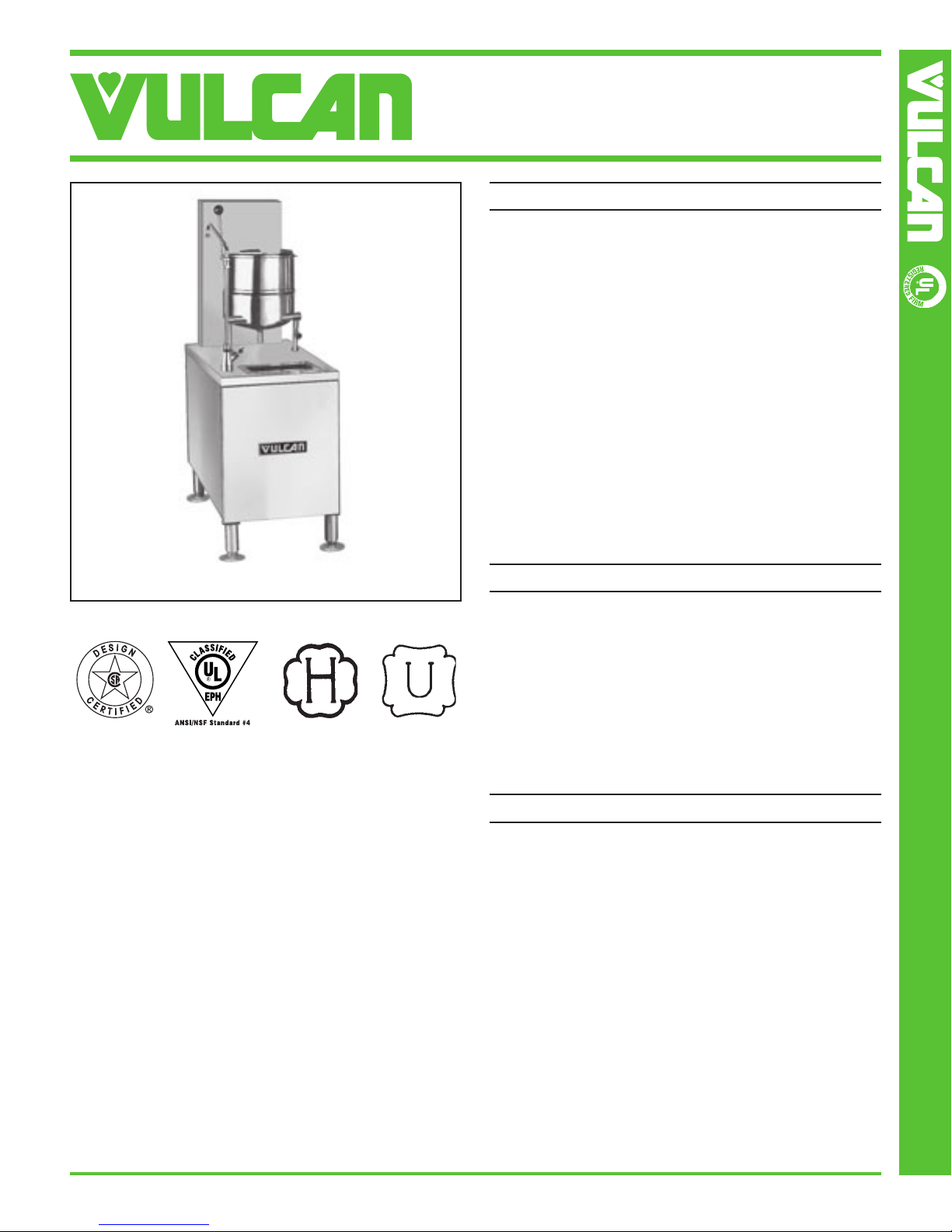

Model 1T4024G Shown

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32383 (2-06)
WATER QUALITY STATEMENT:
The fact that a water supply is potable is no guarantee that it is suitable
for steam generation. Your water supply must be within these general
guidelines:
SUPPLY PRESSURE 20 - 60 psig
HARDNESS* less than 3 grains
SILICA less than 13 ppm
TOTAL CHLORIDE less than 4.0 ppm
pH RANGE 7-8
UN-DISSOLVED SOLIDS less than 5 microns
*17.1 ppm = 1 grain of hardness
Other factors affecting steam generation are iron content, amount of
chloridation and dissolved gases. Water supplies vary from state to state
and from locations within a state. Therefore it is necessary that the local
water treatment specialist be consulted before the installation of any
steam generating equipment.
EQUIPMENT CLEARANCE: Combustible Non-Combustible
Side Walls & Rear Wall 6" 0"
CAPACITIES (in 4 oz. servings):
40 quarts / 10 gallons / 37.5 liters - 320 servings.
MODEL 1T4024G
40 QUART 2/3JACKETED TILTING
KETTLE ON GAS BOILER BASE
SERVICE CONNECTIONS:
AGas Connection: 3/4" NPT.
BElectrical Connection for Controls: 120/60/1. 300 watt maximum,
power supply with grounding wire required. (Not furnished if optional
stepdown transformer is furnished.)
C Drain: Condenser box, compartment and boiler, 11/2" NPT. (Provide
an open air gap type drain within 12" of condenser box and for best
results at a distance so that steam vapors will not enter the steamer
from underneath the control area. Do not connect solidly to any drain
connection.
DCold Water Connections (2):
D1 Treated Cold Water Connection: 1/4" NPT for boiler feed. Inlet
water pressure between 20 and 80 psi.
D2 Untreated Cold Water Connection: 1/4" NPT for condensate
box. Inlet water pressure between 20 and 80 psi.
E Water: For swing faucet, (single) (dual) temperature, 1/4" tubing.
NOTE:
•Dimensions which locate the above connections have a tolerance of
+ or -3" (+ or -75 mm).
•Installation of backflow preventers, vacuum breakers and other specific
code requirements is the responsibility of the owner and installer. It is
the responsibility of the owner and installer to comply with local codes.
•Plastic drains are not recommended due to inherent limited tempera-
tures of the plastic. Boiler purge temperatures may exceed 180°F.
The installer may be required to provide means to reduce boiler
purge water temperature to be that of the condensate temperature of
140°F or less.
•This appliance is manufactured for commercial installation only and
is not intended for home use.
