Vulcan-Hart 1T4024E User manual

Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
F-32380 (2-06)
SPECIFICATIONS:
One 40 quart 2/3jacketed tilting steam kettle mounted on a
24"wide electric boiler base, Vulcan-Hart Model No. 1T4024E.
Steam jacketed kettle mounted on 28" high base cabinet with
stainless steel frame, front full height door, stainless steel side
and aluminized rear panel with 6" adjustable legs with flanged
feet for anchoring. Fully welded hemispheric bottom kettle with
type 304 stainless steel jacket and type 316 stainless steel
liner. Jacket tested to 50 psi (3.4 kg/cm2). Steam control valve
on right trunnion leg. 12" single temperature deck mounted
faucet. Requires 208 or 240 volt, 60 Hz, 3 phase power supply
and a separate 120 volt, 60 Hz, 1 phase control circuit, 3 amp.
Exterior dimensions:
Cabinet: 24"w x 35.4"d x 28"h on 6" adjustable legs. Overall
height to the lip of the kettle - 47", to the top of the handle - 59".
U L listed. Classified by U L to NSF Std. #4. Meets ASME code.

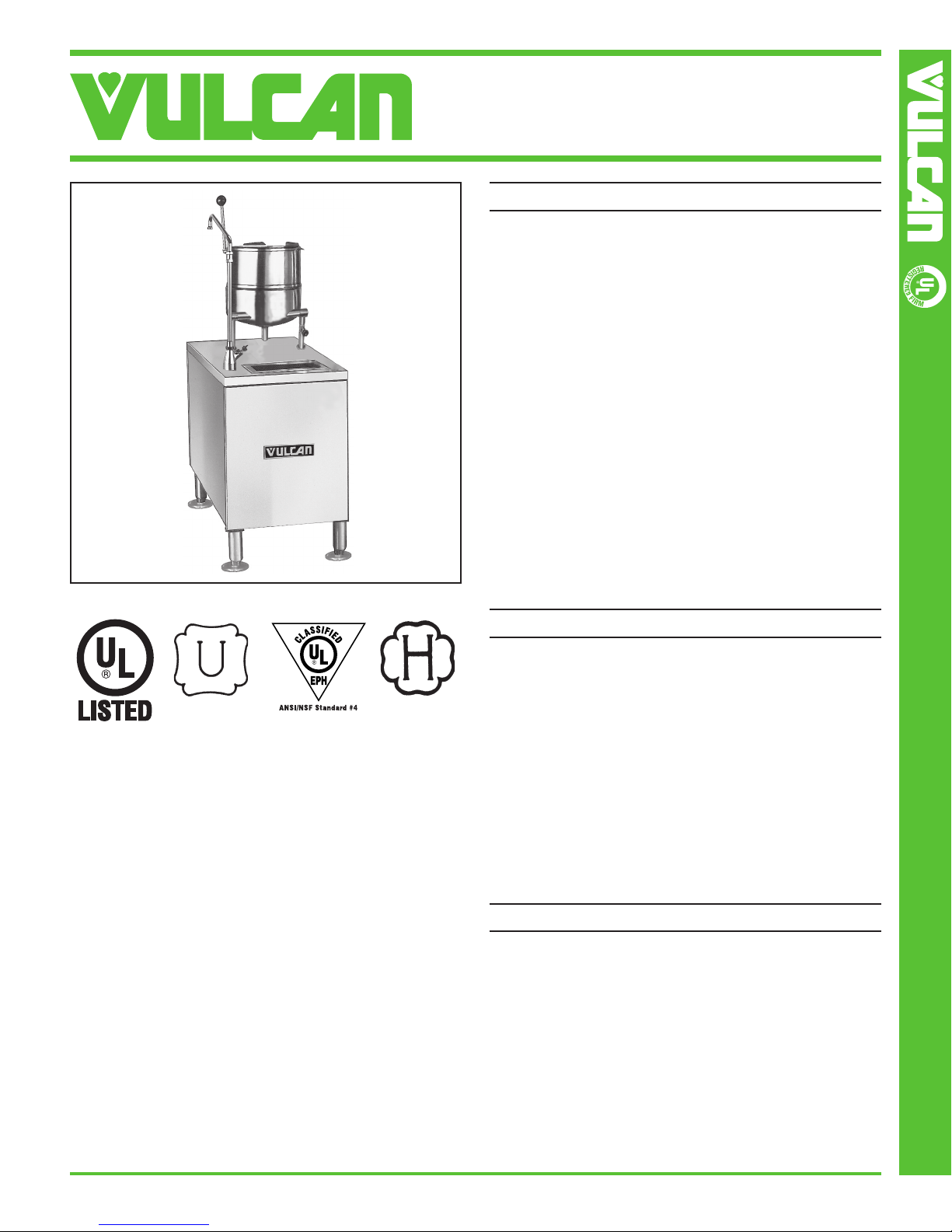

MODEL 1T4024E
40 QUART 2/3JACKETED TILTING
KETTLE ON ELECTRIC BOILER BASE
MODEL: 1T4024E 40 Quart
2
/
3
Jacketed Tilting Kettles On Electric Boiler Base
STANDARD FEATURES
■2/3jacketed tilting steam kettle, 40 quart capacity.
■Steam jacketed kettle mounted on 28" high base cabinet
with stainless steel frame, front full height door, stainless
steel side and aluminized rear panel with 6" adjustable legs
with flanged feet for anchoring.
■Fully welded hemispheric bottom kettle with type
304 stainless steel jacket and type 316 stainless steel
liner. Jacket tested to 50 psi (3.4 kg/cm2).
■Steam control valve on right trunnion leg.
■12" single temperature deck mounted faucet.
■CSD-1 code compliant boiler.
■Electric 24 KW steam boiler.
■Requires a 208 or 240 volt, 60 Hz, 3 phase power supply
and a separate 120 volt, 60 Hz, 1 phase control circuit,
3 amp.
■Water filter system, SPS620V. Includes second year ex-
tended limited water associated parts and labor warranty.
■One year limited parts and labor warranty.
OPTIONS
■■Correction package.
-Cabinet door with hasp (lock by others).
-Security type tamper resistant fasteners.
■■Tilting kettle strainer.
■■12" dual temperature faucet.
■■Single phase on 24 KW boiler.
■■Stepdown transformer (eliminates 120 volt connection).
■■480 volts, 60 Hz, 3 phase, includes stepdown transformer.
■■Mount and interconnect kettle with boiler base at factory.
Includes steam supply piping. Shipped on one skid.
■■Second year extended limited parts and labor warranty.
ACCESSORIES
■■Stainless steel back panel.
■■Lift-off cover.
■■Contour measuring strip.
■■Single perforated stainless steel basket.

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32380 (2-06)
MODEL 1T4024E
40 QUART 2/3JACKETED TILTING
KETTLE ON ELECTRIC BOILER BASE
SERVICE CONNECTIONS:
AJunction box: J.I.C. 6 x 6 x 4 for electrical supply connection for heat.
BElectrical Connection for Controls: 120/60/1, 300 watt power
supply with grounding wire required.
C Drain: Condensate box, compartment and boiler, 11/4" NPT. (Provide
an open air type drain within 12" of condensate box and for best
results at a distance so that steam vapors will not enter the steamer
from underneath the control area. Do not connect solidly to any drain
connection.)
DCold Water Connections (2):
D1 Treated Cold Water Connection: 1/4" NPT for boiler feed. Inlet
water pressure between 20 and 80 psi.
D2 Untreated Cold Water Connection: 1/4" NPT for condensate
box. Inlet water pressure between 20 and 80 psi.
EWater Supply Connection for Kettle Filler Faucet: 1/4" NPT.
NOTE:
•Dimensions which locate the above connections have a tolerance of
+ or -3" (+ or -75 mm).
•Installation of backflow preventers, vacuum breakers and other specific
code requirements is the responsibility of the owner and installer. It is
the responsibility of the owner and installer to comply with local codes.
•Plastic drains are not recommended due to inherent limited tempera-
tures of the plastic. Boiler purge temperatures may exceed 180°F.
The installer may be required to provide means to reduce boiler purge
water temperature to be that of the condensate temperature of 140°F
or less.
•This appliance is manufactured for commercial installation only and is
not intended for home use.
WATER QUALITY STATEMENT:
The fact that a water supply is potable is no guarantee that it is suitable
for steam generation. Your water supply must be within these general
guidelines:
SUPPLY PRESSURE 20 - 60 psig
HARDNESS* less than 3 grains
SILICA less than 13 ppm
TOTAL CHLORIDE less than 4.0 ppm
pH RANGE 7-8
UN-DISSOLVED SOLIDS less than 5 microns
*17.1 ppm = 1 grain of hardness
Other factors affecting steam generation are iron content, amount of
chloridation and dissolved gases. Water supplies vary from state to state
and from locations within a state. Therefore it is necessary that the local
water treatment specialist be consulted before the installation of any
steam generating equipment.
FRONT VIEW SIDE VIEW
TOP VIEW
EQUIPMENT CLEARANCE:
Rear: 2" Right: 0" Left: 0"
BRIMFUL CAPACITIES (in 4 oz. servings):
40 quarts / 10 gallons / 37.5 liters - 320 servings.
AMPS PER LINE
3 PHASE-4 WIRE
MODEL KW 1 PHASE 3 PHASE 220/380V &
NO. INPUT 208V 240V 208V 240V 480V 240/415V
1T4024E 24 116 100 67 58 29 34
