Waeco ColdMachine 54 User manual

DE 13 Kühlaggregat
Bedienungsanleitung
EN 35 Cooling unit
Operating manual
FR 56 Groupe frigorifique
Notice d’utilisation
ES 79 Unidad frigorífica
Instrucciones de uso
IT 101 Gruppo refrigerante
Istruzioni per l’uso
NL 123 Koelaggregaat
Gebruiksaanwijzing
DA 143 Køleaggregat
Betjeningsvejledning
SV 163 Kylaggregat
Bruksanvisning
NO 183 Kjøleaggregat
Bruksanvisning
FI 203 Jäähdytysaggregaatti
Käyttöohje
54, 55, 84, 85, 86, 87, 94, 95, 96, 97
CS-NC15
_coldmachine.book Seite 1 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

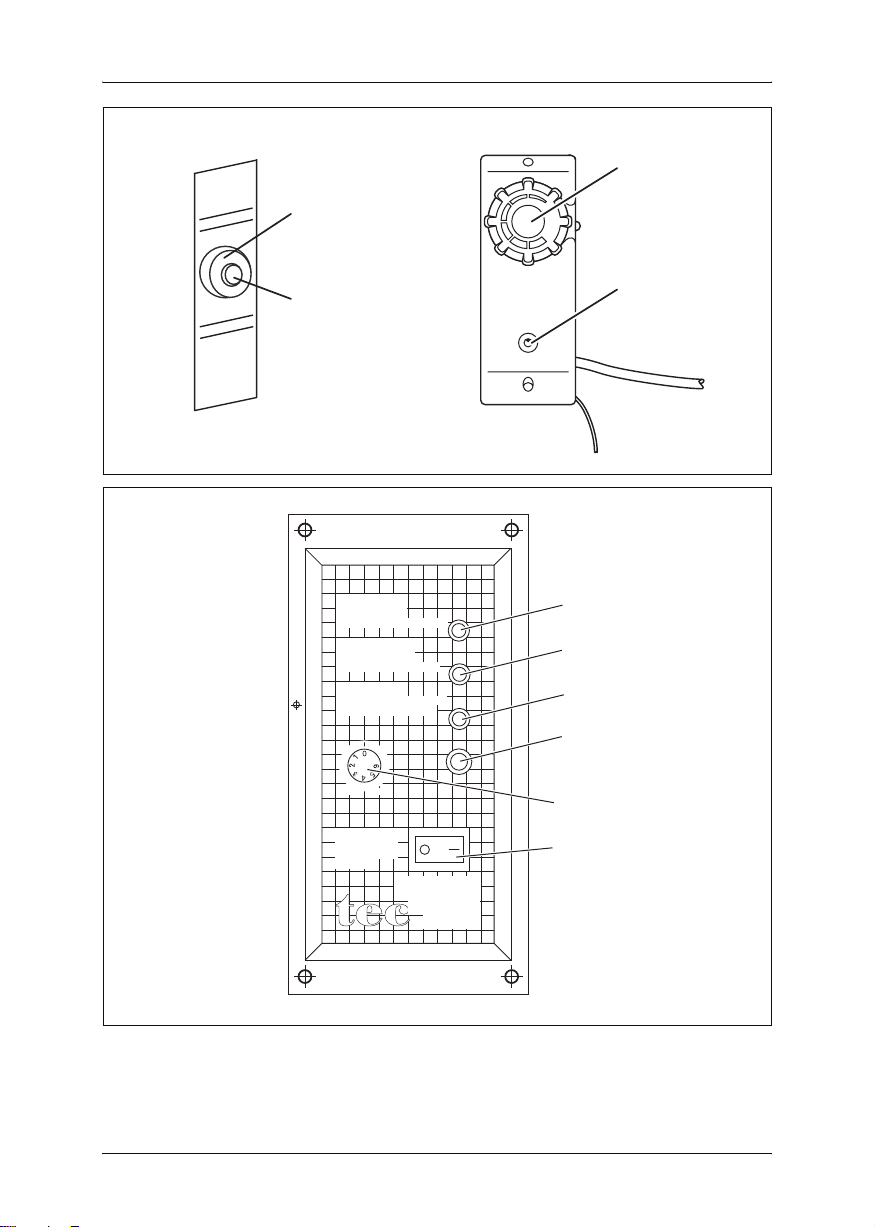

ColdMachine
3
A
1
2
B
2
3
4
5
6
7
0
1
1
2
1
VD-17
Kompressor ein
Compressor on
Compresseur en fonction
Fremdversorgung
External Voltage
Alimentation Extérieure
min max
Hauptschalter
Main Switch
Commutateur
principal
Temperature
Electronic
Control
Speicherabruf
Discharge of Cold Accum.
Décharge de la Plaque
1
2
3
4
5
6
2
_coldmachine.book Seite 3 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

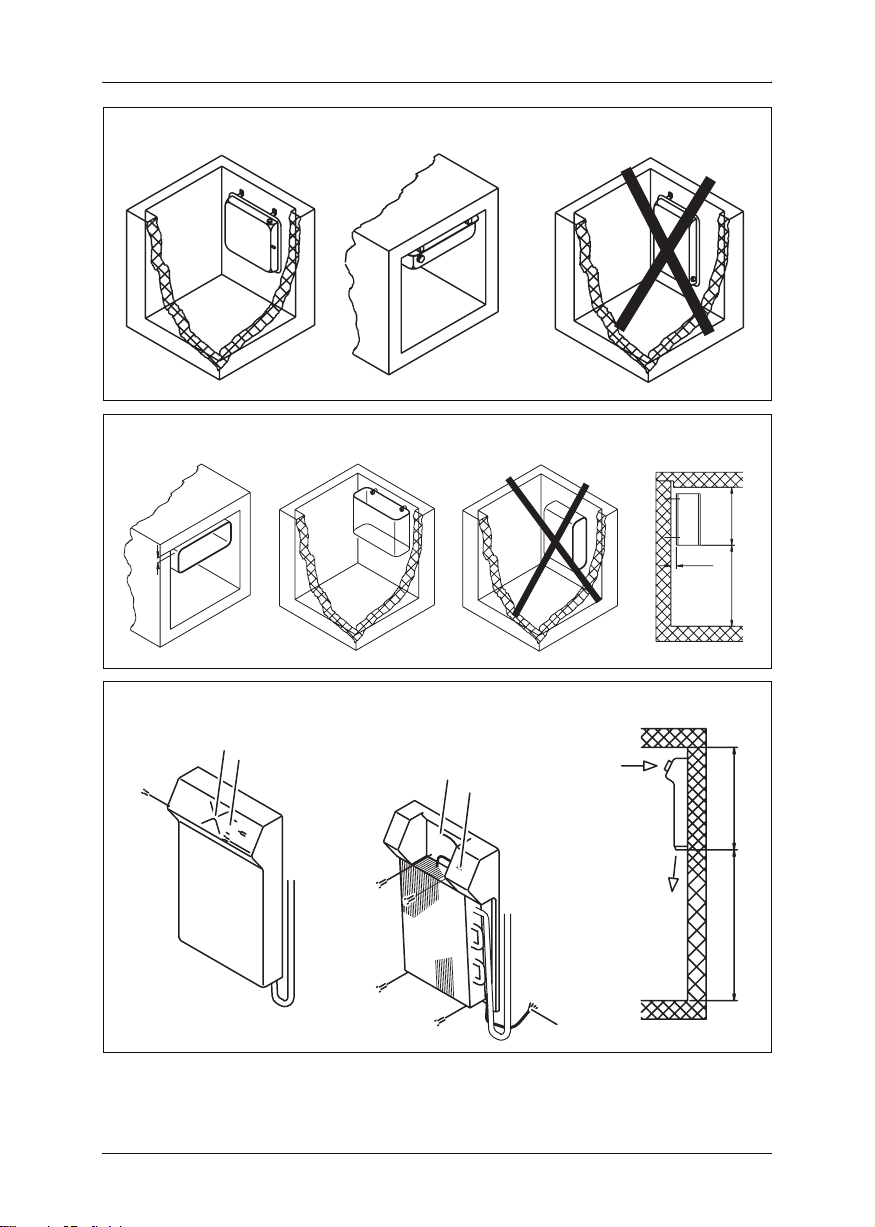

ColdMachine
4
10 mm
10 mm
10 mm
10 mm
10 mm
3VD-01, VD-04, VD-08
min. 30 mm
4VD-03
10 mm
10 mm
10 mm
5VD-02, VD-05, VD-18, VD-21
_coldmachine.book Seite 4 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine
5
6VD-06
7
10 mm
1/3
2/3
VD-07, VD-09
1/32/3
12
34
5
8VD-14N, VD-15
_coldmachine.book Seite 5 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine
6
F
T
D
C
P
1
gn/ge
br
sw
gr
bl
9VD-16
0VD-17
F
T
D
C
P
bl
br
1
1
_coldmachine.book Seite 6 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine
7
VD-14N, VD-15
1
F
T
D
C
P
gn/ge
gr
bl
br
sw
a
cb
2
1
3
d
_coldmachine.book Seite 7 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine
8
e1. 2.
3. 4.
g
SW21
SW21
SW16
SW19
f
_coldmachine.book Seite 8 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine
9
SW16
SW21
2-3 mm
2-3 mm
h
∅/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
i
12 3
rt
swblgr/ge
sw/bl
VD-01, VD-02, VD-03, VD-04, VD-05, VD-07,
VD-08, VD-09, VD-18, VD-21
2
3
4
5
6
7
0
1
4
br
j
_coldmachine.book Seite 9 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

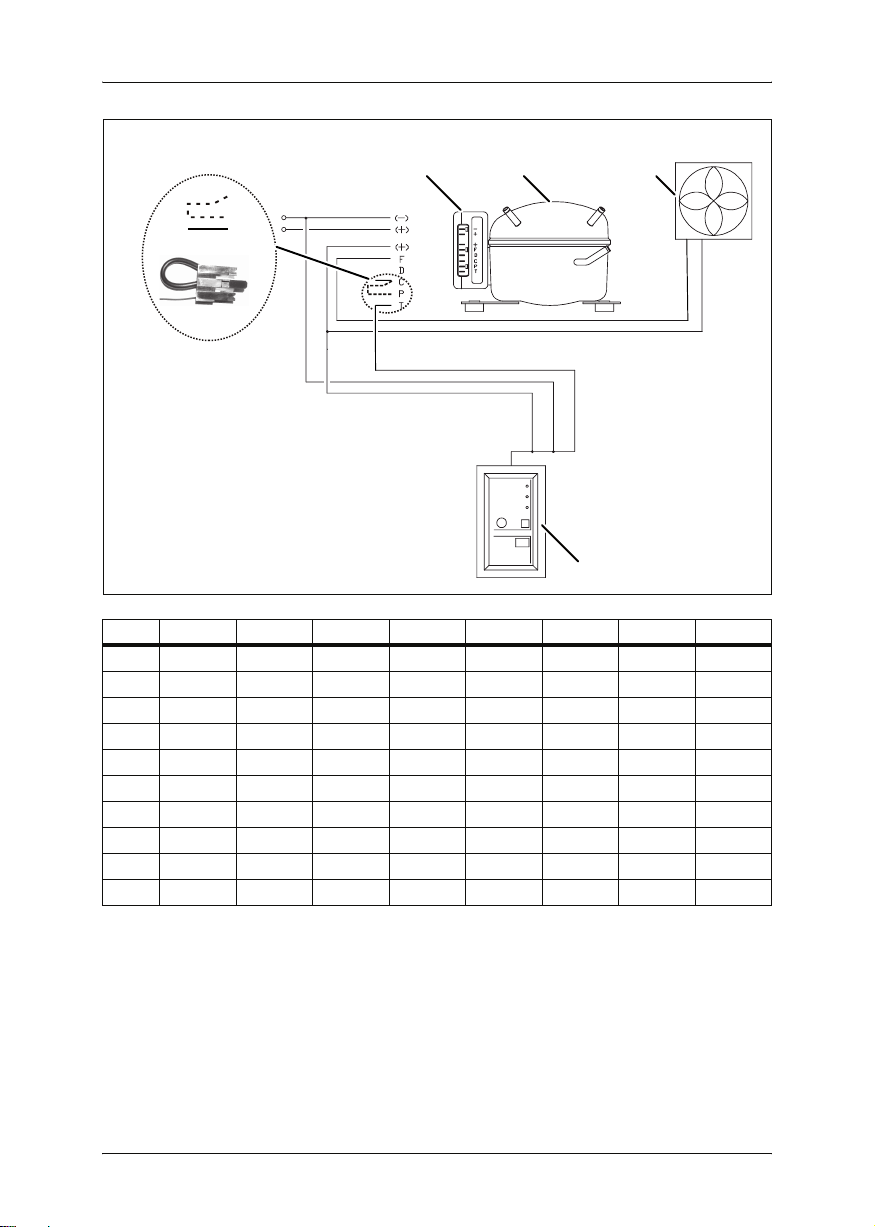

ColdMachine
10
bl br gn gr rt sw ws ∨
DE Blau Braun Grün Grau Rot Schwarz Weiss oder
EN Blue Brown Green Grey Red Black White or
FR Bleu Marron Vert Gris Rouge Noir Blanc ou
ES Azul Marrón Verde Gris Rojo Negro Blanco o bien
IT Blu Marrone Verde Grigio Rosso Nero Bianco oppure
NL Blauw Bruin Groen Grijs Rood Zwart Wit of
DA Blå Brun Grøn Grå Rød Sort Hvid eller
SV Blå Brun Grön Grå Röd Svart Vit eller
NO Blå Brun Grønn Grå Rød Svart Hvit eller
FI Sininen Ruskea Vihreä Harmaa Punainen Musta Valkoinen tai
12 3
4
br gn ws
rt
T
P
C
sw/bl
VD-06
k
_coldmachine.book Seite 10 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

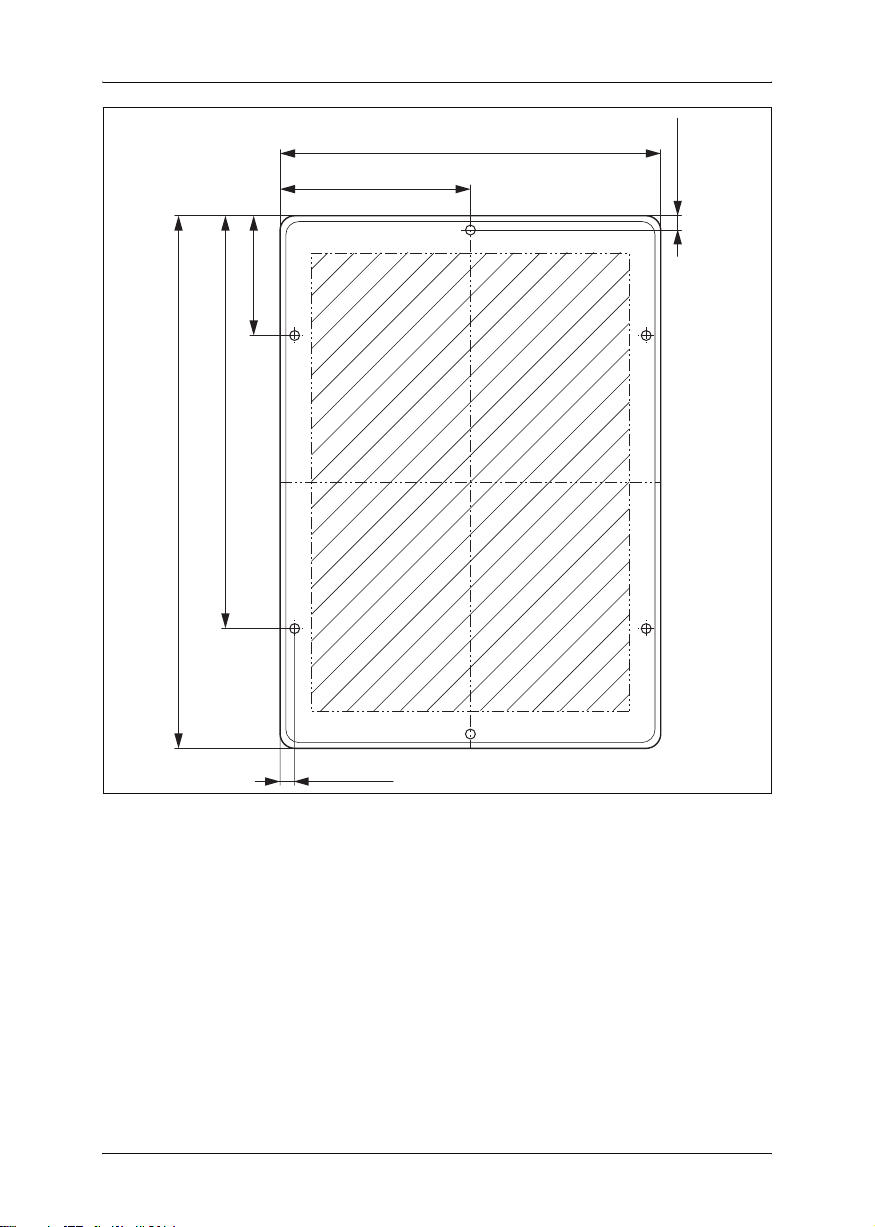

ColdMachine
11
257 mm
81 mm
9,50 mm
9,50 mm
128,50 mm
360 mm
281 mm
l
_coldmachine.book Seite 11 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

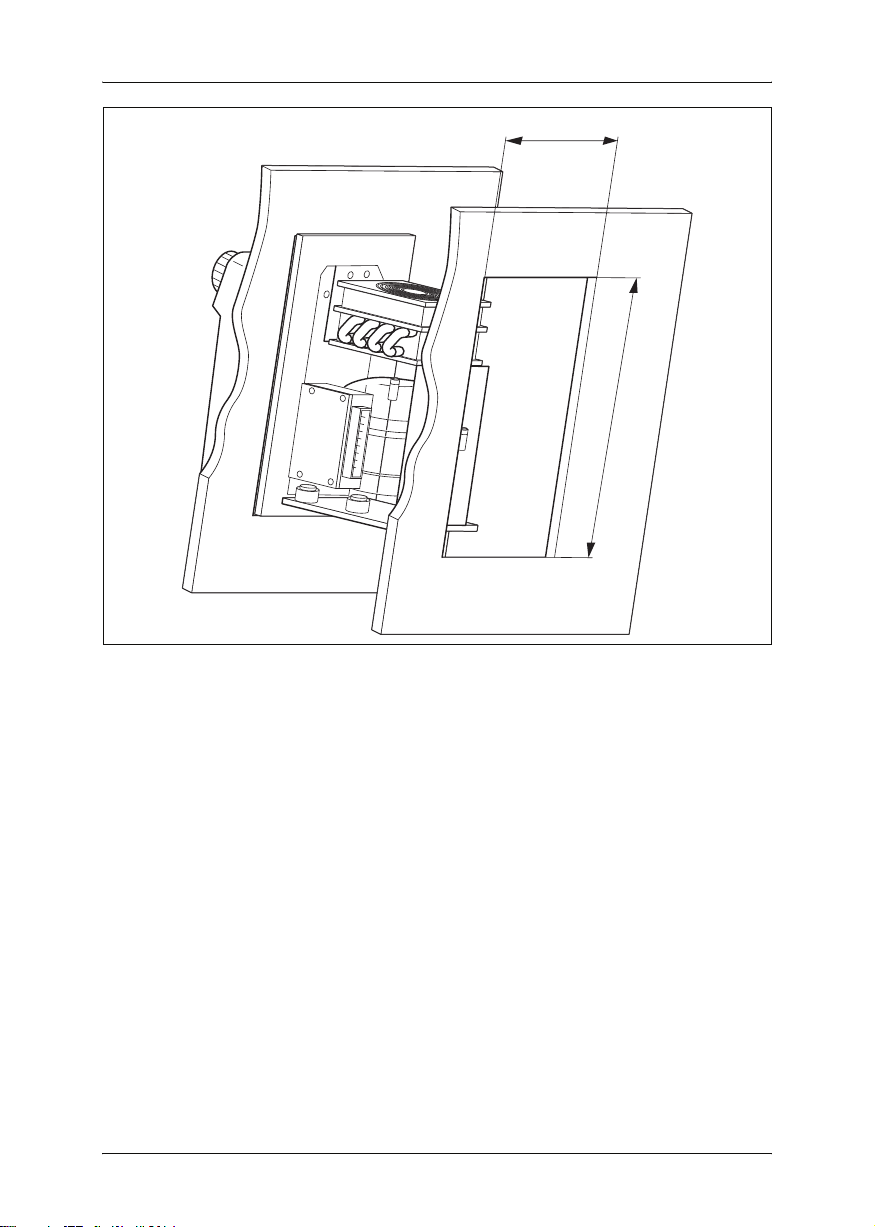

ColdMachine
12
~ 210 mm
~ 310 mm
m
_coldmachine.book Seite 12 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine Notes on using the operating manual
35
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is to be resold,
this operating manual must be handed over to the purchaser along with
it.
Contents
1 Notes on using the operating manual . . . . . . . . . . . . . . . . . . . . . . 35
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6 Installing the cooling unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
7 Using the cooling unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8 Use coolant accumulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
1 Notes on using the operating manual
The following symbols are used in this operating manual:
aCaution!
Safety instruction: failure to observe this instruction can cause in-
jury or damage the device.
eCaution!
Safety instruction relating to a danger from an electrical current or
voltage. Failure to observe this instruction can damage the device
and impair its function and cause injury.
INote
Supplementary information for operating the device.
_coldmachine.book Seite 35 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

Safety instructions ColdMachine
36
➤Action: this symbol indicates that action is required on your part.
The required action is described step-by-step.
✓This symbol indicates the result of an action.
Fig. 21, page 3: This refers to an element in an illustration. In his case,
item 1 in figure 2on page 3.
Please observe the following safety instructions.
2 Safety instructions
aCaution!
WAECO International will not be held liable for claims for damage
resulting from the following:
– Installation errors,
– Damage to the device resulting from mechanical influences
and overvoltage,
– Alterations to the device made without the explicit permission
of WAECO International,
– Use for purposes other than those described in the operating
manual.
2.1 General safety
azHave a trained technician make installations in wet rooms.
zDo not operate the device if it is visibly damaged.
zThis device may only be repaired by qualified personnel.
Inadequate repairs can lead to considerable hazards.
Should your device need to be repaired, please contact
WAECO customer services.
zDo not open the refrigerant circuit under any circumstances. An
exception to this is when the device has to be disconnected for
return shipping (chapter “Installing the external temperature
regulator” on page 43).
zSet up the device in a dry location where it is protected against
splashing water.
zDo not place the device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
zMake sure that the compressor is sufficiently ventilated.
_coldmachine.book Seite 36 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine Safety instructions
37
zElectronic devices are not toys!
Always keep and use the device out of the reach of children.
ezBefore you start up the device for the first time, check that the
operatingvoltage matches the battery voltage (see type plate).
zDanger of fatalinjuries!
When using the device on boats: if the device is powered by
the mains, ensure that the power supply has a residual current
circuit breaker!
zIf the connection cable is damaged, it must be replaced to
prevent possible electrical hazards. Only replace a damaged
connection cable with a connection cable of the same type
and specifications.
2.2 Operating the device safely
azNever use cleaners that contain sand, acids or solvents to clean
the vaporiser.
zProtect the device against rain and moisture.
zDisconnect the cooling device and other consumer units from
the battery before you connect the quick charging device.
eDanger of fatal injuries!
Do not touch exposed cables with your bare hands. This especially
applies when operating the device from the AC mains.
INote
Disconnect the device if you are not going to use it for a prolonged
period.
2.3 Safety precautions when handling batteries
azCaution! Danger of injury!
Batteries contain aggressive and caustic acids. Avoid battery
fluid coming into contact with your body. If your skin does come
into contact with battery fluid, wash the part of your body in
question thoroughly with water.
zIf you connect the device to a battery, make sure that no food
comes into contact with the battery acid.
_coldmachine.book Seite 37 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

Scope of delivery ColdMachine
38
3 Scope of delivery
3.1 Accessories
If you wish to operate the cooling unit from the 230 V AC mains, please use
one of the following rectifiers:
4 Intended use
The cooling unit is suited for building your own refrigerator or cooler.
The cooler unit is suitable for cooling and freezing food. The device
is also suitable for use on boats.
aCaution!
If you wish to cool medicines, please check if the cooling capacity
of the device is suitable for the medicine in question.
Quantity Description
1 Cooling unit or vaporiser
1 Operating manual
Description Item number
WAECO rectifier
For devices with Bd-35F compressor (50/80/CS series)
EPS-100W
WAECO rectifier
For devices with Bd-35F compressor (50/80/CS series)
MPS-35
WAECO rectifier
For devices with Bd-50F compressor (90 series)
MPS-50
_coldmachine.book Seite 38 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine Technical description
39
5 Technical description
The cooling units are suitable for use with 12 V or 24 V DC voltage and can
therefore be used for camping or on boats. Furthermore, you can connect
them to a 230 V mains supply via the WAECO rectifiers (see chapter “Acces-
sories” on page 38).
When used on boats, the cooling unit can withstand a constant heeling of
30°.
This refrigerant circuit is CFC-free.
The cooling unit must be used together with a vaporiser. In addition, you can
use an accumulator with or without TEC control. The CS-NC15 comprises a
cooling unit and a vaporiser.
Use the continuously variable thermostat on the vaporiser to set the desired
temperature.
The accumulator and TEC program control ensure a high cooling capacity
and improve the unit’s efficiency. The accumulator is charged when there is
a sufficient supply of power (for example when powered by a mains adapter).
In the event of accumulator usage or under-voltage, the coolant is drawn
from the accumulator until it is empty. Thus, no power is taken from the bat-
tery during this time.
The TEC program control always ensures that
zCold energy is stored if there is excess electrical energy (external supply
of power by a generator).
zThe coolant accumulator can be used at any time to ensure that the com-
plete battery power is used for other consumers.
zStored cold energy is automatically retrieved to preserve the interior
cooling temperature of the cooling area, once the battery capacity is
exhausted.
INote
Further information on the coolant accumulator can be found in
chapter “Use coolant accumulator” on page 48.
_coldmachine.book Seite 39 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

Installing the cooling unit ColdMachine
40
5.1 Battery monitor
The cooling device is equipped with an electronic device to protect against
reversing the polarity when connecting to a battery. To protect the battery,
the cooling device switches off automatically if the voltage is insufficient (see
following table).
Devices without TEC control
Devices with TEC control
6 Installing the cooling unit
6.1 Notes on the cooling container
Permitted cooling area contents
Make sure that maximum cooling area contents specified are not exceeded
for the respective vaporiser type (see chapter “Technical data” on page 53).
Minimum insulation
The maximum cooling area contents are based on a minimum insulation
thickness of 35 mm of foam polyurethane with a density of 40 kg/m³. If other
insulating materials are used such as styrofoam, double the wall thickness to
attain the same level of heat insulation.
Installing the vaporiser
The vaporiser must be installed in the cooling container (except CS-NC15,
the vaporiser is premounted).
➤Observe the following in the process:
zCorrect installation position (fig. 3, page 4 up to fig. 0, page 6)
zArrangement in the cooling container as far to the top as possible
Connection voltage Switch-off voltage Restart voltage
12 V 10.4 V 11.7 V
24 V 22.8 V 24.2 V
Connection voltage Switch-off voltage Restart voltage
12 V 10.7 V 13.0 V
24 V 22.0 V 26.0 V
_coldmachine.book Seite 40 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine Installing the cooling unit
41
zInstall a least 10 mm from the wall (not VD-14N and VD-15).
aCaution!
For cooling units without valve couplings (ready-to install units):
Do not open the refrigerant circuit during installation. You may have
to make the wall openings larger to be able to slide the vaporiser
through them (fig. b, page 7). Or alternatively, you create an open-
ing that allows you to install the cooling lines at the top (fig. c,
page 7).
Connecting the vaporiser
➤Connect the vaporisers VD-14N and VD-15 in accordance with fig. a,
page 7.
➤Connect vaporiser VD-16 according to fig. 9, page 6.
➤Connect vaporiser VD-17 according to fig. 0, page 6.
➤Connect vaporiser VD-06 according to fig. k, page 10.
➤Connect other vaporisers according to fig. j, page 9.
Keys for the illustrations
No. in fig. 8,
page 5 Explanation
1 DC fan
2Thermostat button
3 Connection plug for DC fan
4Thermostat
5 Connection cable
No. in fig. 9,
page 6 Explanation
1 Connection cable
No. in fig. 0,
page 6 Explanation
1 Drip tray
_coldmachine.book Seite 41 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

Installing the cooling unit ColdMachine
42
aCaution!
Carefully insulate and seal off the wall openings after installation to
prevent moisture penetration.
For cooling units with valve couplings
➤Cut out a hole with a diameter of at least 30 mm (fig. d, page 7) for the
cooling lines. To do this, use a circular cutter.
aCaution!
Never bend the connecting line between the vaporiser and the unit.
The minimum bending radius is 25 mm.
6.2 Installing the cooling unit
It is important to select the proper location for setting up the unit. To ensure
trouble-free operation, please note the following points:
zSet up the cooling unit in a dry, sheltered place. Avoid placing it near heat
sources such as radiators, gas ovens or hot water pipes. Do not place in
direct sunlight.
zOn a boat, install the cooling unit, if possible, below the waterline.
zThe heated air must dissipate unhindered (fig. e, page 8).
zWhen installing the cooling unit in a closed room such as a wardrobe,
pantry or aft compartment, openings must have a cross section of at
least 200 cm² (25 cm x 8 cm) for cooling and exhaust air.
zMake sure that the air flow on the condenser (fig. e3, page 8) is not
restricted.
No. in fig. a,
page 7 Explanation
1 Connection cable
No. in fig. j,
page 9 and
fig. k, page 10
Explanation
1 Connection block
2Compressor
3Fan
4Switch fig. jor TEC controller fig. k
_coldmachine.book Seite 42 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"

ColdMachine Installing the cooling unit
43
zMaintain a minimum distance between the condenser and adjoining wall
of 50 mm.
zCS-NC15: Observe the drilling template (fig. l, page 11) and the
installation drawing (fig. m, page 12).
6.3 Installing the external temperature regulator
Mechanical thermostat
The temperature regulator can be mounted either on the outside or inside of
the cooling container. The interior temperature is regulated depending on the
surface temperature of the vaporiser, or for VD-14N and VD-15, depending
on the room temperature.
➤Connect the coiled end of the sensor cable to the vaporiser (not VD-14N,
VD-15) using the clamping plate. This is premounted on VD-14N, VD-15.
➤Make sure that the sensor line does not make contact anywhere else with
the vaporiser or with the suction line.
TEC control
The TEC control must be attached outside of the cooling container.
The internal temperature is regulated according to the vaporiser surface
temperature.
The temperature sensor has been factory-mounted to the accumulator.
➤Connect the temperature sensor with the TEC control via the plug-in
coupling.
Mount the one-way couplings (not CS-NC15)
The cooling unit is delivered in a disconnected state (the vaporiser and com-
pressor are separated); however, it has been filled at the factory with the
proper amount of coolant.
➤Install the machine part and the vaporiser.
➤Remove the screwed-on caps from the coupling halves that protect the
rubber seal from dirt.
The fig. f, page 8, shows the condition of the coupling halves after
removing the caps when uncoupled.
➤Place the coupling halves by hand on top without tension and tighten
them by hand (fig. g, page 8).
_coldmachine.book Seite 43 Mittwoch, 30. April 2008 3:26 15
“More information https://www.caravansplus.com.au"
