MANY THANKS FOR PLACING YOUR TRUST IN US
We would like to congratulate you on purchasing this brand product from Wagner;
we are sure that you will enjoy working with it greatly.
We would be happy to be of assistance if you have any questions, suggestions or requests.
Please contact us via the phone number included on the back page or via our homepage,
www.wagner-group.com/service.
1. Explanation of symbols used
This symbol indicates a potential danger for you or for the device.
Under this symbol you can nd important information on how to
avoid injuries and damage to the device.
Danger of electrical shock
i
Indicates tips for use and other particularly useful information.
2. General Safety Instructions
Caution! Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refer to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1. Safety at the workplace
a) Keep your workplace clean and well lit. Disorder or unlit workplaces may result in
accidents.
b) Never use the tool in hazardous areas that contain ammable liquids, gases
or dusts. Power tools generate sparks that can ignite the dust or vapors.
c) Keep children and other persons away when using the power tool. You can
lose control of the tool if you are distracted.
2. Electrical Safety
a) The tool plug must t into the socket.The plug may not be modied in any form.
Do not use adaptor plugs together with protective-earthed tools. Unmodied
plugs and suitable sockets reduce the risk of an electric shock.

2
W 350
AUS
b) Avoid physical contact with earthed surfaces such as pipes, heating elements,
stoves and refrigerators. The risk through electric shock increases if your body is
earthed.
c)
Keep the equipment away from rain and moisture. The risk of an electric shock
increases if water penetrates electrical equipment.
d) Do not misuse the mains lead by carrying the tool by the lead, hanging it from
the lead or by pulling on the lead to remove the plug. Keep the lead away from
heat, oil, sharp edges or moving tool parts. Damaged or twisted leads increase the
risk of an electric shock.
e) If you work outdoors with a power tool, only use extension cables suitable for
outdoor use. The use of an extension lead that is suitable for outdoors reduces the risk
of an electric shock.
f)
If you cannot avoid using the tool in a damp environment, use a residual current
operated circuit-breaker. Using a residual current operated circuit-breaker avoids the
risk of electric shock.
g)
It is recommended that the tool always be supplied via a residual current device
having a rated residual current of 30 mA or less.
3. Safety of Persons
a) Be attentive. Pay attention to what you are doing and work sensibly with a
power tool. Do not use the tool if you are tired or under the inuence of drugs,
alcohol or medication. Just a moment of inattentiveness while using the tool can lead
to serious injuries.
b)
Wear personal safety equipment and always wear safety goggles Wearing
personal protective equipment, such as dust mask, non-slip safety shoes, safety helm
or ear protection, depending on the type of power tools, reduces the risk of injury.
c)
Avoid accidental starting-up. Make sure that the electric tool is switched o
before you connect it to the power supply, pick it up or carry it. Accidents can
occur if you carry the power tool while your nger is on the switch or if you connect the
power tool to the power supply which it is on.
d) Remove setting tools or wrenches before switching on the power tool. A tool
or wrench that is in a rotating tool part can lead to injuries.
e)
Avoid an unnatural posture. Ensure that you are standing securely and have your
balance at all times. This ensures that you can control the tool better in unexpected
situations.

3
W 350 AUS
f) Wear suitable clothing. Do not wear wide clothing or jewellery. Keep your hair,
clothes and gloves away from moving parts. Loose clothing, jewellery or long hair
can be caught in moving parts.
g)
Do not lull yourself into a false sense of security and do not think yourself above
the safety rules for electric tools, even if you are familiar with the electric tool
following extensive practical experience. Careless use can lead to serious injuries
in fractions of a second.
4. Usage and treatment of the electric tool
a) Do not overload the tool. Use the power tool designed for the work that you
are doing. You work better and safer in the specied performance range if you use the
suitable power tool.
b)
Do not use power tools whose switch is defective. A power tool that cannot be
switched on or o is dangerous and has to be repaired.
c) Remove the plug from the socket before carrying out tool settings, changing
accessories or putting the tool away. This precautionary measure prevents
unintentional starting of the tool.
d) Store unused power tools so that they are inaccessible to children. Do not let
persons use the tool who are not familiar with it or who have not read these
instructions. Power tools are dangerous when they are used by inexperienced persons.
e) Take proper care of your tools. Check whether the moving parts function
trouble-free and do not jam, whether parts are broken or damaged so that
the tool function is impaired. Have damaged parts repaired before using the
tool. Many accidents have their origin in power tools that have been maintained badly.
f)
Use the power tool, accessories, insert tools, etc. in accordance with these
instructions and in a fashion specied for this special tool type.Take the working
conditions and the activity to be carried out into consideration. The use of power
tools for purposes other than the intended ones can lead to dangerous situations.
g)
Keep the handles and grip surfaces dry, clean and free of oil and grease. Slippery
handles and grip surfaces hamper safe operation and control of the electric tool in
unforeseen situations.
5. Service
a) Have your tool repaired only by qualied specialist personnel and only with
original spare parts. This ensures that the tool safety is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer or it’s
service agent or a similarly qualied person in order to avoid a safety hazard.

4
W 350
AUS
3. Safety Instructions for Spray Guns
•
The device may not be used in workplaces covered by the explosion-protection
regulations.
•
There must be no sources of ignition such as, for example, open res, smoke of lit
cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the
vicinity during spraying.
•
Do not spray any substances whose hazard potential is not known.
•
Before working on the spray gun remove the power plug from the socket.
•
Do not use the spray guns to spray ammable substances.
•
The spray guns are not to be cleaned with ammable solvents.
•
Caution against dangers that can arise from the sprayed substance and observe the
text and information on the containers or the specications given by the substance
manufacturer.
•
Caution! Wear breathing equipment: Paint mist and solvent vapors are damaging to
health. Always wear breathing equipment and only work in well ventilated rooms or
using supplementary ventilating equipment. It is advisable to wear working clothing,
safety glasses, ear protection and gloves.
CAUTION: DANGER OF INJURY!
Never point the spray stream towards human beings or animals.
Sockets and plugs must be masked. Risk of an electric shock as a
consequence of sprayed material entering the socket!
Attention! Never operate the device if the nozzle seal is either
damaged or missing. If the nozzle seal is either missing or damaged
liquids can enter the device and increase the risk of an electric shock.
Check the nozzle seal before each use.
•
When working with theW 350 indoors as well as outdoors ensure that no solvent vapors
are sucked in by the spray gun.
•
When working outdoors, be aware of the wind direction. Wind can carry the coating
substance across greater distances - thus causing damage.When working indoors, provide
for adequate ventilation.
•
Do not let children handle the device.
•
Never open the device yourself in order to carry out repairs in the electrical system!
The units may only be used with a functional valve. If paints rises in the
ventilating hose (Fig. 1, item 11) do not operate the unit further! Dismantle
and clean the ventilating hose, valve and diaphragm and replace the diaphragm
if necessary.
•
Do not lay the spray gun.
With original WAGNER accessories and spare parts, you have the guarantee that
all safety regulations are fullled.

5
W 350 AUS
4. Description/ Scope of delivery

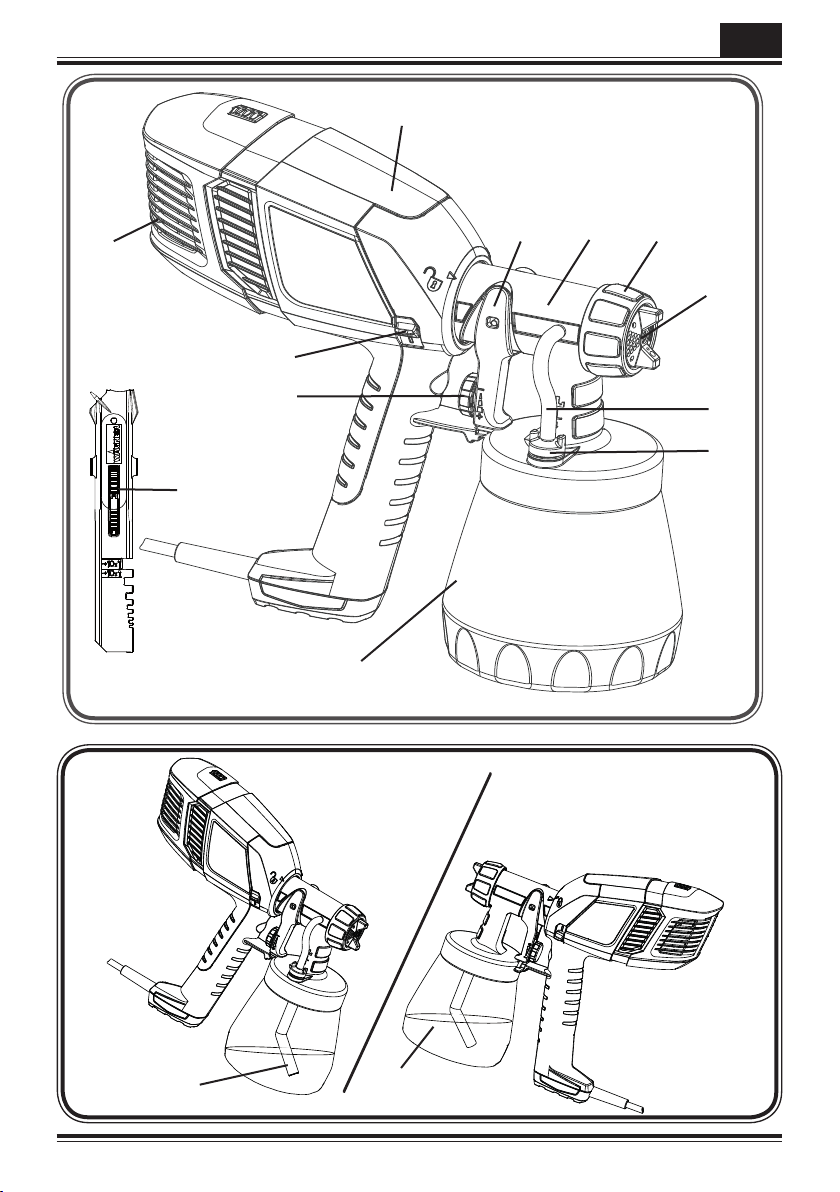

Description/ Scope of delivery (Fig. 1)
1) Air Cap 2) Nozzle
3) Union nut 4) Spray gun front part
5) Trigger 6) Spray gun rear part
7) Air lter cover 8) ON/OFF switch (located on both sides)
9) Material volume adjustment 10) Container
11) Ventilating hose 12) Valve
13) Stir stick 14) Replacement nozzle seal*
15) Lubricating grease*
* This is inside the container: remove it before starting operations!
5. Coating Materials Suitable for Use
Water- and solvent-based paints, finishes, primers, 2-component paints, clear
finishes, automotive finishes, staining sealers and wood sealer-preservatives.
6. Coating Materials Not Suitable for Use
Wall paints, materials that contain highly abrasive components, facade paint, caustic
solutions and acidic coating substances. Flammable materials.
7. Preparation of the Coating Material
The enclosed spray attachment can be used to spray paints, varnishes and glazes that are
undiluted or slightly diluted. Detailed information is available in the technical data sheet
of the manufacturer (Internet download).
1. Stir the material up and put the required amount into the paint container.
Thinning recommendation
Sprayed material
Glazes undiluted
Wood preservatives, mordants, oils, disinfection
agents, plant protective agents undiluted
Paints containing solvents and water-soluble paints,
primers, vehicle coating paints, thick-lm glazes
dilute by 5 - 10%
2. If the convey capacity is too low, add 5 - 10% dilution step-by-step until the convey
capacity fulls your requirements.

6
W 350
AUS
8. Start-up
Before connecting to the mains supply, be sure that the supply voltage is identical with
the value given on the rating plate.
•
Unscrew the container from the spray gun.
•
Aligning suction tube. (Fig. 2)
If the suction tube is positioned correctly, the container contents can be sprayed
without almost any residue.
When working on lying objects: Turn the suction tube forwards. (Fig. 2 A)
Spraying work when working on overhead objects: Turn the suction tube rearwards.
(Fig. 2 B)
•
Set the container on a sheet of paper, pour in the prepared coating material and screw
the container tightly onto the spray gun.
•
Connect the front part with the rear part of the gun (Fig. 3).
•
Put the machine down only on a level, clean surface. Otherwise the machine could tip
over!
•
Press the ON/OFF switch at the device.
•
Pull the trigger.TheW 350 has a two-stage trigger. In the rst stage the turbine is started.
If the trigger is pressed further, the material is transported.
9. Adjusting the desired Spray Setting
WARNING! Danger of injury! Never pull the trigger while adjusting the air
cap.
With the union nut (g. 5, 1) slightly unscrewed, turn the air cap (2) to the desired spray
setting position (arrow). Then tighten the union nut.
Fig. 4 A = vertical at jet for horizontal surfaces
Fig. 4 B = horizontal at jet for vertical surfaces
Fig. 4 C = circular jet for corners, edges and hard-to-reach surfaces
10. Adjusting the Material Volume (Fig. 6)
Set the material volume by turning the regulator on the trigger of the spray gun.
- turn to the left  lower material volume
+ turn to the right higher material volume
11. Spray Technique
•
The spray result depends heavily on the smoothness and cleanliness of the surface to be
sprayed. Therefore the surface should be carefully prepared and kept free of dust.
•
Cover all surfaces not to be sprayed.
•
It is advisable to test the spray gun on cardboard or a similar surface to nd the correct

7
W 350 AUS
setting.
Important: Begin spraying outside of the target area and avoid interruptions inside the
target area.
•

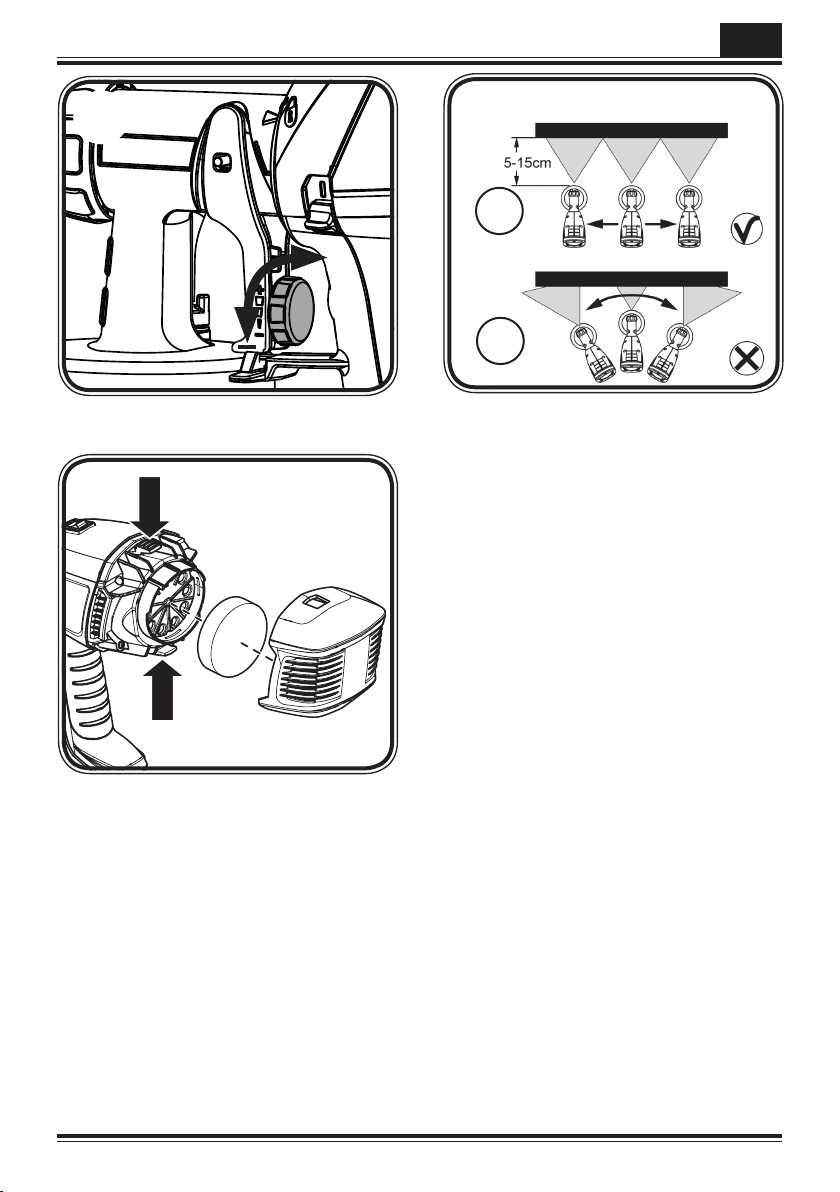

Correct (Fig. 7a) Be sure to hold the spray gun at an even distance of approx. 5 - 15 cm
to the target object.
•
Incorrect (Fig. 7b) Heavy spray fog build-up, uneven surface quality.
•
Move the spray gun evenly cross-wise or up-and-down, depending on the spray pattern
setting.
12. Taking Out of Operation and Cleaning
Proper cleaning is the prerequisite for problem-free operation of the paint application
device. No warranty claims are accepted in case of improper or no cleaning. When
processing 2-component varnishes, clean the device immediately.
1)
Turn o the machine and remove the plug.Vent the container in case of longer breaks
and after the work has been terminated. This can be done by briey turning open
and then closing the container or by pulling the trigger and letting the paint into the
original paint container.
2) Divide the spray gun. Press the hook (Fig. 3 "click") slightly downwards. Turn the gun
front part and gun rear part against each other and take them apart.
3) Unscrew the container. Empty any remaining coating material back into the material
tin.
4) Pull out the suction tube with container seal.
CAUTION! Never clean seals, diaphragm and nozzle or air holes of the spray gun with
metal objects.The ventilation hose and diaphragm are only solvent-resistant
to a limited extent. Do not immerse in solvent, only wipe.
5)
The unit may only be operated with an integer diaphragm (Fig. 9 A, 15). If any
paint has penetrated to the ventilation hose, check and clean the membrane (see the
Maintenance chapter).
WARNING! Never hold the spray gun rear part under water or immerse it
into liquids. Clean the housing only with a moistened cloth.
6)
Unscrewtheunionnut(Fig.9, 1)andremovetheaircap(2)andnozzle(3).Cleantheaircap,
nozzle seal (4) and nozzle with a brush and solvent or water. Clean the ventilating bore
(Fig. 9, C).
Assembly
Attention! Never operate the device if the nozzle seal is either damaged or
missing. If the nozzle seal is either missing or damaged liquids can enter
the device and increase the risk of an electric shock.
1) Push the nozzle seal (g. 9 B, 4) over the needle (18); the groove (slot) should point
towards you.

8
W 350
AUS
2) Put the nozzle (g. 9 B, 3) onto the gun body and nd the correct position by turning it.
3) Put the air cap onto the nozzle and tighten it using the union nut.
4) Place the container seal from below on the suction tube and slide it over the collar,
while turning the container seal slightly.
5) Insert the suction tube with container seal in the gun body.
13. Maintenance
Air lter
WARNING! Never operate the machine without the air lter; dirt could be
sucked in and interfere with the function of the machine. Disconnect plug
before changing parts.
•
Press both locks and remove the lter cover (Fig. 8).
•
Remove the air lter and replace depending on contamination.
•
Click the lter cover in place again.
•
In order to mount the gun more easily apply lubricating grease (enclosed) liberally
to the O-ring at the gun front part. (Fig. 9, Item 5)
Ventilating hose / Valve
1) Pull the ventilating hose (Fig. 9 A, 13) at the top from the gun body. Screw o the valve
cover (14). Remove the diaphragm (15). Carefully clean all parts or replace in the
event of damage.
2)
Place the diaphragm (Fig. 9 A, 15) with the pin facing upwards on the bottom section
of the valve. Also see the marking on the gun body.
3) Place on the valve cover (Fig. 9 A, 14) and screw it closed.
4) Place the ventilating hose (Fig. 9 A, 13) on the valve cover and on the nipple at the
gun body.
14. Spare Parts List
Spare Parts List (Fig. 9)
Pos. Designation Order No.
1 Union nut 2362 873
2 Air cap 2361 747
3 Nozzle 2362 878
4 Nozzle seal 0417 706
5 O-ring 2362 875
6 Material volume regulation with spring, complete 0417 910
7 Spray gun front part complete incl. 800 ml container 2361 731
8 Air lter 2370 530
9 Air lter cover 2370 532

9
W 350 AUS
Spare Parts List (Fig. 9)
10 Container seal 2323 039
11 Suction tube 2362 876
12 Container with cover 0413 909
13,14,15 Ventilating hose, valve cover, diaphragm 2304 027
16 Stir stick 2304 419
17 Lubricating grease (no g.) 2315 539
15. Accessories
The CLICK&PAINT SYSTEM with additional spray attachments and accessories oers
the right tool for each work.
Further information about the WAGNER range of products for renovating is
available under www.wagner-group.com
16. Correction of Malfunctions
Problem Cause Remedy
No coating
material
emerges from
the nozzle
•
Nozzle clogged
•
Feed tube clogged
•
Material volume too small
•
Feed tube loose
•
No pressure build-up in container
➞Clean
➞Clean
➞Increase the quantity of
material
➞Insert
➞Tighten container
Coating
material drips
from the nozzle
•
Nozzle loose
•
Nozzle worn
•
Nozzle seal is missing or worn
•
Coating material assembly at air
cap, nozzle or needle
➞Tighten
➞Change
➞Insert an intact nozzle seal
➞Clean
Atomisation too
coarse •
Viscosity of coating material too
high
•
Material volume too large
•
Nozzle contaminated
•
Air lter heavily soiled
•
Too little pressure build-up in
container
➞Thin
➞Reduce the material
➞volume
➞Clean
➞Change
➞Tighten container
Spray jet
pulsates •
Coating material in container
running out
•
Air lter heavily soiled
•
Nozzle seal is missing or worn
➞Rell
➞Change
➞Insert an intact nozzle seal

10
W 350
AUS
Problem Cause Remedy
Coating
material causes
"paint tears"
•
Too much coating material
applied.
➞Reduce the material
volume
Too much fog of
coating material
(Overspray)
•
Distance to the object too large
•
Too much coating material
applied
➞Reduce distance
➞Reduce the material
volume
Paint in the
ventilating hose •
Diaphragm soiled
•
Diaphragm defective
➞Clean the diaphragm
➞Replace the diaphragm
17. Technical Data
Technical Data
Max. viscosity 100 DIN-s
Power source 240 V~ , 50 Hz
Power consumption 550 W
Atomizing output 110 W
Max. ow rate
(water/ Standard Spray attachment) 1210 ml/min
Protection Class I
Sound pressure level* 75 dB (A); Uncertainty K = 4 dB
Sound pressure output* 86 dB (A); Uncertainty K = 4 dB
Oscillation level* < 2.5 m/s²; Uncertainty K = 1.5 m/s²
Weight 1.4 kg
* Measured in accordance with EN 50580:2014
Information about the oscillation level
The specied oscillation level has been measured according to a standard test
procedure and can be used to compare against electric tools.
The oscillation level is also for determining an initial assessment of the vibrational strain.
Attention! The vibration emission value can dier from the specied value when the
electric tool is actually in use, depending on how the electric tool is being used. It is
necessary to specify safety measures to protect the operating personnel.These measures
are based on an estimated shutdown during the actual conditions of use (all parts of the
operating cycle are taken into consideration here, for example periods when the electric
tool is switched o, and, when it is switched on but running without any load).

11
W 350 AUS
18. Environmental protection
The device and all accessories and packaging have to be recycled in an
environmentally friendly manner. Do not dispose of the appliance with
household waste. Support environmental protection by taking the appliance
to a local collection point or obtain information from a specialist retailer.
Leftover paint and solvents may not be emptied into drains, the sewage system
or disposed of as household rubbish. It has to be disposed of separately as
special waste. Please pay special attention to the instructions on the product
packaging.
19. Important Note regarding Product Liability!
According to an EU directive, the manufacturer is only liable without limitation for faults
in the product if all parts come from the manufacturer or have been approved by the
manufacturer and have been mounted to the device and are operated properly. If third-
party accessories or spare parts are used, the manufacturer is exonerated wholly or partly
from his/her liability if use of the third-party accessories or spare parts have caused a
defect in the product.
3+1 years guarantee
The guarantee runs for three years, counting from the date of sale (sales slip). The
guarantee is extended by a further 12 months if the device is registered online within
4 weeks of the purchase at www.wagner-group.com/3plus1. Registration is only
possible if the buyer is in agreement with the data being stored that is entered during
registration. The guarantee covers and is restricted to free-of-charge rectication
of faults which are demonstrably attributable to the use of faulty materials in
manufacture, or assembly errors; or free-of-charge replacement of the defective parts.
The guarantee does not cover incorrect use or commissioning or tting or repair work
which is not stated in our operating instructions. Wearing parts are also excluded from
the guarantee. The guarantee excludes commercial use. We expressly reserve the right
to full the guarantee. The guarantee expires if the tool is opened up by persons other
than WAGNER service personnel. Transport damage, maintenance work and loss and
damage due to faulty maintenance work are not covered by the guarantee. Under
any guarantee claim, there must be proof of purchase of the tool through submission
of the original receipt. Wherever legally possible, we exclude all liability for injury,
damage or consequential loss, especially if the tool has been used for a purpose other
than that stated in the operating instructions, commissioned or repaired other than
in accordance with our operating instructions or if repairs are performed by someone
who is unqualied. We reserve the right to perform any repairs in excess of those
stated in our operating instructions. In case of guarantee or repair, please refer to your
point of sale.

12
W 350
AUS

13
W 350 AUS

J. WAGNER GMBH
Otto-Lilienthal-Str. 18
88677 Markdorf
T +49 0180 - 55 9246 37
F [phone]
WAGNER SPRAYTECH (UK) LTD
Innovation Centre
Silverstone Park
Silverstone
Northants NN12 8GX
T + 44 (0)1327 368410
WAGNER FRANCE S.A.R.L.
12 Avenue des Tropiques
Z.A. de Courtaboeuf
91978 Les Ulis Cedex
T [phone]
F [phone]
MAKIMPORT
HERRAMIENTAS, S.L.
C/ Méjico nº 6
Pol. El Descubrimiento
28806 Alcalá de Henares (Madrid)
T 902 199 021 / 91 879 72 00
F 91 883 19 59
ORKLA HOUSE CARE DANMARK A/S
Stationsvej 13
3550 Slangerup
Danmark
T [phone]
F [phone]
WAGNER SPRAYTECH
AUSTRALIA PTY. LTD.,
14-16 Kevlar Close
Braeside, VIC 3195
T [phone]
F [phone]
J. WAGNER AG
Industriestraße 22
9450 Altstätten
T [phone]
F [phone]
DINOCOOP KFT.
Radvány u. 24.
1118 Budapest
T [phone]
F [phone]
E-CORECO SK S.R.O.
Kráľovská ulica 8/7133
927 01 Šaľa
T [phone]
F [phone]
PUT WAGNER SERVICE
ul. E. Imieli 27
41-605 Swietochlowice
T +48/32/346 37 00
F +48/32/346 37 13
D
F
DK
SCH
AUS
H
PL
GB
E
SK
P
ORKLA HOUSE CARE AB
Box 133
564 23 Bankeryd
Sweden
T [phone]
ROMIB S.R.L.
str. Poligonului nr. 5 - 7
100070 Ploiesti ,judet Prahova
T [phone]
F [phone]
ROM
ORKLA HOUSE CARE NORGE AS
Nedre Skøyen vei 26,
PO Box 423, Skøyen
0213 Oslo
T [phone]
NOR
E-CORECO S.R.O.
Na Roudné 102
301 00 Plzeň
T [phone]
F [phone]
CZ
Not responsible for errors and changes
Part. No. 2411988 B
05/2020_RS
© Copyright by J.Wagner GmbH
EL-ME-HO
Horvatinčićev put 2
HR-10436 Rakov Potok
T +385 (-1)65 86 - 028
F +385 (-1)65 86 - 028
HR
ООО «ВИНТЕХ РУС»
143960 МО, г. Реутов
улица Железнодорожная,
д. 11, кв./оф. V
T [phone]
[email protected]
RUS
ROMIB S.R.L.
str. Poligonului nr. 5 - 7
100070 Ploiesti ,judet Prahova
T [phone]
F [phone]
ROM
TEHOMIX OY
Telekatu 10
20360 TURKU
T [phone]
F [phone]
SF
FHC SRL
Via Stazione 94,
26013 Crema (CR)
T 0373 204839
F 0373 204845
I
DELOS S.A.
Gonetsa area
Markopoulo Mesogaias 190 03
Attiki, Greece
P.O. BOX 293
T 22990 41056
F 22990 41059
GR
