Waterite Fusion 360 Installation instructions

INSTALLATION AND OWNER’S MANUAL
For FUSION 360™ Residential Reverse Osmosis
Drinking Water Systems
THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR
REFERENCE PURPOSES AND TECHNICAL GUIDANCE. IT IS STRONGLY
RECOMMENDED THAT QUALIFIED DEALER SERVICE PERSONNEL BE
CONTACTED IN THE EVENT OF AN UNKNOWN INTERRUPTION OF SERVICE OR
APPARENT PRODUCT MALFUNCTION. AN ANNUAL PREVENTATIVE
MAINTENANCE INSPECTION BY A WATER TREATMENT PROFESSIONAL IS
RECOMMENDED TO ENSURE TROUBLE-FREE AND CONTINUOUS OPERATION.

2
Congratulations!
You have purchased the finest residential drinking water
system available for your home. It will provide you years of
reliable service if properly installed, operated and maintained.
Please read this entire manual before attempting installation
and operation.
Section 1. Frequently Asked Questions
Before getting started, take the time to familiarize yourself with your new Waterite FUSION
360 system by reading some FAQs listed below. Call us or ask your dealer if you have any
other questions about your system’s operation.
Q: How does your Fusion 360 ™ Drinking Water System differ from an ordinary water filter?
Ordinary water filters or drinking water system have exposed housings, tubing and water storage
tanks.. Fusion 360 systems house all of the system components, including the storage tank in a
convenient, compact cabinet with easy-to-connect fittings in the rear for simple installation. Your
system will deliver pure, bottled water quality drinking water to a faucet conveniently located at
your kitchen sink or any other designated area.
Q: What is an RO membrane and how does it work?
A reverse osmosis (RO) membrane is a semi-permanent synthetic film that is spiral wound and
separates raw water from product water (permeate). Water containing dissolved contaminants
and salts is forced though the membrane by water pressure, with pure water being collected in the
storage tank and rejected contaminants flushed to waste.
Q: What processes does the FUSION 360 systems use?
Fusion 360™ systems use combinations of 4 types of treatment to produce your drinking water. 5-
micron polypropylene (PP) particle filters remove dirt, rust and other sediment. Activated carbon
cartridges (granular carbon in GAC and moulded briquettes in CBC) remove chlorine, colour, taste,
odours and other contaminants. An RO membrane is used to reduce dissolved contaminants, very
fine suspended particles, bacteria, cysts and viruses in the water by up to 99.9%. Finally, a
granular carbon cartridge will polish the water before it is delivered to your faucet.
Q: Will membranes remove minerals and salts from the water?
Reverse Osmosis membranes will remove up to 99.9% of common salts in solution.
Q: Does membrane filtration remove bacteria? Cryptosporidium? Viruses?
Yes. RO membranes will eliminate most bacteria, viruses and parasites such as Cryptosporidium
from the water. However, where these conditions exist, pre-filters and other system components
located before the membrane will become contaminated from exposure to them. Cross
contamination of the entire system may occur when the membrane or filters are changed or
disturbed.

3
!
FUSION 360™ DRINKING WATER SYSTEMS ARE DESIGNED ONLY TO IMPROVE
AESTHETIC PROPERTIES AND ARE NOT DESIGNED TO ACT AS A PRIMARY BARRIER TO
WATERBORNE MICROBIOLOGICAL OR TOXIC CHEMICAL CONTAMINATION. WHERE
THESE CONDITIONS MAY EXIST CONSULT A WATER PROFESSIONAL TO ENSURE
SUFFICIENT RAW WATER PRE-TREATMENT AND DISINFECTION.
Q: Where is the system installed?
Typically, the system is installed under the kitchen sink. This will be handy for most homeowners,
for Fusion 360™ systems are compact and take up very little space. Some homeowners or
installers prefer the basement or crawlspace, as this conserves storage in the kitchen and may
allow for easier access to the system for maintenance purposes. If you install the system more
that 20’ from your faucet, you may need a booster pump to ensure adequate pressure at the
faucet. Your dealer can provide you with this optional equipment.
Q: Can the Fusion 360™ system be connected to an extra faucet?
Yes. Many installations may include an optional ¼” tee and extra tubing to connect refrigerator
icemakers or additional sink faucets. See your dealer for advice and parts.
Q: How much water does the Fusion 360™ system produce?
A Fusion 360 RO system will nominally produce 100 US gallons (380 litres) of product water per
day. This output will be affected by household water pressure, concentration of dissolved salts in
the raw water, raw water temperature and other local factors. Normally, you can expect the
system to produce about 8-10 litres of water per hour. This fast production rate assures that
drinking water will always be on hand for almost all household applications.
Q: How does the ‘Leak Stop’ anti-leak device work?
The Leak Stop device is installed in the RO cabinet and is designed to shut off the flow of water to
the RO if it detects moisture at the base of the cabinet, should a leak ever develop in the unit. This
will protect the consumer from water damage that could have resulted. Care must be taken to not
accidentally expose the Leak Stop to water when servicing the RO or changing the cartridges, as it
will activate on contact and cannot be reset. Should this occur, the Leak Stop must be replaced.
The Waterite part # for the Leak Stop device is LSD1414-KAD.
Q: What is the standard warranty with Fusion 360™ systems?
Every Fusion 360™ system comes with a standard one-year limited warranty on all parts and
repair labour. A detailed warranty card is included with the unit. You may purchase an extended
consumer warranty if you wish - see the enclosed Extended Warranty Program information
sheet and enrolment form included in your package. Call your dealer or go to
www.waterite.com to apply. Normal filter cartridge replacement is excluded from your warranty.
Q: What is the cartridge replacement schedule for a Fusion 360™ system?
A good rule of thumb is to replace filter cartridges (AIP12EZ and AIC12EZ and AIC10EZ) every
three to six months. RO membranes have a life usually ranging from one year to as much as
seven years, dependent upon local water conditions. Hardness (the presence of calcium and
magnesium compounds) and iron content will shorten the life of RO membranes.

4
Section 2. Unpacking and Installation
Your system includes:
9The RO filtration cabinet assembly. Depending on the model, your four-stage RO unit may
have a booster pump installed inside the cabinet. The booster pump model will have a
cord and wall plug adapter attached.
9One self-piercing cold water saddle valve with PE tube attached;
9One low-lead (stainless is optional), long reach faucet and related mounting hardware
including threaded push-on tube connector (some faucets may already have the tubing
attached);
9Two (2) one-meter lengths (blue and white) of tube for connecting the filtration system to
the cold water saddle valve and to the faucet;
9One waste water pipe saddle and a length of black tube to attach the drain line (included in
RO hardware kit);
9One reverse osmosis membrane element;
9One Owner’s package including owner’s manual, warranty certificate, Extended Warranty
Plan enrolment form, Waterite Parts Program enrolment form.

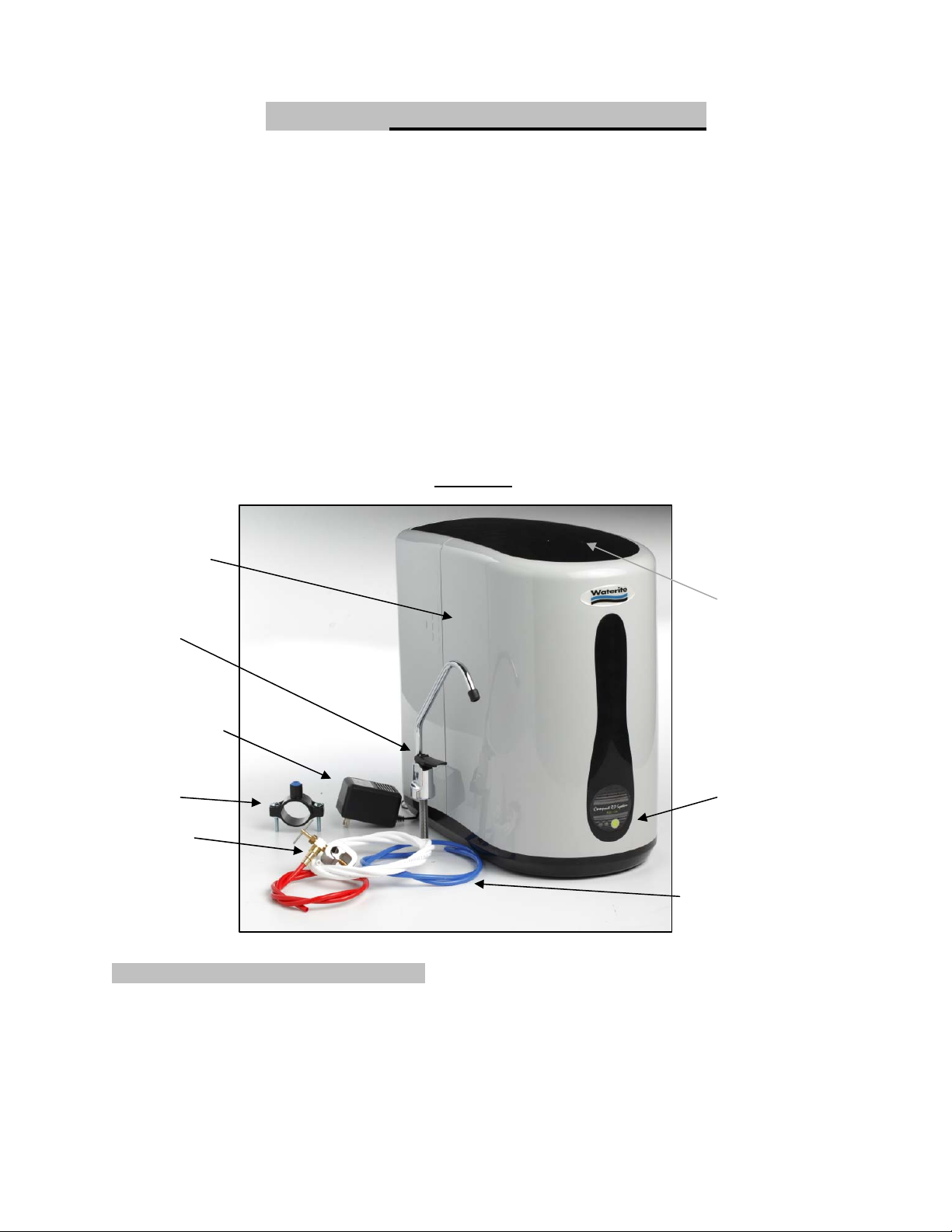

Figure 1.
RO cabinet
Detachable cover
Faucet
Wall adapter
(Booster pump model)
Drain saddle TDS monitor button
Saddle valve
2 PE connection tubes
(black, white or blue)
Step 1. Selecting the System Location
1. Your RO system is designed for installation under a sink. It can however, be mounted
anywhere within 20 feet of the faucet, such as the basement or adjoining utility room. Keep
in mind that filter cartridges will need periodic replacement and that easy access must be
maintained. Do not install in a location with high humidity, heat or direct sun.

5
2. Keep in mind that you may install a tube tee on the line to the faucet to connect icemakers
or other faucets to the system. If you locate your system farther than 20 feet from the
faucet, you will need to add a pressure booster pump to your system. See your dealer for
parts and details.
Step 2. Getting Ready
1. Clear working area. Unpack all components and check for visual damage. Ensure all
listed components are included. Review contents at Figure 1.
2. Inspect the cold water supply line and the condition of the pipe. The SV-8 saddle included
is intended for standard ½” or ¾” copper plumbing pipe. If you have a polybutylene,
polypropylene, iron or a PEX supply line, you will need to consult your plumber or plumbing
supply store to purchase an appropriate cold water connection. The Waterite part number
for a ½” PEX supply valve is 0651188.
3. You will need the following tools: An electric drill, a 5/8” drill bit, a ¼” drill bit, a pencil, a
small adjustable (crescent) wrench, a sharp knife (X-Acto type knife is best), adjustable
pliers, a Phillips-head screwdriver, a rat-tail file, a center punch. Always wear eye
protection when using an electric drill.
4. If you have purchased the booster pump model (Waterite model number ROC101E) then
you must have a 120V household electrical plug available where the RO cabinet will be
installed. Have a qualified electrician make this installation for you if one is not available.
Step 3. Install the Cold Water Supply Pipe Saddle
1. Turn the water supply valve to your home OFF.
2. Place the saddle on the COLD water supply line in a place that will not interfere with normal
access to the installation area but within easy reach of the RO unit. Thread the brass bolt
screw through the threaded hole opposite the valve and insert the reversible pipe back
plate, matching the contour with your supply pipe size. See Figure 2a. Snug firmly but DO
NOT OVERTIGHTEN. Turn the ‘T’ valve handle on the saddle valve clockwise until the
supply pipe is pierced and the valve is fully closed. Your pipe saddle valve will already
have the poly tube factory pre-attached. Keep the saddle valve closed for now.

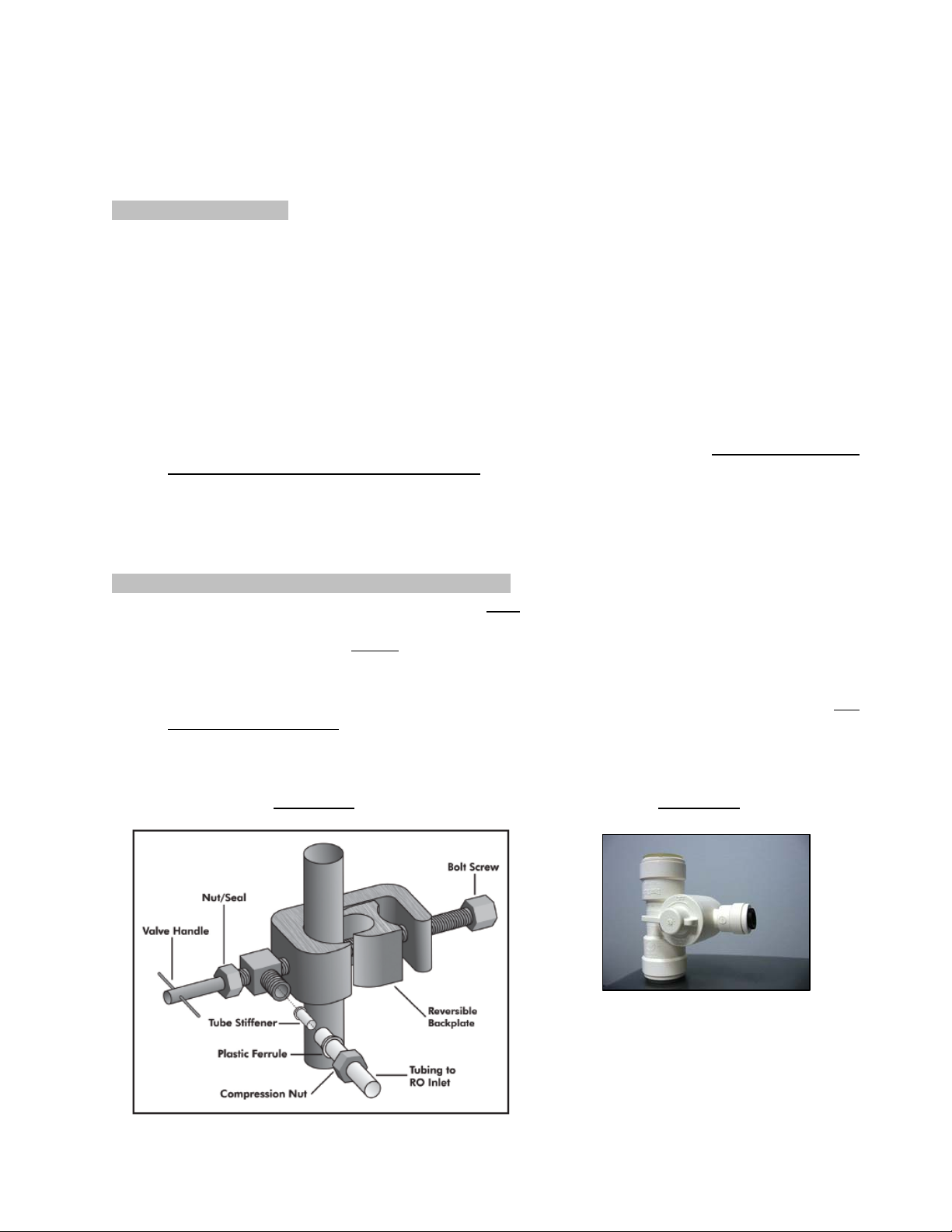

Figure 2a. Figure 2b.
For installations with ½” PEX, PVC or
copper plumbing pipe, consider the use
of a push-on tee valve. It may be
ordered from your dealer using Waterite
part # ROTV1214.

6
3. You may now turn the water supply to your home ON. Check for leaks around the saddle.
Tighten, reseat or reinstall if necessary.
Step 4. Install the Sink Faucet
Tools required for this step: An electric drill, a 5/8” carbide bit, a small adjustable wrench, a center
punch, a pencil, a rat-tail file.
Your dealer will be able to supply a variety of designer faucets and finishes to suit your
particular installation, if you wish. Included in your system is a premier quality chrome
faucet that is compatible to most kitchen installations.
1. Examine the sink. If it has an existing hole for mounting a faucet, skip to Step 4. (6).
2. Locate and mark the spot you wish to install the faucet. Make sure it does not interfere
with operation of the main faucet and that there is clearance for plumbing and mounting
hardware directly below it under the sink or countertop. If you have a stainless sink, go to
Step 4. (5)
3. If you have a concrete sink with a thickness of less than 1”, the faucet can be mounted
directly to sink. If the thickness exceeds 1”, the faucet must be mounted directly on the
countertop or a faucet with an extended shank must be used. Tool substitution: Use a 5/8”
masonry bit to drill the concrete sink.
4. If you have a granite or marble countertop, a porcelain enamel or ceramic sink, it is
strongly recommended that a kitchen or plumbing professional install the faucet to avoid
chipping and damaging the sink or countertop finish.
5. Mark the spot chosen for the faucet hole with the pencil. Use the center punch to slightly
indent the spot (the center punch is unnecessary for concrete sinks). Use the 5/8” bit and
drill the hole. Use the rat-tail file
to smooth any burrs or rough
edges on the hole.
6. The sink faucet may now be
assembled to the sink or
countertop using the assembly
procedure shown in Figure 3. If
your faucet had the feed tube
factory-attached do not connect it
to the RO unit at this time.
7. For faucets that do not have the
feed tube factory-attached, thread
the faucet tube adapter on the
faucet shank until snug, but DO
NOT OVERTIGHTEN. Do not
attach the tube at this time.
Figure 3.

7
Step 5. Install the Drain Saddle Assembly
1. Select the location to install the drain saddle assembly. This is usually on the sink
drainpipe and needs to always be located above the “S” trap.
2. Position the drain saddle assembly in the selected location and mark the spot through the
outlet with a pencil or marker.
3. Drill a ¼” hole at the marked
spot. Strip the backing paper
from the adhesive side of the
foam gasket and position on
the inside of the drain clamp
back plate, aligning the gasket
hole with the outlet. Attach the
drain clamp back plates to the
drainpipe, aligning the push-on
fitting with the drilled hole.
Using the screws provided,
tighten the clamp snugly. DO
NOT OVERTIGHTEN. See
Figure 4.
4. You will find the push-on drain line fitting at the lower rear of the RO cabinet. The other end
of the drain tube may be inserted directly into the push-on drain clamp fitting, using
instructions in Step 8 below. Do not attach the drain tube at this time.
Step 6. Connect the System Tubing
Note: All fitting joints on your RO are locked into place with a blue ‘C-
clip’ that holds the fitting collet in the locked position. These C-clips must
be removed before the tube will release and must be replaced once the
tube is re-inserted to assure a secure joint. Simply slide the C-clip in and
out of place with a pair of needle-nose pliers.
Figure 4.

8
Figure 5a.
Figure 5b. Cabinet tube connections
1. See Figure 5b above. This rear view of the cabinet shows the three water connections that
must be made to the cabinet. When cutting the tube lengths, be sure to allow enough tube
for the cabinet to be placed in its final position and then to be pulled out for easy
maintenance access, once the installation is complete. Be sure to remove the C-clips from
the RO connection fittings and secure them in place once the connections are completed.
2. Connect the red tube from the water supply valve with the system push-on ‘water inlet’
fitting on the cabinet, after cutting the ¼” red supply tube to the length required. Make
sure tube cuts are clean and square and the tube is fully inserted into the inlet fitting.
3. Connect the white (or blue) ¼” tube to the faucet inlet fitting. Connect the other end to the
’to faucet’ outlet fitting on the cabinet after cutting the faucet tubing to the desired length.
Make sure tube cuts are clean and square and the tube is fully inserted into the fitting.
4. Connect the black drain tube by inserting the tube into the push-on drain saddle fitting.
Next, connect the other end to the ’to drain’ cabinet outlet fitting after cutting the drain
tubing to the desired length. Make sure tube cuts are clean and square and the tube is
fully inserted into the fitting.
!
DO NOT ATTEMPT TO USE ANY WATER FROM THE SYSTEM UNTIL THE NEXT STEP IS
COMPLETE.

9
Step 7. Starting Up the Fusion 360 Filtration System
1. See Figure 5a above. Using the Phillips-head screwdriver, remove the screw as shown.
This will allow you to slide off the cabinet cowling from the rear. The top detachable cover
may also be removed by sliding it out towards the rear. See Figure 5b.
2. See Figure 6. This shows the location of the built-in Leak Stop device. It is installed in the
base of the cabinet and will contact any water that drains to the cabinet base. This device
will automatically shut off water from the cold water inlet, in the event an accidental leak in
the RO system is detected. This will protect your home from any accidental leakage that
could cause water damage.
It is very important to temporarily loosen the Leak Stop from its normal position any time
you are checking for leaks (such as on start-up) or changing cartridges. This may be done
by loosening the two mounting screws and gently raising the device from its normal
position. This will prevent accidental water contact with the device. It cannot be reset if it
gets wet and activates – it will require replacement to resume service, should this occur.
Sediment cartridge (AIP12EZ)
Auto shut-off valve Carbon cartridge (AIC12EZ)
Membrane housing
Post carbon (AIC10EZ)
Storage tank valve
Leak Stop device
Figure 6.
3. See Figure 6. Locate the membrane housing, mounted horizontally on the system’s
mounting bracket, next to the filter cartridges. Gently pull the membrane housing out of its
mounting brackets. Disconnect the ¼” tube attached to the membrane housing end cap.
Unscrew the end cap from the membrane housing. (Make sure your hands are washed
before proceeding further.) Remove the membrane element from its packaging. Insert the
membrane element into the housing, o-ring spigot first. Gently push until the membrane
seats snugly inside the housing. Re-install housing cap and poly tube connections. Gently
push the membrane housing back in its mounting brackets.
4. For model ROC101E (equipped with the booster pump), plug the wall adapter into a
standard 120V/60 Hz wall socket. The booster pump will not start at this time.

10
5. Open water supply saddle valve and let RO system fill with water. For ROC101E models,
the booster pump should start pumping immediately. Check for leaks on all internal and
external joints and repair any leaks by reseating the tube in the fitting, if necessary.
6. Let the system operate for about 20 minutes. Open the faucet and run water for about 10
seconds. Check for leaks again and repair if necessary. Re-install the Leak Stop device in
its normal position – first make sure there is no water or moisture in this location.
7. The system is now operating and filling the storage tank. Allow the tank to fill completely
and the system to automatically shut itself off. This step may take ½ to 1 hour or more.
Open the faucet and let the entire tank drain completely. You may see dark carbon dust
briefly flush from the carbon polishing cartridge – this is harmless and normal for the first
flow of water through the cartridge. Allow the system to re-fill the tank. Once completed,
your system is ready for use.
8. Reinstall the cabinet detachable lid and cowling. See Figure 5b. Replace the rear screw
and slide the RO cabinet into its final installation position.
Section 3: Operation and Maintenance
Operation of your Fusion 360 RO System is simple and easy. This appliance is fully automatic
and can be enjoyed without complicated operating procedures. Be sure to follow the cartridge
replacement schedule to ensure peak performance and long membrane element life.
Total Dissolved Solids can be measured by simply pushing the button on the face of the cabinet
and observing the online TDS monitor. This monitor measures the TDS of the system’s product
water, indicating levels in excess of 100 TDS with a red light. At this level, a membrane failure
would be evident and a red light will show. Soft water free from iron is idea for long membrane
life. Hardness, iron, chlorine and infrequently changed filter cartridges are the membrane’s
greatest enemies.
Changing the batteries on your TDS meter
You may change the two ‘AA’ sized batteries by removing the cabinet cowling and the detachable
lid. The battery case is located in the lower tray, towards the rear of the unit.
Changing Filter Cartridges
The pre and post filter cartridges should be changed, as a rule of thumb, every three to six months,
depending on local raw water conditions.
1. See Figure 5a above. Using the Phillips-head screwdriver, remove the screw as shown.
This will allow you to slide off the cabinet cowling from the rear. The top detachable cover
may also be removed by sliding it out towards the rear. See Figure 5b.
2. Filter cartridges must be changed with the saddle valve OFF.
3. Close the tank valve. Open the faucet until the flow of water stops, and then close.
4. Detach the Leak Stop device from the base of the RO cabinet to assure that it does not get
wet during the cartridge change process.

11
5. Grasp with the top cartridge (AIP12 - see figure 12) and gently pull out of its mounting clips.
Repeat with the AIC12 and AIC10 cartridges. Disconnect each from its tubing connections
(note blue C-clips must be removed first) and replace with the replacement cartridge. Make
sure each tube is reconnected correctly and the tubing is fully inserted and secured into
each fitting, with C-clips reinstalled.
6. Replace each cartridge back into its mounting clips by gently pushing them into place.
7. Turn the raw water saddle valve ON. Open the faucet and allow the system to run for two
minutes to flush. Check for leaks. Reassemble the detachable lid and cabinet cowling and
push the cabinet back in place. You may now resume normal use of the system.
Changing your RO Membrane Element
Membrane elements require changing much less frequently than the filter cartridges and only
when failure is indicated. This should be done when the water production rate begins to noticeably
fall or TDS readings in the product water begin to rise.
1. See Figure 5a above. Using the Phillips-head screwdriver, remove the cabinet cowling
screw as shown. This will allow you to slide off the cabinet cowling from the rear. The top
detachable cover may also be removed by sliding it out towards the rear. See Figure 5b.
2. Close the cold water supply saddle valve. Close the storage tank valve. Open the faucet
until the flow of water stops, and then close.
3. See Figure 6. Gently pull the membrane housing out of its mounting clips. Remove safety
clips from push-on fittings. Disconnect the ¼” tubes attached to the membrane housing.
Unscrew the end cap from the membrane housing.
4. If the old membrane element does not pull out easily by hand, use a needle nose pair of
pliers to gently pull and slightly rotate the element by the product tube until it slides out of
the housing. Use warm water, a mild soap solution and a bottlebrush to clean the interior
of the housing before installing the new element.
5. Wash hands and remove the new membrane element from its wrapping. Insert the
membrane element into the housing, o-ring spigot first. Gently push until the membrane
seats snugly inside the housing. Re-install housing cap and poly tubes, taking care that the
tubes are fully inserted into the fittings. Gently push the membrane housing back into its
mounting clips.
6. Turn the raw water saddle valve ON. Open the faucet and allow the system to run for two
minutes to flush. Check for leaks. Reassemble the detachable lid and cabinet cowling and
push the cabinet back in place. You may now resume normal use of the system.
Your Warranty
Keep your bill of sale and your warranty certificate, included in this kit. This is needed to claim any
parts or repair service during the warranty period. Read the document completely for warranty
claim instructions.
!
BE SURE TO RETURN THE FUSION 360 WARRANTY CARD LOCATED IN YOUR
LITERATURE KIT. THIS IS NECESSARY TO VALIDATE YOUR PRODUCT WARRANTY.

12
Section 4: Troubleshooting Guide
Trouble Shooting Guide Possible Cause Solution
Low Water or No Water Water supply valve closed
or RO tank valve closed. Open valves
Low home water pressure Must exceed 40
PSI. If lower,
install booster
pump – see
dealer
Crimped poly tube Repair or replace
tube
Filters or membrane plugged Replace
membrane or
cartridges
Tubes installed to wrong fitting Install tubes per
S.6 (2), (3) and
(4).
Low air charge in tank Charge to 7-10
psi or replace
tank
Tank full but no water flow Replace tank –
bladder ruptured
Flow restrictor (DLFK) Check DLFK and
replace if
necessary
Raw water TDS high Consult dealer –
may need pre-
treatment
System Runs Continuously Auto shutoff valve defective Replace valve
Leaking Joints Fittings not seated Disconnect fitting
and reseat tube.
See S. 6.

13
Fusion² 360 ™
RO DRINKING WATER SYSTEM COMMON PARTS LIST
Calculating your RO System’s Daily Output
The Pressure and temperature chart following will help you determine what daily output you can
expect from your Fusion 360 RO System. Your RO system is rated to produce 100 US gallons per
day, or approximately 380 litres per day. Membranes are nominally rated at about 77°F (23°C)
and 65 PSI (4.5 bar). By measuring your household pressure and inlet water temperature, you
may calculate the expected production of your RO system in your home. Keep in mind that RO
membrane output normally decreases with age, up to about 10% after 3 years.
Example: 58°F (13°C) and 50 PSI (3.4 bar) measured in your home at the RO inlet.
(From the chart below) .5094 X 100 gallons = 50.9 gallons (193 litres) per day.
50.9 gallons/24 hours = 2.1 gallons (8.0 litres) per hour production rate
VISIT THE WATERITE TECHNOLOGIES WEBSITE FOR
INFORMATION, CONSUMER ONLINE REPLACEMENT PARTS
AND PRODUCT UPDATES AT:
www.waterite.com
DESCRIPTION PART NUMBER
RO auto shut-off valve ROS002
Pre-filter PP Sediment Cartridge AIP12EZ
Pre-filter CBC Carbon Cartridge AIC12EZ
100GPD RO Membrane BME1812R100
Post-filter GAC Carbon Cartridge AIC10EZ
Leak Stop device LS1414-KAD
Tube-attached Saddle Valve SV-8
Chrome Faucet F9-C
¼” push-on tee (used for refrigerator hook-up) A4TU4

14

15
PAGE LEFT INTENTIONALLY BLANK

16
PAGE LEFT INTENTIONALLY BLANK
Waterite Technologies, Inc.
3-75 Meridian Drive
Winnipeg, Manitoba
Canada R2R 2V9
[phone]
[phone] fax
www.waterite.com
