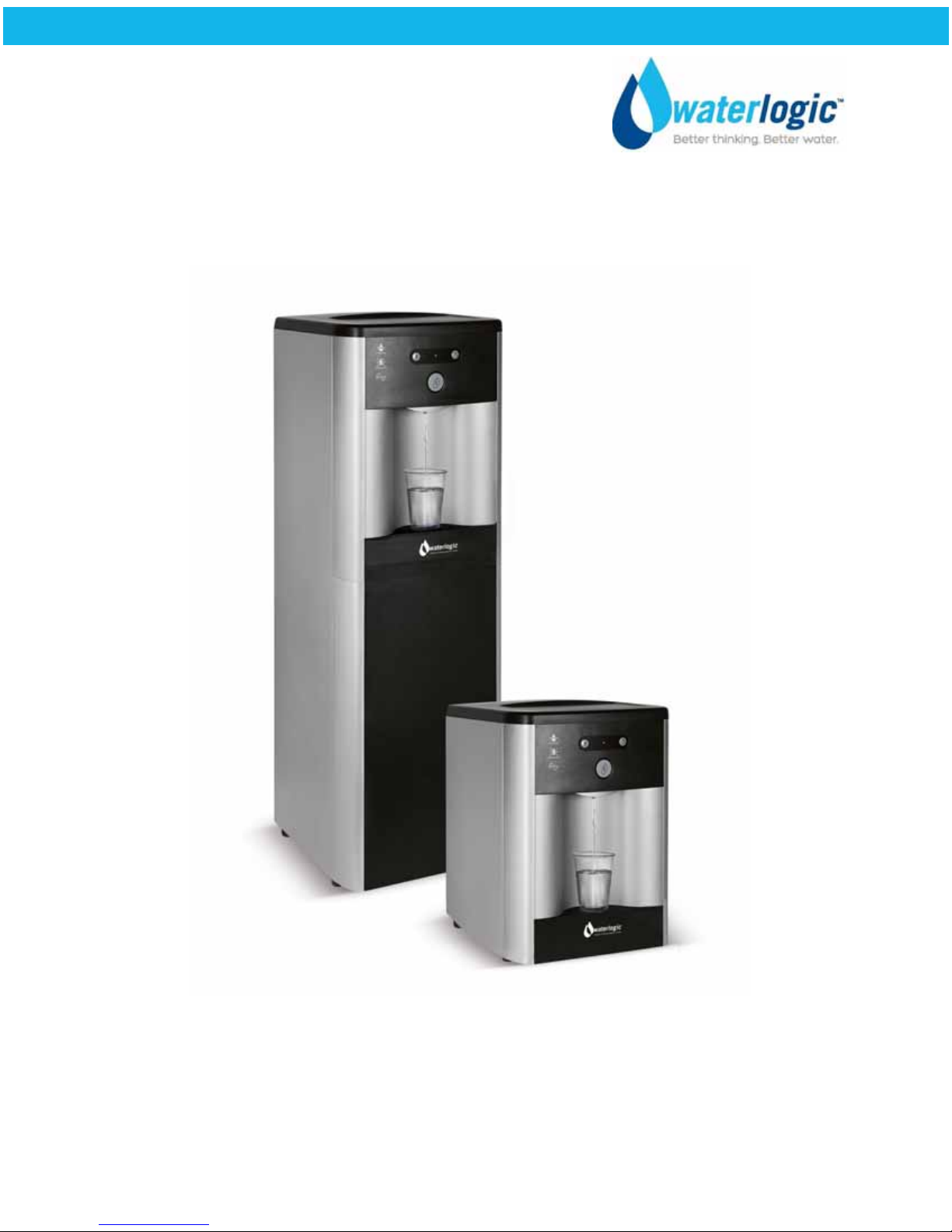

WaterLogic WL250 Manual

Waterlogic Commercial Products, LLC
11710 Stonegate Circle
Omaha, NE 68164
[phone] www.waterlogic.us
Tech Portal Website: www.techportal.waterlogic.com
WL250
OPERATING, INSTALLATION, AND SERVICE MANUAL


WL250Operating,Installation,andServiceManual Page2‐Revision:4‐25‐2016

WL250OPERATING,INSTALLATION,ANDSERVICEMANUAL

CongratulationsonyourchoiceoftheWaterlogicWL250WaterTreatmentSystem.TheWL250
modeldispensescold,andhot.EveryWL250WaterTreatmentSystemincludes:


Bio‐CoteAnti‐MicrobialProtection


AdvancedIn‐TankUltraviolet(UV)Purification


Filterconfigurationcanbeoptimizedforallwaterconditions



TheWaterlogicWL250WaterTreatmentSystemprovidesexceptionalqualityandgreattasting
waterwitheveryuse.

TABLEOFCONTENTS 

 FeaturesandBenefits.................................................................3
 Certifications...............................................................................4
 IntroductionandSafetyAlertSymbols.......................................5
 SafetyPrecautions......................................................................6
 ModelandPartDesignations......................................................7
 Specifications..............................................................................7
 OperatingInstructions................................................................8
 HotTankPrinciplesofOperation................................................9
 FlowDiagrams...........................................................................10
 AdjustingColdSetPoint............................................................12
 Pre‐InstallationProcedures......................................................13
 DrainingProcedures..................................................................17
 InstallationProcedures.............................................................19
 ServiceRequirements...............................................................21
 ReplacementComponents.......................................................22
 HotTankDescalingInstructions...............................................23
 ResettingtheHotTankOverloadorHighLimitSafety
.............25
 CounterTopDrawingsandPartLists……………………..................27
 TowerDrawingsandPartsLists................................................34
 ElectricalDiagram.....................................................................41
 FaultCodesandTroubleshooting.............................................42
 Warranty..................................................................................62

WL250Operating,Installation,andServiceManual Page3‐Revision:4‐25‐2016
WL250FEATURESANDBENEFITS



ColdandHotWater
CounterTopandTowerModelscomestandardwithColdandHotSelectionstomeetawiderangeof
customerdemands.TheTowerModelisalsoavailableinColdOnlyWaterVersion.ColdWater
Temperatureisadjustable.

HighVolumeStorageandWaterCapacity
TowerModelhas4litersofColdWaterCapacityand1.6LitersofHotWaterCapacity.
CounterTophas2litersofColdWaterCapacityand1.6LitersofHotWaterCapacity.

BioCote®Anti‐MicrobialProtection
Plasticsurfacessurroundingdispensingareasanddriptrayareinfusedwithan
exclusivesilveradditivecalledBioCote®.Silverisanaturalanti‐microbialthat
inhibitsthegrowthofmicroorganismsprovidingadditionalsurfaceprotection.

LargeDispenseAreawithRecessedFaucet
8.5inchdispenseheightwithBioCote®recessedfaucettoprotectfromcross‐contamination.

LeakDetection
CounterTopModelissuppliedwithaSensorintheLeakTraythathaltswatersupplytoprevent
overflowandsoundsalarmtoreduceaccidentpotential.

ChildSafeguard
TheWL250WaterTreatmentSystemrequiresHotWaterselectionfollowedbymaindispensefor
HotWater,anddefaultsbacktocoldselectionafter3secondsofinactivitytopreventaccidental
dispensingofhotwater.


In‐TankUVPurification
IndustryleadingIn‐TankUVPurificationpreventsthegrowthofbio‐filmwithintheStainlessSteel
ColdTank.



AuxiliaryPort
AuxiliaryPorttofeedCoffeeMachinesorotherAppliancesonCounter
TopModels.


WL250Operating,Installation,andServiceManual Page4‐Revision:4‐25‐2016
WL250CERTIFICATIONS 

WaterlogicWaterTreatmentSystemshavebeentested,andcertifiedtorigorousNSFandUL
Standards.WebelievethatperformancetestingandcertificationsvalidateWaterlogicasaworld‐
leaderinwatertreatmentsystems.
WL250WaterTreatmentSystemCertificationsInclude
UL399–CertifiedDrinkingWaterCooler
IntertekLabs(ETL)CertifiedtheWL250WaterTreatmentSystemtoANSI/UL399
StandardforDrinkingWaterCoolers.



BPAFree‐WaterlogictestsforBPAanddeclaresthatallofitsproductsareBisphenol‐A
FREEandcontainnoharmfulBPAplastics.



NSF/ANSI‐61–CertifiedDrinkingWaterSystemComponents
TheWL250WaterTreatmentSystemhasbeentestedandcertifiedbyTheWater
QualityAssociation(WQA)toNSF/ANSI‐61,Section9.



WaterlogicmanufacturingiscertifiedtoISO9001–QualityManagement
Systems(certifiedbyMoodyInternational).ISO9001isthe
internationallyacceptedstandardforwellmanagedorganizationsthat
haveadoptedthekeyqualitymanagementprinciplestoitsoperationsto
bringconsistentqualityproductsandacultureofcontinuous
improvement.
SafeDrinkingWaterAct
WaterlogicWaterTreatmentSystemsconformtotheSafeDrinkingWaterAct(SWDA)“lead‐free”
amendmenteffectiveJanuary4,2014.



WL250Operating,Installation,andServiceManual Page5‐Revision:4‐25‐2016
INTRODUCTION

CarefullyreadandfollowallinstructionstoensureproperandefficientoperationofyourWL250
WaterTreatmentSystem.ContactWaterlogicoranAuthorizedWaterlogicDealerifyouhaveany
questions.

WaterlogicandAuthorizedWaterlogicDealersemploytrainedservicepersonnelwhoare
experiencedintheinstallation,functionandrepairofWaterlogicequipment.Thispublicationis
writtenforusebythesequalifiedindividuals.Waterlogicencouragesuserstolearnaboutproducts,
however,webelievethatproductknowledgeandserviceisbestobtainedbyconsultingWaterlogic
oranAuthorizedWaterlogicDealer.

WaterlogicWaterTreatmentSystemsshouldbecombinedwithselectedwatertreatment
componentstocreateasystemspecificallytailoredforeachapplicationbytrainedandqualified
personnel.

ProductsmanufacturedandmarketedbyWaterlogicanditsaffiliatesareprotectedbypatents
issuedorpendingintheUnitedStatesandothercountries.

Waterlogicreservestherighttochangethespecificationsreferredtointhisliteratureatanytime,
withoutpriornotice.ChangesormodificationsnotexpresslyapprovedbyWaterlogiccouldvoidthe
warrantyanduser’sauthoritytooperatetheequipment.


SAFETYALERTSYMBOLS

Readandfollowallsafetyinformationcarefully.Thesignalwordsusedinthismanualareselectedas
shownbelowandbasedonanassessmentofthedegreeofpotentialinjuryordamage(severeor
minor)andtheoccurrenceofinjury(definitelyoccursorhasthepotentialtooccur)whenthe
warningisignored:

DANGER!
Indicatesasituationwhich,whennotavoided,resultsindeathorsevereinjury.

WARNING!
Indicatesasituationwhich,whennotavoided,hasthepotentialtoresultindeathorsevere
injury;and/orseverepropertydamage.


CAUTION!
Indicatesasituationwhich,whennotavoided,resultsorhasthepotentialtoresultinminor
injury;and/orminorpropertydamage.


WL250Operating,Installation,andServiceManual Page6‐Revision:4‐25‐2016
SAFETYPRECAUTIONS

Basicsafetyprecautionsshouldbefollowed,includingthefollowing:

DANGER!Ifincorrectlyinstalled,operatedormaintained,thisproductcancausedeathor
severeinjury.Thosewhoinstall,operate,ormaintainthisproductshouldbetrainedinitsproperuse,
warnedofitsdangers,andshouldreadtheentiremanualbeforeattemptingtoinstall,operate,or
maintainthisproduct.

WARNING!Unitistobeusedforitsintendedpurposeasdescribedinthismanual,and
untrainedindividualswhousethismanualassumetheriskofanyresultingpropertydamageor
personalinjury.

WARNING!HOTWATER.UnitproducesHotWaterupto188
o
F.Waterabove125
o
Fcancause
severeburnsorscalding.Keepunauthorizedpeopleandchildrenawayfromtheunittoavoid
accidentaldispensingofhotwater.Childrenshouldnotusewithoutsupervision.

DANGER!ELECTRICALSHOCKHAZARD.Alwaysunplugfrompowersupplypriortoservicing
equipmenttopreventelectricalshock.

WARNING!Thissystemtobeusedforwateronlyandisnotintendedforusewherewateris
microbiologicallyunsafeorwithwaterofunknownqualitywithoutadequatedisinfectionbeforeor
afterthesystem.Thesystemisdesignedforthesupplementalbactericidaltreatmentofeither
treatedanddisinfectedpublicdrinkingwater,orotherdrinkingwater,whichhasbeentestedand
deemedacceptableforhumanconsumptionbythestateorlocalhealthagencyhavingjurisdiction.
Thesystemisdesignedtoreducenormallyoccurringnon‐pathogenicornuisancemicroorganisms
only.Systemisnotintendedfortreatmentofcontaminatedwater.

WARNING!DispenserCouldTiporFallcausingseriousinjury.Alwaysinstallunitonafirm,flat,
andlevelsurfaceandsecuretheWL250WaterTreatmentSystemtothebasecabinetwiththescrew
providedtolockthecomponentstogether.Neverplaceheavyitemsontopofunitandneverclimb,
stand,orhangonunitorstoragecabinettopreventinjuryanddamage.
 

CAUTION!INDOORUSEONLY.Donotinstalloutdoorsorwhereunitisindirectsunlight.Donot
installwhereambienttemperaturegoesbelow50
o
Forabove97
o
F.Avoidhighhumidityand
moisture.Productlifeandperformancewillbeimpactedandwarrantycouldbevoided.


WL250Operating,Installation,andServiceManual Page7‐Revision:4‐25‐2016
MODEL/PARTDESIGNATIONS
BRANDNAMEDESCRIPTIONMODEL‐
PARTNUMBER
WL250CounterTopWaterlogicWL250CounterTop‐ColdandHot12‐CHCMU3
F‐6002‐M‐HC‐UT‐CS‐INN
WL250TowerWaterlogicWL250Tower‐ColdandHot12‐CHCU3
F‐6002‐FS‐HC‐UT‐CS‐INN
WL250Tower–ColdOnlyWaterlogicWL250Tower‐Cold12‐CCU3
F‐6002‐FS‐C‐UT‐CS‐INN

SPECIFICATIONS
ITEMWL250CounterTopWL250Tower
WaterConnection¼”QuickConnect
ColdWaterTemperatureColdWaterTemperature
–
FactorySetPoint41°‐ 5°C
(Adjustable)34° - 54° F.(1.1°‐12.2°C)
HotWaterTemperature185°F(85°C)FactorySetPoint
HotWaterManualReset
Overload206°F(97°C)
RecommendedService
Pressure40‐60psi(275‐414kPa)–UsePressureRegulator
MaximumServicePressure100psi(689kPa)–UsePressureRegulator
RatedServiceFlow0.5gallonsperminute(1.89Lpm)
EnvironmentalTemperature35°‐100°F(2°‐37°C)
UVLamp4Watts8Watts
Heater500W
RefrigerantGasR134a,40g,1.41ouncesR134a,65g,2.29ounces
R134aPressuresHigh(230psi),Low(90psi)


SHIPPINGSPECIFICATIONS
ITEMWL250CounterTopWL250Tower
Width/Depth/Height13.5”x14.5”x17.75” #(34cmx37cmx
45cm)
13.5”x14.5 x40.5”(34cmx41cmx
103cm)
Weight(dry)42pounds(19.5kg)58pounds(26.5kg)

ELECTRICALSPECIFICATIONS
ELECTRICALSUPPLY120V/60Hz,1PH15AmpService
COMPONENTPOWER(approximate)AMPDRAW(approximate)
Heater5044.2Amps
Compressor2161.8Amps
UVLampSystem180.15Amps
WL250TOTAL7386.15Amps

#WL250CounterTopis17.75in.tallandmaynotfitbetweencountertopsandcabinets‐Checkinstallationtoensureadequateclearance.

WL250Operating,Installation,andServiceManual Page8‐Revision:4‐25‐2016

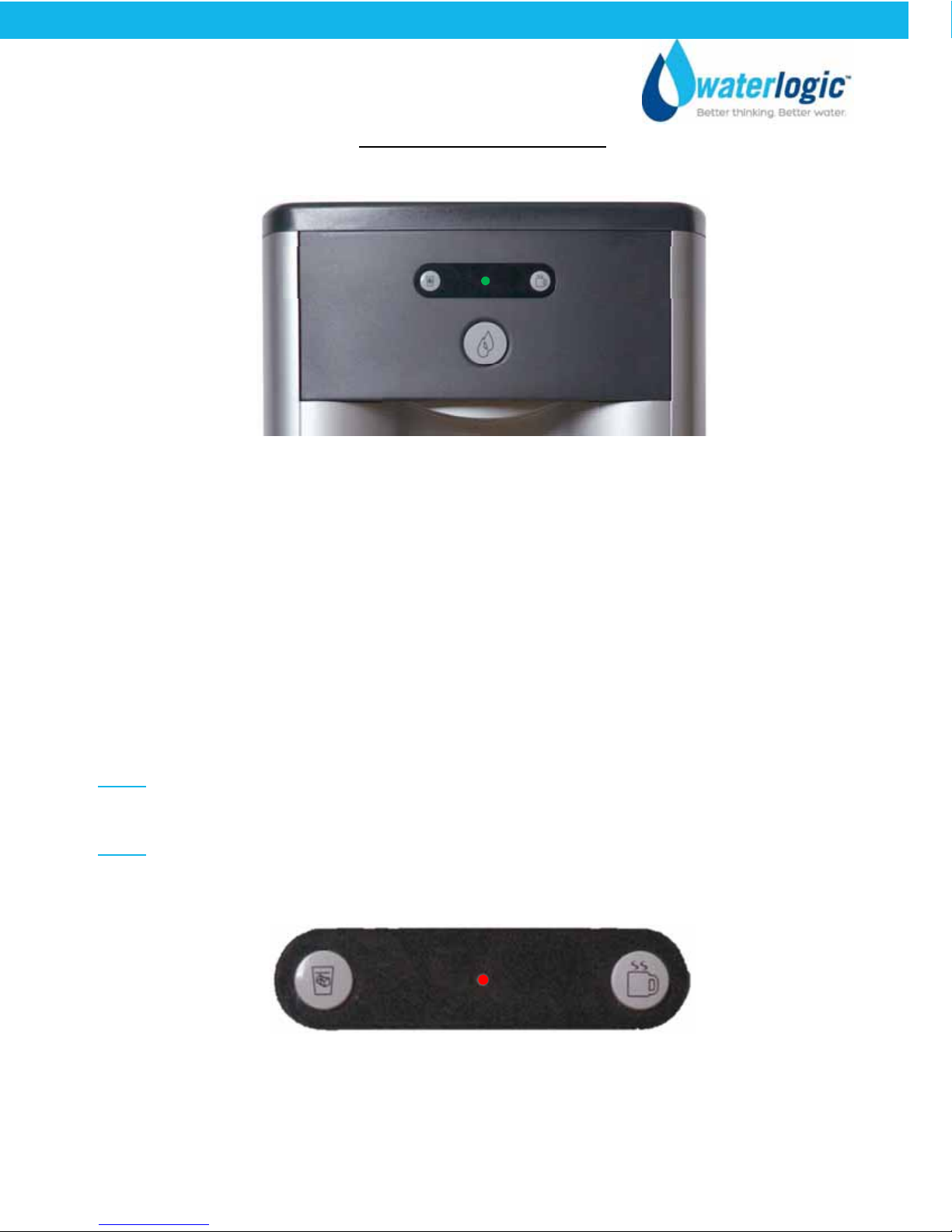

OPERATINGINSTRUCTIONS







TheabovepictureshowsfrontLCDdisplayandcontrolpanelfortheWaterlogicWL250Water
TreatmentSystem.


ForColdWater:PressColdWaterSelectButtonfollowedbytheDispensingButton(within3
seconds).

ForHotWater:PressHotWaterSelectButtonfollowedbytheDispensingButton(within3
seconds).


NOTE:  DefaultselectionmodeisColdWater.Selectionwillreturntodefaultafter3secondsof
inactivity.

NOTE:  SelectionindicationlightwillturnredwhentheHotWaterSelectbuttonispressed,andwill
switchbacktothedefaultgreenwithin3secondsafterdispensingthehotwater.




Selection IndicatorLight
ColdWater
Select
Hot Water
Select
DispensingButton

WL250Operating,Installation,andServiceManual Page9‐Revision:4‐25‐2016

HOTTANKPRINCIPLESOFOPERATION


AllWaterlogicHotTankshaveabuiltinVentor
ExpansionChamberinthetopofthetankexceptfor
WL270(GF)units.

TheVentChamberallowsforexpansionofthewater
whenitisheated.

Thechambersareseparatedbyawelded‐intank
baffle.

Wateralwaysflowsintothebottomofthetankand
outthetoptothefaucet.

Thehottankoutlettubehasarestrictorinitsbase.
Thisensuresthereservoirisalwaysfullbyallowing
morewaterinthanout.

Thereisasmallholeinthesideofthetankoutlettube
thatallowsairandwatertopassintothevent
chamberasitisheated.

Waterintheventchamberissuctionedbackthrough
theoutlettubeventholewhenwaterisdispensed.

Expansionofwaterasitisheatedinthereservoirwill
pushthewateroutthefaucetwhentheoutlettube
ventholebecomespluggedwithdebrisorscale.

ThesmallOutletVentHoleissusceptibletoscalebuild
upandisakeyindicatorthatdescalingisrequired.

ItiscriticaltodescaletheHotTankthroughthevent
lineandoutletlineonaregularbasistopreventthis
problem.

Descalingthroughtheinletand/oroutletlinesonly
willnotcleantheventchamberandoutletventhole
properly.



WL250Operating,Installation,andServiceManual Page10‐Revision:4‐25‐2016

WL250COUNTERTOPWATERFLOWDIAGRAM






AuxiliaryPort
WaterIn
SolenoidValve SolenoidValves
FilterDryer
Condenser
Compressor
LeakDetection
Sensors
Faucet
WaterOut
Cold
Tank
HotTank
PCB
DripTray
BackPlate

WL250Operating,Installation,andServiceManual Page11‐Revision:4‐25‐2016
RecommendedFiltration
WL250TOWERWATERFLOWDIAGRAM


WaterIn
SolenoidValves
Hot
Tank
FilterDryer
WaterOut
Faucet
Cold
Tank
Condenser
Compressor

WL250Operating,Installation,andServiceManual Page12‐Revision:4‐25‐2016
ADJUSTINGCOLDSETPOINT

Thecoldsetpointcanbeadjustedbyaccessingthecoldthermostat
adjustmentscrewUndertheDecalattherearoftheWL250Water
TreatmentSystem.
ThiswillNOTVoidtheWarrantyasthecurrentDecalstatesonthebackof
theWL250WaterTreatmentSystem.Thefactorysetpointis~41°Fandis
indicatedbythedotonsheetmetalaroundtheadjustmentscrewand
behindthedecal.
Turningtheadjustmentscrewclockwiselowersthesetpointtemperature
andtherangeisapproximately20°Fthruthefullrangeofadjustment
(~7:00tothe~5:00positions).

Youshouldbeabletoturnthescrewfromthefactorysetpointof41°F
(~12:00position)about45degreesclockwise(2:30onaclock)toreduce
thesetpointtemperatureby6°Fandachievethe35‐36°Fsettingyouare
lookingfor.

Trialthisbyadjustingandthenmeasurethewatertemperature10‐15
minutesafterthecompressorshutsoff(coldestpoint)toverifytheset
pointtemperature.

Trynottogomuchpastthe“3:00position”toavoidfreezingthecoldtank
asshownabove.




FUTUREPRODUCTIONWILLINCLUDELABEL







WL250Operating,Installation,andServiceManual Page13‐Revision:4‐25‐2016
PRE‐INSTALLATIONPROCEDURES

DANGER!ELECTRICALSHOCKHAZARD.
Onlyqualifiedpersonnelwhohavereadandunderstandthisentiremanualshouldattemptto
install,orservicethisWL250WaterTreatmentSystem,failuretodosocouldresultindeathor
seriousinjury.DONOTplugintoanelectricalsupplyuntilspecificallyinstructed.
 
WARNING!ALWAYSSANITIZEBEFOREUSE.
Sanitizebeforeusetoeliminateanypotentialmicrobiologicalcontaminates.

MaterialsNeeded:
 PersonalProtectiveEquipment.RubberorNitrileSafetyGlovesandProtectiveEyewear
 PhillipsScrewdriver
 TemperatureGage
 WaterPitcherorContainertocollectwaterfromthefaucet
 5‐galloncontainerordrainbasin
 Sanitizer‐HouseholdBleach(5.25%SodiumHypochlorite)orCitricAcidBasedCleaner
 ¼”PlasticTubing,atleast4feetinlength,andassorted¼”quickconnectfittings
 TDSMeterandTestStripsformeasuringchlorine‐Optional

1. UnpacktheWaterlogicWL250WaterTreatmentSystemandcheckexteriorfordamage.
 

FlushFilters

CAUTION!FILTERFLUSHREQUIRED.

WL250’sWaterTreatmentSystemsarenotsuppliedwithfilters.Filtersshouldbeconfiguredto
optimizeyoursystem…Filtersneedtobeconfiguredandspecifiedtodothejobgiventhelocal
waterconditions,usage,maintenanceschedule,andplacementrestrictions.

Inorderforourfilterstoperformasrepresentedandtoprovidethebestqualitywaterpossible,it
isessentialthatfiltersbereplacedperiodically.Thefrequencyoffilterchangesdependsuponyour
waterqualityandyourwaterusage.Forexample,ifthereisalotofsedimentand/orparticlesin
yourwater,thenyouwillhavetochangeyourfiltersmorefrequentlythanalocationwithlittleto
nosediment.Besuretoreplaceyourfilterswheneveryounoticeadeclineintheperformance,
whetheritisadropinflowrateand/orpressureoranunusualtasteinthewater.

2. Flushthoroughlyperfiltermanufacturers’recommendationwithfreshwatertodrain.

3. Onceflushed,installthefilters.Followingtheflowdirectiononthefilter.

NOTE:  Filtersshouldnotbeflushedpriorto24hoursbeforeinstallationtolimitMicrobial
Growth.




WL250Operating,Installation,andServiceManual Page14‐Revision:4‐25‐2016
Sanitizing

SanitizeusingaHouseholdBleach(5.25%SodiumHypochloritesolution)orotherapproved
cleanerthroughoutthecoldandsparklingwatercircuits.Followallinstructionsonthesanitizer
andflushwithfreshwaterthroughthefaucetuntilodorandtasteisacceptable.

WARNING!USEPROPERPERSONALPROTECTIVEEQUIPMENT
Alwaysensureproperventilationanduseproperpersonalprotectiveequipmentsuchasgloves
andeyeprotectionwhenusingchemicals.RefertoMaterialSafetyDataSheetforspecific
requirementsofeachchemicalproduct.Takeallnecessaryprecautionstopreventsanitizerfrom
contactingeyes,clothing,andanyothersurfacesincoulddamage(carpets).


4. DisconnecttheUVLampwiringharnessandcarefullyremovetheUVLampfromthequartz
sleeve.

CAUTION!UVSYSTEMISFRAGILE.NeverhandletheUVSystemwithbarehands.UVLamp
andquartzsleevemustbefreeofoilsandcontaminantstoensureproperoperation.


5. Unscrewcoldtank/quartzsleeveretainingcapandremovethequartzsleeve.Thiswillrequire
TopCovertoberemovedtoaccessproperlyandfacilitateremoval.

6. Mix½gallonofsanitizerperdirectionsoruseBleachSolution(1teaspoon=1/6oz.=5ml=½cap
full)ofhouseholdbleach(SodiumHypochlorite5‐10%Concentration)with1/2gallonofwater.
Alwaysensuresanitizeriscompatiblewithstainlesssteelandacetylplastic.

7. PoursanitizersolutionthroughUVPortintoColdTankwitha
funnelorspout.Youmayaddconcentratedsanitizer(½cap
bleach)directlyintoemptycoldtankinsteadofpremixing.

8. InspectandcleanquartzsleeveandO‐ring.Reinstallthequartz
sleeveandquartzsleeveretainingnut.Tightenfirmlytoensure
properseal.Over‐tighteningcancausedamage.

CAUTION!DONOTINSTALLTHEUVLAMPATTHISTIME
TheUVwillinteractwiththesanitizerandcouldpotentiallycausetaste.

9. Connect40‐60psiregulated,potablewatersupplytothewaterinletbulkheadfittinglocatedon
thebackoftheWL250WaterTreatmentSystem.Turnonwatersupplyandcheckforleaks.

DANGER!ELECTRICALSHOCKHAZARD.
Donotpluginunitunlessqualified.Onlyqualifiedpersonnelwhohavereadandunderstandthis
entiremanualshouldattempttoinstallorservicethisunit.







UVPort

WL250Operating,Installation,andServiceManual Page15‐Revision:4‐25‐2016
10. ConnectWL250WaterTreatmentSystemtopower.

CAUTION!NEVERTURNONHEATERBEFOREFILLINGHOTTANK.

RedHeaterandCompressorPowerSwitchmustbeintheO=OFFposition
whilethehottankisempty.Damagecouldoccurwithinoneminuteandthe
overload(highlimit)willrequiremanualresetifheateristurnedonwithan
emptyhottank.


FilltheColdCircuitwithSanitizer

11. Depressthemaindispensingbuttononthefrontcontrolpaneluntilcoldwater/sanitizingsolution
comesoutthefaucet.NOTE:Containeranddrainbasinwillberequiredtocatchthewaterfrom
thefaucet.

WARNING!UsePersonalProtectiveEquipment.GlovesandEyeProtectionRequired.Thefirst
2or3gallonsofwaterwillcontainconcentratedsanitizer.Useextremecare!

FlushingtheSanitizerfromtheMachine

12. Placeapitcher,catchbasin,orothercontainerunderthefaucetoftheWL250WaterTreatment
System.

13. FlushtheColdTank.Runseveralgallonsofwaterthroughthefaucetbydispensingcoldwaterto
diluteandremovethesanitizerfromthecoldcircuit.Youcanusechlorineteststripstoevaluate
thewater.

14. Oncethesanitizerodor/tastehasbeenflushedoutofthecoldsideofthemachinethe
sanitizationprocessfortheColdCircuitiscomplete.

FilltheHotTank

15. PresstheHotWaterSelectButton,followedbythemaindispensingbuttontofillthehottank.
Waterwilldispensefromthefaucetoncethehottankisfull.Flushuntilwaterisclear.

WARNING!HOTCIRCUITISNOTSANITIZED.
Waterinthehotcircuitisnotsanitaryuntilthetemperatureexceeds171
o
Fforatleast5minutes.








WL250Operating,Installation,andServiceManual Page16‐Revision:4‐25‐2016
UVSystemFunctionalTest

WARNING!ULTRAVIOLETRADIATION.Protectyourskinandeyesagainstultravioletrays.
NeverlookdirectlyatanoperatingUVlight.Disconnectwiringbeforeremoving.

16. ReinstalltheUVLampandconnectthewiring.

17. Dimorshieldtheoverheadlightsandpeerintothemachine,ontopofthecoldtank,attheUV
connectorandretainingcap.Theblueglowindicatesthatthelampislit.


CompressorTest

18. SwitchRedCompressor/HeatertoI=ONposition.Alwaysensuretanksarefullof
waterbeforeturningontheheaterortheoverload(highlimit)willopenand
requiremanualreset.IfthewirecondenseratbackoftheWL250Water
TreatmentSystemiswarm,therefrigerationsystemisworking.


19. Oncethemachinereachesitstargettemperature,thecompressorwillshutoff.Drawaglassof
coldwaterandverifyitishasbeenchilledtopropertemperature.

HeaterTest

20. Alwaysensuretanksarefullofwaterbeforeturningontheheaterortheoverload(highlimit)will
openandrequiremanualreset.Itwilltaketheheaterapproximately10minutestoheatthe
waterfromambient75Ftothefactorysetpointof185F.Dispenseacupofhotwatertoensure
thetemperature/odor/tasteisacceptable.

WARNING!HOTWATER.UnitproducesHotWaterupto188
o
F.Waterabove125
o
Fcan
causesevereburnsorscalding.Hotwatershouldbedispensedcarefullyintoinsulated
containertoavoidinjury.



WL250Operating,Installation,andServiceManual Page17‐Revision:4‐25‐2016
WL250COUNTERTOPDRAININGINSTRUCTIONS

DrainingNotes

DraintheWL250fortransportation.

WARNING!STOREUNITEMPTY.ALWAYSSANITIZEBEFOREREUSE.
Theunitmustbecompletelydrainedandsealedbeforestoringtoavoidstagnationandreduce
microbialgrowth).

Priortodrainingthehottank,turnofftheRedHeaterandCompressorPower
Switch(O=OFF),anddispense2litersofhotwaterfromthemachine.Ashotwater
isdispensedfromthefaucetoftheWL250WaterTreatmentSystem,colderwater
willbeintroducedintothehottank.SincetheRedHeaterandCompressorPower
Switchisturnedoff,theheaterwillnotenergizeandheattheincomingtapwater.
Followingthisprecautionpreventsexposingpersonnelandequipment(drains,catchbasin,etc.)
toscaldinghotwater.

DisableColdandHotTanks

1. TurnofftheRedHeaterandCompressorPowerSwitch(O‐OFF)todisablethe
heaterandcompressor.
2. Dispense2litersofwaterthroughthehottanktocoolthewatertemperaturein
thehottankandavoidburns.

WARNING!HOTWATER.TheWL250WaterTreatmentSystemproducesHotWaterupto
188°F.Waterabove125°cancausesevereburnsorscalding.Hotwatershouldbedispensed
carefullyintoinsulatedcontainertoavoidinjury.

TurnoffWaterSupplyandBleedWaterPressure

3. IsolatetheWL250WaterTreatmentSystemfromfeed
waterbyturningoffthesupply.

4. Dispensecoldstillwatertorelieveanypressurebuiltupin
thesystem.

5. Removethewatersupplylinefromtheinletlinebulkhead
fittingatbackoftheWL250WaterTreatmentSystem.


6. DepressColdWaterDispenseButtonuntilallColdWaterhasdrainedfromtheWL250Water
TreatmentSystem.

7. DepressHotWaterDispenseButtonuntilallHotWaterhasdrainedfromtheWL250Water
TreatmentMachine.

WaterSupplyLine

WL250Operating,Installation,andServiceManual Page18‐Revision:4‐25‐2016
WL250TOWERDRAININGINSTRUCTIONS

DrainingNotes

DraintheWL250WaterTreatmentSystemfortransportation.

WARNING!STOREUNITEMPTY.ALWAYSSANITIZEBEFOREREUSE.
Theunitmustbecompletelydrainedandsealedbeforestoringtoavoidstagnationandreduce
microbialgrowth).

PriortodrainingtheHotTank,turnofftheRedHeaterandCompressorPower
Switch(O=OFF),anddispense2litersofhotwaterfromthemachine.Ashotwater
isdispensedfromthefaucetoftheWL250WaterTreatmentSystem,colderwater
willbeintroducedintothehottank.SincetheRedHeaterandCompressorPower
Switchisturnedoff,theheaterwillnotenergizeandheattheincomingtapwater.
Followingthisprecautionpreventsexposingpersonnelandequipment(drains,catchbasin,etc.)
toscaldinghotwater.

DisableColdandHotTanks

8. TurnofftheRedHeaterandCompressorPowerSwitch(O‐OFF)todisablethe
heaterandcompressor.
9. Dispense2litersofwaterthroughthehottanktocoolthewatertemperaturein
thehottankandavoidburns.

WARNING!HOTWATER.TheWL250WaterTreatmentSystemproducesHotWaterupto
188°F.Waterabove125°cancausesevereburnsorscalding.Hotwatershouldbedispensed
carefullyintoinsulatedcontainertoavoidinjury.

TurnoffWaterSupplyandBleedWaterPressure

10. IsolatetheWL250WaterTreatmentSystemfromfeedwaterbyturningoffthesupply.

11. Dispensecoldstillwatertorelieveanypressurebuiltupinthesystem.

12. Insertapprox.3inchesofbluetubingintotheLineBulkheadfittingatbackof
theWL250WaterTreatmentSystemtoallowwatertodrain.


13. DepressColdWaterDispenseButtonuntilallColdWaterhasdrainedfromthe
WL250WaterTreatmentSystem.


14. DepressHotWaterDispenseButtonuntilallHotWaterhasdrainedfromthe
WL250WaterTreatmentSystem.


BulkheadFitting

WL250Operating,Installation,andServiceManual Page19‐Revision:4‐25‐2016

INSTALLATIONPROCEDURES

SafetyandInstallationGuidelines
EnsureallLocal,State,andFederalLawsandCodesincludinghealthandsafetyguidelinesaremet
wheninstallingWaterlogicEquipment.Onlyqualifiedservicetechniciansshouldattempt
installationandserviceofWaterlogicEquipment.

WARNING!ELECTRICALSHOCKHAZARD.Alwaysunplug(isolatefrompowersupply)toprevent
electricalshockexceptwhereelectricaltestsarespecified.

WARNING!IMPROPERSUPPLYORCONNECTIONCANRESULTISRISKOFSHOCK.
Connecttoa15amp120V60Hzproperlygroundedoutlet(GFIisrecommended).Ensurepolarityis
correctandalwaysusea3‐prongoutlet.Consultaqualifiedelectricianifyouhaveanyquestions.

WARNING!USEONLYWaterlogicSUPPLIEDPOWERCORD.Locatesystemwithin5feetof
powersupply.Neveruseanextensioncordoradapter.Donotuseadamagedpowercordorplug.
Keeppowercordoutofheavytrafficareasandawayfromheatsources.Donot,underany
circumstances,removegroundprongoralterthepowercord.Neverpullthepowerplugfromthe
outletwithawethandorallowtheplugtogetwet.Failuretousethesuppliedpowercordwillvoid
ULCertificationandWarranty.

CAUTION!INDOORUSEONLY.Neverexposetodirectsunlight,heatsources,orambientair
temperatureabove100°F(37°C)orbelow35°F(2°C).Installindoorsandkeepunitawayfrom
excessivehumidity.Neverexposetofreezingtemperatures.Ensurethereisadequateclearance
aroundtheunittoallowrefrigerationsystemcondensertodissipateheat.Warmerenvironments
requiremoreclearancearoundtheunit.Minimumclearancearoundallsurfacesofthemachineis2‐
inches.Installswheretheambienttemperatureexceeds80°F,requireaminimumof4‐inches
clearanceforproperheatdissipationandefficientoperation.

CAUTION!USEAWATERPRESSUREREGULATOR.Waterlogicwillnotberesponsibleforinjuryor
damagecausedbyexcessivewaterpressure.Operatingpressuremustbe40psito60psi.Beaware
anyofpotentialpressuresurgescausedbybuilding/municipalpumpingstations.

CAUTION!USEUVSTABILIZEDSUPPLYLINES.Feedtheunitwithapotableambientorcold
watersupplyonly.Feedwaterover100°F(37°C)candamagethetreatmentcomponents.Water
blockdevicesandexternalleakdetectorsarestronglyrecommended.Locatetheunitasclosetothe
watersupplyandtheelectricalconnectionsaspossible.

WARNING!STOREANDTRANSPORTUNITEMPTY.ALWAYSSANITIZEBEFOREUSE.
Theunitmustbecompletelydrainedandsealedbeforestoringtoavoidstagnationandreduce
microbiologicalcontamination(potentialbacterialgrowth).Sanitizebeforeusetoeliminateany
potentialmicrobiologicalcontaminates 

Pre‐installationandsanitizationproceduresasprescribedinthismanualmustbeperformedbefore
installingtheWL250.

AlwaysinstallindoorsandplacetheWaterlogicWL250WaterTreatmentSystemonafirm,flatand
stablesurface.

WL250Operating,Installation,andServiceManual Page20‐Revision:4‐25‐2016

1. Attachthewatersupplylinetothe1/4”feedwaterinletbulkheadfittingonthebackofthe
WL250WaterTreatmentSystem.Waterlogicrequirestheuseofawaterpressureregulator.
Waterfeedpressuremustbebetween40‐60psi.Turnonthewatersupplyandcheckforleaks.
 

2. ChecktoensurethattheRedHeaterandCompressorPowerSwitchistheO=OFF
position.

NOTE:SwitcheshaveinternalLEDthatilluminateswhenplacedinI=ONposition.

3. ConnectthepowercordtothebackoftheWaterlogicWL250WaterTreatmentSystemandtoa
120Voltsupply.

4. FilltheColdTank.Holdacontainerunderthedispensingfaucet,pressandholdthemain
dispensingbuttonuntilacontinuousflowofwaterisobtained.Onceacontinuousflowis
obtained,releasethedispensingbutton.Coldtankisnowfull.

5. FilltheHotTank.Holdacontainerunderthedispensingfaucet.PresstheHotSelectButton
followedbythemaindispensingbuttonuntilacontinuousflowofwaterisobtained.Oncea
continuousflowisobtained,releasethemaindispensingbutton.Hottankisnowfull.

CAUTION!NEVERTURNONHEATERBEFOREFILLINGHOTTANK.
RedHeaterandCompressorPowerSwitchmustbeintheO=OFFpositionwhilethe
hottankisempty.Damagecouldoccurwithinoneminuteandtheoverload(high
limit)willrequiremanualresetifheateristurnedonwithanemptyhottank.

6. VerifythattheUVlampoperatesasexpected.

WARNING!ULTRAVIOLETRADIATION.Protectyourskinandeyesagainstultravioletrays.
NeverlookdirectlyatanoperatingUVlight.Alwaysdisconnectbeforeremoval.

7. MovetheWaterlogicWL250WaterTreatmentSystemintoitsfinaloperatingposition.Besure
thataminimumof2”clearanceismaintainedaroundbothsidesandthebackoftheWL250
WaterTreatmentSystem.Thisisimportanttoallowproperairflowandheatexchangeof
refrigerationsystem.

8. LevelWL250WaterTreatmentSystemusingtheadjustablefeettolevelifnecessary.Never
installonincline.

9. TurntheRedHeaterandCompressorPowerSwitchtoI=ONposition.

10. WhentheWL250WaterTreatmentSystemhasreacheditsHotTempSetPoint,the
heaterwillcycleoff.WhentheWL250WaterTreatmentSystemhasreachedits
ColdTempSetPointTemperature,thecompressorwillcycleoff.

11. OncetheWL250WaterTreatmentSystemisatthetargettemperature(s),samplethewaterto
ensurewatermeetsexpectationsandadditionalrinsingoradjustmentisnotrequired.


12. ChecktheWL250WaterTreatmentSystemforanyleaks.ExternalLeakProtectionisalways
recommended.
