Puretec Z1 Tripla Black Series User manual

For correct operation & installation, it is essential to observe these instructions.
AS/NZS 3497
Licence No. WM 74617
Australian Certication
Services
JUL2021
User Guide
Quick Twist Filter System with Tripla LED Mixer Tap
Z1 Tripla Series

2 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
What's Inside
What's Inside
Operation ............................................................................................................................................... 3
Cartridge Replacement................................................................................................................... 3
Servicing................................................................................................................................................. 4
Technical Information ..................................................................................................................... 4
Recommended Working Pressures .......................................................................................... 4
PART 1 Mixer Tap Assembly
Mixer Tap Installation Guide........................................................................................................ 5
Assembly................................................................................................................................................ 6
Mixer Tap Connections......................................................................................................................... 7
Battery Installation ................................................................................................................................9
Replacement of Ceramic Disc Cartridge(s)...................................................................... 10
PART 2 Filter Cartridge Installation
Installation Requirements ......................................................................................................... 10
Installation Procedure.................................................................................................................. 11
Cartridge Installation/Changeout .......................................................................................... 12
Use Guidelines ................................................................................................................................. 14
WELS Ratings....................................................................................................................................15

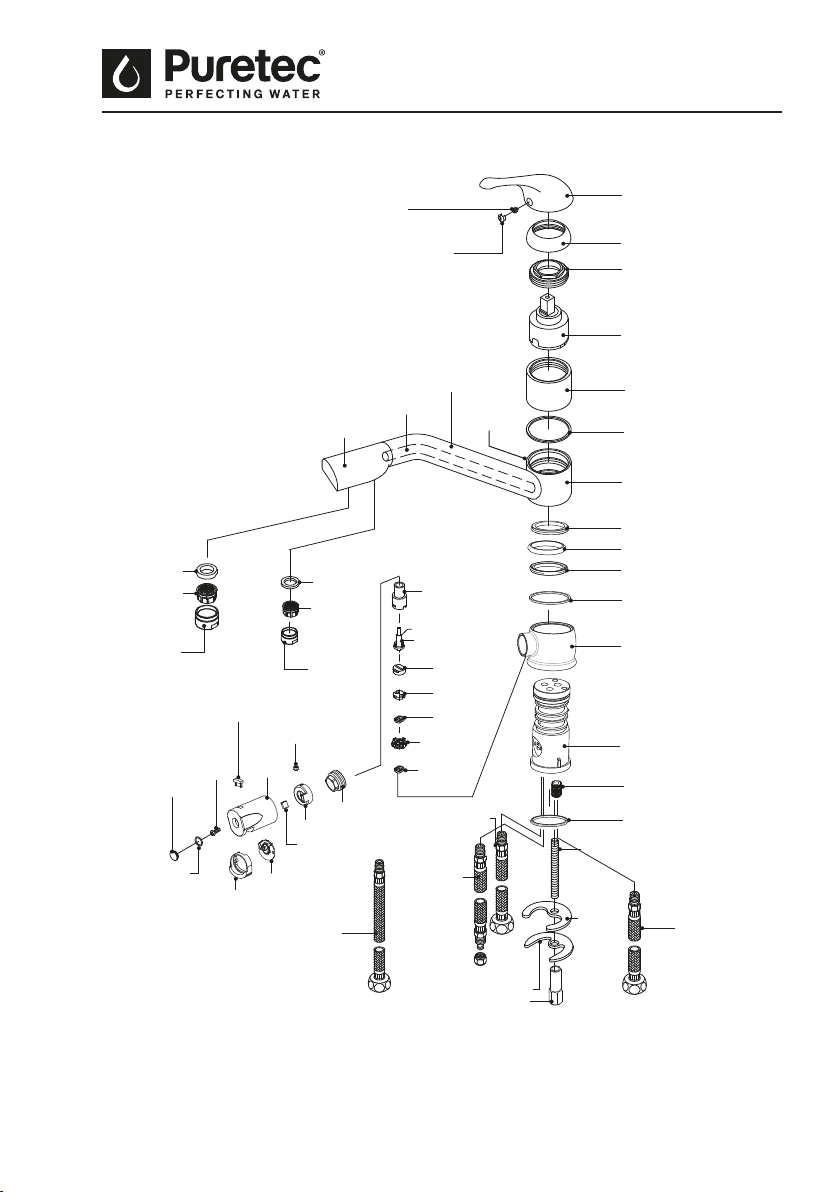

Tripla T1 Parts Description........................................................................................................ 16
Tripla T2 Parts Description........................................................................................................ 17
Tripla T3 Parts Description........................................................................................................ 18
Tripla T4 Parts Description........................................................................................................ 19
Tripla T5 Parts Description........................................................................................................ 20
Tripla T6 Parts Description........................................................................................................ 21
Performance Data.......................................................................................................................... 22
Warranty....................................................................................................................................................23

3
Quick Twist Water Filter System with Tripla LED Mixer Tap
Introduction
Puretec Customer Service
Thank you for purchasing Puretec Z1 Tripla water lter system. Your system is a proven
performer manufactured from only quality materials and components and will give years of
‘spring fresh’ water free of impurities if maintained properly.
The Puretec Z1 system cartridges need replacing regularly to maintain optimum performance.
This is a simple procedure when following instructions. For cartridge replacements contact
your nearest Puretec stockist.
The system is designed for metropolitan supply water but can be used in other situations.
For other types of water supply please contact your local Puretec stockist or call our Puretec
Customer Service Helpline prior to installing the tap.
Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand).
Caution: Do not use with water that is microbiologically unsafe or with water of unknown
quality without adequate disinfection before or aer the system. This product must be
installed in accordance with local plumbing regulations by a licensed plumber.
Operation
The Puretec Z1 Tripla system is designed to run economically for many years, dependent on
the initial installation and periodical maintenance.
Flush systems for 10 minutes aer any period of non-use more than 2 days. For a period of
non-use of 2 weeks or more, it may be necessary to replace cartridge.
Tap Surface - should only be cleaned with liquid detergent or soap and water. Under no
circumstance should any abrasive or acid base cleaning agents be used.
Installation Note: A water lter system/tap, like any product, has a limited life and may
eventually fail. Also sometimes failure happens early due to unforeseen circumstances. To
avoid possible property damage, this product should be regularly examined for leakage and/
or deterioration and replaced when necessary. A drain pan, plumbed to an appropriate drain
or outtted with a leak detector, should be used in those applications where any leakage
could cause property damage, and/or the water supply should be turned o if no one is home/
present.
Cartridge Replacement
To maintain the high quality of the puried water the cartridges need changing every 6-12
months (dependent on water quality and usage).
When replacing cartridge, ensure you reset the LED reminder light by removing/replacing the
battery from the rubber seat. Please refer to page 8 for a detailed diagram.
Order Z1-R for a replacement cartridge to suit your Z1 Tripla system.

4 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Servicing
Servicing
Periodically clean the aerator for any lodged sediment that may restrict ow. A Puretec water
lter is highly recommended on all incoming lines for product longevity.
Should it be necessary to have your mixer serviced while under warranty, please carry out the
following procedure:
1. Firstly call the plumber, preferably the one that has installed it, (most problems are
caused by the supply lines not being cleaned out properly, prior to connecting the
mixers).
2. Make sure that the plumber has installed your mixer according to the Instruction Guide.
3. If the plumber is satised that he cannot rectify the problem then contact your
plumbing supply store or your local Puretec stockist.
Important: We do not recommend the dismantling of any internal part of the mixer as
this will breach your warranty.
Technical Information
Puretec mixers can be used in conjunction with:
• Pressure storage hot water system
• Any mains water pressure not exceeding 500 kPa
• Maximum hot water temperature of 60°C
• Instantaneous hot water system
• Any ltered water supply
Recommended Working Pressures
• Minimum working pressure 172 kPa (7.5 psi)
• Maximum working pressure 500 kPa (72.5 psi)
It should be noted that water mains pressure builds up during o peak periods, mainly at
night, sometimes doubling or trebling normal daytime pressures.
Note: Not suitable for unequal pressure. On high pressure areas where the pressure exceeds
the recommended working pressure as indicated above, an approved pressure limiting valves
must be installed or warranty is voided.

5
Quick Twist Water Filter System with Tripla LED Mixer Tap
Mixer Tap Assembly
HOT
Mixer Tap
Rubber Washer
Sink Faucet
Hole (Ø33mm)
Water Filter
Connection
COLD
Metal Washer
Rubber Washer
Locking Nut
Retainer Screw
Fig. 1 - Mixer Tap Installation Guide
PART 1
Note: It is important to ush out the supply pipes to the mixer
before connecting the exible hoses, with the initial installation, so
no foreign matter can enter into the cartridges.
A Puretec Water Filter is highly recommended for product longevity.

6 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Mixer Tap Assembly

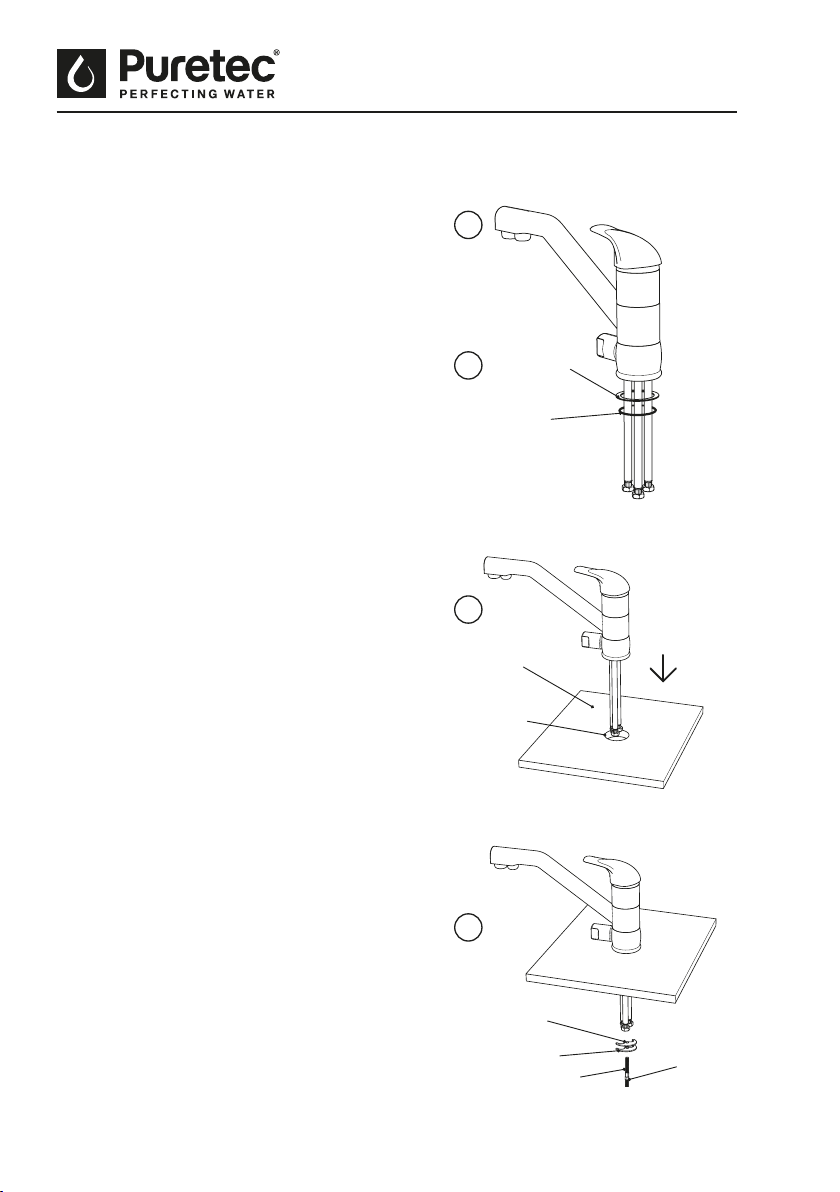

Step 4. Place the retainer screw
through the hole in each spacer and
screw to the hole on the bottom of
the faucet.
Then, use a wrench to lock the
locking nut.
Rubber Spacer
Locking
Nut
Retainer Screw
Zinc Spacer
Fig. 2 - Tap Assembly
O-Ring
Brass Base
1
2
Step 1. Connect the hoses to the
faucet and tighten them. Refer to
page 7 for connection patterns.
Only use hand to screw the exible
hose. Do not over tighten. Don't use
any tools.
Step 2. Put brass base with o-ring to
the bottom of the faucet.
Basin or Sink
33mm dia.
Hole
Step 3. Put the hoses through the
basin or sink. Required through hole
size is Ø33mm.
3
4

7
Quick Twist Water Filter System with Tripla LED Mixer Tap
Retainer
Screw
HOT Water
Connection
COLD Water
Connection
Water Filter
Connection

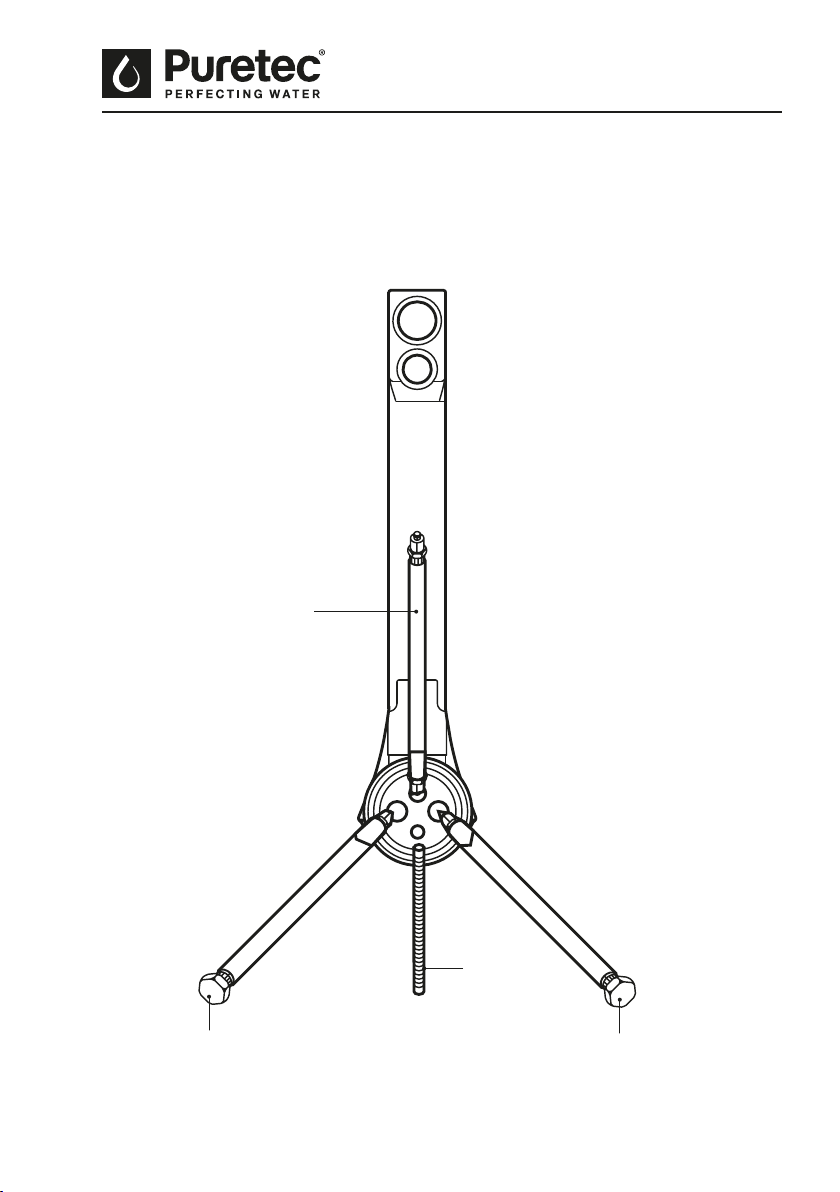

For Z1-T1 & Z1-T2
Fig. 3 - Water Connection Patterns
Mixer Tap Connections

8 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Retainer
Screw
HOT Water
Connection
COLD Water
Connection
Water Filter
Connection
For Z1-T3 to Z1-T6
Retainer
Screw
Fig. 4 - Water Connection Patterns
Mixer Tap Connections

9
Quick Twist Water Filter System with Tripla LED Mixer Tap
Battery Installation
Battery Installation - LED reminder light
1. Remove the black battery seat from the
faucet canopy.
2. Install battery into the battery seat,
positive side up.
Note: Red light ashes
twice and then followed
by the blue light.
3. Reinstall battery seat assembly into the
faucet canopy.
Important note: Battery must be replaced when changing cartridges.
5. Red light ashes indicates your cartridges
are due to be changed (usage has
exceeded 3,000 minutes or 12 months).
Please change the battery when
changing the lter cartridge(s).
Positive
side up
Negative on
the PCB
4. Blue light ashes during
normal operation.
This product contains a button battery. Accidental ingestion may occur and can
be fatal. Please keep out of reach from infants. If you suspect an accidental
ingestion please contact emergency services.

10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
PART 2
Filter Installation
This system comes complete with an installation kit enabling it to be connected to 15mm
(½”) male thread.
Installation requirements
1. 15mm (½”) Cold water line - mains only
2. Min/Max pressure: 172 - 875 kPa. Pressure over 500 kPa requires a pressure limiting
valve to be installed.
Replacement of Ceramic Disc Cartridge(s)
1. Hot/Cold Outlet
• Remove hot and cold water indicator then release screw in lever and li lever o, now
you can unscrew dome cap and loosen the cartridge lock nut.
• Li out old cartridge and clean inside making sure no old O-rings are still stuck inside
cartridge housing.
• Insert new cartridge making sure O-rings on bottom of new cartridge have not fallen
o and lugs in bottom of cartridge line up with holes in cartridge housing.
• Now you can tighten lock nut with a torque wrench to 14 newton meters, then reinstall
dome cap, lever screw and hot and cold water indicator.
2. Filtered/Rain Ancillary Outlet
• Remove front button cover using ne-edged 1.2mm screwdriver.
• Unscrew handle then remove cartridge by unscrewing it anti-clockwise, using 5/8”
socket. Install cartridge by completing removal instructions as above, in reverse order.
• Ensure cartridge is rmly tightened not over tightened.
Replacement of Ceramic Disc

11
Quick Twist Water Filter System with Tripla LED Mixer Tap
Installation Procedure
3. Supply temperature 0° - 38°C (protect from freezing).
4. Suitable location for faucet.
Alternative ttings may be required if being connected to anything other than
existing 15mm (½”) copper pipe (coppy piper NOT included). No electrical or drainage
requirements needed.
Installation Procedure
Installation Note: A water lter system/tap, like any product, has a limited life and may
eventually fail. Also sometimes failure happens early due to unforeseen circumstances.
To avoid possible property damage, this product should be regularly examined for leakage
and/or deterioration and replaced when necessary. A drain pan, plumbed to an appropriate
drain or outtted with a leak detector, should be used in those applications where any
leakage could cause property damage, and/or the water supply should be turned o if no
one is home/present.
INSTALLATION MUST BE COMPLETED BY A LICENCED PLUMBER. FAULTY
OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED
WARRANTY COVERAGE.
1. Select suitable location that is close to the point of ltered water delivery (eg. sink).
Remember to allow access room for changing lters and a suitable place where water
spillage will not cause damage. Location should not be in direct sunlight.
2. Isolate water supply and t SmartTee to the mains cold supply ready for Mixer and
Filtered water line connections.
3. Connect the SmartTee™ to the multivalve with a piece of white tubing (see Fig. 7).
4. Install lter cartridge by positioning it in the desired location, marking the position of
xing hole and xing with bracket screw. Z1 Tripla Series can be mounted horizontally
or vertically. Allow room for the connecting tubes. Ensure ow arrow on cartridge is in
direction of water ow.
6. Fit the stem to tube reducers into either side of the lter by pushing the ttings into
the 3/8"quick-connect ttings already installed on the lter head (for quick-connect
ttings see Fig. 6).
5. Fit tubing into 1/4" connectors (stem to tube reducers). Allow slack in the tubing.
Connect the tubing into the ltered water exible hose securing with the nut found on
the exible hose (plain). An alternative plain hose with a larger tting connection is
supplied but required with the Z1 installation.

12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
6. Connect cold water exible hose (blue streak) to SmartTee 15mm Brass Connection
and the hot water exible hose (red streak) to the hot water supply.
7. Restore water supply & check for leaks, rectifying them, if any, before leaving the unit.
8. Run the system for at least 5 minutes to remove carbon nes. Water may appear
milky, but this is normal and is only tiny air bubbles that will clear aer a short period.
Cartridge Installation/Changeout
1. Rotate the old cartridge counterclockwise 1/4 turn, pull it out and dispose of it.
2. Remove all packaging from the new cartridge, including any wraps or caps (if
applicable).
Replacement cartridge: Z1-R
3. Insert the new cartridge into the lter head and rotate clockwise 1/4 turn.
4. Reset LED indicator by following instructions on page 6.
5. Turn on the water and check for leaks. If leaks occur, repeat step 3. If leaks persist,
isolate the water supply to the system, discontinue use and call your supporting dealer.
6. Flush lter for 5 minutes before use or until water runs clear.
Use Guidelines
• Minimum operating pressure 172 kPa.
• Maximum operating pressure 500 kPa.
• Do not allow exposure to temperatures below 0°C, protect from freezing.
• Maximum operating temperature 38°C.
• Nominal ow rate 5.5 Lpm.
• This system must be installed according to local plumbing codes on the cold water line
- mains only.
• Replacement Cartridge: Z1-R
• This system requires regular replacement of the lter cartridge to maintain proper
operation. Varying chlorine, sediment, or organic substance levels may aect
replacement frequency.
• Be sure to change the lter cartridge at least every 23,000 litres or 6 - 12 months
which ever occurs rst; or whenever you detect a change in taste, odour, or decrease
in ow.
Caution: Do not use with water that is microbiologically unsafe or of unknown quality
without adequate disinfection before or aer the system.
Cartridge Installation/Changeout

13
Quick Twist Water Filter System with Tripla LED Mixer Tap
Assembly
1. Cut the tube square and push in to
the tube stop. For metal tube remove
burrs and chamfer tube end to prevent
O-Ring seal being damaged.
DISCONNECTION PROCEDURE
4. Push collet against body and slide tube out of tting.
2. Fitting grips before it seals. Ensure
tube is pushed in to tube stop.
3. Tube is secured in position.
Fig. 6 - How To Use Quick Connect Fittings

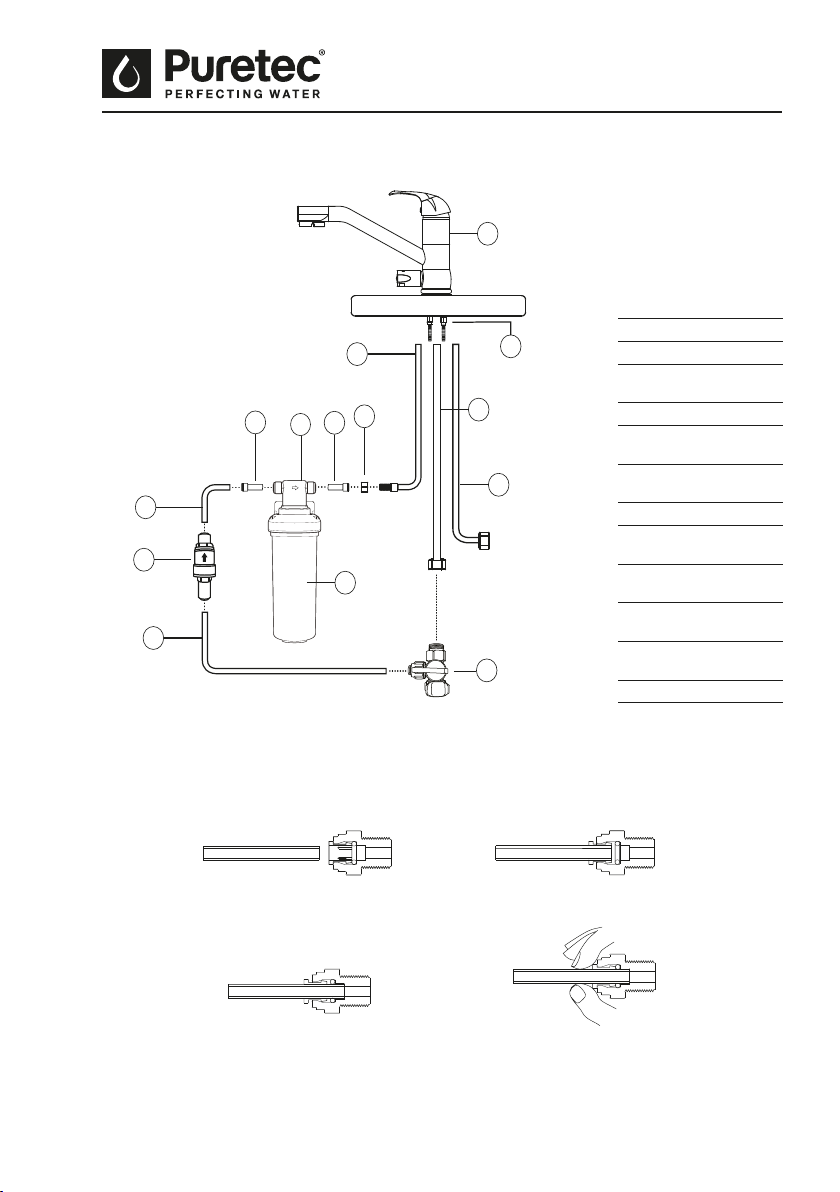

Fig. 5 - Installation Diagram
No. DESCRIPTION
1 SmartTee™
2 White Tubing
3Pressure Limiting
Valve (Multivalve)
4Z1-R Filter Cartridge
5Mounting Bracket
& Head
6⅜" Stem to " Tube
Reducer
7 Nut
8Filtered Water
Flexible Hose - Plain
9Cold Water Flexible
Hose - Blue Streak
10 Hot Water Flexible
Hose - Red Streak
11 Lock Nut and
Washer
12 Mixer Tap
2
3
4
9
12
10
2
7
1
11
8
COLD
WATER
LINE
FILTERED
WATER
LINE
HOT
WATER
LINE
56
6

14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Assembly
Figure 7 - SmartTee™ Quick Connect Fitting

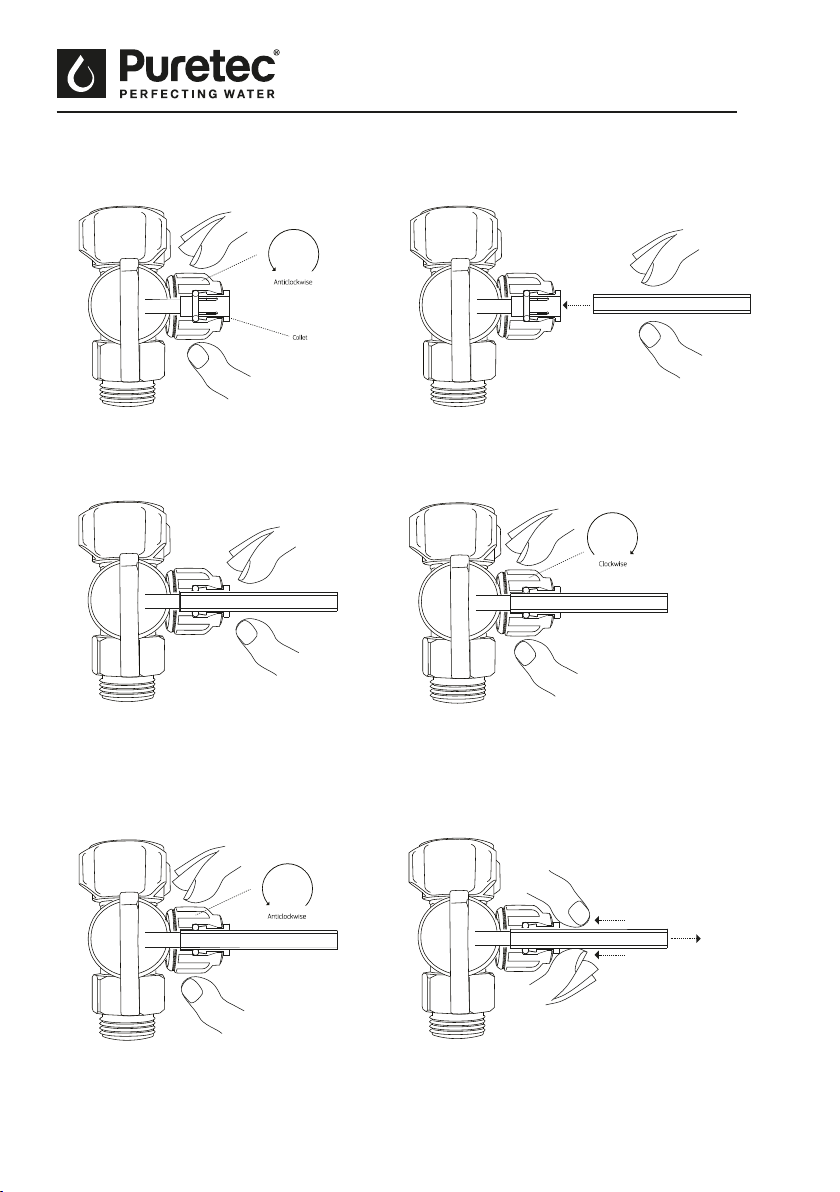

2. Cut the tube square and push into into the tube stop (inside
the collet). For metal tube; remove burrs and chamfer tube
end to prevent O-ring seal being damaged.
6. Push the collet against the quick connect nut and slide tube
out of tting.
3. The tting grips before it seals. Ensure the tube is
pushed all the way into the tube stop.
4. Once the tube is secured in position, turn the quick connect
nut clockwise to secure.
Note: Hand tighten only. Do not overtighten.
1. Turn the quick connect nut on the SmartTee™ anticlockwise
to release the collet.
5. Turn the quick connect nut on the SmartTee™
anticlockwise to release the collet.
DISCONNECTION PROCEDURE

15
Quick Twist Water Filter System with Tripla LED Mixer Tap
TRIPLA-T1
WELS Rating for Tripla Taps
TRIPLA-T2
TRIPLA-T3 TRIPLA-T4
TRIPLA-T5 TRIPLA-T6
WELS Rating

16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
42. Alternate Flexible Hose (Plain) ½"
Fig 8. - Tripla T1 Parts Discription
2. Screw
3. Screw
5. Handle
1. Handle
10. Teflon Washer
10. Teflon Washer
28. Washer
34. Regular Seat
38. Handle Cap
41. Battery Seat
31. EPDM Washer 12. EPDM Washer
12. EPDM Washer
13. EPDM Washer
29. Aerator Insert
32. Aerator Insert
30. Aerator Cap
33. Aerator Cap
16. Rubber Washer
15-2 Nut
19. Rubber
Washer
20.
Stainless
Washer
21. Brass
Nut
18. Screw
35. Screw
39. Display
9. Cover Stem
7. Plunger
11. Spout
11-1 Body
14. Body Stem
15-1 Body
11-2 Tube
11-3 Inner Tube
11-4 Connector
4. Cap 6. Cap
8. Stem / Cartridge
45. Flexible
Hose (Red)
½"
Parts Description
17. Housing
36. Magnetic Seat
40. Circuit Board
37. Magnet
43. Flexible
Hose (Plain)
½"
(alternate hose with larger filter connection
supplied but not required for Z1 filter installation)
44. Flexible
Hose (Blue) ½"
22. Turn Stem Body
23. Stem Post
24. Upper
25. Lower
26. Seat
27. Stopper
26. Seat

17
Quick Twist Water Filter System with Tripla LED Mixer Tap
Fig. 9 - Tripla T2 Parts Description
18. Brass Nut
17. Stainless Washer
1. Screw 3. Handle
8. Teflon Washer
8. Teflon Washer
10. EPDM Washer
25. EPDM
Washer 28. EPDM
Washer
11. EPDM Washer
10. EPDM Washer
14. EPDM Washer
16.
Rubber
Washer
15. Screw
9-1. Body
39.
Handle
Cap
37.
Screw
36. Display
32. Screw
31. Plunger
33. Magnet Seat
34. Strong Magnet
35.
Handle
Cap
7. Cover Stem
12. Body Stem
38. O-Ring
41. Battery Seat
40. Circuit Board
5. Plunger
9. Spout
2. Cap 4. Cap
6. Stem / Cartridge
Parts Description
13-1. Body Stem
13-2. Body Stem
9-2. Brass Tube
9-4. Connector
9-3. Inner Tube
26. Aerator
Insert 29. Aerator
Insert
27. Aerator
Cap 30. Aerator
Cap
42. Alternate Flexible
Hose (Plain) ½"
(alternate hose with larger
filter connection
supplied but not required for
Z1 filter installation)
43. Flexible
Hose (Plain)
½"
44. Flexible
Hose (Blue) ½"
45. Flexible
Hose (Red)
½"
19. Turn Stem
Body
20. Stem Post
21. Upper
22. Lower
23. Seat
24. Stopper
23. Seat

18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Fig. 10 - Tripla T3 Parts Description
Parts Description
7. Handle
10. Handle Cap
23-4 Connector
33. Handle
8.
Screw
34. Canopy
48. Wrench
4. Washer
25. Washer
38. Housing
5. Aerator Insert
39. O-Ring
6. Aerator Cap
9. Display
41.
washer
42.
Washer
43.
Brass
Nut
8. Screw
40. Screw
26. O-Ring
23. Spout
28. Body
35. Body
36. Nut
23-3 Inner Tube
23-2 Tube
11. Screw
24. Cap
1. Washer
2. Aerator
Insert
3. Aerator Cap
23-1 Body
27. O-Ring
29. O-Ring
30. Connector
30-2. Cartridge
31. Plunger
32. Cap
37. Stopper
12. Strong
Magnet
14. Battery
Seat
15. Circuit
Board
13. Magnet Seat
46. Flexible Hose
(Red) ½"
44. Flexible
Hose (Plain)
½"
45. Flexible
Hose (Blue) ½"
47. Alternate Flexible
Hose (Plain) ½"
(alternate hose with larger
filter connection
supplied but not required for
Z1 filter installation)
16. Plunger
17. Turn
Stem Body
18. Stem
Post
19. Upper
20. Lower
21. Seat
22. Stopper
21. Seat

19
Quick Twist Water Filter System with Tripla LED Mixer Tap
42.
Washer
43.
Washer
44.
Brass
Nut
41. Screw
Fig. 11 - Tripla T4 Parts Description
1. Spout
1-3. Inner Tube
1-4. Connector
2. Washer
3. Aerator Insert
1-2. Tube
1-1. Body
5. Gasket
4. Aerator Cap
6. Washer
7. O-Ring
8. O-Ring
9-1. Washer
9-2. Gasket
9-3. Gasket
28. Screw
35. Handle
36. Screw
37. Handle Cap
29. Body
38-1. Body
38-2. Nut
30. O-Ring
31. Connector
32. Stem
33. Plunger
34. Cap
39. Stopper
40. Washer
17. Circuit
Board
10. Cap 13. Display
16. Screw
11. O-R ing
12. Screw
15. Washer
21. Plunger
22. Turn Stem Body
23. Stem Post
24. Upper
25. Lower
14. Handle Cap
18. Battery
Seat
20. Magnet
Seat
19. Strong
Magnet
26. Seat
27. Stopper
26. Seat
Parts Description
48. Alternate
Flexible Hose
(Plain) ½"
(alternate hose with
larger filter connection
supplied but not
required for Z1 filter
installation)
47. Flexible
Hose (Plain)
½"
46. Flexible
Hose (Blue) ½"
45. Flexible Hose (Red) ½"

20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021

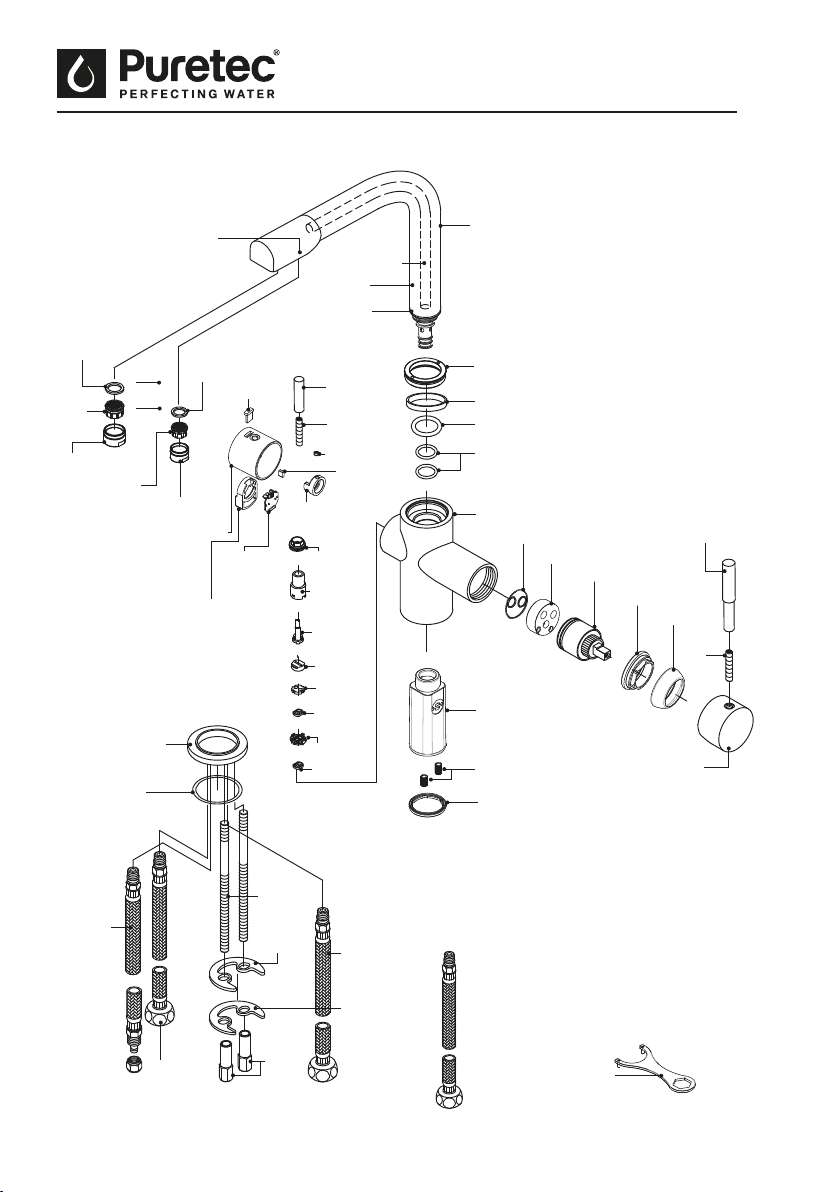

Fig. 12 - Tripla T5 Parts Description
Parts Description
42.
Washer
43.
Washer
44.
Brass
Nut
41. Screw
1. Spout
1-3. Inner Tube
1-4. Connector
2. Washer
3. Aerator Insert
1-2. Tube
1-1. Body
5. Gasket
4. Aerator Cap
6. Washer
7. O-Ring
8. O-Ring
9-1. Washer
9-2. Gasket
9-3. Gasket
28. Screw
35. Handle
36. Screw
37. Handle Cap
29. Body
38-1. Body
38-2. Nut
30. O-Ring
31. Connector
32. Stem
33. Plunger
34. Cap
39. Stopper
40. Washer
17. Circuit
Board
10. Cap 13. Display
16. Screw
11. O-Ring
12. Screw
15. Washer
21. Plunger
22. Turn Stem Body
23. Stem Post
24. Upper
25. Lower
14. Handle Cap
18. Battery
Seat
20. Magnet
Seat
19. Strong
Magnet
26. Seat
27. Stopper
26. S eat
48. Alternate Flexible
Hose (Plain) ½"
(alternate hose with
larger filter connection
supplied but not
required for Z1 filter
installation)
47. Flexible
Hose (Plain)
½"
46. Flexible
Hose (Blue) ½"
45. Flexible Hose (Red) ½"
