WaterLogic WL2FLT User manual

WL2FLT Manual Page 13 – Revision 7-19-21
SERVICE REQUIREMENTS
WARNING! Read and understand the contents of this manual before attempting to service
WL2FLT Water Treatment System. Failure to follow the instructions in this manual could
result in death, serious personal injury, or severe property damage. Only trained and
qualified technicians should attempt to install, maintain, or service Waterlogic Equipment.
1. Visually inspect all electrical and water connections for signs of wear or damage.
DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. Unplug before inspection and service.
2. Waterlogic recommends changing the UV Lamp every 6 months.
WARNING! UV-C EMITTER (UV LAMP). This appliance contains a UV-C emitter (UV Lamp).
UV-C radiation may, even in little doses, cause harm to the eyes and skin. Unintended use or
damage to the housing may result in the escape of dangerous UV-C radiation. Never operate
the UV-C emitter if damaged or removed from enclosure. Do not touch or look directly into the
faucet.
CAUTION! UV LAMPS ARE HAZARDOUS. Lamps are considered Hazardous Waste and must
be disposed of accordingly. Refer to Product MSDS sheet for details.
3. Clean the Quartz Spiral that surrounds the UV Lamp with a non-abrasive cloth, descaling solution,
or ultrasonic bath if needed when changing UV Lamps.
CAUTION! UV SYSTEM IS FRAGILE. Never handle the UV lamp or Quartz Spiral with bare
hands. UV Lamp and quartz spiral must be free of oils and contaminants to ensure proper
operation. Use a soft non-abrasive cloth to clean.
4. Sanitize the Cold Tank per instructions in the pre-installation procedures.
5. Clean and sanitize external surfaces of the unit. Use soap and water or chemicals that are
compatible with ABS plastic and will not damage or degrade the product surfaces.
6. Remove and clean the Faucet. Replace as needed.
WARNING! SANITIZER MAY CONTAIN HAZARDOUS CHEMICALS. Use of proper personal
protective equipment such as rubber gloves and eye protection is required.

WL2FLT Manual Page 14 – Revision 7-19-21

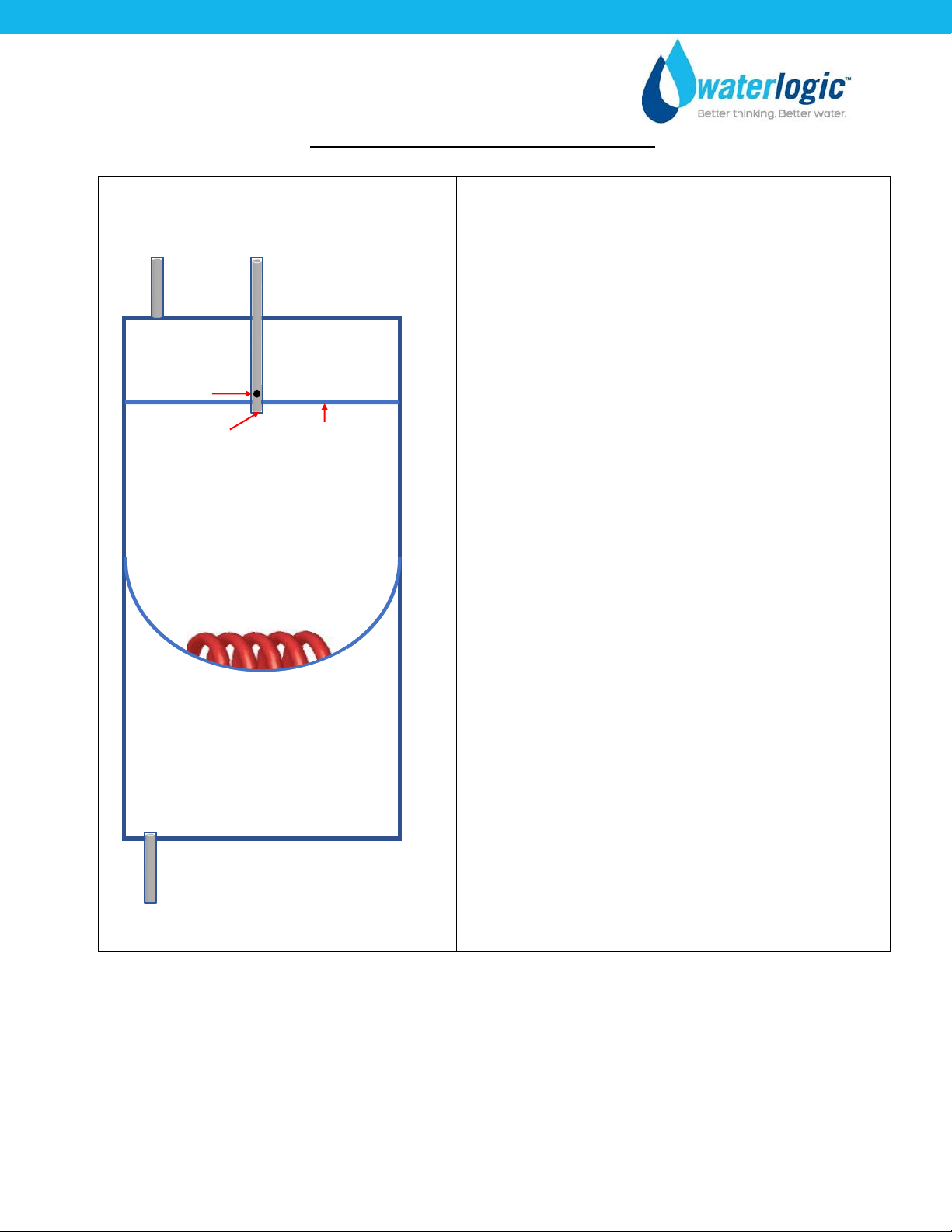

HOT TANK PRINCIPLES OF OPERATION
All Waterlogic Hot Tanks have a built-in Vent or
Expansion Chamber in the top of the tank except for
WL270 (GF) units.
The Vent Chamber allows for expansion of the water
when it is heated.
The chambers are separated by a welded-in tank
baffle.
Water always flows into the bottom of the tank and
out the top to the faucet.
The hot tank outlet tube has a restrictor in its base.
This ensures the reservoir is always full by allowing
more water in than out.
There is a small hole in the side of the tank outlet tube
that allows air and water to pass into the vent
chamber as it is heated.
Water in the vent chamber is suctioned back through
the outlet tube vent hole when water is dispensed.
Expansion of water as it is heated in the reservoir will
push the water out the faucet when the outlet tube
vent hole becomes plugged with debris or scale.
The small Outlet Vent Hole is susceptible to scale build
up and is a key indicator that descaling is required.
It is critical to descale the hot tank through the vent
line and outlet line on a regular basis to prevent this
problem.
Descaling through the inlet and/or outlet lines only
will not clean the vent chamber and outlet vent hole
properly.
Vent Outlet
Hot Tank Outlet
To Faucet
Outlet Vent
Hole
Expansion
Chamber
Outlet
Restrictor
Tank Baffle
Heater Element
Hot Tank Inlet

WL2FLT Manual Page 15 – Revision 7-19-21

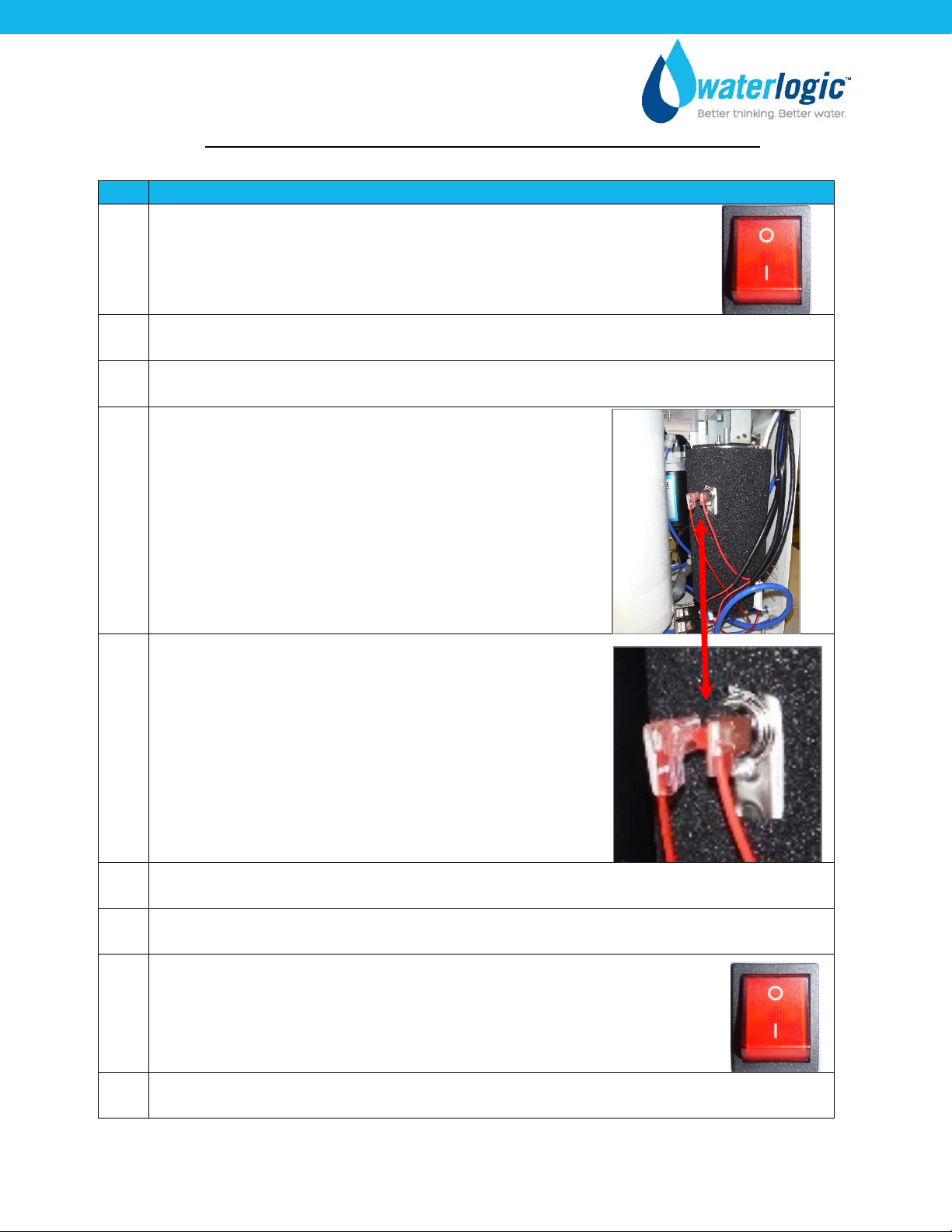

RESETTING THE HOT TANK OVERLOAD OR HIGH LIMIT SAFETY
1.
Red Compressor/Heater Switch must be in the O=OFF position
2.
Unplug the Power Cord from rear of WL2FLT Water Treatment System.
3.
Remove the Side Panel by removing the Front Hatch and Side Panels.
4.
Locate the Hot Tank
5.
Press the Reset Button
6.
Replace the Lower Front Panel.
7.
Plug in the Power Cord.
8.
Turn on the Red Compressor / Heater Switch I=ON position
The Hot and Cold Tanks must be filled with water BEFORE turning on
the Red Heater and Compressor Switch.
9.
Verify the cooler is fully operational before installing it at the customers’ site.

WL2FLT Manual Page 16 – Revision 7-19-21
HOT TANK DESCALING INSTRUCTIONS
The Hot Tank requires removal of mineral deposits (descaling) on a regular basis. Typically
descaling should take place every 6 to 12 months to preserve the long-term health of your unit.
Use non-toxic cleaner such as ScaleKleen, DEZCAL, 20% Citric Acid Solution, or Undiluted Vinegar
Solution to remove mineral deposits as directed by the manufacturer depending upon filtration
and local water conditions.
Descaling is an important process that removes calcium deposits, or scale, that can build up
inside a tank over time. Calcium and scale are non-toxic but left unattended will hinder your
unit’s performance.
WARNING! PERSONAL PROTECTIVE EQUIPMENT REQUIRED. Always ensure proper
ventilation and use rubber or nitrile gloves and eye protection when using chemicals. Refer to
Material Safety Data Sheet for specific requirements of each product.
CAUTION! STAINLESS STEEL TANK DESCALING.
The Hot Tank is made from stainless steel. Ensure descaling solution is compatible with
stainless and always flush the unit completely. Dispose in an environmentally safe manner.
Materials Needed:
•Personal Protective Equipment. Rubber or Nitrile Safety Gloves and Protective Eyewear
•Phillips Screwdriver
•Temperature Gauge
•Water Pitcher or Container to collect water from the faucet
•19 Liter (5 gallon) container or drain basin
•Citric Acid Based Cleaner
•¼” Plastic Tubing, at least 4 feet in length, and assorted ¼” quick connect fittings
•Sanitizing Cartridge
•Food Coloring
1. Put descaler per directions and 3 drops of food coloring into the descaling cartridge.
2. Connect descaling cartridge to the inlet water supply and connect to Inlet Bulkhead Fitting on the
back of the WL2FLT Water Treatment System. Turn on Water Supply.
3. Select Hot Water and depress the Main Dispensing Button on the Front Control Panel until
descaling solution (colored water) comes out of the faucet. Container and drain basic will be
required to catch water from the faucet.
4. Turn off water supply and remove sanitizing cartridge from inlet water supply. Reconnect water
supply to inlet fitting.

WL2FLT Manual Page 17 – Revision 7-19-21
5. Allow descaling solution to remain in the Hot Tank for 15 minutes (length of time may vary
depending on water conditions).
6. Place a pitcher, catch basin or other container under the faucet of the WL2FLT Water Treatment
System.
7. Flush the Hot Tank by dispensing hot water until water runs clear.
8. Once clear Water dispenses from the faucet the Hot Tank has been descaled. Always ensure the
WL2FLT Water Treatment System is performing to the customer’s satisfaction.
WARNING! HOT WATER. The WL2FLT Water Treatment System produces Hot Water up to
86°C (187°F). Water above 52°C (125°F) can cause severe burns or scalding. Hot water should
be dispensed carefully into insulated container to avoid injury.
CAUTION!MUST REPLACE HOT TANK 3-5 YEARS DEPENDING ON USAGE. The Hot Tank and
its controls must be replaced a minimum of every three to five years to ensure efficient and
dependable operation.
WARNING! REINSTALL ALL PANELS AND COVERS. Always reinstall all Panels, Protective
Covers, and Fasteners after servicing equipment. Failure to do so could result in severe
personal injury and will void the certifications and warranty of the equipment.

WL2FLT Manual Page 18 – Revision 7-19-21

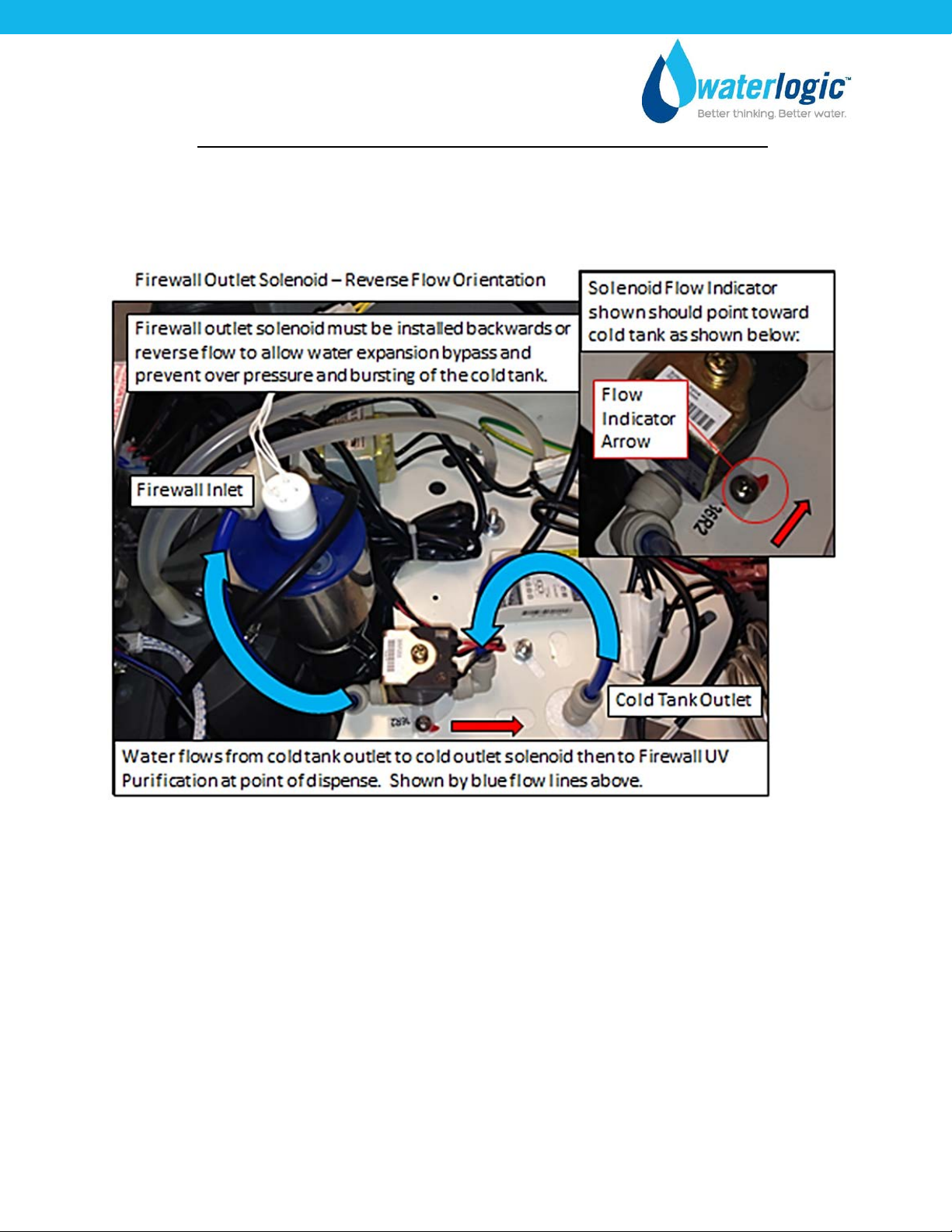

FIREWALL™ OUTLET SOLENOID – REVERSE FLOW ORIENTATION

WL2FLT Manual Page 19 – Revision 7-19-21
ADJUSTING COLD SET POINT
Cold Water Temperature – Factory Set Point is 41°F (5°C) and can be adjusted to 34°F - 54°F (1.1°C to
12.2°C)
The cold set point can be adjusted by accessing the cold
thermostat adjustment screw under the decal at the rear of the
unit.
Remove the red portion of the Cold Tank Temperature label to
access the adjustment screw.
The factory set point is ~41°F and is indicated by the dot on
sheet metal.
Turning the adjustment screw clockwise to lower the set point
temperature.
Do not adjust past the “Max Cold” position at 3:00 position to
avoid freezing the cold tank.
Turning the adjustment screw counter-clockwise to raise the set
point temperature.

WL2FLT Manual Page 20 – Revision 7-19-21
PROGRAMMING INSTRUCTIONS
DISABLING ENERGY SAVING SLEEP MODE
All WL2FLT Water Treatment Systems come from the factory with Energy Saving Sleep Mode
engaged to meet the Energy Star Certification requirements. Energy Saving Sleep Mode disables
the heater circuit if the unit has not been used for a continuous 3 hour or longer period.
Selecting any button "wakes up" the WL2FLT Water Treatment System and turns the heater
circuit back on. The hot tank will typically take less than 10 minutes to heat the water from
ambient to the 85°C (185°F) set point.

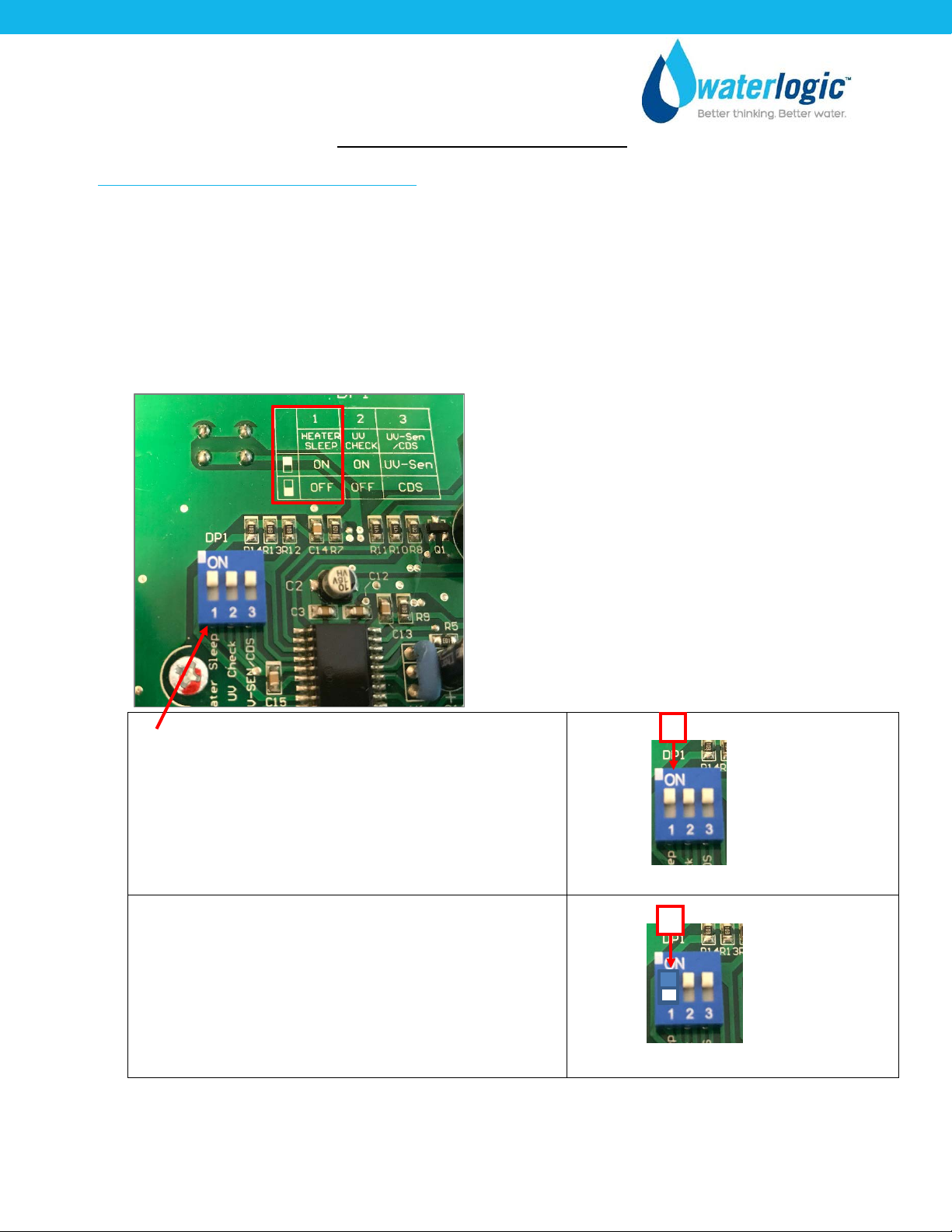

Unplug Power Cord and remove Top Cover to access back side of the Display PCB.
WL2FLT Water Treatment Systems comes with the
Energy Saving Sleep Mode “ON” - the Default Position.
DIP 1 in the "ON" position (up).
Deactivate the Energy Saving Sleep Mode by moving
DIP 1 in the "OFF" position (down).
1
1

WL2FLT Manual Page 21 – Revision 7-19-21
REPLACEMENT COMPONENTS - CONSUMABLES
Component
WLCP PN
Frequency of Replacement
15W LTFW XTM UV Lamp
Assembly 12-8310
Every 6 months, or as required
Factory Part No CT-2085-IA0-00
Hot Tank 120V/500W - 1.6L
with Thermistor 10-4029
Replace every 3 to 5 years depending
on usage.
Factory Part No HT-3024
Sediment Filter - 10"
20 Micron Inline Filter
FT-0053-IL
containing FT-0055
Filter Element
Every 6-months or every 1,250 gallons.
Factory Part No FT-0053-IL Assembly
containing FT-0055-WLT Filter Element
1-micron 10" Inline CBC Filter
for CTO, Lead, Cyst and
Asbestos Reduction (Carbon
Block) NSF 53
Required for NSF Certification
FT-0014-IL
containing FT-0007
Filter Element
Every 6-months or every 1,250 gallons.
Factory Part No FT-0014-IL Assembly
containing FT-0007-WLT Filter Element
10-micron 10" Inline GAC Filter for
Taste and Odor Reduction (Grannual
Activated Carbon) NSF 42
Required for NSF Certification
FT-0035-IL
containing FT-0038
Filter Element
Every 6-months or every 1,250 gallons.
Factory Part No FT-0035-IL Assembly
containing FT-0038-WLT Filter Element
* One pre-installed. One required for NSF-42 / NSF-53 Certification.
CAUTION! Use only Waterlogic Replacement parts that can be obtained from Waterlogic or an
Authorized Waterlogic Dealer, failure to do so will void the Warranty.
See Installation and Service Manual for additional information.
Hot Tank Service
Hot Tanks (with controls) must be replaced at least every 3-5 years depending on usage. Descaling
hot tank may be required on a regular basis depending upon filtration and local water conditions.
See Installation and Service Manual for further details.
Surface Cleaning
Clean on a regular basis with damp lint free cloth. Never use harsh chemicals (alcohol or acid based)
or abrasive agents on any part of the product to avoid damage. A mild cleaner such as Simple Green
or equivalent is recommended.
DISPOSAL
End of Life
At the end of this product’s life, ensure that it is disposed of in an environmentally friendly manner
which is fully compliant with all Federal/State/Local Requirements and Guidelines.Do not dispose
of this appliance with normal household or business waste.

WL2FLT Manual Page 22 – Revision 7-19-21
WL2FLT TOWER LAYOUT DRAWING AND PARTS LIST
Yellow = Consumables
Green = Recommended spare
parts
Wetted Parts

WL2FLT Manual Page 23 – Revision 7-19-21

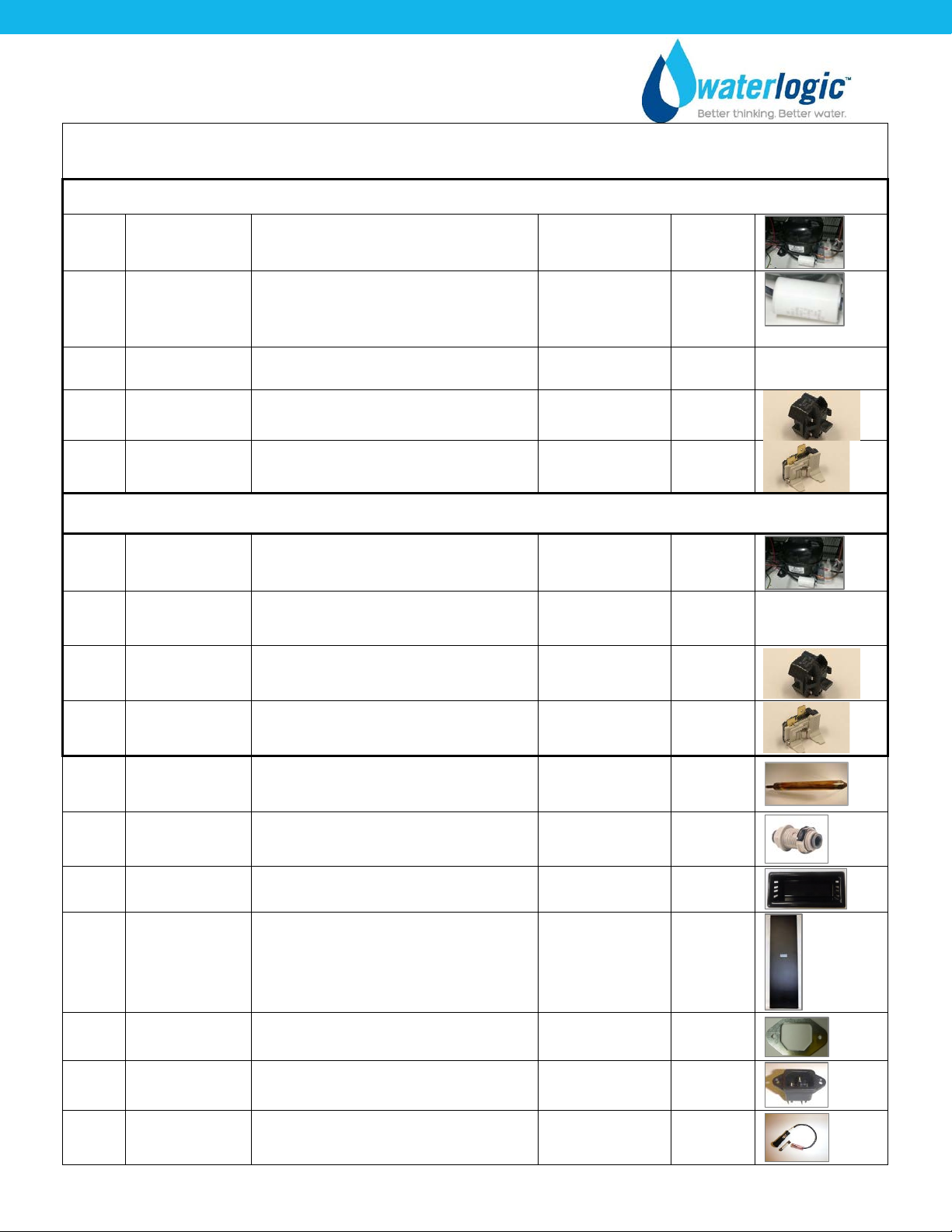

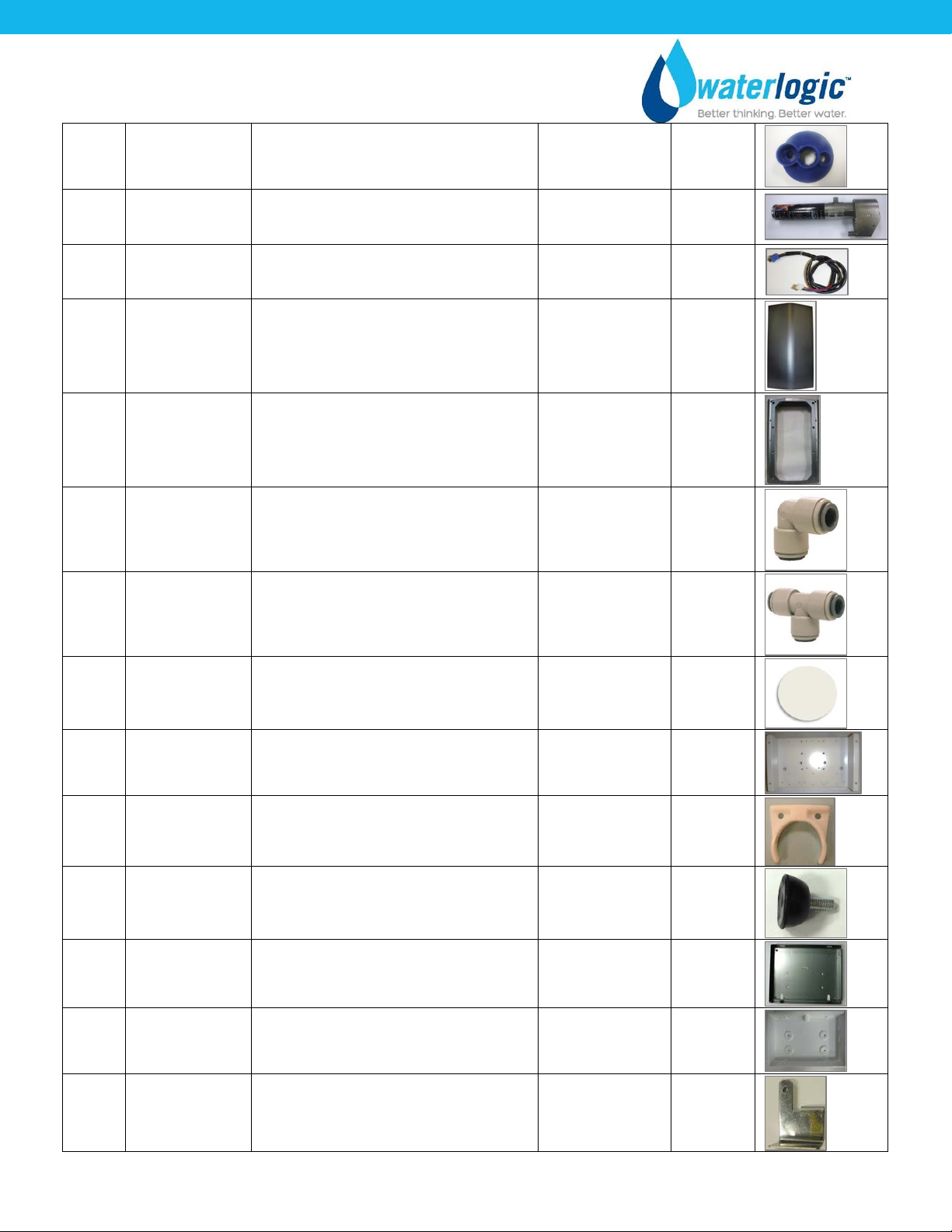

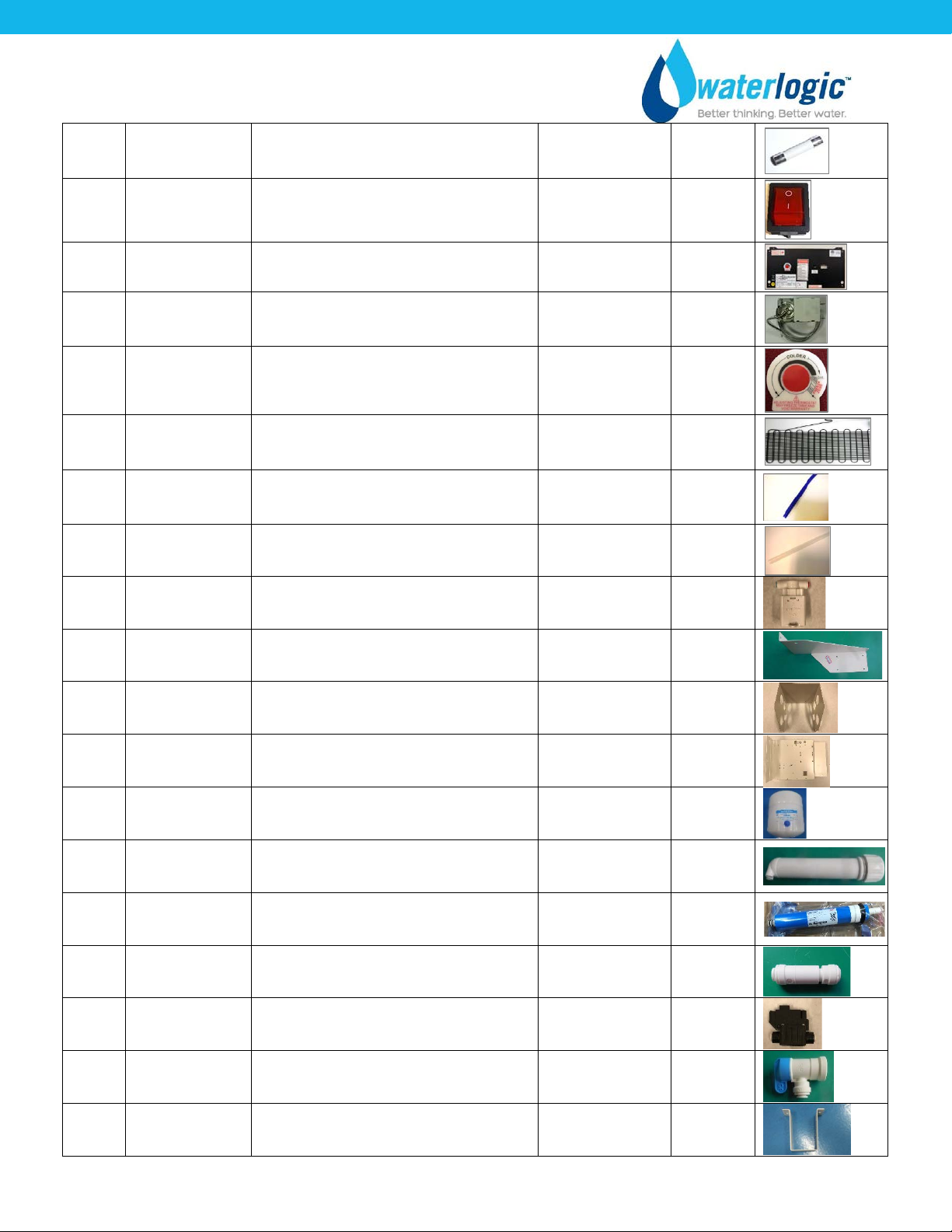

WL2FLT TOWER LAYOUT DRAWING AND PARTS LIST
No
WLUSA Part
Number
Description
Factory Part
Number
Stocked?
Consumables
1 10-4029 Hot Tank 120V/500W - 1.6L with
Thermistor HT-3024 Yes
2 12-8310 15W X UV Lamp Assembly CT-2085-LA0-00 Yes
3 FT-0035
GAC Filter - 10" Carbon Activated Inline
Filter
FT-0035-IL-WLT Yes
4 FT-0053
Sediment Filter - 10" Sediment 20 Micron
Inline Filter
FT-0053-IL-WLT Yes
5 FT-0014
1-micron 10" Inline CBC Filter for CTO,
Lead, Cyst and Asbestos Reduction –
Carbon Block
FT-0014-IL-WLT Yes
Not
shown 01-2076 Scale Kleen NA Yes
Recommended Spare Parts
1.1 12-1360
Overload with Manual reset - 221°F
(105°C)
Recommend stocking 2 each per 10 units
purchased
HT-3012 Yes
1.2 12-6900
Overload Metal Cover
Recommend stocking 2 each per 10 units
purchased
ST-8290 Yes
6 PL-0191-L00-BL
Black Top Cover
Recommend stocking 2 each per 10 units
purchased
PL-0191-L00-BL Yes
7 EN-0008-LA1-00
13W / 15W 120V / 60Hz Electronic FX
Ballast
Recommend stocking 2 each per 10 units
purchased
EN-0008-LA1-00 Yes
8 PU-4017
Solenoid Valve DC24V 500mm
Recommend stocking 2 each per 10 units
purchased
PU-4017-B Yes
9 EN-6134
FW2 Extra hot Main PCB
Recommend stocking 2 each per 10 units
purchased
EN-6134 Yes
9.1 10-3017
Plastic PCB Support
Recommend stocking 2 each per 10 units
purchased
EN-6059 Yes
10 PL-0194-L00-BL
Black Drip Tray Body
Recommend stocking 4 each per 10 units
purchased
PL-0194-L00-BL Yes
11 PL-0195-L00-BL
Black Drip Tray Grill
Recommend stocking 4 each per 10 units
purchased
PL-0195-L00-BL Yes

WL2FLT Manual Page 24 – Revision 7-19-21
12 LP-0422-L00-00
Hot and Cold User Interface Label
Recommend stocking 2 each per 10 units
purchased
LP-0422-L00-00 Yes
13 PL-0199-L00-00
Hot and Cold Dispense Silicon Button Mat
Recommend stocking 2 each per 10 units
purchased
PL-0199-L00-00 Yes
14 EN-0147-L00-00
WL2FWFL Display PCB H&C w/ Pedal –
Ver. 2
Recommend stocking 2 each per 10 units
purchased
EN-0147-L00-00 Yes
15 12-8305
Quartz Spiral UV Faucet
Recommend stocking 2 each per 10 units
purchased
FU-0007 Yes
16 PU-0017-L00-00
Solenoid Valve MS DC SWV24-01
Recommend stocking 2 each per 10 units
purchased
PU-0017-L00-00 Yes
17 12-8370
Hot Water Faucet
Recommend stocking 2 each per 10 units
purchased
PL-1351 Yes
Remainder of Parts
18 12-8003 Upper Shelf ST-8136-R2 Yes
19 Purchase from
John Guest
JG Equal Elbow Connector 1/4"
John Guest P/N PI0308S PU-4008 No
20 12-5245 Main PCB Bracket ST-8165-CN Yes
21 CT-2017-A Cold Tank Assembly - 4Liters CT-2017-A No
22 PL-0202-L00-BL Black Front Top Panel PL-0202-L00-BL Yes
23 PL-0192-L00-SI Silver Front Top Panel Trim PL-0192-L00-SI Yes
24 EL-0148-L00-00 LED Light Pipe EL-0148-L00-00 Yes
25 Purchase from
John Guest
JG 3/8" x 1/4" Reducing Elbow
(PI211208S) PU-4137 No

WL2FLT Manual Page 25 – Revision 7-19-21
26 12-8320 Firewall UV Lamp Rubber CT-2088 Yes
27 FW-0027 Firewall Mark IV Stainless Assy
No internal components FW-0027-L00-00 Yes
28 AK-0064 UVC Sensor Assembly AK-0064 Yes
29 PL-0301-L00-00 WL2FLT Front Down Panel PL-0301-L00-00 Yes
30 PL-0302-LA0-00 WL2FLT Front Down Trim PL-0302-LA0-00 Yes
31 Purchase from
John Guest
JG Reducing Elbow Connector 5/16" *
1/4" (PI211008S) PU-4007 No
32 Purchase from
John Guest JG Equal Tee Connector 1/4" (PI0208S) PU-4011 No
33 CU-0001 Solenoid Cushion CU-0001 Yes
34 12-8005 Filter Bracket ST-8138 Yes
35 20-1010 2.8" Filter Clip PU-4161 Yes
36 ST-8167CN Unit Rubber Feet ST-8167CN Yes
37 12-8004 Bottom Tray ST-8137 Yes
38 12-3155 Leak Tray PL-1294-A Yes
39 12-3180 Leak Containment Tray Clip (sensor
0.5mm) ST-8207-CN Yes

WL2FLT Manual Page 26 – Revision 7-19-21
Verify compressor in machine before ordering parts as the Compressor P/N CO-0020-L00-00 and 10-
2200 (CO-0001A) and related parts are not interchangeable.
CO-0020-L00-00 Compressor (China model)
40A.1 CO-0020-L00-00 LG Compressor 120V R134A
CSB035LJCM CO-0020-L00-00 Yes
40A.2 CO-0019-L00-00 Compressor Capacitor CO-0019-L00-00 Yes
40A.3 ST-0216-L00-00 Capacitor Bracket ST-0216-L00-00 Yes
40A.4 CO-0017-L00-00 PTC Relay CO-0017-L00-00 Yes
40A.5 CO-0018-L00-00 Overload Protector CO-0018-L00-00 Yes
CO-xxxx-L00-00 Compressor (USA model)
40B.1 CO-0043-I00-00 LG Compressor 120V R134A
CSB035LJCM CO-0043-I00-00 Yes
40B.2 ST-0216-L00-00 Capacitor Bracket ST-0216-L00-00 Yes
40B.3 CO-SS01-L00-00 PTC Relay CO-SS01-L00-00 Yes
40B.4 CO-SS02-L00-00 Overload Protector CO-SS02-L00-00 Yes
40.1 12-1001 Filter Dryer CO-9008 Yes
41 10-3067 Bulkhead Union ¼” x ¼”
John Guest P/N PI1208S PU-4028 Yes
42 10-4004 Black Plastic Handle PL-1120 Yes
43 ST-0338-L00-00 Tower Side Panel (Tall) - Black ST-0338-L00-00 Yes
44 19-1015 Gasket for Power Socket ST-8052 Yes
45 19-1090 Power Line Noise Filter, ElectroMagnetic
Interference filter (EMI) EL-5029 Yes
46 10-3014 Fuse Holder and Fuse 120V / 15A with
One Wire EL-5053 Yes

WL2FLT Manual Page 27 – Revision 7-19-21
46.1 10-3013 Fuse 120V / 15A EL-5010 Yes
47 12-5600 Red Heater and Compressor Switch EL-5019-A Yes
48 ST-0339-L00-00 Tower Back Panel (Tall) - Black ST-0339-L00-00 No
49 19-1069 Cold Tank Thermostat
3°C (37.4°F) CT-2070-A Yes
49.1 LP-0326 Cold Thermostat Cover Label LP-0326-L00-00 Yes
50 12-8102 Wire Condenser CO-9027 No
51 Purchase from
John Guest
JG LLD PE Tube - Blue O.D.1/4"
John Guest P/N PE-08-BI-1000F-B PU-4031 No
52 10-7040 Silicon Tube 5/16" for hot water PL-4064-L00-00 Yes
53 PU-0061-L00-00 Stormtech Mechanical Leak Detector PU-0061-L00-00 Yes
54 ST-0006-L00-WH FW2 RO Solenoid Valve Fixing Bracket ST-0006-L00-WH Yes
55 ST-0004-L00-WH FW2 RO Bladder Tank Fixing Bracket ST-0004-L00-WH Yes
56 ST-0003-L00-WH FW2 RO Filter Bracket ST-0003-L00-WH Yes
57 CT-0001-L00-00 RO Pressurized Tank (2 Gallons) – FW2 RO CT-0001-L00-00 Yes
58 RO-0003-A RO Housing Micro RO-0003-A Yes
59 RO-0099 RO Membrane FilmTec BW60-1812-75 RO-0099 Yes
60 PU-4057 JG Non-Return Valve ¼” PU-4057 Yes
61 RO-0024 High Water Pressure Switch RO-0024 Yes
62 PU-4082 JG Shut Off Valve NPT ¼” (PPSV500822W) PU-4082 Yes
63 ST-8315 WL400 Adapter Bracket ST-8315 Yes

WL2FLT Manual Page 28 – Revision 7-19-21
64 RF-0001-L00 Power Adaptor (24V) for Pump for FW2
RO RF-0001-L00 Yes
65 ST-0007-L00-WH WL2000 + 2500 FS upper front Shelf
(universal to ST-8136)-FW ST-0007-L00-WH Yes
66 RO-0010-A Flushing Valve Micro RO-0010-A Yes
67 RO-0006-A ¼” Rigid Elbow for RO Housing Micro RO-0006-A Yes
68 FU-0010 UVC Sensor Fixing Metal Bracket (w/Tube) FU-0010 Yes
69 FU-0011 UVC Sensor Fixing Metal Bracket Back FU-0011 Yes
70 RF-0004-L00-00 RO Flow Restrictor w/ Quick Fitting RF-0004-L00-00 Yes
Not
Shown 10-3007 Power Cord 120V – 18240mm EL-5001-B Yes

WL2FLT Manual Page 29 – Revision 7-19-21
WL2FLT (-FZ) TOWER WATER FLOW DIAGRAM
FILTER BANK
SEE FILTER
DIAGRAM
BELOW
SEDIMENT
LEAK
STOP
INLET
SOLENOID
CARBON BLOCK
RO MEMBRANE
NO RETURN
VALVE
FLOW
RESITRICTOR
FLUSH
VALVE
DRAIN
BULKHEAD
DRAIN
BLADDER
TANK
HIGH PRES.
SWITCH
GAC

WL2FLT Manual Page 30 – Revision 7-19-21
WL2FLT ELECTRICAL DIAGRAM
DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. PCB (Printed Circuit Board) contains High
Voltage. Only trained and qualified technicians should attempt live testing.
