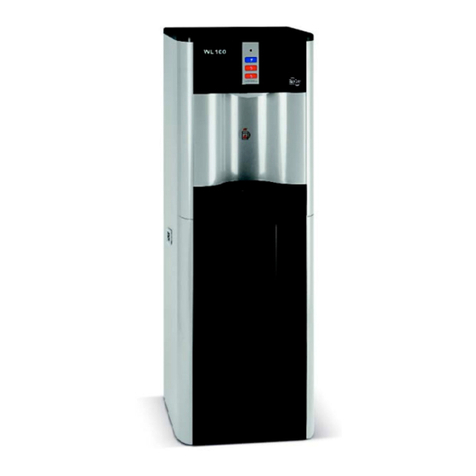

WaterLogic WL100 Operating instructions

WL100ManualPage47Revision:1‐14‐2019
POWERTROUBLESHOOTINGINDEX

1. RedHeaterandCompressorPowerSwitchwon'tlightandtheRedLEDonthe
Frontwon'tlight

2. RedPowerSwitchislitbuttheredLEDontheFrontisnotlit

3. CompressorRunsbutdoesNotChill

4. CompressorisNotRunning


1. RedHeaterandCompressorPowerSwitchwon’tlightandtheRedLEDonthe
Frontwon’tlight


PossibleReason Solution
CircuitBreaker ChecktheCircuitBreaker
FuseisBlown ReplaceFuse
Defective/LoosePowerCord Checkthatpowercordisproperlypluggedin.Ifitisproperly
pluggedin,useadifferentpowercordtoverify.
FailedPowerLineNoiseFilter,
ElectroMagneticInterference
filter(EMI)
ReplaceEMI
DefectiveRedHeater/
CompressorSwitch ReplaceRedHeater/CompressorSwitch








WL100ManualPage48Revision:1‐14‐2019

2. RedPowerSwitchislitbuttheRedLEDontheFrontisnotlit


PossibleReason Solution
BadTransformer ReplaceTransformer
BlackPowerConnectortothe
PCBisnotproperlyconnected Properlyconnect.
BadFrontPCB ReplaceFrontPCB
PartNumberEN‐6130–WLCPPN20‐0040
BadEnergySaverPCB ReplaceEnergySaverPCB
PartNumberEN‐6131–WLCPPN20‐0075
DefectiveRedHeater/
CompressorSwitch ReplaceRedHeater/CompressorSwitch

3. CompressorRunsButDoesNotChill


PossibleReason Solution
Condenserisdirty Cleanthecondensingcoilofanyobstructionsordust.
Reductionofairflowintounit. Makesureunitisnotunderminimumventilationrequirements(2
to4inches).
Compressorisrunningvery
hot. Loworlostrefrigerant.Refrigerantrechargerequired.



WL100ManualPage49Revision:1‐14‐2019
4. CompressorisNotRunning


PossibleReason Solution
RedHeaterandCompressor
Switchbuttononunitisinthe
offposition


TurnRedHeaterandCompressorSwitchon.
I=ON


CompressorStartingCircuit
TurnRedHeaterandCompressorSwitchoff.O=
OFF.

RemovetheCompressorcaponsideofthe
Compressor;

Disconnecttheblackandredterminalconnectors;

Inspectthestarterandoverloadrelayforanydefects.

Replacecomponents(s)asneeded.

TurnRedHeaterandCompressorSwitchonI=ON
andretestCompressoroperation.



