Weider WEBE4496.0 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. WEBE4496.0
Serial No.
Write the serial number in the
space above for future reference.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if a part is
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-877-992-5999
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.weiderservice.com
USER’S MANUAL
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
V
Serial Number Decal (Under Seat)

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
WEIDER is a registered trademark of ICON IP, Inc.
The decals shown below has been placed on the weight bench. If a decal is missing or illegible, call the
toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply
the decal in the location shown.
WARNING DECAL PLACEMENT

1. Read all instructions in this manual and all
warnings on the weight bench before using
the weight bench. Use the weight bench only
as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are ade-
quately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Keep the weight bench indoors, away from
moisture and dust. Place the weight bench on
alevel surface, with a mat beneath it to pro-
tect the floor or carpet.
5. Make sure that there is enough clearance
around the weight bench to mount, dismount,
and use the weight bench.
6. Inspect and properly tighten all parts regular-
ly.Replace any worn parts immediately.
7. Keep hands and feet away from moving parts.
8. Always set both weight rests at the same
height.
9. Keep children under 12 and pets away from
the weight bench at all times.
10. Always wear athletic shoes for foot protec-
tion while exercising.
11. The weight bench is designed to support a
maximum user weight of 300 pounds and a
maximum total weight of 610 pounds. Do not
place more than 310 pounds, including a bar-
bell, on the weight rests. Do not place more
than 150 pounds on the leg lever. Do not
place more than 150 pounds on the weight
carriage. Note: The weight bench is designed
to be used with an Olympic barbell. The
weight bench does not include a barbell or
weights.
12. Always place an equal amount of weight on
each side of the barbell.
13.
Always exercise with a partner.Your partner
should be ready to catch the barbell if you
cannot complete a repetition.
14. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING: Toreduce the risk of serious injury, read the following important precautions
before using the weight bench.
IMPORTANT PRECAUTIONS
3
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

4
Arm Pad
Handle Strap Headrest
Backrest
Weight Rest
Barbell
Guide
Seat
High Cable
Storage Tube
Ankle Strap
Row Bar
Chain
VKR Arm
VKR Handle
Weight Carriage
Butterfly Arm
Squat Safety Spotter
Foot Plate
Curl Pad
Bench Backrest
Backrest Bracket
Leg Lever
Crossbar
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®C700
weight bench. The weight bench offers a selection of
weight stations designed to develop every major mus-
cle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight bench
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number is WEBE4496.0. The serial number can
be found on a decal attached to the weight bench (see
the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the weight bench
at www.weiderservice.com/registration.

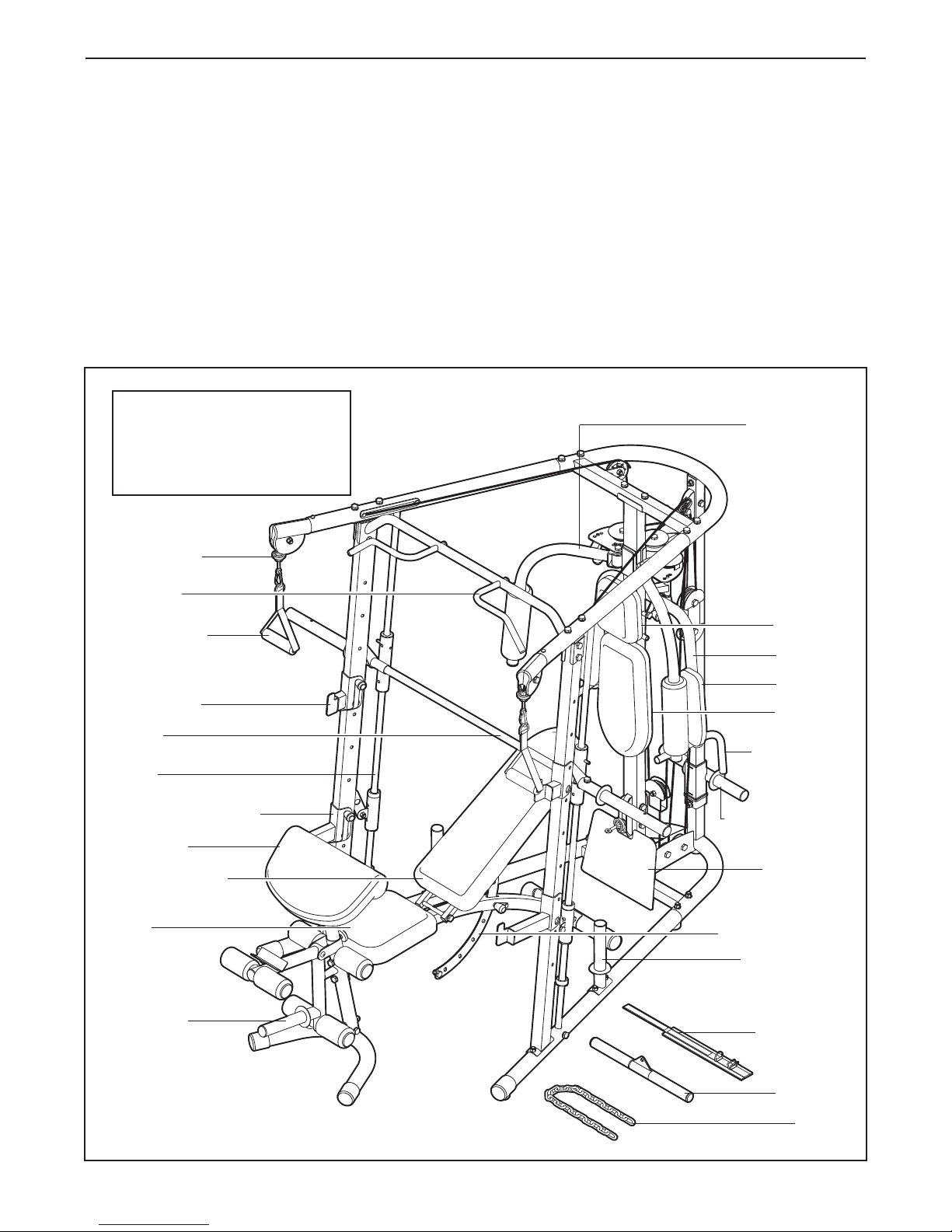

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED DIMENSIONS:
Height: 83 in. / 211 cm
Width: 85 in. / 215 cm
Depth: 92 in. / 234 cm

M10 Nylon
Locknut (94)
M8 Washer (95)
M8 Nylon
Locknut (97)
M6 Washer (98)
M6 x 16mm
Screw (105)
M8 x 22mm
Bolt (108)
M4 Washer (87)
M
M4 x 12mm
Self-tapping
Screw (123)
M4 x 16mm
Self-tapping
Screw (102)
M4 x 60mm Self-tapping Screw (122)
M10 x 45mm Bolt (104)
M6 x 63mm Screw (106)
M6 x 39mm Screw (107)
M10 x 40mm
Button Bolt (109)
M10 x 20mm
Bolt (110)
M10 x 50mm Bolt (111)
M
M6 x 57mm Screw (113)
M10 x 60mm Bolt (117)
M
M10 x 60mm Button Bolt (126)
M10 Washer (96)
PART IDENTIFICATION CHART A
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST on page 31 of this manual. Note: Some small parts may
have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
5

6
M10 x 81mm Bolt (100)
M10 x 73mm Bolt (101)
M
M10 x 64mm Bolt Set (103)
M10 x 91mm Bolt (112)
M
M10 x 95mm Bolt (114)
M10 x 70mm Bolt (116)
M
M8 x 63mm Bolt (118)
M
M10 x 65mm Bolt (124)
M10 x 75mm Bolt (125)
M
M10 x 193mm Bolt (139)
M10 x 150mm Bolt (127)

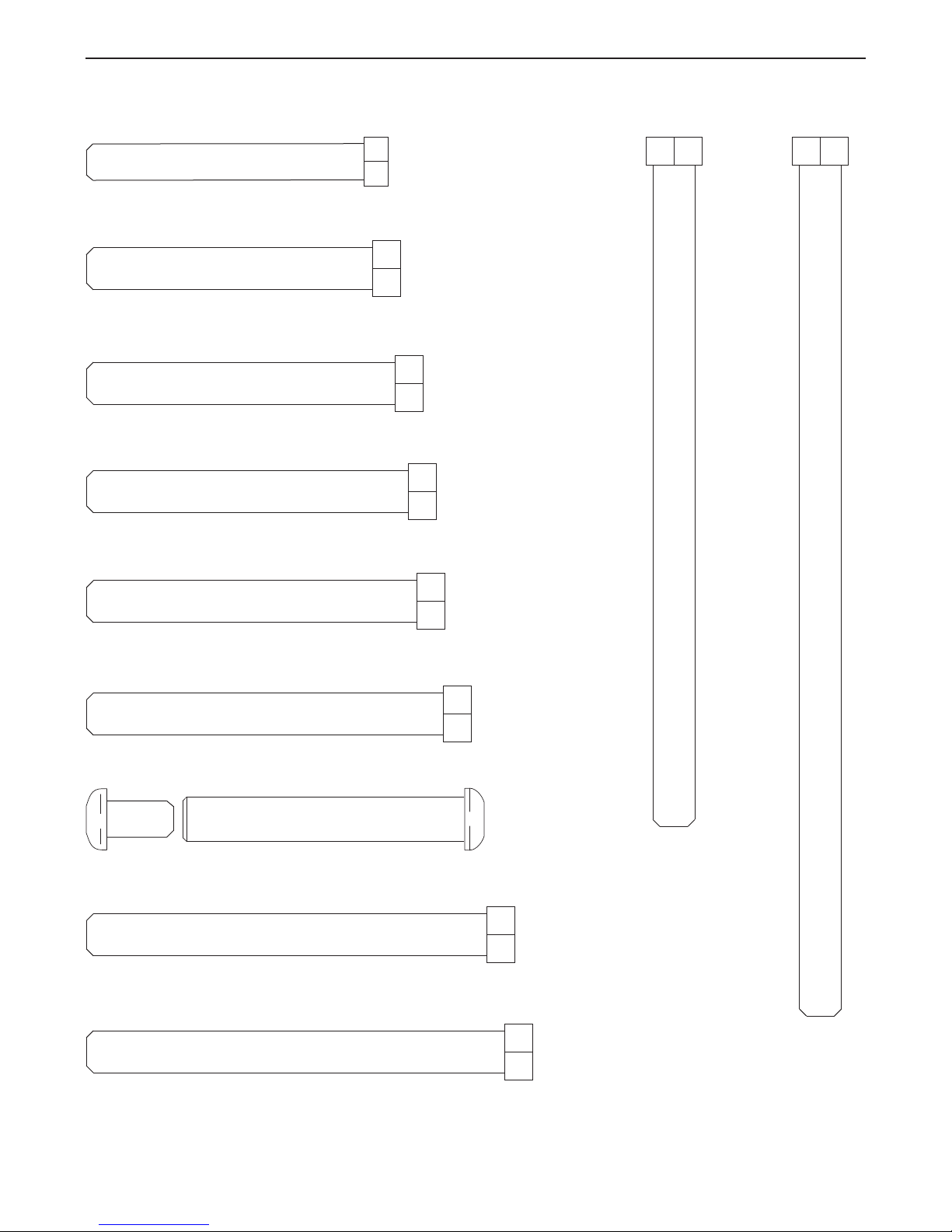

PART IDENTIFICATION CHART B

7
ASSEMBLY

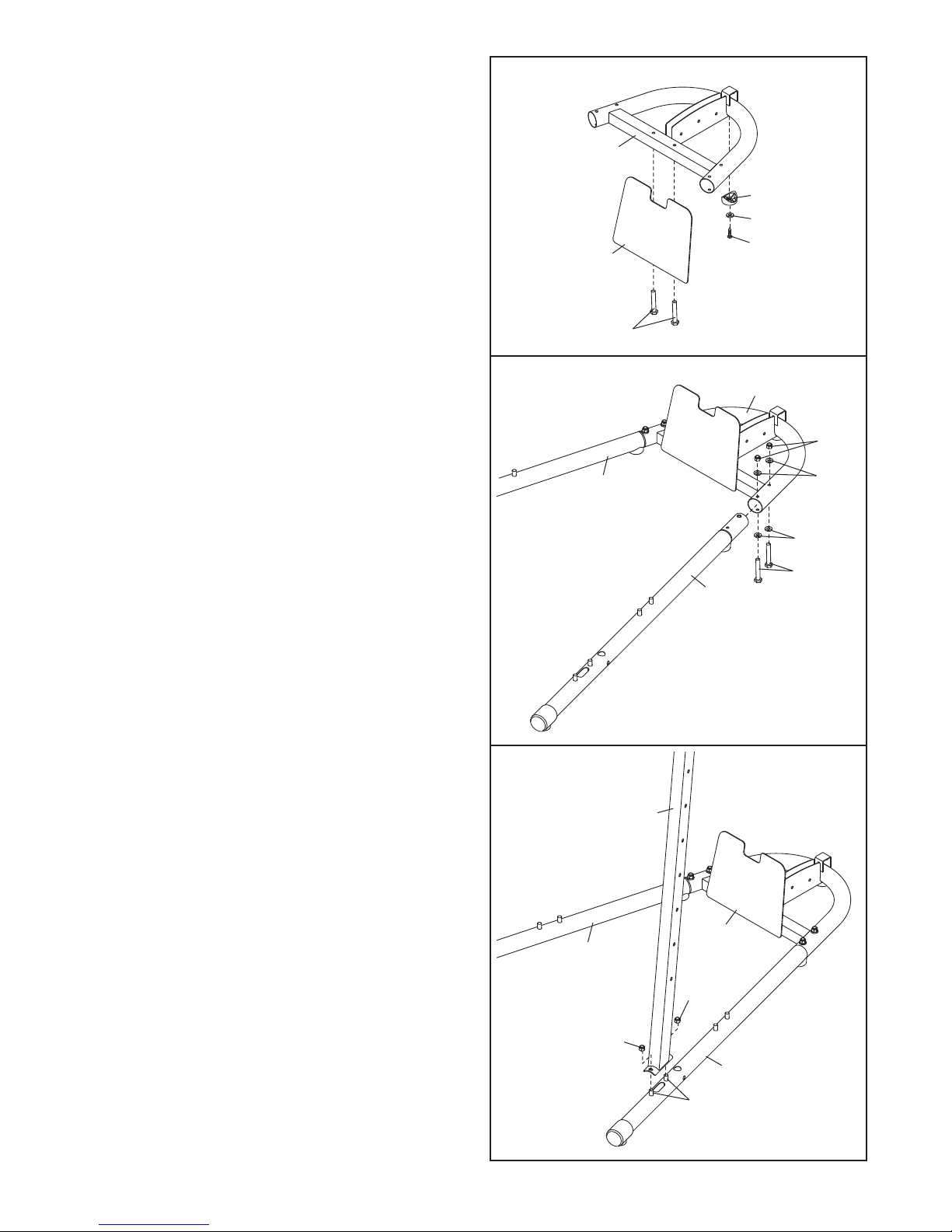

1.
Attach the Rear Stabilizer (2) to the Frame (1)
with two M10 x 81mm Bolts (100), two M10
Washers (96), and two M10 Nylon Locknuts (94).
Do not tighten the Nylon Locknuts yet.
1
Before beginning assembly,make sure you
understand the information in the box
above. For help identifying small parts,
use the PART IDENTIFICATION CHART on
page 5.
100
194
94
96
2
To hire an authorized service technician to
assemble the weight bench, call toll-free
1-800-445-2480.
Before beginning assembly, carefully read the
following information and instructions:
•Because of its weight and size, the weight bench
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the weight bench as you
assemble it.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
•Assembly requires two people.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The included grease, and the following tools
(not included) may be required for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Clear tape or masking tape
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Assembly Easier
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. Most people find that set-
ting aside plenty of time helps assembly go
smoothly.
2. Attach the Front Stabilizer (3) to the Front Leg (4)
with two M10 x 73mm Bolts (101), four M10
Washers (96), and two M10 Nylon Locknuts (94).
Do not tighten the Nylon Locknuts yet.
2
4
94
94
96
96
101
101
3

8
3. Attach the Front Leg (4) to the Frame (1) with two
M10 x 73mm Bolts (101), two M10 Washers (96),
and two M10 Nylon Locknuts (94).
See steps 1 and 2 and tighten the M10 Nylon
Locknuts (94).
4. Orient the the two Backrest Frames (7) as shown;
the indicated holes are closest to the edge of the
frame. Attach the Backrest Frames to the
Backrest Bracket (6) with four M10 x 45mm Bolts
(104), four M10 Washers (96), and four M10
Nylon Locknuts (94). Do not tighten the Nylon
Locknuts yet.
4
3
7
7
94
96
96
104
104
94
101
1
6
Hole
Hole
94
94
96
4
5. Attach the Bench Backrest (9) to the Backrest
Frames (7) with four M6 x 39mm Screws (107)
and four M6 Washers (98). Do not tighten the
Screws yet.
5
98 98
98
107
107
9
7

9
6. Insert the Backrest Bracket (6) into the slot in the
Frame (1). Next, apply a small amount of the
included grease to an M10 x 193mm Bolt (139).
Then, attach the Backrest Frames (7) to the
Frame with the Bolt, two M10 Washers (96), and
an M10 Nylon Locknut (94). Do not overtighten
the Nylon Locknut; the Backrest must pivot
easily.
Insert a Short Pin (21) through the Frame (1) into
one of the adjustment holes in the Backrest
Bracket (6). Attach the Short Pin to the Frame
with an M4 x 16mm Self-tapping Screw (102).
Make sure the Short Pin is engaged in an
adjustment hole.
See the inset drawing. Insert an M8 x 22mm Bolt
(108) through the lower end of the Backrest
Bracket (6). Then, tighten an M8 Nylon Locknut
(97) onto the end of the Bolt.
See steps 4 and 5 and tighten the M10 Nylon
Locknuts (94) and the M6 x 39mm Screws
(107).
7. Attach the Seat (10) to the Frame (1) with two M6
x16mm Screws (105), an M6 x 63mm Screw
(106), and an M6 Washer (98).
7
6
105
106
98
7
6
21
1
96
96
94
1
10
139 Grease
Slot
102
108
976
8. Apply grease to the barrel of an M10 x 64mm Bolt
Set (103). Attach the Leg Lever (5) to the bracket
on the Front Leg (4) with the Bolt Set. Make sure
that the barrel of the Bolt Set is inserted
through both sides of the bracket on the Front
Leg.
8
4
5103 Grease
Bracket
103

10
9. Insert a Pad Tube (12) into the lower hole in the
Leg Lever (5). Slide two Small Pads (13) onto the
Pad Tube. Press a Pad Cap (14) into each end of
the Pad Tube.
Repeat this step with the other Pad Tubes (12)
and the Front Leg (4).
10. Attach the Curl Pad (11) to the Curl Post (8) with
two M6 x 16mm Screws (105). 10
9
11
105
8
5
14
4
14
12
12
12
13
13
11. Orient a Front Base (26) as shown. Insert four
M10 x 81mm Bolts (100) and four M10 Washers
(96) up through the Front Base. Place tape over
the Bolt heads to hold them in place.
Repeat this step for the other Front Base (26).
11
26
96
100
26
96
100

11
12. Attach a Foot (78) to the Rear Base (25) with an
M4 x 16mm Self-tapping Screw (102) and an M4
Washer (87).
Insert two M10 x 70mm Bolts (116) up through
the Foot Plate (54) and the Rear Base (25). Place
tape over the Bolt heads to hold them in place
13. Attach a Front Base (26) to the Rear Base (25)
with two M10 x 81mm Bolts (100), four M10
Washers (96), and two M10 Nylon Locknuts (94).
Do not tighten the Nylon Locknuts yet.
Repeat this step for the other Front Base (26).
13
12
26
25
116
54
78
87
102
94
96
96
26
100
25
14. Orient a Front Upright (27) so that it leans toward
the Foot Plate (54). Attach the Front Upright to a
Front Base (26) with the two M10 x 81mm Bolts
(100) and two M10 Nylon Locknuts (94). Do not
tighten the Nylon Locknuts yet.
Repeat this step for the other Front
Upright (not shown) and Front Base (26).
14
94
94
54
27
26
26
100

12
15. Attach a Guide (28) to a Front Base (26) with an
M10 x 81mm Bolt (100), two M10 Washers (96),
two 16mm x 20mm Spacers (93), and an M10
Nylon Locknut (94). Do not tighten the Nylon
Locknuts yet.
Repeat this step for the other Guide (not
shown).
16. Attach a Storage Tube (43) to a Front Base (26)
with the two M10 x 81mm Bolts (100) and two
M10 Nylon Locknuts (94).
Repeat this step for the other Storage Tube
(43).
16
15
43
26
96
96
94
93
93
43
26
94
100
100
28

13
17. Attach the Center Upright (29) to the Rear Base
(25) with the two M10 x 70mm Bolts (116) and
two M10 Nylon Locknuts (94). Donot tighten
the Nylon Locknuts yet.
18. Identify the Rubber Carriage Stop (133) and the
Metal Carriage Stop (132). Then, slide the
Rubber Carriage Stop onto the Rear Upright (30).
Attach the Rubber Carriage Stop (133) to the
Rear Upright (30) with an M10 x 81mm Bolt
(100), two M10 Washers (96), and an M10 Nylon
Locknut (94).
See the inset drawing. Orient the Weight Carriage
(55) with the notch at the top as shown, and then
slide the Weight Carriage onto the Rear Upright
(30). Next, slide a Carriage Bumper (85) and the
Metal Carriage Stop (132) onto the Rear Upright.
Attach the Metal Carriage Stop (132) to the Rear
Upright (30) with an M10 x 75mm Bolt (125), two
M10 Washers (96), and an M10 Nylon Locknut
(94).
Attach the Rear Upright (30) to the Rear Base
(25) with an M10 x 65mm Bolt (124), two M10
Washers (96), and an M10 Nylon Locknut (94).
Do not tighten the Nylon Locknuts yet.
17
18
29
25
116
94
94
94
94
25
96
96
30
96
94
96
85
55
124
125
132
100
133
55 Notch

14
20. Attach the Rear Frame (31) to the Center Upright
(29) with two M10 x 70mm Bolts (116), two M10
Washers (96), and two M10 Nylon Locknuts (94).
Do not tighten the Nylon Locknuts yet.
Attach the Rear Frame (31) to the Rear Upright
(30) with an M10 x 65mm Bolt (124), two M10
Washers (96), and an M10 Nylon Locknut (94).
Do not tighten the Nylon Locknut yet.
21. Identify the Left Guide (38) that has a pin in the
location shown.
Slide a Guide Bumper (90) and a Safety Spotter
(40) onto the left Guide (28). Insert the hook on
the Safety Spotter into an adjustment hole in the
Front Upright (27). Then, slide another Guide
Bumper and the Left Guide (38) onto the Guide.
Repeat this step for the other side of the
weight bench.
20
21
31
30
96
116
124
29
94
96
94
38
90
40
28
90
Pin
27
19. Insert two M4 x 60mm Self-tapping Screws (122)
into the smaller holes in the Center Upright (29).
Attach the Center Frame (51) to the Center
Upright (29) with two M10 x 70mm Bolts (116)
and two M10 Nylon Locknuts (94). Then, attach
the Support Plate Cover (71) to the Center
Upright with the two M4 x 60mm Self-tapping
Screws (122).
19
29 51
116
94
94
122
122
Tab
71

15
24. Apply grease to a 16mm x 56mm Spacer (23).
Attach the Right Butterfly Arm (50) to the Center
Upright (29) with an M10 x 95mm Bolt (114), an
Adjustable Pulley Plate (67), a 46mm Bushing
(88), the Spacer, and an M10 Nylon Locknut (94).
Make sure the Adjustable Pulley Plate is ori-
ented as shown.
Wet the lower end of the Right Butterfly Arm (50)
with soapy water.Slide a Large Foam (75) onto
the Right Butterfly Arm.
Repeat this step for the Left Butterfly Arm
(49).
24
50 23
49
88
67
114
Grease
94
29
75
23. Attach the Crossbar (34) and a Support Plate (70)
to a Front Upright (27) with two M10 x 70mm
Bolts (116) and an M10 Nylon Locknut (94). Make
sure the indicated hole, which is closer to the
edge of the Support Plate, is oriented as
shown.
Repeat this step for the other side of the
weight bench.
See steps 14 through 22 and tighten the M10
Nylon Locknuts (94).
22. Attach the Right Front Frame (33) to the Rear
Frame (31) with two M10 x 81mm Bolts (100),
four M10 Washers (96), and two M10 Nylon
Locknuts (94). Do not tighten the Nylon
Locknuts yet. Then, attach the Right Front
Frame (33) to the right Front Upright (27) with two
M10 x 81mm Bolts (100), two M10 Washers (96),
and two M10 Nylon Locknuts (94). Do not tight-
en the Nylon Locknuts yet. Make sure the
Guide Rod (28) is inserted into the Front
Frame.
Repeat this step for the Left Front Frame (32).
23
22
94
70
116
Hole
34
100
96 Hole
94
94
100
96
33
32
27
28
31
96
27

16
27. Wrap the Cable (66) around a Small Pulley (59).
Attach the Small Pulley,aGuard (61), a Cable
Trap (76), and an M10 Washer (96) to the left
Adjustable Pulley Plate (67) with an M10 x 50mm
Bolt (111) and an M10 Nylon Locknut (94).
28. Wrap the Cable (66) around a Small Pulley (59).
Attach the Small Pulley,two Guards (61), a Cable
Trap (76), and an M10 Washer (96) to the Center
Frame (51) with an M10 x 95mm Bolt (114), an
M10 Washer,and an M10 Nylon Locknut (94).
27
28
94
96
76
61
111
59
66
67
61
61
76
59
51
94
114
96
66
96
26. See the CABLE DIAGRAM on page 28 as you
identify and assemble the cables.
Locate the Butterfly Cable (66). Attach the
Cable to the Center Frame (51) with an M10 x
20mm Bolt (110) and an M10 Nylon Locknut (94).
Make sure the flat edge of the Cable is against
the Center Frame.
26
94
51
66 110
25. Attach a VKR Handle (53) to the VKR Arm (52)
with an M10 x 60mm Button Bolt (126), an M10
Washer (96), and a VKR Cap (83).
Attach the other VKR Handle (53) to the VKR
Arm (52) in the same way.
Apply grease to an M10 x 150mm Bolt (127).
Attach the VKR Arm (52) to the Center Upright
(29) with the Bolt and an M10 Nylon Locknut (94).
Do not overtighten the Nylon Locknut; the
VKR Arm must pivot easily. Then, insert the
Long Pin (77) into the VKR Arm. Attach the tether
on the Long Pin to the VKR Arm with an M4 x
16mm Self-tapping Screw (102).
25
29
52
94
127
Grease
102
126
77
53
53
83
96

17
30. Wrap the Cable (66) over a Small Pulley (59).
Attach the Small Pulley, two Guards (61), a Cable
Trap (76), and an M10 Washer (96) to the Center
Frame (51) with an M10 x 45mm Bolt (104).
31. Wrap the Cable (66) under a Small Pulley (59).
Attach the Small Pulley,aCable Trap (76), and
two Half Guard (62) to the second from the top
set of holes in the two Pulley Plates (56) with an
M10 x 50mm Bolt (111) and an M10 Nylon
Locknut (94). Make sure the Half Guards are
oriented as shown.
30
31
59
61
104
51
61
76
66
96
94 62 56
56 62
66
59
76 111
29. Wrap the Cable (66) around a Small Pulley (59).
Attach the Small Pulley, a Guard (61), a Cable
Trap (76), and an M10 Washer (96) to the right
Adjustable Pulley Plate (67) with an M10 x 50mm
Bolt (111) and an M10 Nylon Locknut (94).
29
94
96
67
76
66
61
59
111

18
33. Attach the Cable (66) to the Weight Carriage (55)
with an M10 x 40mm Button Bolt (109), an M10
Washer (96), and a 23mm Spacer (99). Make
sure the flat edge of the Cable is against the
Weight Carriage.
34. Remove the M4 x 12mm Self-tapping Screw
(123) and the Swivel Arm (48).
Locate the High Cable (131). Insert the Cable
under the bar in the Swivel Arm (48) and route
the Cable through the Swivel Arm, into the Right
Front Frame (33), and out the slot in the Right
Front Frame. Make sure the Cable is routed
under the bar in the Swivel Arm and to the
inside of the indicated bolt.
Attach the Swivle Arm (48) to the Right Front
Frame (33) with the M4 x 12mm Self-tapping
Screw (123). Attach a Small Pulley (59), two
16mm x 6mm Spacers (91), an Outer Pulley
Cover (63), and an Inner Pulley Cover (82) to the
Swivel Arm with an M10 x 60mm Bolt (117), two
M10 Washers (96), and an M10 Nylon Locknut
(94). Make sure the Spacers are inside the
Swivel Arm.
34
99
96
109
66
55
63
Bar
131
33
96
117
91
91
96
94
59
48
123
The Cable must
pass on this
side of the Bolt.
82
33
32. Wrap the Cable (66) over the Large Pulley (60).
Attach the Large Pulley inside the Rear Upright
(30) with an M10 x 65mm Bolt (124), two M10
Washers (96), and an M10 Nylon Locknut (94).
32
66
60
30
96
96
94
124

19
36. Wrap the Cable (131) over a Small Pulley (59).
Attach the Small Pulley and a Cable Trap (76) to
the Rear Frame (31) with an M10 x 45mm Bolt
(104) and an M10 Nylon Locknut (94).
37. Wrap the Cable (131) under a Small Pulley (59).
Attach the Small Pulley, two Half Guards (62),
and a Cable Trap (76) to the “U” Bracket (57) with
an M10 x 50mm Bolt (111) and an M10 Nylon
Locknut (94). Make sure the Half Guards are
oriented as shown.
36
37
31
94
76
59
104
131
59
111
62
131
76
57
94 62
35. Position the Bottom Plate (65) and the Top Plate
(64) around the Cable (131) as shown. Attach the
Bottom and Top Plates to the Right Front Frame
(33) with two M4 x 16mm Self-tapping Screws
(102).
35
102
131 102
64
65
33

20
39. Remove the M4 x 12mm Self-tapping Screw
(123) and the Swivel Arm (48) from the Left Front
Frame (32). Route the Cable (131) through the
slot in the Left Front Frame and through the
Swivel Arm. Make sure the Cable is routed
under the bar in the Swivel Arm.
Attach the Swivel Arm (48) to the Left Front
Frame (32) with the M4 x 12mm Self-tapping
Screw (123).
Position the Bottom Plate (65) and the Top Plate
(64) around the Cable (131) as shown. Attach the
Bottom and Top Plates to the Left Front Frame
(32) with two M4 x 16mm Self-tapping Screws
(102).

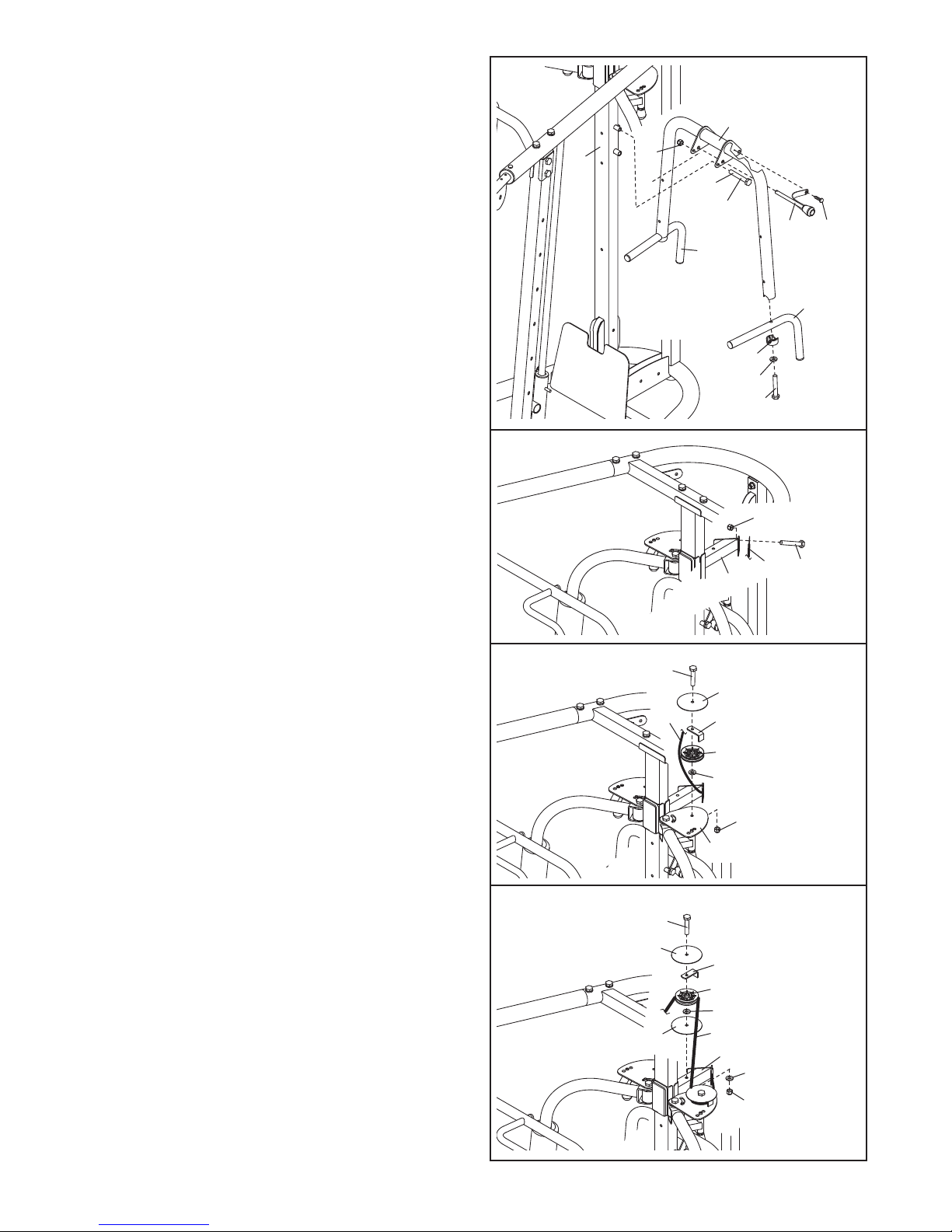

40. Attach a Small Pulley (59), two 16mm x 6mm
Spacers (91), an Outer Pulley Cover (63), and an
Inner Pulley Cover (82) to the Swivel Arm (48)
with an M10 x 60mm Bolt (117), two M10
Washers (96), and an M10 Nylon Locknut (94).
Make sure the Spacers are inside the Swivel
Arm.
39
40
32
48
64
65
131
102
123
Bar
82
48
91
91
59
63
94 96 96
131
117

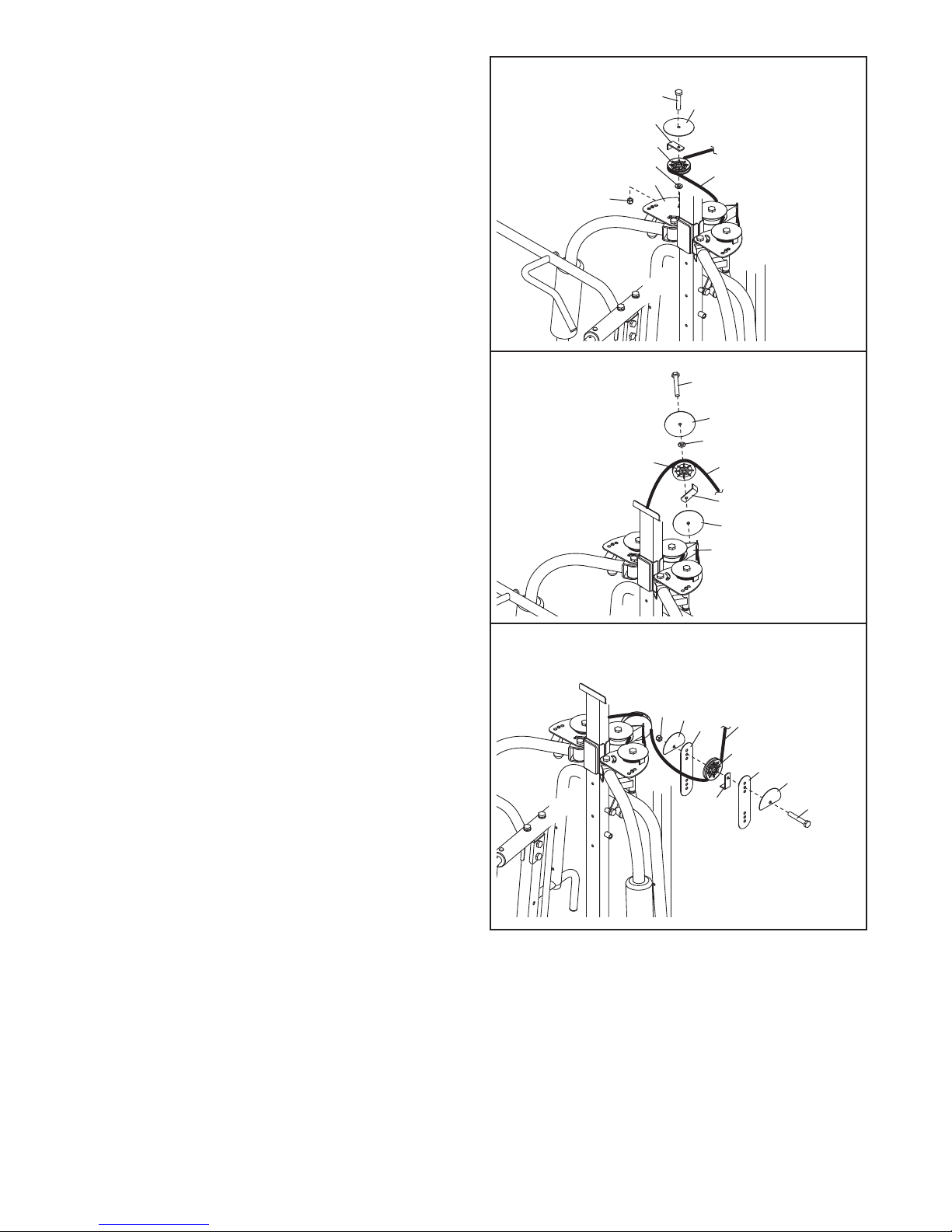

38. Wrap the Cable (131) over a Small Pulley (59).
Attach the Small Pulley and a Cable Trap (76) to
the inside of the Rear Frame (31) with an M10 x
45mm Bolt (104) and an M10 Nylon Locknut (94).
38
104
59
131
76
31
94
The Cable
must pass
on this side
of the Bolt.
