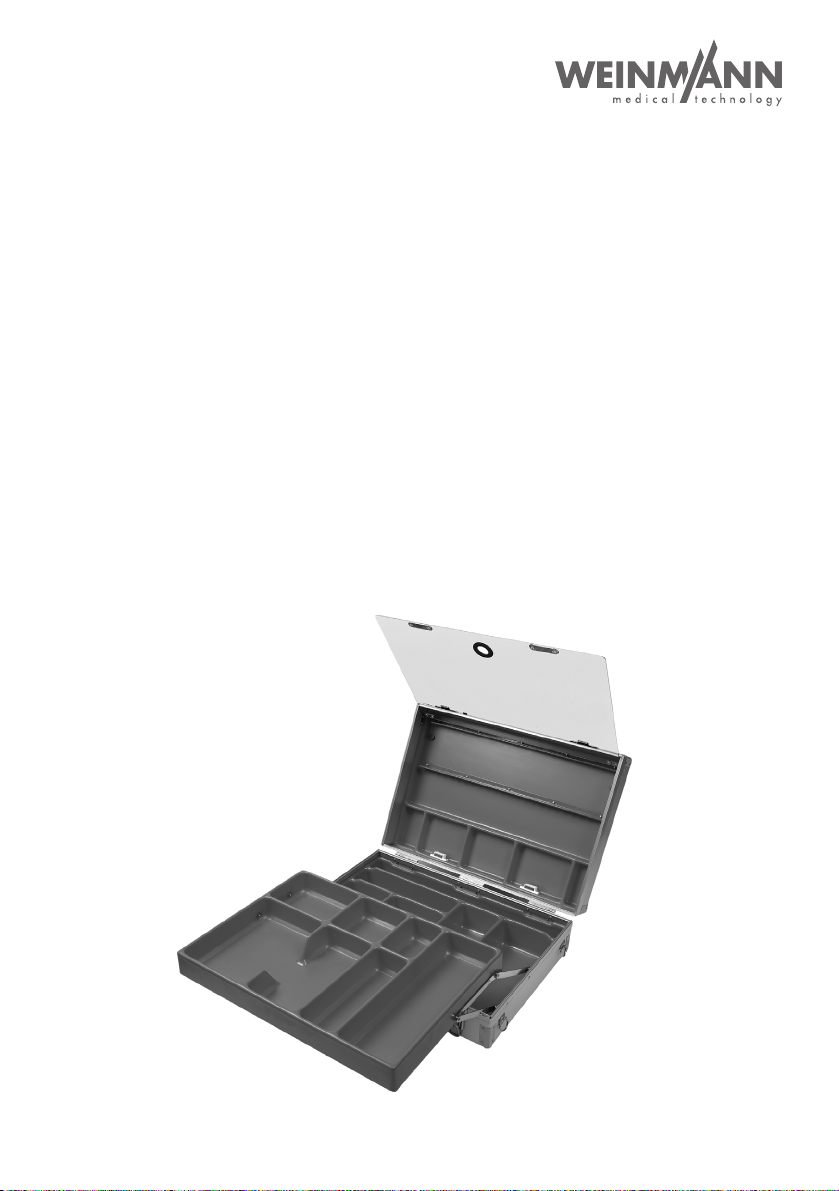

Weinmann ULM CASE Circulation Technical Document

ULM CASE Circulation/
VALISE ULM Circulation/
VALIGETTA ULMER Circolazione
Emergency cases/Le système d‘urgence/Valigetta pronto soccorso
Description of the equipment and instructions for use
Description et mode d’emploi de l’appareil
Descrizione dell' apparecchio e istruzioni per l'uso

English 3
Français 14
Italiano 26

WM 16260c 03/2016
ULM CASE EN 3
Contents
English
Contents
1Overview 4
1.1 Special symbols on the device ........................................................ 4
2 Description 5
2.1 Purpose ........................................................................................ 5
2.2 Function ........................................................................................ 5
3 Safety Information 6
4Assembly 7
4.1 Fitting a wall bracket ..................................................................... 7
5 Hygienic preparation 8
6 Functional Check 9
7 Maintenance 9
7.1 Intervals ........................................................................................ 9
7.2 Disposal ........................................................................................ 9
8 Product and Spare Parts 10
8.1 Standard equipment .................................................................... 10
8.2 Accessories ................................................................................. 10
8.3 Spare parts .................................................................................. 11
9 Technical Data 12
10 Warranty 13
11 Declaration of conformity 13

4EN ULM CASE
WM 16260c 03/2016
Overview
1Overview
1.1 Special symbols on the device
ULM CASE Circulation
4Base insert
7Hinged insert
8Top insert
6Security seal
(by the lock
of the case)
1Magnetic catch
2Cover plate
5Keys
3Multipurpose eye
9Ampoule strip
1
No. Symbol Meaning
1
SN Serial number
Year of manufacture
CE marking

WM 16260c 03/2016
ULM CASE EN 5
Description
2 Description
2.1 Purpose
The ULM CASE is for carrying drugs, dressings and other items.
2.2 Function
The ULM CASE has been ideally equipped for its sphere of
application. The compartments in the interior and the ampoule
strips are permanently fixed in position.

6EN ULM CASE
WM 16260c 03/2016
Safety Information
3 Safety Information
For your own safety, the safety of your patients, and to comply
with the requirements of EU Directive 93/42/EEC, please observe
the following points.
• Please observe these operating instructions. They are a part of
to the case and must be kept available at all times.
• Thorough knowledge of and compliance with these operating
instructions are essential when using the case.
• Please comply with section "5 Hygienic preparation" on
page 8 to prevent infection or bacterial contamination.
• The case is intended solely for the designated purpose
described.
• If third-party items are used, functional failures may occur and
fitness for use may be restricted. Biocompatibility requirements
may also not be met. Please note that in such cases, any claim
under warranty and liability will be voided if neither the
accessories nor genuine replacement parts recommended in
the instructions for use are used.
• Make sure that any leakages of liquids, e.g. from ampoules, are
cleared up immediately. Observe the relevant manufacturer’s
warnings and disposal instructions.

WM 16260c 03/2016
ULM CASE EN 7
Assembly
4 Assembly
4.1 Fitting a wall bracket
If you want to fit the case to a vehicle panel, only use wall bracket
WM 15370 (see "8 Product and Spare Parts", page10).
If you want to fit the case to the wall of a building, you may use
the appropriate wall bracket WM 15731 (see "8 Product and Spare
Parts", page10).
1. Mark the position of the drill holes.
You can use the wall bracket as a template.
2. Drill the fixing holes:
• In vehicles: with a 3 mm drill.
• In buildings: with a suitable drill for the wall plugs used.
3. Attach the wall bracket firmly.
Univ. wall bracket WM 15370 Wall bracket WM 15371

8EN ULM CASE
WM 16260c 03/2016
Hygienic preparation
5 Hygienic preparation
Clean the inside and outside of the case as necessary by simply
wiping with disinfectant.
You are recommended to wear suitable gloves (e.g. household or
disposable gloves) during disinfection procedures.
We recommend: terralin®protect (Observe the instructions for the
disinfectant used!).
Remove all equipment and materials from the case.
Equipment components
Follow the instructions for cleaning, disinfecting and, if
appropriate, sterilizing provided in the associated instructions for
use.

WM 16260c 03/2016
ULM CASE EN 9
Functional Check
6 Functional Check
You should perform a functional check after every use (at least
every 2 years in the event of non-use).
If the functional check reveals a defect, the emergency case must
not be used again until the defect has been remedied.
Perform the functional check as follows:
1. Check that the inserts, cover plate, ampoule strips, case corners
and case handle are undamaged.
2. Check that the case fasteners open and close easily.
3. Check the hinges of the case and of the cover plate. They must
move easily and be properly attached.
Replace any defective parts.
7 Maintenance
7.1 Intervals
The emergency cases need no maintenance. However, please
observe the intervals for regular functional checks (see "6
Functional Check", page9).
We recommend having any repair work carried out by the
manufacturer, WEINMANN Emergency, or by expert personnel.
7.2 Disposal
Do not dispose of the therapy device in domestic waste. To dispose
of the therapy device properly, contact an approved, certified
electronics scrap dealer. You can obtain the address from your
Environment Officer or your local authority. The device packaging
(cardboard and inserts) can be disposed of in paper recycling
facilities.

10 EN ULM CASE
WM 16260c 03/2016
Product and Spare Parts
8 Product and Spare Parts
8.1 Standard equipment
8.2 Accessories
The following accessories are not standard equipment and must be
ordered separately:
Standard symbol labels
Miscellaneous
* Including mounting parts
Pull seals available from www.ESTO.de
• Pull Tight pull seal 250 mm red, sealing tape Ø 2.3 mm
Article Order No.
ULM CASE Circulation, empty WM 5225
Article Order No.
Wear protective gloves WM 0970
Syringes WM 1040
ECG WM 1041
Intubation WM 1042
Infusion WM 1043
CIRCULATION drugs WM 1044
Article Order No.
Universal wall bracket*,
adjustable (for use in vehicles) WM 15370
Wall bracket*
suitable for all emergency cases
(for use in buildings)
WM 15371
Back strap WM 3964
Shoulder strap WM 3965
