Weinmann ULM CASE II User manual

ULM CASE II
Emergency Case
Instructions for use

2EN
Contents
1 Overview ........................................................................ 3
1.1 Special markings on the device .................................. 4
2 Description...................................................................... 5
2.1 Intended purpose ...................................................... 5
2.2 Function.................................................................... 5
3 Safety Instructions ......................................................... 5
4 Use................................................................................... 7
4.1 Dividers ..................................................................... 7
4.2 Tube Holder............................................................... 8
4.3 Ampoule Strips.......................................................... 8
4.4 Ampoule Panels......................................................... 8
4.5 Cylinder Clamp Straps ............................................... 9
5 Hygienic preparation ..................................................... 9
6 Functional Control........................................................ 10
7 Servicing ....................................................................... 10
7.1 Intervals................................................................... 10
7.2 Sending in parts ...................................................... 10
7.3 Disposal................................................................... 11
8 Extent of Supply........................................................... 11
8.1 Standard supply schedule ........................................ 11
8.2 Accessories and Spare Parts ..................................... 12
9 Technical Data............................................................... 14
10 Warranty....................................................................... 14

Overview EN 3
1 Overview
Legende
1Cover plate
2Long top divider (246,5 mm)
3Short top divider (105 mm)
4Case top
5Top recess
6Case hinge
7Short base divider (121 mm)
8Retaining clamps
9Oxygen cylinder recess
10 Bottom recess
11 Base of case
12 Corner of case
13 Case fastener
14 Case handle
15 Long base divider (211 mm)
16 Seal
17 Medium base divider (147 mm)
WEINMANN : HAMBURG
WEINMANN : HAMBURG
WEINMANN : HAMBURG
WEINMANN : HAMBURG
WEINMANN : HAMBURG
WEINMANN : HAMBURG
1245
3
6
7
8
9
10
11
12
13
14
1516
17
18 a
b
19
20 22
21 23
18 Tube holder
a) Oropharyngeal tube, small
b) Oropharyngeal tube, large
19 Lock
20 Set of 2 clamp straps for
oxygen cylinder
21 Laryngoscope pouch
22 Ampoule strip
23 Ampoule panel

4EN Overview

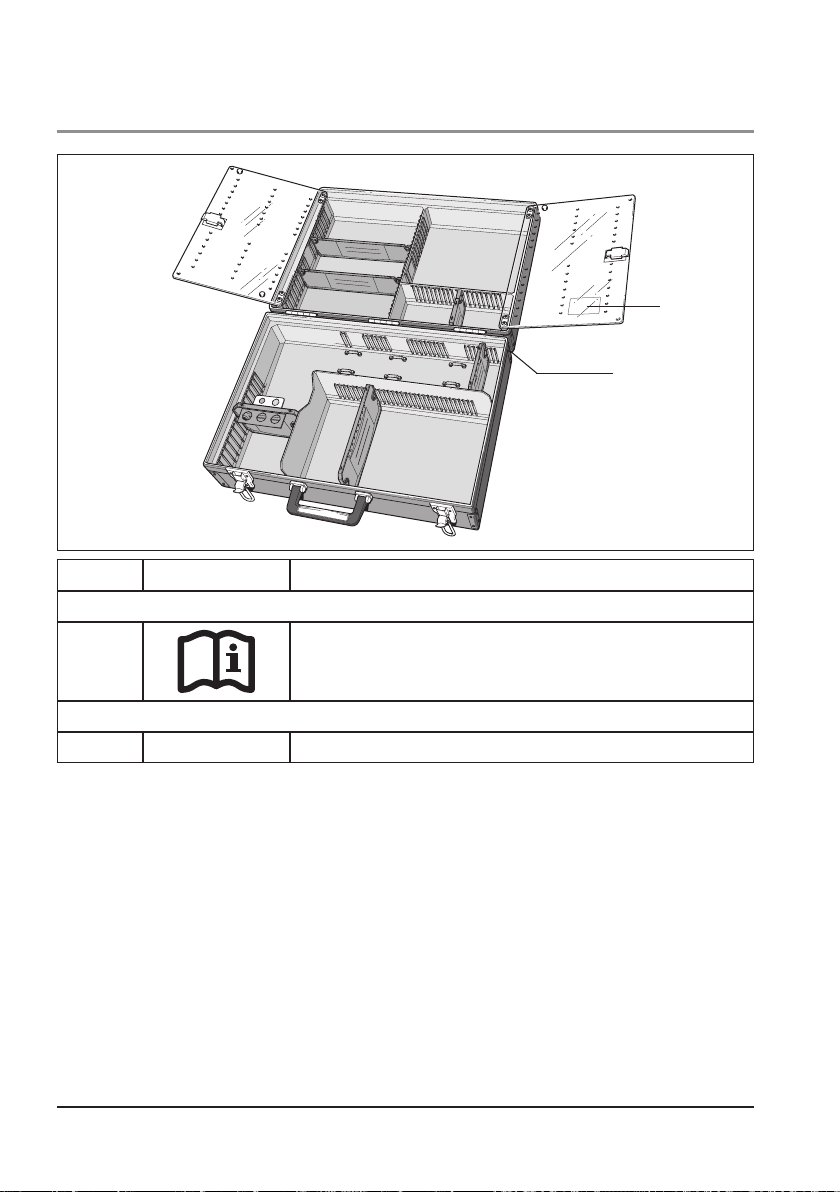

1.1 Special markings on the device
No. Symbol Meaning
Device ID plate ULM CASE II
1Follow instructions for use.
Other markings
2Removing the bars
WEINMANN:HAMBURG
WEINMANN:HAMBURG
WEINMANN: HAMBURG
WEINMANN:HAMBURG
WEINMANN: HAMBURG
WEINMANN:HAMBURG
2
1

Description EN 5
2 Description
2.1 Intended purpose
The ULM CASE II Emergency Medical Case is desi-
gned for storage and transport of emergency medi-
cal apparatus, instruments, drugs and other items.
2.2 Function
The interior of the ULM CASE II can be subdivided
to suit individual requirements using the varia-
ble dividers. Accessories, such as ampoule strips,
ampoule panels, tube holders and oxygen cylinder
clamp straps, offer further possibilities for individual
outtting.
3 Safety Instructions
Please note the following for your own safety and
that of your patients:
• Please comply with these User‘s Manual. They
are a constituent part of the backpack and must
be available at any time.
• Accurate knowledge of and compliance with
this User‘s Manual is required when handling
the backpack.
• The backpack is intended only for the purpose
described.
• If third-party items are used, functional failu-
res and restricted tness for use may result.
Please note that in these cases, any claim under
warranty and liability will be void if neither the

6EN Safety Instructions
accessories nor genuine replacement parts re-
commended in the instructions for use are used.
• Ensure that spilled liquids, e.g. from ampoules,
are removed immediately, otherwise they could
destroy the backpack and injure the user. In this
respect, comply with the warning and disposal
instructions from the manufacturer concerned.
• Comply with Section “5 Hygienic preparation”
on page 9 to prevent infection or bacterial
contamination.
• When the backpack is equipped with oxygen
cylinders and other equipment, it is essential to
comply with the relevant instructions for use and
the special information concerning this equip-
ment.
• Keep the equipment free from oil and grease.
• It is essential to wash your hands before
changing cylinders.
• During assembly and when changing cylinders,
tighten the screw connections by hand only.
Onno account use a tool for this purpose.
• Always open the cylinder valve gradually.
• It is strictly forbidden to smoke or use open
ames close to oxygen-carrying ttings.
• Always ensure provision of adequately lled
oxygen cylinders. It is advisable to keep a full
oxygen cylinder in reserve.

Use EN 7
4 Use
4.1 Dividers
The case can be divided internally as required using
the dividers (7, 15 and 17). An example is shown in
Legend.
When tting the dividers, please ensure that:
• they are positioned correctly as
• they are tted perpendicularly into opposing
grooves
• the spring ttings are properly engaged.

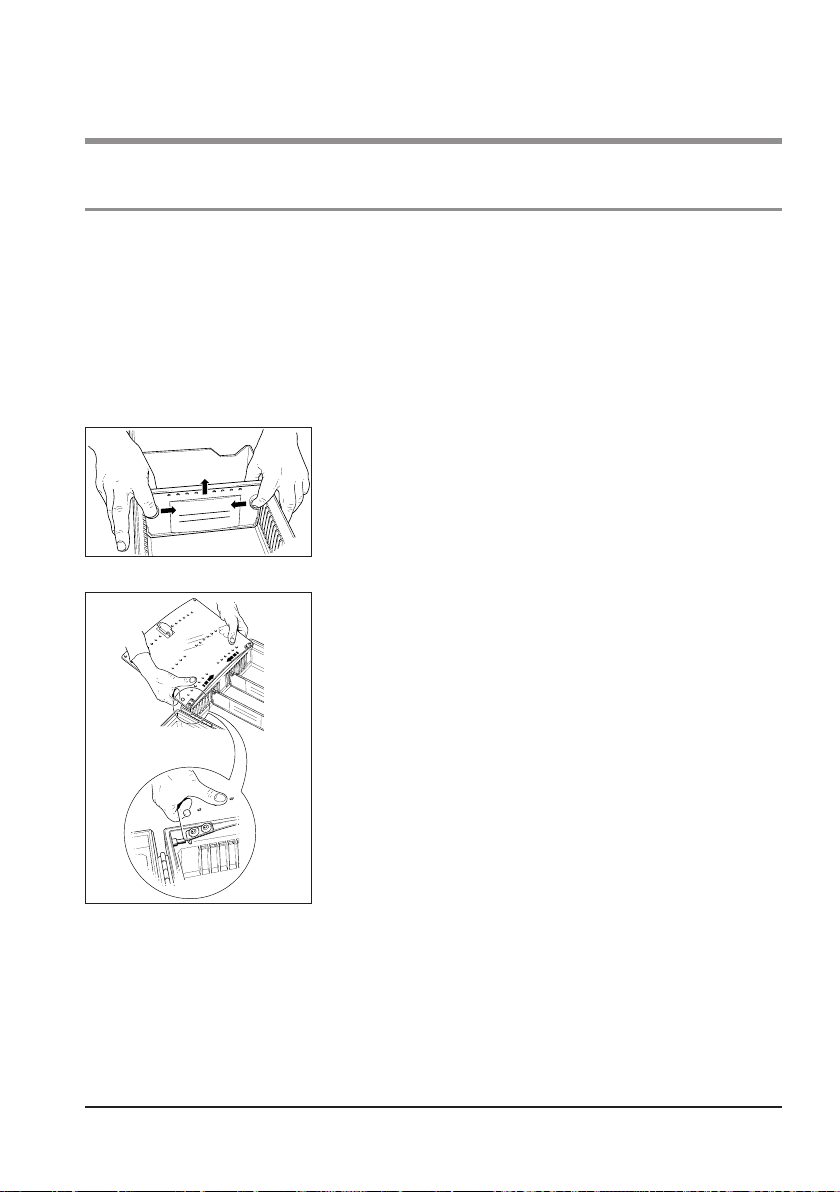

To remove a divider, press the two circular spring
ttings inwards as shown and lift the divider up-
wards.
To change the position of the ”top long” divider (2)
in the case top, rst remove the cover plate above
the divider. Bend the cover plate until the corners
of the plate slip off the journal pins. The divider can
now be relocated in the case as described.
WEINMANN : HAMBURG
WEINMANN : HAMBURG
WEINMANN : HAMBURG

8EN Use
4.2 Tube Holder
When the case is supplied, the tube holders are
attached to the “medium base” divider (17).
The tube holder can be moved to another divider
in the base of the case by loosening the xings and
relocating the holder as required.
4.3 Ampoule Strips
The ”ampoule strips WM 15140” (22), which are
available as accessories, can be tted as required to
the underside of the cover plates as shwon. Make
sure that the dividers or other ttings do not catch
on any of the ampoules when the plates are closed.
4.4 Ampoule Panels
The “ampoule panels WM 8771” (23), available as
accessories, can be tted as required in the top of
the case simply by tting the case top dividers in
the appropriate position.
The position of the ampoule strips on the ampoule
panels can also be changed by loosening the xings
and relocating the ampoule strips as desired.
Ensure that other ttings do not interfere with the
ampoules when the cover plate is closed.
WEINMANN : HAMBURG

Hygienic preparation EN 9
WEINMANN : HAMBURG
WEINMANN : HAMBURG
4.5 Cylinder Clamp Straps
To t 0.8 l or 2.0 l oxygen cylinders in the base of
the case, use the accessory ”WM 15141 – set of 2
clamp straps for oxygen cylinders” (20).
The cylinders are tted in the oxygen cylinder recess
as shown. To secure a 2.0 l cylinder, use the outer
clamps. The centre and lefthand clamps are used
for an 0.8 l cylinder. Ensure that the straps are tight
to prevent the cylinder from slipping during trans-
port.
5 Hygienic preparation
Clean the inside and outside of the case simply by
wiping with disinfectant. Recommended disinfec-
tant:
• terralin®protect. See also the instructions for
use for the disinfectant used. It is recommended
that suitable gloves (e.g. household or disposa-
ble gloves) are used for disinfecting.
Remove the dividers rst.
If the ULM CASE II is tted with oxygen cylinder,
use a clean, dry cloth or a cloth dampened with
clean water to clean the outside of the ttings.

10 EN Functional Control
6 Functional Control
Carry out a functional control after every use(or
at least every 2 years if not used). If you discover
faults during the functional control, you must not
use the emergency case again until the faults have
been rectied. Carry out the functional control as
follows:
1. Check whether the inserts,cover plate, ampoule
strips, corners of the case and the case handle
are free from damage.
2. Check that the case fasteners can be opened
and closed easily.
3. Check the case and cover plate hinges. They
must move easily and be xed in place correctly.
Replace faulty parts.
7 Servicing
7.1 Intervals
Emergency cases are maintenance-free. The dead-
lines for the regular functional control must be
complied with,however (see “6 Functional Control”
on page 10).
We recommend having any repair and maintenance
work completed by the manufacturer WEINMANN
Emergency or other qualied professionals.
7.2 Sending in parts
Risk of infection due to contaminated parts
during maintenance work!
The device, accessories and other parts may be
contaminated and infect technicians with bacte-
ria and viruses. Parts sent in which are obviously
contaminated will be disposed of by WEINMANN

Extent of Supply EN 11
Emergency or by technicians authorized by
WEINMANN Emergency, and the sender charged
for this.
⇒Clean and disinfect parts required for
maintenance work.
⇒Do not send in parts which are potentially
contaminated.
1. Remove parts
2. Clean and disinfect parts (“5 Hygienic
preparation” on page 9).
3. Send parts to WEINMANN Emergency, or to a
technician specically authorized by WEINMANN
Emergency.
7.3 Disposal
Do not dispose of the therapy device in domestic
waste. To dispose of the therapy device properly,
contact an approved, certied electronics scrap
dealer. You can obtain the address from your Envi-
ronment Ofcer or your local authority. The device
packaging (cardboard and inserts) can be disposed
of in paper recycling facilities.
8 Extent of Supply
8.1 Standard supply schedule
ULMER CASE II WM 8730
Case, fully assembled
1x Base divider, long (211 mm) WM 8741
1x Base divider, medium,
with 2 tube holders (147 mm) WM 8739
1x Base divider, short (121 mm) WM 8743
2x Top dividers, long (246,5 mm) WM 8744
1x Top divider, short (105 mm) WM 8745

12 EN Extent of Supply
8.2 Accessories and Spare Parts
Standard symbol labels:
Oxygen WM 0900
Put on protective gloves WM 0970
Dressing box WM 0971
Syringes WM 1040
ECG WM 1041
Intubation WM 1042
Infusion WM 1043
CIRCULATION drugs WM 1044
RESPIRATION drugs WM 1045
Universal drugs WM 1046
Resuscitation WM 1047
Baby resuscitation WM 1048
Cannula WM 1070
Tubes WM 1071
Clamps WM 1072
Poison WM 1073
Infant, red WM 1074
Infant, green WM 1075
Wall mount WM 5605
Base divider, long (211 mm) WM 1485
Base divider, medium (147 mm) WM 8742
Base divider, short (121 mm) WM 8743
Top divider, long (246,5 mm) WM 8744
Top divider, short (105 mm) WM 8745
Cover plate, assembled WM 8763
Ampoule panel WM 8771
Laryngoscope pouch WM 8775
Ampoule panel without ampoule strips WM 15139
Ampoule strip* WM 15140
Set of 2 oxygen cylinder clamp straps WM 15141
Holder for oropharyngeal tubes, small*
(for infants and neonates) WM 15142

Extent of Supply EN 13
Holder for oropharyngeal tubes, large*
(for adults, juveniles and children) WM 15143
Lock WM 15144
Case handle* WM 15145
Journal pins, set of 2* WM 15146
Seal, set of 2* WM 15147
Ampoule strip, set of 3 WM 15157
To replace the following ttings, the rivets of the
parts needing replaced have to be bored out. Blank
rivert tongs will be required.
Case corner, set of 4* WM 15148
Case support, set of 2* WM 15149
Case hinge, set of 3* WM 15150
Case fastener, set of 2* WM 15151
Retaining clamp, set of 6* WM 15152
To change the following inserts, the entire case shell
has to be dismatied. This involves boring out the rivets
from all ttings such as fasteners, hinges, etc. and t-
ting new rivets after changing the inserts. Blank rivet
tongs will be required.
Recess, top, variable* WM 15153
Recess, bottom, variable* WM 15154
* including xings
Pull seals available from www.ESTO.de
• Pull Tight pull seal, length 176mm, sealing tape
Ø2.3 mm
• Pull Fly pull seal, length 65mm, sealing tape
Ø1.8mm
• Bi-Lok pull seal, length 215mm, sealing tape
Ø1.9mm

14 EN Technical Data
9 Technical Data
Emergency Case
Standards applied DIN 13232
EN 1789
Dimensions (LxBxH)* 526 x 400 x 200 mm
Weight, empty 6.7 kg
Temperature range
- Operation
- Storage
- 20°C to + 50°C
- 30°C to + 70°C
Material:
– Case shell
– Case insert
– Dividers
– Cover plate
anodised Al
ABS
ABS
PC
*) Outside dimensions including corners, supports, handle, etc.
Subject to technical change without notice
10 Warranty
WEINMANN Emergency gives the customer a
limited manufacturer warranty on new original
WEINMANN Emergency products and any replace-
ment part tted by WEINMANN Emergency in
accordance with the warranty conditions applica-
ble to the product in question and in accordance
with the warranty periods from date of purchase
as listed below. The warranty conditions can be
downloaded from www.weinmann-emergency.com
on the Internet. We can also send you the warranty
conditions on request.
In the event of a claim under warranty, contact your
specialist dealer.

Warranty EN 15
Product Warranty
period
WEINMANN Emergency devices
including accessories (except masks)
for oxygen medicine and emergency
medicine
2 years
Masks including accessories, rechar-
geable batteries, batteries (unless
quoted differently in the technical do-
cumentation), sensors, tube systems
6 months
Disposable products None

Simply Professional
Manufacturer
WEINMANN Emergency
Medical Technology GmbH + Co. KG
Frohbösestraße 12
22525 Hamburg
GERMANY
T: [phone]
E: [email protected]
Center for Production, Logistics, Service
WEINMANN Emergency
Medical Technology GmbH + Co. KG
Siebenstücken 14
24558 Henstedt-Ulzburg
GERMANY
Made in Germany WEINMANN-Emergency.com
WM 16129i 01/2021 EN
