Wells WB2WHNTB User manual

WELLS MANUFACTURING
265 Hobson Street, Smithville, Tennessee 37166
telephone: [phone]
www.wells-mfg.com
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
OWNERS MANUAL
WAFFLE
BAKER
MODELS
WB2WHNTB
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
213
p/n 2M-Z19604 Rev. E 06/2019
Model WB2WHNTB

LIMITED WARRANTY STATEMENT
xi
LIMITED EQUIPMENT WARRANTY
Wells Manufacturing warranties new products to be
free from defects in material and/or workmanship
for a period of one [1] year from the date of original
installation, except as noted below. Defects that occur
as a result of normal use, within the time period and
limitations defined in this warranty, will at Wells’
discretion have the parts replaced or repaired by Wells
or a Wells-authorized service agency.
THIS WARRANTY IS SUBJECT TO ALL LISTED CONDITIONS.
Repairs performed under this warranty are to be
performed by a Wells authorized service agency. Wells
will not be responsible for charges incurred or service
performed by non-authorized repair agencies. In all
cases, the nearest Wells-authorized service agency
must be used. Wells will be responsible for normal
labor charges incurred in the repair or replacement
of a warrantied product within 50 miles (80.5 km)
of an authorized service agency. Time and expense
charges for anything beyond that distance will be
the responsibility of the owner. All labor will need
to be performed during regular service hours. Any
overtime premium will be charged to the owner. For all
shipments outside the U.S.A. and Canada, please see
the International Warranty for specific details. It is the
responsibility of the owner to inspect and report any
shipping damage claims, hidden or otherwise, promptly
following delivery. No mileage or travel charges will be
honored on any equipment that is deemed portable. In
general, equipment with a cord and plug weighing less
than 50 lb. (22.7 kg) is considered portable and should
be taken or shipped to the closest authorized service
agency, transportation prepaid.
WARRANTY EXCLUSIONS
THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY.
• Any product which has not been used, cleaned, maintained,
or installed in accordance with the directions published in the
appropriate installation sheet and/or owner’s manual as well
as national and local codes, including incorrect gas, electrical,
or water connection. Lang is not liable for any unit which has
been mishandled, abused, misapplied, subjected to chlorides,
harsh chemicals, or caustic cleaners, damaged from exposure
to hard water, modified by unauthorized personnel, damaged
by flood, fire, or other acts of nature [or God], or which have
an altered or missing serial number.
• Installation, labor, and job checkouts, calibration of heat
controls, air and gas burner/bypass/pilot adjustments, gas
or electrical system checks, voltage and phase conversions,
cleaning of equipment, or seasoning of griddle surface.
• Replacement of fuses or resetting of circuit breakers, safety
controls, or reset buttons.
• Replacement of broken or damaged glass components,
quartz heating elements, and light bulbs.
• Labor charges for all removable parts in gas charbroilers
and hotplates, including but not limited to burners, grates,
and radiants.
• Any labor charges incurred by delays, waiting time, or oper-
ating restrictions that hinder a service technician’s ability to
perform service.
• Replacement of items subject to normal wear or items that
can easily be replaced during a daily cleaning routine, such as
but not limited to knobs, bulbs, fuses, quartz heating ele-
ments, baskets, racks, and grease drawers.
• Components that should be replaced when damaged or
worn, but have been field-repaired instead [eg. field-welded
fry pots]
• Any loss of business or profits.
ADDITIONAL WARRANTIES
• Specific/chain specific versions may also have additional
and/or extended warranties.
PRODUCTS PARTS LABOR
Universal ventless hoods (WVU) 1 year 1 year
Canopy ventless hoods (WVC) 1 year 1 year
*Universal ventless hoods and/or
canopy ventless hoods purchased
with approved Southbend-Star
electric equipment
*Southbend-Star approved electric
equipment purchased and installed
under ventless hood
**Universal Ventless Hood and
Southbend-Star electric equipment
must be on the same PO and listed
on the ventless start-up document
for the 2 year warranty to apply
2 years 2 years
“Cook’n Hold” equipment [HW10, HWSMP,
LLSC7, LLSC7WA, LLSC11, and LLSC11WA] 2 years 1 year
Cast iron grates, burners; and burner shields 1 year
Wells parts sold to repair equipment 90 days
Service First 1 year
CONTACT
Should you require any assistance regarding the
operation or maintenance of any Wells equipment;
write, phone, fax or email our service department. In all
correspondence mention the model number and serial
number of your unit, as well as the voltage or type of
gas you are using.
Business hours are 8:00 a.m. to 4:30 p.m. Central
Standard Time (CST)
Telephone: [phone]
Fax: [phone]
Email: Customerservic[email protected]
www.wells-mfg.com
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty. 2M-Z22393 ∙ Rev. B ∙ 01.2019

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
1
WARRANTY xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION 4
OPERATION 5
CLEANING INSTRUCTIONS 6, 7

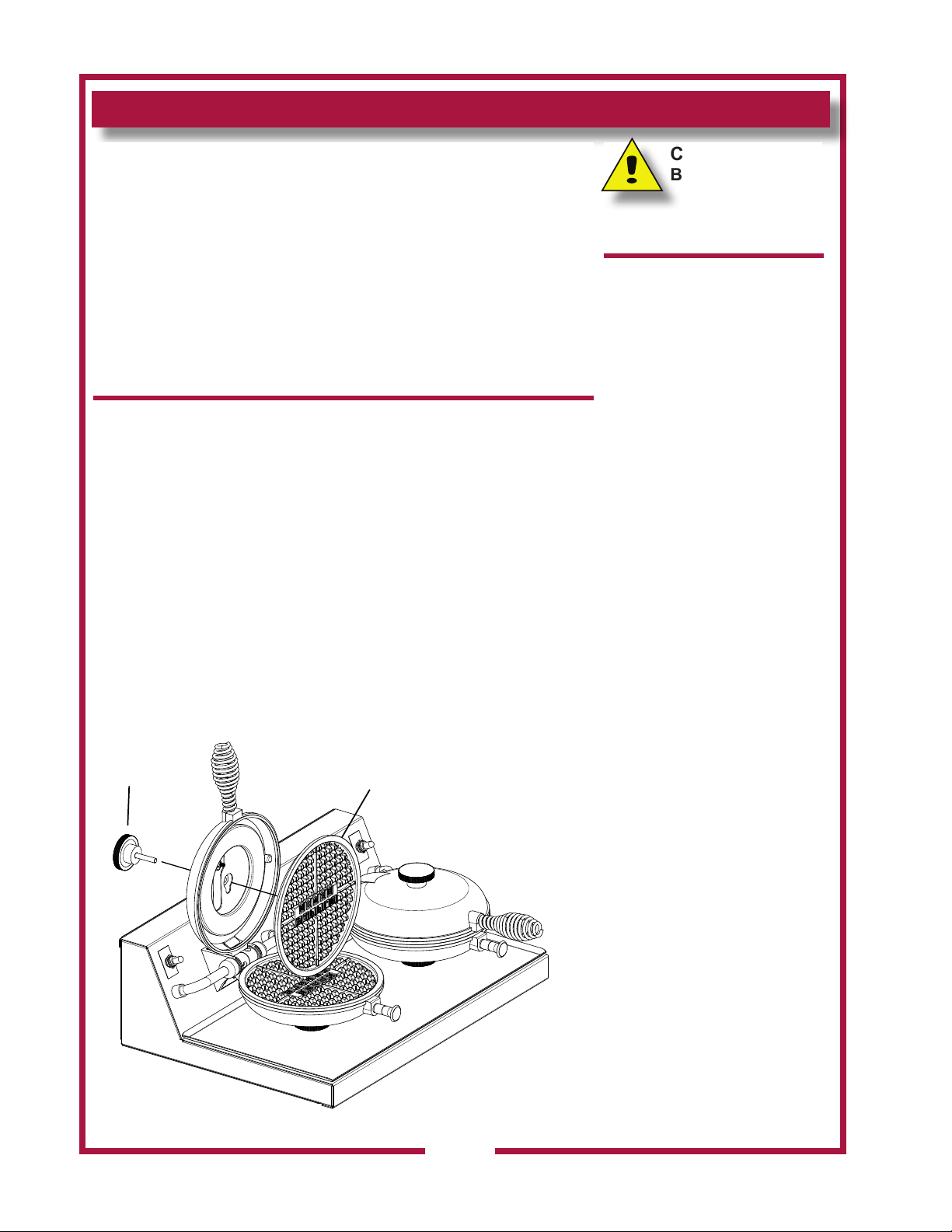

MAINTENANCE - SET BAKING TEMPERATURE 8
TROUBLESHOOTING SUGGESTIONS 8
WIRING DIAGRAM 9

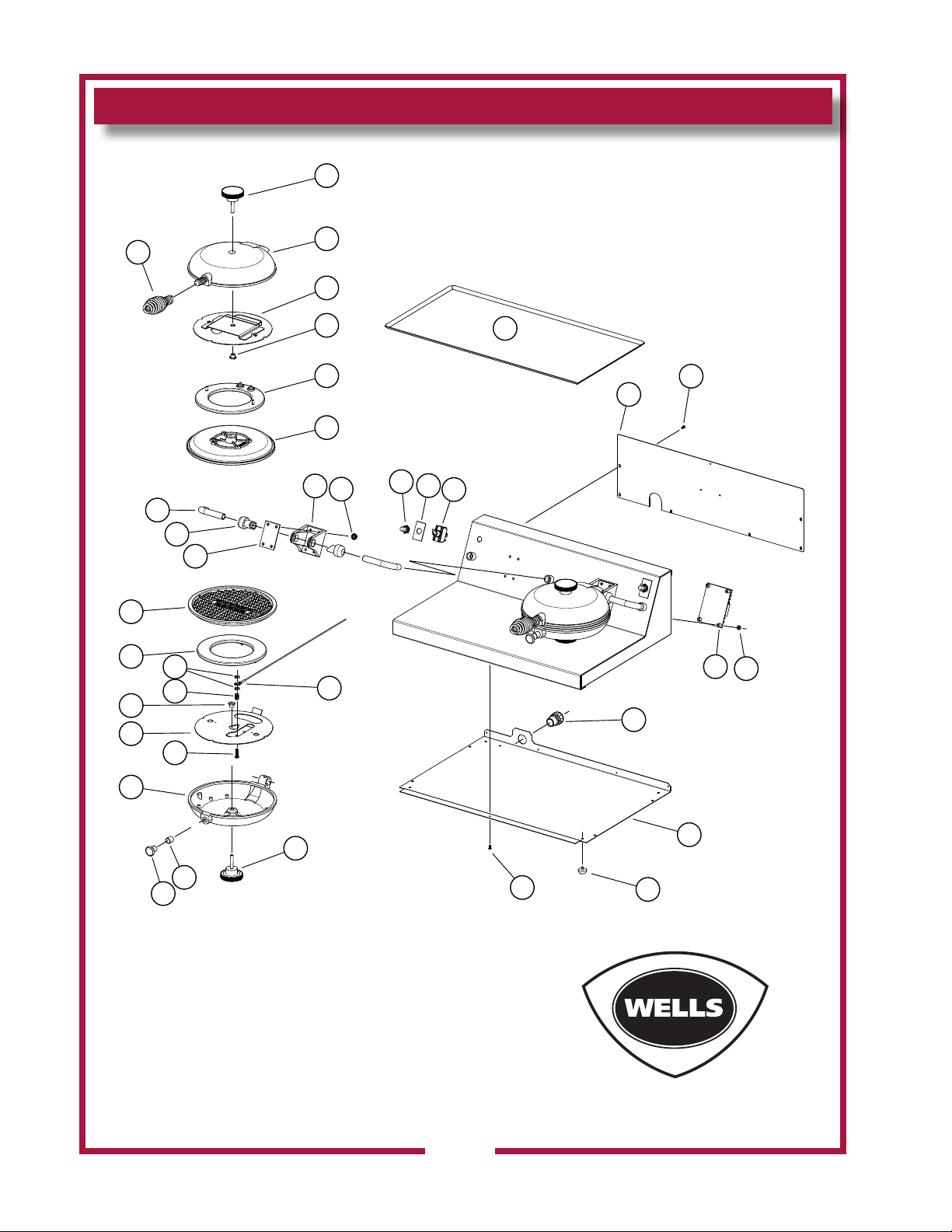

EXPLODED VIEW & PARTS LIST 10,11
CUSTOMER SERVICE DATA Back Cover
Thank You for purchasing this Wells Manufacturing appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure that
it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and care for
the appliance in a manner which will ensure its optimum performance.
TABLE OF CONTENTS
SPECIFICATIONS
INTRODUCTION
Model Style Voltage Watts Amps Power Suppy Cord
WB2WHNTB Double Wafe Baker 120V 1800 15A NEMA 5-20P
IL2944a
7 1/8”
Closed
16 11/16”
Open
16 1/2”
13 3/4”
19 3/4”
TOP
FRONT SIDE

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
2
FEATURES & OPERATING CONTROLS

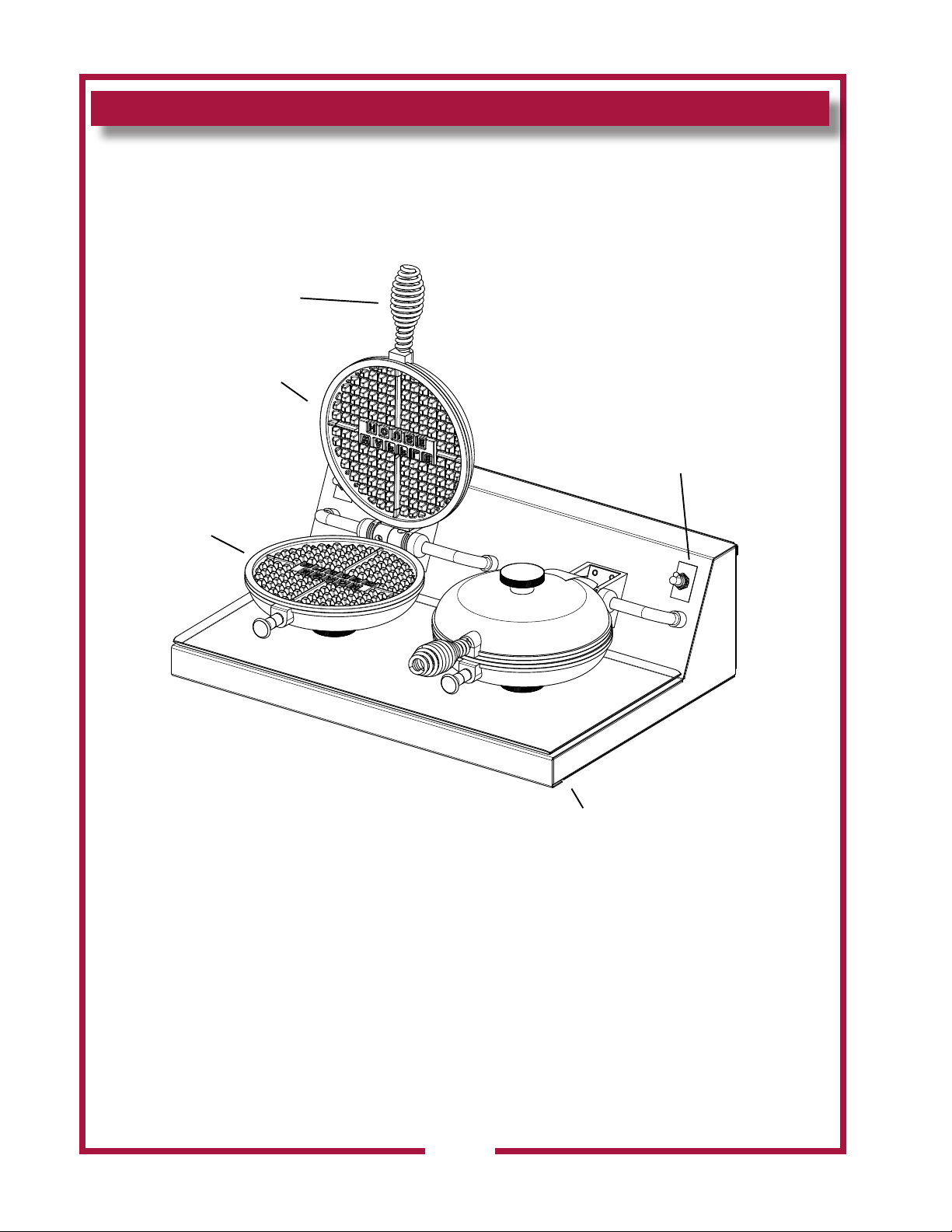

Fig. 1 Wafe Baker - Features & Operating Controls (WB2WHNTB shown,)
Upper Grid
(Raised Position)
Lower Grid
Handle
Power Switch
(separate switches each side)
Non-Slip Feet
IL2945a

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
3
PRECAUTIONS AND GENERAL INFORMATION
This appliance is intended for use in commercial establishments only.
This appliance is intended to prepare food for human consumption.
No other use is recommended or authorized by the manufacturer or its
agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
DO NOT submerge this appliance in water. This appliance is not jet
stream approved. Do not direct water jet or steam jet at this appliance,
or at any control panel or wiring. Do not splash or pour water on, in or
over any controls, control panel or wiring.
Exposed surfaces of this appliance can be hot to the touch and may
cause burns.
The technical content of this manual, including any wiring
diagrams,schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualied technical personnel. Any
procedure which requires the use of tools must be performed by a
qualied technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics,
parts breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
CAUTION:
RISK OF
DAMAGE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance will result if
these instructions are not
followed.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
DANGER: BURN HAZARD
Contact with cooking grid surface will cause severe burns. Use the handle to lift the
grid. Avoid contact with grid surfaces.
WARNING: ELECTRIC SHOCK HAZARD
All servicing requiring access to non-insulated components must be performed by
qualied service personnel. DO NOT open any access panel that requires the use
of tools. Failure to heed this warning may result in severe electric shock.
AGENCY LISTING INFORMATION
STD 4
E6070
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions and
maintained according to the instructions in this manual.
This appliance is UListed under UL File E6070 for 120V.
®
C US
LISTED

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
4
INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation.
Refer to SHIPPING DAMAGE
CLAIM PROCEDURE on the
inside front cover of this
manual.
CAUTION:
RISK OF
DAMAGE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance will result
if these instructions are not
followed.
CAUTION:
ELECTRICAL
SHOCK
HAZARD
The ground prong of the power
cord is part of a system
designed to protect you from
electric shock in the event of
internal damage to the
appliance.
NEVER CUT OFF THE
GROUND PRONG
(large round prong).
NEVER TWIST A PRONG TO
FIT AN EXISTING
RECEPTACLE.
Contact a licensed electrician
to install an electrical
receptacle appropriate to
the voltage and amperage
requirements of the
wafe baker.
IMPORTANT:
Damage due to being
connected to the wrong voltage
or phase is NOT covered by
warranty.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all protective
plastic lm, packing materials and accessories from the appliance
before connecting performing any installation procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the appliance before starting any
installation.
Read and understand all labels and diagrams attached to the
appliance.
Carefully account for all components and accessories before discarding
packing materials. Store all accessories in a convenient place for later
use.
COMPONENTS
1 ea. DRIP TRAY
2 ea. HANDLE(S)
4 ea. NON-SLIP FEET
SETUP
Lightly lubricate threaded boss of upper grid using vegetable oil.
Thread handle onto boss, making sure that they are fully seated.
Handles are not removable once installed.
Setup the appliance only on a rm, level, non-combustible surface.
Verify local codes for requirements. Concrete, tile, terrazzo or metal
surfaces are recommended.
Install the provided non-slip feet, one on each corner of the appliance,
in the holes provided. Verify that the unit sits rmly on ALL FOUR FEET.
Adjust as required to level the appliance. All four feet must be adjusted
to rmly contact the countertop in order to prevent tipping.
ELECTRICAL INSTALLATION
Refer to the nameplate. Verify the electrical service power. Voltage
and phase must match the nameplate specications. Connecting the
wafe baker to the wrong voltage can severely damage the unit or
cause noticeably decreased performance.
IMPORTANT: Damage due to being connected to the wrong voltage is
NOT covered by warranty.
REALESE AGENT CAUTION
If you nd it necessary to use a release agent to keep wafes from
sticking, you should brush it on. Spraying may oversaturate the grids
and the excess has the possibility of building up inside the baker and
causing damage. If you only have a spray type commercial wafe
baker release agent, try spraying it into a container and applying the
contents with a pastry brush.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
5
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
OPERATION
GENERAL OPERATIONAL NOTES
Carefully read the description of the wafe baker operation on the
specication sheet.
DO NOT attempt to perform any maintenance or service unless the
wafe baker is disconnected from electrical power.
DO unplug the wafe baker before cleaning, servicing or performing
any maintenance.
DO NOT use sharp objects or metal implements to clean the grids.
DO use a plastic spatula or plastic scouring pad to remove burned-on
food product.
OPERATION
Turn power switch to the on position.
With the upper grid closed, allow to preheat for at least 20 minutes.
Using the handle, lift the upper grid. Pour desired amount of wafe
batter onto the lower grid.
Using the handle, carefully close the upper grid.
When nished raise the upper grid and remove the wafe.
Cooking Recommendations:
Keep the grids closed when not in use to maintain temperature.
Use a soft bristle brush to lightly brush and clean cooking debris from
the grids between wafes.
Reseason grids every 3 - 4 wafes to guard against wafes sticking.
This interval may be extended by adding oil or butter to the wafe
batter.
Always use fresh batter that contains sufcient shortening. Add
shortening as necessary, and do not store batter for extended periods.
Ensure a perfect, great-tasting wafe by cleaning and re-seasoning
frequently. After every third wafe, and anytime the wafe baker has
been left idle for over one-half hour, lightly brush grids with commercial
wafe baker release agent.
Never apply beeswax, parafn or other such materials to the grids.
Use only a quality commercial wafe baker release agent.
Never use sharp implements (i.e. knives, forks, metal tongs) to remove
wafes from the grid. Use a plastic spatula or plastic tongs.
SEASONING THE GRIDS
Lightly spray commercial wafe baker spray on both upper and lower
grid.
Carefully close the upper grid. Turn the power switch on, then allow the
wafe baker to pre-heat for at least 20 minutes.
Using the handle, lift the upper grid and lightly re-coat both upper and
lower grid. Lower the upper grid.
The appliance is now ready for use.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
6
CLEANING INSTRUCTIONS
PREPARATION
Unplug appliance from electric power
Allow appliance to cool completely.
FREQUENCY
Daily
TOOLS
Plastic Scouring Pad, Soft-Bristled Fiber Brush
Mild Detergent, Non-Abrasive Cleanser
Clean Soft Cloth / Sponge
CLEANING
1. Allow the wafe baker to cool to room temperature.
2. Clean grids by using a soft-bristle brush to remove any
remaining cooking residue.
3. Clean the outside of the Wafe Baker by wiping it with a soft,
clean cloth dampened with warm water and a mild detergent.
NEVER USE AN ABRASIVE CLEANSER.
4. Rinse by wiping with a soft, clean cloth dampened with clean
water. Allow to air dry.
5. Re-season the grids after cleaning by spraying with a
commercial wafe baker spray.
Procedure complete
CAUTION:
BURN HAZARD
Allow wafe baker to cool
completely before cleaning.
IMPORTANT:
DO NOT spill or pour water
into controls.
DO NOT submerge appliance
in water. This will damage
internal components. Damage
to internal components from
water is NOT covered by
warranty.
DO NOT use steel wool or
metal scouring pads to clean
appliance or drip tray.
Good sanitation is vital to
the quality of the nal food
product. Be sure to clean in
all corners and crevices where
grease and other cooking
debris can accumulate.
Knob
Grid’s can be removed and placed
in the dishwasher for easy cleaning.
IL2946a

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
7
CLEANING INSTRUCTIONS (continued)
PREPARATION
Unplug appliance from electric power
FREQUENCY
As needed
TOOLS
1” Bristle Brush, Stiff Fiber Brush
Clean Soft Cloth / Sponge
REMOVE CARBONIZATION FROM GRIDS
1. Turn power off the unit.
2. While unit is still warm, take a clean cloth, get it wet and
wring the water out.
3. Place on the lower grid
4. Close the upper grid and allow the appliance to stand for
several hours, or overnight, depending upon the extent of the
carbonization.
5. Remove cloth, using a non-metalic bristle brush (rated for
high temp) loosen any carbon material from the grids.
DO NOT USE ANY METAL BRUSHES ON COATED GRIDS, IT
WILL DAMAGE THE COATING.
5. Clean the outside of the Wafe Baker by wiping it with a soft,
clean cloth dampened with warm water and a mild detergent.
NEVER USE AN ABRASIVE CLEANSER.
6. Rinse by wiping with a soft, clean cloth dampened with clean
water. Allow to air dry.
7. Re-seasoning is not necessary with coated grids.
Procedure complete
IMPORTANT:
Carbon Cleaner or Wafe
baker cleaner can damage
the protective coating on
the grids. DO NOT use any
cleaner other than mild soap.
CAUTION:
ELECTRIC
SHOCK
HAZARD
DO NOT submerge the wafe
baker in water. If internal
components become wet, the
operator may suffer electrical
shock, and the wafe baker
will be damaged.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
8
MAINTENANCE
TROUBLESHOOTING
SET BAKING TEMPERATURE
Wells wafe bakers are factory set for 390ºF ±5ºF (200ºC ± 3ºC).
CHECK TEMPERATURE
1. Use a digital thermometer with an oven probe.
2. Place the probe on the lower grid, then gently close the upper
grid.
3. Press the power switch “ON”. Wait 15 minutes for the wafe
baker to come up to heat, and for the temperature to stabilize.
4. Read the temperature on the digital thermometer.
ADJUST TEMPERATURE
1. Unplug the unit from the electrical source
2. Each wafe baker section has an individual temperature
control. Remove the rear panel.
2. Use a thin at-blade screwdriver to turn the temperature
adjustment dial. Rotate clockwise to increase temperature;
counter-clockwise to decrease temperature.
NOTE: Make small incremental changes only.
4. Plug unit back in, turn on and allow ample time for
temperature to stabilize before making another adjustment.
5. When desired temperature is reached reinstall the rear panel.
CAUTION:
BURN HAZARD
Exposed surfaces of the
wafe baker may be hot to the
touch and can cause burns.
Wafe baker grids are very
hot and will cause serious
burns on contact.
Proper temperature for baking
wafes is 390ºF (200ºC).
Variations in altitude and/
or batter mix may require a
slightly different temperature
for best results.
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
Will not heat
Power cord not plugged in, or circuit breaker
tripped
Establish main power. Be sure appliance is
plugged in
Power switch off Turn power switch on
Internal component damage Contact an authorized Wells Service Agency for
repairs.
Does not maintain
temperature
Excessive carbonization of grids Decarbonize grids
Internal component damage Contact an authorized Wells Service Agency for
repairs.
NOTE: There are no user serviceable components in the cabinet or cooking grids. In all cases of damage or malfunction,
contact your Authorized Wells Service Agency for repairs.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
9
WiIRING DIAGRAM
VOLTS NOMINAL AMPS
WB-2
230
VAC
321 6 7
COM
N.O.
115
VAC COM 230 VAC
321 6 7
COM
N.O.
115
VAC COM
POWER
SUPPLY
CORD
7
3
THERMISTOR
PROBE (2)
1
BOTTOM
ELEMENT
(2)
LIGHTED
POWER SW.
(2)
TOP ELEMENT
(2)
10
4
5
2
5
4
10
1
6
7
6
8 8
99
120 15.0
2M-Z16088 REV(A)
120V MODEL WB-2
SINGLE PHASE
WHITE
BLACK
2
3

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
10
EXPLODED VIEW: WB2WHNTB WAFFLE BAKERS
SK2838 Rev. A 12/17/15
MODEL: WB2WHNTB
Waffle Baker
2
3
1
4
6
9
10
11
7
8
6
5
29
30
31
28
26
25
24
27
2
7
12 14
20 19
21
22
23
18
15 16
17
18
13
5

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
11
PARTS LIST: WB2WHNTB WAFFLE BAKERS
December 17, 2015, Rev C
Model: WB2WHNTB Wafe Baker
Fig No Part Number Quantity Description
1 2R-30335 2 HANDLE SPRING PLATED
2 2R-Z18589 4 KNOB,KNURL,1/4-20X1.3STUD
3 2F-Z17128 2 TOP CASTING MACH’D WH
4 B8-WL0609 4 ASM-RING ELEM MTG PLATE
5 2A-Z19506 4 FITTING-ELEM.BRACKET-WH
6 2N-Z18456 4 ELEMENT,RING 448W-120V
7 2F-Z19383 4 GRID CASTING W/ WH LOGO
8 B8-Z15901 1 TRAY, DRIP
9 2K-Z15801 4 CONDUIT-90 DEG-1/2”TUBE
10 2A-Z17001 4 BUSHING-CONDUIT/HINGE SS
11 B8-WL0303 2 ASY-HINGE MOUNTING PLATE
12 2F-Z15902 2 HINGE, WB1&2, W/4HOLES
13 2C-Z2893 8 NUT 10-24 HEX STL ZP
14 2I-05-07-0013 2 BOOT SWITCH
15 2M-12-07-0038 2 LABEL ON & OFF
16 2E-30330 2 SWITCH ON OFF TOGGLE 20A
17 B8-Z15898 1 PANEL, REAR
18 2C-33935 16 SCREW 6ABX5/16 PH PAN SMS
19 2C-2553 4 NUT 6-32 HEX STL NP
20 2T-Z20480-380 2 CONTROL TEMP W/ RTV
21 2K-Z15511 1 STRAIN REL-LIQ TIGHT.875
22 B8-Z15899 1 PANEL, BOTTOM
23 2A-45728 4 FOOT RUBBER LLW LLF
24 2R-Z17057 2 KNOB, BLK, DAVIES 3003SM
NI 2C-Z16665 2 STUD-ALL THD-1/4-20X1.25
25 2V-Z17056 2 SPACER-1/2 TUBE X 1/2 SS
26 2F-Z15888 2 BOTTOM CASTING-MACH’D
27 2J-Z16944 2 PROBE TEMP-RTD-20” LEADS
28 B8-WL0609 1 ASM-RING ELEM MTG PLATE
29 thru 31 IS PART OF B8-WL0609
29 2C-Z20958 2 NUT 10-32 HEX MS ALUM
30 2P-Z20959 1 SPRING COMP .36POD, .5
31 2C-1508 1 SCREW 10-32X3/4 STL
NI 2E-Z15407 1 CORD SET ASM L5-20P 12 GA
NI 2M-Z16088 1 LABEL,DIA WIR WB1,2 120V
NI 2P-Z20436 1 LADLE-PLASTIC-4OZ-13IN
NI 2P-Z20437 1 FORK-SERV-PLASTIC-HITEMP
NI 2P-Z20438 1 BRUSH-CLEANING-WB

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
12
NOTES

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
13
NOTES

WELLS MANUFACTURING
265 Hobson Street, Smithville, Tennessee 37166
telephone: [phone]
fax: [phone]
www.wells-mfg.com
