OWNERS MANUAL
WAFFLE
BAKER
MODELS
WB2WHNTB
Includes
INSTALLATION
USE & CARE

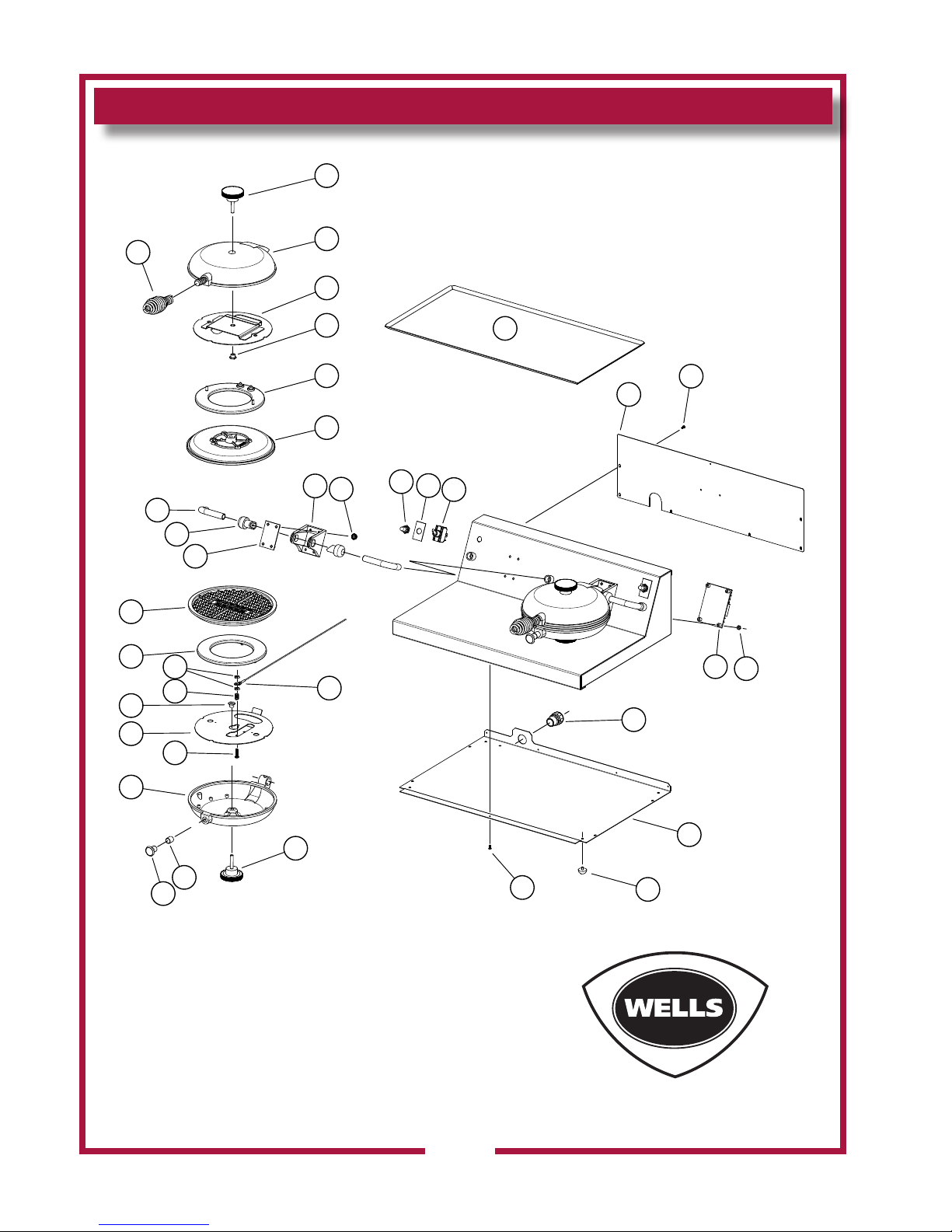

EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
213
p/n 2M-Z19604 Rev. C M213 151217
Model WB2WHNTB

Unless otherwise specied, all commercial cooking
equipment manufactured by WELLS MANUFACTURING is
warranted against defects in materials and workmanship
for a period of one year from the date of original installation
or 18 months from the date of shipment from our factory,
whichever comes rst, and is for the benet of the original
purchaser only.
THIS WARRANTY IS THE COMPLETE AND ONLY
WARRANTY, EXPRESSED OR IMPLIED IN LAW OR IN
FACT, INCLUDING BUT NOT LIMITED TO, WARRAN-
TIES OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE, AND/OR FOR DIRECT, INDI-
RECT OR CONSEQUENTIAL DAMAGES IN CONNECTION
WITH WELLS PRODUCTS. This warranty is void if it is
determined that, upon inspection by an authorized service
agency, the equipment has been modied, misused, mis-
applied, improperly installed, or damaged in transit or by
re, ood or act of God. It also does not apply if the serial
nameplate has been removed, or if service is performed
by unauthorized personnel. The prices charged by Wells
Manufacturing for its products are based upon the limitations
in this warranty. Seller’s obligation under this warranty is
limited to the repair of defects without charge by a Wells
Manufacturing factory authorized service agency or one of
its sub-service agencies. This service will be provided on
customer’s premises for non-portable models. Portable
models (a device with a cord and plug) must be taken or
shipped to the closest authorized service agency, transpor-
tation charges prepaid, for service. In addition to restric-
tions contained in this warranty, specic limitations are
shown in the Service Policy and Procedure Guide. Wells
Manufacturing authorized service agencies are located in
principal cities. This warranty is valid in the United States
and Canada and void elsewhere. Please consult your
classied telephone directory, your foodservice equipment
dealer or contact:
Wells Manufacturing
10 Sunnen Dr., St. Louis MO 63143 USA
phone [phone] or fax [phone]
for information and other details concerning warranty.
LIMITED WARRANTY STATEMENT
SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS
NOTE: For your protection, please note that equipment
in this shipment was carefully inspected and packaged
by skilled personnel before leaving the factory. Upon
acceptance of this shipment, the transportation company
assumes full responsibility for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any
visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is
signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is
unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and le
“CONCEALED DAMAGE” claim with them. This
should be done within fteen (15) days from the date
the delivery was made to you. Be sure to retain the
container for inspection.
Wells Manufacturing cannot assume liability for damage or
loss incurred in transit. We will, however, at your request,
supply you with the necessary documents to support your
claim.
SHIPPING DAMAGE CLAIM PROCEDURE
xi
1. Resetting of safety thermostats, circuit breakers, over
load protectors, and/or fuse replacements are not
covered by this warranty unless warranted conditions
are the cause.
2. All problems due to operation at voltages or phase
other than specied on equipment nameplates are
not covered by this warranty.
Conversion to correct voltage and/or phase must be
the customer’s responsibility.
3. All problems due to electrical connections not made
in accordance with electrical code requirements
and wiring diagrams supplied with the equipment are
not covered by this warranty.
4. Replacement of items subject to normal wear, to
include such items as knobs, light bulbs; and, normal
maintenance functions including adjustments of
thermostats, adjustment of micro switches and
replacement of fuses and indicating lights are not
covered by warranty.
5. Damage to electrical cords and/or plug due to exposure
to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied
with each machine. Noted maintenance and
preventative maintenance items, such as servicing and
cleaning schedules, are customer responsibility. Those
miscellaneous adjustments noted are customer
responsibility. Proper attention to preventative
maintenance and scheduled maintenance procedures
will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an
Authorized Service Agency or one of its sub-service
agencies.
8. All labor shall be performed during regular working
hours. Overtime premium will be charged to the buyer.
9. All genuine Wells replacement parts are warranted for
ninety (90) days from date of purchase on non-warranty
equipment. This parts warranty is limited only to
replacement of the defective part(s). Any use of non-
genuine Wells parts completely voids any warranty.
10. Installation, labor, and job check-outs are not
considered warranty and are thus not covered by this
warranty.
11. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technician’s ability to
perform service are not covered by warranty. This
includes institutional and correctional facilities.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
1
WARRANTY xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
AGENCY LISTING INFORMATION 3
INSTALLATION 4
OPERATION 5
CLEANING INSTRUCTIONS 6, 7
MAINTENANCE - SET BAKING TEMPERATURE 8
TROUBLESHOOTING SUGGESTIONS 8
WIRING DIAGRAM 9
EXPLODED VIEW & PARTS LIST 10,11
CUSTOMER SERVICE DATA Back Cover
Thank You for purchasing this Wells Manufacturing appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure that
it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and care for
the appliance in a manner which will ensure its optimum performance.
TABLE OF CONTENTS
SPECIFICATIONS
INTRODUCTION
Model Style Voltage Watts Amps Power Suppy Cord
WB2WHNTB Double Wafe Baker 120V 1800 15A NEMA 5-20P

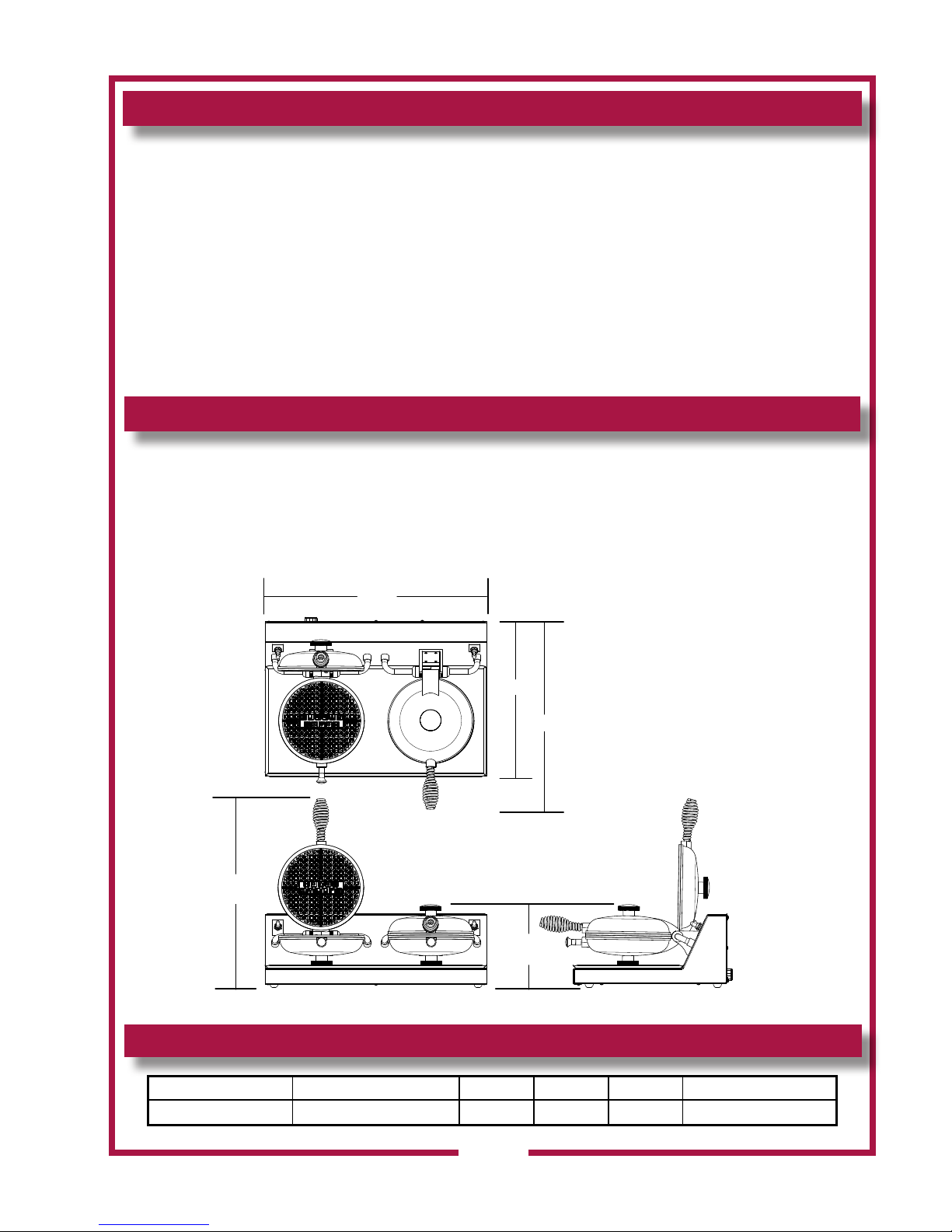

IL2944a
7 1/8”
Closed
16 11/16”
Open
16 1/2”
13 3/4”
19 3/4”
TOP
FRONT SIDE

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
2
FEATURES & OPERATING CONTROLS
Fig. 1 Wafe Baker - Features & Operating Controls (WB2WHNTB shown,)
Upper Grid
(Raised Position)
Lower Grid
Handle
Power Switch
(separate switches each side)
Non-Slip Feet
IL2945a

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
3
PRECAUTIONS AND GENERAL INFORMATION
This appliance is intended for use in commercial establishments only.
This appliance is intended to prepare food for human consumption.
No other use is recommended or authorized by the manufacturer or its
agents.
Operators of this appliance must be familiar with the appliance use,
limitations and associated restrictions. Operating instructions must be
read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the
safety of the food product.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
DO NOT submerge this appliance in water. This appliance is not jet
stream approved. Do not direct water jet or steam jet at this appliance,
or at any control panel or wiring. Do not splash or pour water on, in or
over any controls, control panel or wiring.
Exposed surfaces of this appliance can be hot to the touch and may
cause burns.
The technical content of this manual, including any wiring
diagrams,schematics, parts breakdown illustrations and/or adjustment
procedures, is intended for use by qualied technical personnel. Any
procedure which requires the use of tools must be performed by a
qualied technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics,
parts breakdown illustrations, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
CAUTION:
RISK OF
DAMAGE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance will result if
these instructions are not
followed.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
DANGER: BURN HAZARD
Contact with cooking grid surface will cause severe burns. Use the handle to lift the
grid. Avoid contact with grid surfaces.
WARNING: ELECTRIC SHOCK HAZARD
All servicing requiring access to non-insulated components must be performed by
qualied service personnel. DO NOT open any access panel that requires the use
of tools. Failure to heed this warning may result in severe electric shock.
AGENCY LISTING INFORMATION
STD 4
E6070
This appliance conforms to NSF Standard 4 for sanitation only if
installed in accordance with the supplied Installation Instructions and
maintained according to the instructions in this manual.
This appliance is UListed under UL File E6070 for 120V.
®
C US
LISTED

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
4
INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation.
Refer to SHIPPING DAMAGE
CLAIM PROCEDURE on the
inside front cover of this
manual.
CAUTION:
RISK OF
DAMAGE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance will result
if these instructions are not
followed.
CAUTION:
ELECTRICAL
SHOCK
HAZARD
The ground prong of the power
cord is part of a system
designed to protect you from
electric shock in the event of
internal damage to the
appliance.
NEVER CUT OFF THE
GROUND PRONG
(large round prong).
NEVER TWIST A PRONG TO
FIT AN EXISTING
RECEPTACLE.
Contact a licensed electrician
to install an electrical
receptacle appropriate to
the voltage and amperage
requirements of the
wafe baker.
IMPORTANT:
Damage due to being
connected to the wrong voltage
or phase is NOT covered by
warranty.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all protective
plastic lm, packing materials and accessories from the appliance
before connecting performing any installation procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the appliance before starting any
installation.
Read and understand all labels and diagrams attached to the
appliance.
Carefully account for all components and accessories before discarding
packing materials. Store all accessories in a convenient place for later
use.
COMPONENTS
1 ea. DRIP TRAY
2 ea. HANDLE(S)
4 ea. NON-SLIP FEET
SETUP
Lightly lubricate threaded boss of upper grid using vegetable oil.
Thread handle onto boss, making sure that they are fully seated.
Handles are not removable once installed.
Setup the appliance only on a rm, level, non-combustible surface.
Verify local codes for requirements. Concrete, tile, terrazzo or metal
surfaces are recommended.
Install the provided non-slip feet, one on each corner of the appliance,
in the holes provided. Verify that the unit sits rmly on ALL FOUR FEET.
Adjust as required to level the appliance. All four feet must be adjusted
to rmly contact the countertop in order to prevent tipping.
ELECTRICAL INSTALLATION
Refer to the nameplate. Verify the electrical service power. Voltage
and phase must match the nameplate specications. Connecting the
wafe baker to the wrong voltage can severely damage the unit or
cause noticeably decreased performance.
IMPORTANT: Damage due to being connected to the wrong voltage is
NOT covered by warranty.
SEASONING THE GRIDS
Lightly spray commercial wafe baker spray on both upper and lower
grid.
Carefully close the upper grid. Turn the power switch on, then allow the
wafe baker to pre-heat for at least 20 minutes.
Using the handle, lift the upper grid and lightly re-coat both upper and
lower grid. Lower the upper grid.
The appliance is now ready for use.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
5
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
OPERATION
GENERAL OPERATIONAL NOTES
Carefully read the description of the wafe baker operation on the
specication sheet.
DO NOT attempt to perform any maintenance or service unless the
wafe baker is disconnected from electrical power.
DO unplug the wafe baker before cleaning, servicing or performing
any maintenance.
DO NOT use sharp objects or metal implements to clean the grids.
DO use a plastic spatula or plastic scouring pad to remove burned-on
food product.
OPERATION
Turn power switch to the on position.
With the upper grid closed, allow to preheat for at least 20 minutes.
Using the handle, lift the upper grid. Pour desired amount of wafe
batter onto the lower grid.
Using the handle, carefully close the upper grid.
When nished raise the upper grid and remove the wafe.
Cooking Recommendations:
Keep the grids closed when not in use to maintain temperature.
Use a soft bristle brush to lightly brush and clean cooking debris from
the grids between wafes.
Reseason grids every 3 - 4 wafes to guard against wafes sticking.
This interval may be extended by adding oil or butter to the wafe
batter.
Always use fresh batter that contains sufcient shortening. Add
shortening as necessary, and do not store batter for extended periods.
Ensure a perfect, great-tasting wafe by cleaning and re-seasoning
frequently. After every third wafe, and anytime the wafe baker has
been left idle for over one-half hour, lightly spray grids with commercial
wafe baker spray.
Never apply beeswax, parafn or other such materials to the grids.
Use only a quality commercial wafe baker spray.
Never use sharp implements (i.e. knives, forks, metal tongs) to remove
wafes from the grid. Use a plastic spatula or plastic tongs.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
6
CLEANING INSTRUCTIONS
PREPARATION
Unplug appliance from electric power
Allow appliance to cool completely.
FREQUENCY
Daily
TOOLS
Plastic Scouring Pad, Soft-Bristled Fiber Brush
Mild Detergent, Non-Abrasive Cleanser
Clean Soft Cloth / Sponge
CLEANING
1. Allow the wafe baker to cool to room temperature.
2. Clean grids by using a soft-bristle brush to remove any
remaining cooking residue.
3. Clean the outside of the Wafe Baker by wiping it with a soft,
clean cloth dampened with warm water and a mild detergent.
NEVER USE AN ABRASIVE CLEANSER.
4. Rinse by wiping with a soft, clean cloth dampened with clean
water. Allow to air dry.
5. Re-season the grids after cleaning by spraying with a
commercial wafe baker spray.
Procedure complete
CAUTION:
BURN HAZARD
Allow wafe baker to cool
completely before cleaning.
IMPORTANT:
DO NOT spill or pour water
into controls.
DO NOT submerge appliance
in water. This will damage
internal components. Damage
to internal components from
water is NOT covered by
warranty.
DO NOT use steel wool or
metal scouring pads to clean
appliance or drip tray.
Good sanitation is vital to
the quality of the nal food
product. Be sure to clean in
all corners and crevices where
grease and other cooking
debris can accumulate.
Knob
Grid’s can be removed and placed
in the dishwasher for easy cleaning.
IL2946a

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
7
CLEANING INSTRUCTIONS (continued)
PREPARATION
Unplug appliance from electric power
FREQUENCY
As needed
TOOLS
1” Bristle Brush, Stiff Fiber Brush
Clean Soft Cloth / Sponge
REMOVE CARBONIZATION FROM GRIDS
1. Turn power off the unit.
2. While unit is still warm, take a clean cloth, get it wet and
wring the water out.
3. Place on the lower grid
4. Close the upper grid and allow the appliance to stand for
several hours, or overnight, depending upon the extent of the
carbonization.
5. Remove cloth, using a non-metalic bristle brush (rated for
high temp) loosen any carbon material from the grids.
DO NOT USE ANY METAL BRUSHES ON COATED GRIDS, IT
WILL DAMAGE THE COATING.
5. Clean the outside of the Wafe Baker by wiping it with a soft,
clean cloth dampened with warm water and a mild detergent.
NEVER USE AN ABRASIVE CLEANSER.
6. Rinse by wiping with a soft, clean cloth dampened with clean
water. Allow to air dry.
7. Re-seasoning is not necessary with coated grids.
Procedure complete
IMPORTANT:
Carbon Cleaner or Wafe
baker cleaner can damage
the protective coating on
the grids. DO NOT use any
cleaner other than mild soap.
CAUTION:
ELECTRIC
SHOCK
HAZARD
DO NOT submerge the wafe
baker in water. If internal
components become wet, the
operator may suffer electrical
shock, and the wafe baker
will be damaged.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
8
MAINTENANCE
TROUBLESHOOTING
SET BAKING TEMPERATURE
Wells wafe bakers are factory set for 390ºF ±5ºF (200ºC ± 3ºC).
CHECK TEMPERATURE
1. Use a digital thermometer with an oven probe.
2. Place the probe on the lower grid, then gently close the upper
grid.
3. Press the power switch “ON”. Wait 15 minutes for the wafe
baker to come up to heat, and for the temperature to stabilize.
4. Read the temperature on the digital thermometer.
ADJUST TEMPERATURE
1. Unplug the unit from the electrical source
2. Each wafe baker section has an individual temperature
control. Remove the rear panel.

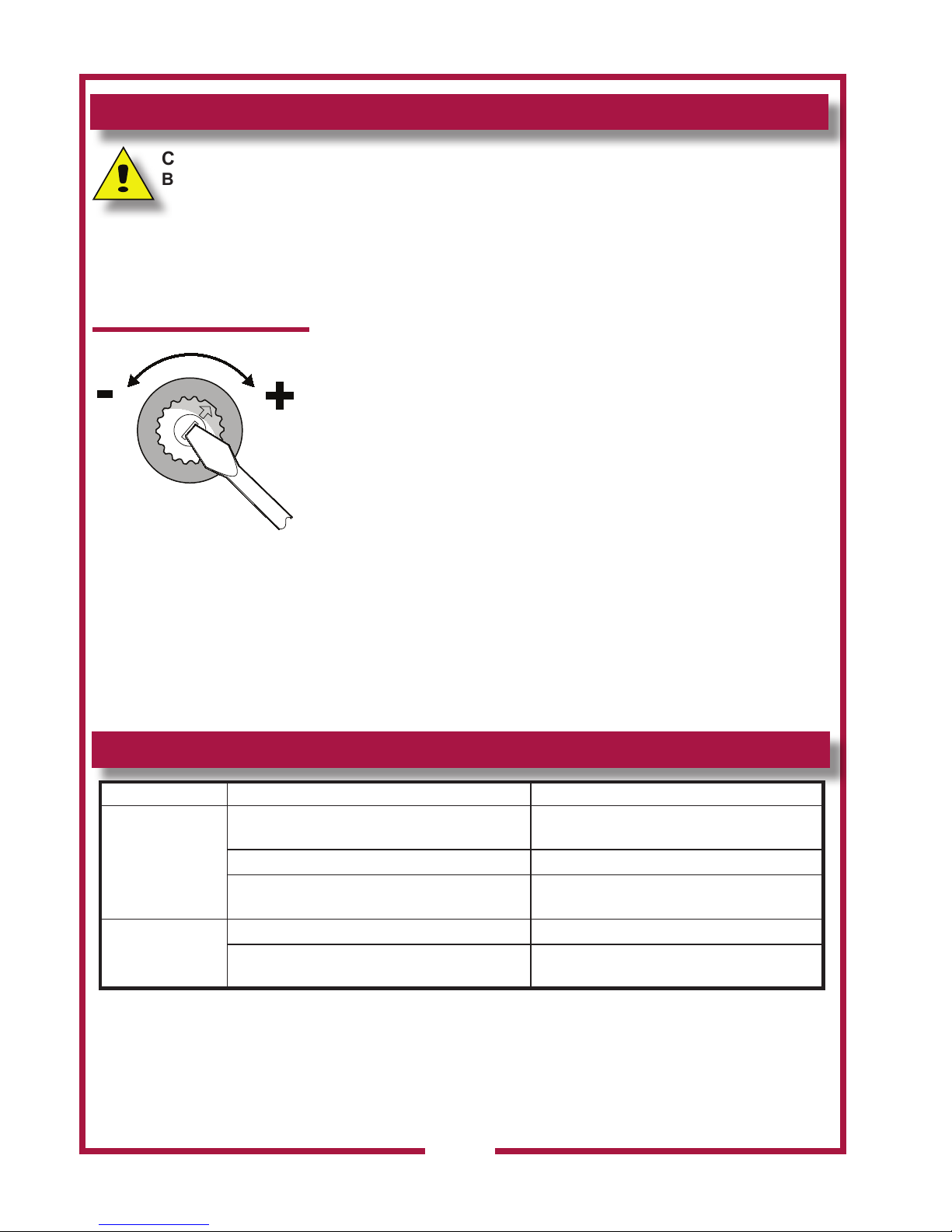

2. Use a thin at-blade screwdriver to turn the temperature
adjustment dial. Rotate clockwise to increase temperature;
counter-clockwise to decrease temperature.
NOTE: Make small incremental changes only.
4. Plug unit back in, turn on and allow ample time for
temperature to stabilize before making another adjustment.
5. When desired temperature is reached reinstall the rear panel.
CAUTION:
BURN HAZARD
Exposed surfaces of the
wafe baker may be hot to the
touch and can cause burns.
Wafe baker grids are very
hot and will cause serious
burns on contact.
Proper temperature for baking
wafes is 390ºF (200ºC).
Variations in altitude and/
or batter mix may require a
slightly different temperature
for best results.
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
Will not heat
Power cord not plugged in, or circuit breaker
tripped
Establish main power. Be sure appliance is
plugged in
Power switch off Turn power switch on
Internal component damage Contact an authorized Wells Service Agency for
repairs.
Does not maintain
temperature
Excessive carbonization of grids Decarbonize grids
Internal component damage Contact an authorized Wells Service Agency for
repairs.
NOTE: There are no user serviceable components in the cabinet or cooking grids. In all cases of damage or malfunction,
contact your Authorized Wells Service Agency for repairs.

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
9
WiIRING DIAGRAM
VOLTS NOMINAL AMPS
WB-2
230
VAC
321 6 7
COM
N.O.
115
VAC COM 230 VAC
321 6 7
COM
N.O.
115
VAC COM
POWER
SUPPLY
CORD
7
3
THERMISTOR
PROBE (2)
1
BOTTOM
ELEMENT
(2)
LIGHTED
POWER SW.
(2)
TOP ELEMENT
(2)
10
4
5
2
5
4
10
1
6
7
6
8 8
99
120 15.0
2M-Z16088 REV(A)
120V MODEL WB-2
SINGLE PHASE
WHITE
BLACK
2
3

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
10
EXPLODED VIEW: WB2WHNTB WAFFLE BAKERS
SK2838 Rev. A 12/17/15
MODEL: WB2WHNTB
Waffle Baker
2
3
1
4
6
9
10
11
7
8
6
5
29
30
31
28
26
25
24
27
2
7
12 14
20 19
21
22
23
18
15 16
17
18
13
5

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
11
PARTS LIST: WB2WHNTB WAFFLE BAKERS
December 17, 2015, Rev C
Model: WB2WHNTB Wafe Baker
Fig No Part Number Quantity Description
12R-30335 2 HANDLE SPRING PLATED
22R-Z18589 4 KNOB,KNURL,1/4-20X1.3STUD
3 2F-Z17128 2 TOP CASTING MACH’D WH
4 B8-WL0609 4 ASM-RING ELEM MTG PLATE
5 2A-Z19506 4 FITTING-ELEM.BRACKET-WH
62N-Z18456 4 ELEMENT,RING 448W-120V
7 2F-Z19383 4 GRID CASTING W/ WH LOGO
8B8-Z15901 1 TRAY, DRIP
92K-Z15801 4 CONDUIT-90 DEG-1/2”TUBE
10 2A-Z17001 4 BUSHING-CONDUIT/HINGE SS
11 B8-WL0303 2 ASY-HINGE MOUNTING PLATE
12 2F-Z15902 2 HINGE, WB1&2, W/4HOLES
13 2C-Z2893 8 NUT 10-24 HEX STL ZP
14 2I-05-07-0013 2 BOOT SWITCH
15 2M-12-07-0038 2 LABEL ON & OFF
16 2E-30330 2 SWITCH ON OFF TOGGLE 20A
17 B8-Z15898 1 PANEL, REAR
18 2C-33935 16 SCREW 6ABX5/16 PH PAN SMS
19 2C-2553 4 NUT 6-32 HEX STL NP
20 2T-Z20480-380 2 CONTROL TEMP W/ RTV
21 2K-Z15511 1STRAIN REL-LIQ TIGHT.875
22 B8-Z15899 1 PANEL, BOTTOM
23 2A-45728 4 FOOT RUBBER LLW LLF
24 2R-Z17057 2 KNOB, BLK, DAVIES 3003SM
NI 2C-Z16665 2STUD-ALL THD-1/4-20X1.25
25 2V-Z17056 2 SPACER-1/2 TUBE X 1/2 SS
26 2F-Z15888 2 BOTTOM CASTING-MACH’D
27 2J-Z16944 2 PROBE TEMP-RTD-20” LEADS
28 B8-WL0609 1 ASM-RING ELEM MTG PLATE
29 thru 31 IS PART OF B8-WL0609
29 2C-Z20958 2 NUT 10-32 HEX MS ALUM
30 2P-Z20959 1SPRING COMP .36POD, .5
31 2C-1508 1 SCREW 10-32X3/4 STL
NI 2E-Z15407 1CORD SET ASM L5-20P 12 GA
NI 2M-Z16088 1 LABEL,DIA WIR WB1,2 120V
NI 2P-Z20436 1 LADLE-PLASTIC-4OZ-13IN
NI 2P-Z20437 1 FORK-SERV-PLASTIC-HITEMP
NI 2P-Z20438 1 BRUSH-CLEANING-WB

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
12
NOTES

M213 2M-Z19604 Owners Manual for WB2WHNTB Wafe Bakers
13
NOTES

WELLS MANUFACTURING
10 Sunnen Dr., St. Louis, MO 63143
telephone: [phone]
fax: [phone]
www.wellsbloomfield.com
