Operating Instructions
OPT2015
High-performance distance sensor
EN

2
EN
Index
1. Proper Use 4
2. Safety Precautions 4
2.1. Safety Precautions 4
2.2. Laser/LED warning 4
3. EC Declaration of Conformity 4
4. Technical Data 5
4.1. Connecting the Sensor 7
4.2. Housing Dimensions 8
4.3. The Control Panel 8
5. Mounting Instructions 8
6. Initial Start-Up 9
6.1. Initial Start-Up 9
6.2. Default Settings 10
7. Functional Overview 11
7.1. RUN 12
7.2. Pin Function 12
7.3. A1/A2/A3 Switch 12
7.4. A3 Error /A3 Input 15
7.4.1. A3 Error 15
7.4.2. A3 Input 15
7.5. A1 Analog/Analog 16
7.6. Offset 17
7.7. Measure Rate 19
7.8. Laser 19
7.9. Run Mode 20
7.10. Display 21
7.11. Language 21
7.12. Info 21
7.13. Reset 22
7.14. Password 22
8. Maintenance Instructions 23
9. Proper Disposal 23

3

4
EN
1. Proper Use
This wenglor product has to be used according to the following functional principle:
High-performance distance sensor
High-performance distance sensors which use the principle of transit time measurement determine the dis-
tance between the sensor and the object according to the principle of transit time measurement. These sensors
have a large working range and are therefore able to detect objects over large distances.
Selected sensors are distinguished by WinTec (wenglor interference free technology). This technology allows
black or shiny surfaces to be reliably detected even in extremely inclined positions. It is possible to mount sev-
eral sensors next to or across from each other without them influencing each other.
2. Safety Precautions
2.1. Safety Precautions
• This operating instruction is part of the product and must be kept during its entire service life.
• Read this operating instruction carefully before using the product.
• Installation, start-up and maintenance of this product has only to be carried out by trained personal.
• Tampering with or modifying the product is not permissible.
• Protect the product against contamination during start-up.
• Not a safety component in accordance with the EU Machinery Directive.
2.2. Laser/LED warning
Laser Class 1 (EN 60825-1)
Observe all applicable standards
and safety precautions.
3. EC Declaration of Conformity
The EC declaration of conformity can be found on our website at www.wenglor.com in download area.
RoHS
LASER CLASS 1
EN60825-1
2007

5
4. Technical Data
Optical Data OPT2015
Working range 0,2…100,2 m
Working range analog 0,2…100,2 m
Measuring range 100 m
Reference reflector/reflector sheet 4 × OPT2030
Linearity 0,05 %
Switching hysteresis 13…50 mm
Light Source Laser (rot)
Wave Length 660 nm
Service life (amb. temp. = 25 °C) 100000 h
Laser Class (EN60825-1) 1
Beam Divergence < 2 mrad
Electrical Data
Supply Voltage* 18…30 V DC
Current Consumption (operating voltage = 24 V) < 100 mA
Switching Frequency 50 Hz
Response Time 10…200 ms
Measure Rate 1…100/s
Temperature Drift <0,5 mm/k
Temperature Range −25…60 °C
Number of switching outputs, configurable as
PNP, NPN or push-pull 3
Switching Output Voltage Drop < 2,5 V
Switching Output Switching Current 200 mA
Error Output yes
Error Output Switching Current 200 mA
Analog Output 0…10 V
Current Load Voltage Output <1 mA
Analog Output 4…20 mA
Current Output Load Resistance <500 W
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Resolution 4…20 mm
Mechanical Data
Adjustment Teach-In
Housing Plastic
Protection IP68
Connection M12 × 1, 8-polig
Protection Class III
* Supply voltage residual ripple may not exceed 10 % (within the specified voltage range).

6
EN
Measuring Range:
The Sensors’ measuring range is determined by object remission and the size of the reflector.
Type of reflector Mounting distance
OPT2030 5...100 m*
0,2...10 m
* when using 4 reflectors
In order that the Sensor functions properly, the whole light spot of the Sensor has to hit the reflector. Please
chose the suitable reflector!
Light Spot Diameter
Working Distance 0 10 m 40 m 100 m
Light Spot Diameter 5 mm < 20 mm < 80 mm < 200 mm
Dependence of Hysteresis and Resolution on the Sampling Rate on white (90 % Remission)
OPT2015
Selected
sampling
rate in Hz
Default setting for min.
hysteresis in mm
Resolution in
mm
100 40 20
50 35 14
20 30 12
10 25 10
5 20 8
2 15 6
1 13 4

7
4.1. Connecting the Sensor
514
Switching laser light off via pin connection:
If the “La” pin is open or connected to negative, the laser is on.
If positive voltage is applied, the laser is off.
Legend
Wire Colors according to
DIN IEC 757
Platinum measuring resistor
not connected
Test Input
Test Input inverted
Trigger Input
Analog Output
Ground for the Analog Output
Block Discharge
Valve Output
Valve Control Output +
Valve Control Output 0 V
Synchronization
Receiver-Line
Emitter-Line
Grounding
Switching Distance Reduction
Ethernet Receive Path
Ethernet Send Path
Interfaces-Bus A(+)/B(–)
Emitted Light disengageable
Magnet activation
Input confirmation
Contactor Monitoring
Encoder A/A (TTL)
Encoder B/B (TTL)
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Grey
White
Pink
Green/Yellow
Supply Voltage +
Supply Voltage 0 V
Supply Voltage (AC Voltage)
Switching Output (NO)
Switching Output (NC)
Contamination/Error Output (NO)
Contamination/Error Output (NC)
Input (analog or digital)
Teach Input
Time Delay (activation)
Shielding
Interface Receive Path
Interface Send Path
Ready
Ground
Clock
Output/Input programmable
Power over Ethernet
Safety Input
Safety Output
Signal Output
Ethernet Gigabit bidirect. data line (A-D)
Encoder 0-pulse 0-0 (TTL)
Encoder A
Encoder B
Digital output MIN
Digital output MAX
Digital output OK
Synchronization In
Synchronization OUT
Brightness output
Maintenance
reserved
PT

8
EN

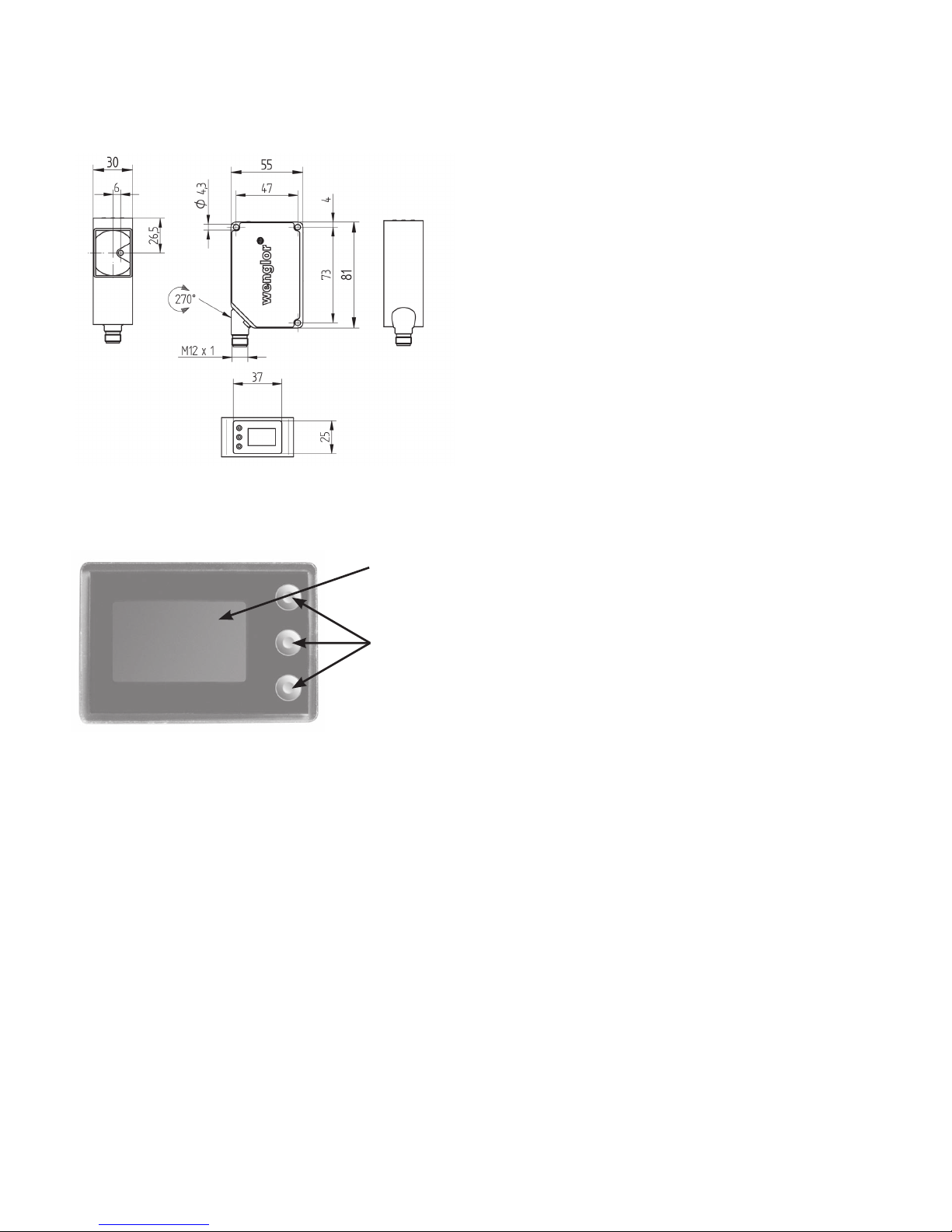

4.2. Housing Dimensions
4.3. The Control Panel
Display
Control key
5. Mounting Instructions
All applicable electrical and mechanical regulations, standards and safety precautions must be adhered to
when installing and operating the Sensor. The Sensor must be protected against mechanical influences. Install
the device such that its installation position cannot be inadvertently changed. The wenglor mounting system is
recommended for installing the Sensor. Additionally a suiting reflector or reflex foil has to be mounted.

9
6. Initial Start-Up
6.1. Initial Start-Up
Connect the Sensor to supply power (18 to 30 V DC). The display view appears.
The Sensor is ready for operation after 2 seconds. The following table provides an overview of typical, addi-
tional deviations during the warm-up phase.
Time (min.) 0 1 2 5 10 15
Deviation (mm) ±10 ±7 ±6 ±2 ±1 0
Switch to the configuration menu by pressing any key.
Note:
If no settings are adjusted in the configuration menu for a period of 30 s, the Sensor is automatically returned to
the read-out view. The Sensor accesses the last used menu view when a key is once again activated.
If a setting is adjusted, it becomes active when the configuration menu is exited.
The keys are used for navigation, and for configuring settings.
Important: Do not use any sharp objects to press the keys when configuring settings, because they might
otherwise be damaged.
Navigation up.
Navigation down.
Accept the selected setting, exit the menu (arrow points away from the display).
Acknowledge the selected menu item (arrow points towards the display).

10
EN
6.2. Default Settings
OPT2015
Pin Function
A1: Switching output
A2: Switching output
A3: Error output
Outputs
Teach Mode Object
Switching threshold 1000 mm
Hysteresis 20 mm
Window Size 50 mm
PNP/NPN PNP
NO/NC NO
ON Delay 0 ms
OFF Delay 0 ms
Impulse 0 ms
Error Output PNP/NPN PNP
NO/NC NO
A3 Input invers
Analog
U/I U
0 V 200 mm
10 V 100200 mm
Offset Specification Offset 0 mm
Measure Rate 20 Hz
Laser On
Run Mode Display Mode Distance
Display Intensity Screensaver
Language German
Password Enable Off
Enter 0

11
7. Functional Overview
4. A2 Switch
5. A3
Switch/Error/Input
6. Analog
7. Offset
8. Measure Rate
9. Laser
10. Run Mode
11. Display
12. Language
13. Info
100 Hz
50 Hz
20 Hz
10 Hz
5 Hz
2 Hz
1 Hz
NPN/PNP
NO/NC
Switching Output
Error Output
14. Reset
15. Password
1. Run
2. Pin Funktion
Input
3. A1 Switch
1. Run
2. Pin Function A1
A3
Switching Output
Mode U/I
Teach
at 0 V
at 10 V
Disp Mode
Run
rotated
Intensity
Deutsch
English
Francais
Sensor type
Sensor version
T Object
T Backgrnd.
T Window
Poti
Hysteresis/
Window Size
NPN/PNP
NO/NC
ON Delay
OFF Delay
Impulse
Extern T
ON
OFF
Enable
Enter
Change
Lock
not invers
invers
Apply
Preset
Change

12
EN
7.1. RUN
The Sensor can be switched to the display mode by pressing the key.
7.2. Pin Function
The Pin Function serves to determine the function of the pin. The pins can each take on different functions.
Designation Function
A3 Configuration of Pin A3
A3



Switch
Error
Laser
Offset
Ext T A1
Ext T A2
By pressing the button and Pin A3 can be configured as:
a switching output an input for application of the offset
an error output a Teach-Input for A1
an input for switching on/off a Teach-Input for A2 (if A2 available)
the transmitted light.
The adjusted function of the pins is displayed figuratively in the menu “Run Mode”:
  Teach-Input A3 for A1 or A2
A1 A2 A3 Switch output
AN Analog output
IN Input
FError output
7.3. A1/A2/A3 Switch
Basic settings for the individual switching outputs are selected in the A1/A2/A3 Switch menu.
Designation Function
T Object Object Teach-In
A1 Switch
TT Objekt
1000 mm
Current measurement
point in mm
Distance to the object is taught in by pressing the Tkey:
• Align the spot to the object.
• Briefly press the Tkey.
ÚSwitching distance to the
object is set.
• If necessary, readjust the
switching distance with the help
of the Potentiometer menu item.
* OPT2015: ( Hysteresis
2) + 10 mm
Sensor
Object
*
Hysteresis
Making point
Breaking point
Background
e. g. conveyor bel
t

13
Designation Function
T Backgrnd. Background-Teach-In
A1 Switch
TT Background
1000 mm
Current measurement
point in mm
Distance to the background is taught in by
pressing the Tkey, so that the background
can be suppressed:
• Align the spot to the back-
ground (e.g. conveyor belt).
• Briefly press the Tkey.
ÚThe background is
suppressed.
* OPT2015: ( Hysteresis
2) + 10 mm
T Window Teach-In a tolerance window
A1 Switch
TT Window
1000 mm
Current measurement
point in mm
A window tolerance is taught in by pressing the Tkey:
• Align the spot to the object.
• Briefly press the Tkey.
ÚA tolerance window is set up
around the measured distance.
The window width value is
adjustable (see below). The default
value is 50 mm. If the measuring
distance lies within the window
width, the sensor is activated.
When the window is taught in, the lower (L)
and upper (H) switching points are displayed
alternately in line 3.
Poti Readjusting the switching distance
Poti
+
−
T Poti
1000 mm
Current measurement
point in mm
The switching distance can be readjusted by pressing the + or the – key.
Hysteresis Adjusting switching hysteresis
Hysteresis
+
−
Hysteresis
20 mm The hysteresis value is adjusted by pressing the + or the – key.
Minimum value: depends upon the sampling rate (see table page 6)

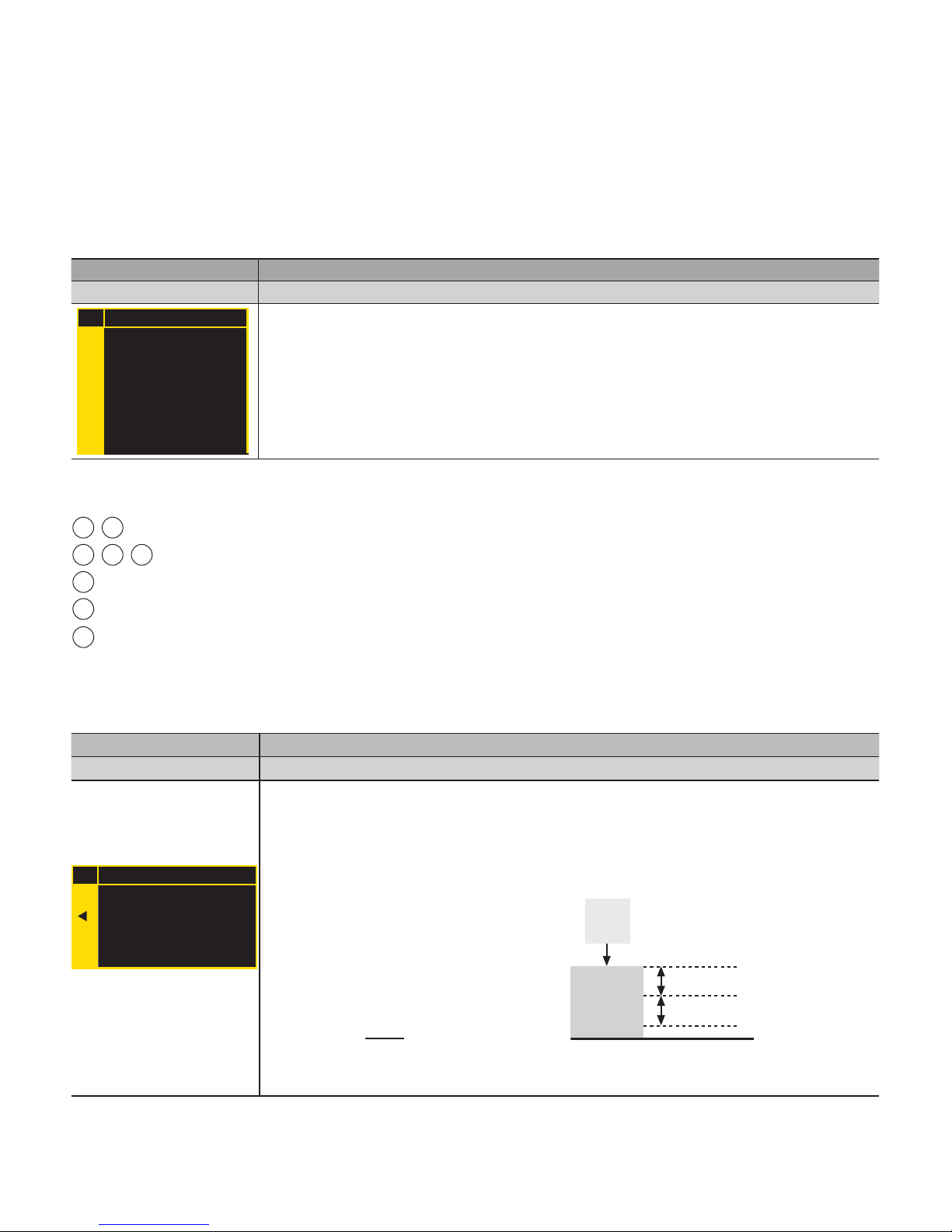

Window Size Setting the desired window width
Window Size
+
−
WindowSize
50 mm
(Can only be adjusted after Teach Window).
The width (10 mm…1000 mm) of the tolerance window is selected by pressing
the + or the – key. The default value is 50 mm.
*
Sensor
Hysteresis
Making point
Breaking point
Background
e. g. conveyor bel
t
Object
Sensor
Object
Hysteresis
Breaking point
Making point
Hysteresis
Making point
Breaking point
Window Width

14
EN

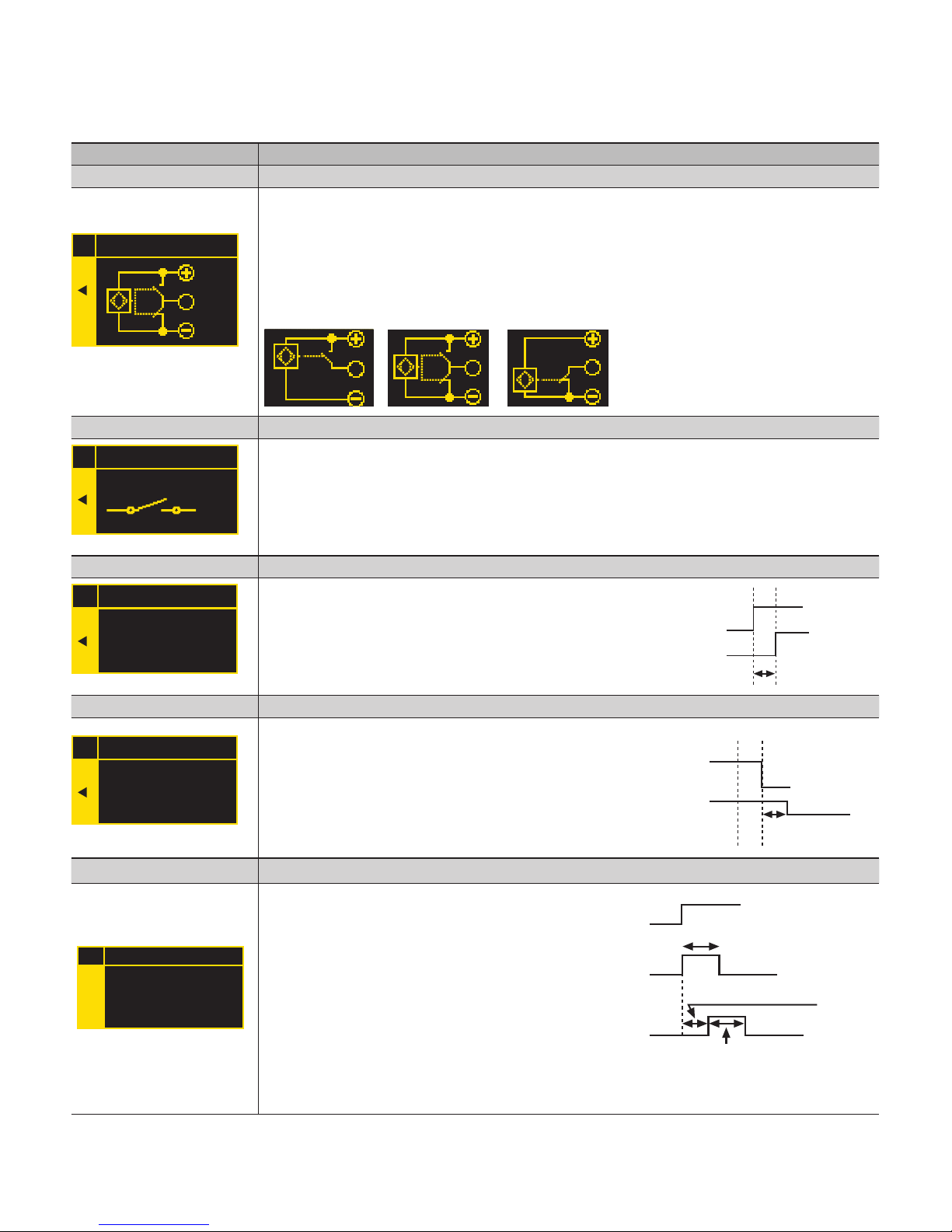

Designation Function
NPN/PNP Configuring the outputs
P
N
PnP
npn
The output is preset to PNP. Pressing the Nkey sets the output to push-pull. Press-
ing the Nkey again sets the output to NPN.
The respective circuit diagram indicates how the output is set:
PNP Push-pull NPN
pnp
PnP
npn
npn
NO/NC Configuring the outputs
NO/NC
NO
NC
no Outputs can be set up as normally open or normally closed by pressing the NO
or the NC key. The respective circuit diagram is displayed.
ON Delay Adjusting ON Delay
ON Delay
+
−
ON Delay
10 ms
ON Delay can be set to a value within
a range of 10 to 10.000 ms by pressing
the + or the – key. If the value is set to “0 ms”
the function is deactivated.
OFF Delay Adjusting OFF Delay
OFF Delay
+
−
OFF Delay
10 ms
OFF Delay is adjusted within a range of
10 to 10.000 ms by pressing the
+ or the – key. OFF Delay is disabled if
a impulse duration has already been
selected. If this is the case, Impulse!
appears at the control panel. If the value is set
to “0 ms” the function is deactivated.
Impulse Adjusting impulse duration
Impulse
+

−
Impulse
0 ms
Impulse duration defines how long the
output signal remains in the activated
state. Impulse duration can be set to a
value within a range of 10 to 10.000 ms
by pressing the + or the – key. After
the selected impulse duration has
elapsed, the output signal is returned
to the deactivated state.. If the value is
set to “0 ms” the function is deactivated. Function can be combined with
ON Delay.



Object
OFF Delay
Output






15
7.4. A3 Error /A3 Input
7.4.1. A3 Error
The error output is activated if no light signal is returned to the Sensor.
NPN/PNP Configuring the outputs
NPN/PNP
P
N
PnP
npn
TThe error output is set to PNP, push-pull or NPN by pressing the P or the N key.
The respective circuit diagram is displayed.
PNP Push-pull NPN
pnp
PnP
npn
npn
NO/NC Configuring the outputs
NO/NC
NO
NC
no The error output is set up as normally open or normally closed by pressing the
NO or the NC key. The respective circuit diagram is displayed.
7.4.2. A3 Input
If Pin “A3” is used as input “Emitted light disengageable” or as input “Offset”, the input can be set as an inverted
or non-inverted input.
Designation Function
not invers Usage as non-inverted input
A3 Input



not invers
invers
Normally, the input is at supply voltage “0”.
The functionality of the input is triggered upon applying a voltage > 7 V.
invers Usage as inverted input
A3 Input



not invers
invers
The input is normally at a voltage of > 7 V.
The functionality of the input is triggered upon applying a voltage < 7 V.

16
EN
7.5. A1 Analog/Analog
The measuring range for the analog output can be feely selected within the specified working range with rising
of falling characteristic curve.
The adjusted measuring range must have a value of at least 2 % of the total measuring range.





Analog Settings of the analog output



Mode U/I
Teach-In
At 0 V
At 10 V
At 4 mA
At 20 mA
Mode U/I: The analog output can be set up as either a current or a voltage output by pressing the U
or the I key. The corresponding symbol is displayed.
Teach-In: The momentary actual distance is assigned to a voltage value of 10 V or a current value
of 20 mA by pressing the 10 V or the 20 mA key.The momentary actual distance is assi-
gned to a voltage value of 0 V or a current value of 4 mA by pressing the 0 V or the 4 mA
key.If necessary, the assigned distances can be readjusted with the help of menu items
At 0 V or at 10 V.
At 0 V/at 4 mA: The distance assigned to either 0 V or 4 mA is adjusted by pressing
the + or the – key.
At 10 V/at 20 mA: The distance assigned to either 10 V or 20 mA is adjusted by press-
ing the + or the – key.

17
7.6. Offset
The function offset serves to change the current measurement value to a certain other value. Here, the
switching thresholds and the analog measurement ranges are changed as well.
The offset can take place optionally via a menu or externally via Pin A3.
Via menu
Designation Function
Apply* Accepting the value set in “Specification” as the distance.
Apply
T
Z
Apply
0 mm
Current measurement
point in mm
Upon pressing the button T, the offset value set in the menu option
Specification is accepted as the distance. Upon pressing the button Z, the offset
function is reset and the real distance is displayed.
Preset* Teaching the offset value
Preset
T
Z
Offset
0 mm
Current measurement
point in mm
Upon pressing the button T, the current distance is accepted as the specification
offset. Upon pressing the button Z, the offset specification value is set to 0 (the offset
is activated in the menu option Apply)
Change Changing the offset value that has been set in steps
Change
+
−
Preset
0 mm
By pressing the keys + or - the adjusted specification offset (menu point Preset) can
be changed stepwise upwards or downwards.
*The currently set specification offset is displayed in line 3. The current distance is displayed in line 4.
Via Pin “A3”
Via the multifunctional pin A3, the offset equalization can be applied through an external trigger Sensor
(corresponds to the menu Offset Apply T).Here, A3 must be configured by means of the setting Offset
as input (see “7.2. Pin Function” page 12).
In order to apply the Offset equalization, a voltage > 7 V should be applied at the input pin to trigger a positive
flank. Here, the value set in the menu option Preset is accepted as the current distance.

18
EN
Without Offset equalization:
In the diagram, the Sensor measures a distance of 5000 mm.
The switching point is located 2000 mm distant, at 7000 mm.
5000 mm 7000 mm
Switching Point
[Distance measured with
a meter ruler(mm)]
With application of the offset equalization: Specification offset: 0 mm
In the diagram, the Sensor measures a distance of 5000 mm. The switching point is located 2000 mm distant,
at 7000 mm. After application of the offset equalization, from the distance 5000 mm the distance becomes 0
mm. The switching distance thus gets displaced by 7000 mm to the actual 12000 mm.
5000 mm 12000 mm
Switching Point
[Distance measured with
a meter ruler (mm)]
0 mm
Switching Distance: 7000 mm
Application of the offset equalization
Application of the offset equalization: Specification offset: 3000 mm
In the diagram, the Sensor measures a distance of 5000 mm. The switching point is located 2000 mm distant,
at 7000 mm. After application of the offset equalization, from the distance 5000 mm the distance becomes 3000
mm. The switching distance thus gets displaced by 4000 mm to the actual 9000 mm.
5000 mm 9000 mm [Distance measured with
a meter ruler (mm)]
3000 mm
Switching distance set: 7000 mm
Application of the offset equalization
3000 mm 4000 mm

19
Example of application:
A OPT2015 is used in a high rack warehouse with varying ambient temperatures. To eliminate the temperature
drift, a reference path of 1000 mm is specified to the Sensor as the specification offset. Through an external trig-
ger Sensor, the specification offset is applied and given to the Sensor as the current distance. This ensures that
the distance tallies with the value of the reference route with every trigger signal and thus, the varying ambient
temperature has no influence on the measurement values of the Sensor.
Movement path of sensor
Reference path
1000 mm
Trigger sensor:
Switch output, sensor on
PIN A3/V of the LLZ-sensor
High rack stores
7.7. Measure Rate
Reducing the measure rate improves resolution and reduces minimum selectable switching hysteresis.
The respective minimum and maximum values are in the table on page 5.
Designation Function
MeasureRate



 100 Hz
 50 Hz
 20 Hz
 10 Hz
 5 Hz
 2 Hz
 1 Hz
Measure rate value
The measure rate which is best suited for the respective application can be selected from the predefined
values by pressing the or the key.
7.8. Laser
Transmitted light can be either deactivated or activated with the help of the Laser menu.
Designation Function
Laser



 ON
 OFF
ON: Switch transmitted light on
OFF: Switch transmitted light off
Transmitted light is deactivated or activated by pressing the or the key.
In case of the OPT2015 the laser diode can be switched off via pin 8, by connecting pin 8 to 24 V.

20
EN

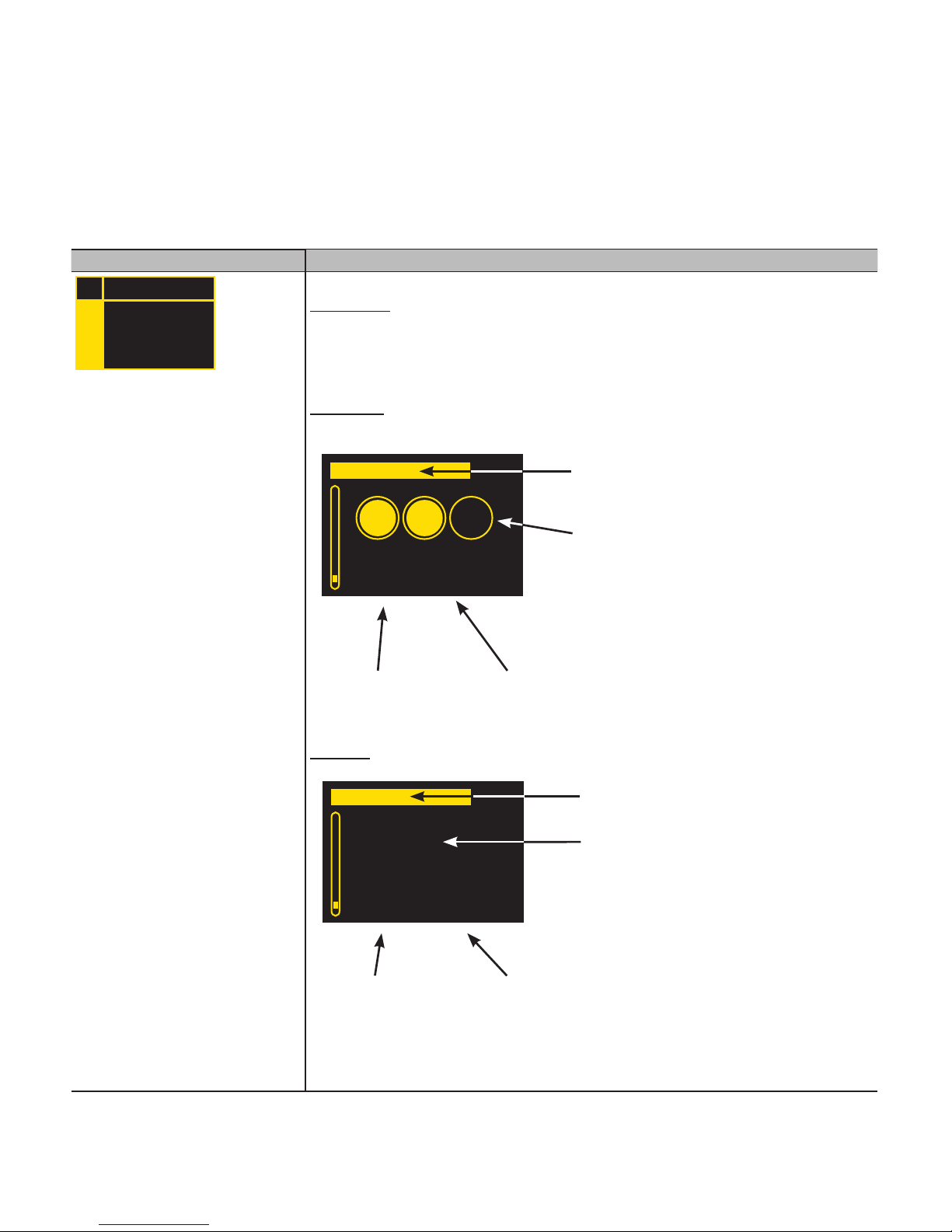

7.9. Run Mode
Which data will be read out to the display as measurement results are selected in the run mode menu.
Designation Function
Run Mode



DispMode
Run
DispMode: What will appear at the monitor during display mode operation is
selected by pressing the or the key:
Distance: The states of the individual outputs appear at the display.
NC NO U
A1 A2 F
1177 mm
Measured analog
voltage
Distance to
the object
Output configuration/
selected delays
Status of the switch outputs of the
error output or analog output
(if used as analog output: the higher
the analog value, the brighter the
status display)
Analog: The analog output value appears at the display.
NC NO U
1177 mm
1.078V
Output configuration/selected delays
Analog output value (U/I)
Measured analog
voltage
Distance to
the object
Run: The device is switched to the display mode by pressing the key.
