Werner A519010 User manual

Werner Co.
93 Werner Road
Greenville, PA 16125
1(888) 523-3371 / www.wernerco.com
P/N 124285-01 REV A 2/21
10,000-lbf (44kN) Removable Bolt
(Multi-Use Only) Model: A519010
MAINTENANCE, CLEANING AND STORAGE
Cleaning periodically will prolong the life and proper functioning
of the product. The frequency of cleaning should be determined
by inspection and by severity of the environment. Clean with
compressed air and/or a sti brush using plain water or a mild soap
and water solution. Do not use any corrosive chemicals that could
damage the product. Wipe all surfaces with a clean dry cloth and
hang to dry, or use compressed air. When not in use, store anchorage
connectors in a cool, dry, clean environment, out of direct sunlight
and free of corrosive or other degrading elements.
Read This Instruction Manual Carefully Before
Using This Equipment.
User Instructions must always be available to the user and
are not to be removed except by the user of this equipment.
For proper use, see supervisor, User Instructions, or contact
the manufacturer.
Users and purchasers of this equipment must read and
understand the User Instructions provided for correct use
and care of this product. All users of this equipment must
understand the instructions, operation, limitations and
consequences of improper use of this equipment and be
properly trained prior to use. Misuse or failure to follow
warnings and instructions may result in serious personal
injury or death.
Purpose
The A519010 is an anchorage connector designed
to function as a lift point or other nonlife dependant
applications. Any references to “anchorage connector” in this
manual include, and apply to, the A519010.
Use Requirements
1. Use of this product must be approved by an
Engineer or other qualied person to be compatible
with any and all structural & operational
characteristics of the selected installation location
and system to be connected to this anchor. Improper
may result in serious personal injury or death.
2. The anchorage connector must be inspected prior to
each use for wear, damage, and other deterioration.
If defective components are found the anchor
connector must be immediately removed from service
Use Limitations
1. The anchorage connector is designed to be used in
temperatures ranging from -40°F to +130°F (-40°C to
+54°C).
2. Do not expose the anchorage connector to chemicals
or harsh solutions which may have a harmful eect.
3. Do not alter or modify this product in anyway.
4. Do not use/install equipment without proper
training by a“competent person”
5. Do not remove the labeling from this product.
6. Additional requirements and limitations may apply
depending on anchorage type and fastening option
utilized for installation. All placements must be
approved by an engineer or other qualied person.
*Improper use may result in serious personal injury or
death.
V1.6-APatent # US 7,357,363 B2 / US 7,011,281 B2 / US 6,729,821 B2
WARNING: ALL USERS OF THIS EQUIPMENT MUST READ AND
UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY
RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE
FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL USERS OF THIS PRODUCT MUST BE PROPERLY
INSTRUCTED ON HOW TO USE THE DEVICE. AVOID CONTACT
WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL, ELECTRICAL,
ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.

LOADING DIAGRAM
LIFTING REQUIREMENTS
This product has a safe working load of 2000-lbs. It is the end
users responsibility to know the weight of the object being
lifted or supported. You must also know how to stabilize your
object with the correct locations of your anchor points as
well as using multiple anchors with an object.
-2,000-lbs safe working load.
-10,000-lbf maximum breaking strength.
-Do not use in uncured concrete.
-Always inspect your anchor prior to use.
-Always dispose of the anchor if damaged.
-Use multiple units to stabilize object if needed.
-Never stand under an object being lifted.
DRILLING INSTRUCTIONS:
1. Drill a 1 inch (25mm) diameter hole at least 4.5 inches
(114mm) deep. The drilled hole must be straight and
perpendicular to the surface. Make sure the hole is
of uniform diameter and free of peaks and valleys on
the inner wall. (see g:2)
2. Clean any debris from hole.
3. Always inspect the hole carefully when reusing a previously
drilled hole.
INSTALLATION INSTRUCTIONS:
1. When placing anchor, place your thumb inside the anchor
loop and your rst two ngers around the trigger. Squeeze
ngers and thumb together till the trigger and spring fully
compress. (see g:4)
2. Set the unit with a slight tug on the anchor loop.
3. The cleaning bushing must always be partially inserted into
the hole. (see g:1)

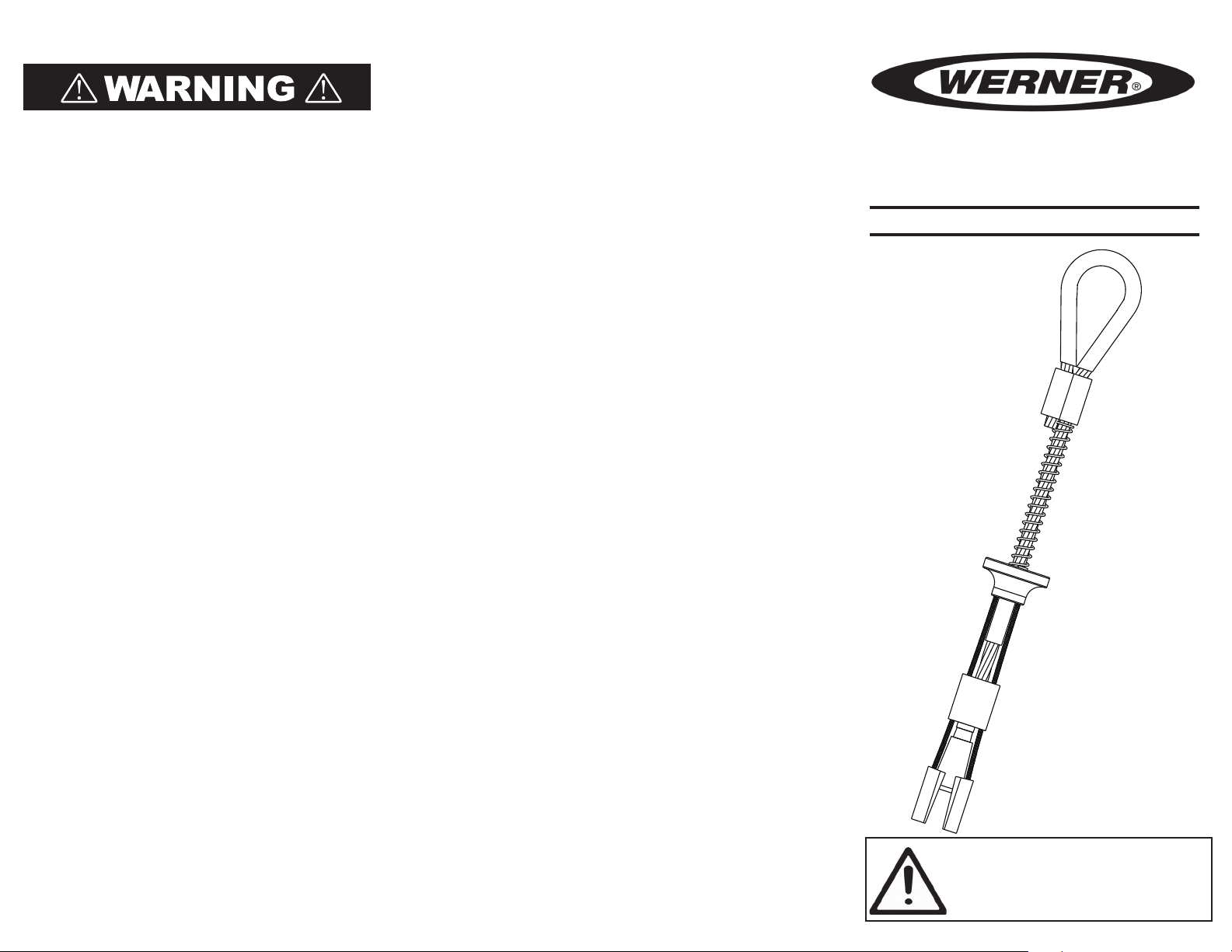

A519010 Multi-Use Anchor
Performance:
Minimum Breaking Strength (MBS):
10,000-lbf (44kN)
Working Load Limit: 2000-lbs
Dimensions:
Weight: 0.5-lbs (.22kg)
Length: 13.75 inches (349mm)
Diameter: 1 inch (25.4mm)
Component Materials:
Main Cable: Aircraft Cable. End Termination: Stainless Steel. Spoons:
Stainless Steel. Stop Sleeve: Stainless Steel. Trigger: Aluminum. Spring: Zinc
Plated Steel. Swage: Zinc Plated Copper. Return Wire: Aircraft Cable. Anchor
Thimble: Zinc Plated Steel.
REMOVAL INSTRUCTIONS:
1. When removing anchor, place your thumb inside the
anchor loop and your rst two ngers around the
trigger. Squeeze ngers and thumb together until the
trigger and spring fully compress.
2. While squeezing the trigger pull the anchor out of the
hole.
3. If the anchor becomes stuck, insert a punch, screw
driver or other object into the hole until it touches the
top of the cleaning bushing. (see g:4)
4. Lightly tap with a hammer making sure the tool is
touching the top of the cleaning bushing. The cleaning
bushing should be easily visible at the edge of the hole.
Repeat steps 1 and 2.
5. If tool was required to remove the anchor inspect
thoroughly for damage after removal. If damage is
found remove from service and destroy immediately.
*It is the end users responsibility to
know the proper techniques for all
lifting and hoisting applications.
WARNING: Shock loads can be
more than twice the static load
and could result in anchor failure.
min fromany edge
TAP!!!
RB10-xxx / mm/yyyy
*DO NOT REMOVE
WARNING LABEL!
WARNING:
ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURETO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALSWHO USETHIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOWTO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLYCOMPATIBLE CO NNECTIONS.
Multi-Use Only
DO NOT REMOVE
Stainless Steel, Aluminum, Zinc Plated Copper, 7x19 Aircraft Cable
Cleaning
Ferrule
13.75 inches (349mm)
3inches (76mm)
A
nchor Thimble
Swage
Spring
Trigger
Stop Sleeve
Main Cable
Cleaning
Bushing
Spoon
Cone
Return Wir
e
2inches (50.8mm)
7inches (178mm)
1.5 inches (63.5mm)
Stainless Steel, Aluminum, Zinc Plated Copper, 7x19 Aircraft Cable
Pat# US 7,357,363 / 7,011,281 / 6,729,821
DO NOT REMOVE
P/N 124286-01 REV A 2/21
Working Load Limit: 2000-lbs
Reusable Multi-Use
Concrete Anchor
Model: A519010
Batch #: XXXX
MFD: MM/YYYY
Multi-Use Only Not for Fall Arrest
INSPECT BEFORE USE
1(888) 523-3371
WARNING: ALL USERS OF THIS EQUIPMENT MUST READ AND
UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY
RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE
FAMILIAR WITH PERTINENT REGULAT IONS GOVERNING THIS
EQUIPMENT. ALL USERS OF THIS PRODUCT MUST BE PROPERLY
INSTRUCTED ON HOW TO USE THE DEVICE. AV OID CONTACT
WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL, ELECTRICAL,
ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
drill 1 inch Ø
10 inch
10 inch
