Whalen Hendricks Series User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2016-07-30 Rev. 0001-A Factory: HOAJOI
Hendricks 9pc Counter Height Dining Set (Table)
Stock # HEN9PCH
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions and
parts list ready to provide the model name, part name or factory number:
866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASE
D
:
/
/

2
1. Maximum load weight on table is 181.4 kg (400 pounds).
1. Please read the Assembly Instructions prior to assembling the unit.
2. To avoid damage, assemble the unit on a sturdy, level and non-abrasive surface.
3. Keep all hardware and parts out of the reach of children.
4. Please wait until all steps are completed before fully tightening bolts.
5. Make sure all bolts and screws are tightly fastened before the unit is used.
6. Check that all bolts and screws are tight at least every 3 months or as needed.

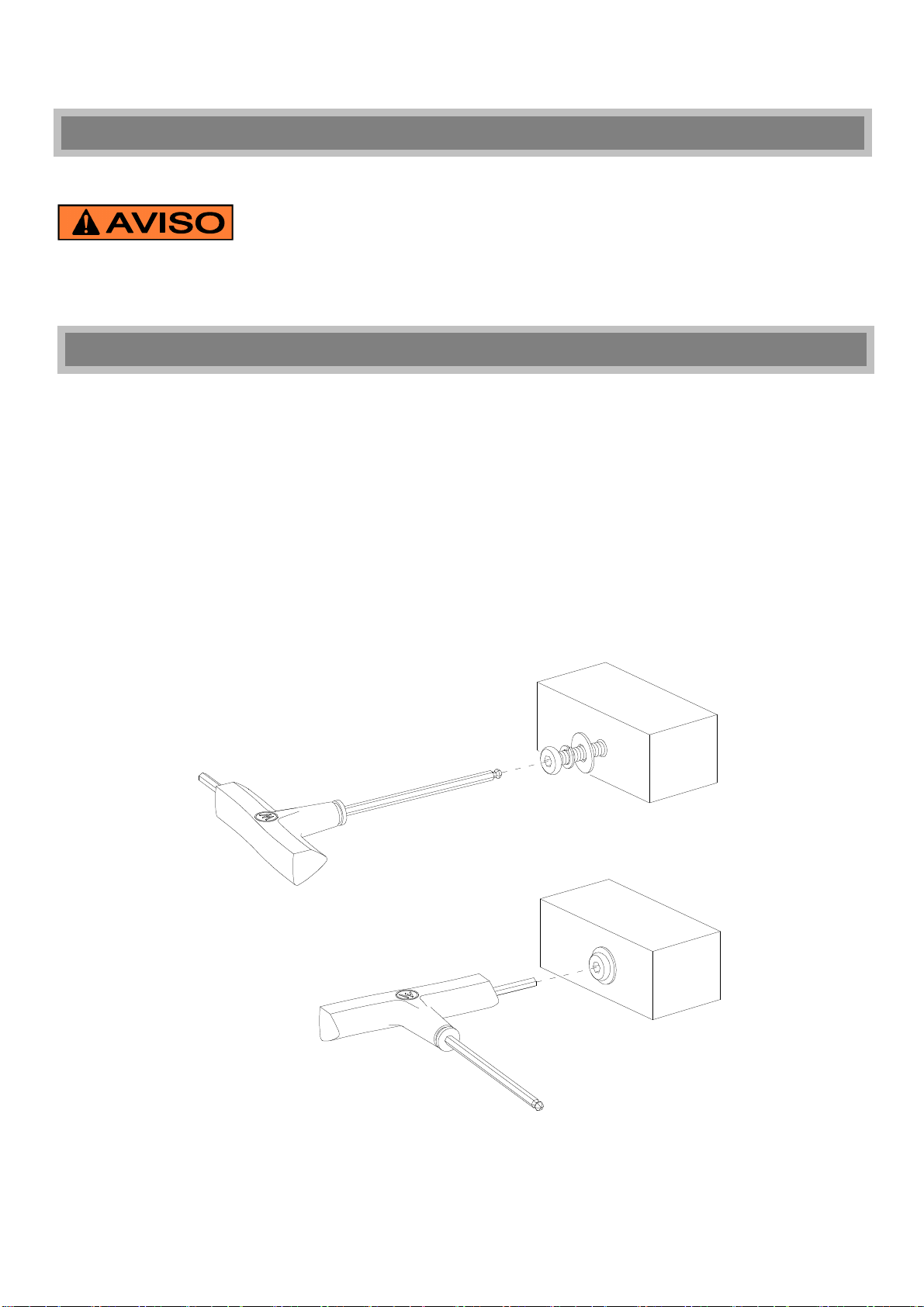

7. Use the long end of the Allen wrench to fasten bolts loosely and quickly.
8. Use the short end of the Allen wrench for final tightening.
GENERAL INFORMATION, TIPS & TRICKS
MAXIMUM RECOMMENDED WEIGHT LOADS
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
②
①

3
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

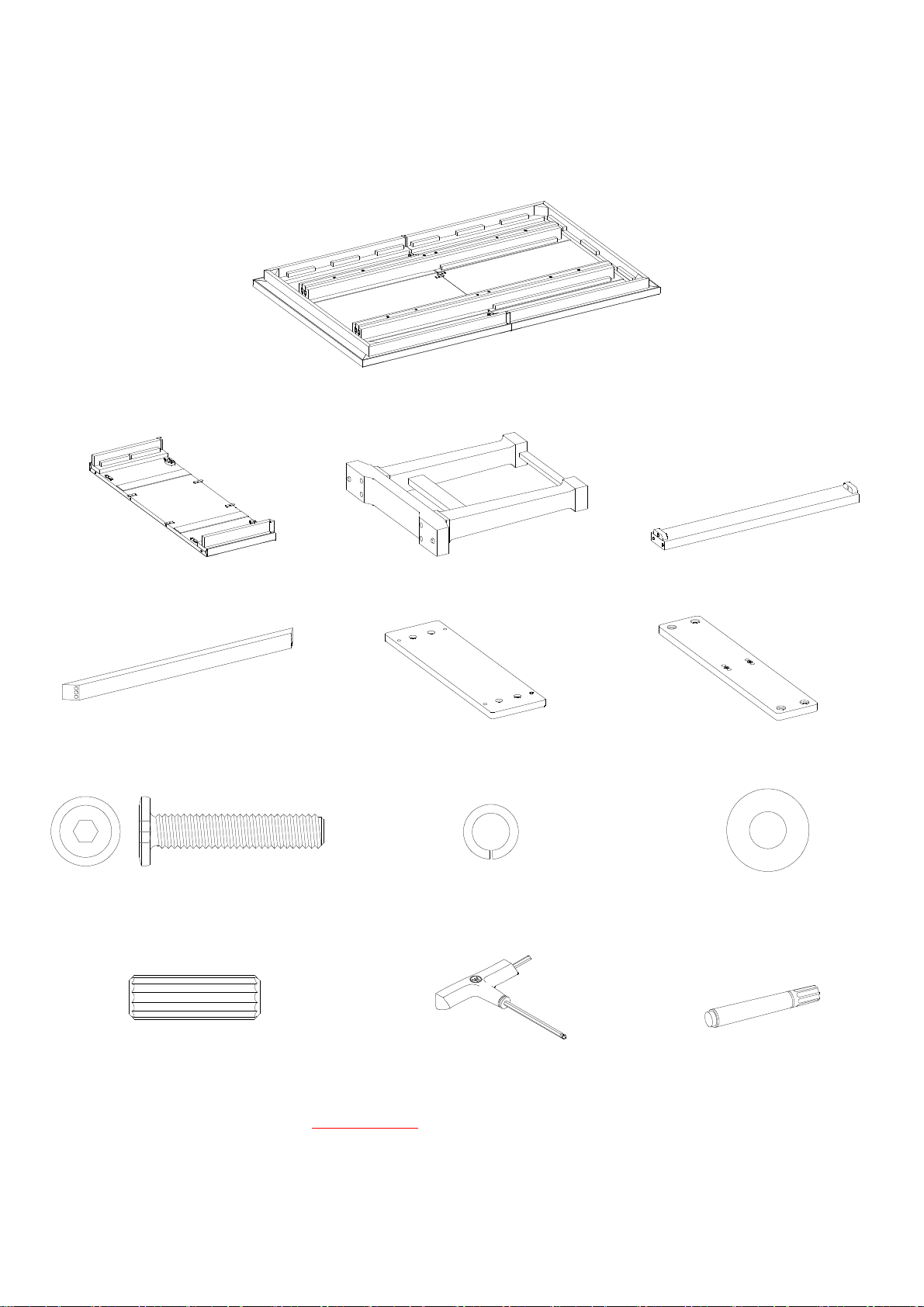

A- Table Top (Qty. 1)
B- Leaf (Qty. 1) C- Leg (Qty. 2) D- Bottom Stretcher (Qty. 1)
E- Center Support F- Side Mounting Board G- Middle Mounting Board
(Qty. 2) (Qty. 2) (Qty. 1)
(1) M8 x 40 mm Bolt (2) Lock Washer (3) Flat Washer
(Qty. 26+1 extra) (Qty. 26+1 extra) (Qty. 26 +1 extra)
(4) M10 x 30 mm Wood Dowel T-handle Allen Wrench Touch-up Pen
(Qty. 16+1 extra) (Qty. 1) (Qty. 1)
Tools required: Allen wrench (provided).

4
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.

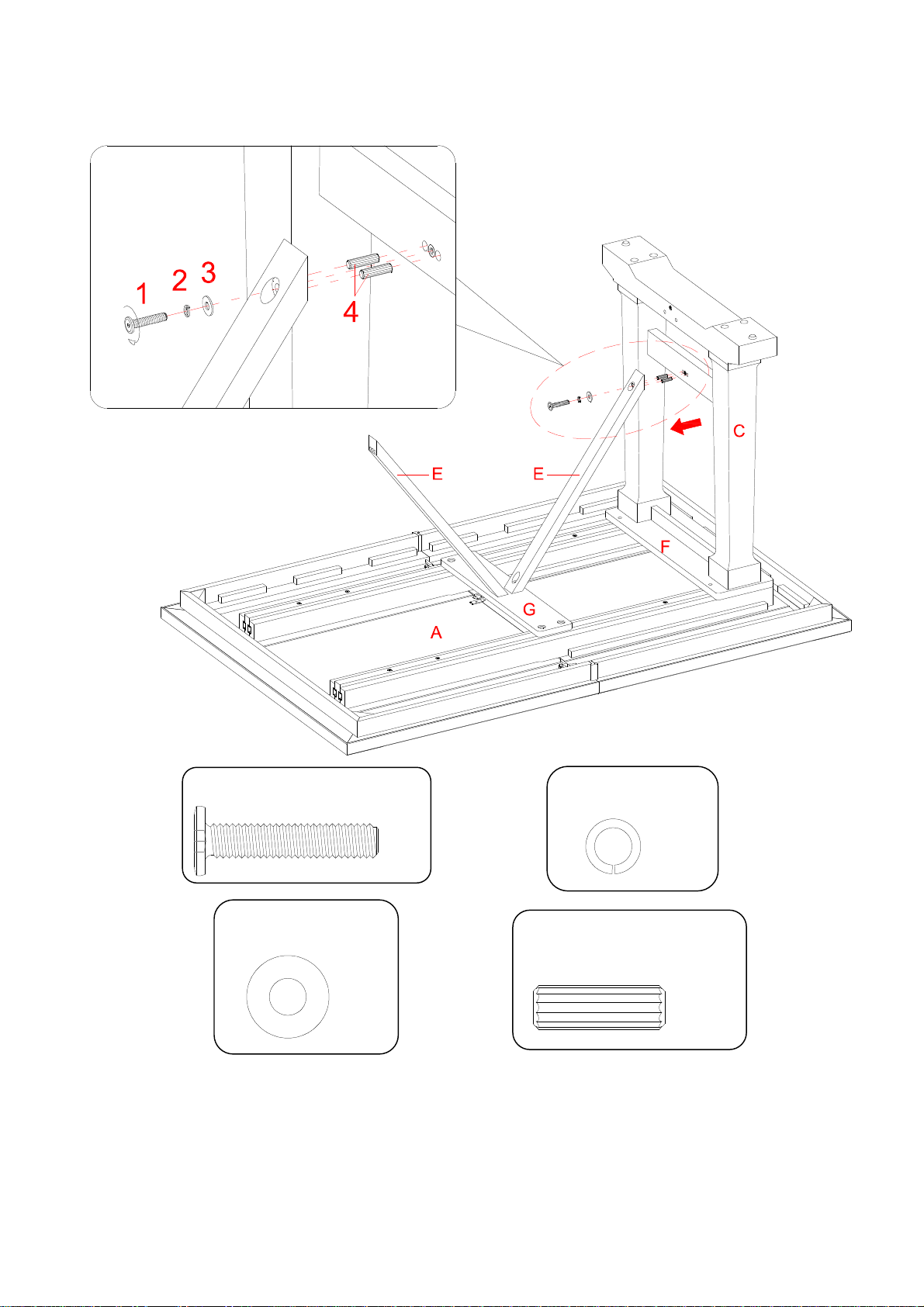

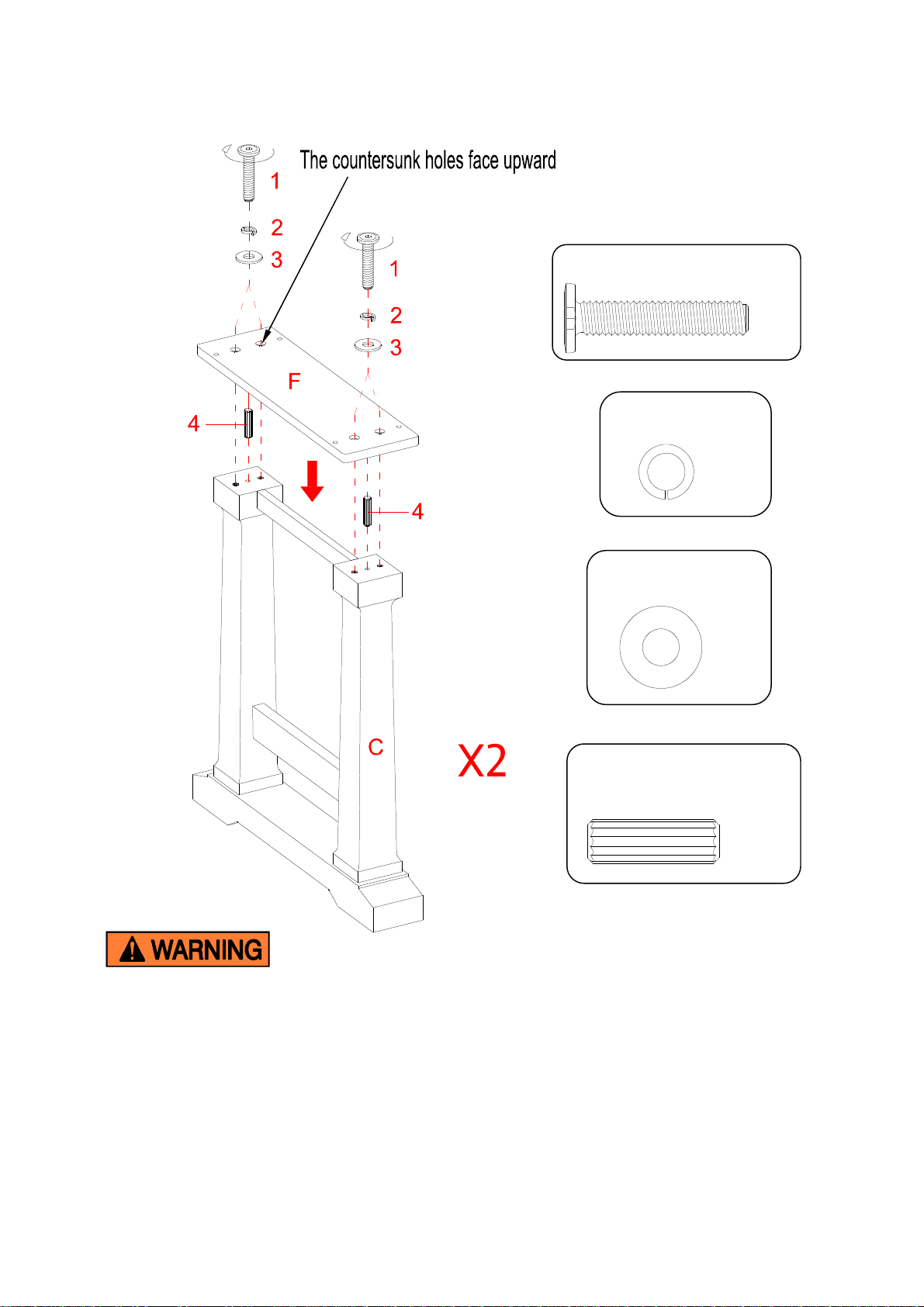

2. Insert two Wood Dowels (4) into the non-threaded holes on the top of one Leg (C). Position one Side
Mounting Board (F) onto the inserted Wood Dowels (4) on the Leg (C) and attach into place with four
40 mm Bolts (1), four Lock Washers (2) and four Flat Washers (3).
3. Repeat the same procedure with the other Side Mounting Board (F).
Lock Washer
(8 used in this step)
②
Flat
Washer
(8 used in this step)
③
M8 x 40 mm Bolt
(8 used in this step)
①
DO NOT fully tighten the bolts initially until all the bolts are ready to assemble.
To avoid causing damage to the thread, DO NOT over-tighten the bolts.
X 2
M10 x 30 mm Wood Dowel
(4 used in this step)
④

5
Assembly Instructions
4. Position the Table Top (A) upside down on a level and protective surface.
5. Attach the Middle Mounting Board (G) to the slides supports of the Table Top (A) with four 40 mm
Bolts (1) and four Washers (2 and 3).
Lock Washer
(4 used in this step)
②
Flat
Washer
(4 used in this step)
③
M8 x 40 mm Bolt
(4 used in this step)
①

6
Assembly Instructions

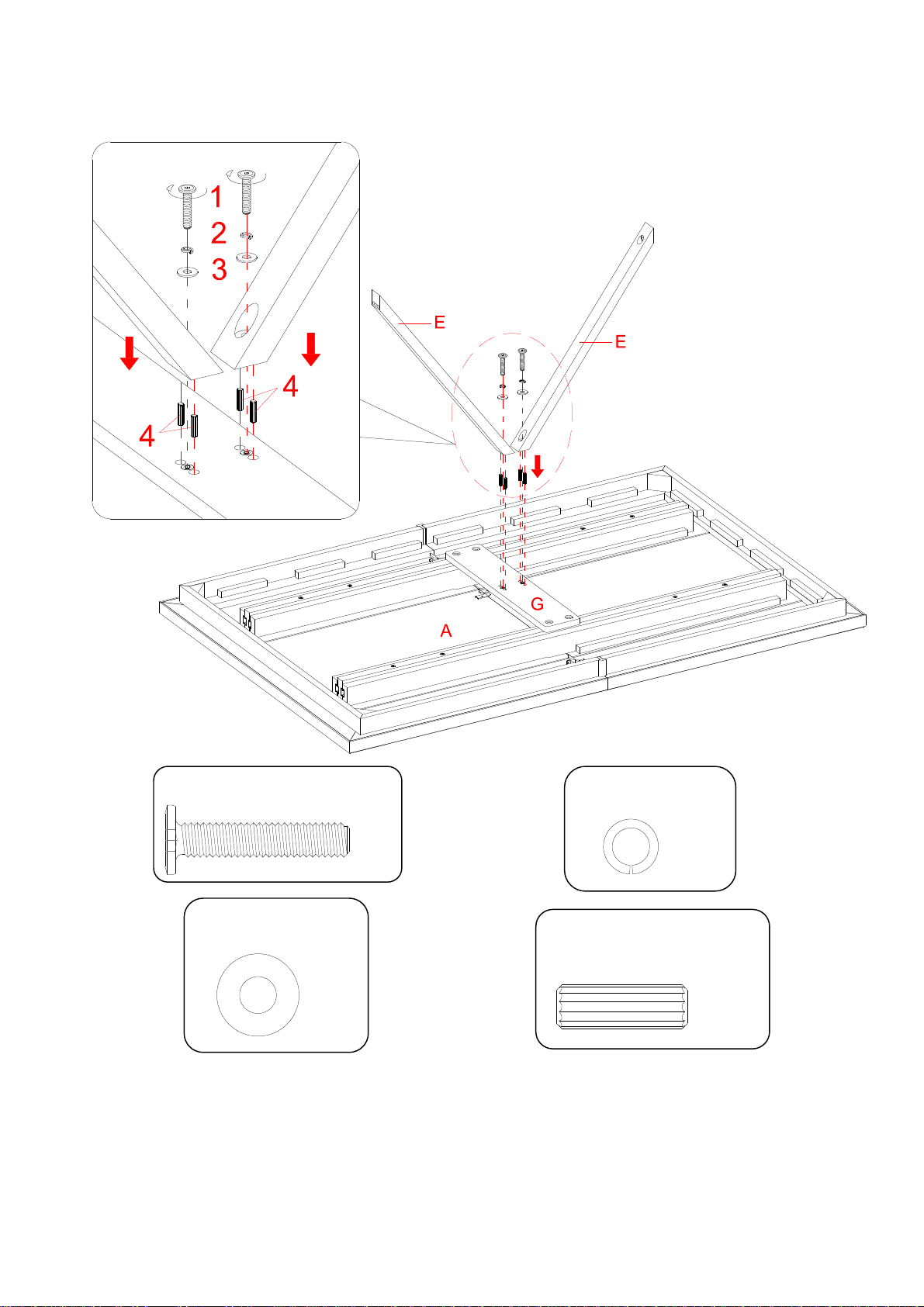

6. Insert four Wood Dowels (4) into the outer holes on the Center Supports (E) and attach them to the
Middle Mounting Board (G) with two 40 mm Bolts (1) and two Washers (2 and 3).
Lock Washer
(2 used in this step)
②
Flat
Washer
(2 used in this step)
③
M8 x 40 mm Bolt
(2 used in this step)
①
M10 x 30 mm Wood Dowel
(4 used in this step)
④

7
Assembly Instructions
7. Insert two Wood Dowels (4) into the non-threaded holes on the middle rail of one Leg (C) and attach to
one Center Support (E) with one 40 mm Bolt (1) and one Lock Washer (2) and one Flat Washer (3).
Make sure that the mounting holes on the Side Mounting Board (F) overlap the threaded inserts on the
slide supports.
Lock Washer
(1 used in this step)
②
Flat
Washer
(1 used in this step)
③
M8 x 40 mm Bolt
(1 used in this step)
①
M10 x 30 mm Wood Dowel
(2 used in this step)
④

8
Assembly Instructions

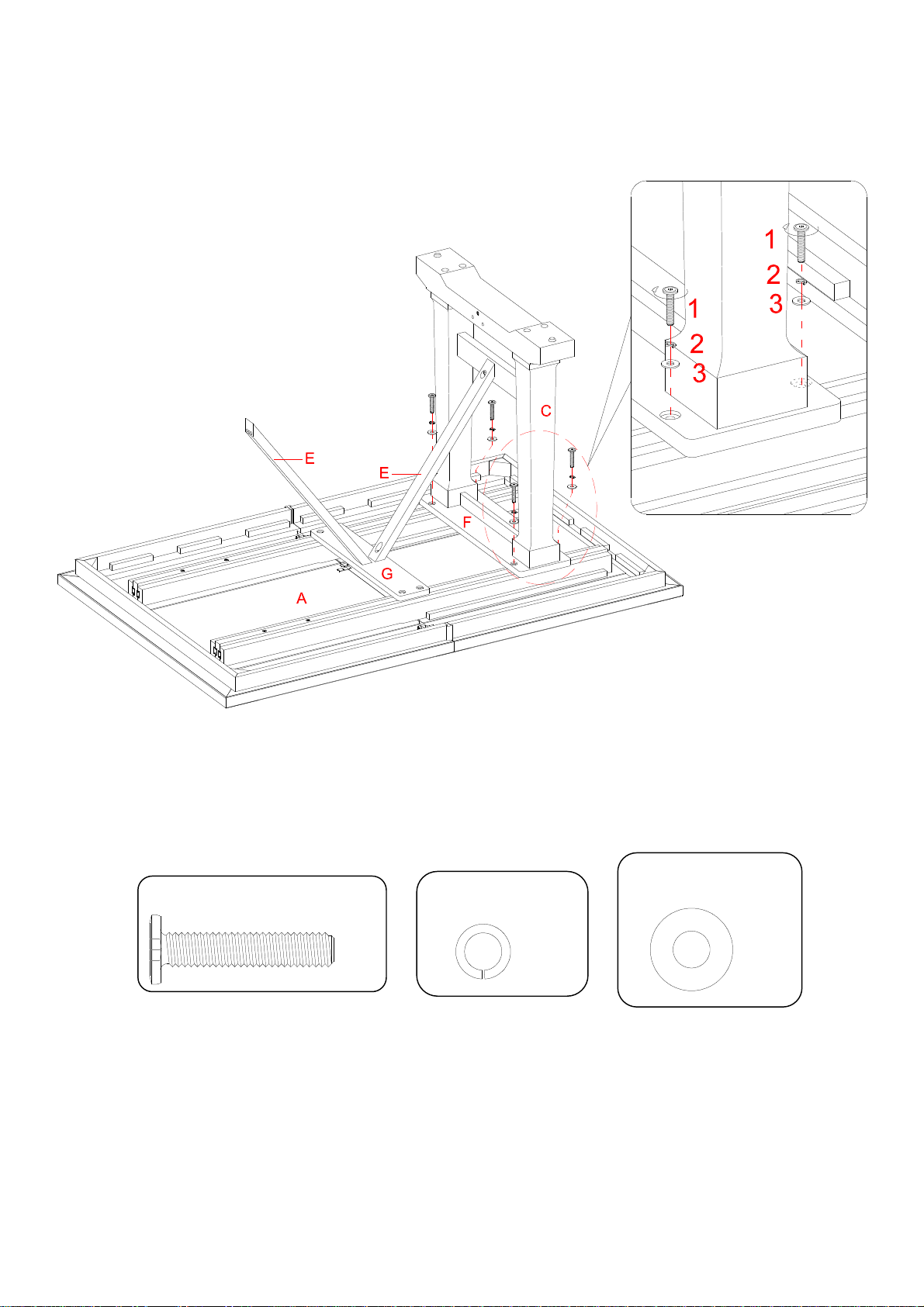

8. Insert four 40 mm Bolts (1) with the Washers (2 and 3) through the drilled holes on the Side Mounting
Board (F) and securely screw into the slides supports of the Table Top (A).
Lock Washer
(4 used in this step)
②
Flat
Washer
(4 used in this step)
③
M8 x 40 mm Bolt
(4 used in this step)
①

9
Assembly Instructions

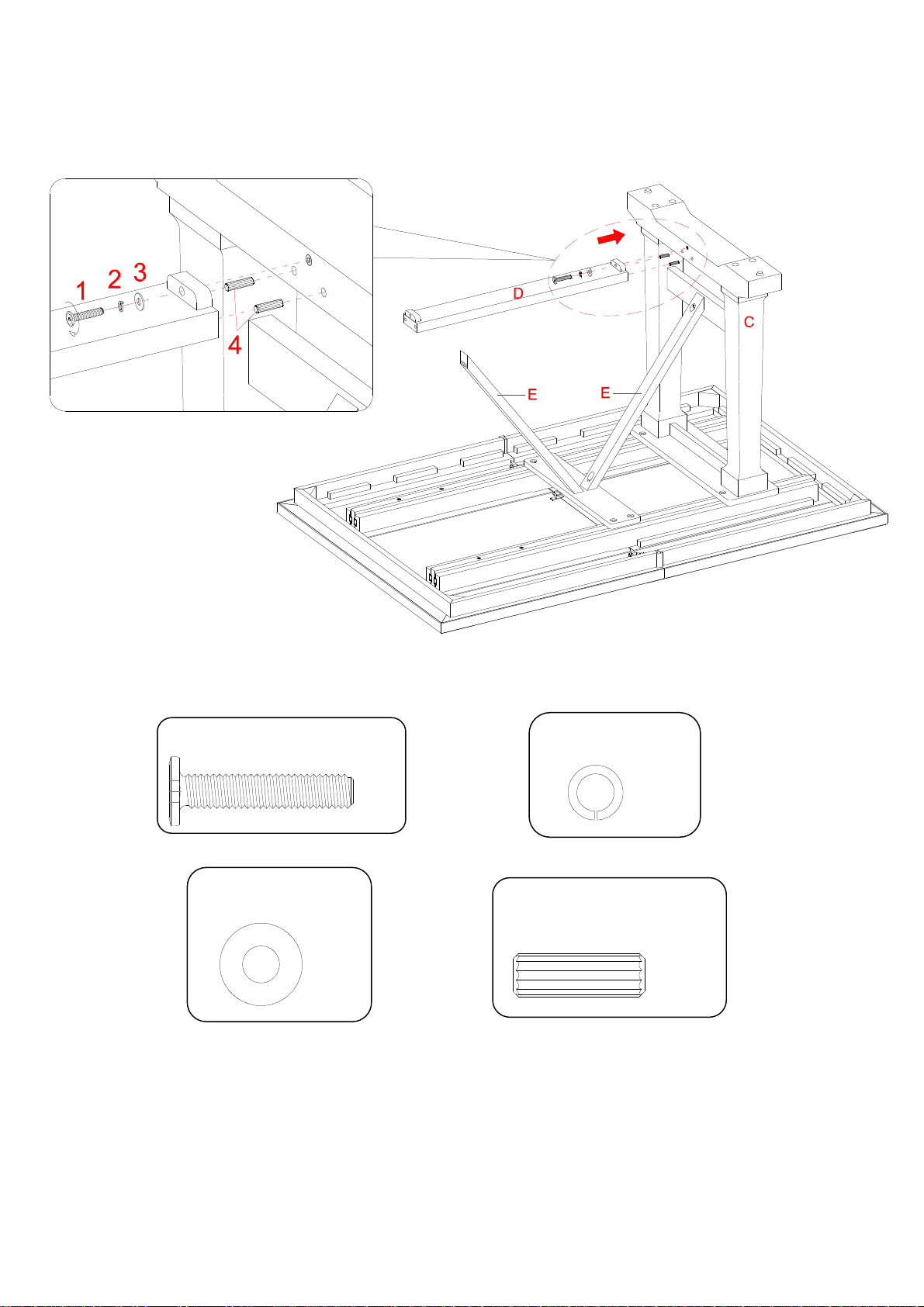

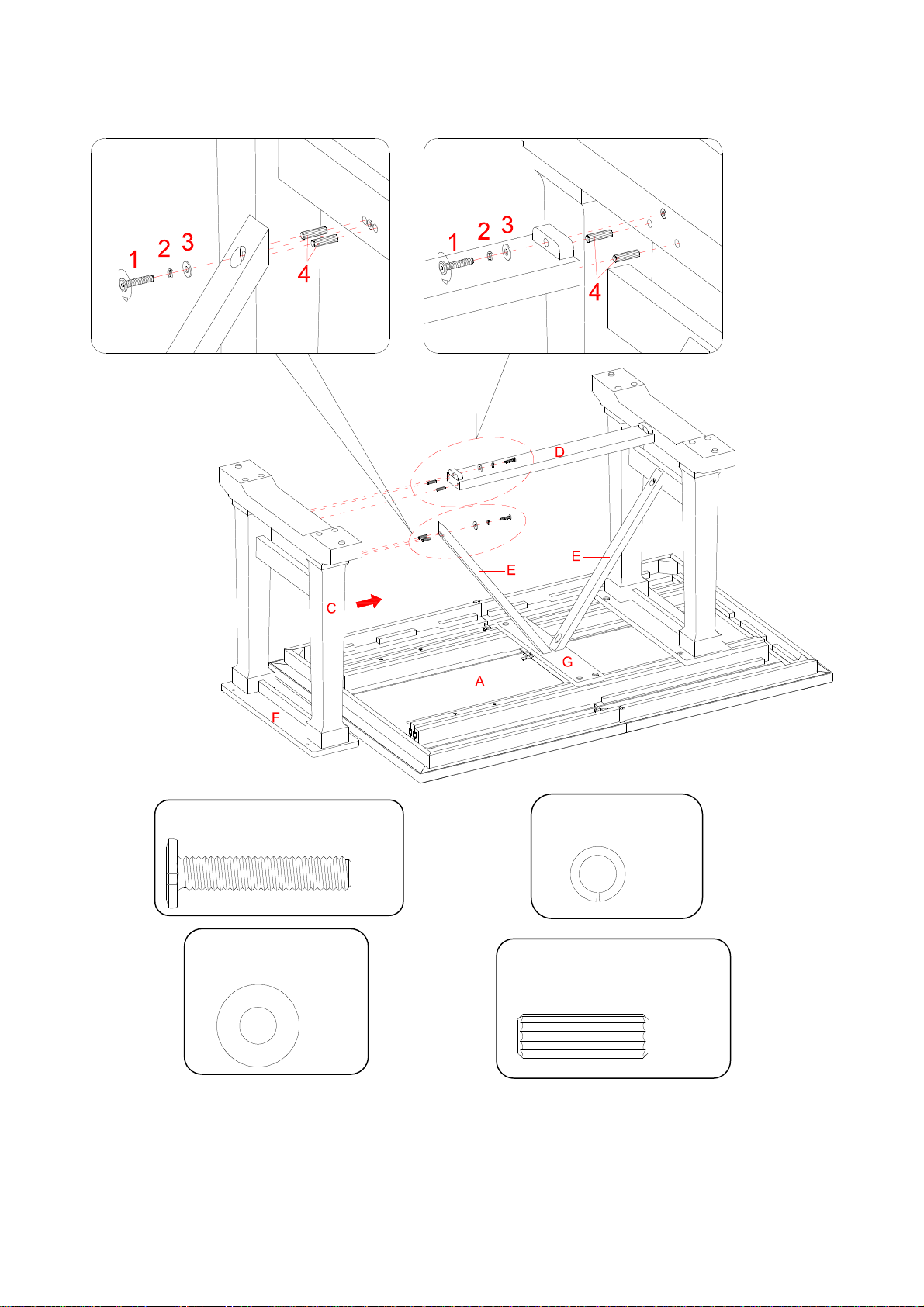

9. Insert two Wood Dowels (4) into the end holes of the Bottom Stretcher (D) and attach it to the bottom
rail of the Leg (C) with one 40 mm Bolt (1), one Lock Washer (2) and one Flat Washer (3).
Lock Washer
(1 used in this step)
②
Flat
Washer
(1 used in this step)
③
M8 x 40 mm Bolt
(1 used in this step)
①
M10 x 30 mm Wood Dowel
(2 used in this step)
④

10
Assembly Instructions
10. Repeat the same procedure to attach the other Leg assembly at the opposite end.
Lock Washer
(2 used in this step)
②
Flat
Washer
(2 used in this step)
③
M8 x 40 mm Bolt
(2 used in this step)
①
M10 x 30 mm Wood Dowel
(4 used in this step)
④
