Whalen Dulzura SPUS-DZMF-LBM User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-01-29 Rev. 0001-A
Dulzura Mobile File
Model # SPUS-DZMF-LBM Light Brown
SPUS-DZMF-DBM Dark Brown
ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP
POINTS, SHARP EDGES AS RECEIVED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Dulzura Mobile File
MODEL # SPUS-DZMF-LBM / SPUS-DZMF-DBM
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part list.
Please ensure all parts are included prior to assembly. Use of power tools to complete
assembly is not recommended.
M A X I
M
U M
R E C O M M E N D E D W E I G
H T L O A D S

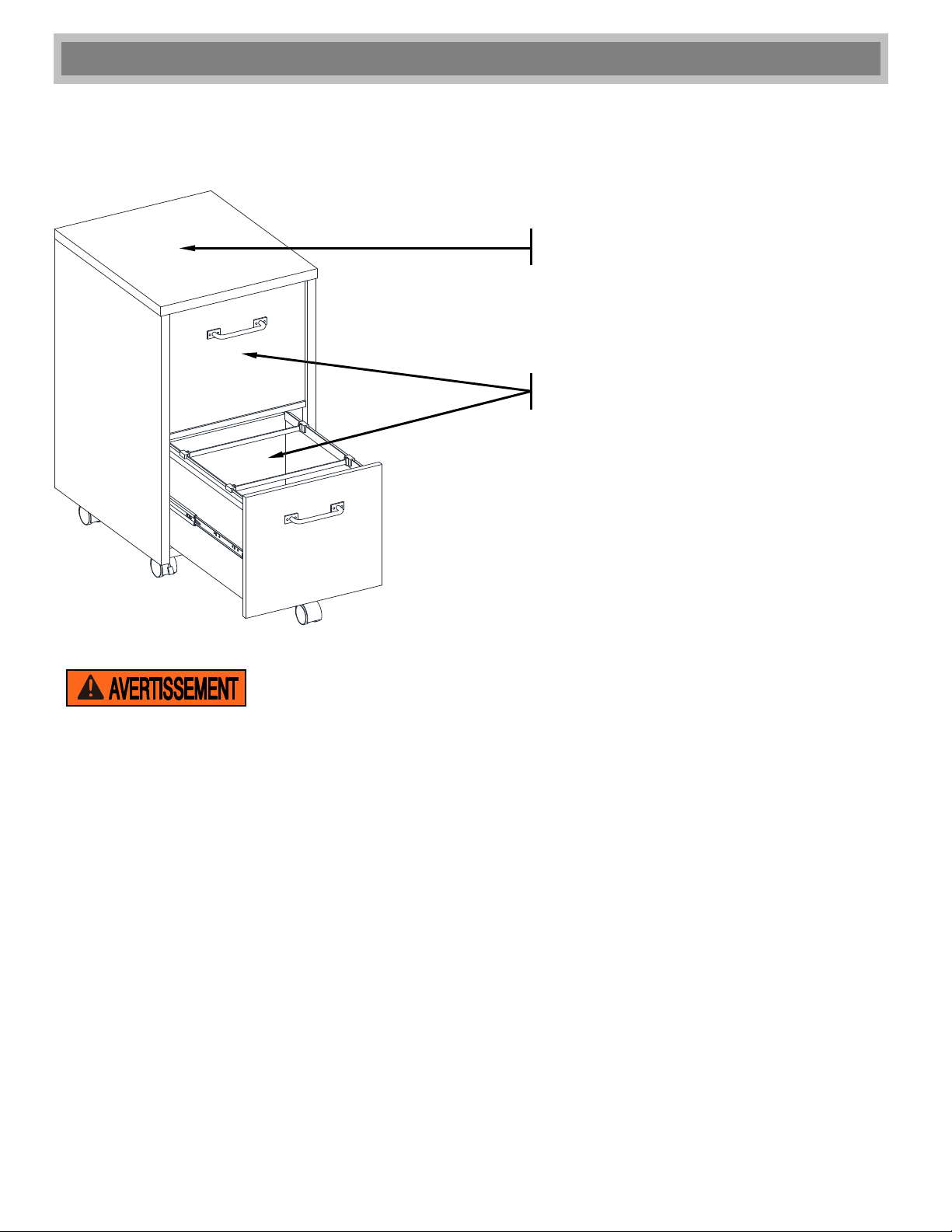

MAXIMUM LOAD 13.6 kg / 30 lb
MAXIMUM LOAD 22.7 kg / 50 lb
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.

3
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
You are now ready to assemble the KD unit.
123

4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B- Left Side Panel (Qty. 1) C- Right Side Panel (Qty. 1)
D- Back Panel (Qty. 1) E-Crossbar (Qty. 1) F- Bottom Front Stretcher (Qty. 1)
G- Bottom Back Stretcher (Qty. 1) H- Upper Drawer Front Panel (Qty. 1 ) I- Lower Drawer Front Panel (Qty. 1)
J- Drawer Back Panel (Qty. 2) K- Drawer Left Side (Qty. 2) L- Drawer Right Side (Qty. 2)
M- Upper Drawer Bottom Panel (Qty. 1) N- Lower Drawer Bottom Panel (Qty. 1) O- Caster Support (Qty. 1)
P- Guide Rail (Qty. 4) Q- Guide Block (Qty. 8) R- File Hanger (Qty. 4)
S- 16” Ball Bearing Slide (Qty. 4) T- Locking Caster (Qty. 2) U- Swivel Caster (Qty. 3)

5
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

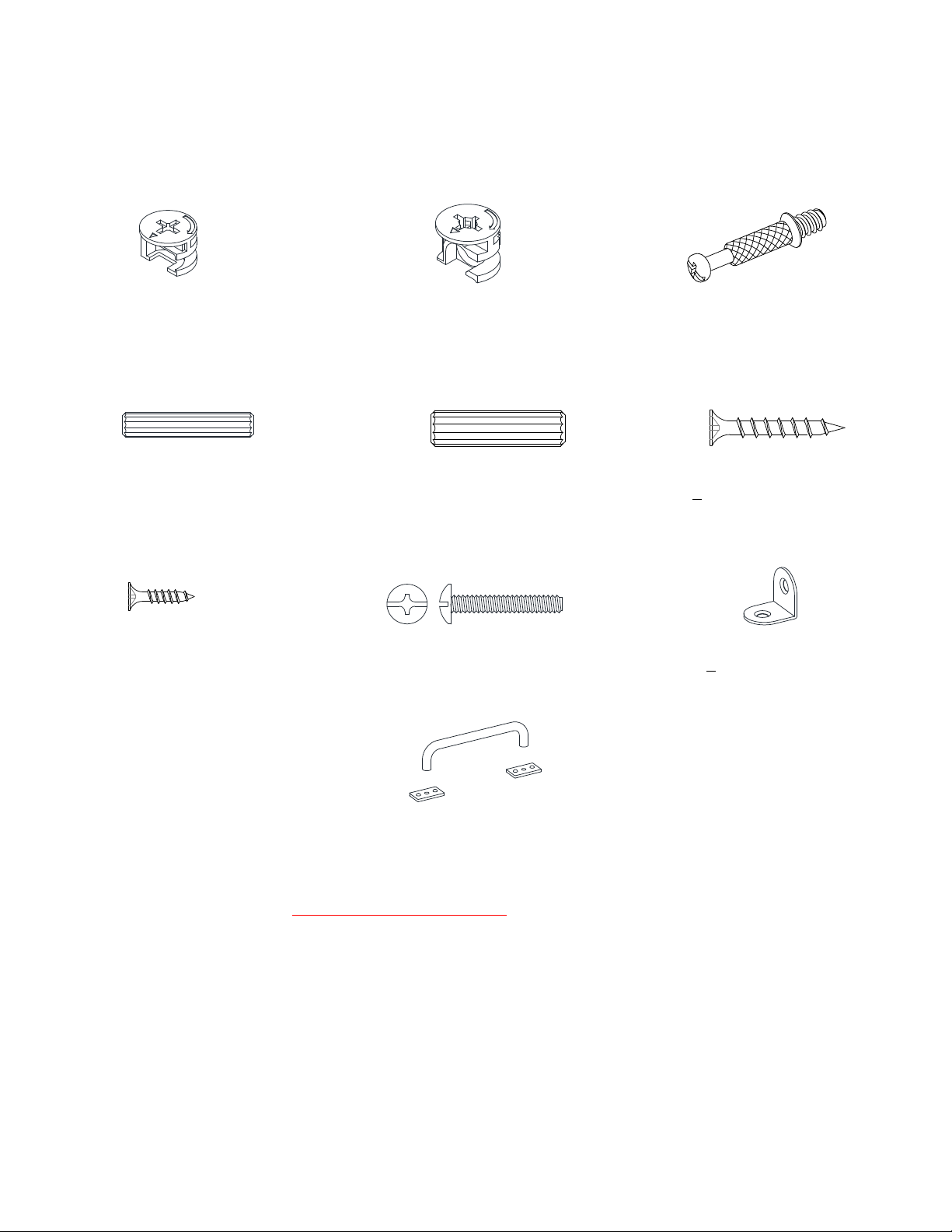

(1) Small Cam Lock (2) Large Cam Lock (3) Cam Bolt
(Qty. 8) (Qty. 22) (Qty. 30)
(4) M6 x 30 mm Small Wood Dowel (5) M8 x 30 mm Large Wood Dowel (6) M4 x 30 mm Screw
(Qty. 16+1 extra) (Qty. 18+1 extra) (Qty. 12+1 extra)
(7) M3.5 x 14 mm Screw (8) M4 x 25mm Handle Bolt (9) Metal Bracket
(Qty. 60+1 extra) (Qty. 4) (Qty. 8)
(10) Handle with Metal Plates
(Qty. 2)
Tools required (not included): Phillips screwdriver.

6

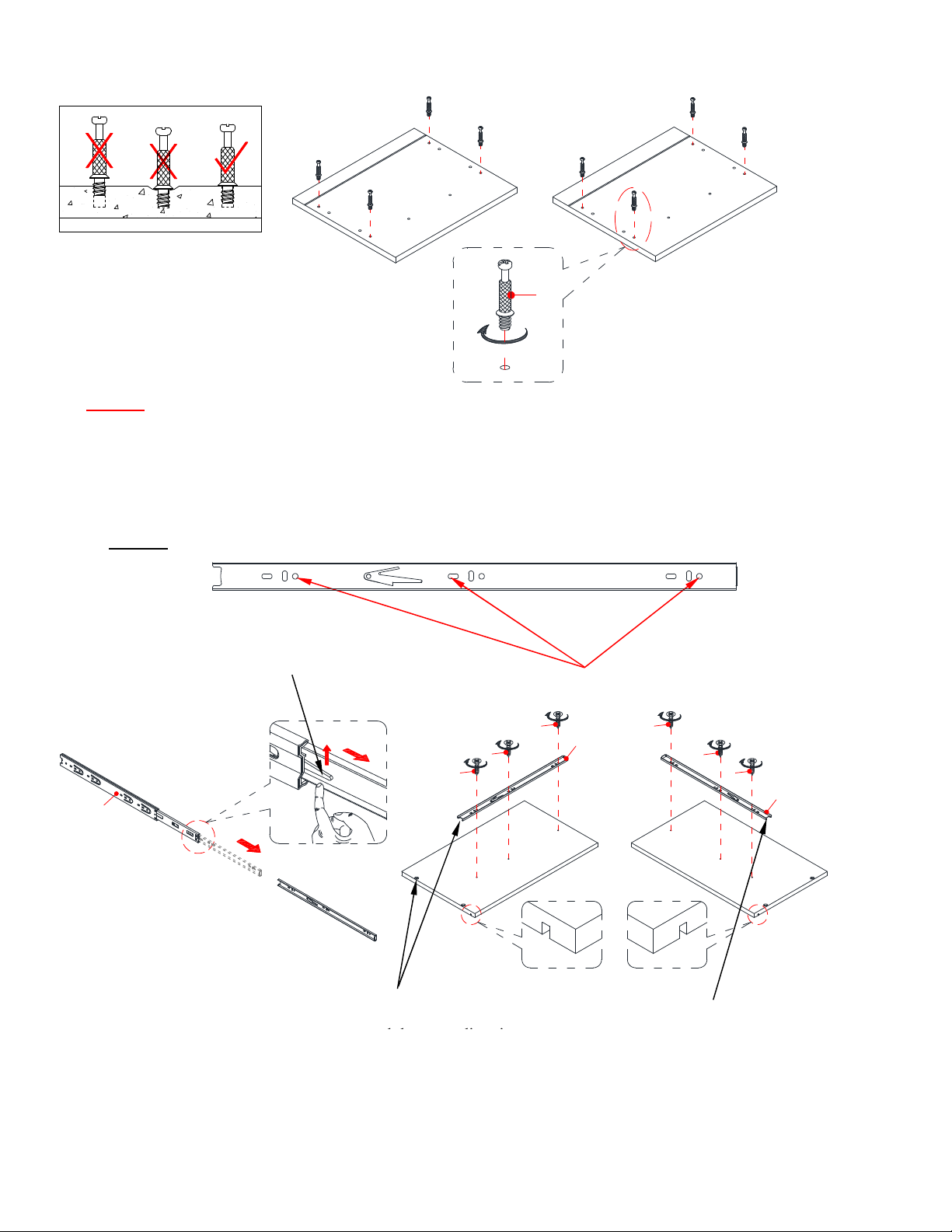

Drawer Assembling
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back
and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (3) into the designated small holes on the Drawer Front Panels (H and I)
using a Phillips screwdriver. DO NOT overtighten the Cam Bolts.
NOTE: Screw-in cam bolts must be screwed down flush.
3. Pick up the Ball Bearing Slides (S) and separate the slide runners for the following step. Extend the slide
runner all the way forward. Press the plastic release lever of the ball bearing slides up and pull the slide
runner complete out.
4. Using the pilot holes as a guide, attach the separated Slide Runners (S) to the Drawer Left and Right
Sides (K and L) respectively with three 14 mm Screws (7) per slide runner.
Mounting holes
S
S
UP
7
7
K
7
7
7
S
7
S
L
x 2
The open end points toward the edge with two
mounting holes running against
toward
the
same d
i
r
ec
tion.
R
elease
l
ev
e
r
H
I
3
Open end

7
Drawer Assembling

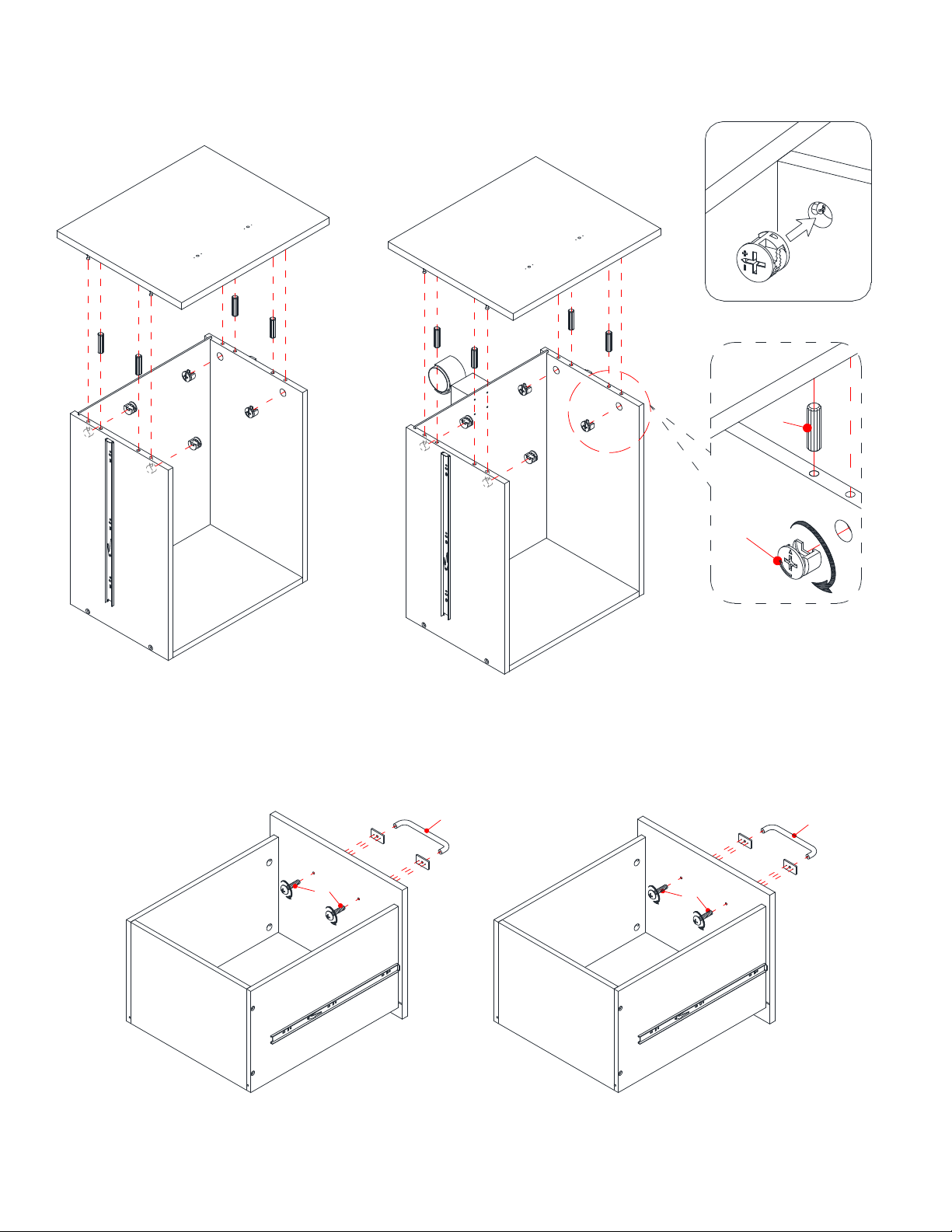

5. Insert the Small Wood Dowels (4) into the inner holes of one Drawer Back Panel (J).
6. Align and attach the Drawer Back Panel (J) between the Drawer Side Panels (K and L) with four 30 mm
Screws (6).
7. Repeat the same procedure to attach the other Drawer Back Panel (J).
8. Attach the Caster Support (O) to the Lower Drawer Bottom Panel (N) with four 30 mm Screws (6).
Grooves line up with each other and face inward.
K
LJ
4
4
x 2
6
6
6
6
N
O
6

8
Drawer Assembling
9. Attach one Swivel Caster (U) to the Caster Support (O) with four 14 mm Screws (7).
10. Slide the Drawer Bottom Panels (M and N) into the grooves between the Drawer Side Panels (K and L)
until fully inserted into the Drawer Back Panels (J).
The caster will face the floor
when the unit is turned upright
MN
K
L
K
L
N
O
U
7

9
Drawer Assembling
11. Insert the Small Wood Dowels (4) into the inner holes of Drawer Side Panels (K and L).
12. Attach the Drawer Front Panels (H and I) to the Drawer Side Panels (K and L) by engaging four Small
Cam Locks (1) per drawer. (Refer to page 3 on Cam Lock system operation supplement).
13. Turn the drawers upright and attach two Handles with Metal Plates (10) to the outside of the Drawer Front
Panels (H and I) with two Handle Bolts (8) per handle.
8
H
I
10
8
10
4
K/L
H/
I
1
H
I
K
L
K
L

10
Drawer Assembling
14. Position the Guide Rails (P) onto the Drawer Sides (K and L) with the high side facing inward.
15. Hook two Guide Blocks (Q) onto the high edge of each Guide Rails (P). Now set the File Hangers (R)
into the slot of Guide Blocks (Q). Slide the file hangers forward and backward to keep hanging files
organized.
16. Using the pilot holes as a guide, attach two separated slide tracks of the Ball Bearing Slide (S) to the Left
Side Panel (B) respectively with three 14 mm Screws (7) per slide track.
17. Repeat the same procedure with the Right Side Panel (C).
R
R
R
Q
Q
Q
K
L
K
L
R
P
P
K/L
P
Q
R
Q
The high side faces inward
S
Mounting holes
7
7
7
7
7
7
7
B
S
S
S
C
7
S
O
pe
n
end
O
pe
n
end

11
Assembly Instructions
18. Securely screw the Cam Bolts (3) into the designated small holes on the Panels (A, B, C and D) using a
Phillips screwdriver.
19. Insert two Large Wood Dowels (5) into the inner holes of Back Panel (D).
20. Align and attach the Bottom Back Stretcher (G) to the Back Panel (D) by engaging two Large Cam
Locks (2).
B
CD
A
3
2
D
G
5
D
G
The pilot holes for casters face outward

12
Assembly Instructions
21. Insert three Large Wood Dowels (5) into the pre-drilled holes of Left Side Panel (B).
22. Align and attach the assembled Back Panel (D) and Bottom Back Stretcher (G) to the Left Side Panel (B)
by engaging four Large Cam Locks (2).
23. Insert one Large Wood Dowel (5) into the inner hole of Left Side Panel (B).
24. Attach the Bottom Front Stretcher (F) to the Left Side Panel (B) by engaging two Large Cam Locks (2).
5
B
D
G
2
B
G
2
B
F
5
F
B
The pilot holes for casters face outward

13
Assembly Instructions
25. Align and attach the Crossbar (E) to the Left Side Panel (B) with one Large Wood Dowel (5) and one
Large Cam Lock (2).
26. Repeat the same process to attach the Right Side Panel (C) at the opposite end.
B
E
2
E
B
5
5
D
C
E
F
G
2
2
G
D
C
The cam lock will face the floor
when the unit is turned upright

14
Assembly Instructions
27. Insert six Large Wood Dowel (5) into the inner hole of Panels (B, C and D).
28. Attach the Top Panel (A) to the Panels by engaging six Large Cam Locks (2).
29. Using the pilot holes as a guide, attach two Locking Casters (T) to the Bottom Front Stretcher (F) and
two Swivel Casters (U) to the Bottom Back Stretcher (G) with four 14 mm Screws (7) per caster.
T
U
F
G
7
7
T
U
5
D
2
A
B
C
B/C/D
A

15
Assembly Instructions

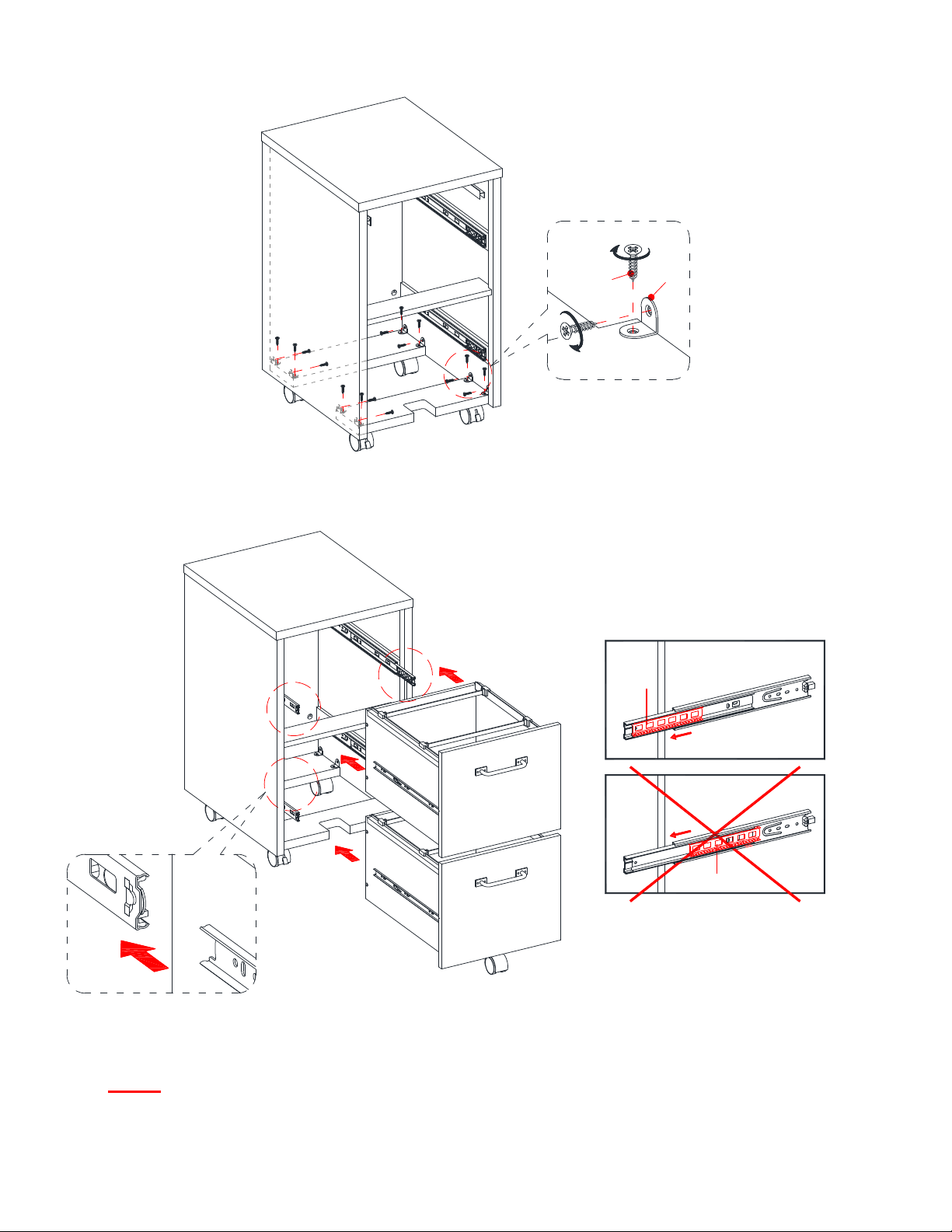

30. Stand the assembled unit upright. With the pilot holes as a guide, attached eight Metal Brackets (9) at the
joints where the Bottom Stretchers (F and G) meet the Side Panels (B and C), using two 14 mm Screws
(7) per bracket.
31. Insert the assembled Lower Drawer with Caster into the lower frame. Extend the Ball Bearing Slide
Tracks on the panels all the way forward (including ball bearing cart). Then align the Slide Runners on
the assembled drawers with the Slide Tracks and push the drawer carefully inside until it stops.
NOTE: If the drawer does not go in smoothly, please take it out and repeat the step. If you need to
remove the drawer, please pull the drawer all the way out, then simultaneously pushes the plastic release
lever of the ball bearing slides up on one side and down on the other side, and then pull it completely out.
32. Repeat the same procedure to insert the assembled Upper Drawer into the upper frame.
D
rawer I
nst
allation
Ball bearing cart
Ball
b
earing ca
rt
FRONT
FRONT
C
B
7
F/G
B/C
9
B
C
F
G

16
Assembly Instructions

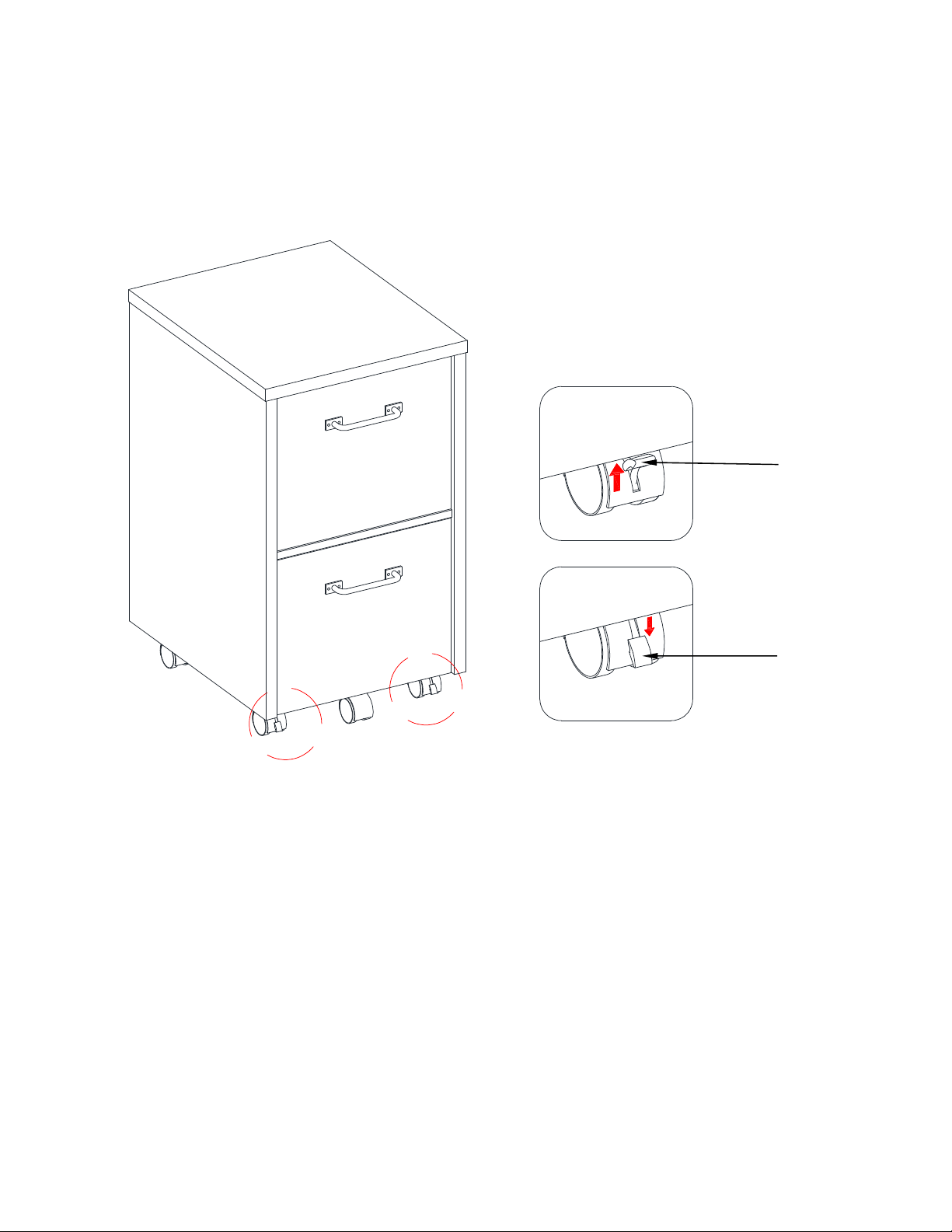

33. To lock or unlock the file cabinet, adjust the brake on the two Locking Casters (T) as shown.
34. The file cabinet is now ready for use.
Unlock
L
ock

17
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage your furniture’s finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity changes
can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from direct
sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace
it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest
expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state or
province to province.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego CA, 92154, USA
Customer Service: 866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com

CE LIVRET CONTIENT D’IMPORTANTES CONSIGNES DE SÉCURITÉ.
LIRE ET CONSERVER POUR RÉFÉRENCE FUTURE.
Date 2021-01-29 Rév. 0001-A
Fichier mobile Dulzura
Modèle no SPUS-DZMF-LBM Marron clair
SPUS-DZMF-DBM Marron foncé
ASSEMBLAGE PAR UN ADULTE REQUIS EN RAISON DES PETITES PIÈCES, DES
BOUTS POINTUS ET DES BORDS TRANCHANTS
Pour toute question sur le montage ou en cas de pièce manquante, NE PAS retourner cet article au point
de vente. Communiquer sans frais avec notre service à la clientèle en ayant en mains les instructions et
la liste des pièces pour indiquer le nom du modèle, le nom de la pièce ou le numéro d’usine :
1-866-942-5362
Heure normale du Pacifique, entre 8 h 30 et 16 h 30, du lundi au vendredi
Vous pouvez également visiter notre site Web 24 heures par jour, 7 jours sur 7 pour obtenir de l’aide sur
le produit www.whalenfurniture.com
ou transmettre une demande par courriel à [e-mail]
NUMÉRO DE LOT :
DATE D’ACHAT : / /

2
FABRICANT: Whalen Furniture Manufacturing
CATALOGUE: Fichier mobile Dulzura
Modèle no SPUS-DZMF-LBM / SPUS-DZMF-DBM
REMARQUE
Veuillez lire toutes les directives avant de procéder au montage. Examinez tout le matériel
d’emballage avant de jeter le carton. Retirez les agrafes de ce dernier avant de le jeter.
Enlevez toutes les pièces du carton et répartissez-les en groupes tel qu’indiqué sur la liste
des pièces. Assurez-vous que toutes les pièces ont été incluses avant de commencer le
montage. L’utilisation d’outils électriques n’est pas recommandée pour le montage.
C H A R G E S M A X I MA L E S R ECO M M A N D É E S
CHARGE MAXIMALE 13,6 kg / 30 lb.
CHARGE MAXIMALE 22,7 kg / 50 lb.
CETTE UNITÉ DOIT ÊTRE UTILISÉE EN RESPECTANT LES POIDS
MAXIMAUX INDIQUÉS. L’UTILISATION DE L’UNITÉ AVEC UNE CHARGE
SUPÉRIEURE AUX POIDS MAXIMAUX INDIQUÉS PEUT CAUSER L’INSTABILITÉ,
VO
IRE MÊME D
ES BLESS
URES
.
