Whalen LLAVC48C User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg., Inc. Page 1 Factory No. 15548
48"TV Console
Model # LLAVC48C
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store
where it was purchased. Please call our toll-free customer service number and have your instructions and parts
list ready to provide the model name, part name or factory number:
1-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday - Friday
ONLINE: www.whalenfurniture.com EMAIL: [e-mail]
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional videos
for assembling and installing your product. Enter the following product number
on the ShowUhow homepage.
LOT NUMBER:
DATE PURCHASED: / /
LLAVC48C

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 2 Factory No. 15548
MANUFACTURER: Whalen Furniture Mfg., Inc.
CATALOG: 48" TV Console (LLAVC48C)
DATE OF MANUFACTURE: November 2012
MADE IN CHINA
How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted slightly,
turn the appropriate screw, as illustrated.
1. TO ADJUST DOOR FORWARD OR BACKWARD.
2. TO ADJUST DOOR TO RIGHT OR TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
MAXIMUM RECOMMENDED WEIGHT LOADS
MAXIMUM LOAD 30 lb. (13.6 kg)
FITS UP TO MOST 54” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH
FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND
WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT
PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN
CENTRE OF UNIT; CRT TVS, IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT
PANEL TVS OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT
LIMITS COULD FALL OFF OR BREAK THE UNIT
,
CAUSING POSSIBLE SERIOUS INJURY.
MAXIMUM LOAD 50 lb. (22.7 kg)

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 3 Factory No. 15548
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE
WIPED OFF WITH A DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet (not included), IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel.
2. Connect both panels together; making sure the Cam Bolt goes into the pre-drilled hole at the end of the
panel with the Cam Lock.
3. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
4. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
5. Plug the Cam Lock Cover into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 4 Factory No. 15548

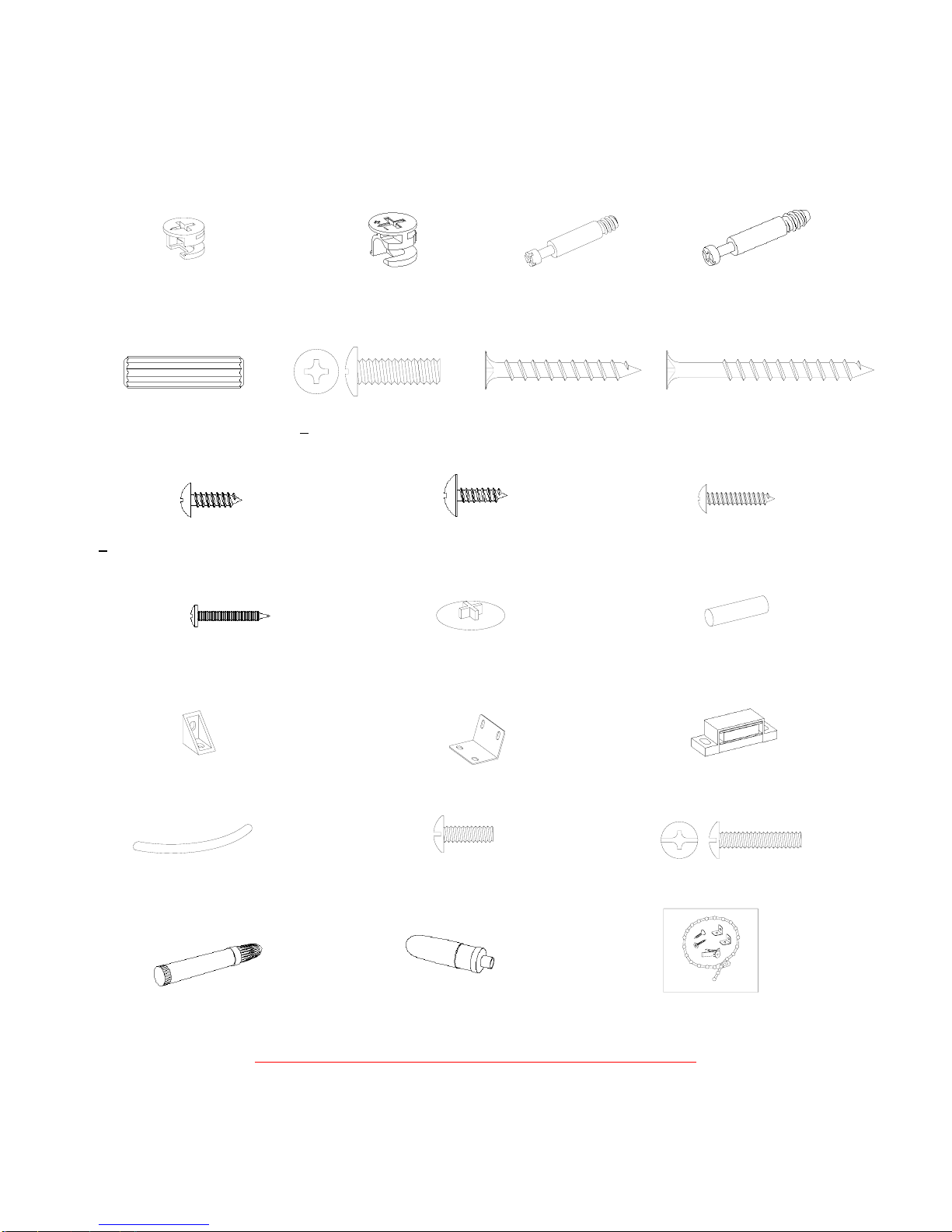

Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present before
beginning assembly.
A- Top Panel (1) B- Left Side Panel (1) C- Right Side Panel (1)
D- Bottom Panel (1) E- Front Crossbar (1) F- Back Crossbar (1)
G- Front Bottom Stretcher (1) H- Back Bottom Stretcher (1) I- Bottom Partition (1)
J- Top Partition (1) K- Left Adjustable Shelf (1) L- Right Adjustable Shelf (1)
M- Left Door (1) N- Right Door (1) O- Back Panel (1)
P- Center Support w/Leveler (1) Q- Left Drawer Front (1) R- Left Drawer Left Side (1) S- Left Drawer Right Side (1)
T- Left Drawer Bottom Panel U- Right Drawer Front V- Right Drawer Left Side W- Right Drawer Right Side
(1) (1) (1) (1)
X- Right Drawer Bottom Panel (1) Y- Drawer Back Panel (2) Z- Cable Wheel (2)

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 5 Factory No. 15548
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present before
beginning assembly.
(1) Small Cam Lock (2) Large Cam Lock (3) Small Cam Bolt (4) Large Cam Bolt
(8+1 extra) (23+1 extra) (8+1 extra) (23+1 extra)
(5) Wood Dowel (6) M6 x 20 mm Bolt (7) M5 x 38 mm Screw (8) M5 x 50 mm Screw
(31+1 extra) (4+1 extra) (8+1 extra) (4+1 extra)
(9) M3.5 x 12 mm Pan Head Screw (10) M4 x 12 mm Pan Head Screw (11) M3 x 16 mm Pan Head Screw
(8+1 extra) (8+1 extra) (4+1 extra)
(12) M3 x 19 mm Ring Shank Nail (13) Cam Lock Cover (14) Shelf Pin
(32+1 extra) (22+1 extra) (8+1 extra)
(15) Plastic Connector (4) (16) Metal Bracket (2) (17) Magnetic Catch (2)
(18) Handle (4) (19) 12 mm Handle Bolt (4) (20) 20 mm Handle Bolt (4)
Touch-up Pen (1) Glue (1) Tipping Restraint Hardware Kit (2)
(Included in plastic bag)
Tools required: Phillips screwdriver and hammer (not provided).

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 6 Factory No. 15548

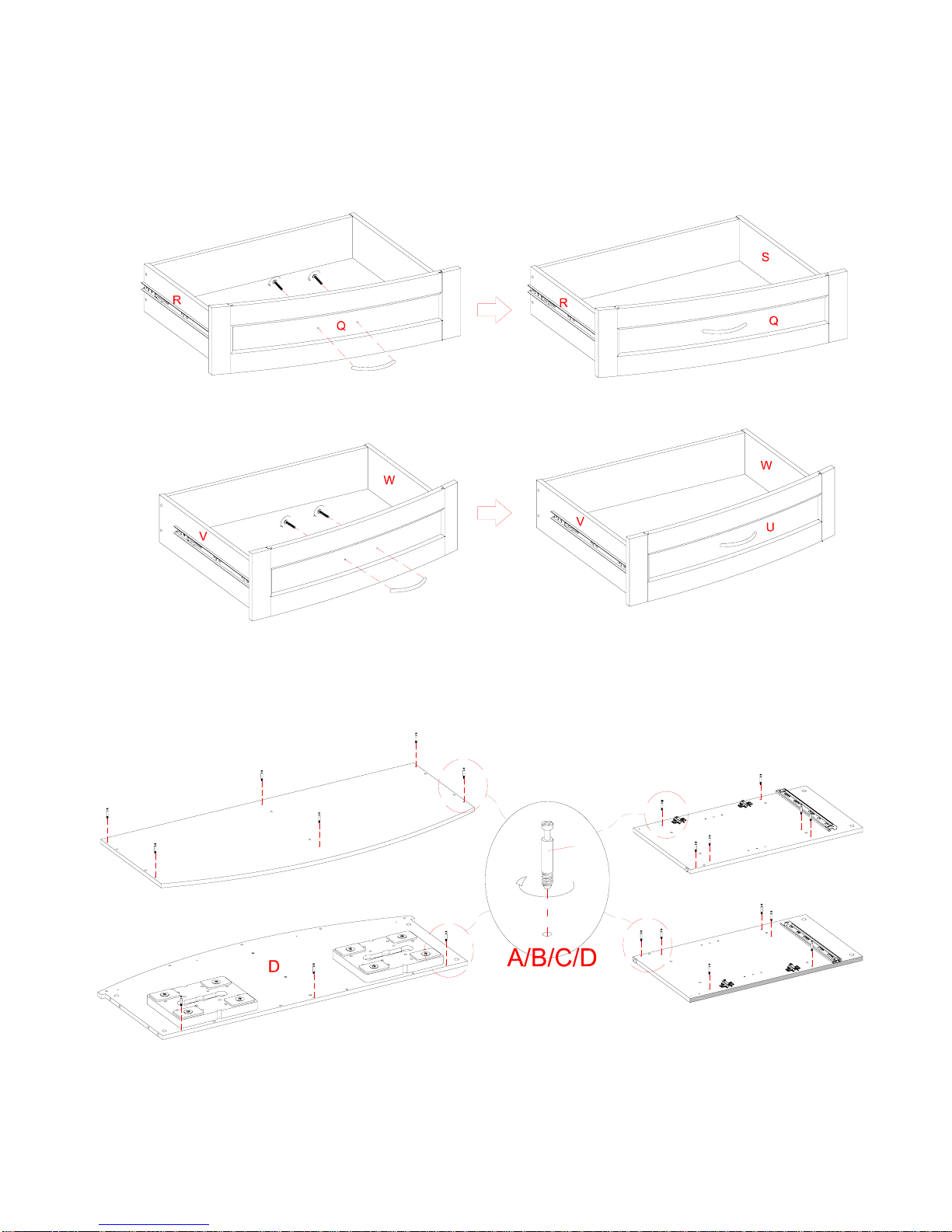

Drawer Assembling
1. Unpack the unit and confirm that you have all the hardware and required parts listed.
2. Place the Left and Right Drawer Fronts (Q and U) on a level and protective surface with the holes
facing up. Securely screw 4 Small Cam Bolts (3) into the pre-drilled small holes on each Drawer Front.
3. Attach the Left Drawer Side Panels (R and S) to the Left Drawer Front (Q) by engaging four Small
Cam Locks (1) (Refer to page 3 on Cam Lock system operation supplement). Make sure the grooves
face inward and line up with each other.
4. Repeat the last step to attach the Right Drawer Side Panels (V and W) to the Right Drawer Front (U).
Q
3
Q/U
U
1
V

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 7 Factory No. 15548
U
Drawer Assembling

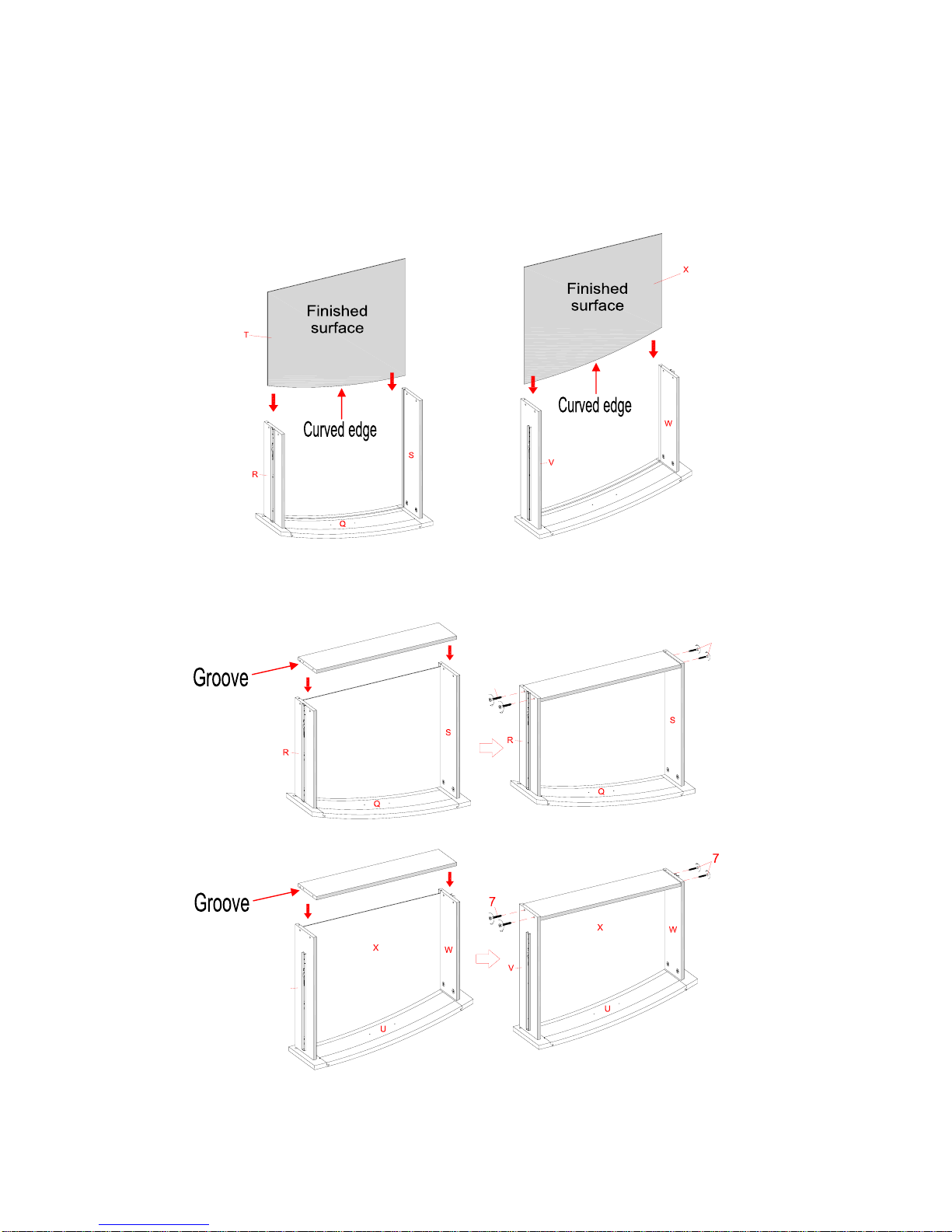

5. Slide the Left Drawer Bottom Panel (T) all the way into the grooves on the Left Drawer Side Panels (R
and S) and the Left Drawer Front (Q) with the finished surface up.
6. Repeat the last step with the Right Drawer Bottom Panel (X).
7. Fasten the Drawer Back Panels (Y) to the assembled units using two M5 x 38 mm Screws (7) per side.
Make sure that the Drawer Bottom Panel fits securely into the groove of the Drawer Back Panel (Y).
Tighten all the screws with a Phillips screwdriver.
T
Y
Y
V
Y
Y
7
7

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 8 Factory No. 15548
Assembly Instructions
8. Attach the Drawer Handles (18) to the outside of the Left and Right Drawer Fronts (Q and U) using two
12 mm Handle Bolts (19) provided.
9. Place the Top Panel (A), the Left and Right Side Panels (B and C) and the Bottom Panel (D) on a level
and protective surface with the holes facing up. Securely screw the Large Cam Bolts (4) all the way into
the designated small holes, as shown in the illustration below. Fully tighten with a Phillips screwdriver.
AB
C
4
S
19
18
U
18
19

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 9 Factory No. 15548
Assembly Instructions

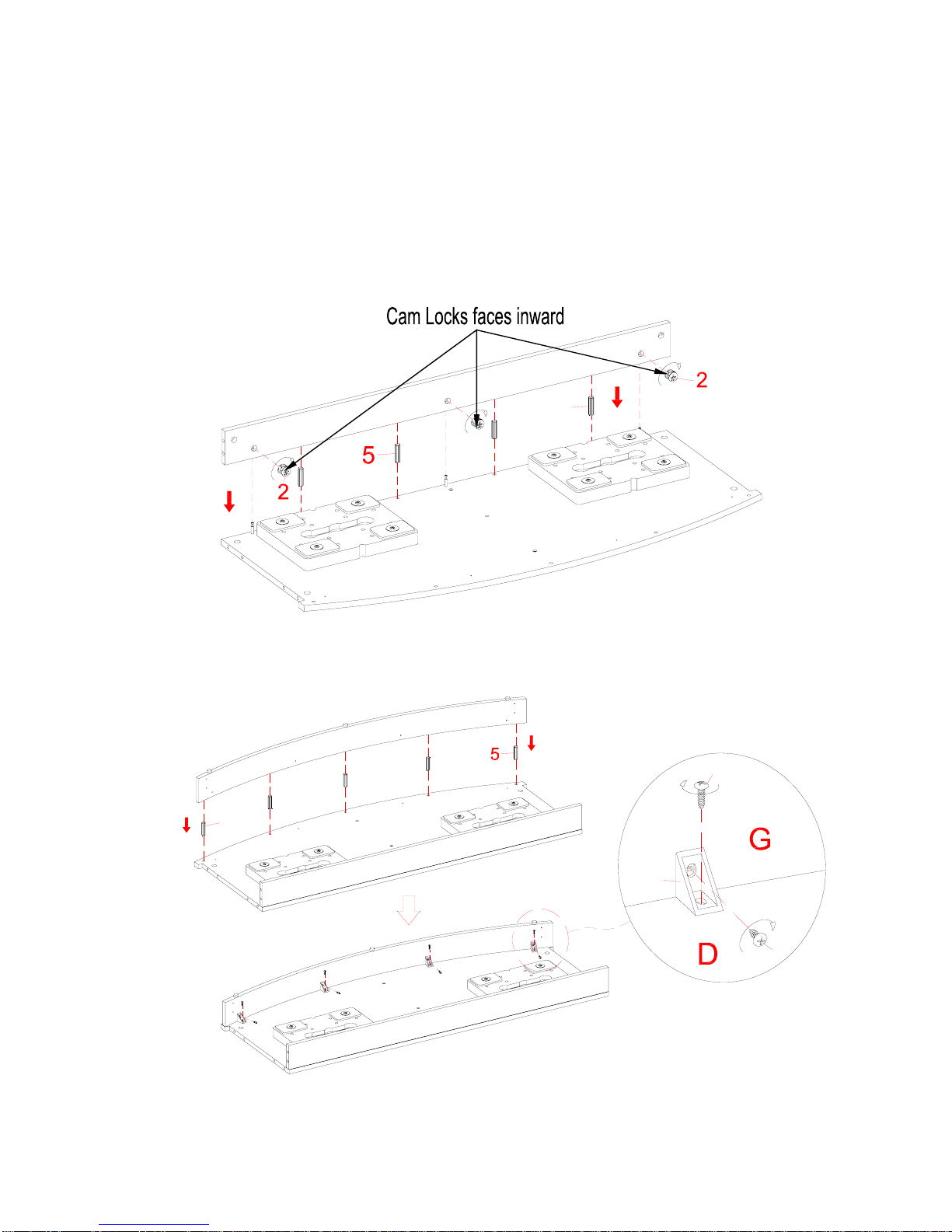

10. Insert four Wood Dowels (5) into the inner end holes of the Back Bottom Stretcher (H). Tap in with a
rubber mallet if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
11. Align the large holes on the Bottom Panel (D) with the inserted Wood Dowels (5) on the Back Bottom
Stretcher (H), and then press them together. Make sure the Cam Lock holes on the Back Bottom
Stretcher (H) will face inward. Secure the Back Bottom Stretcher (H) in place by engaging three Large
Cam Locks (2) (Refer to page 3 on Cam Lock system operation supplement).
12. Insert five Wood Dowels (5) into the end holes of the Front Bottom Stretcher (G) and attach it to the
Bottom Panel (D). Fasten the Front Bottom Stretcher (G) in place by attaching 4 Plastic Connectors (15)
at the joints with two M3.5 x 12 mm Pan Head Screw (9) in each, using the pilot holes as a reference.
5
D
H
15
9
9
H
H
5D
G
D
G

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 10 Factory No. 15548
Assembly Instructions
13. Securely screw one Large Cam Bolt (4) into the middle small hole on the Front Crossbar (E) and Back
Crossbar (F) respectively, as shown in the illustration.
14. Align two Magnetic Catches (17) to the pilot holes on the Front Crossbar (E) with the magnetic plates
facing the curved edge. And then fasten the Magnetic Catches (17) in place using two M3 x 16 mm
Screws (11) per catch.
15. Insert two Wood Dowels (5) into the inner holes on the bottom end of the Top Partition (J).
16. Align the large hole on the Back Crossbar (F) with the Wood Dowel (5) on the back of the Top Partition
(J), and then press them together. Make sure the back edges are even with each other. Screw one M5 x
50 mm Wood Screw (8) through the counter-sunk hole on the Back Crossbar (F) and into the hole on
the Top Partition (J) to secure the Back Crossbar to the Top Partition.
17. Repeat the last procedure to attach the Front Crossbar (E) to the Top Partition (J). Make sure the
Magnetic Catches will face toward the Bottom Partition. Securely tighten the screws with a Phillips
screwdriver.
E
F
411
417
J
E
F
8
85

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 11 Factory No. 15548
Assembly Instructions
18. Insert two Wood Dowels (5) into the inner holes on the top end of the Bottom Partition (I).
19. Align the Wood Dowels on the Bottom Partition (I) with the large holes on the Front Crossbar (E) and
Back Crossbar (F) ensuring the finished edges face front of the unit. Fasten the Bottom Partition (I) in
place by engaging two Large Cam Locks (2).
20. Insert two Wood Dowels (5) into the inner holes on the bottom end of the Bottom Partition (I). Align
and attach the assembled base to the Bottom Partition (I) using two M5 x 50 mm Screws (8), as shown.
Make sure the back edges are even with each other.
E
F
I
5
2
G
I
D
5
8
8

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 12 Factory No. 15548
Assembly Instructions

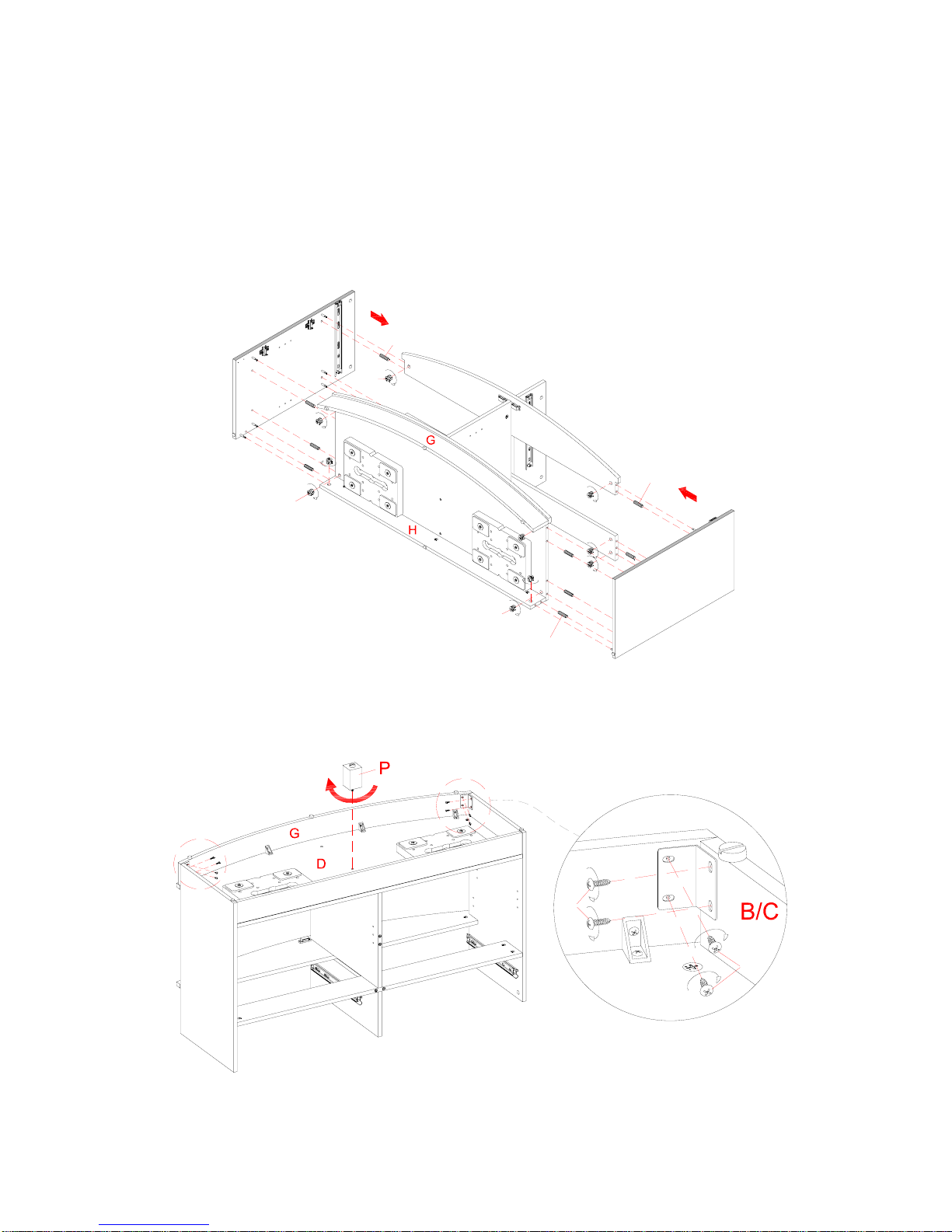

21. Insert ten Wood Dowels (5) into the inner holes on both ends of the last assembly. DO NOT insert the
Wood Dowels into the Cam Bolt holes.
22. Align the large holes on the Left Side Panel (B) with the inserted Wood Dowels (5) on the assembled
unit. Press the Left Side Panel (B) firmly against the assembled unit and securely attach it in place by
engaging 6 Large Cam Locks (2) (Refer to page 3 on Cam Lock system operation supplement).
23. Repeat this procedure to attach the Right Side Panel (C) to the assembled unit.
24. Place the assembled frame upside down with the Bottom Panel (D) facing up.
25. Align and attach two Metal Brackets (16) at the front corners with four M4 x 12 mm Pan Head Screw
(10) in each, using the pilot holes as a reference.
26. Tightly screw the Center Support (P) into the threaded insert on the Bottom Panel (D).
2
D
E
F
B
C
2
2
5
5
5
10
10 16
C
B
G
H

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 13 Factory No. 15548
Assembly Instructions

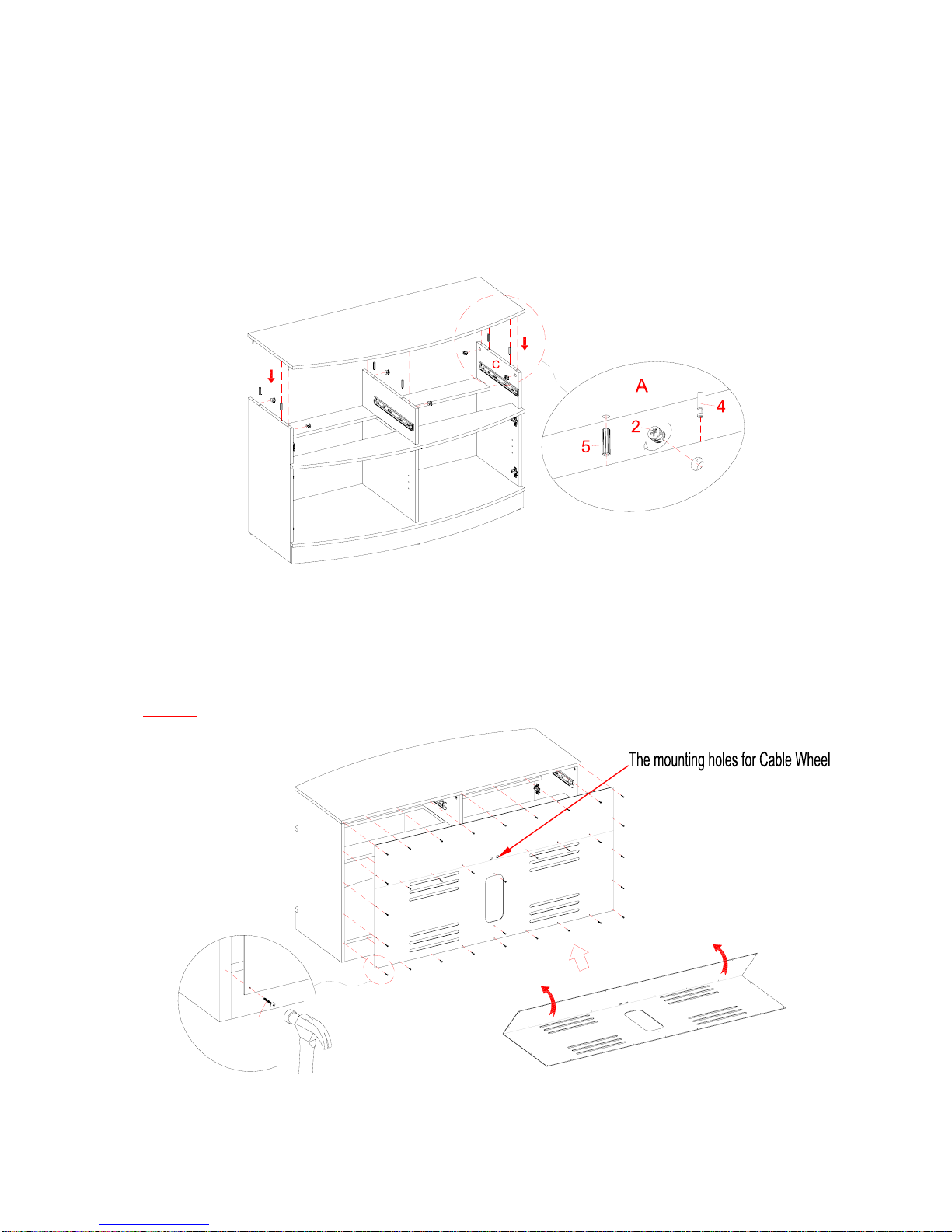

27. Set the assembled unit so it is upright.
28. Insert six Wood Dowels (5) into the inner holes on the top of the Side Panels (B and C) and the Top
Partition (J).
29. Ask for assistance to position Top Panel (A) onto the inserted Wood Dowels (5) making sure the back
edges are flush with each other. Attach the Top Panel (A) in place by engaging six Large Cam Bolts (2).
30. Now go back and securely tighten all Cam Locks and Wood Screws. Make sure all the parts are tight
and there are no gaps between the parts. This will help keep the unit square.
31. Unfold the Back Panel (O) and lay it to the back of the assembled unit. Make sure that the pre-drilled
mounting holes for Cable Wheels (Z) on the Back Panel align with the threaded inserts on back of Back
Crossbar (F) properly and the overlaps on the panels are even all the way around. Gently hammer the
M3 x 19 mm Ring Shank Nails (12) into the pre-drilled small holes on the Back Panel (O).
NOTE: We recommend attaching back panel with the screws at the corners first.
O
12
A
CO
O
B/C/J
B
A
J

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 14 Factory No. 15548
Assembly Instructions

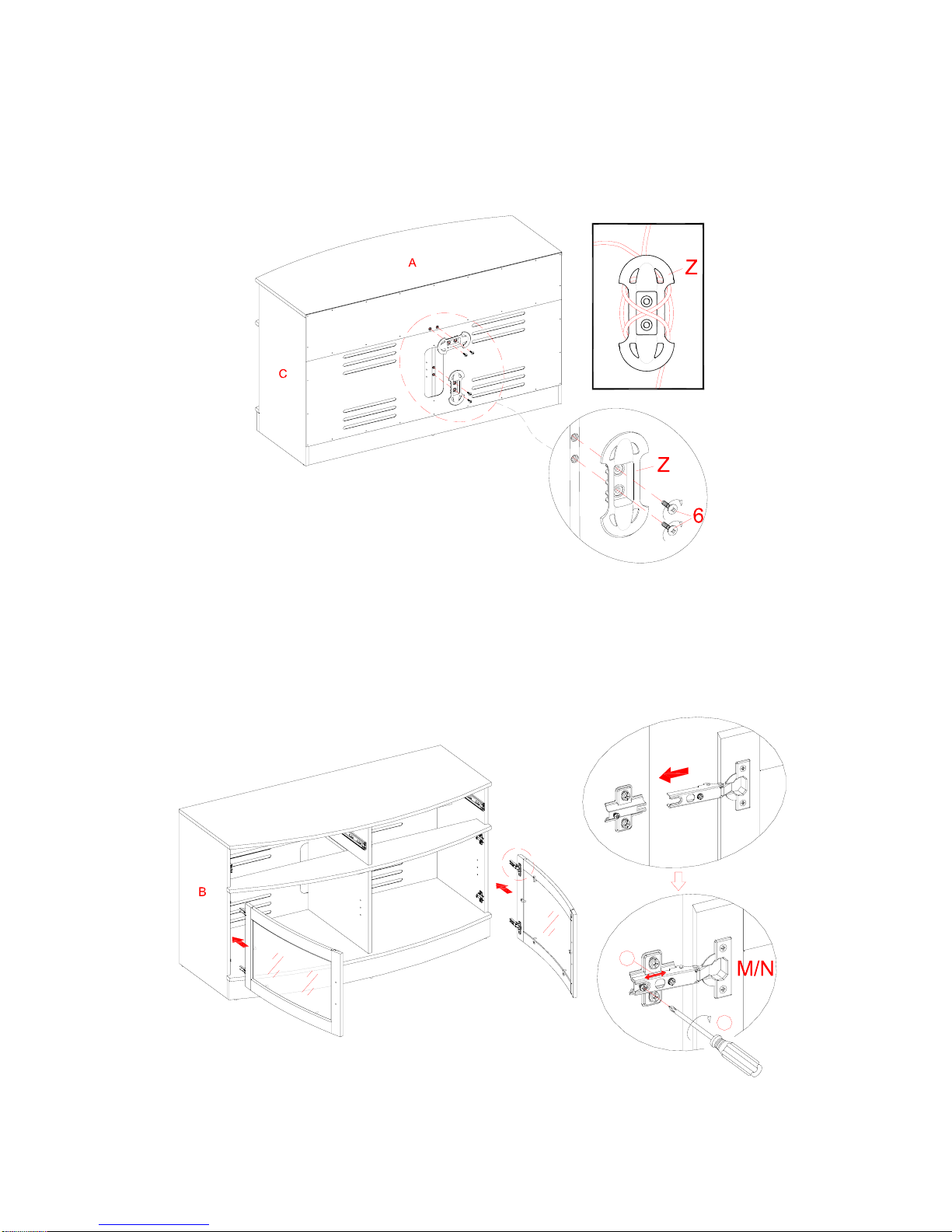

32. Attach 2 Cable Wheels (Z) to the backside of the Console with four M6 x 20 mm Bolts (6) provided.
You can use the Cable Wheels to organize your cables and cords.
33. Extend the two Hinge Arms that are pre-attached on Right Door (N) and attach them to the Hinge Bases
on the Right Side Panel (C). Loosen the bolt on the back of Hinge Base for an easy fit. Align and insert
the “U” slot on Hinge Arm under the bolt head on the back of Hinge Base. Make sure that both door
hinges engage and function properly. Tighten the bolt on the Hinge Base to lock the hinges in place.
34. Repeat the procedure to install the Left Door (M) to the Left Side Panel (B).
35. Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the
screws for a good fit.
O
2
1
C
A
M
N
B/C
M/N
B/C

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 15 Factory No. 15548
Assembly Instructions

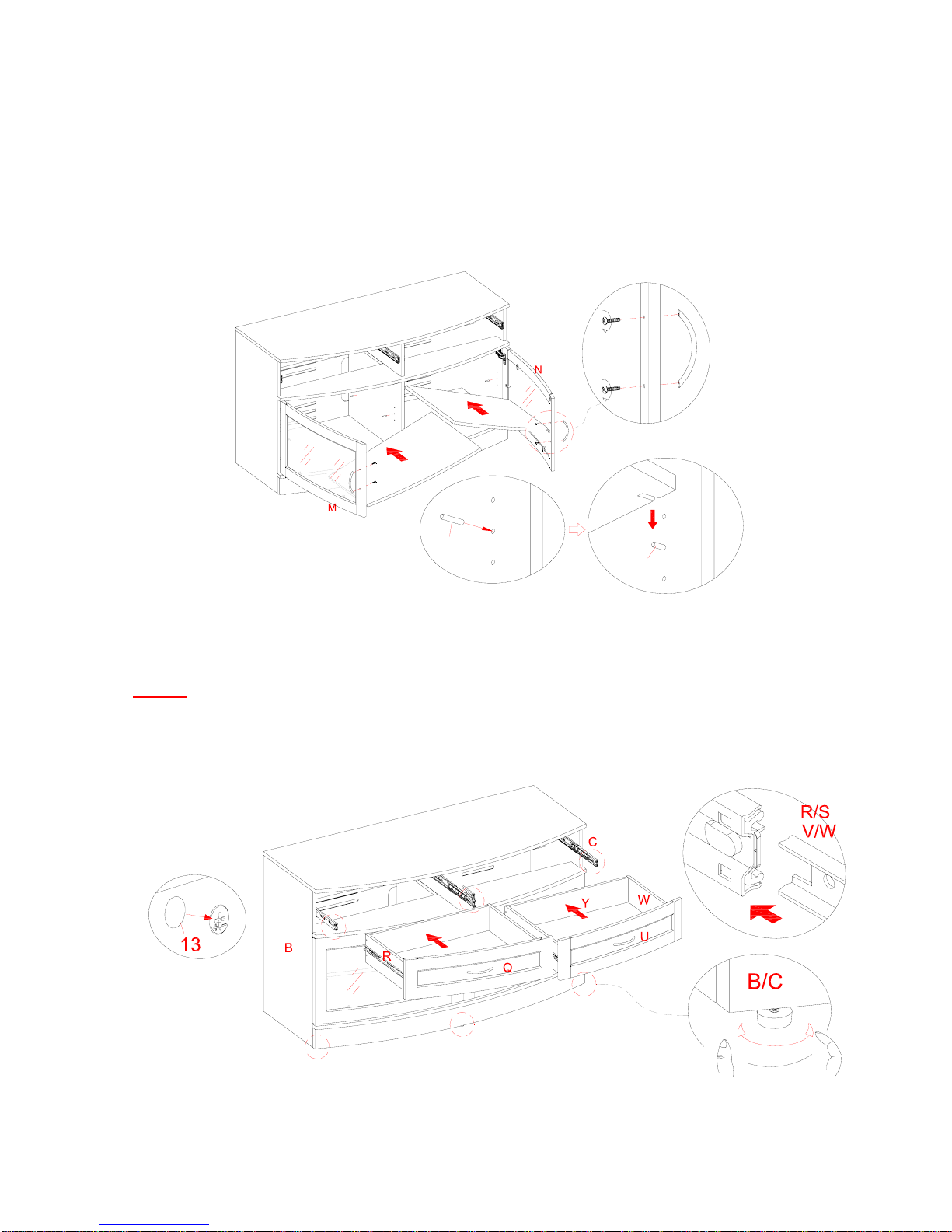

36. Attach one Handle (18) to the front side of each door with the 20 mm Handle Bolt (20) provided.
37. With the doors open, insert four Shelf Pins (14) into the desired holes in the sides of each compartment
behind the glass door. Make sure you place the four Shelf Pins in the same level so the shelf is not tilted.
Tilt and set the Adjustable Shelves (K and L) onto the Shelf Pins (14) making sure the end notches of
Adjustable Shelves fit onto the Shelf Pins properly.
38. Plug Cam Lock Covers (13) onto the visible Cams Locks to conceal the Cams.
39. Insert the assembled drawers into the frame. Extend the Ball Bearing Slide Tracks on the console frame
all the way forward (including ball bearing cart). Then align the Slide Runners on the assembled
drawers with the Slide Tracks, and then push the drawer carefully inside until it stops.
NOTE: If a drawer does not go in smoothly, please take it out and repeat the step. If you need to remove
the drawer, please pull the drawer all the way out, then simultaneously push the plastic release lever of
the ball bearing slides up on one side and down on the other side, and then pull it completely out.
40. If necessary, adjust the pre-attached Floor Levelers at the front bottom of the Side Panels (B and C) to
level the unit.
K
L
A
K/L
14 14
M/N
20 18
A
SV
Y

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 16 Factory No. 15548
Assembly Instructions
41. Position the assembled Console at the desired location against a wall. Now, follow the instructions
printed on the plastic bag containing the Tipping Restraint Hardware to mount the tipping restraint to
the Console and the wall.
NOTE: Young children can be seriously injured by tipping furniture. You must install the Tipping
Restraint Hardware with the unit to prevent any accidents or damage to the unit. The tipping restraint is
intended only as a deterrent, they are not a substitute for proper adult supervision. The tipping restraint
is not an earthquake restraint. If you wish to add the extra security of earthquake restraints, they must be
purchased and installed separately.
42. The Console is now ready for use. Be sure to position your Flat Panel TV in center of the console.
Tools required: Phillips screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet.

Model # LLAVC48C
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 17 Factory No. 15548
Care and Maintenance
zUse a soft, clean cloth that will not scratch the surface when dusting.
zUse of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
zUsing solvents of any kind on your furniture may damage your furniture’s finish.
zNever use water to clean your furniture as it may cause damage to the finish.
zAlways use coasters under beverage glasses and flowerpots.
zLiquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing.
zAlways use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
zStains or marks from crayons or ink markers will be difficult to remove.
zIn the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
zCheck bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or
shipping.
We hope you enjoy your purchase for many years.
Thank you for choosing Whalen Furniture!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials, or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from province to
province (state to state).
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m. PST, Monday to Friday
www.whalenfurniture.com

IF YOU NEED TO ORDER ANY REPLACEMENT PARTS, PLEASE USE THE LIST BELOW
48" TV Console (LLAVC48C)
*LLAVC48C-1-TP Top Panel *LLAVC48C-29-CSL Center Support w/Leveler *
LLAVC48C
-
2
-
BP
Bottom Panel (inculded 2 balance weights)
*
LLAVC48C
-
30
-
BP
Back Panel
LLAVC48C-2-BP
Bottom
Panel
(inculded
2
balance
weights)
LLAVC48C-30-BP
Back
Panel
*LLAVC48C-3-LSP Left Side Panel *LLAVC48C-31-FL Floor Leveler *LLAVC48C-4-RSP Right Side Panel *LLAVC48C-32-SCL Small Cam Lock *LLAVC48C-5-FC Front Crossbar *LLAVC48C-33-LCL Large Cam Lock *LLAVC48C-6-BC Back Crossbar *LLAVC48C-34-SCB Small Cam Bolt *LLAVC48C-7-FBS Front Bottom Stretcher *LLAVC48C-35-LCB Large Cam Bolt *LLAVC48C-8-BBS Back Bottom Stretcher *LLAVC48C-36-WD Wood Dowel *LLAVC48C-9-BP Bottom Partition *LLAVC48C-37-M6x20B M6 x 20 mm Bolt *LLAVC48C-10-TP Top Partition *LLAVC48C-38-M5x38S M5 x 38 mm Screw *LLAVC48C-11-LAS Left Adjustable Shelf *LLAVC48C-39-M5x50S M5 x 50 mm Screw *LLAVC48C-12-RAS Right Adjustable Shelf *LLAVC48C-40-M3x16PHS M3 x 16 mm Pan Head Screw *LLAVC48C-13-LDF Left Door Frame *LLAVC48C-41-M3x19RSN M3 x 19 mm Ring Shank Nail *LLAVC48C-14-RDF Right Door Frame *LLAVC48C-42-CLC Cam Lock Cover *LLAVC48C-15-GDP Glass for Door Panel *LLAVC48C-43-SP Shelf Pin *LLAVC48C-16-DHS Door Hinge w/Screws *LLAVC48C-44-MC Magnetic Catch *LLAVC48C-17-GCS Glass Clip with Screw *LLAVC48C-46-20HB 20 mm Handle Bolt *LLAVC48C-18-DBP Drawer Back Panel *LLAVC48C-47-12HB 12 mm Handle Bolt *LLAVC48C-19-LDF Left Drawer Front *LLAVC48C-48-G Glue *LLAVC48C-20-LDLS Left Drawer Left Side *LLAVC48C-49-TUP Touch-up Pen *LLAVC48C-21-LDRS Left Drawer Right Side *LLAVC48C-50-CW Cable Wheel *LLAVC48C-22-LDBP Left Drawer Bottom Panel *LLAVC48C-51-TRHK Tipping Restraint Hardware Kit *LLAVC48C-23-RDF Right Drawer Front *LLAVC48C-52-PC Plastic Connector *LLAVC48C-24-RDLS Right Drawer Left Side *LLAVC48C-53-MB Metal Bracket *LLAVC48C-25-RDRS Right Drawer Right Side *LLAVC48C-54-M3.5x12PHS M3.5 x 12 mm Pan Head Screw *LLAVC48C-26-RDBP Right Drawer Bottom Panel *LLAVC48C-55-M4x12PHS M4 x 12 mm Pan Head Screw *LLAVC48C-27-H Handle *LLAVC48C-CH Complete Hardware *LLAVC48C-28-DS Drawer Slides
