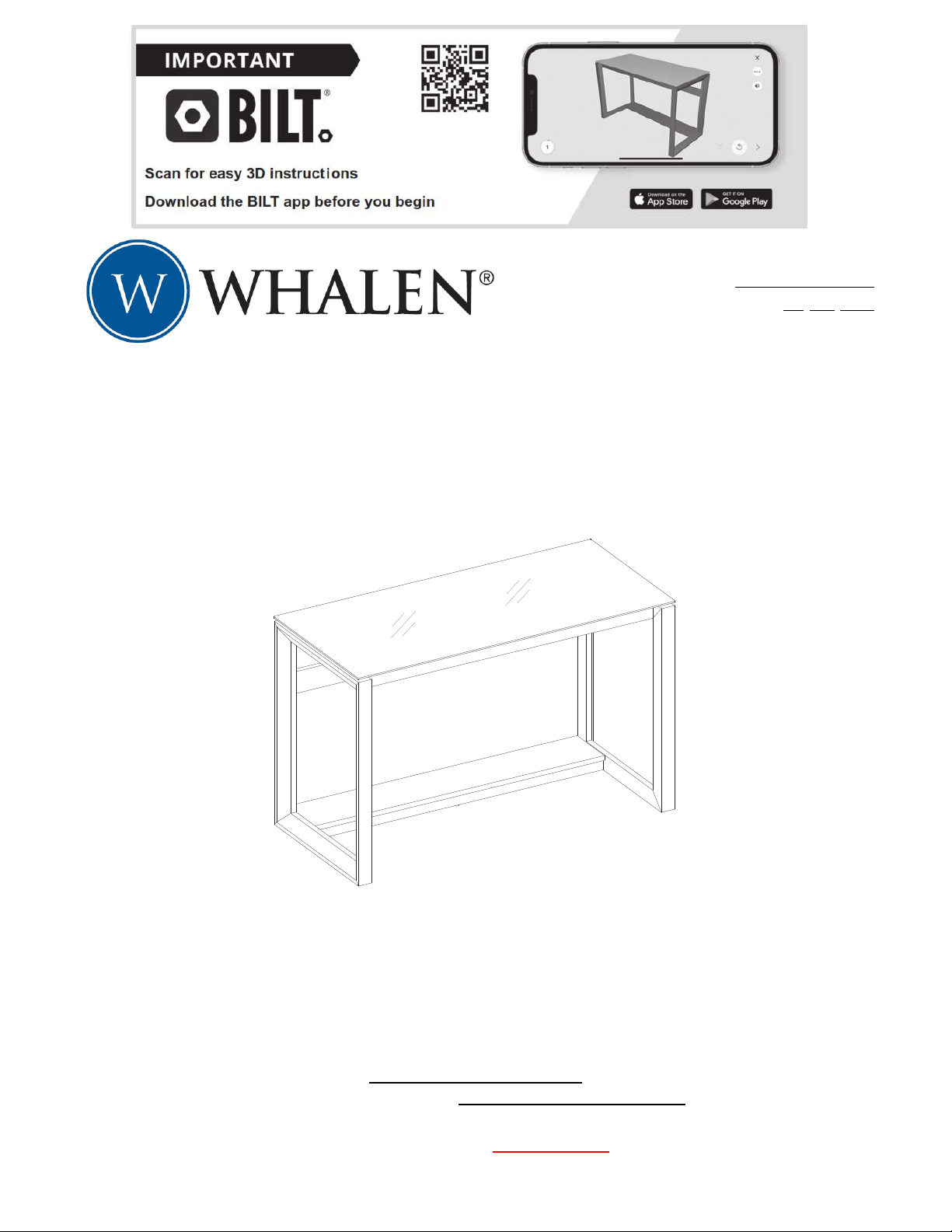

Whalen Cecile ODUS-48CD-B User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2022-05-27 Rev. 0001-C
Ce ile Desk
Model # ODUS-48CD-B
# ODUS-48CD-V
# ODUS-48CD-W
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store
where it was pur hased. Please all our toll-free ustomer servi e number and have your instru tions and parts
list ready to provide the model name, part name or fa tory number:
1-866-942-5362
Pa ifi Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for produ t assistan e at
www.whalenfurniture.c m
Or e-mail your request to p[email protected] m
LOT NUMBER:
DATE PURCH
ASE
D
:
/
/

2
MANUFACTURER: Whalen Furniture Manufa turing
CATALOG: Ce ile Desk
MODEL # ODUS-48CD-B / ODUS-48CD-V / ODUS-48CD-W
SPECIAL NOTE
Please read the instru tion sheets ompletely before assembly. Examine all pa kaging
material before dis arding arton. Remove any remaining staples from the arton before
dis arding. Remove all parts from arton and separate into groups as indi ated on part
list. Please ensure all parts are in luded prior to assembly. Use of power tools to
omplete assembly is not re ommended.
MAXIMUM LOAD 45.4 kg / 100 lb.
M A X I M U M R E C O M M E N D E D W E I G H T L O A D S
MAXIMUM LOAD 22.7 kg / 50 lb.
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.

3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 of this instruction manuals.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
You are now ready to assemble the KD unit.
GLUE
XX
FINAL
1 2 43

4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Glass top B- Left Side Frame C- Right Side Frame
(Qty. 1) (Qty. 1) (Qty. 1)
D- Top Stretcher E- Back Middle Stretcher F- Bottom Shelf
(Qty. 2) (Qty. 1) (Qty. 1)
G- Shelf Support (1) Cam Lock (2) Cam Bolt
(Qty. 2) (Qty. 20+1 extra) (Qty. 20+1 extra)
(3) M8 x 30 mm Wood Dowel (4) 1/4” x 57 mm Bolt (5) Lock Washer
(Qty. 8+1 extra) (Qty. 6+1 extra) (Qty. 6+1 extra)
(6) Flat Washer (7) M4 x 50 mm Screw Glue Hex Wrench
(Qty. 6+1 extra) (Qty. 6+1 extra) (Qty. 1) (Qty. 1)
Tools required: Hex wrench (included) and Phillips screwdriver (not included).

5
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (2) into the designated small holes on the Side Frames (B and C) using a
Phillips screwdriver.
NOTE: Screw-in cam bolts must be screwed down flush.
3. Glue the Wood Dowels (3) into the inner holes of the Bottom Shelf (F) and Shelf Supports (G) as shown.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
C
B
2
3
3
3
3
3
3
F
G
3
3
G

6
Assembly Instructions
4. Attach one Shelf Support (G) to the Bottom Shelf (F) with three 50 mm Screws (7).
5. Repeat the previous step to attach the other Shelf Support (G) to the Bottom Shelf (F).
F
G
7
7
7
F
G
7
7
7
Cam locks face inward
Cam locks face inward

7
Assembly Instructions
`

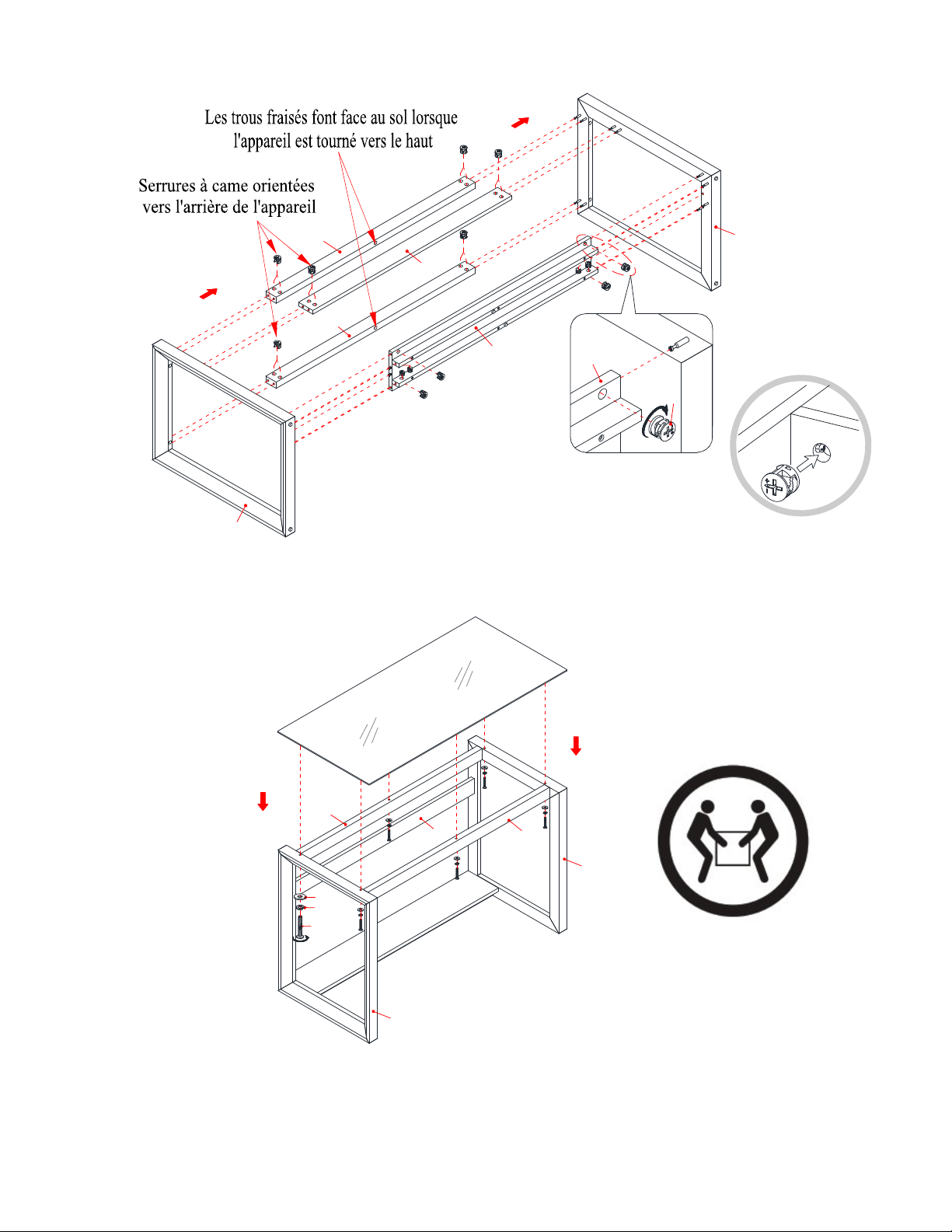

6. Align and attach the Top Stretchers (D), Back Middle Stretcher (E) and bottom shelf assembly between
the Side Frames (B and C) by engaging twenty Cam Locks (1). Make sure that the top surfaces are flush
with each other.
7. Ask for assistance to lift the assembled unit upright and position it near the final location.
8. Place the Glass Top (A) onto the Side Frames (B and C). Make sure that the metal plates underneath the
glass line up with the mounting holes properly. Fasten the Glass Top (A) in place with six 57 mm Bolts
(4) and six Washers (5 and 6).
C
B
F
D
D
E
F
1B
B
C
F
D
E
D
A
6
5
4

8
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage your furniture’s finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from State to State
or province to province.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego, CA 92154, USA
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com

CE LIVRET D’INSTRUCTIONS CONTIENT D’IMPORTANTES CONSIGNES DE SÉCURITÉ.
LIRE ET CONSERVER POUR RÉFÉRENCE FUTURE.
Date 2022-05-27 Rév. 0001-C
B rea Cecile
Modèle n
o
ODUS-48CD-B
n
o
ODUS-48CD-V
n
o
ODUS-48CD-W
ASSEMBLAGE PAR UN ADULTE REQUIS
Po r to te q estion s r le montage o en cas de pièce manq ante, NE PAS reto rner cet article a point de
vente. Comm niq er avec notre n méro sans frais d service à la clientèle en ayant en main les instr ctions et
la liste de pièces po r indiq er le nom d modèle o de la pièce o le n méro d’ sine en composant le :
1-866-942-5362
He re normale d Pacifiq e : entre 8 h 30 et 16 h 30, d l ndi a vendredi
o visiter notre site Web 24 he res par jo r, 7 jo rs s r 7 po r obtenir de l’aide s r le prod it à
www.whalenfurni ure.com
o transmettre ne demande par co rriel à par s@whalenfurni ure.com
NUMÉRO DE LOT :
DATE D’ACHAT : / /

2
FABRICANT : Whalen F rnit re Man fact ring
CATALOGUE : B rea Cecile
MODÈLE N
O
ODUS-48CD-B / ODUS-48CD-V / ODUS-48CD-W
REMARQUE
Ve illez lire to tes les directives avant de procéder a montage. Examinez to t le
matériel d’emballage avant de jeter le carton. Retirez les agrafes de ce dernier avant de le
jeter. Enlevez to tes les pièces d carton et répartissez-les en gro pes tel q ’indiq é s r
la liste des pièces. Ass rez-vo s q e to tes les pièces ont été incl ses avant de
commencer le montage. L’ tilisation d’o tils électriq es n’est pas recommandée po r le
montage.
CHARGE MAXIMALE 45,4 kg / 100 lb.
P O ID S M A X
I M
A L
R E C O M M A N D É
CHARGE MAXIMALE 22,7 kg / 50 lb.
CETTE UNITÉ DOIT ÊTRE UTILISÉE EN RESPECTANT LES POIDS
MAXIMAUX INDIQUÉS. L’UTILISATION DE L’UNITÉ AVEC UNE CHARGE
SUPÉRIEURE AUX POIDS MAXIMAUX INDIQUÉS PEUT CAUSER L’INSTABILITÉ,
VOIR
E
MÊME DES BLESSURES
.
