Whalen CCA4836AC-4 User manual

Date 2017-03-02 Rev. 0001-A Factory: CHYEWO
Accent Cabinet
ITM. / ART. 1119113
Model # CCA4836AC-4
ASSEMBLY INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362 (English, French and Spanish)
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
(In U.S., Canada, and Mexico only)
Or visit our website www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
1. This product is for indoor domestic use only.
2. Please read the Assembly Instructions prior to assembling this product.
3. To avoid damage, assemble the product on a non-abrasive surface such as a carpet surface.
4. Refer to your assembly manual for maximum weight capacities. Load drawers and shelves from the
bottom to the top. Place heavier items in lower drawers and/or shelves. Unload drawers and shelves from
the top to the bottom before moving the furniture.
5. Do not push furniture, especially on carpeted floor. Have someone help you lift the item and place it in its
new location.
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Accent Cabinet (CCA4836AC-4)
MADE IN VIETNAM
MAXIMUM RECOMMENDED WEIGHT LOADS
Please make sure you have all parts before beginning assembly. Please wait until all steps are completed
before tightening bolts. We recommend using two people for assembly.
GENERAL INFORMATION AND TIPS
MAXIMUM LOAD 3.4 kg/7.5 lb
MAXIMUM LOAD 45.3 kg/100 lb
MAXIMUM LOAD 6.8 kg/15 lb
MAXIMUM LOAD 13.6 kg/30 lb
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOADS HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY CAUSING POSSIBLE INJURY.
MAXIMUM LOAD 22.6 kg/50 lb

3
Parts and Hardware List
PART # PART DESCRIPTION PART FIGURE QUANTITY
A Top Section 1
B Bottom Shelf 1
C Leg 4
AA Bolt 12+1 extra
BB Lock Washer 12+1 extra
CC Flat Washer 12+1 extra
Hex-key Wrench 1
Tipping Restraint
Hardware Kit
2 sets
Tools required: Hex-key wrench (included) and Phillips screwdriver (not included).

4
Assembly Instructions
1. Carefully turn the top section (A) at its back edge. Align and attach two legs (C) to the back corner blocks
of the top section (A) with four bolts (AA), four lock washers (BB) and four flat washer (CC).
AABB CC
C
C
A
A
C

5
Assembly Instructions
2. Fit the bottom shelf (B) between the bottom notches of two legs (C) making sure the corner blocks of
bottom shelf will face the floor when the unit is turned upright. Insert two bolts (AA) with the washers
(BB and CC) through the corner blocks of the bottom shelf (B) and screw into the legs (C).
A
B
C
C
AABB CC
B
C

6
Assembly Instructions
3. Repeat the same procedure to attach the remaining two legs (C) to the front corner blocks.
A
B
C
C
C
C
AABBCC
AABBCC C
C
B
A

7
Assembly Instructions
4. Position the cabinet at the desired location against a wall. If necessary, adjust the pre-attached floor
levelers at the bottom of the legs to level the unit.
5. Follow the instructions printed on the plastic bag containing the tipping restraint hardware to attach the
tip-over restraints to the unit and the wall.
NOTE: The tipping restraint hardware included is for drywall construction. It will be necessary to drill
holes for the wall anchors. Depending upon your wall construction, different anchor hardware maybe
required. Please contact your local hardware store for assistance.
6. The cabinet is now ready for use.

8
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights, which vary from state to state
or province to province.
AUSTRALIA: Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
Customer Service: 1-866-942-5362 (English, French and Spanish)
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
(In U.S., Canada, and Mexico only)
www.whalenfurniture.com
MADE IN VIETNAM / FABRIQUÉ AU VIETNAM / HECHO EN VIETNAM

Date 2017-03-02 Rév. 0001-A Usine : CHYEWO
Meuble d'appoint
ITM. / ART. 1119113
Modèle n
o
CCA4836AC-4

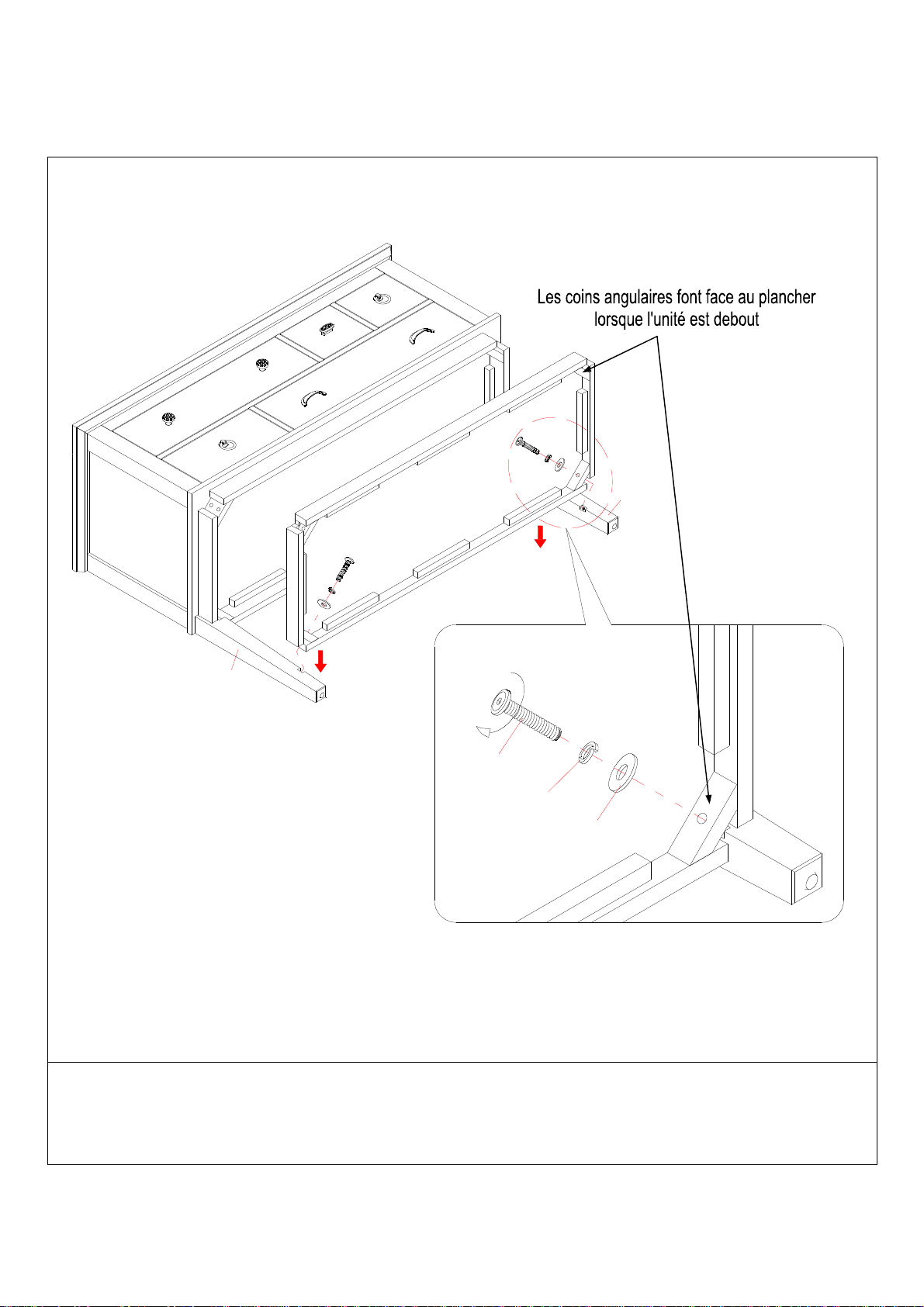

INSTRUCTIONS DE MONTAGE
IMPORTANT, CONSERVER POUR RÉFÉRENCE
FUTURE : LIRE ATTENTIVEMENT
Pour toute question sur le montage ou en cas de pièce manquante, NE PAS retourner cet article au
point de vente. Veuillez composer notre numéro sans frais et avoir à la portée de la main la liste de
pièces pour pouvoir fournir le nom du modèle, le nom de la pièce et le numéro de l'usine :
1-866-942-5362 (anglais, français et espagnol)
Heure normale du Pacifique, entre 8 h 30 et 16 h 30, du lundi au vendredi
(aux États-Unis, au Canada et au Mexique seulement)
Ou visitez notre site Web www.whalenfurniture.com
Ou envoyez votre demande par courriel à [e-mail]
NUMÉRO DE LOT :
DATE D'ACHAT : / /

2
1. Ce produit est conçu pour un usage domestique à l'intérieur seulement.
2. Veuillez lire les instructions de montage avant de commencer à assembler l'unité.
3. Pour éviter d'endommager le produit, assemblez-le sur une surface non abrasive, comme sur un tapis.
4. Reportez-vous au manuel de montage pour connaître les poids maximaux. Chargez les tiroirs et les tablettes
de bas en haut. Placez les articles plus lourds dans les tiroirs et/ou les tablettes du bas. Déchargez les tiroirs et
les tablettes de haut en bas avant de déplacer le meuble.
5. Ne poussez pas le meuble, tout particulièrement sur un plancher couvert de tapis. Demandez à une autre
personne de vous aider à soulever l'article et à le mettre à sa nouvelle position.
FABRICANT : Whalen Furniture Manufacturing
CATALOGUE : Meuble d’appoint (CCA4836AC-4)
FABRIQUÉ AU VIETNAM
POIDS MAXIMAL RECOMMANDÉ
Avant de commencer le montage, assurez-vous que vous disposez de toutes les pièces. Attendez d'avoir
terminé toutes les étapes avant de serrer les boulons. Nous recommandons que deux personnes soient
présentes pour effectuer le montage.
INFORMATION GÉNÉRALE ET ASTUCES
CETTE UNITÉ DOIT ÊTRE UTILISÉE UNIQUEMENT AVEC LES
POIDS MAXIMAUX INDIQUÉS. L'UTILISATION AVEC DES PRODUITS PLUS LOURDS
QUE LES POIDS MAXIMAUX INDIQUÉS PEUT RENDRE L'UNITÉ INSTABLE ET
CAUSER DES BLESSURES.
CHARGE MAXIMALE 3,4 kg/7,5 lb
CHARGE MAXIMALE 45,3 kg/100 lb
CHARGE MAXIMALE 6,8 kg/15 lb
CHARGE MAXIMALE 13,6 kg/30 lb
CHARGE MAXIMALE 22,6 kg/50 lb
