Whalen 3-in-1 TV Stand User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Manufacturing Page 1 Factory No. 10944
Date 2014-10-09 Rev. 1 Factory: FOCIDI
3-in-1TM TV Stand
Model # XLXEC54-CC
U.S. Patent 8,561,551

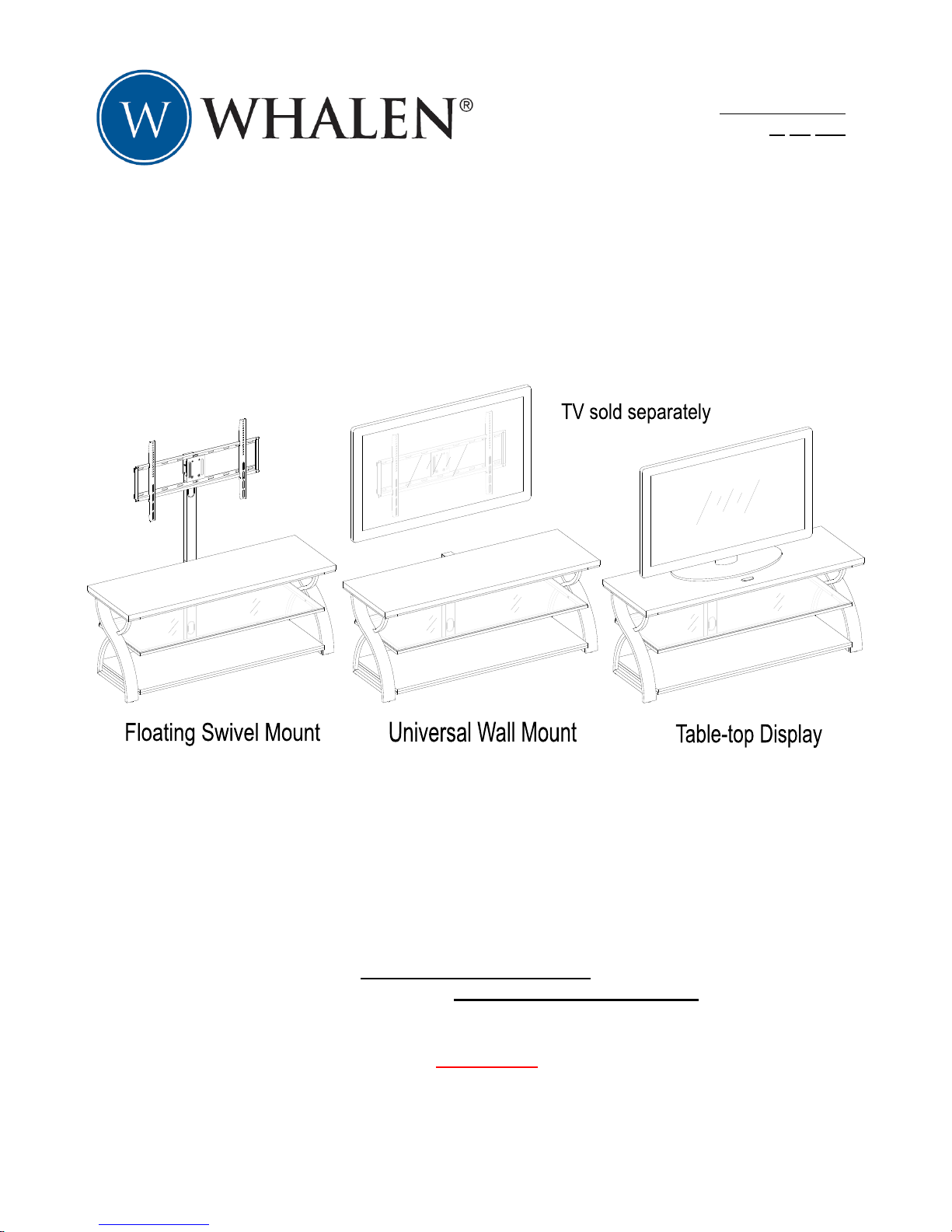

This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your chosen option.
This will allow you to use this TV stand in different configurations at a later date, if desired.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our toll-free customer service number and have
your instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /
TV
TV

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 2 Factory No. 10944
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 3-in-1TM TV Stand (XLXEC54-CC)
DATE OF MANUFACTURE: October 2014
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from the box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before fully tightening Bolts.
7. Make sure all Bolts are tightly fastened before the unit is used.

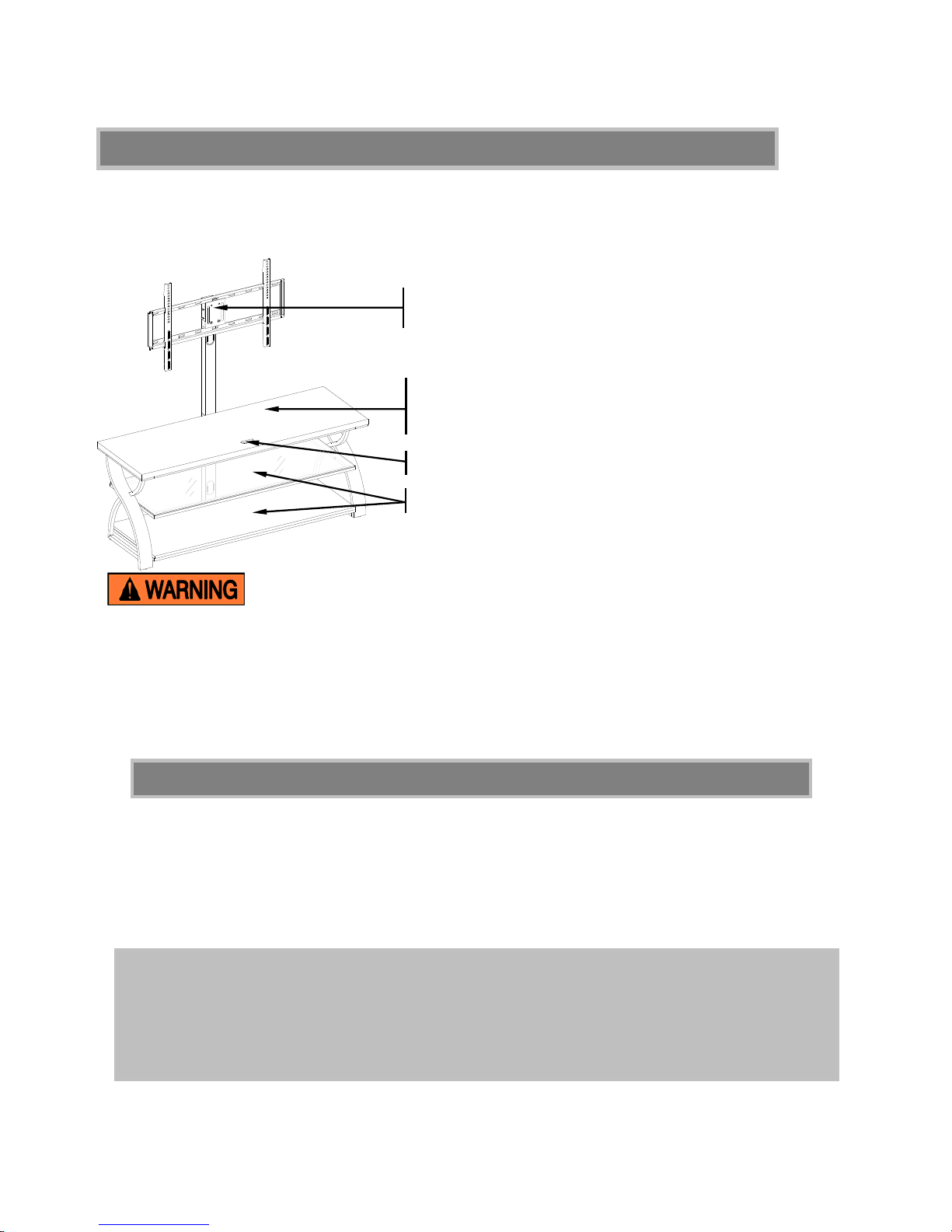

MAXIMUM RECOMMENDED WEIGHT LOADS
FITS UP TO MOST 65” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
FITS UP TO MOST 65” FLAT PANEL TVs
WITHOUT SWIVELING BRACKET
MAXIMUM LOAD 135 lb. (61.2 kg)
MAXIMUM LOAD 50 lb. (22.6 kg)
GENERAL INFORMATION
,
TIPS and TRICKS
This product is sold with one set of Tipping Restraint Hardware Kit. You must install the
Tipping Restraint Hardware between the wall and the TV console to prevent any accidents or
damages. When properly installed, this restraint can provide protection against the
unexpected tipping of the unit due to small tremors, bumps or climbing. The restraint is only a
deterrent and is not a substitute for proper adult supervision. Use of tip-over restraints may
only reduce, but not eliminate, the risk of tip-over.
PLACE TV BEHIND THE STOPPER
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY
WITH FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE
AND WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT
PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE
CENTRE OF THE UNIT; THE BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE
SUPPORTING SURFACE OF THE UNIT WITHOUT OVER-HANGING THE EDGES.
IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS OR OTHER
EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL OFF
OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 3 Factory No. 10944

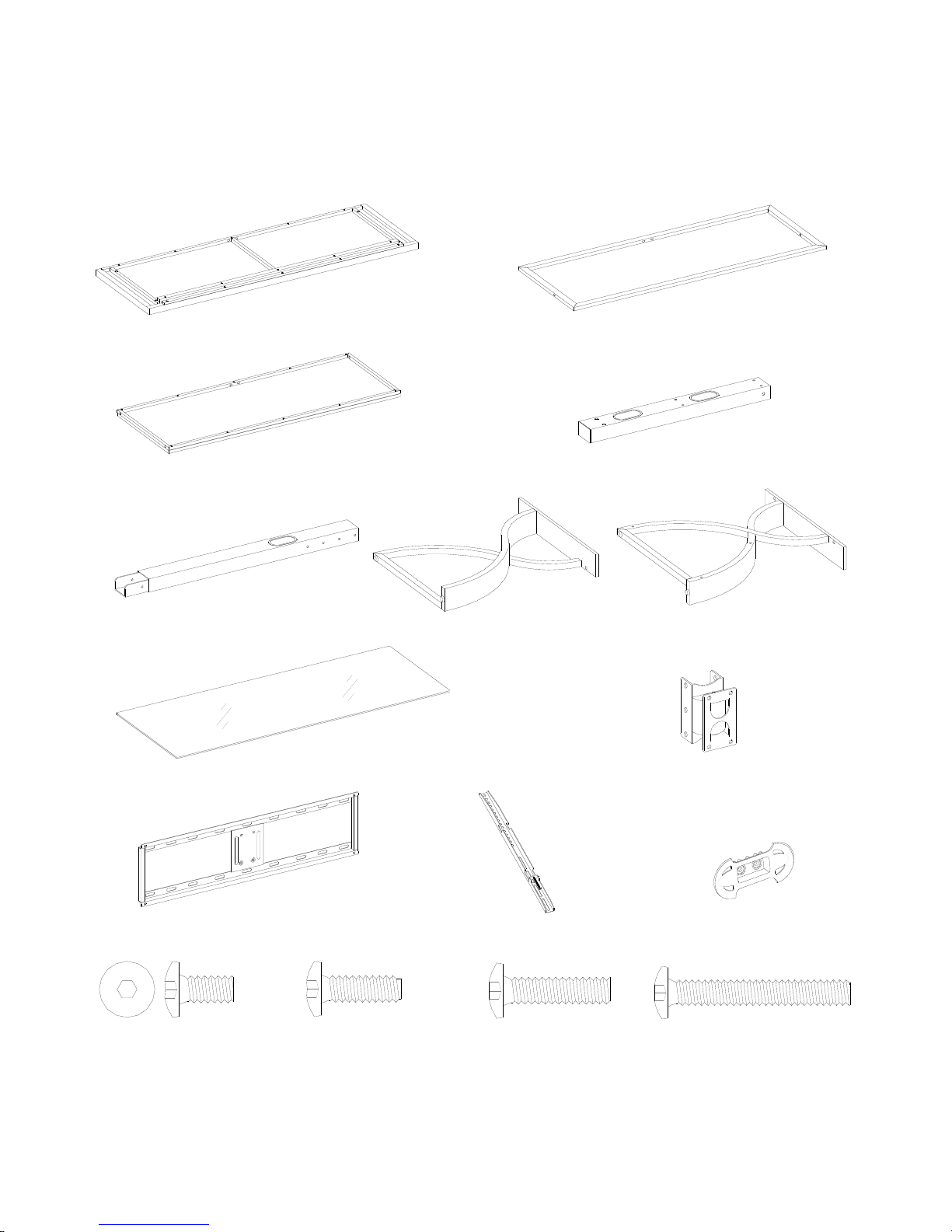

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware
are present before beginning assembly.
A-Top Panel w/Metal Frame (1) B- Middle Shelf Frame (1)
C- Bottom Shelf w/Metal Frame (1) D- Lower Spine (1)
E- Upper Spine (1) F- Left Leg (1) G- Right Leg (1)
H- Middle Glass Shelf (1) I- Swiveling Bracket (1)
J- Mounting Frame (1) K- Monitor Bracket (2) L- Cable Wheel (2)
(1) 1/2” Bolt (2) 3/4” Bolt (3) 1” Bolt (4) 1-3/4” Bolt
(4+1 extra) (14+1 extra) (12+1 extra) (4+1 extra)

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 4 Factory No. 10944
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.

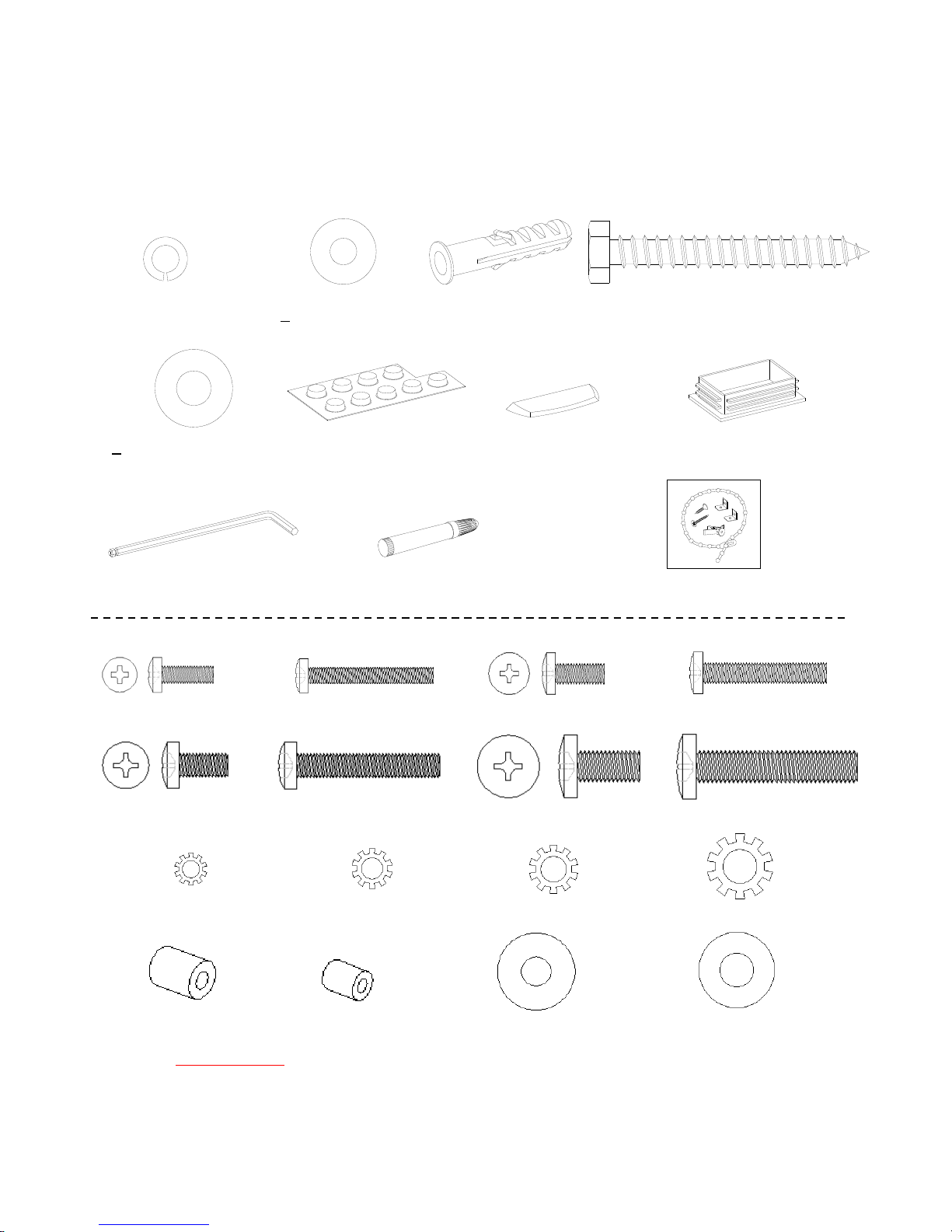

(5) Lock Washer (6) Flat Washer (7) Concrete Anchor (8) 2-1/2” Lag Bolt
(18+1 extra) (18+1 extra) (4) (4)
(9) Large Flat Washer (10) Glass Bumper (11) Acrylic Stopper (12) Plastic End Cap
(4+1 extra) (8+1 extra) (1) (1)
4 mm Allen Wrench Touch-up Pen Tipping Restraint Hardware Kit (1)
(2) (1) (Inside Plastic Bag)

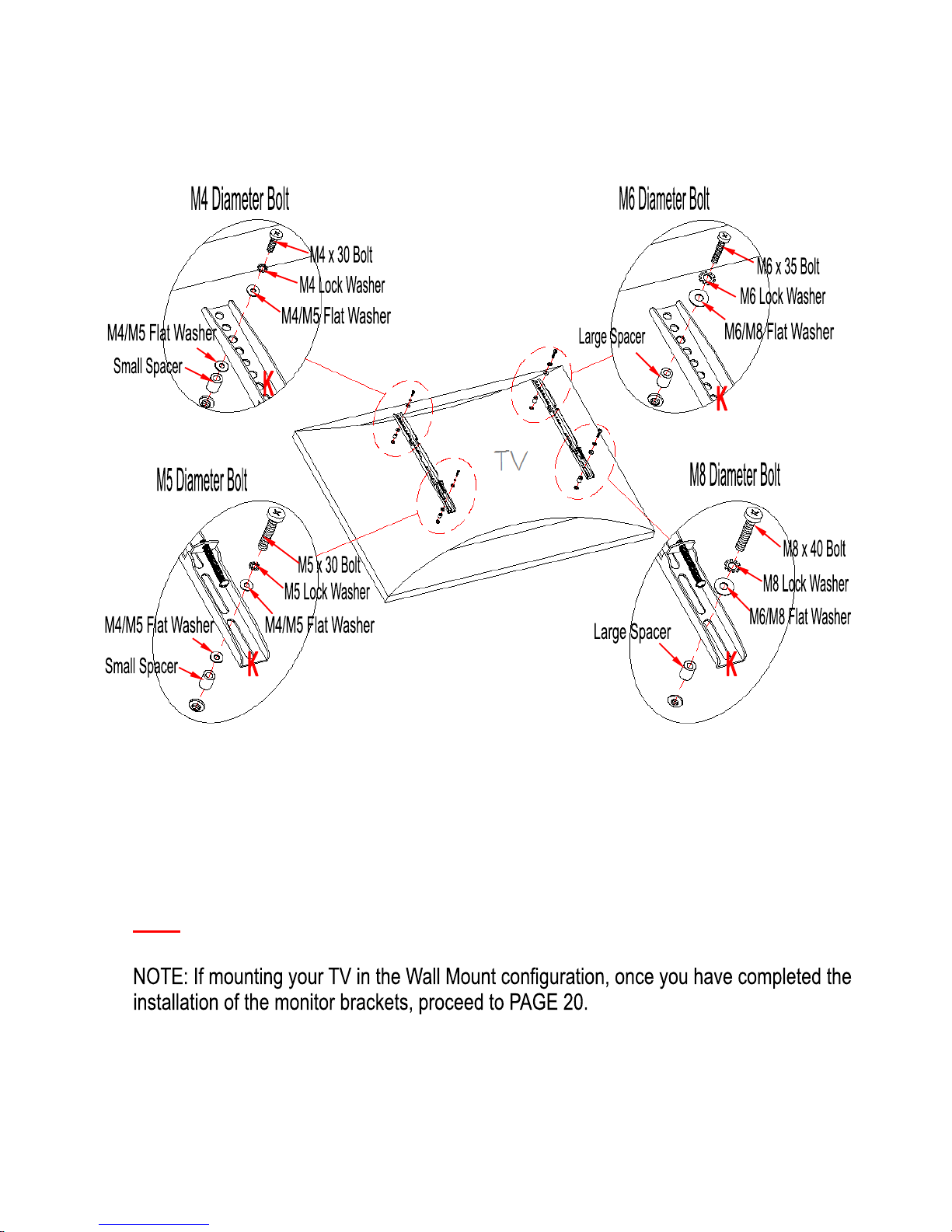

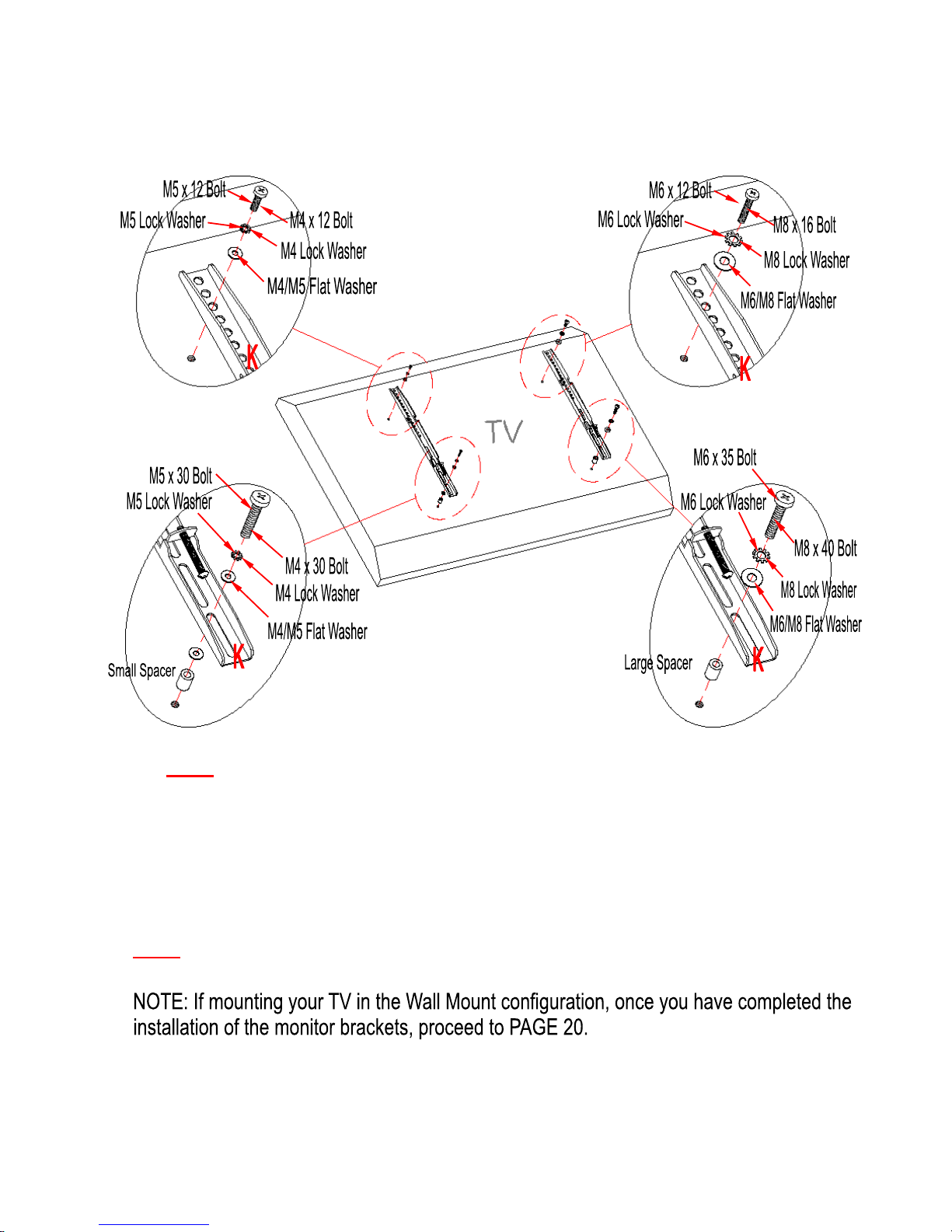

TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 x 12 Bolt (4) M5 x 30 Bolt (4)
M6 x 12 Bolt (4) M6 x 35 Bolt (4) M8 x 16 Bolt (4) M8 x 40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools required: Allen wrench (provided) and Phillips screwdriver (not provided).

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 5 Factory No. 10944
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts.

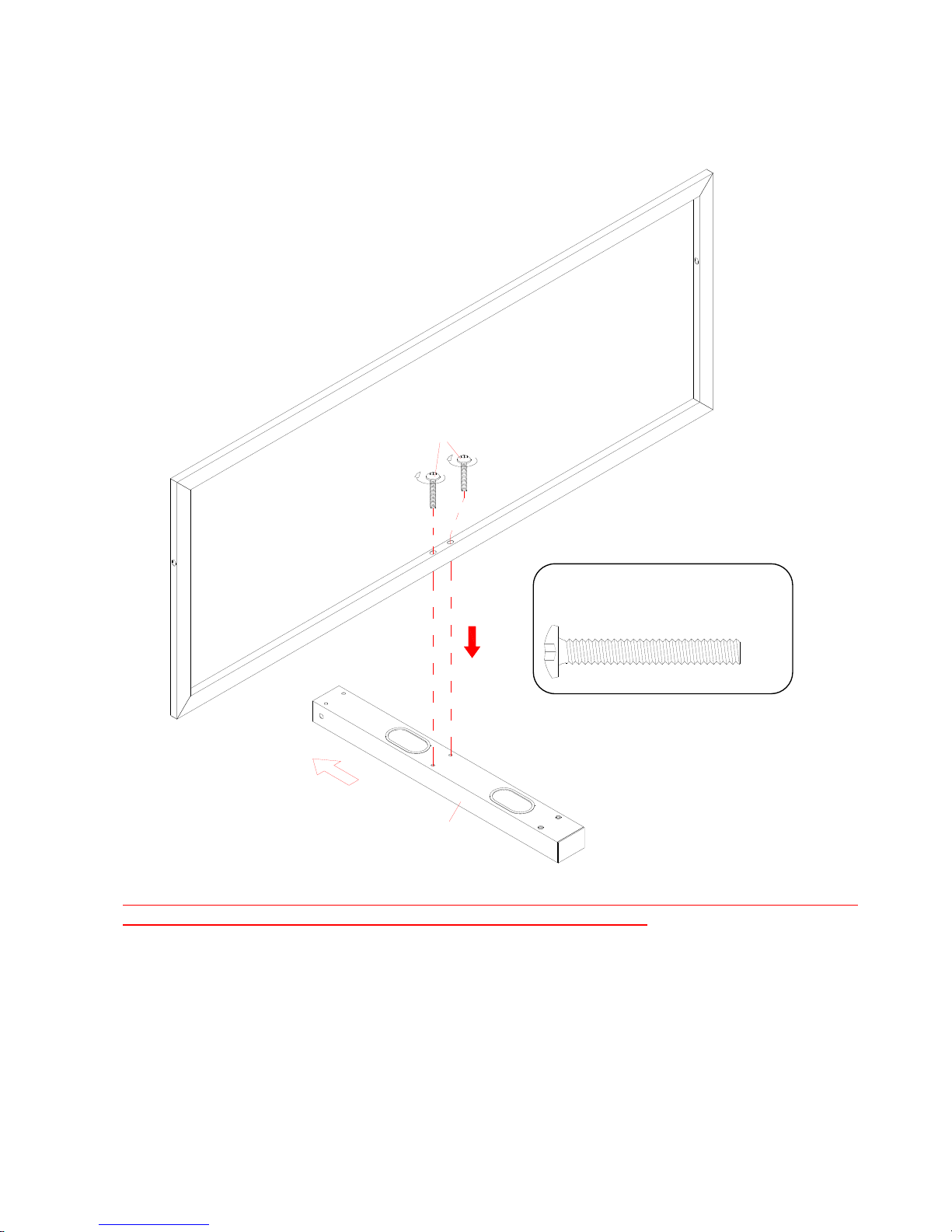

2. Locate the Lower Spine (D) and set the back face down on a scratch-free surface, as shown.
3. Fasten the Middle Shelf Frame (B) to the Spine (D) using two 1-3/4” Bolts (4). As shown.
1-3/4” Bolt
(2 used in this step)
④
UP D
4
B

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 6 Factory No. 10944
Assembly Instructions

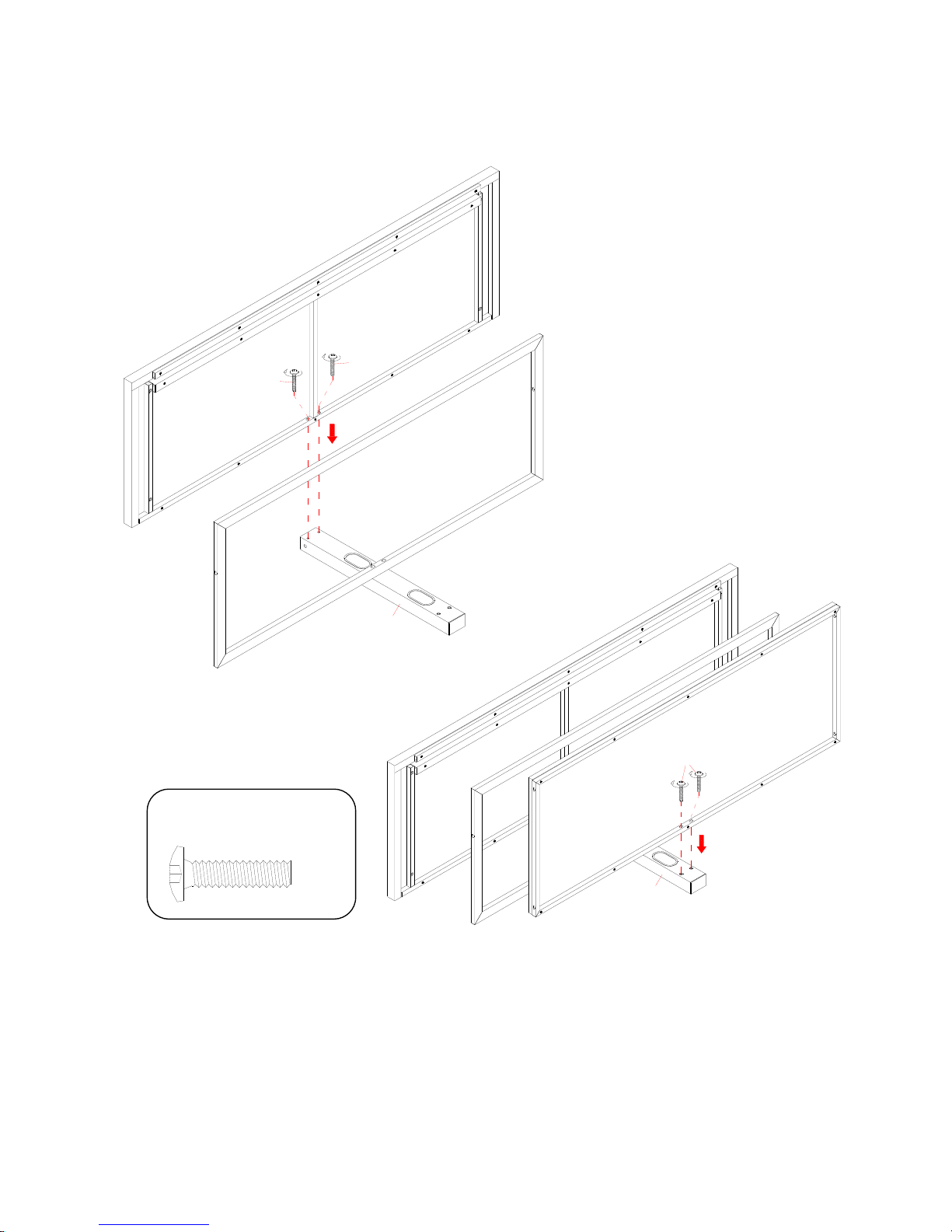

4. Align and attach the Top Panel (A) to the Lower Spine (D) using two 1” Bolts (3). As shown.
Make sure the wood panel will face up when the unit is turned upright.
5. Repeat last step to attach the Bottom Shelf with Metal Frame (C) to the Lower Spine (D).
1” Bolt
(4 used in this step)
③
3
D
B
A3
D
B
A
C
3

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 7 Factory No. 10944
Assembly Instructions

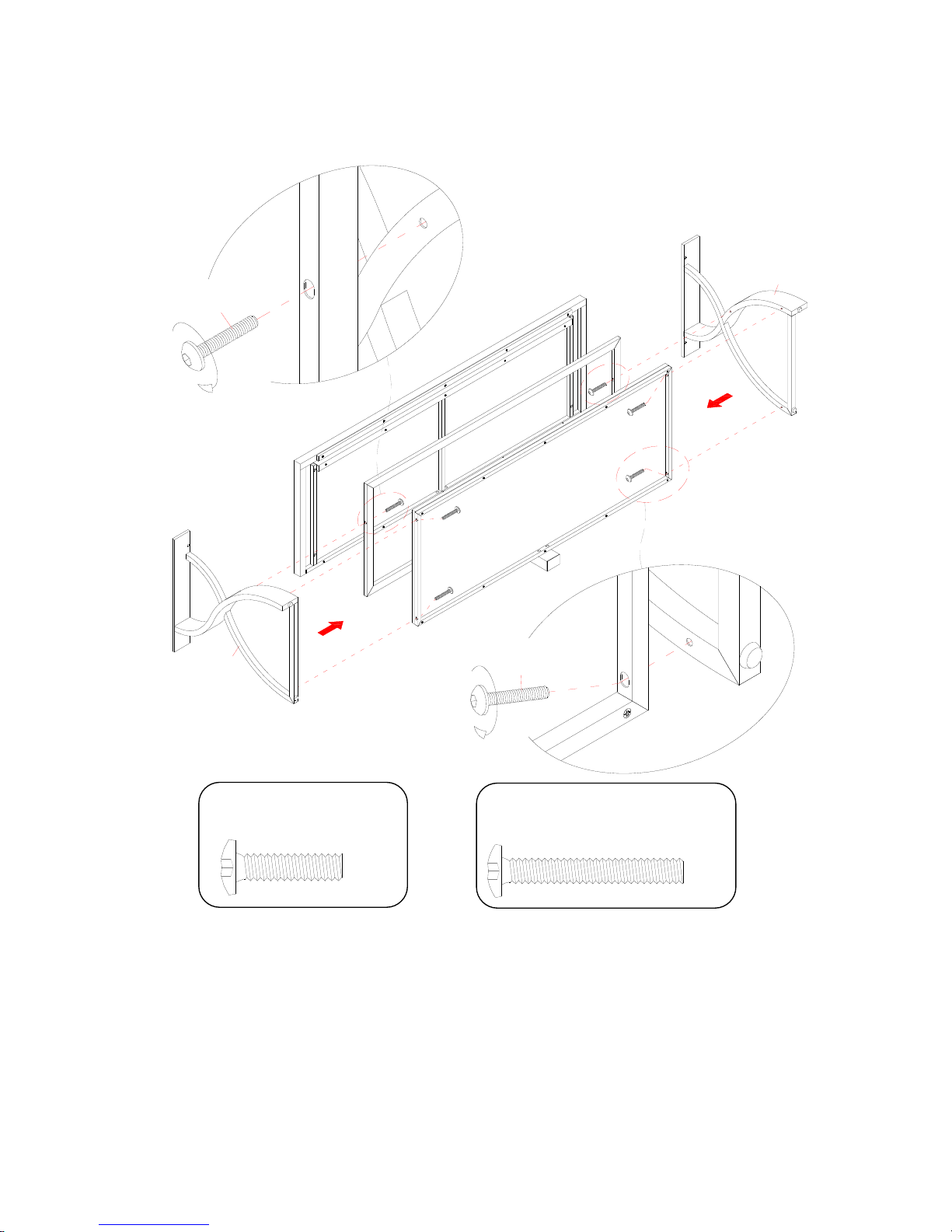

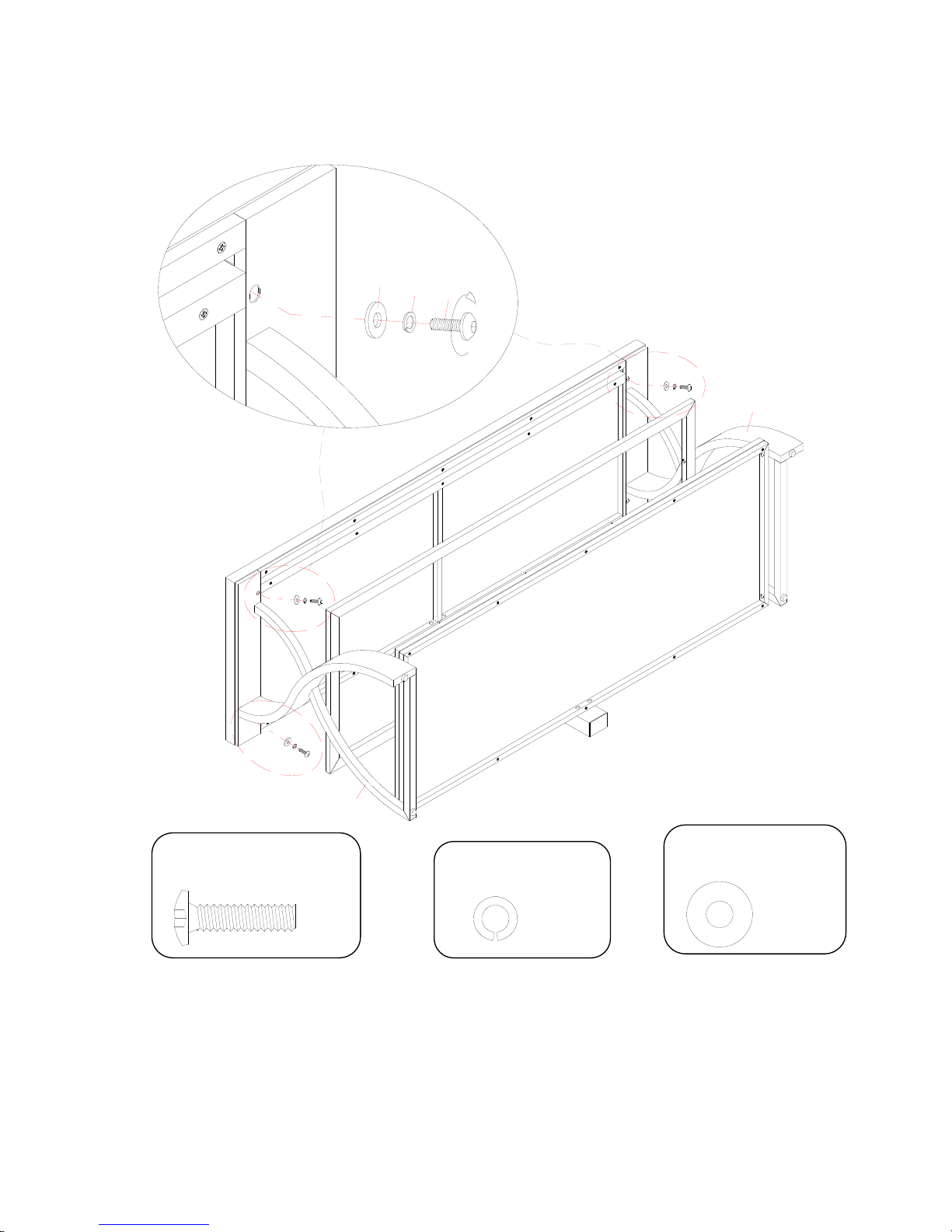

6. Align and attach Left Leg (F) to the Bottom Shelf Metal Frame (C) by using two 1” Bolts (3)
through the drilled holes on the side rail and loosely screw into place. As shown.
7. Insert one 1-3/4” Bolt (4) through the drilled hole on the side rail of Middle Shelf Frame (B) and
screw into the Left Leg (F). As shown. DO NOT tighten the bolt.
8. Repeat the same procedure to attach the Right Leg (G) on the opposite end.
1-3/4” Bolt
(2 used in this step)
④
1” Bolt
(4 used in this step)
③
G
F
B
A
C
BF/G
4
3CF/G

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 8 Factory No. 10944
Assembly Instructions
9. Fasten the Legs (F and G) to the Top Metal Frame (A) by inserting four 1” Bolts (3) with the
Washers (5 and 6) through the drilled holes of the top rail of legs and screw into place.
10.Go back and tighten all bolts with the provided Allen wrench. Then stand the unit upright.
Lock Washer
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑥
1” Bolt
(4 used in this step)
③
B
A
C
F
3
5
6
F/G
A
G

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 9 Factory No. 10944
Assembly Instructions for Table Top
11.Plug the Plastic End Cap (12) onto the top of Lower Spine (D).

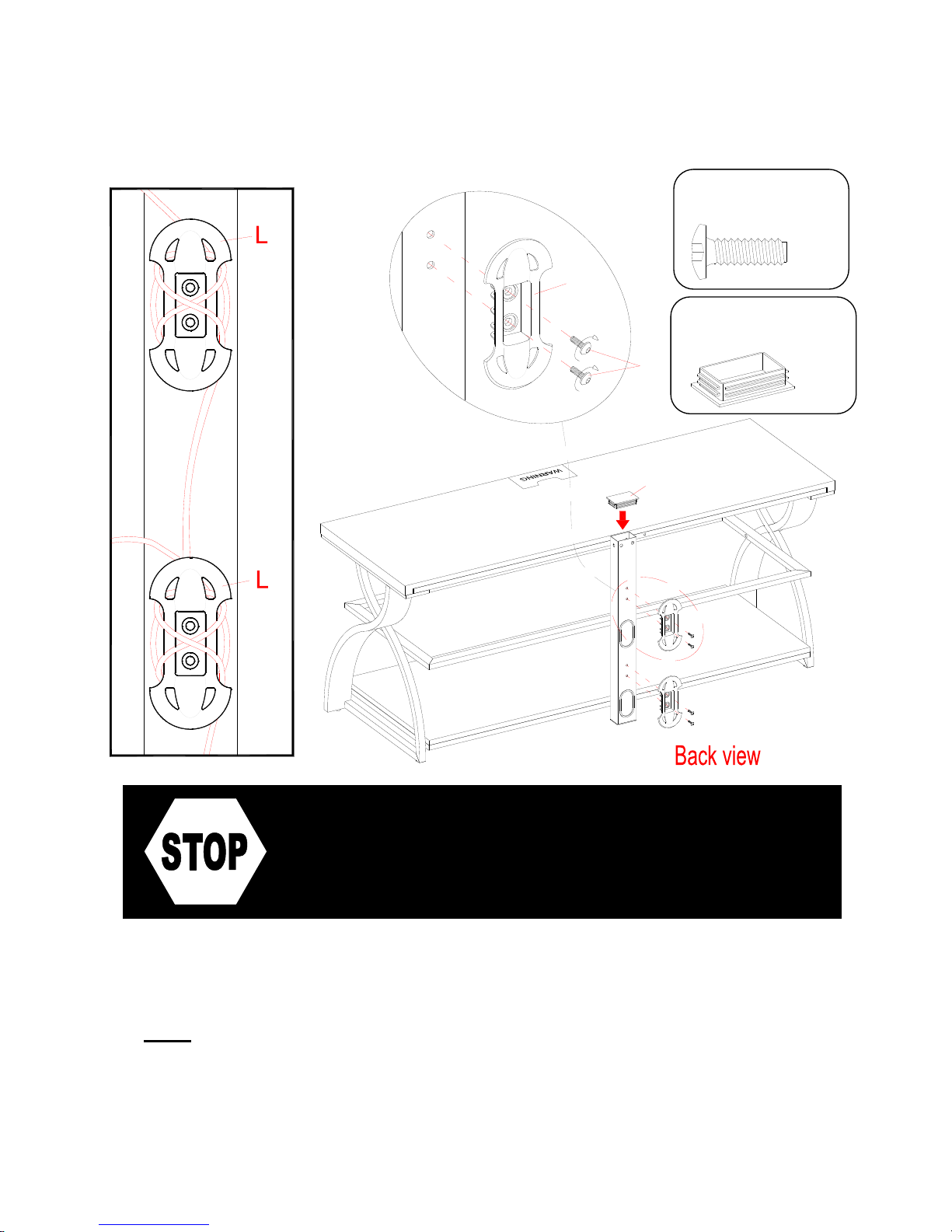

12.Attach 2 Cable Wheels (L) to the backside of Lower Spine (D) with the 3/4” Bolts (2). Tighten
the bolts with the enclosed Allen wrench.
NOTE: You can use the Cable Wheels to help keep your entertainment center’s cables and
cords organized.
3/4” Bolt
(4 used in this step)
②
If you choose Table-top Console
configuration, continue to the next step.
If mounting TV with the Floating Swivel
Mount, skip ahead to PAGE 13.
Plastic End Cap
(1 used in this step)
⑫
12
L
2
D
A
D

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 10 Factory No. 10944
Assembly Instructions for Table-top Console
13.Evenly place the Glass Bumpers (10) on the Middle Shelf Frame (B), as shown above.
14.Place the Glass Shelf (H) onto the Glass Bumpers (10). Push the glass all the way back
against the Spine.
A
B
10
B
H
B
10
H
C
Glass Bumper
(8 used in this step)
⑩

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 11 Factory No. 10944
Assembly Instructions for Table-top Console
NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your
flat panel television directly on the console.

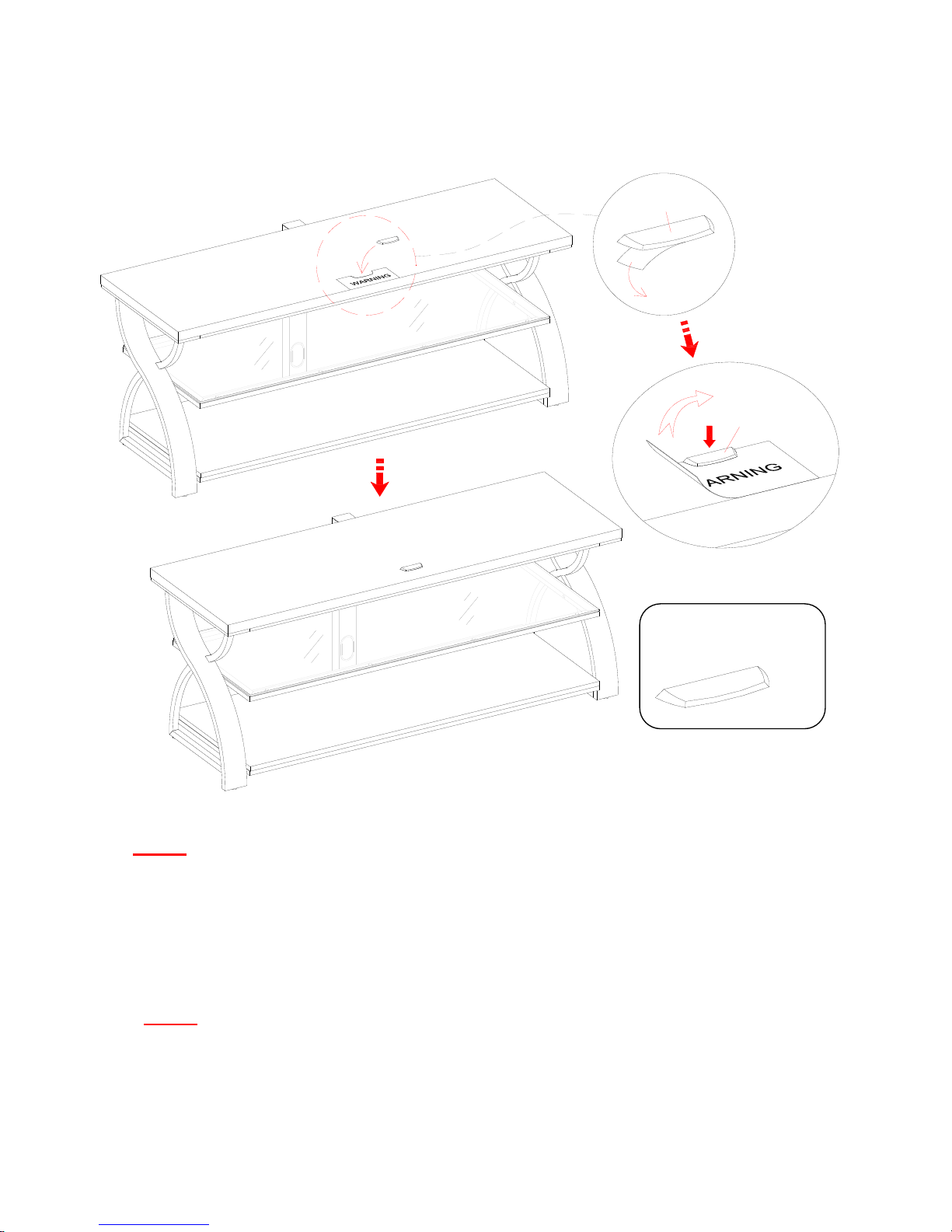

15.Remove the tape from the back of Acrylic Stopper (11), then properly align the Acrylic Stopper
into the cut-out on the acrylic stopper template on the front of the Top Panel (A). Press down
on the Acrylic Stopper.
16.Carefully remove the acrylic stopper template from the Top Panel (A).
NOTE: When you place the TV on the stand, make sure that the base of the TV is behind the
Acrylic Stopper (11). This will help prevent the TV from sliding off your stand if your stand is
accidently bumped or tipped.
A
11
11
A
Acrylic Stopper
(1 used in this step)
⑪

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 12 Factory No. 10944
Assembly Instructions for Table-top Console
Tools required: Allen wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.
17.Position the assembled console at the desired location against a wall. If necessary, adjust the
pre-attached Floor Levelers at the bottom of Legs (F and G) to level the unit. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the
tip-over restraint to the Top Metal Frame (A) and the wall.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO
THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES.
18.The console is now ready for use. Be sure to position your Flat Panel TV in center of console.
NOTE: For Universal Wall Mount, proceed to PAGE #20.
F/G
G
F
TV

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 13 Factory No. 10944
19.Insert the bottom section of the Upper Spine (E) onto the Lower Spine (D) and secure it in
place with four 3/4” Bolts (2) and four Washers (5 and 6). Tighten the bolts with the enclosed
Allen wrench.
Assembly Instructions for
Floating Swivel Mount
3/4” Bolt
(4 used in this step)
②
Lock Washer
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑥
E
2
65
26
5
2
65
D
E
D
E
D

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 14 Factory No. 10944
Assembly Instructions for Floating Swivel Mount
20.Fast the Swiveling Bracket (I) to the top of the Upper Spine (E) with six 3/4” Bolts (2) and six
Washers (5 and 6). Make sure that the pivoting bolt head is up. Tighten the bolts with the
enclosed Allen wrench.
NOTE: The Spine can provide two height options for your TV set. Refer to your TV size and
adjust the Swiveling Bracket at the desired height for optimum viewing.
3/4” Bolt
(6 used in this step)
②
Lock Washer
(6 used in this step)
⑤
Flat Washer
(6 used in this step)
⑥
26
5
2
65
UP
E
I
2
65
26
5
I
E
D

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 15 Factory No. 10944
Assembly Instructions for Floating Swivel Mount

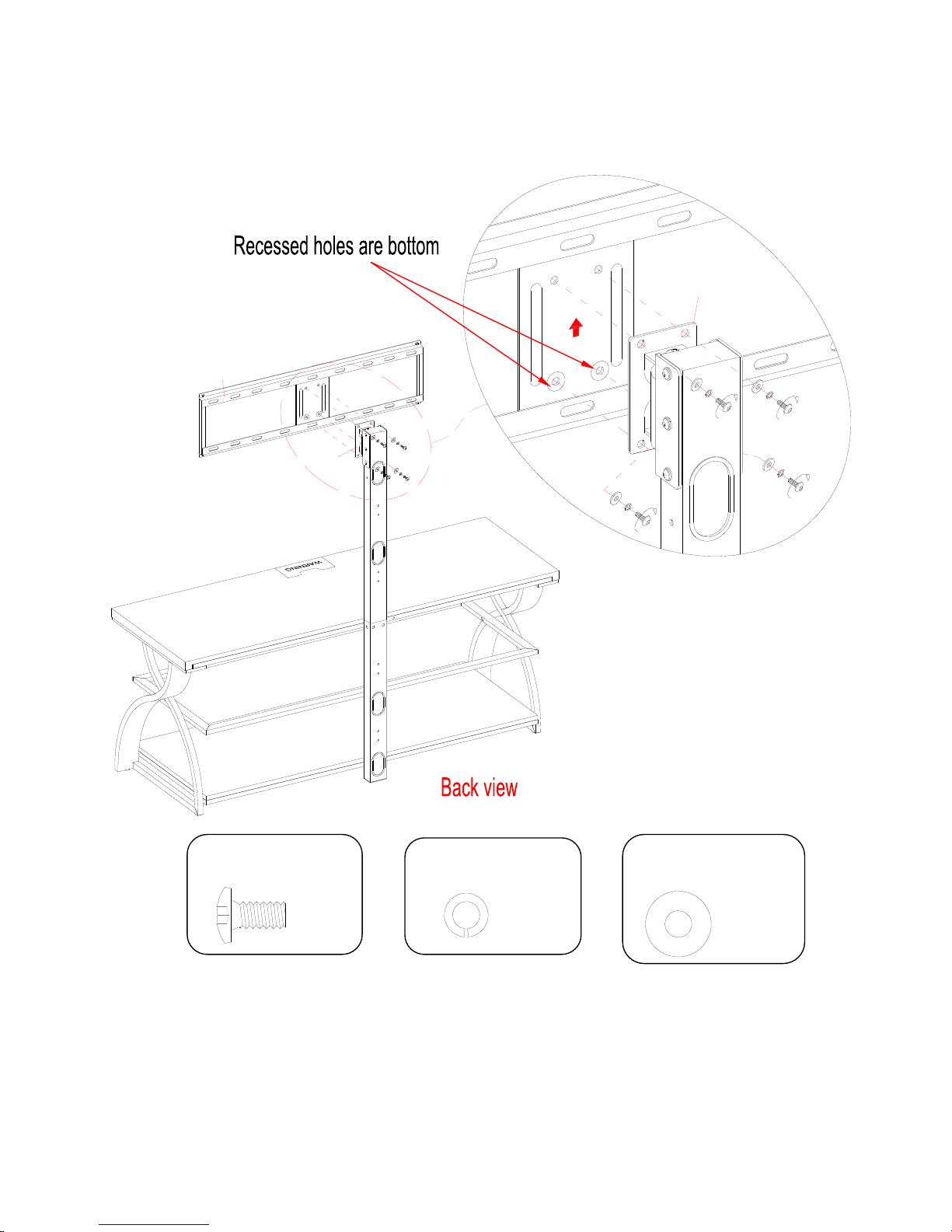

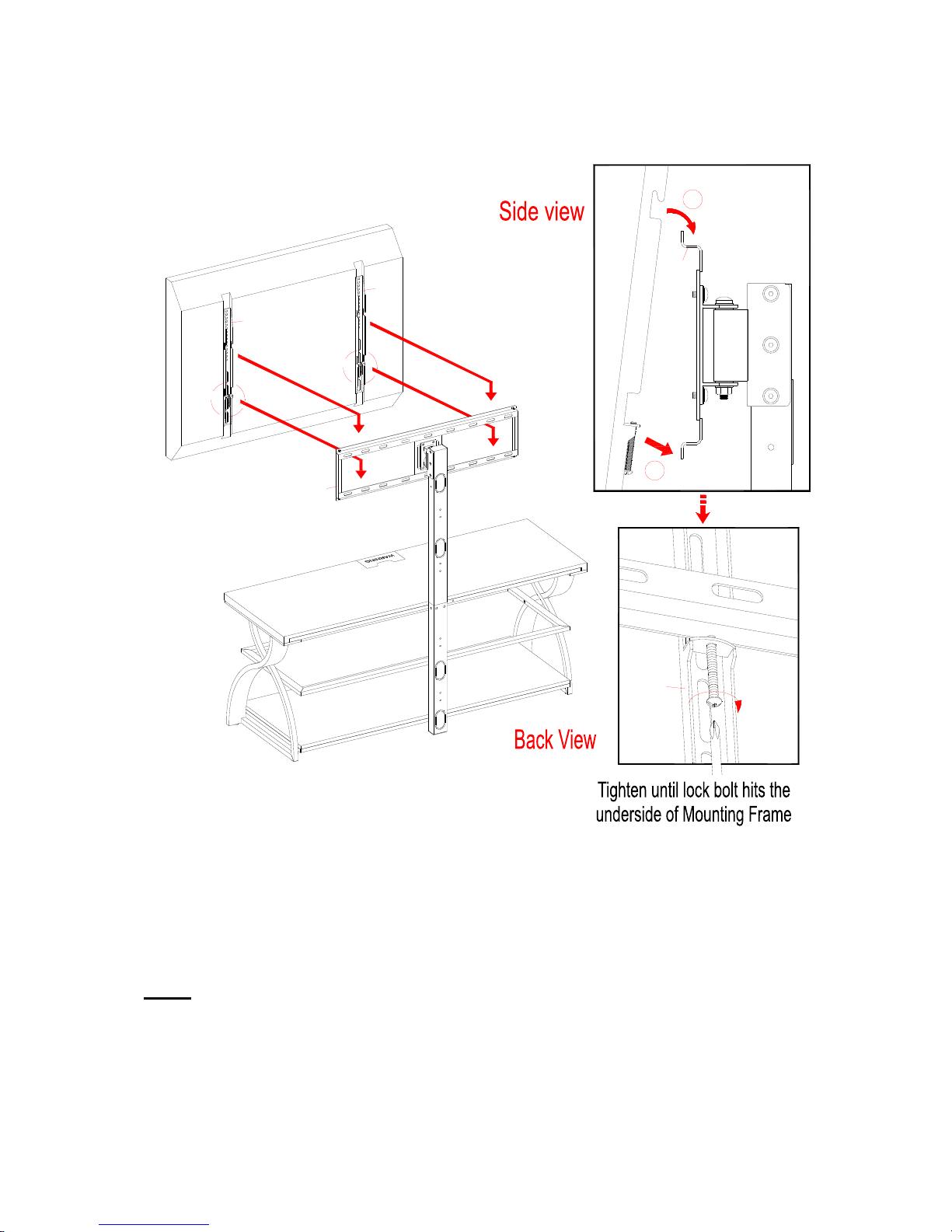

21.Hold and attach the flat side of the Mounting Frame (J) onto the Swiveling Bracket (I) with four
1/2” Bolts (1) and four Washers (5 and 6). Make sure that the recess holes on the Mounting
Frame are at the bottom.
BACK
J
E
I
1
5
6
5
61
5
6
1
J
I
Lock Washer
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑥
1/2” Bolt
(4 used in this step)
①

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 16 Factory No. 10944
Mounting Monitor Brackets to a Television with a Flat Back
NOTE: For televisions with a curved or recessed back, proceed directly to next page.
22.Determine the correct diameter of the bolt the TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt, consult a local hardware store.
23.Follow the appropriate diagram above to attach the Monitor Brackets (K) to the back of the TV
with the selected fasteners. Make sure the Monitor Brackets are centered and level with each
other. Secure the bolts with a Phillips screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent damage.

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 17 Factory No. 10944
Mounting Monitor Brackets to a Television with a Curved/Recess Back
24.Determine the correct diameter of the bolt the TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
25.Follow the appropriate diagram above to attach the Monitor Brackets (K) to the back of the TV
with the selected fasteners. Make sure the Monitor Brackets are vertically centered and level
with each other. Secure the bolts with a Phillips screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent damage.

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 18 Factory No. 10944
Assembly Instructions for Floating Swivel Mount
MAKE SURE ALL BOLTS ARE TIGHT AND THE SPINE IS AT A 90 DEGREE ANGLE AND
VERIFY THE MOUNTING FRAME IS LEVEL, USING A QUALITY LEVEL, PRIOR TO
INSTALLATION OF TV.
26.Ask for assistance to lift the television up to hang the Monitor Brackets (K) onto the Mounting
Frame (J). Set the hooks on the Monitor Brackets over the Mounting Frame and then lower
them onto the bars of the Mounting Frame.
NOTE: Loosen the Lock Bolt that is pre-attached on the Monitor Brackets to ensure an easy fit
at the bottom hooks.
27.Center the television and tighten both Lock Bolts with a long Phillips screwdriver until they hit
the underside of the Mounting Frame (J) to secure it in place.
1
2
J
K
K
J
J
K
K

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 19 Factory No. 10944
Assembly Instructions for Floating Swivel Mount
Tools required: Allen Wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.
28.Repeat steps 12 through 14 to attach the Cable Wheels (L) and install the Middle Glass
Shelf (H) in place.
29.Carefully move the console and position it at the desired location against a wall. If necessary,
adjust the pre-attached Floor Levelers at the bottom of the Legs (F and G) to level the unit.
Now, follow the instructions printed on the plastic bag containing Tipping Restraint Hardware
Kit to attach the tip-over restraint to the Upper Spine (E) and the wall.
NOTA: Debe instalar el herraje de restricción de movimiento con la unidad en uso para evitar
cualquier accidente o daño a la unidad.
30.The console is now ready for use. Swivel the TV left-or-right for optimum viewing control.
TV
F/G
G
F

Model # XLXEC54-CC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 20 Factory No. 10944
Assembly Instructions for Universal Wall Mount

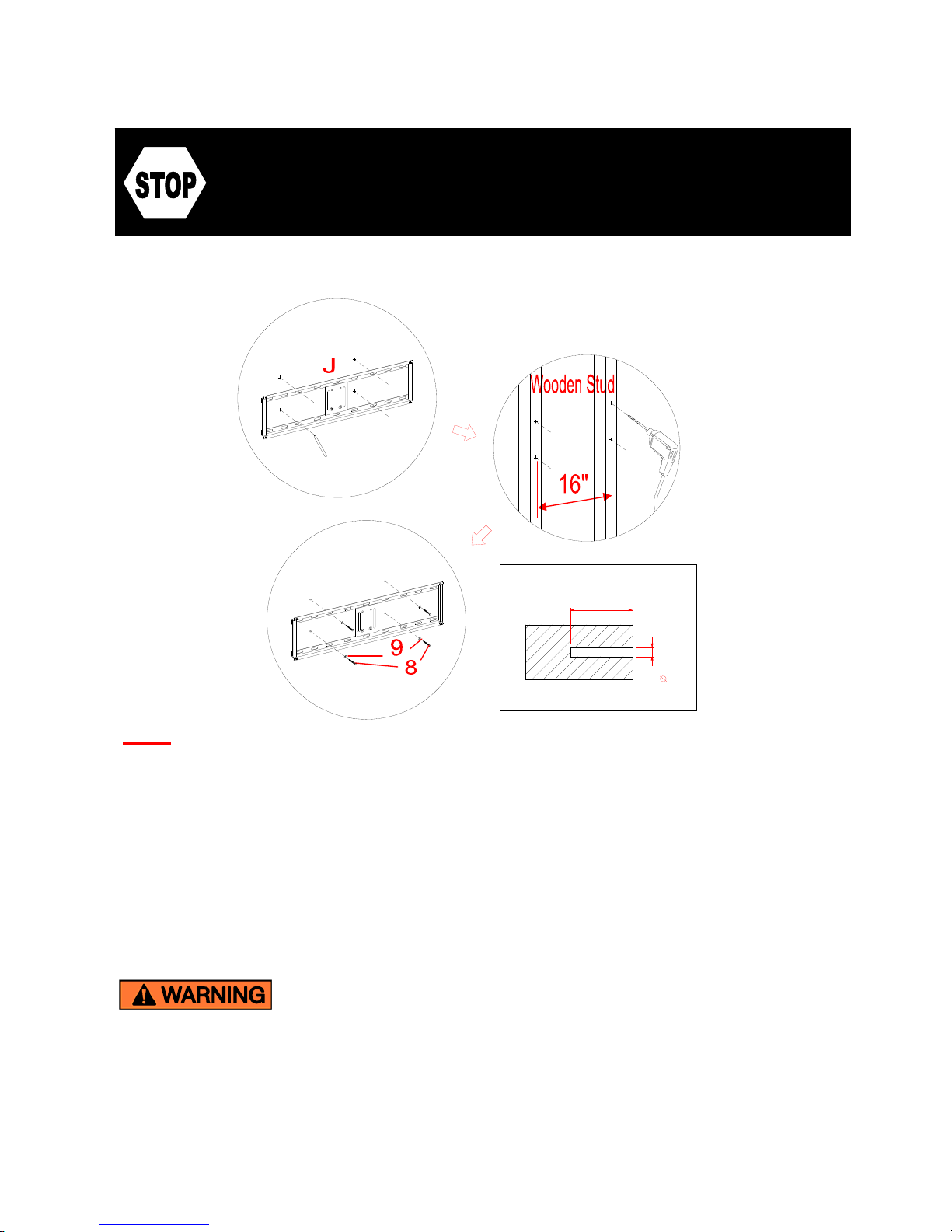

Installing the Mounting Frame onto a WOODEN STUD WALL
NOTE: If you are mounting your TV onto brick, solid concrete or concrete block walls, skip this
section. This assembly requires an electric drill, level and stud finder (not included).
31.Using a stud finder, locate the edges of the wood studs. Find the center line of each stud and
draw a vertical reference line on the wall over each one. Place the Mounting Frame (J) level
against the wall where you intend to mount the TV. Using the Mounting Frame (J) as a
template, mark 4 drill points (2 on top, 2 on bottom) with a pencil on the vertical reference lines
you just drew.
32.With an electric drill (not included), drill 3/16 inch diameter holes to at least 2½ inch deep on
the 4 drill points. While holding the Bracket Plate in place, loosely screw in the Lag Bolts (8).
33.Secure the Mounting Frame (J) to wall with Lag Bolts (8) and the Washers (9) at the drill
points. Tighten the bolts firmly, but be careful not to over-tighten.
The following steps are only for those who wish to mount their
TV directly to the wall. If you have already mounted your TV to
the Swinging Floater or plan to display your TV on the top
surface of the Console, disregard the following steps.
Do not over-tighten the Lag Bolts. Tighten the Lag Bolts only until the
Lag Bolt Washer is pulled firmly against the metal plate of the Mounting Frame. If there is a
layer of drywall or other material, this drywall or other material may not exceed 5/8 inch in
thickness. Failure to heed this caution may result property damage and/or personal injury.
2.50" (63 mm)
0.20" (5 mm)
