WHILL Model A User manual

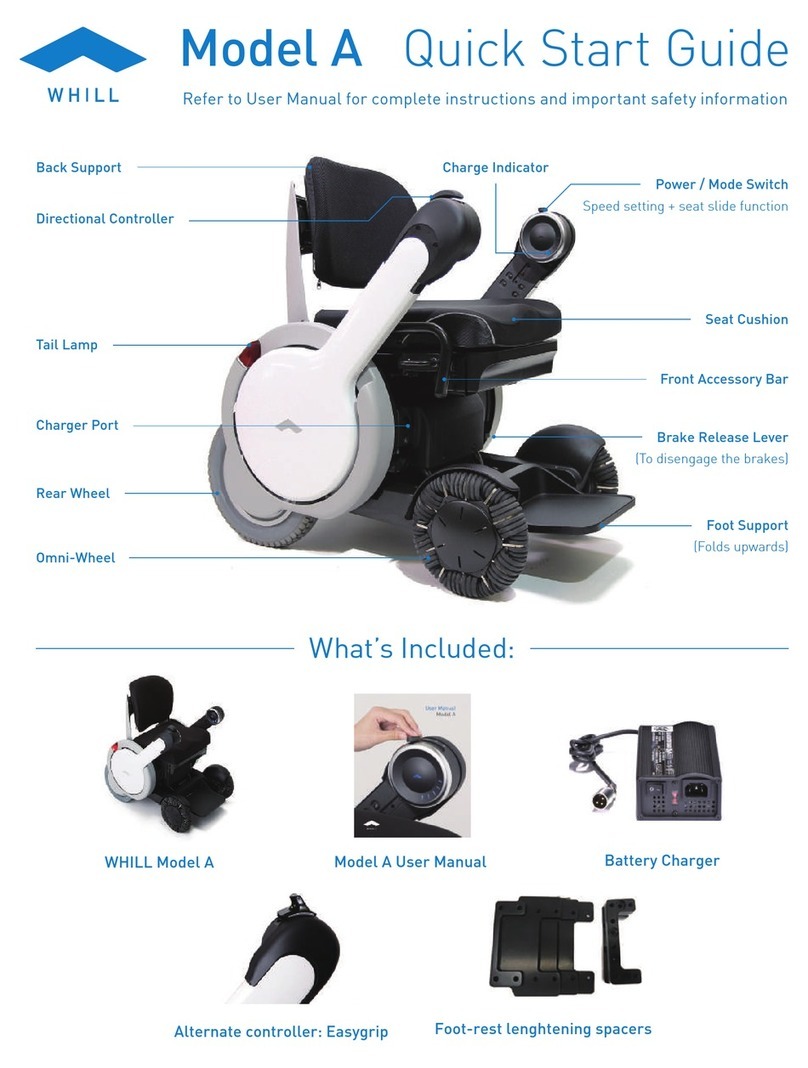

Model A | Quick Start Guide
Refer to User Manual for complete instructions and important safety information
Driving your WHILL Model A
Speed settings
Pull the Power/Mode switch back to
and release to turn on/off
Move switch to position to put the
vehicle in neutral or in seat slide mode
Move switch to select speed:
Slow, Medium, Fast
iPhone App
Download the WHILL iPhone
app, click connect, type
in the device serial # and
default password: 00000000
and start driving remotely!
Directional Controller
Move the controller to steer
the chair in any direction
Increase speed by pushing
forward
Driving Tips
Use slow speed for indoor, tight space maneuvering
Always approach obstacles straight on, not at an angle
Be sure the electric sliding seat is all the way back before
trying to drive the Model A
The device serial number
is located on the rear of the
product just below the seat,
above the back cover
Charge Indicator
Power / Mode Switch
Speed setting (slow, medium, fast)
Seat slide setting
Directional Controller
Back Support
Seat Cushion
Front Accessory Bar
(See 1 on each side)
Break Release Lever
(To disengage the brakes)
Foot Support
(Folds upwards)
Rear Wheel
(Solid)
Charger Port
(Connected to battery
charger)
Tail Lamp
Omni-Wheel
7 digit numerical
portion of serial number

Getting in and out of Model A
With power on and Power/Mode Switch in the position,
move the controller forward or back to move the seat
in the corresponding direction
Fold footrest up
Swing arms up, away from seat
Step in or out of chair
NOTE: Model A will not move with the seat in a forward position
Charging the battery
Your Model A will go up to 12 miles on a single charge. When the indicator lights tell you battery level is low,
it is time to recharge the battery.
Indicator Lights
Below the power switch are lights indicating battery charge levels and other important error messages.
See user manual for complete indicator and error message information.
QUESTIONS? Call [phone] or email us at [e-mail]
The WHILL Model A is not considered a medical device and has not been submitted to the Food and Drug Administration for review or clearance. 320-02044-SUPPORT-01 1/17
Charger indicator light:
Power on
Partially charged/charging
Fully charged
Reset needed: Unplug the charger from the wall outlet for 5 seconds and re-plug it.
Seat slides up
to 5.9 inches
forward
Foot rest
folds up
Arm swins up
for easy access
Model A | Quick Start Guide
Battery Full Battery Low Battery ReserveBattery Medium
Charge immediately
Plug charger into
a standard wall
outlet
Wait until charger
indicator light
is green
Plug round
connector into
the Model A
charger port
To charge the battery:
1
1 2 3
2
3
4
