WIKA DG-10-S User manual

Operating instructions
Betriebsanleitung
EN
DE
Digitalmanometer Typ DG-10
Digital pressure gauge model DG-10
Digital pressure gauge model DG-10

2WIKA operating instructions digital gauge, model DG-10
EN
DE
11250313.04 05/2022 EN/DE
Operating instructions model DG-10 Page 3 - 28
Betriebsanleitung Typ DG-10 Seite 29 - 54
Additional languages can be found at www.wika.com.
© 09/2012 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!

3WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
Contents
Declarations of conformity can be found online at www.wika.com.
1. General information 4
2. Design and function 5
3. Safety 5
4. Transport, packaging and storage 10
5. Commissioning, operation 11
6. Faults 23
7. Maintenance and cleaning 24
8. Dismounting, return and disposal 25
9. Specifications 26
10. Accessories 28
Contents

4WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN
1. General information
1. General information
■
The digital pressure gauge described in the operating instructions has been designed and
manufactured using state-of-the-art technology. All components are subject to stringent quality and
environmental criteria during production. Our management systems are certified to ISO 9001 and
ISO 14001.
■
These operating instructions contain important information on handling the instrument.Working
safely requires that all safety instructions and work instructions are observed.
■
Observe the relevant local accident prevention regulations and general safety regulations for the
instrument's range of use.
■
The operating instructions are part of the product and must be kept in the immediate vicinity of the
instrument and readily accessible to skilled personnel at any time.
■
Skilled personnel must have carefully read and understood the operating instructions prior to
beginning any work.
■
The manufacturer's liability is void in the case of any damage caused by using the product contrary
to its intended use, non-compliance with these operating instructions, assignment of insufficiently
qualified skilled personnel or unauthorised modifications to the instrument.
■
The general terms and conditions contained in the sales documentation shall apply.
■
Subject to technical modifications.
■
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: PE 81.66
- Application consultant: Tel.: [phone]
Fax: [phone]
[e-mail]

5WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
2. Design and function / 3. Safety
2. Design and function
2.1 Description
The prevailing pressure is measured at the sensor element through the deformation of a diaphragm. By
supplying power, this deformation of the diaphragm is converted into an electrical signal. This signal is
displayed via a digital indicator.
2.2 Scope of delivery
Cross-check scope of delivery with delivery note.
3. Safety
3.1 Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in serious injury or death, if not
avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light injuries or damage to
property or the environment, if not avoided.
Information
... points out useful tips, recommendations and information for efficient and trouble-free
operation.

6WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN
3. Safety
WARNING!
Before installation, commissioning and operation, ensure that the appropriate digital
pressure gauge has been selected in terms of measuring range, design and specific
measuring conditions.
Non-observance can result in serious injury and/or damage to property.
WARNING!
■
Open the connections only after the system has been depressurised.
■
Observe the operating parameters in accordance with chapter 9 “Specifications”.
■
Always operate the digital pressure gauge within the overpressure limit.
Further important safety instructions can be found in the individual chapters of these
operating instructions.
3.2 Intended use
The digital pressure gauge acts as the display for the applied pressure.The pressure value is displayed
via a digital indicator.
The instrument has been designed and built solely for the intended use described here, and may only
be used accordingly.
The technical specifications contained in these operating instructions must be observed. Improper
handling or operation of the digital pressure gauge outside of its technical specifications requires the
digital pressure gauge to be taken out of service immediately and inspected by an authorised WIKA
service engineer.
The manufacturer shall not be liable for claims of any type based on operation contrary to the intended
use.

7WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
3. Safety
3.3 Improper use
WARNING!
Injuries through improper use
Improper use of the instrument can lead to hazardous situations and injuries.
▶Refrain from unauthorised modifications to the instrument.
▶Do not use the instrument within hazardous areas.
▶Do not use the instrument with abrasive or viscous media.
Any use beyond or different to the intended use is considered as improper use.
3.4 Responsibility of the operator
The instrument is used in the industrial sector. The operator is therefore responsible for legal obligations
regarding safety at work.
The safety instructions within these operating instructions, as well as the safety, accident prevention and
environmental protection regulations for the application area must be maintained.
The operator is obliged to maintain the product label in a legible condition.
To ensure safe working on the instrument, the operating company must ensure
■
that suitable first-aid equipment is available and aid is provided whenever required.
■
that the operating personnel are regularly instructed in all topics regarding work safety, first aid and
environmental protection and know the operating instructions and in particular, the safety instructions
contained therein.
■
that the instrument is suitable for the particular application in accordance with its intended use.
■
that personal protective equipment is available.

8WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN
3. Safety
3.5 Personnel qualification
WARNING!
Risk of injury should qualification be insufficient!
Improper handling can result in considerable injury and damage to property.
▶The activities described in these operating instructions may only be carried out by
skilled personnel who have the qualifications described below.
Skilled personnel
Skilled personnel are understood to be personnel who, based on their technical training, knowledge
of measurement and control technology and on their experience and knowledge of country-specific
regulations, current standards and directives, are capable of carrying out the work described and
independently recognising potential hazards.
Special operating conditions require further appropriate knowledge, e.g. of aggressive media.
3.6 Special hazards
WARNING!
Physical injuries and damage to property and the environment caused by
hazardous media
Upon contact with hazardous media such as oxygen, acetylene, flammable or toxic
substances, and also with refrigeration plants, compressors etc., there is a danger of
physical injuries and damage to property and the environment.
Should a failure occur, media with extremely high temperature and under high pressure or
vacuum may be present at the instrument.
▶Wear the requisite protective equipment.
▶For these media, in addition to all standard regulations, the appropriate existing codes
or regulations must also be followed.

9WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
3. Safety
WARNING!
Physical injuries and damage to property and the environment through residual
media
Residual media at the dismounted digital pressure gauge can result in a risk to persons,
the environment and equipment.
▶Take sufficient precautionary measures.
▶Observe the information in the material safety data sheet for the corresponding
medium.
▶Use the requisite protective equipment.
3.7 Labelling, safety marks
Product label (example)
Model designation S# serial number
Measuring range P# product number
If the serial number becomes illegible due to mechanical damage or overpainting, traceability will no
longer be possible.
WIKA Alexander Wiegand SE & Co. KG 63911 Klingenberg / Germany
P# 12785599
2xAA LR6 1,5V
S# 110H45FN
0...400 bar
MADE IN GERMANY
DG-10-S
Type

 


10 WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN
3. Safety / 4. Transport, packaging and storage
Explanation of symbols
Before mounting and commissioning the instrument, ensure you read the operating
instructions!
Do not dispose of with household waste. Ensure a proper disposal in accordance with
national regulations.
4. Transport, packaging and storage
4.1 Transport
Check the digital pressure gauge for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
4.2 Packaging
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport (e.g. change in installation
site, sending for repair).
4.3 Storage
WARNING!
Physical injuries and damage to property and the environment through residual
media
Residual media in the dismounted instrument can result in a risk to persons, the
environment and equipment.
▶Before storing the digital pressure gauge (following operation), remove any residual
media.
▶Clean the instrument, see chapter 7.2 “Cleaning”.

11WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
4. Transport, packaging and storage / 5. Commissioning, operation
Permissible conditions at the place of storage:
■
Storage temperature: -20 ... +70 °C [-4 ... +158 °F]
■
Humidity: < 90 % rel., non-condensing
5. Commissioning, operation
Personnel: Skilled personnel
Tools: Open-ended spanner
CAUTION!
Prior to commissioning, the digital pressure gauge must be subjected to a visual
inspection.
Only use the digital pressure gauge if is in perfect condition with respect to safety.
Required tool: Open-ended spanner (spanner width 27 mm)
WARNING!
Physical injuries and damage to property and the environment caused by
hazardous media
Upon contact with hazardous media (e.g. oxygen, acetylene, flammable or toxic
substances), harmful media (e.g. corrosive, toxic, carcinogenic, radioactive), and also with
refrigeration plants and compressors, there is a danger of physical injuries and damage to
property and the environment.
Should a failure occur, aggressive media with extremely high temperature and under high
pressure or vacuum may be present at the instrument.
▶For these media, in addition to all standard regulations, the appropriate existing codes
or regulations must also be followed.
▶Wear the requisite protective equipment.

12 WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN

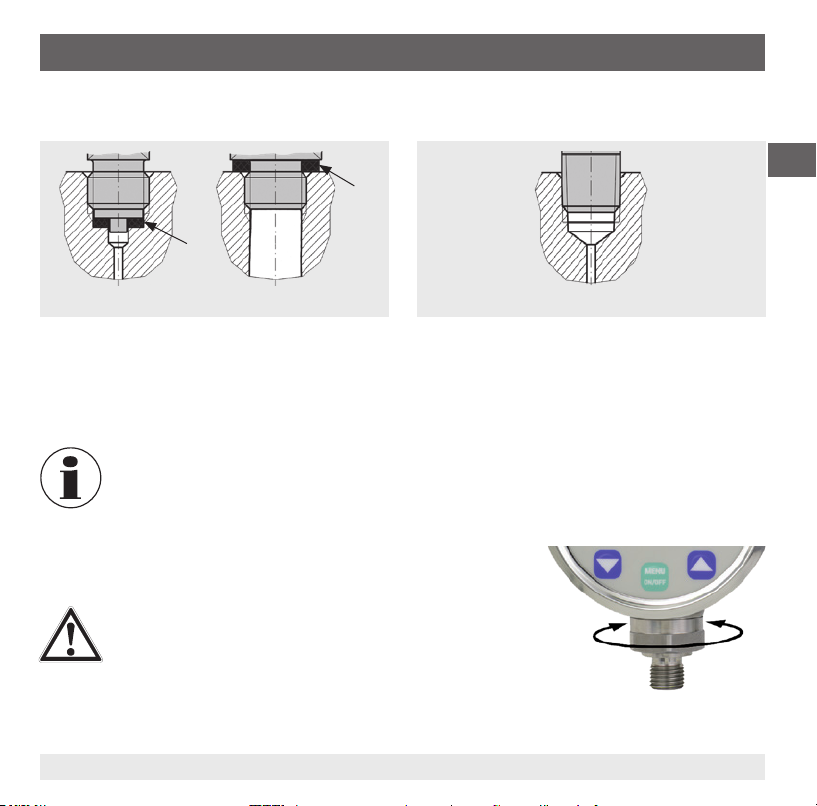

5.1 Mechanical mounting
■
The sealing faces at the instrument and at the
measuring location have to be undamaged and
clean.
■
When screwing in the instrument, the force
required to do this must not be applied through
the case, but only through the spanner flats
provided for this purpose and using a suitable
tool.
The correct torque depends on the dimensions of the process connection and the sealing used
(form/material).
Do not overwind the process connection, do not exceed the permissible torques.
■
When screwing in, do not cross the threads.
■
For information on tapped holes and welding sockets, see Technical information IN 00.14 at
www.wika.com.
Spanner ats
5. Commissioning, operation

13WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
Sealing of the process connection
Parallel threads Tapered threads
For sealing the process connections with parallel
threads, use flat gaskets, lens-type sealing rings
or WIKA profile sealings at the sealing face .
For sealing process connections with tapered
threads, the sealing is made in the threads
using additional sealing material, e.g. PTFE tape
(EN 837-2).
per EN 837 per DIN 3852-E NPT, R and PT


For information on sealings, see WIKA data sheet AC 09.08 or at www.wika.com.
Rotatability of the case
The case of the model DG-10-E can be rotated through 300°, thus the
display can be read from almost any position.
CAUTION!
Damage to the instrument
The instrument may be damaged by improper turning of the
case.
▶Do not turn the case forcibly past the stop point.
300°
5. Commissioning, operation

14 WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN
5.2 Voltage supply
The voltage supply for the digital pressure gauge is provided via two 1.5 V AA cells.
The operating time is approx. 4,000 hours, when using batteries with a capacity of 2,000 mAh.
Battery charge status
The battery charge status is shown by a battery symbol in the
display (see chapter 5.3 “Description of the digital indicator”).
Change the batteries as follows, as soon as the battery symbol
shows no bars and is blinking.

Change batteries

 
Take the cover off. Remove the battery compartment
with the help of the tab and
change the batteries.
Put the instrument back together
in the reverse order.
5. Commissioning, operation

15WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
5. Commissioning, operation
5.3 Description of the digital indicator
Model DG-10-S Model DG-10-E
Type of indication 7-segment LCD 7-segment LCD
14-segment LCD (2nd display)
Digits 4-digit 4 ½-digit 1)
Character size 11 mm 11 mm and 7 mm
Indication range -1999 ... 9999 -1999 ... 19999
Update 200 ms 200 ms
Backlighting No Yes
Bar graph with drag pointer function Yes Ye s
Rotatability No 300°
1) Valid only for psi values.
Max. value
Min. value
Main display
Battery status
Bar graph display
Full scale
Unit
Special functions Tare activated
2. Display
Model DG-10-S Model DG-10-E
Max. value
Min. value
Bar graph display
Full scale
Unit
Battery status
Main display

16 WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN
Backlighting (model DG-10-E)
The model DG-10-E features backlighting so that the display can be easily
read, even under poor lighting conditions.
After pressing any key, the display will light up for 7 seconds.
The backlighting can be switched on and off via the menu item “LIGH”, see
point “Menu navigation in the programming mode, model DG-10-E”.
Function Model DG-10-S Model DG-10-E
MIN/MAX memory Yes Ye s
Automatic power-o No 15, 30, 60, 120 minutes
Tare function No Yes
Unit switching bar, psi, MPa bar, psi, MPa
Password protection No Yes
Reset to factory settings No Yes
Bar graph display with drag pointer function
The additional integrated bar graph display with drag-pointer function within the display indicates the
trend of the current pressure directly, independently from the digital indicator. Using the drag-pointer
function, the max. memory value is also displayed in the bar graph display in the form of a bar segment,
as well as in the digital indicator. On resetting the MIN/MAX value, this bar graph is then updated to the
current measured value.
5. Commissioning, operation

17WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
MIN/MAX memory
The MIN/MAX memory is reset to the current measured value with each measuring cycle.
Tare function “TARE” (model DG-10-E)
In this mode, the positive deviation of the measured value from the tared value (max. 20 % of the
measuring range) is shown on the main display. The non-tared value is shown on the bar graph display,
so that you can always read the current utilisation of the digital pressure gauge.
The following possibilities can be activated for the tare function:
■
Select the tare function via the “TARE” menu item. Use the arrow keys to adjust the value to be tared.
The adjusted value to be tared will be stored in the memory as tare.
■
Load the digital pressure gauge to the pressure to be tared.The main display will show the current
measured value.Via the menu, select the tare function, “TARE”, and press the two arrow keys
simultaneously.The current measured value will be stored as tare.The main and secondary display
will be set to “0000”.
The tare function can be reset in both variants by setting the tare value to “0000”.
5. Commissioning, operation

18 WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN
5. Commissioning, operation
5.4 Key function in the operating mode
■
Switches the digital pressure gauge on or off.
■
Switches the instrument to the programming mode (pressing for longer than 3 seconds).
On pressing, the display indicates the max. value.
On pressing, the display indicates the min. value.
Resets the max. value to 0.
Resets the min. value to 0.
+
+

19WIKA operating instructions digital pressure gauge, model DG-10
EN
11250313.04 05/2022 EN/DE
5. Commissioning, operation
Menu navigation in the programming mode, model DG-10-S
Software
version
Display of the
measuring
range
< 3 seconds
Selection of the
unit
“UNIT”
MPa
PSI
BAR
Saving the
settings
“STOR”
YES
NO
Factory setting “BAR”
Factory setting “NO”
Operating mode

20 WIKA operating instructions digital pressure gauge, model DG-10
11250313.04 05/2022 EN/DE
EN
5. Commissioning, operation
Menu navigation in the programming mode, model DG-10-E
Software
version
Display of the
measuring
range
< 3 seconds
Password
request
“PASS”
▼ key changes the digit
▲ key sets the numerical value
Factory setting “0000”
Password
status
“P.STA”
ON
OFF
“ON” - password is requested.
“OFF” - password is not requested,
“PASS” menu item is not shown in menu
Factory setting “OFF”
if P.STA “OFF”
“P.CHA” (next page)
Password
correct
Password
wrong
Operating mode
