Wilding Wallbeds C90 User manual

INSTALLATION INSTRUCTIONS
For Wallbed models:
Do-It-Yourself
WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND
FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SE-
VERE PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER
SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
Revision 6/18 BKC90
BOOKLET #C90

ATTENTION
Step 1: Complete first 3 pages to apply
edge taping

Measure length to be edge taped and cut the tape 2” longer than dimension.
With a hot iron apply tape slowly making sure the tape fully adheres to the bed part. Leave edge tape
one inch long on both ends.
Once edge tape is securely glued to the bed part use an edge tape trimmer to trim edge tape flush on both
sides. Use a razor knife to trim edge tape flush at ends.
Slightly break the edge of edge tape corners by lightly sanding.

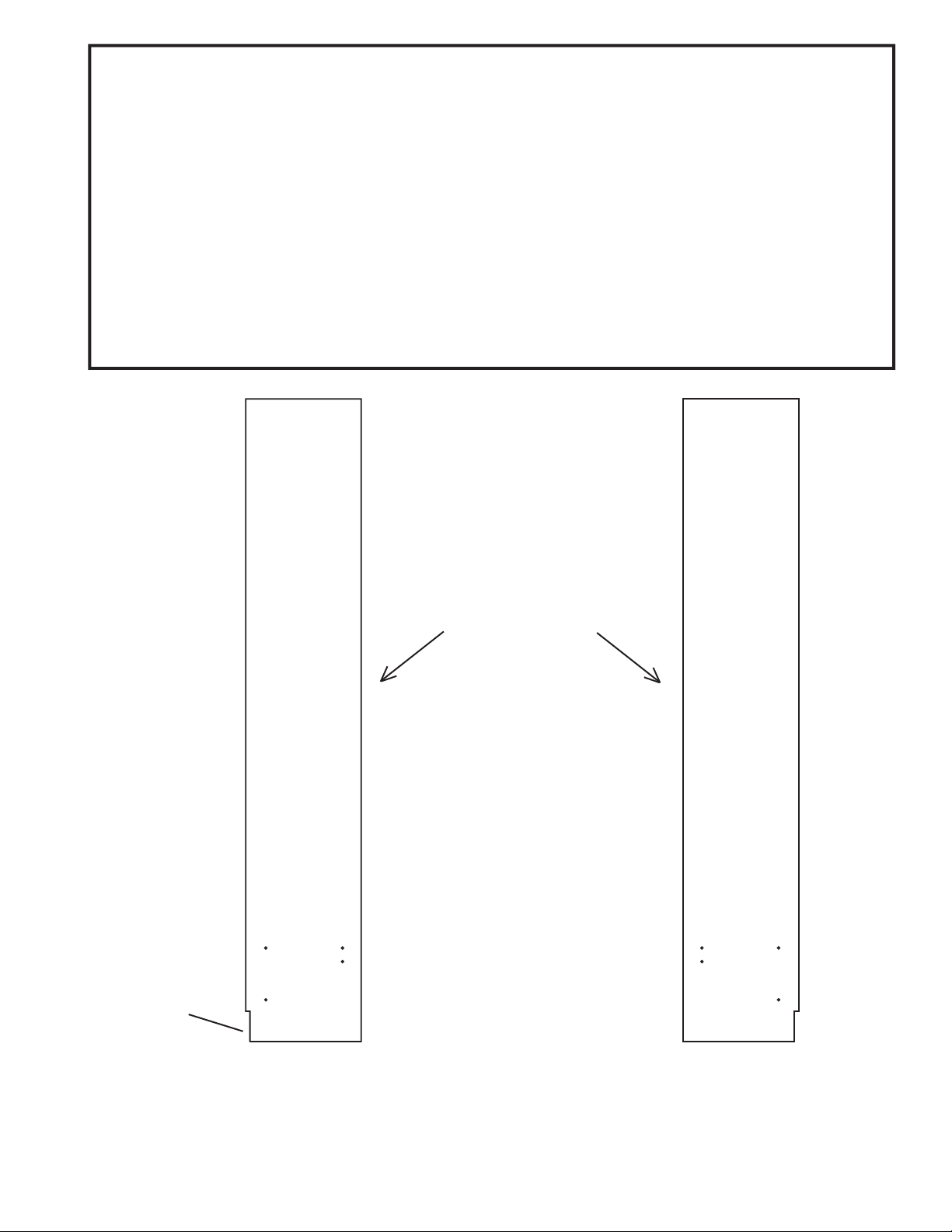

Apply iron on edge
tape to this edge
Right side board
Left side board
Base board
notch
INFORMATION ON EDGE TAPE APPLICATION
Side boards will be visible on both sides and the edge taped
sides once the bed is installed.
Finishing note:

Apply iron on edge
tape to this edge
Apply iron on edge
tape to this edge
Apply iron on edge
tape to this edge

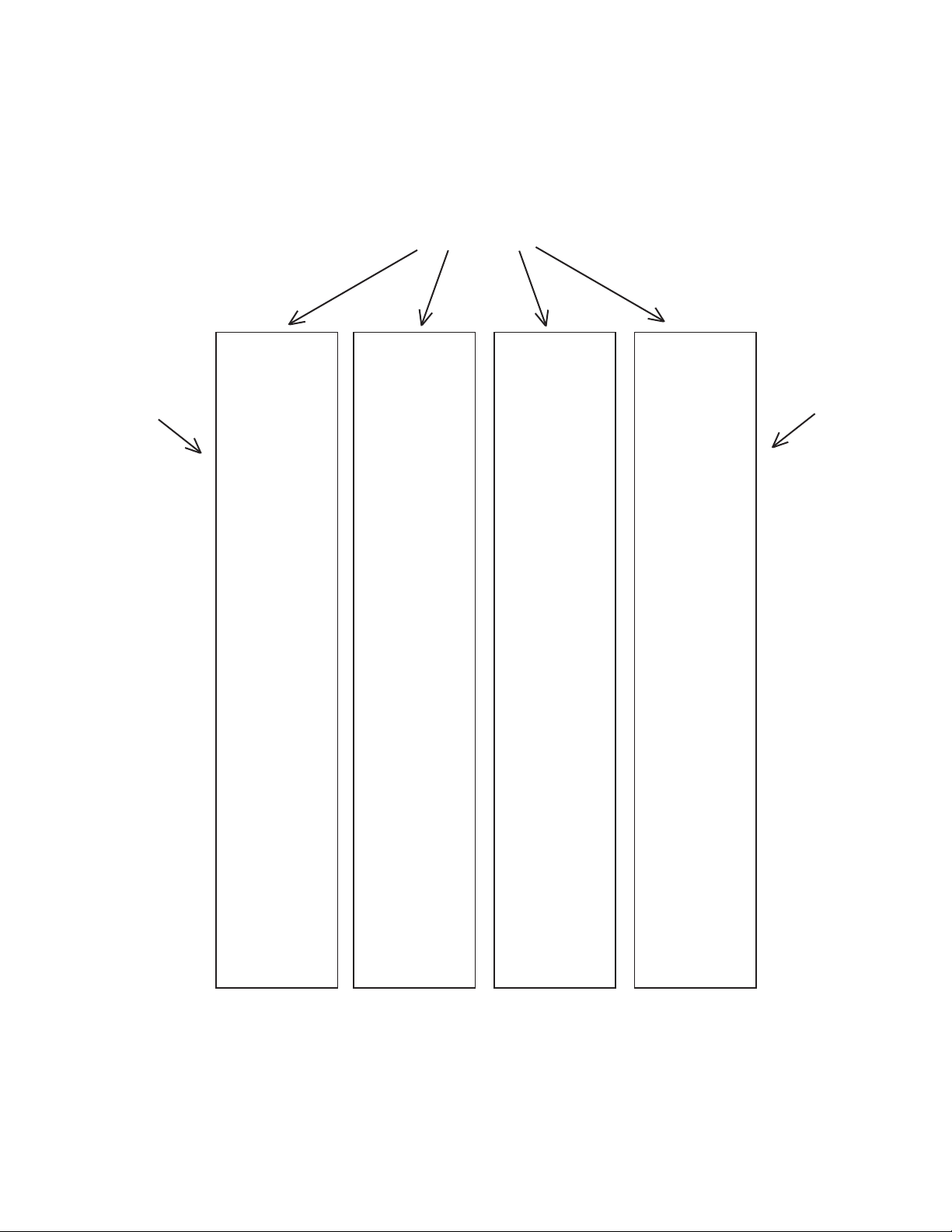

Left face panel Center face panel Center face panel Right face panel
Finishing note: Bed face panels will be visible primarily* on one side and on
all edge tape edges.
* The front panels will be what you see when the bed is closed. When the bed
is open you will see about 1” around the perimeter of the back side of the face
panels.
The four (queen and full sizes) face panels constitute the front of your wall bed when the bed is
closed. Lay the panels out and decide how you want the grain and panels to look once the bed is
installed. Edge tape the four top edges and two out side edges as illustrated below. If you want to
add trim pieces to decorate the front of your bed you can do that at this point as well.

Caution: Study carefully the illustrations before applying edge tape. Note that all illustrations
reveal cam fitting sockets. Additionally note that the Bridge board has 4 cam sockets on one side.
Apply iron on edge
tape to this edge
Apply iron on edge
tape to this edge
Apply iron on edge
tape to this edge
Apply iron on edge
tape to this edge
Bridge Board
Head Board
Front Stretcher
Stretcher
Finish with stain or paint as desired. The sides that will be visible once the wall bed is installed
are the edges with edge tape and the side WITHOUT cam sockets
Note 4 cam sockets
Refer to installation instructions for assembly and installation

ATTENTION
Step 2: Complete the remaining 12 pages
for installation

studsensor
Ratchet
1/2” Socket 7/16” Socket 5/16” Socket
Large regular screwdriver
Small regular screwdriver
Phillips screwdriver
1/2” open end wrench
Crescent wrench
Stud finder
STANLEY
Tape measure
Cordless screw driver
with Phillips bit
6 foot ladder
Tools Needed

Cam Fitting
Connecting Bolts
28
28
Other Hardware
Item Qty
“L” Bracket
4 hole corner
bracket
3/16’’ Nylock
Hexagon Nut
3/16’’x 1 Black
Flathead Screw
1/4’’
5/8’’ Pan
head Screw
3/16’’ x 1/2’’ Black
Truss head screw
Leg Stop
16
2
160
14
2
4
3
Item
Item
Qty
Qty
Hardware Page
5/16’’ Nylock
Hexagon Nut
5/16’’ Allen
Head Bolt
5/16’’ x 7/8’’
Hex Head Bolt
5/16’’ x 1 1/4’’
16
10
2
4
Pack 2
Qty
Item
1 5/8’’ Panhead
Wood Screw 2
1/4” Allen wrench
Pack 3 Pack 4
1 1/2” (3/4” i.d.)
1/8” Thick washer
1 1/2” (3/8” i.d.)
1/8” Thick washer
1 7/16” (3/4” i.d.)
1/16” Thin Teflon
washer
5/16’’ x 1 1/2’’
Hex Head Bolt
1/4” Star Washer
2
2
2
2
4
Pack 7
Item Qty
Pack 5
5/8’’ Pan
head Screw
2
Item Qty
Velcro Retainer Straps
2
6
5/8’’ Pan
head Screw
2’’ Flathead
Wood Screw
6
OR
Flat Head Bolt
Allen Head Bolt
OR
1 Wood Screw
1/4’’
6
Optional hardware:
For bed designs using
crown molding.
Edge Trimmer
1

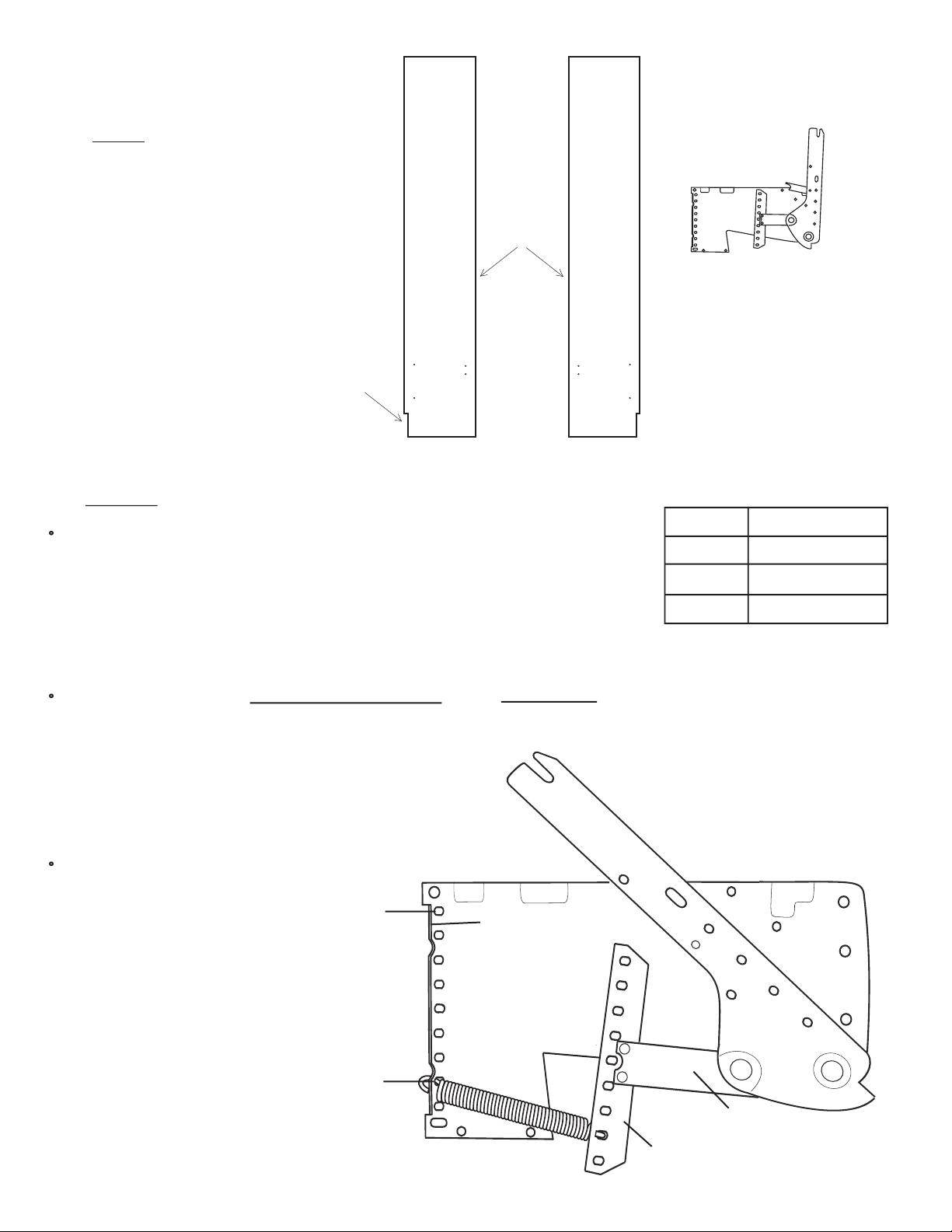

Step 1: Locate the two Side Boards. If you
purchased a Queen size bed the Side Boards
measure 85” long. Full and Twin size Side
boards will measure 80” long. From the
square white box locate the two Lift Mecha-
nisms, hardware bags and springs.
Left Side Board Right Side Board
Lift Mechanism
X 2
Cut out for room
base molding
Finished edge
Step 2-A: Install Springs in the Lift Mechanisms
Bed Size Number of Springs
Queen
Full/Double
Twin/Single
7
6
4
HELPFUL HINT: You may find it easier to fit the hook
under the Tension Arm if you pry up the Arm Bracket with
a wooden wedge or similar device.
IMPORTANT! Be sure that holes
of the Mounting Plate correspond
to the holes in the Tension Arm
and use the same number of
springs and the same configura-
tion on both Lift Mechanisms
Hole #2
Hole #9
Repeat Step 2-A for Left Lift Mechanism.
The number of springs in the Lift Mechanism required varies with the different weights of
mattresses. If you purchased your mattress with your bed from Wilding Wallbeds refer to the
chart to the right. This will also be a good reference point for mattresses not purchased with
your Wall bed.
Install the first spring in hole #2 for Queen and Full size beds and hole #3 for twin size on both the Mounting Plate and the
Tension Arm. Hook one end of the spring under the upturned edge of the Mounting Plate. Lay the spring down and slide it
under the matching hole in the Tension Arm. See illustration 1.
Continue by working up from, hole
2 (Queen and Full size beds) or hole
3, (for twin size), until you have
installed the required number of
springs.
NOTE: After you have completed installing and checking operation of your Wallbed, you
may find it necessary to add or remove springs to achieve the correct lift effort of between
5 and 10 pounds.
Page 1
Tension Arm
Upturned edge of
mounting plate
Arm Bracket
Illustration 1
(right lift mechanism)

5/16” x 1 1/4” Flathead
Slot Machine Screw
x 8
5/16” Nylock Nut
x 8
Hardware needed for next step from Pack #2

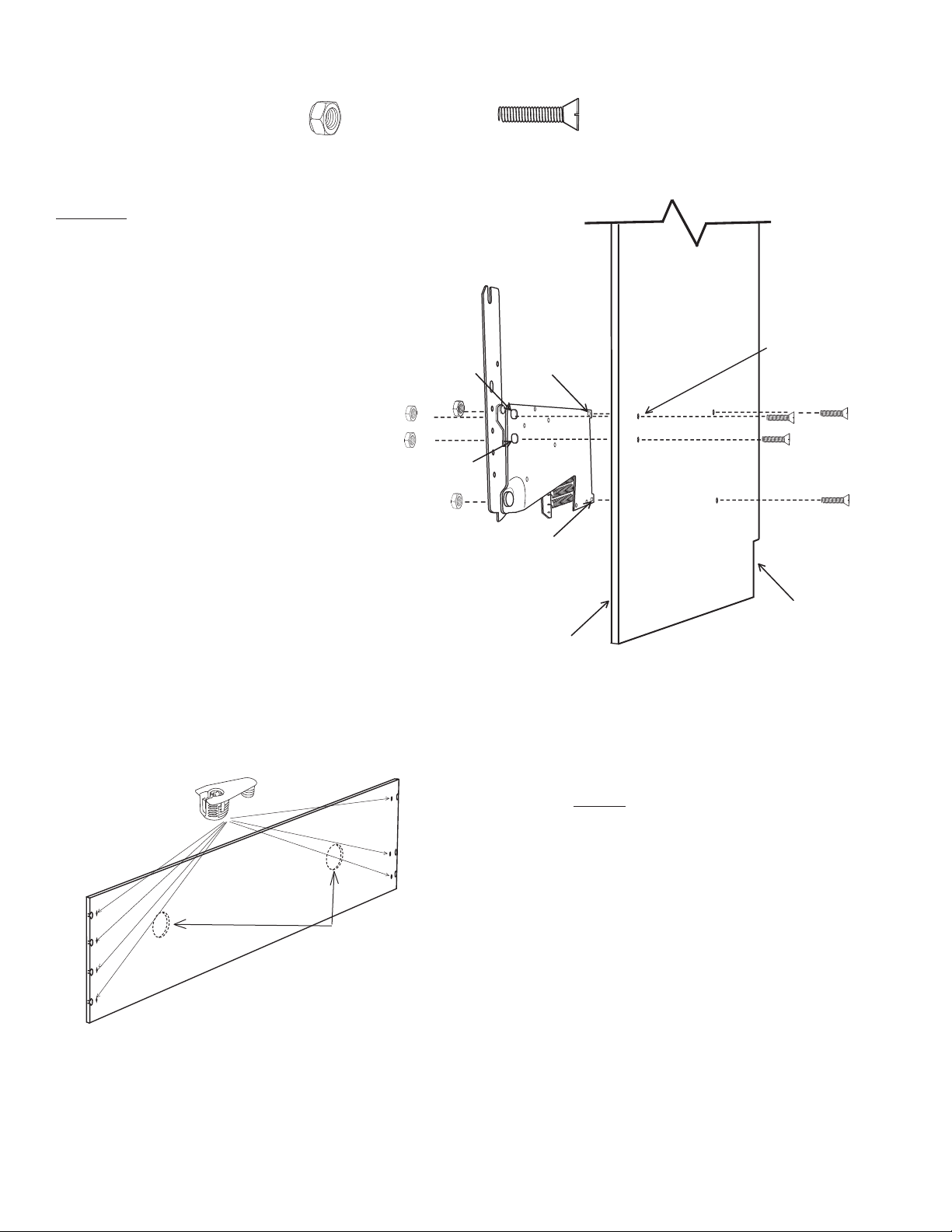

Step 2-B: Install the Lift Mechanism by inserting
a 5/16” x 1 1/4” Flathead Machine Screw through
holes A, B, C and D from the outside (countersunk
holes) of the Right Side Board. Position the corre-
sponding Right Lift Mechanism holes. Thread on 4
5/16” Nylock nuts to hold lift mechanism in place.
See illustration 2.
Repeat step 2-B with the Left Side Board and Lift-
ing Mechanism.
IMPORTANT! Over tightening the nuts will pull
the head of the machine screw too deeply into the
Side Board. Tighten only until the head of the
screw is flush with the Side Board.
Step 3: Locate the Bridge Board
and Insert seven Cam Fittings into
the sockets provided. Press the Cam
Fittings in so they are tight against the
bed part. You may need a rubber mal-
let to get them properly set.
Page 2
Bridge Board has 7 fittings
Helpful hint: The Bridge Board and the Head
Board are the same dimensions and could be
easily confused. Note the Bridge Board has 7
cam fitting sockets where as the Head Board
has either six or nine.
Optional holes for lights
Hole A
Hole B
Hole C
Hole D
Base Board
Notch
Right
Side Board
Illustration 2
All holes are countersunk
in this side of sideboard
Finished edge
Finished edge

X 2
Step 4: Locate the TWO (2) Stretcher Boards
and insert four Cam Fittings into the back of
each Stretcher. Press the Cam Fittings in so
they are tight against the part.
Page 3
Step 6: Lay the right Side
Board down as illustrated be-
low and screw 10 Connecting
Bolts into the holes provided as
shown. Repeat the process with
the left Side Board which will
require 11 Connecting Bolts.
Step 5: Insert 6 Cam Fittings in
the back of the Head Board
Cam Fitting
Finished edge
Finished edge
Finished edge

Illustration 5
1/2 Turn to tight
Cam Fitting
Connecting Bolt

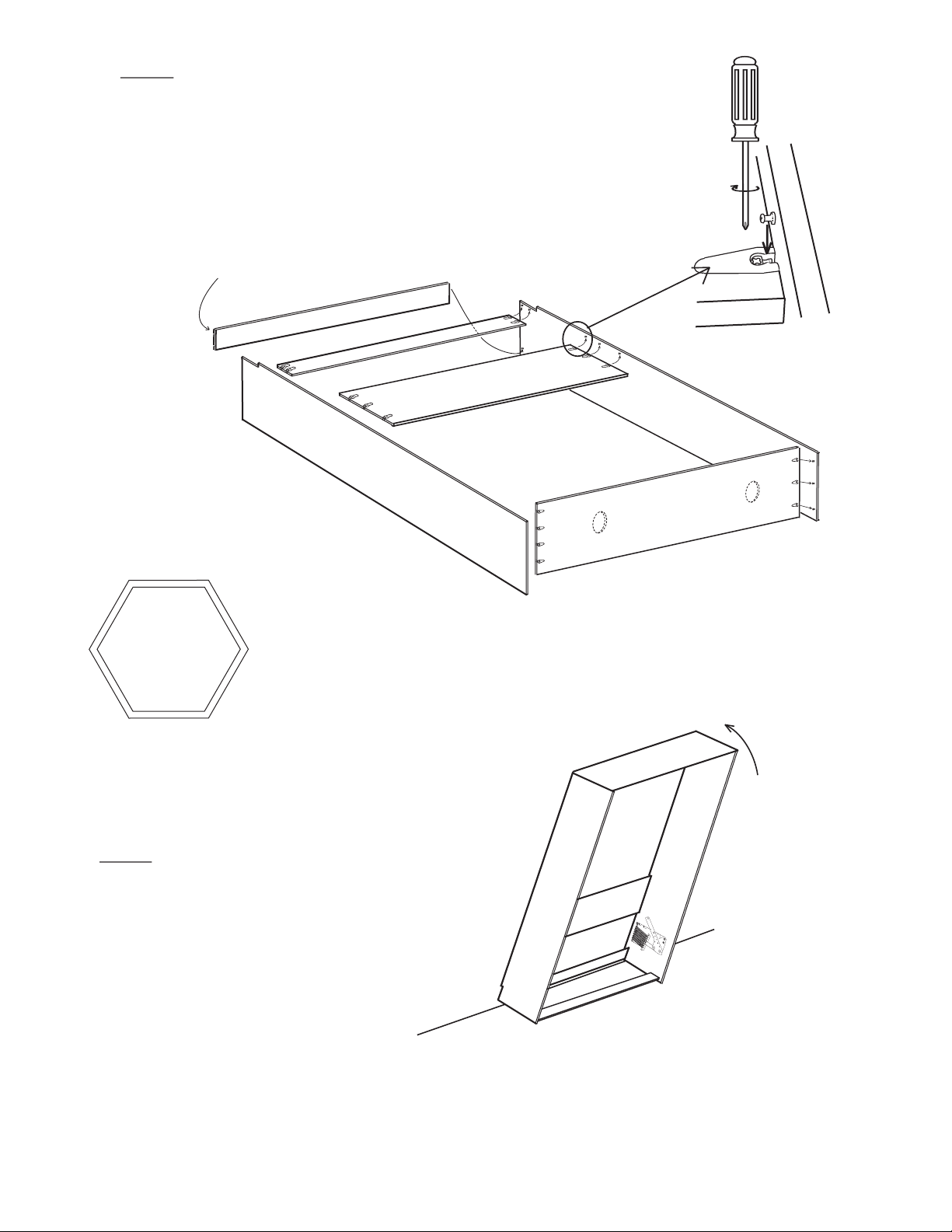

Step 7: Assemble the Bed Cabinet face down with the bottom of the bed nearer
the wall to which it will be installed. Note the “Front Stretcher” (illustrated
below) should be positioned so the Cam Fittings are at the bottom of the bed.
IMPORTANT! Tighten the cam fittings with a hand screw driver by turning the
Phillips head clockwise 1/2 turn to tight.
HELPFUL HINT: It is easier to tighten the Cam Fittings if the two bed parts are
snug together.
Step 8: Stand the bed cabinet up
against the wall where you intend to
have it installed.
Page 4
INSTALLATION WALL
Bed Bottom
Front Stretcher
cam fittings on bottom
Optional holes
for lights
Finished edge
Finished edge
Finished edge
Finished edge
Finished edge
(Light Kit instructions are in the Light Kit box)
STOP IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST
REFER TO THE LIGHT KIT INSTRUCTIONS AND INSTALL THE
LIGHT KIT BEFORE MOVING ON.
WARNING! THE NEXT STEP MAY REQUIRE PROFESSIONAL HELP.
IF YOUR WALLS ARE NOT TRADITIONAL WOOD FRAMING, YOU MAY NEED TO HIRE A HANDY
MAN OR CONTRACTOR TO HELP IN ANCHORING THE BED TO YOUR WALL. FAILURE TO PROP-
ERLY ANCHOR CABINET COULD CAUSE SEVERE PERSONAL INJURY. CALL TECHNICAL SUP-
PORT AT 866-725-6401 IF YOU HAVE ANY QUESTIONS.
Finished edge

Step 10: Locate the Front
Panel(s) and lay them on the
floor face down (finished side).
Position them in front of where
the Bed Cabinet was installed
and leave enough room to work
around them.
Step 11: Arrange the mat-
tress rails on the face panels
as shown.
Head rail
Foot rail
Side rail
Side rail
HELPFUL HINT: the “Head Rail”
refers to the end that is closest to the
Bed Cabinet while assembling and
will be where your head is while
sleeping.
Page 5
Step 9:: Using a Stud Finder
locate and mark the studs in the
wall behind the bed. Attach the
“L” brackets to the top of the Bed
Cabinet corresponding to where
the studs are located. Now attach
the “L” brackets to the studs in the
wall. See illustration 6
IMPORTANT! Queen and Full
size beds require 3 studs, Twin
size beds require 2 studs. It is
VERY important that the bed be
anchored securely to the wall.
For technical support call 866-
877-7803 toll free.
Studs in wall
Bed Cabinet
“L” Bracket
3/4” pan head
screw
2” flat head screw
STUD
Illustration 6
Hardware needed for next step from Bag #8
2” flat head wood screw
x 6
3/4” pan head screw
x 6
“L” Bracket
x 3
Finished edge
Finished edge
Finished edge

Finished edges

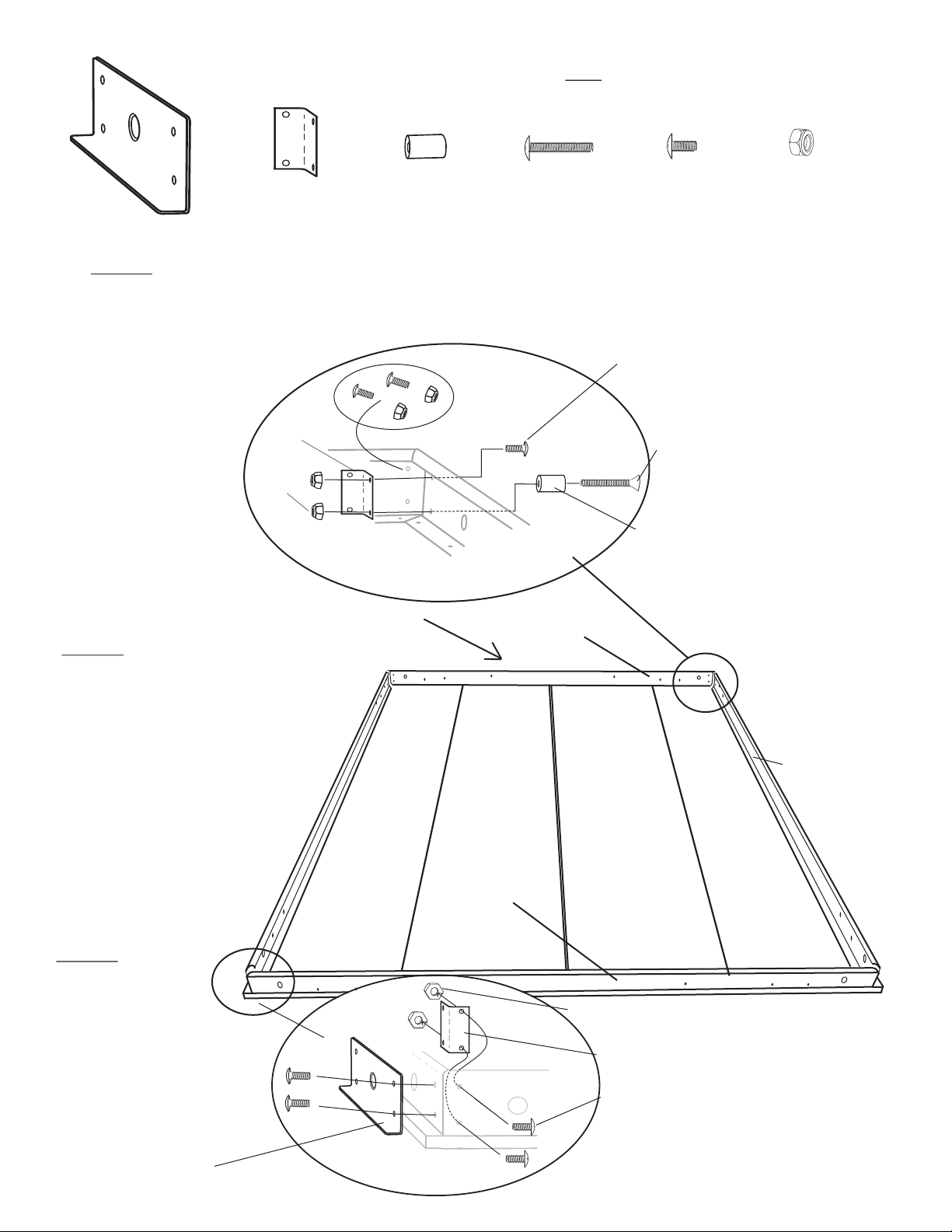

Step 12: From hardware pack 3 locate the hardware shown above. Finger tighten the hardware as shown in illustration 7
attaching two of the 4 hole corner brackets on the foot rail end of the mattress frame. Note the lower hole on each side rail
uses the Leg Stop with the longer screw (3/16” x 1 1/4”). Repeat on the opposite foot rail corner.
3/16” x 1 1/4”
3/16” x 1/2”Leg Stop 3/16” Nylock hex nut
4 hole corner bracket
Hardware needed for next 2 steps most from Pack #3
x 4 x 2 x 2 x 14 x 16
Head rail
Foot rail
4 hole corner bracket
3/16” Nylock hex nut
Leg stop (black barrel spacer)
3/16” x 1/2” truss head screw
3/16” x 1 1/4” flathead screw
3/16” x 1/2” truss head screw
3/16” Nylock hex nut
4 hole corner bracket
(Black) (Black)
(Black)
Illustration 7
Step 13: Finger tighten the hardware as
shown in illustration 8. Insert two 3/16”
truss head screw through the panel saver
then through the side rail and finally
through the 4 hole bracket. Now on the
head rail side insert two 3/16” truss head
screws through the head rail and through
the 4 hole bracket
Illustration 8
Side rail
Step 14: Once all
sides are finger tight
go back to each corner
and align the corners
as they are tightened.
Page 6
Panel Saver
Note: the panel guards have 4
holes but you will only use two
of them.
Panel Saver x 2

x 160
3/4” Panhead screw
(hardware pack 7)
x 3
Center Stiffeners
(Queen and Full size beds only)
Hardware and parts needed for next steps
Step 15: Centering the frame side to side on the face
panels (leaving approx. 1” space on either side) and bring-
ing the head rail flush to the end of the panels, align the Side
Rails and the Face Panels. See illustration 9.
Step 16: Place the Center Stiffeners across the Bed
Panels overlapping them on to the Side Rails and
spaced equally to divide the Bed Panels in four equal
sections. See illustration 10
Step 17: Using the 3/4” pan head
screws secure the Bed Frame to the
Face Panels using 1 screw in each cor-
ner ensuring that the frame and panels
are square to each other. Once the
Frame is secure insert the balance
of the screws around the Frame
and across the Stiffeners.
x 2
3/4” Washer
(hardware pack #5)
IMPORTANT! When at-
taching the Frames and
Stiffeners, we recommend
that you power drive screws
only part way and then
tighten by hand.
DO NOT STRIP SCREWS.
Velcro Strap
x 2
Page 7
Illustration 9
Head rail
Foot rail
1”
Flush to end
of Face Panel
Illustration 10
Illustration 11 Velcro Strap
Note: the stiffeners will overlap the hori-
zontal flange of the Side Rail but DO
NOT reach all the way to the vertical
members. Also the holes in the ends of
the Stiffeners do not need to line up with
the holes in the Side Rails.
Attach the Velcro Straps (for holding
the mattress in place) about 18” from
the foot of the bed. Put the hooks
part of the strap on one side of the
bed and the loops part of the strap on
the other side. Insure that the hooks
and loops will face each other and
interlock. see Illustration 11
Finished edges
Head rail

Head Rail
Bolt hole 1
Bolt hole 3
Bolt hole 2 (left open)
Step 18: As illustrated below, insert the Allen Key Bolt through bolt hole # 1 and tighten it down securely using a Nylock Nut.
Now insert a 5/16” x 3/4” Hex head bolt through hole # 3 and thread the Nylock nut ONLY UNTIL IT IS FLUSH WITH THE
BOLT END. Bolt hole #2 will be used in a later step.
Page 8
Hardware needed for next step from hardware pack #2
5/16” Nylock Nut
X 4 X 2 X 2
5/16” x 3/4” Allen Key Bolt
Hardware needed for next step from hardware kit #4
Step 19: Attach the Leg assembly to the frame as illustrated below. Note, 2 Teflon washers may be
used on the out side of the frame for proper spacing.
X 2
5/16” x 1 1/2”
X 2
1/2” Star Washer
Step 20: Position the Cross Bar between the Legs. Place 1/2” Star washer on one of the 5/16 X 1 1/2” Hex Head bolts. Repeat on
other side.
Cross Bar
Foot Rail
Leg Stop
1 1/2” (3/4” i.d.)
1/8” Thick washer
1 1/2” (3/8” i.d.)
1/8” Thick washer
1 7/16” (3/4” i.d.) 1/
16” Thin Teflon washer
X 2 X 2 X 2
Thin Teflon washer Thin Teflon washer
6.75”

Page 9
Step 22: Stand the Bed face unit up on
its Head Rail end. Now with you and
your assistant on either side of the Bed
face unit lift until the # 3 bolt on the
Bed face unit is a few inches above the
slotted end of the Tension Arm on both
sides. Gently lower the Bed face unit
between the Tension Arms and seat the #
3 bolt into the slot at the end of the Ten-
sion Arms. Now start pulling the bed
face unit down and away from the Bed
Cabinet the Allen Key bolt head will
seat into the notch at the lower end of
the Tension Arms. Lower the bed unit
down and pull the Legs down so that
they are on the floor. Someone will need
to hold the bed unit down as it will want
to rise.
Bed Front
#3 Bolt head
Allen Key bolt head
IMPORTANT! As instructed in step 18, Bolt #3 should be loose enough to slip into the
notch at the end of the Tension Arm See illustration below.
Tension Arm
Optional Light kit safety
cut off switch. Beds with
light kit only
STOP IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST
RETURN TO THE LIGHT KIT INSTRUCTIONS STEP 6 AND INSTALL
THE SAFETY CUT OFF DEVICE BEFORE MOVING ON.

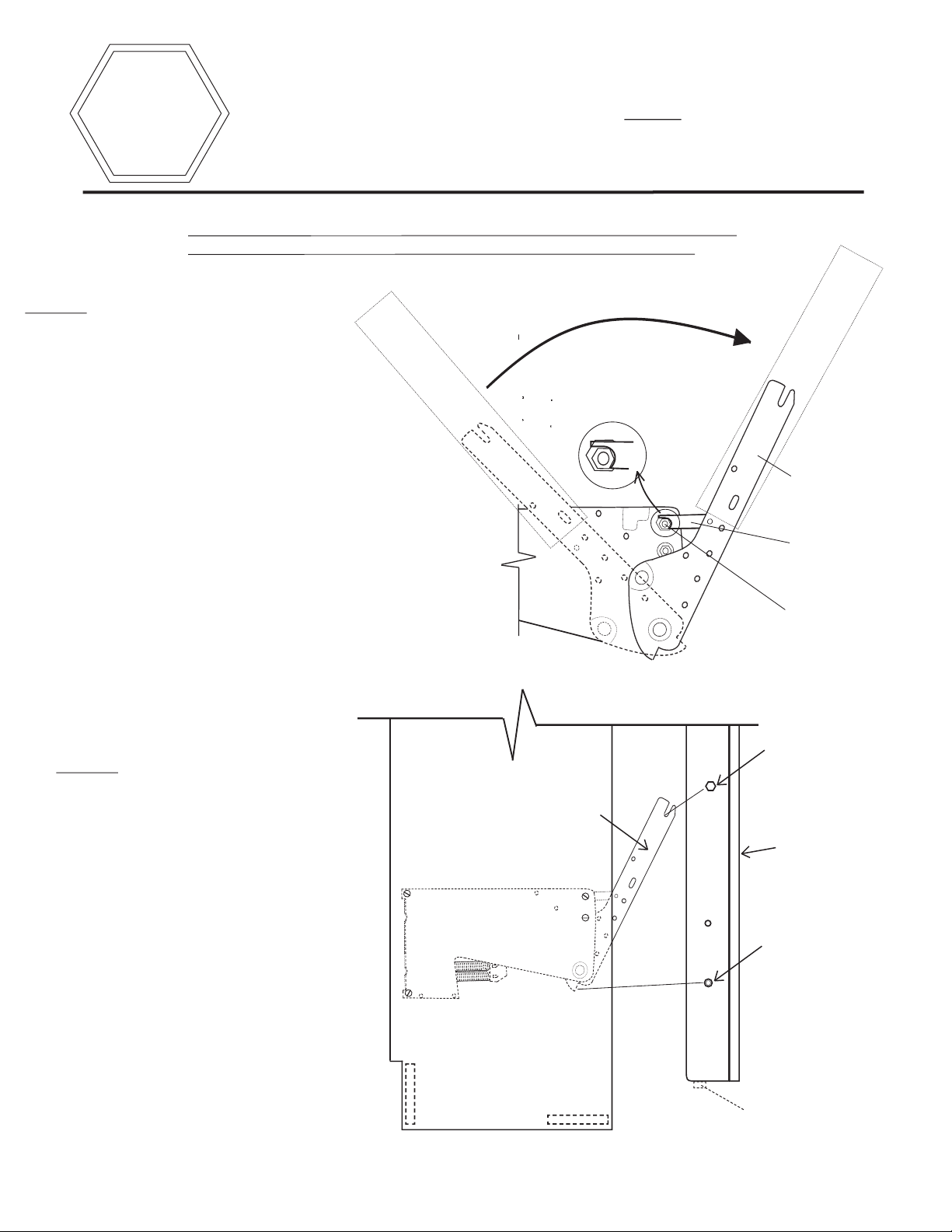

Step 21: Brace one foot against the front
edge of the side board and using the 13”
length of PVC tubing provided, lever the lift
mechanism tension arm out and down until
you can secure the arm lock to the hexagon
nut shown at right. BE SURE THAT THE
LOCK IS SECURED AGAINST THE HEX
NUT BEFORE RELEASING THE TEN-
SION ON THE LIFT MECHANISM.
Tension Arm
Arm Lock
Hexagon Nut
PVC tubing
PVC tubing
Helpful hint: As you start to draw the tension arm
down with one hand, use the other hand to posi-
tion the arm lock on top of the hex nut. Now as
the tension arm continues to be pulled down with
both hands, the arm lock will naturally drop into
place around the hex nut as illustrated.
WARNING: There is tremendous force involved in the next step, do not place hands be-
tween the front of the side boards and the tension arms as you set the mechanism.

Page 10
5/16” Nylock Nut
X 2 X 2
5/16” x 3/4”
Hardware needed for next step from hardware kit #2

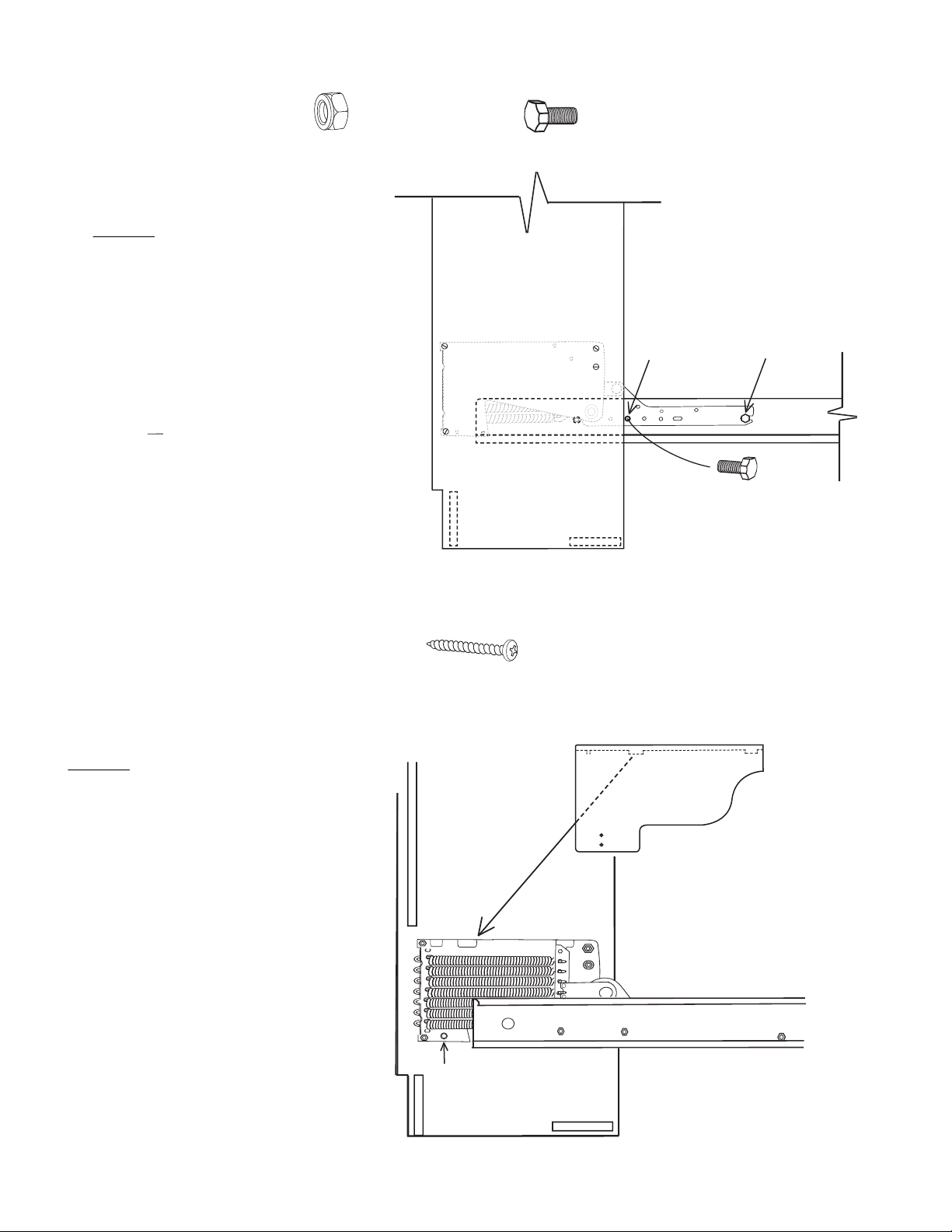

Step 23: Insert a 5/16” X 3/4” Hex
bolt through hole #2 and tighten a 5/16”
Nylock nut onto the bolt. Now tighten
the nut and bolt in hole #3.
Repeat step 23 on the other side of the
bed unit.
Hardware needed for next step from hardware pack #2
Step 24: Slip the Mechanism Cover
over the Mechanism so that the tabs on
the cover fit into the notches provided.
Line up the hole with the mechanism
cover support post and insert one Pan-
head wood screw per side.
Head Board
Black mechanism cover
Mechanism Cover
Supports post
WARNING! Failure to insert
and tighten all the bolts in step 23 could result
in severe personal injury or
damage to the lift mechanism. Lift mechanism
damage caused by missing or loose hardware
is not covered by warranty.
hole #2 hole #3
Left side board
1 5/8’’ Panhead Wood Screw
x 2

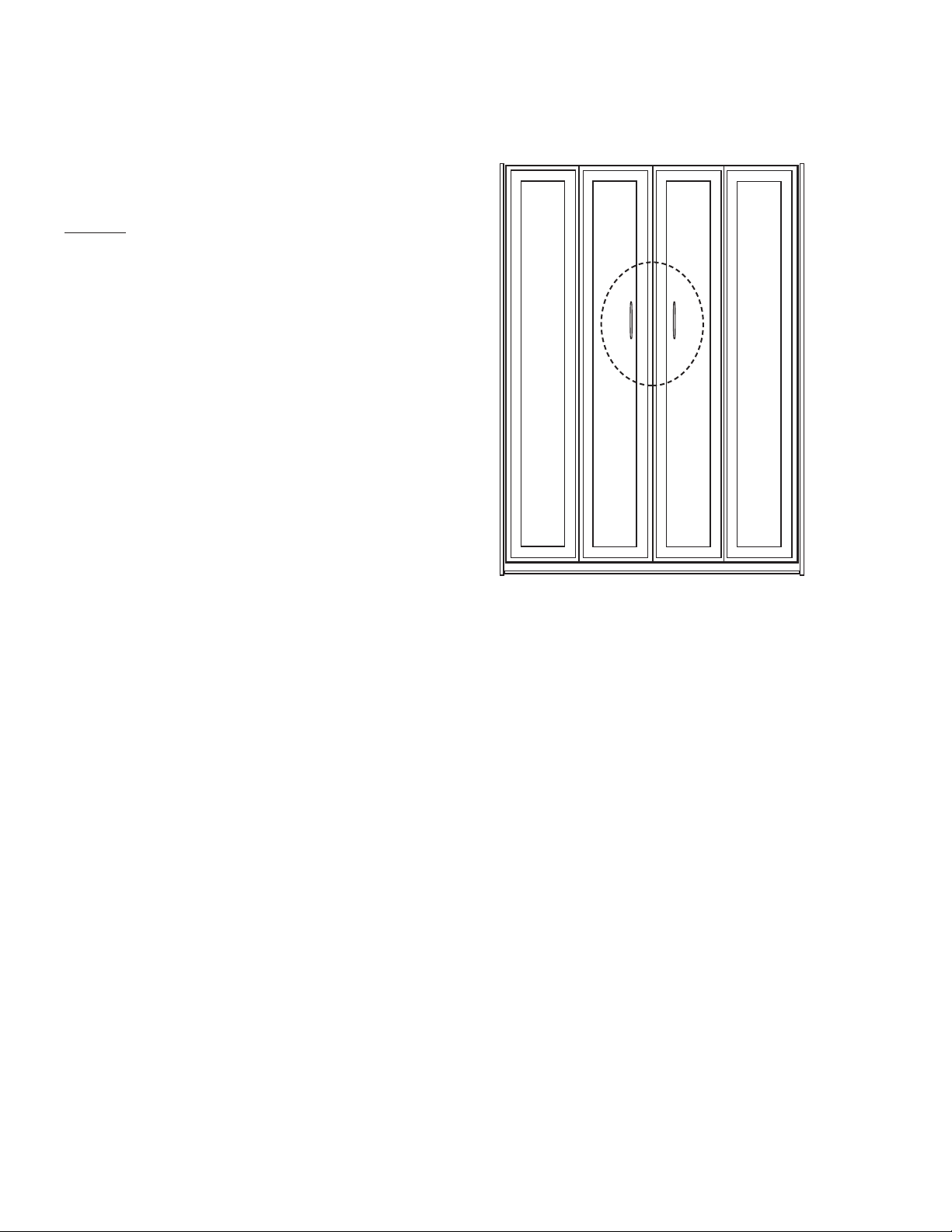

Step 25: Place Handles as desired on
Wallbed
Note: Positioning the handles
more toward the top of the bed
face will make the bed easier
to open.
