Wilding Wallbeds Studio Series User manual

WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND
FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SE-
VERE PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER
SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
Revision 4/16 C23
INSTRUCTION BOOKLET #C23
Watch step by step installation instructions at:
STORAGE HEAD BOARD
https://www.wallbedsbywilding.com/wallbed-installation-studio-series/

Studsensor
Ratchet
13mm Socket 11mm Socket 8mm Socket
Large regular screwdriver
Phillips screwdriver
13 mm open end wrench
Stud finder
STANLEY
Tape measure
Cordless screw driver
With Phillips bit
6 foot ladder

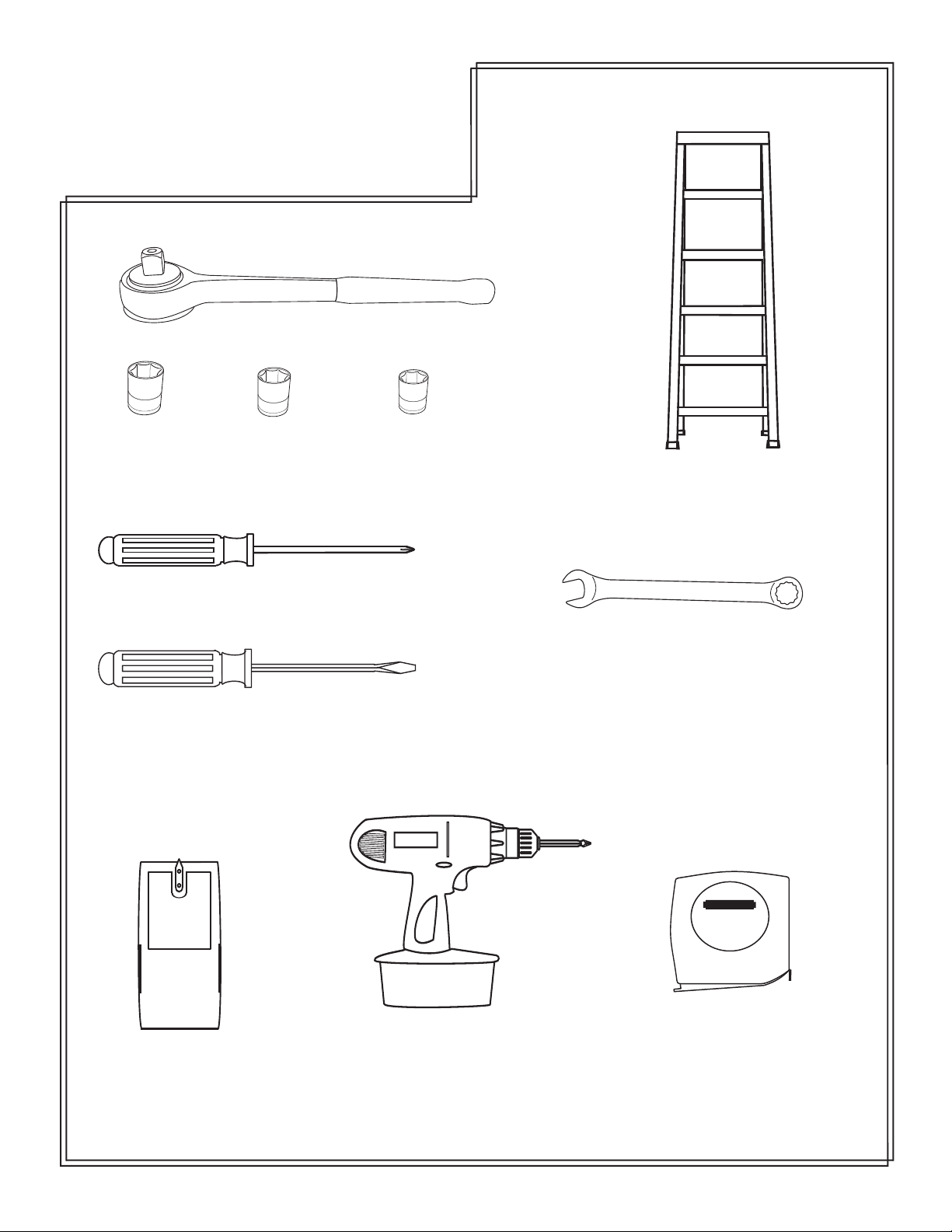

Tools Needed

Cam Fitting
Connecting Bolts
4
36

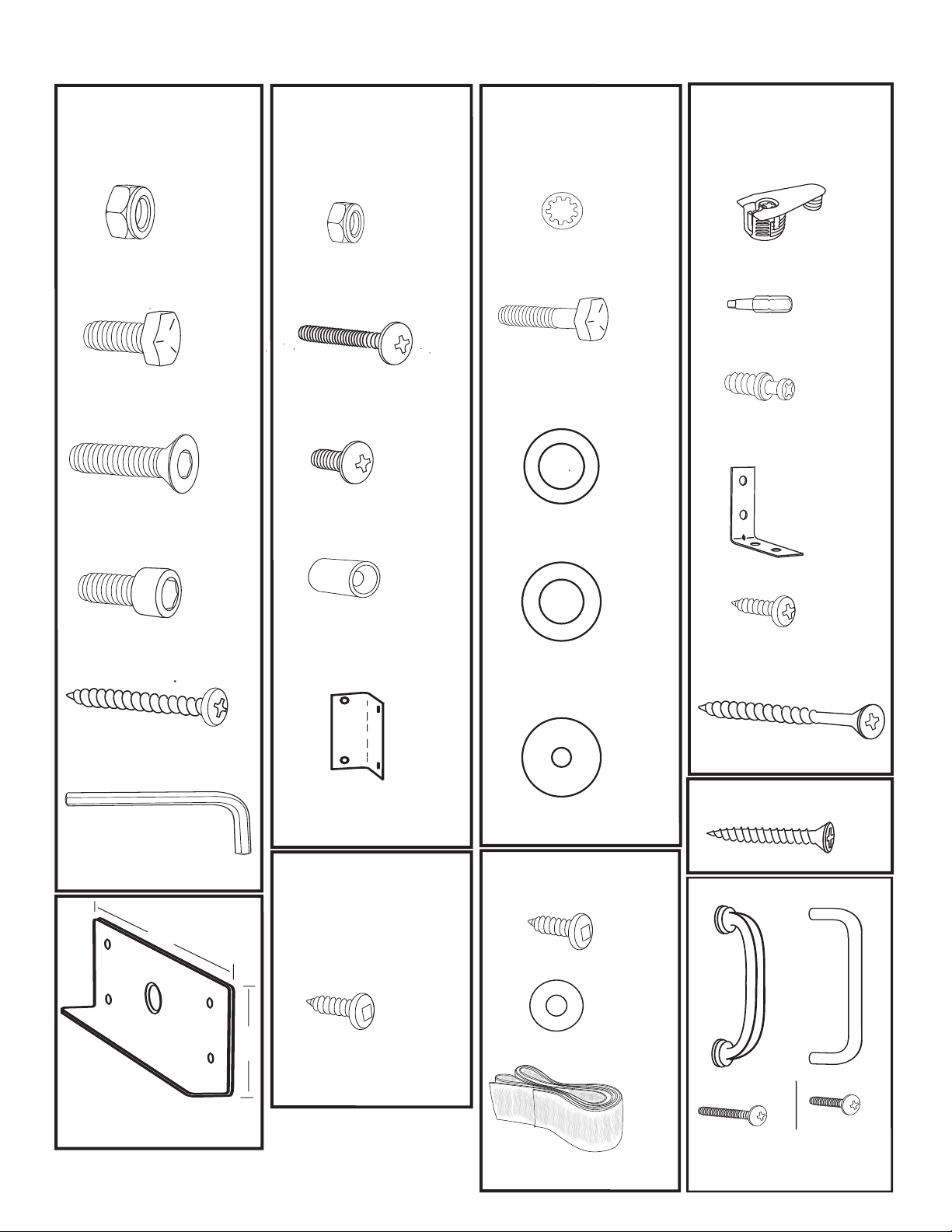

Other Hardware
Item Qty
“L” Bracket
3
Hardware Page
Pack 5
5/8’’ Pan head Screw
2
Item Qty
Velcro Retainer Straps
2
6
5/8’’ Pan head Screw
2’’ Wood Screw
6
6
1 Wood Screw
1/4’’
Optional hardware:
For bed designs using crown molding.
Square Tip Bit
1
Remington
Newport
Dakota
Bed Models
Bed Handles
1”
1
3/8’’
4
4
NOTE: Handle may vary depend-
ing on bed style.
5/16’’ Nylock
Hex Nut
5/16’’ x 1”
Allen Head Bolt
5/16’’ x 1”
Hex Head Bolt
5/16’’ x 1 1/4’’
16
10
2
4
Pack 2
Qty
Item
1 5/8’’ Pan head
Wood Screw 2
5/16” Allen wrench
Tapered Allen Head Bolt
Panel Saver
2
6’’
2.5’’
(In mechanism rails box)
1”x 1” x 1 3/4”
Four Hole Corner
Bracket
10-24 Black
Nylock Nut
10-24 x 1 Black
Machine Screw
1/4’’
5/8’’ Pan
head Screw
10-24 x 1/2’’ Black
Machine Screw
1/2” x 3/4”
Black Barrel
(Leg Stop)
16
2
160
14
2
4
Item
Item
Qty
Qty
Pack 3
Pack 7
Pack 4
1 1/2” x 5/16”
Black washer
1 1/2” X .765”
Black washer
1 1/2” Nylon washer
1/4’’ x 1 1/2’’
Hex Head Bolt
Star Washer
2
2
2
2
4
Item Qty
3/4’’ Washer
2
(Extra)
(From Manila Envelope)

Step 1: Locate the two Side Boards.
If you purchased a Queen size bed
the Side Boards measure 85.25” long.
Full and Twin size Side boards will
measure 80.25” long. Then from the
small square cardboard box locate the
two Lift Mechanisms, hardware bags,
and springs.
Lift Mechanism
X 2
Step 2: Install Springs in the Lift Mechanisms
Bed Size Number of Springs
Queen
Full/Double
Twin/Single
7
6
4
HELPFUL HINT: You may find it easier to fit the hook
under the Tension Arm if you pry up the Arm Bracket with
a wooden wedge or similar device.
IMPORTANT! Be sure that holes
used on the Mounting Plate corre-
spond to the holes in the Tension
Arm and use the same number of
springs and the same configura-
tion on both Lift Mechanisms
Repeat Step 2 for Left Lift Mechanism.
The required number of springs in the Lift Mechanisms varies with the different weights of
mattresses. If you purchased your mattress with your bed from Wilding Wallbeds refer to the
chart to the right. This will also be a good reference point for mattresses not purchased with
your Wall bed.
Install the first spring in hole #2 for Queen and Full size beds and hole #3 for twin size on both the Mounting Plate and the
Tension Arm. Hook one end of the spring under the upturned edge of the Mounting Plate. Lay the spring down and slide it
under the matching hole in the Tension Arm. See illustration 1.
Continue by working down from,
hole 2 (Queen and Full size beds)
or hole 3, (for twin size), until you
have installed the required number of
springs.
NOTE: After you have completed installing and checking operation of your Wall
bed, you may find it necessary to add or remove springs to achieve the correct lift
effort of between 5 and 10 pounds.
Hole #2
Hole #1
Page 1
Tension Arm
Upturned edge
of mounting
plate
Arm Bracket
Illustration 1
(Right lift mechanism)
Hole #9
(Some springs may be pre-installed)
Left Side Board Right Side Board
Finished edge
Cut out for room
base molding

Page 2
Step 4: Lay the right Side Board down and screw 14 Connecting Bolts into
the holes provided as shown. Repeat the process with the left Side Board
which will require 15 Connecting Bolts.
One in each
of the 7 holes Note: The left Side
Board will have a
fourth hole in this loca-
tion for a Connecting
Bolt.
Hardware needed for next step:
x 29
Connecting Bolt
Note: Screw the connecting bolts down until the collar of the con-
necting bolt is seated firmly against the surface of the wood.
(From Manila Envelope)
5/16’’ x 1 1/4’’
x 8
5/16’’ Nylock Nut
x 8
Hardware needed for next step from Pack #2
Repeat step 3 with the Left Side
Board and Lift Mechanism.
IMPORTANT! Over tightening the nuts will
pull the head of the bolt too deeply into the
Side Board. Tighten only until the head of the
bolt is flush with the surface of the Side Board .

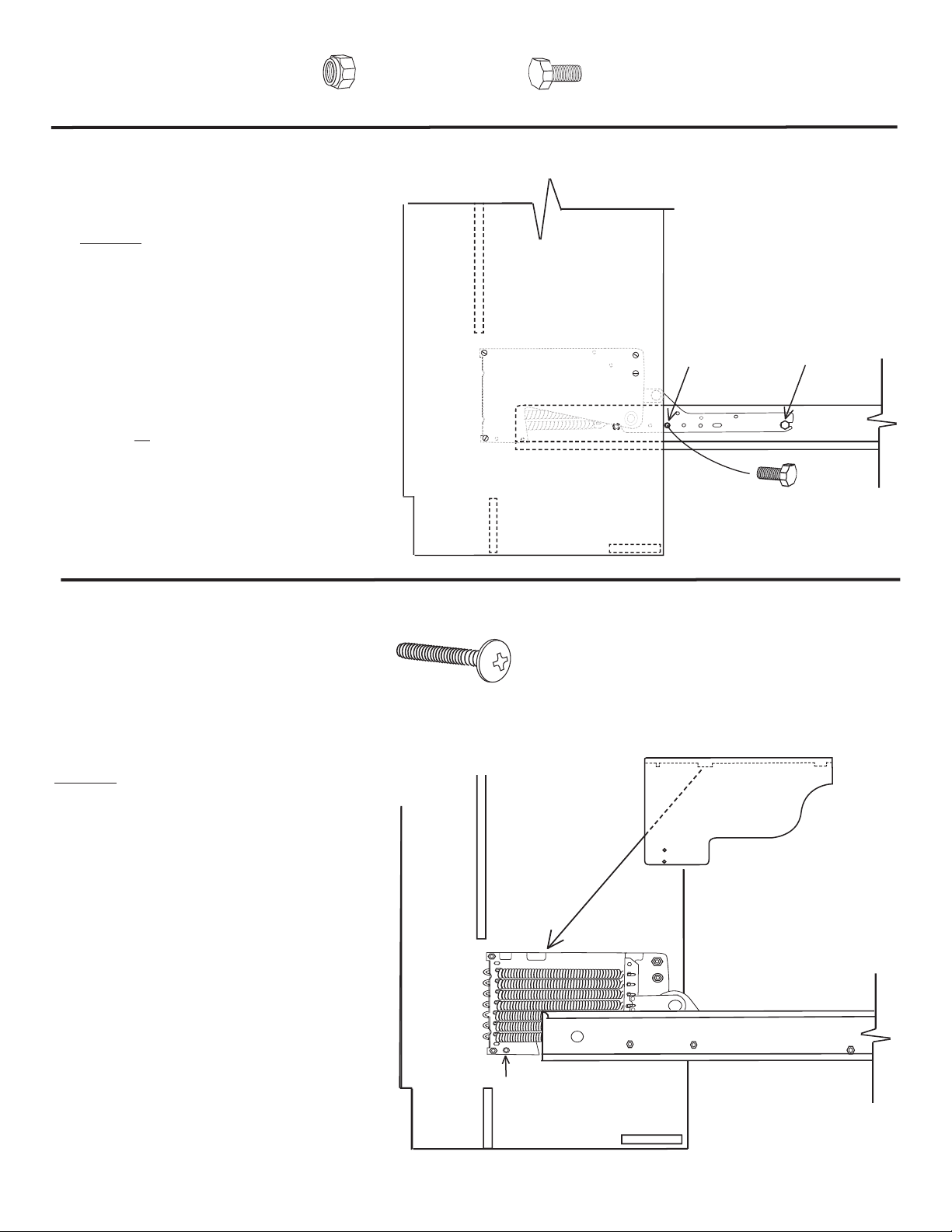

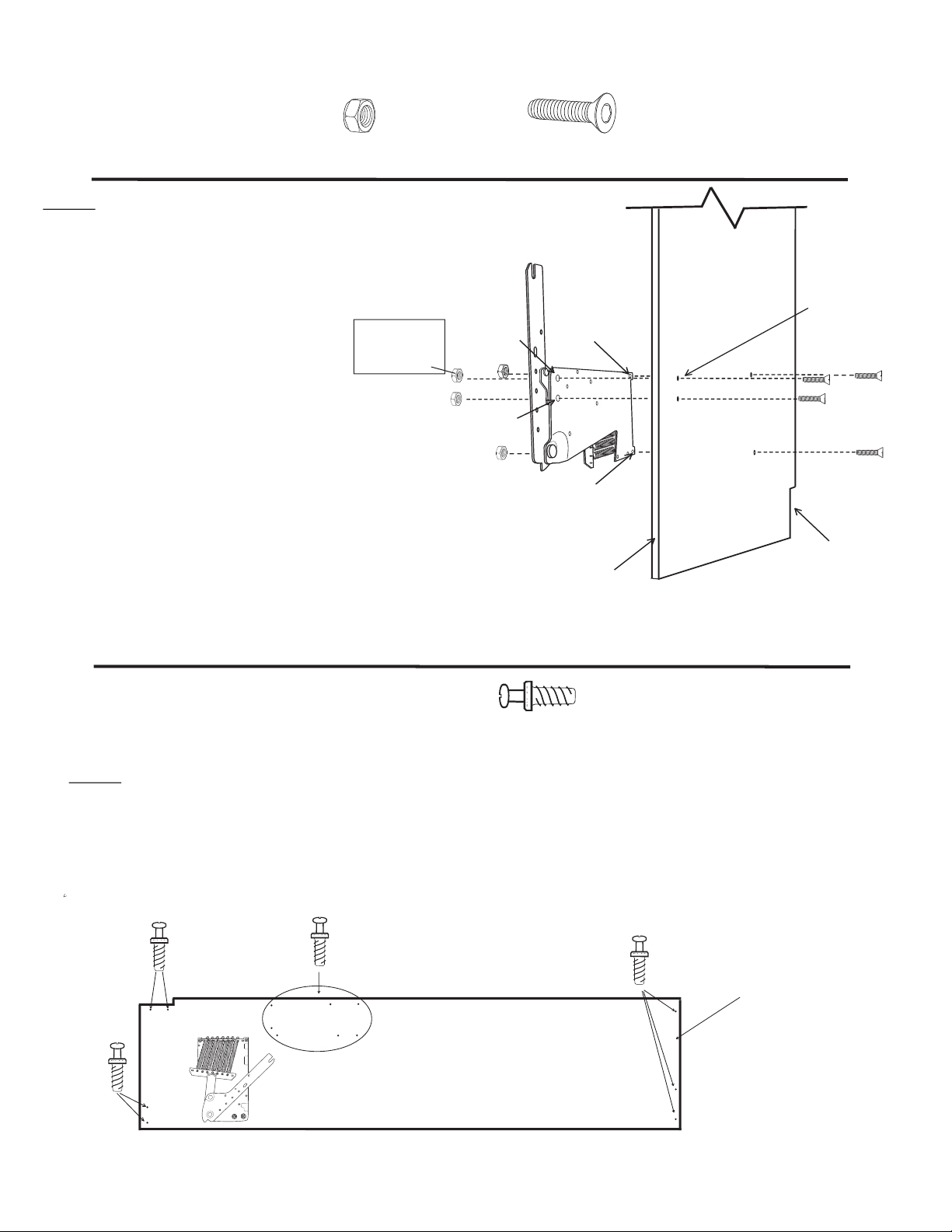

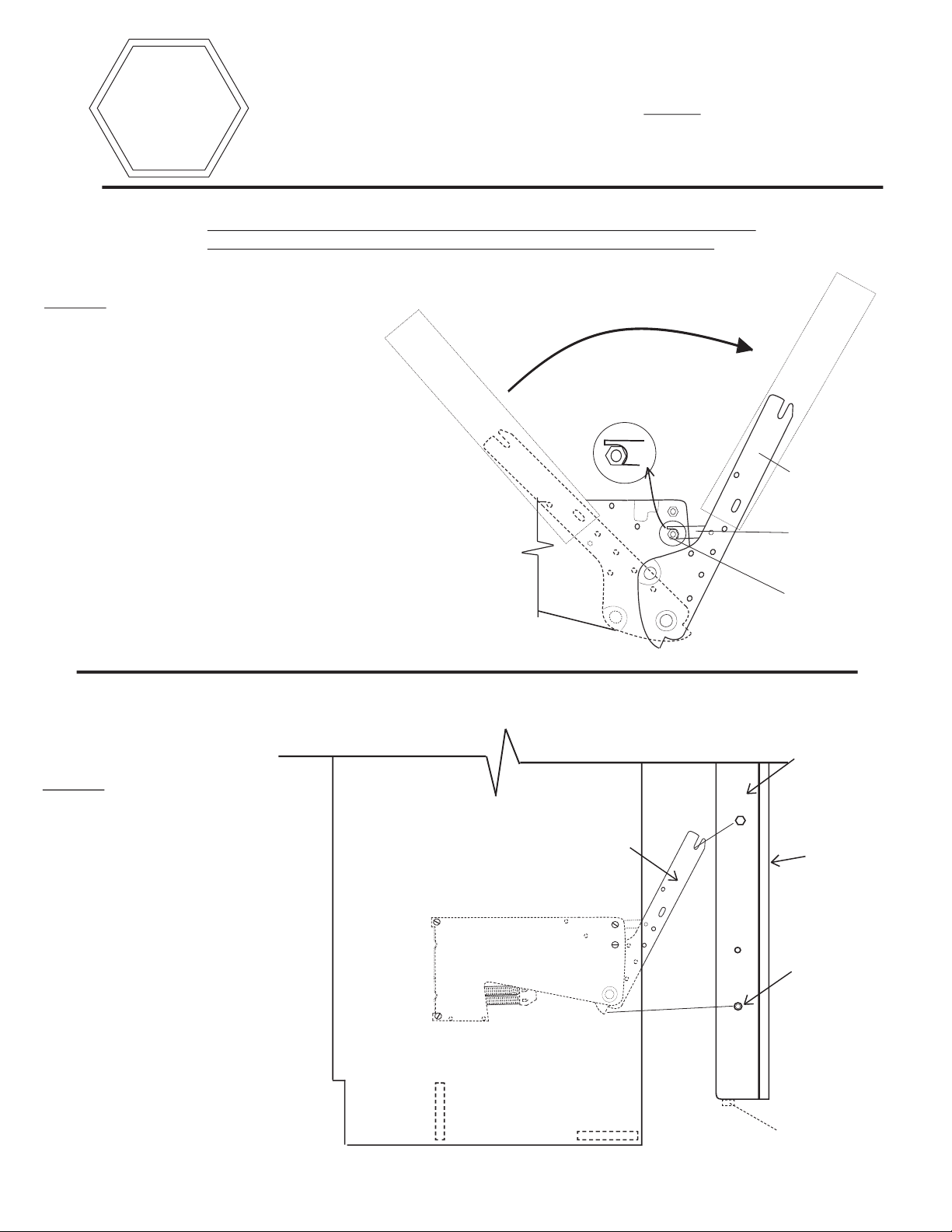

Step 3:
Install the Lift Mechanism to
the Side Board by inserting a 5/16 x 1
1/4” Tapered Allen head Bolt through
holes A, B, C and D from the outside
(countersunk holes) of the Side Board.
The bolt then goes through the cor-
responding holes of the Right Lift
Mechanism as illustrated. Thread on
four 5/16” Nylock nuts and tighten
(hole A may have threaded collar
instead of bolt)
Hole A
Hole B
Hole C
Hole D
Finished Edge
Base Board
Notch
Right
Side Board
All holes are
countersunk in
this side of side-
board
May be threaded
collar instead of
bolt in hole A.
Note:
Tapered Allen Head Bolt

Page 3
1/2 Turn to tight
Cam Fitting
Connecting Bolt
Storage Head board step A: Locate the
Head Board and insert 3 Connecting Bolts
into the holes at the bottom edge of the
Head Board.
Storage Head board step B: Identify
the Head Board Bottom which has 7 Cam
fittings pre-installed and a grommet hole in
the center.

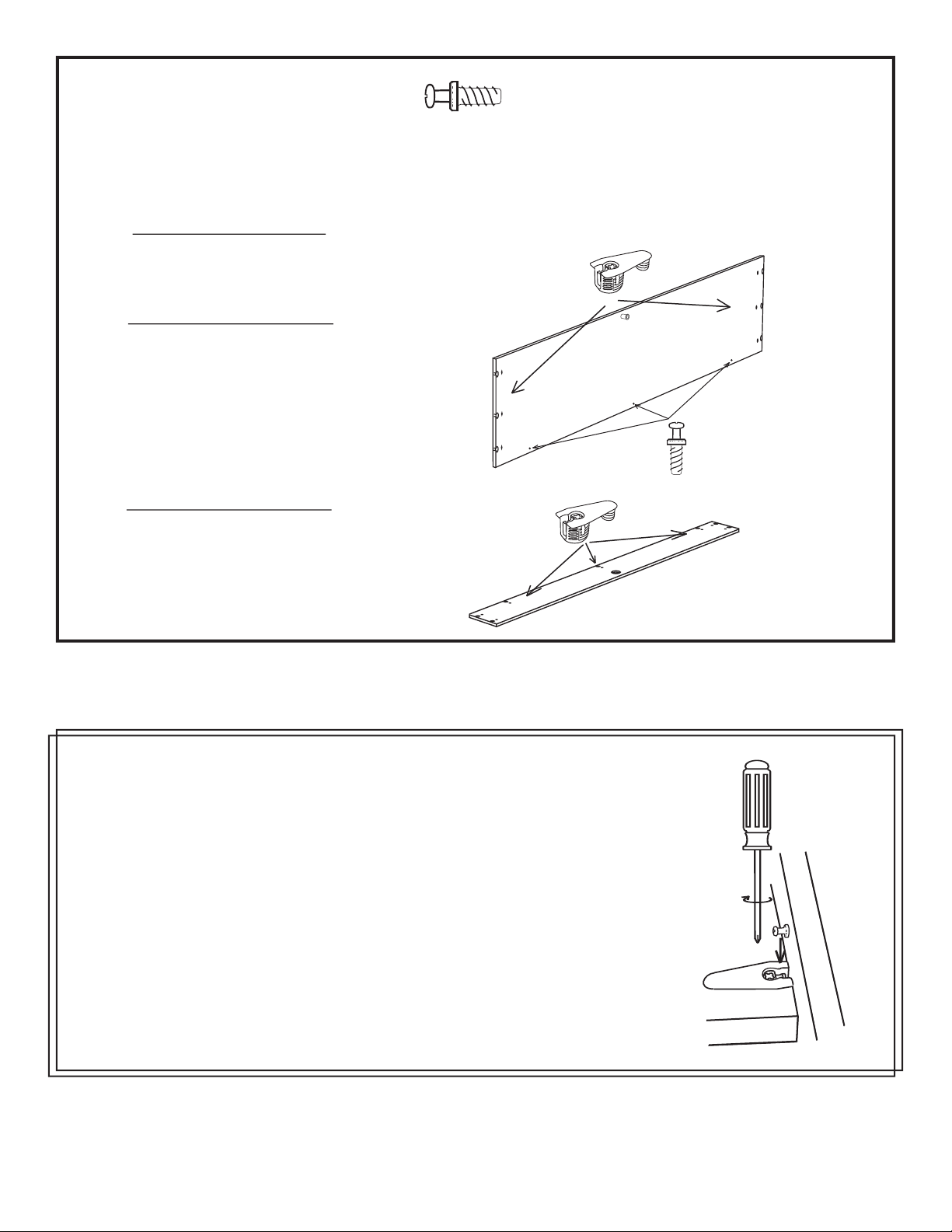

Working with Cam Fittings
In the next three steps you will work with Cam Fittings and Connecting
Bolts in attaching cabinet parts together. Take a minute and review this
information for ease of assembly.
- Slide the Cam over Connecting bolt.
- Hold parts snug together.
- Turn Cam Fitting 1/2 turn clockwise with a manual
screw driver. DO NOT USE POWER SCREW DRIVER.
Storage Head board Steps
(Cam Fittings are Pre installed)
(Cam Fittings are Pre installed)
Hardware needed for next step:
x 3
Connecting Bolt
(From Manila Envelope)

Page 4
Bed Bottom
Front Stretcher
cam fittings on bottom
Optional holes
for lights
Head Board
Bridge Board
Left Side Board
Right Side Board

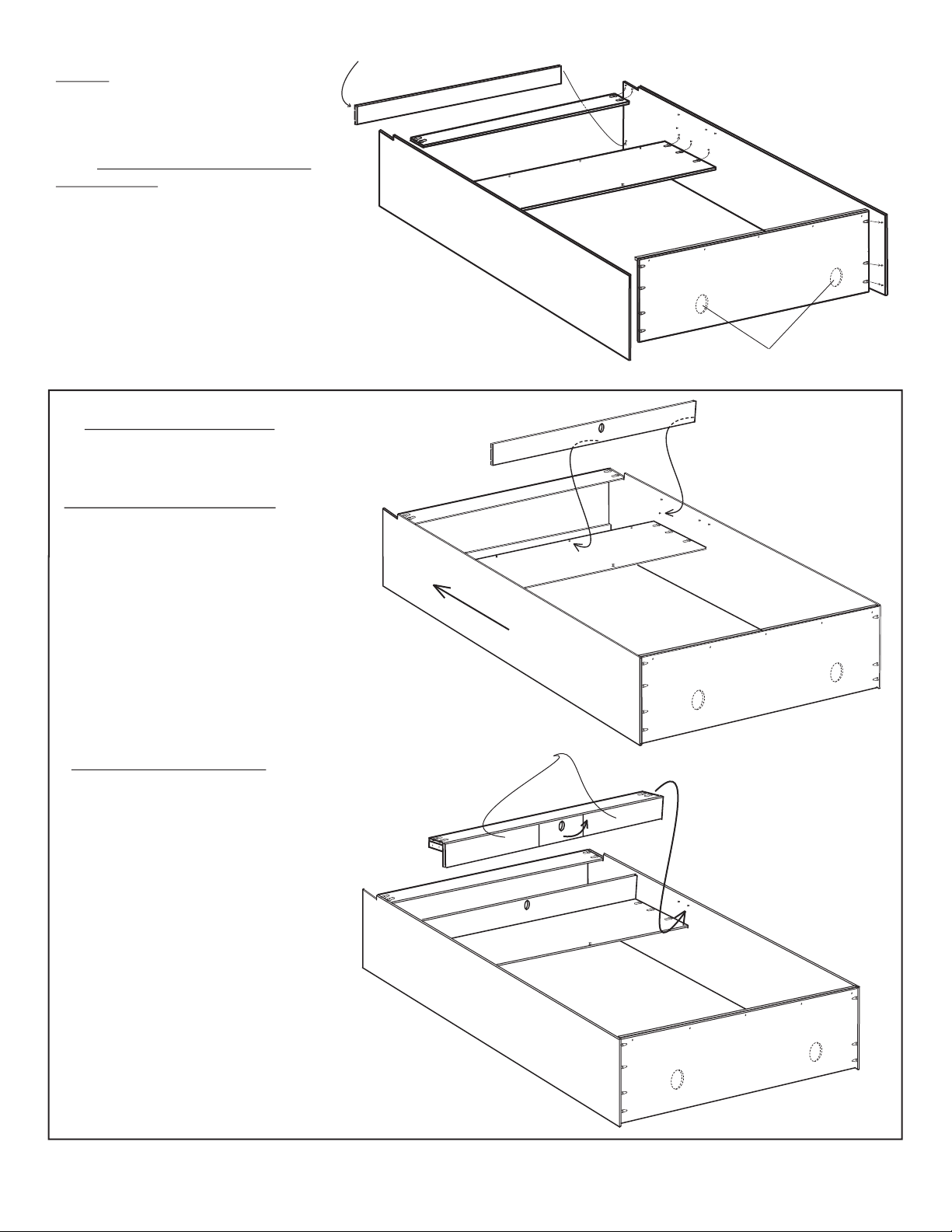

Storage Head Board Step C: Insert
the Head Board bottom into position as
illustrated. Note the cam fittings are fac-
ing down toward the bottom of the bed
cabinet.
Storage Head Board Step D: Install the
hinged storage door unit as illustrated.
Helpful hint: Lift the center
section of the hinged storage
door to get the unit positioned
correctly.
Hinged storage doors
Bed Bottom
Down
Storage Head board steps
Step 5:
Assemble the Bed Cabinet
face down with the bottom of the Bed
Cabinet nearer the wall to which it will
be installed. Note the “Front Stretcher”
(illustrated to right) should be positioned
so the Cam Fittings are at the bottom of
the Bed Cabinet
.

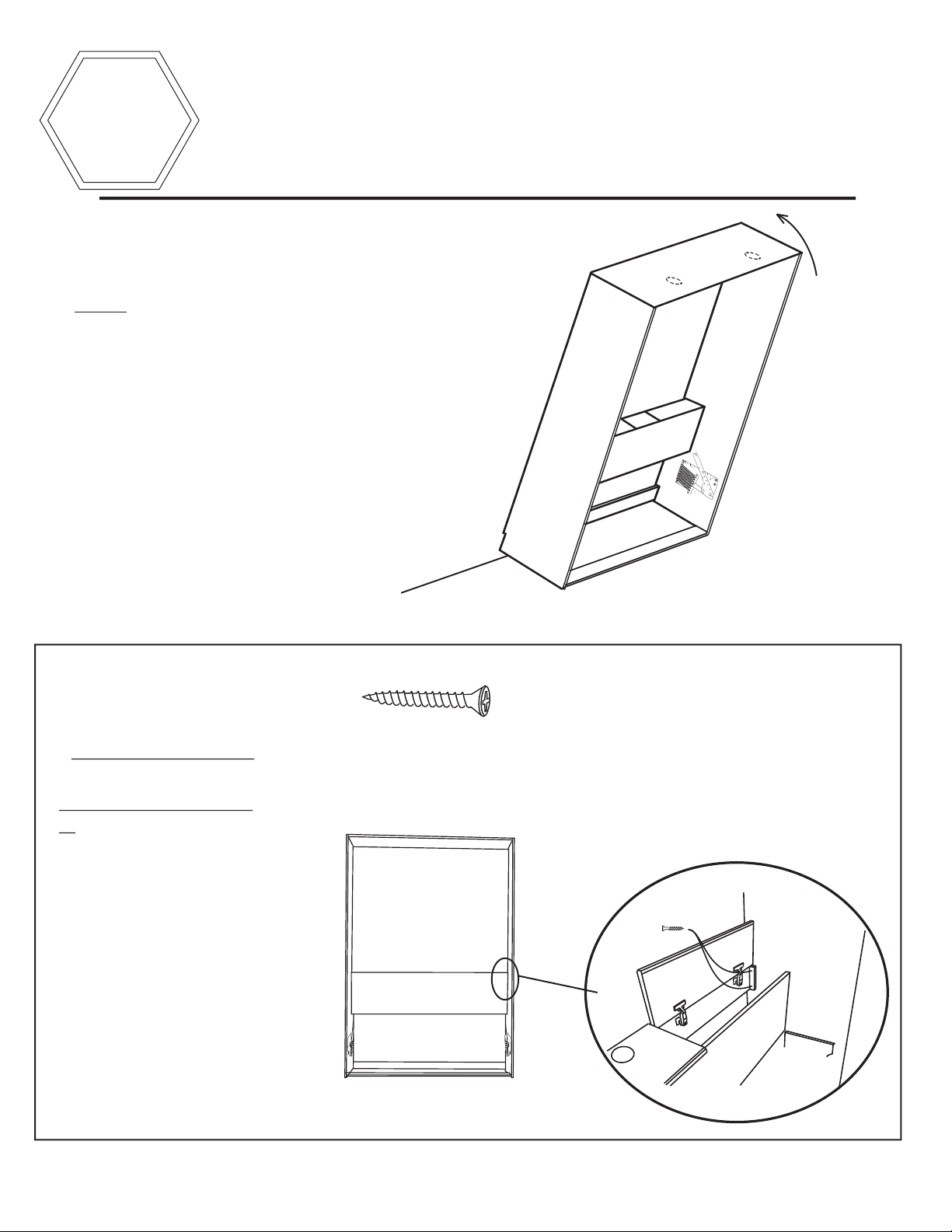

Step 6: Stand the Bed Cabinet
up against the wall where you
intend to have it installed.
Page 5
INSTALLATION WALL
(Light Kit instructions are in the Light Kit box)
STOP IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST REFER TO THE
LIGHT KIT INSTRUCTIONS AND INSTALL THE LIGHT KIT BEFORE MOVING ON.
Storage Head Board Step
E: With Bed Cabinet in the
standing position open the
storage head board on both
sides and insert two 1 1/4”
screws in either side of the lid
support through holes pro-
vided as shown.
Storage Head board step
X 4
1 Wood Screw
1/4’’
Hardware needed for next step
(From Manila Envelope)

Page 6
Step: 7: Using a Stud Finder locate and mark the studs in your wall behind the
Bed Cabinet. Attach the “L” brackets to the top, back of the Bed Cabinet cor-
responding to where the studs are located. Now attach the “L” brackets to the
studs in the wall using six 2” wood screws. See illustration 6
IMPORTANT! King and Queen size wall beds
require 3 studs for proper anchoring. It is VERY
important that the bed be anchored securely to
the wall. If bed is not anchored properly the Bed
Cabinet will fall causing SERIOUS injury. For
technical support call 866-725-6401 toll free.
“L” Bracket
x 3
5/8’’ Pan head Screw
x6
2’’ Wood Screw
Hardware needed for next step
(From Manila Envelope)
WARNING! THE NEXT STEP MAY REQUIRE PROFESSIONAL HELP.
IF YOUR WALLS ARE NOT TRADITIONAL WOOD FRAMING, YOU MAY NEED TO HIRE A HANDY MAN
OR CONTRACTOR TO HELP IN ANCHORING THE BED TO YOUR WALL. FAILURE TO PROPERLY AN-
CHOR CABINET COULD CAUSE SEVERE PERSONAL INJURY. CALL TECHNICAL SUPPORT AT 866-725-
6401 IF YOU HAVE ANY QUESTIONS.
x6
Illustration 6
Studs in your wall
Bed Cabinet
“L” Bracket
3/4” Pam Head
Screw
2” Wood Screw
STUD

Page 7
Step 9: Arrange the Mattress
Rails on the face panels as shown.
Head rail
Foot rail
Side rail
Side rail
HELPFUL HINT: the “Head Rail”
refers to the end that is closest to the
Bed Cabinet during assembly and
will be where your head is while
sleeping.
Note: Number of
face panels will vary
depending on bed
model. But will typi-
cally be either 2 or 4
Step 8: Locate the Front Panel(s) and
lay them on the floor FACE DOWN
(finished side). Position them in
front of where the Bed Cabinet was
installed in the last step and leave
enough room to work around them.
Note that the holes for bed handles
are arranged together and more away
from the wall the Bed Cabinet is
installed against.
Your bed cabinet is installed on this side
Holes for
handle
Holes for
handle
Your bed cabinet is installed on this side
Holes for
handle
Holes for
handle
Important note: It is critical to orient the Bed Face panels and the Mattress Rails in the next 5 steps correctly. All of the render-
ings (drawings) in the next 5 steps assume that you are looking away from the wall you just installed the Bed Cabinet against
in the previous step. There is a note under each of the following renderings indicating “your bed cabinet installed on this side”
which indicates that is where the Bed Cabinet is in relation to the face panels and rails.

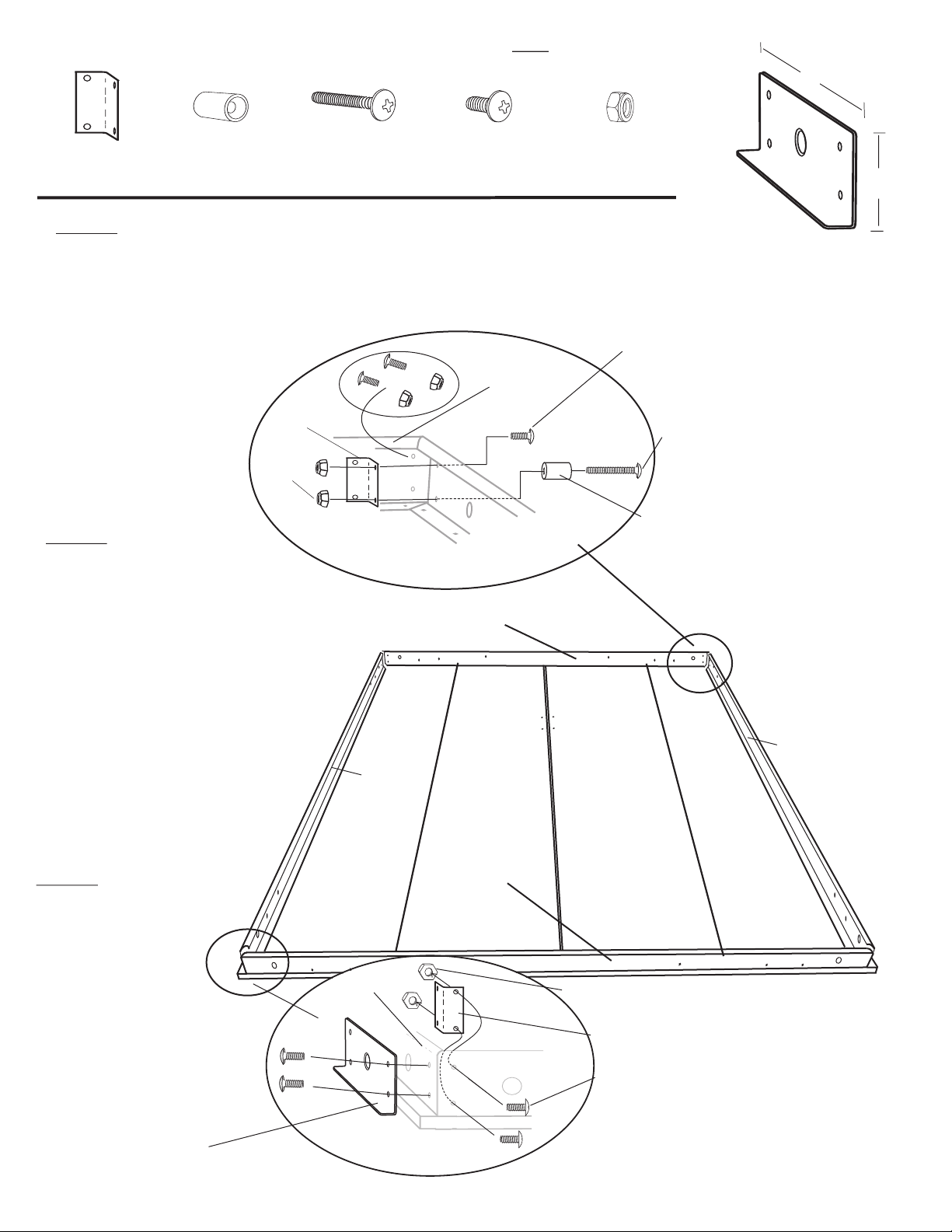

Step 10: From hardware pack 3 locate the hardware shown above. Finger
tighten the hardware as shown in illustration 7 connecting the Foot Rail to the
Side Rail using the 4 hole corner bracket. Note the lower hole on each Side
Rail uses the Leg Stop with the longer screw (1 1/4” Machine). Repeat step
on the opposite side of the Foot Rail corner.
Head rail
Foot rail
Illustration 7
Illustration 8
Side rail
Panel Saver
Note: The Panel Savers have 4
holes but you will only use two
attaching them to the Side Rails.
4 hole corner bracket
Hardware needed for next 2 steps most from Pack #3
x 4 x 2
Panel Saver
(From rails box)
1/2” x 3/4”
Black Barrel
(Leg Stop)
x 16
10-24 Black
Nylock Nut
x 2
10-24 x 1 Black
Machine Screw
1/4’’
x 14
10-24 x 1/2’’ Black
Machine Screw
6’’
2.5’’
4 hole corner bracket
10-24 Nylock nut
Leg Stop (black barrel) 1/2” x 3/4”
10-24 x 1/2” Machine Screw (black)
10-24 x 1 1/4” Machine Screw (black)
Foot Rail
Step 11: Finger tighten
the hardware as shown in il-
lustration 8 attaching a 4 hole
corner bracket on the inside
of the Side Rail and the Panel
Saver on the outside of the
Side Rail. Now connect the
Head Rail to the Side Rail via
the 4 hole corner bracket and
repeat on the opposite Head
Rail corner.
Step 12: Once all
sides are finger tight
go back to each corner
and align the corners
as they are tightened
using either a socket or
wrench and a Phillips
screw driver.
Side Rail
Side rail
Side rail
Head rail
10-24 Nylock nut
4 hole corner bracket
10-24 x 1/2” Machine Screw (black)
Page 8

Hardware and parts needed for next steps
x 160
5/8” Square Pan head screw
(Hardware pack #7)
Frame Head Rail is
flush
with face panels
Side Rail
Side Rail
Handle Holes
Head Rail
Foot Rail
BIRDS EYE (TOP) VIEW
Frame positioned evenly side to side with wood face
panels protruding by approximately 1” on either side.
Step 13: Center the assembled Mattress Frame side to side on the Face Panels (leaving approximately 1”
space on either side) and bring the Head Rail flush to the end of the Face Panels. Once the frame is posi-
tioned correctly and the panels and rails are even and square to each other use 2 screws (5/8” square drive)
in each corner, 1 in each panel’s Head and Foot rail, and 1 in the middle of each Side Rail as illustrated to
hold assembly in place. With the rails held in place, Use the 5/8” screws in each of the remaining holes
around the frame.
Caution: DO NOT STRIP SCREW!
Page 9
x 1
(Provided in Manila Envelope)
Square Tip Bit

Hardware and parts needed for next steps
5/8” Square Pan head screw
(Hardware pack #7)
Square Tip Bit
x 1
x 3
Metal Center Stiffeners
Side Rail
Side Rail
Head Rail
Foot Rail
BIRDS EYE (TOP) VIEW

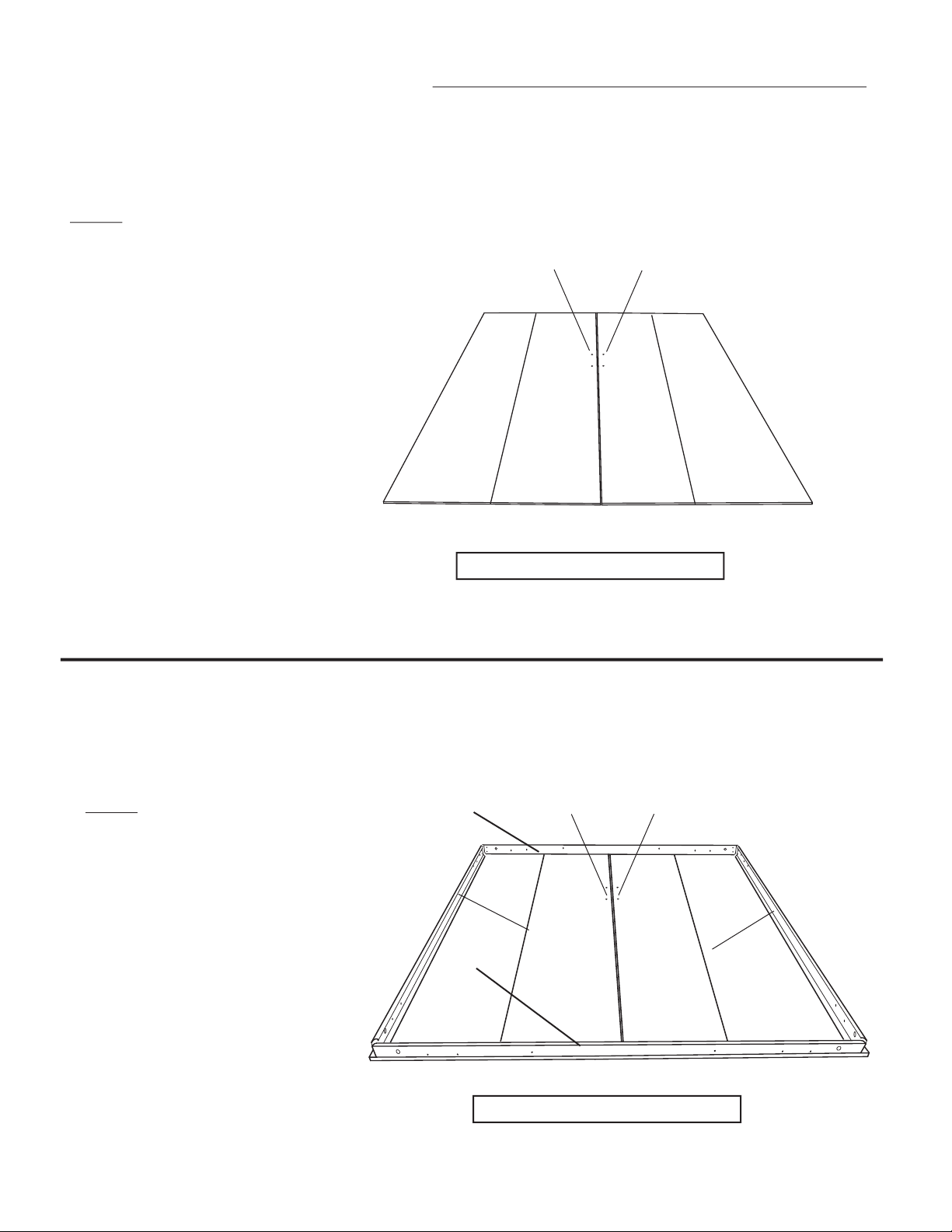

Step 14: Position the 3 Metal Stiffeners evenly in the space provided be-
tween the Head and Foot Rails as illustrated below. Now use the 5/8” square
drive screws to fasten the Stiffeners to the Face Panels using all provided holes
in the Stiffeners. DO NOT STRIP SCREWS.
5/8” Square Pan
head screw
5/8” Square Pan
head screw
5/8” Square Pan
head screw
Page 10
(Provided in Manila Envelope)
Note: Occasionally one of the holes in the
Center Stiffeners will be positioned where
the seam of the face panels come together. In
this case you do not need to put a screw in
where it will wedge between two panels.

Step 15; Attach the Velcro Strap that is used for holding the
mattress in place while wall bed is closed. First remove one
of the 5/8” Pan head screws that attaches the rail to the Face
Panels on each Side Rail of the frame at about 18” from the
Foot Rail of the frame. Then put the removed screw through
the 3/4” Washer. Position the end of the Velcro over the
vacated screw hole on the rail and drive the screw through
the Velcro strap and back into the hole. Repeat the process
on the opposite Side Rail making sure that the Velcro Straps
oppose each other so they hook together in the middle.
Velcro Strap
3/4”
Washer
5/8”
Screw
Side Rail
Side Rail
18” +/-
Head Rail
Foot Rail
BIRDS EYE (TOP) VIEW
Velcro Strap
anchor locations
Velcro
Strap
Velcro
Strap
x 2
3/4” Washer (pack #5)
Hardware and parts needed for next steps
Velcro Strap (pack #5)
x 1
Square Tip Bit
x 1
Page 11
(Provided in Manila Envelope)

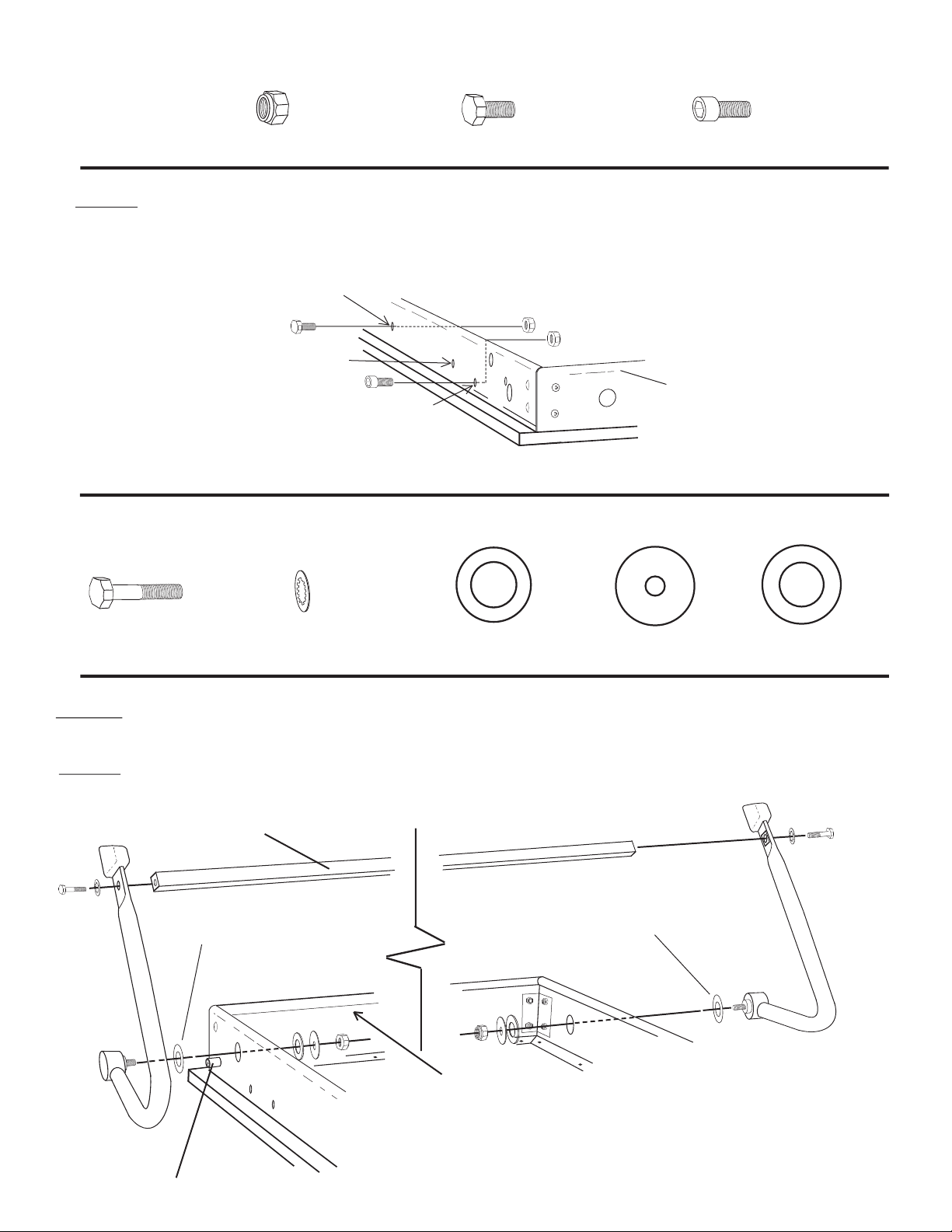

Step 16: As illustrated below, insert the Allen Head Bolt through bolt hole # 1 and tighten it down securely using a Nylock Nut.
Now insert a 5/16” x 1” Hex Head bolt through hole # 3 and thread the Nylock nut ONLY UNTIL THE NUT IS FLUSH WITH
THE END OF THE BOLT. Bolt hole #2 will be used in a later step and is left open for now.
Hardware needed for next step from hardware pack #2
5/16” Nylock Nut
X 4 X 2 X 2
5/16” x 1” Allen Head Bolt
Head Rail
Bolt hole 1
Bolt hole 3
Bolt hole 2 (left open)
6.75”
Page 12
Hardware needed for next step from hardware pack #4
Step 17: Attach the Leg Assembly to the FOOT RAIL side of the frame as illustrated below. Use 1
Teflon washers on the out side of the frame for proper spacing.
X 2
1/4” x 1 1/2”
X 2
Star Washer
Step 18: Position the Cross Bar between the Legs. Place the Star washer on one of the 1/4” X 1 1/2” Hex Head bolts. Repeat on
other side.
Cross Bar
Foot Rail
Leg Stop
1 1/2” x .765
1 1/2 Nylon washer
X 4 X 2 X 2
1 Thin Teflon washer 1 Thin Teflon washer
5/16” x 1”
Hex Head Bolt
1 1/2” x 5/16” Black
washer

Page 13
Bed Front
#3 Bolt head
Allen Key bolt
head
Optional Light
kit safety cut off
switch. Beds with
light kit only
Tension Arm
STOP IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST
RETURN TO THE LIGHT KIT INSTRUCTIONS STEP 6 AND INSTALL
THE SAFETY CUT OFF DEVICE BEFORE MOVING ON.
Step 19: Brace one foot against the front
edge of the Side Board and using the 13”
length of PVC tubing provided, lever the Lift
Mechanism’s Tension Arm out and down
until you can secure the Arm Lock onto the
Hexagon Nut shown at right. BE SURE
THAT THE LOCK IS SECURED AGAINST
THE HEX NUT BEFORE RELEASING
THE TENSION ON THE LIFT MECHA-
NISM.
Helpful hint: As you start to draw the tension arm
down with one hand, use the other hand to posi-
tion the arm lock on top of the hex nut. Now as
the Tension Arm continues to be pulled down with
both hands, the Arm Lock will naturally drop into
place around the hex nut as illustrated.
WARNING: There is tremendous force involved in the next step, do not place hands be-
tween the front of the side boards and the tension arms as you set the mechanism.
Tension Arm
Arm Lock
Hexagon Nut
PVC tubing
PVC tubing
Step 20: Stand the Bed face unit up on
its Head Rail end. Now with you and
your assistant on either side of the Bed
face unit lift until the # 3 bolt on the
Bed face unit is a few inches above the
slotted end of the Tension Arm on both
sides. Gently lower the Bed face unit
between the Tension Arms and seat the #
3 bolt into the slot at the end of the Ten-
sion Arms. Now start pulling the bed
face unit down and away from the Bed
Cabinet the Allen Key bolt head will
seat into the notch at the lower end of
the Tension Arms. Lower the bed unit
down and pull the Legs down so that
they are on the floor. Someone will need
to hold the bed unit down as it will want
to rise.
IMPORTANT! As instructed in step 16, Bolt #3 should be loose enough to slip into the notch at
the end of the Tension Arm See illustration below.

Page 14
Step 21: Insert a 5/16” x 1” Hex
Head bolt through hole #2 and tighten
a 5/16” Nylock nut onto the bolt. Now
tighten the nut and bolt in hole #3.
Repeat step 21 on the other side of the
bed unit.
Step 22: Slip the Mechanism Cover
over the Mechanism so that the tabs on
the cover fit into the notches provided.
Line up the hole with the barrel support
and anchor in place using the 3/16” x 1
1/4” wood screw provided
Repeat step on the other Mechanism.
Head Board
Black mechanism cover
WARNING! Failure to insert
and tighten all the bolts in step 21 could result
in severe personal injury or
damage to the lift mechanism. Lift mechanism
damage caused by missing or loose hardware
is not covered by warranty.
hole #2 hole #3
Left side board
Hardware needed for next step from hardware pack #2
5/16” Nylock Nut
X 2 X 2
5/16” x 1” Hex Head Bolt
3/16’’x 1 Black
Wood Screw
1/4’’
2
Hardware needed for next step from hardware pack #2
Anchor spring cover using 3/16” x 1 1/4”
screw here.
Helpful hint: The screw for
attaching the spring cover is
a wood screw not a machine
screw and is in hardware
pack #2.
Warning very important step!
Head Board
Right side board

Page 15
Illustration 12

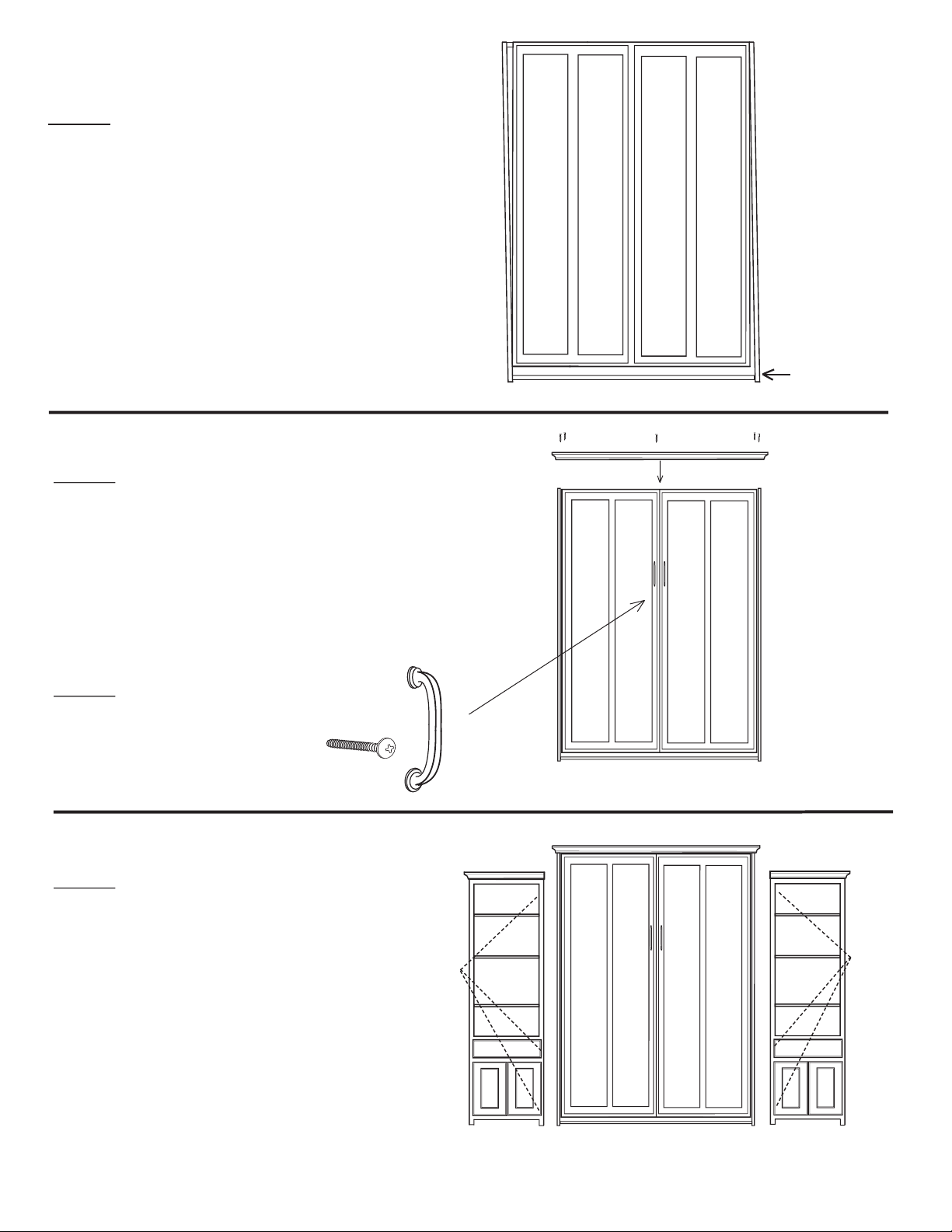

Step 23: When the bed is closed check to see if the gap
on either side is the same. If it looks right skip this step.
If the gap is not right, meaning that the Bed Box is too
close to the side board or even touching it at the top on
one side it will need to be adjusted. The procedure will
require the bottom of the bed to be moved slightly to the
left or right depending on which top corner is too close.
If the Bed Face is too close on the top right side for
instance, the right side (bottom) will need to be slid to the
left slightly (See illustration 12). Have one person push
the bed at the bottom with his feet while the second person
pulls at the opposite bottom side.
Push bed
over at the
bottom to
align
Step 24: Place the crown mold on the bed as illustrated
and use the 1 1/4” screws to secure it in place. If you pur-
chased side cabinets apply crown mold to them as well.
Note: Dakota style bed does not have crown
molding.
Step 25: Place handles on bed using pre-
drilled holes in face panels.
Step 26: Anchor the Side Cabinet to the Bed by
first pre-drilling three 3/16” holes at the inside edge
of the side cabinet. Position the holes close to the
front edge of the Side Cabinet. One hole should be
near the top, one should be inside the drawer area
(remove drawer from cabinet to get to this one), and
the third should be at the bottom (open door if your
cabinet has door, or remove drawer at bottom) for
this hole. Now move the side cabinets next to the
bed and use three 1 1/4” Screws (located in a drawer
or on a shelf of the side cabinet) through pre-drilled
holes to anchor Side Cabinets to the Bed.
3/16” 3/16”
Note: Some bed models use a 3/4” thick (C shaped) flat piece as the
crown mold.
