Wilding Wallbeds Remington Queen User manual

Style:
Size:
Depth:
Type:
Remington
Queen, Full, or Twin
Deep
Side Mount with 13” Legs 27
Revision 1.23
WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE
AND FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN
SEVERE PERSONAL INJURY OR DEATH TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT
CUSTOMER SERVICE AT 866-725-6401 FOR ANY QUESTIONS.

Page intentionally left blank

Step Ladder
Studsensor
Ratchet
13mm Socket 11mm Socket 8mm Socket
Large regular screwdriver
Phillips screwdriver
13 mm open end wrench
Stud nder
STANLEY
Tape measure
Cordless screw driver
Tools Needed
With Phillips bit
1

Hardware Page
Bed Handles
4
1 3/8
Pack 5
5/8’’ Pan head Screw 2
Item Qty
Buckle Strap
1
5/16’’ Nylock
Hex Nut
5/16’’ x 1”
Allen Head Bolt
5/16’’ x 1”
Hex Head Bolt
5/16’’ x 1 1/4’’
16
10
2
4
Pack 2
QtyItem
1 5/8’’ Pan head
Wood Screw
2
5/16” Allen wrench
Tapered Allen Head Bolt
1”x 1” x 1 3/4”
Four Hole Corner
Bracket
10-24 Black
Nylock Nut
10-24 x 1 Black
Machine Screw
1/4’’
5/8’’ Pan
head Screw
10-24 x 1/2’’ Black
Machine Screw
1/2” x 3/4”
Black Barrel
(Leg Stop)
16
2
160
14
2
4
Item
Item
Qty
Qty
Pack 3
Pack 7
Pack 4
1 1/2” x 5/16”
Black washer
1 1/2” X .765”
Black washer
1 1/2” Nylon washer
1/4’’ x 1 1/2’’
Hex Head Bolt
Star Washer
2
2
2
2
4
Item Qty
3/4’’ Washer
2
5mm Allen
wrench
1
Cam Fitting
Connecting Bolts
2
36
Other Hardware
Item Qty
3
Square Tip Bit
1
140
1 1/4” Square
Drive Wood Screw
3 Wood Screw
1/2’’
(Extra)
(From Intall Envelope)
1/4” wood drill bit
1
(In rails box)
Panel Saver
2
5.5’’
1.5’’
2

Left Side Board Right Side Board
Finished edge
Cut out for room
base molding
Lift Mechanisms
Bag w/Springs
Hardware pack 2
From Box labeled
SBLM
19 7/8” 19 7/8”
Step 1: Locate the left and right Side Boards
then from the small square cardboard box labelled
SBLM locate the two Lift Mechanisms, hardware
bags, and springs.
5/16’’ x 1 1/4’’
X 8
5/16’’ Nylock Nut
X 6
Hardware needed for next step from Pack #2
Tapered Allen Head Bolt
Hole A
Hole B
Hole C
Hole D
Finished Edge
Base Board
Notch
Right
Side Board All holes are
countersunk in
this side of side-
board
(Threaded collar)
Repeat step 2 with the Left Side
Board and Lift Mechanism.
IMPORTANT! Over tightening the bolts will
pull the head of the bolt too deeply into the
Side Board. Tighten only until the head of the
bolt is ush with the surface of the Side Board.
Step 2: Install the Lift Mechanism
to the Side Board rst by inserting a
5/16 x 1 1/4” Tapered Allen Head Bolt
through holes B, C and D from the
outside (countersunk holes) of the Side
Board. The bolts go through the corre-
sponding holes in the Lift Mechanism.
Now thread a bolt into hole A as illus-
trated. Thread on three 5/16” Nylock
nuts and tighten hardware. Hole “A”
has a threaded collar instead of a nut.
3
2

HELPFUL HINT: Watch how to do this step at:
Install a spring into hole 5 by hooking one end of the spring into the hole on the Upturned edge of the mechanism plate
rst then manipulate the Lift Arm back and forth slightly while placing the other end of the spring in the Tension arm into
the corresponding hole. Now place a spring into the following holes in this order 4, 3 then into holes 6, 7. You will need a
total of 5 springs installed for a queen size bed.
Queen
Size Bed
Full
Size Bed
Twin
Size Bed
Upturned edge
of mounting
plate
#1
#9
Tension Arm
#5
Hole
#2
#3
#4
#6
#7
#8
Lift Arm
Install a spring into hole 5 by hooking one end of the spring into the hole on the Upturned edge of the mechanism plate
rst then manipulate the Lift Arm back and forth slightly while placing the other end of the spring in the Tension arm into
the corresponding hole. Now place a spring into the following holes in this order 4, then into holes 6. You will need a
total of 3 springs installed for a full size bed.
Install a spring into hole 5 by hooking one end of the spring into the hole on the Upturned edge of the mechanism plate
rst then manipulate the Lift Arm back and forth slightly while placing the other end of the spring in the Tension arm into
the corresponding hole. You will need a total of 1 spring installed for a twin size bed.
https://youtu.be/2C_Exc_pO-8
Or use the camera on your
phone to view this step.
Bed Size Number of Springs
Queen
Full/Double
Twin/Single
5
3
1
Hardware needed for next step:
(From box labeled SBLM)
Step 3: Install required Springs in the Lift Mechanisms
The required number of springs in the Lift Mechanisms varies with the dierent weights of
mattresses. If you purchased your mattress with your bed from Wilding Wallbeds refer to the
chart to the right. This will also be a good reference point for mattresses not purchased with
your Wall bed.
4

RIGHTLEFT
Hardware needed for next step:
X 20
Connecting Bolt
(From Install Envelope)
Note: Screw the Connecting Bolts
down until the collar of the Connecting
Bolt is seated rmly against the surface
of the wood panel.
Step 4: Lay the right and left Side
Boards down as illustrated and
screw the Connecting Bolts into the
holes provided as illustrated.
5

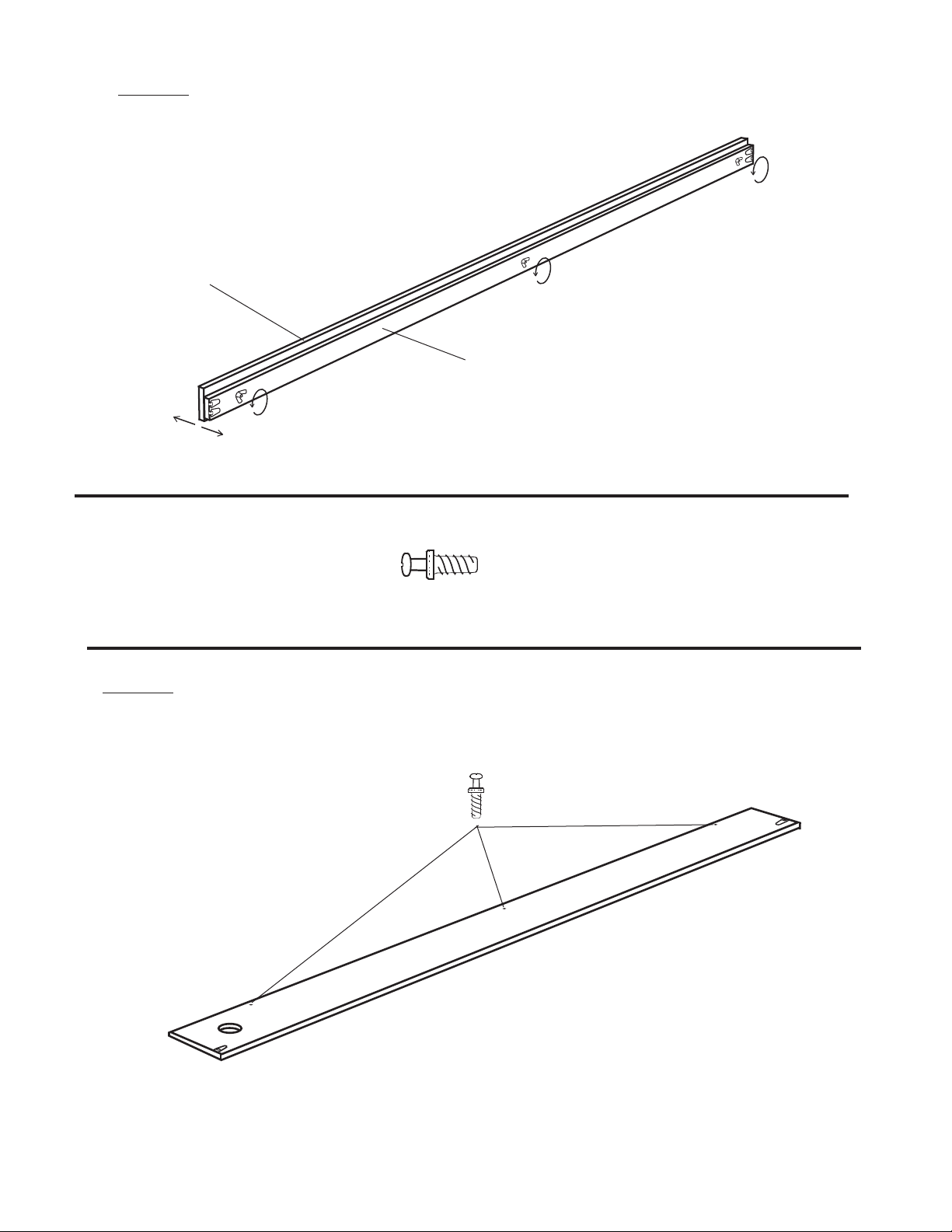

Step 5 A: Locate the Front Stretcher and Base and remove the three wing nuts and
separate the two pieces.
Base
Front Stretcher
Note: Thread the Wing nuts back onto
the base mold to avoid misplacing
them.
Hardware needed for next step:
X 3
Connecting Bolt
Step 5 B: Locate the Headboard Shelf and insert 3 connecting bolts into the holes
provided as illustrated.
(From Install Envelope)
6

Illustration 5
1/2 Turn to tight
Cam Fitting
Connecting Bolt
Rear Stretcher
Head Board Side Boards
Bed Bottom
INSTALLATION WALL
Front Stretcher
Headboard Shelf
IMPORTANT! Tighten the cam ttings with a hand screw driver by turning the
Phillips head clockwise 1/2 turn to tight.
HELPFUL HINT: It is easier to tighten the Cam Fittings if the two bed parts are
snug together.
Step 5: Two person steps: Assemble the Bed Cabinet face down with the bottom of the
Bed Cabinet nearer the wall to which it will be installed.
7
Step 6 Two person step: Stand the Bed
Cabinet up against the wall where you
intend to have it installed.

Back
Anchor support board
Step 8: Position the Bridge Board as illus-
trated below. Place it on to the Side Boards
and tighten all Cam Fittings.
Finished edge
Step 7: Locate the Bridge Board and
Insert 11 Connecting Bolts into the
holes provided.
Hardware needed for next step
Connecting Bolt
X 11
Bridge Board Receives 11
Connecting Bolts
Solid Wood Anchor
support
(From Install Envelope)
8

Step 9: Locate the Front Bridge Support boards
(two narrow pieces of wood connected together)
and insert it between the Side Boards and on to the
Connecting Bolts. Tighten all Cam Fittings.
9

Step10: Using a Stud Finder locate and mark at least 3 studs in the wall behind
the bed cabinet. Pre drill with a 1/4” drill bit (supplied) through the Anchor Support
Board at the back of the Bridge Board corresponding with the studs in your wall.
Using the 3 1/2” wood screws provided anchor the Bed Cabinet to the wall through
the pre drilled holes.
IMPORTANT! Bed Cabinet requires 3
studs, It is VERY important that the Bed
Cabinet be anchored securely to the wall.
For technical support call 866-725-6401
toll free.
Hardware needed for next step
With the supplied 1/4” drill
bit. Pre-drill 1/4” holes
through the Anchor Support
Board corresponding with the
studs in your wall.
Studs in wall
3.5” Wood Screw
Stud
3.5” Wood Screws
X 3
1/4” Drill Bit
(From Install Envelope)
WARNING! THE NEXT STEP MAY REQUIRE PROFESSIONAL HELP
IF YOUR WALLS ARE NOT TRADITIONAL WOOD FRAMING, YOU MAY NEED TO HIRE A HANDYMAN
OR CONTRACTOR TO HELP IN ANCHORING THE BED TO YOUR WALL. FAILURE TO PROPERLY AN-
CHOR CABINET COULD CAUSE SEVERE PERSONAL INJURY OR DEATH. CALL TECHNICAL SUPPORT
AT 866-725-6401 IF YOU HAVE ANY QUESTIONS.
10

Head/Foot Rail Inner Side Rail
HELPFUL HINT: Side Mount beds
can be slept on in either direction.
The rails referred to as “Head/Foot
rail” (identical) can act as either the
head or foot of the bed, depending
on which way a sleeper lies.
Step 12: Arrange the Mattress
Rails on the Face Panels as shown.
Head/Foot Rail
Your bed cabinet is installed on this side
Your bed cabinet is installed on this side
Holes for
handle
Holes for
handle
Outer Side Rail
Outer and Inner Side Rails are iden-
tical pieces. In these instructions
they are listed as Outer or Inner to
identify their location on the Face
Panels.
Important note: It is critical to orient the Bed Face panels and the Mattress Rails in the next 5 steps correctly. All of the render-
ings (drawings) in the next 5 steps assume that you are looking away from the wall you just installed the Bed Cabinet against
in the previous step. There is a note under each of the following renderings indicating “your bed cabinet installed on this side”
which indicates that is where the Bed Cabinet is in relation to the face panels and rails.
Step 11: Locate the Front Panels and
lay them on the oor FACE DOWN
(nished side). Position them in
front of where the Bed Cabinet was
installed in the last step and leave
enough room to work around them.
Note that the holes for bed handles
are arranged together and more away
from the wall the Bed Cabinet is
installed against.
11

Step 13: From hardware pack 3 locate the hardware shown above. Finger
tighten the hardware as shown in illustration 1 connecting the Outer Side Rail
to a Head/Foot Rail using a 4 hole corner bracket. Note the lower hole on each
Head/Foot rail uses the Leg Stop with the longer screw (1 1/4” Machine).
Repeat on the opposite side of the Outer Rail corner.
4 hole corner bracket
10-24 Nylock nut
Illustration 1
Step 14: Finger tighten the
hardware as shown in illustra-
tion 2 attaching a 4 hole corner
brackets on the inside of the
Head/Foot Rail and the Panel
Saver on the outside of the Rail.
Now connect the Inner Side Rail
to the Head/Foot rail via the 4
hole corner bracket. Repeat on
the opposite Inner Rail corner.
Step 15: Once all
sides are nger tight
go back to each corner
and align the corners
as they are tightened
using either a socket or
wrench and a Phillips
screw driver.
Your Bed Cabinet installed on this side
Inner Side Rail
10-24 x 1/2” truss head screw
10-24 Nylock nut
4 hole corner bracket
Illustration 2
Panel Saver
Outer Side Rail
Outer Side
Rail
Leg stop (black barrel) 1/2” x 3/4”
10-24 x 1/2” Machine Screw (black)
10-24 x 1 1/4” Machine Screw (black)
Head/Foot rail
Inner Side Rail
Hardware needed for next 2 steps from Pack #3
Panel Saver
(From rails box)
4 hole Corner Bracket
X 4 X 2
1/2” x 3/4”
Black Barrel
(Leg Stop)
X
10-24 Black
Nylock Nut
X 2
10-24 x 1 Black
Machine Screw
1/4’’
X 14
10-24 x 1/2’’ Black
Machine Screw
5.5’’
1.5’’
No Hardware used
in this hole
12

Frame positioned evenly side to side with wood
face panels protruding by approximately 1” on
either side.
Inner Rail
Outer Rail
Inner rail positioned 1/8”
inch from the end of
Face Panels (Face Panels
Protrude)
Handle Holes
Step 16: Center the assembled Frame side to side on the Face Panels (leaving approximately 1” space on either
side) now position the Inner Rail 1/8” from the end of the Face Panels. Once the frame is positioned correctly and
the panels and rails are even and square to each other use 2 - 5/8 ”screws in each corner, as well as one in each panel
at the Inner and Outer rail to hold assembly in place. With the rails held in place, Use the 5/8” screws in each of the
remaining holes around the frame.
Head/Foot Rail
Head/Foot Rail
BIRDS EYE (TOP) VIEW
Handle Holes
Hardware and parts needed for next steps
5/8” Pan head screw
(Hardware pack #7)
X Approx. 118
Caution: A SCREW NEEDS TO BE IN EVERY HOLE. DO NOT STRIP SCREW!
13
Head/Foot Rail
Inner Rail
SIDE VIEW
1/8”
Outer Rail

Hardware and parts needed for next steps
Wood Mattress
Support
X 3 X 2
1 1/4” Square drive
Wood screw
5/8” Pan head screw
(Hardware pack #7)
Square Tip Bit
X 1
Metal Center Stieners
Step 17: Position the Wood Mattress Supports evenly over the Face Panel
seams allowing their ends to over lap the Outer and Inner Rails. Use the 1 1/4”
wood screws through the holes provided in the Mattress Support to mend the
Face Panels together. DO NOT STRIP SCREWS.
Helpful hint: Mattress Supports may have an area cut
out to allow for the bed handle holes.
Step 18: Position the 2 Metal Stieners evenly in the space provided between
the outer and center Wood Mattress Supports as illustrated below. Now use
the 5/8” Pan Head screws to fasten the Stieners to the Face Panels. DO NOT
STRIP SCREWS.
(Provided in Install Envelope)
Wood mattress sup-
ports positioned evenly
over Panel seams
Inner Rail
Outer Rail
Holes or
Cut out to
provide
opening
for handle
holes
Metal Center Stieners
1 1/4” Square drive
Wood screw
5/8” Pan Head
screw
BIRDS EYE (TOP) VIEW
1 1/4” Square drive
Wood screw
(From rails box)
5/8” Pan Head
screw
14

Inner Rail
Head/Foot Rail
Head/Foot Rail
Buckle
Strap
anchor
locations
18” +/-
BIRDS EYE (TOP) VIEW
Outer Rail
3/4”
Washer
5/8”
Screw
Buckle Strap
Buckle
Strap
Step 19; Attach the Buckle Strap used
for holding the mattress in place when
the bed is closed. First remove one of the
5/8” Pan head screws that attaches the
rail to the Face Panels on each Side Rail
of the frame at about 18” from the Foot
Rail of the frame. Then put the removed
screw through the 3/4” Washer. Position
the end of the Strap over the vacated
screw hole on the rail and drive the screw
through the strap and back into the hole.
Repeat the process on the opposite Side
Rail.
X 2
3/4” Washer (pack #5)
Hardware and parts needed for next steps
X 1
Buckle Strap (pack #5)
15

Step 20: As illustrated below, insert the
Allen Head Bolt through bolt hole # 1 and
tighten it down securely using a Nylock
Nut. Now insert a 5/16” x 1” Hex Head
bolt through hole # 3 and thread the Nylock
nut ONLY UNTIL THE NUT IS FLUSH
WITH THE END OF THE BOLT. Repeat
the process on the opposite Head/Foot Rail.
Hardware needed for next step from hardware pack #2
5/16” Nylock Nut
X 4 X 2 X 2
5/16” x 1” Allen Head Bolt
Hardware needed for next step from hardware pack #4
Step 21: Attach the Leg Assembly to the HEAD/ FOOT RAILon either side of the frame as illustrat-
ed below. Use 1 Teon washers on the out side of the frame for proper spacing.
X 2
1/4” x 1 1/2”
X 2
Star Washer
Step 22: Position the Cross Bar between the Legs. Place the Star washer on one of the 1/4” X 1 1/2” Hex Head bolts.
Cross Bar
Outer Side Rail
Leg Stop
1 1/2” x .765
1 1/2 Nylon washer
X 4 X 2 X 2
1 Thin Teon washer 1 Thin Teon washer
5/16” x 1”
Hex Head Bolt
1 1/2” x 5/16” Black
washer
Bolt hole 3 Head Rail/Foot Rail
Inner Side Rail
Bolt hole 1
Bolt hole 2 (left open)
6.75”
16

WARNING: There is tremendous force involved in the next step, do not place hands be-
tween the front of the Side Boards and the Tension Arms as you set the Mechanism.
Step 24: Slip the Mechanism Cover
over the Mechanism so that the tabs on
the cover t into the notches provided.
Line up the top hole with the barrel
support and anchor in place using the
3/16” x 1 1/4” wood screw provided
Head Board
3/16’’x 1 Black
Wood Screw
1/4’’
2
Hardware needed for next step from hardware pack #2
Helpful hint: The screw for
attaching the spring cover is
a wood screw not a machine
screw and is in hardware
pack #2.
17
Lift Arm
Arm Lock
Black Metal Tube
Black Metal Tube
Welded Collar
Step 23: Brace one foot against
the front edge of the Side Board and
using the 14.5” black metal tubing
provided in hardware kit, lever the
Lift Mechanism’s Lift Arm out and
down until you can secure the Arm
Lock onto the Welded Collar shown
at right.
Helpful hint: As you start to draw the
Lift Arm down with one hand, use the
other hand to position the Arm Lock on
top of the Welded Collar. Now as the
Lift Arm continues to be pulled down
with both hands, the Arm Lock will
naturally drop into place around the
Welded Collar as illustrated.

Step 25: Stand the Bed face unit up
on its Inner Side Rail. Now with you
and your assistant on either side of
the Bed unit lift until the # 3 bolt on
the Head/Foot Rail is a few inches
above the slotted end of the Tension
Arm on both sides. Gently lower the
Bed Face unit between the Tension
Arms and seat the # 3 bolt into the
slot at the end of the Tension Arms.
Now start pulling the bed face unit
down and away from the Bed Cabinet
the Allen Head bolt will naturally
seat into the notch at the lower end
of the Tension Arms. Lower the bed
unit down and extend the Legs so that
they are on the oor. Someone will
need to hold the bed unit down as it
will want to rise.
Tension Arm
Inner Side Rail
IMPORTANT! As instructed in a previous step, Bolt #3 should be loose enough to
slip into the notch at the end of the Lift Arm See illustration below.
Bed Face
#3 Bolt head
Allen Key bolt head
Helpful Hint: If the frame does not slide between
the Lift Arms, seat one side rst then push the
frame over to seat the other side. As you pull the
bed face down there will be resistance from the
springs. Pull down rmly.
18
