Wilding Wallbeds Side Mount User manual

Side Mount
Revision 1.19
INSTRUCTION BOOKLET #C22
WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND
FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SEVERE
PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER SERVICE AT
866-725-6401 FOR ANY QUESTIONS.

Step Ladder

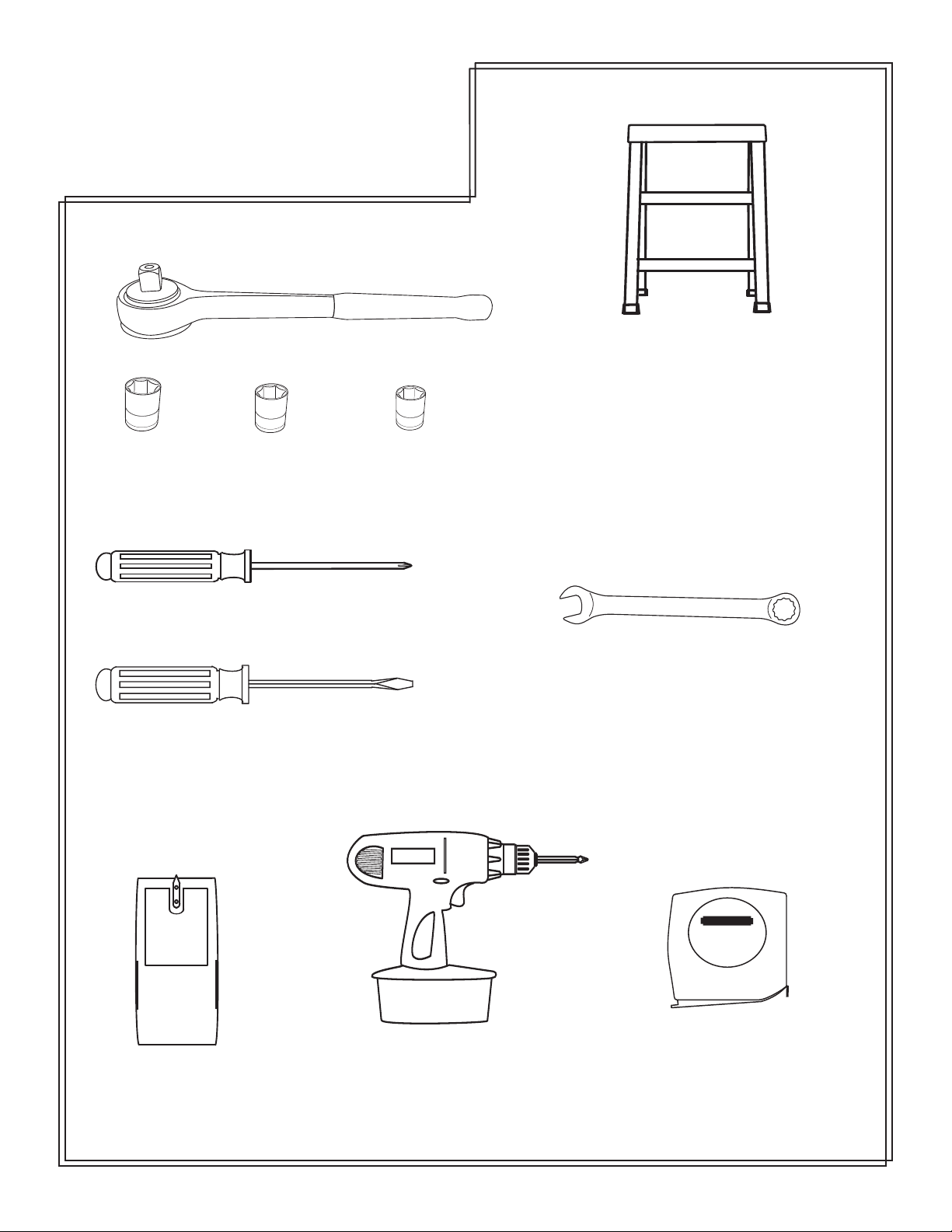

Tools Needed
studsensor
Ratchet
13mm Socket 11mm Socket 8mm Socket
Large regular screwdriver
Phillips screwdriver
13 mm open end wrench
Stud finder
STANLEY
Tape measure
Cordless screw driver
With Phillips bit

Bed Models
Bed Handles
1”
1
3/8’’
4
4
1” x 1” x 1 3/4”
Four Hole Corner
Bracket
10-24 Black
Nylock Nut
10-24 x 1 Black
Machine Screw
1/4’’
5/8’’ Pan
head Screw
10-24 x 1/2’’ Black
Machine Screw
1/2” x 3/4”
Black Barrel
(Leg Stop)
16
2
160
14
2
4
Item
Item
Qty
Qty
5/16’’ Nylock
Hex Nut
5/16’’ x 1”
Allen Head Bolt
5/16’’ x 1”
Hex Head Bolt
5/16’’ x 1 1/4’’
16
10
2
4
Pack 2
Qty
Item
1 5/8’’ Pan head
Wood Screw 2
5/16” Allen wrench
Pack 3
Pack 7
Panel Saver
2
6’’
2.5’’
(in mechanism rails box)
Tapered Allen Head Bolt
Cam Fitting
Connecting Bolts
4
36

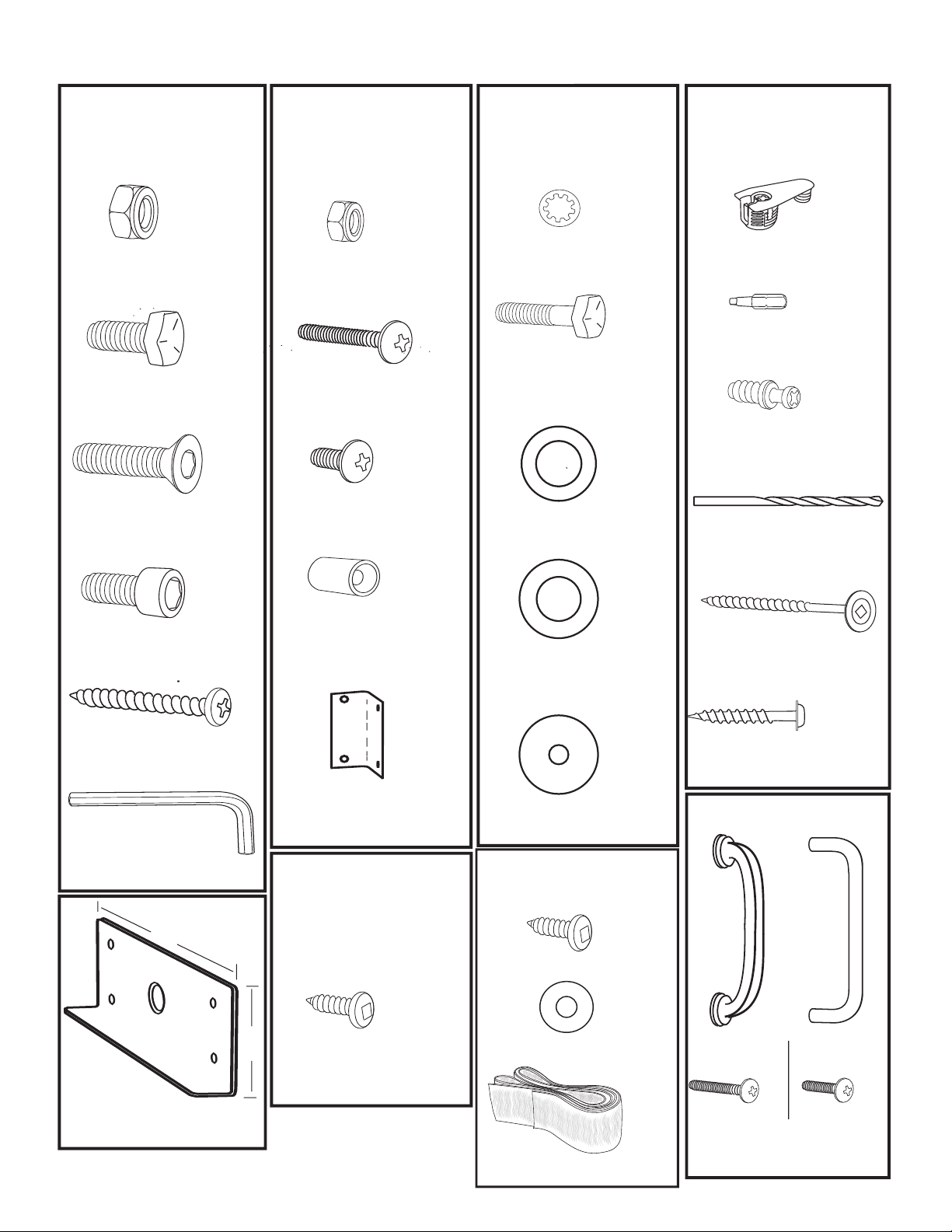

Other Hardware
Item Qty
6
Square Tip Bit
1
160
1 1/4” Square
Drive Wood Screw
3 Wood Screw
1/2’’
(Extra)
(From Manila Envelope)
Hardware Page
Pack 4
1 1/2” x 5/16”
Black washer
1 1/2” X .765”
Black washer
1 1/2” Nylon washer
1/4’’ x 1 1/2’’
Hex Head Bolt
Star Washer
2
2
2
2
4
Item Qty
Pack 5
5/8’’ Pan head Screw
2
Item Qty
Velcro Retainer Straps
2
3/4’’ Washer
2
Remington
New Port
Dakota
NOTE: Handle
may vary depend-
ing on bed style.
1/4” wood drill bit
1

Step 1: Locate the left and right Side Boards
and then from the small square cardboard box
locate the two Lift Mechanisms, hardware
bags, and springs.
Left Side Board Right Side Board
Lift Mechanism
X 2
Page 1
Finished edge
Cut out for room
base molding
5/16’’ x 1 1/4’’
x 8
5/16’’ Nylock Nut
x 8
Hardware needed for next step from Pack #2
Hole A
Hole B
Hole C
Hole D
Finished Edge
Base Board
Notch
Right
Side Board All holes are
countersunk in
this side of side-
board
May be threaded
collar instead of
bolt in hole A.
Note:
Tapered Allen Head Bolt
Repeat step 2 with the Left Side
Board and Lift Mechanism.
IMPORTANT! Over tightening the nuts will
pull the head of the bolt too deeply into the
Side Board. Tighten only until the head of the
bolt is flush with the surface of the Side Board .
Step 2:
Install the Lift Mechanism to the
Side Board by inserting a 5/16 x 1 1/4”
Tapered Allen head Bolt through holes A,
B, C and D from the outside (counter-
sunk holes) of the Side Board. The bolt
then goes through the corresponding holes
of the Right Lift Mechanism as illustrat-
ed. Thread on four 5/16” Nylock nuts and
tighten (hole A may have threaded collar
instead of bolt)

Bed Size Number of Springs
Queen
Full/Double
Twin/Single
5
3
1
Hardware needed for next step:
Lifting Springs
(from box labelled SBLM)
Page 2

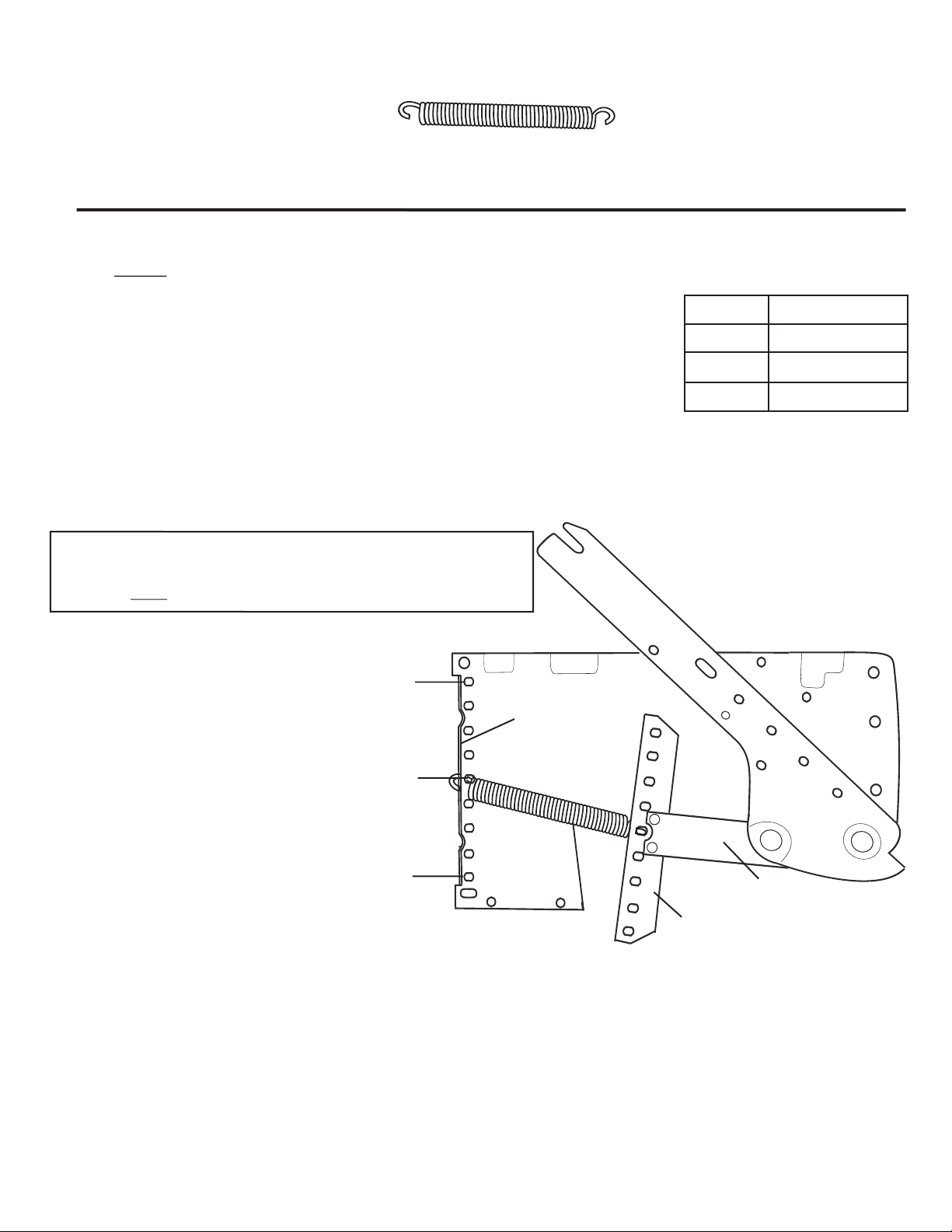

Step 3: Install Springs in the Lift Mechanisms
HELPFUL HINT: Watch how to do this process at:
IMPORTANT! Be sure that holes
of the Mounting Plate correspond
to the holes in the Tension Arm
and use the same number of
springs and the same configura-
tion on both Lift Mechanisms
Repeat Step 3 for Left Lift Mechanism.
Install the first spring in hole #5 (if mechanism has some pre-loaded springs from the factory, remove lower springs first)
on both the Mounting Plate and the Tension Arm. Hook one end of the spring under the upturned edge of the Mounting
Plate first then lay the spring down and slide it under the matching hole in the Tension Arm. See illustration 1.
Continue by working up one hole in
the lifting mechanism, then down one
hole alternating back and forth until all
springs are loaded.
NOTE: After you have completed installing and checking operation of your Wall bed, you
may find it necessary to add or remove springs to achieve the correct lift effort of between
5 and 10 pounds.
The required number of springs in the Lift Mechanisms varies with the different weights of
mattresses. If you purchased your mattress with your bed from Wilding Wallbeds refer to the
chart to the right. This will also be a good reference point for mattresses not purchased with
your Wall bed.
(Some springs may be pre-installed)
https://www.wallbedsbywilding.com/wallbed-installation-studio-series/
Hole #5
Hole #1
Hole #9
Tension Arm
Upturned edge
of mounting
plate
Arm Bracket
Illustration 1
(Right lift mechanism)
See step 4 of the video to view installation of springs.

Page 3
Step 4: Lay the right and left
Side Boards down as illustrated
and screw the Connecting Bolts
into the holes provided as il-
lustrated.
Note: Screw the connecting
bolts down until the collar of the
connecting bolt is seated firmly
against the surface of the wood.
Optional hardware
LEFT RIGHT
Optional
Deep sideboards
(19 7/8” deep)
*Information on Optional Depth:
“Standard depth” side boards mea-
sure 15 7/8” deep whereas “Extra
Deep” side boards measure 19 7/8”.
The dashed lines on the illustrations
show the optional extra depth side
boards and will have two additional
connecting bolts to hold a headboard
shelf once assembly is complete.
Hardware needed for next step:
x 16-20
(Depending on option)*
Connecting Bolt
(From Manila Envelope)

Page 4
STANDARD DEPTH HEAD BOARD EXTRA DEEP HEAD BOARD
OPTION 1 OPTION 2
Extra depth Head Board shelf
1/2 turn to right
Insert 3 Connecting
Bolts in the bottom
of the Head Board
Shelf.
Turn the Head
Board Shelf over
and insert the Con-
necting Bolts into
the Cam Fittings
and tighten them
with a Phillips
screw driver.
Head Board has 9
Cam Fittings pre-
inserted into the
back of the extra
deep Head Board
Head Board has 6 Cam Fittings pre-insert-
ed into the back of the Head Board
Front Front
Important!
Don’t over-
tighten Cam
Fittings a 1/2
turn is suffi-
cient.
Head Boards have 2 options. Option 1 is for a “standard depth” Wallbed and Option 2 is for an “Extra
Deep” Wallbed. Determine which Wallbed kit you have and then proceed with the correct option below.
Grommet
Hole
Grommet
Hole

Page 5
Step 5:
Assemble the Bed Cabinet face down with the bottom of the Bed Cabinet
nearer the wall in which it will be installed. Note the “Front Stretcher” (illustrated
below) should be positioned so the Cam Fittings are at the bottom of the Bed Cabinet.
IMPORTANT! Tighten the cam fittings with a hand screw driver by turning the
Phillips head clockwise 1/2 turn to tight.
HELPFUL HINT: It is easier to tighten the Cam Fittings if the two bed parts are
snug together.
Front Stretcher
Cam fittings on bottom
Optional Head Board Shelf for extra deep
Illustration 5
1/2 Turn to tight
Cam Fitting
Connecting Bolt
Rear Stretcher
Head Board Side Boards
Bed Bottom
Step 6: Stand the bed cabinet up and leave
2 feet between cabinet and the wall so you
have space to work behind the bed
INSTALLATION WALL

Page 6
Back
Anchor support board
Step 8: Position the Bridge Board as
illustrated below. Place it on to the Side
Boards and tighten all Cam Fittings.
Finished edge
Step 7: Locate the Bridge Board and
Insert 11 Connecting Bolts into the
holes provided.
Hardware needed for next step
Connecting Bolt
x 11
Bridge Board Receives 11
Connecting Bolts
Solid Wood Anchor
support

Page 7
Step 9: Locate the Front Bridge Support boards
(two narrow pieces of wood connected together)
and insert it between the Side Boards and on to the
Connecting Bolts. Tighten all Cam Fittings.

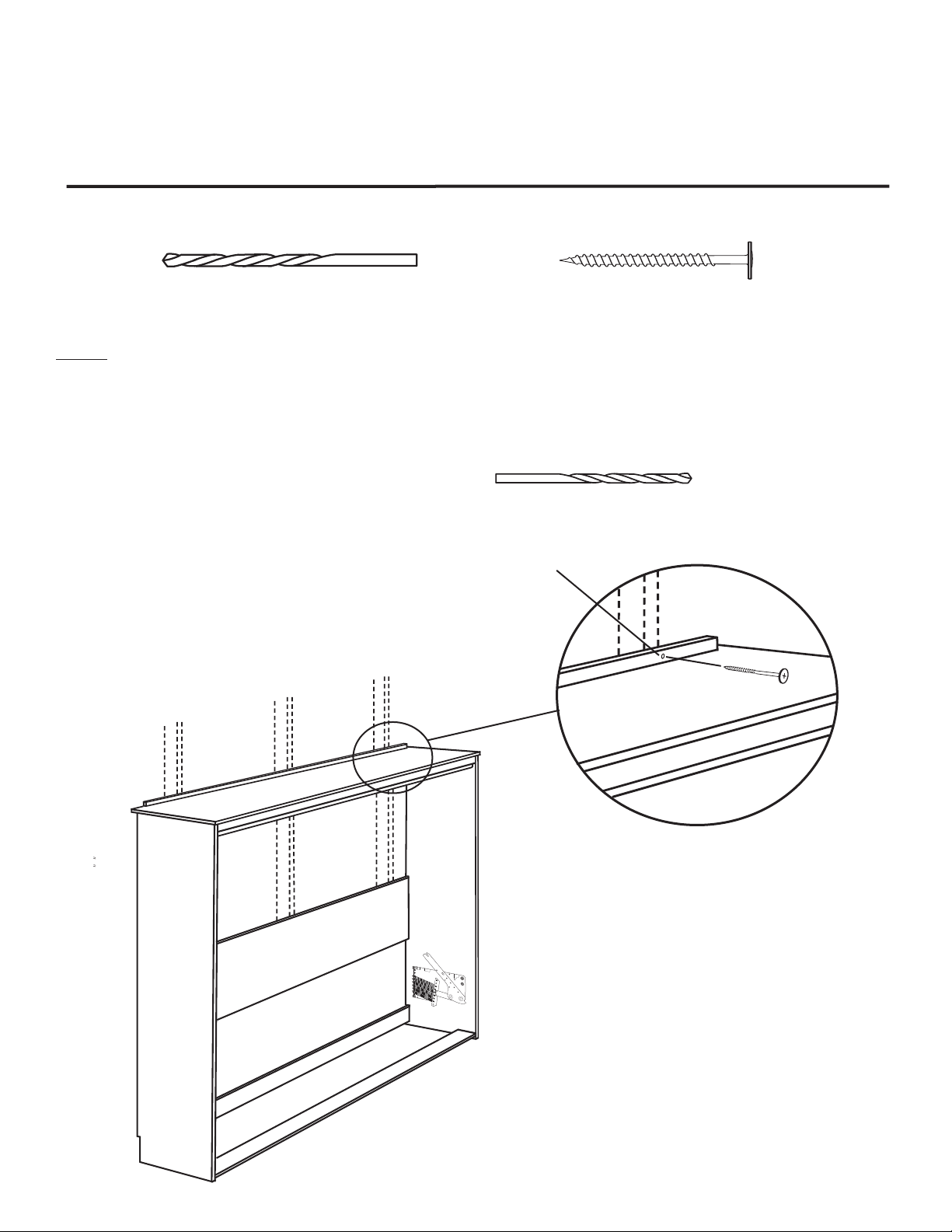

Step: 10: Using a Stud Finder locate and mark at least 3 studs in the wall behind the
bed cabinet. Pre drill with a 1/4” drill bit (supplied) through the Anchor Support
Board at the back of the Bridge Board corresponding with the studs in your wall.
Using the 3 1/2” wood screws provided anchor the bed cabinet to the wall through
the pre drilled holes.
IMPORTANT! Bed cabinet requires 3
studs, It is VERY important that the bed
cabinet be anchored securely to the wall.
For technical support call 866-725-6401
toll free.
Hardware needed for next step
Page 8
WARNING! THE NEXT STEP MAY REQUIRE PROFESSIONAL HELP.
IF YOUR WALLS ARE NOT TRADITIONAL WOOD FRAMING, YOU MAY NEED TO HIRE A HANDY
MAN OR CONTRACTOR TO HELP IN ANCHORING THE BED TO YOUR WALL. FAILURE TO PROP-
ERLY ANCHOR THE CABINET COULD CAUSE SEVERE PERSONAL INJURY. CALL TECHNICAL
SUPPORT AT 866-725-6401 IF YOU HAVE ANY QUESTIONS.
With the supplied 1/4” drill
bit. Pre-drill 1/4” holes
through the Anchor Support
board corresponding with the
studs in your wall
Studs in wall
3.5” Wood Screw
Stud
3.5” Wood Screws
x 3
1/4” Drill bit (supplied)
(From Manila Envelope)

Head/Foot Rail Inner Side Rail
HELPFUL HINT: Side Mount beds
can be slept on in either direction.
The rails referred to as “Head/Foot
rail” (identical) can act as either the
head or foot of the bed, depending
on which way a sleeper lies.
Step 12: Arrange the Mattress
Rails on the face panels as shown.
Head/Foot Rail

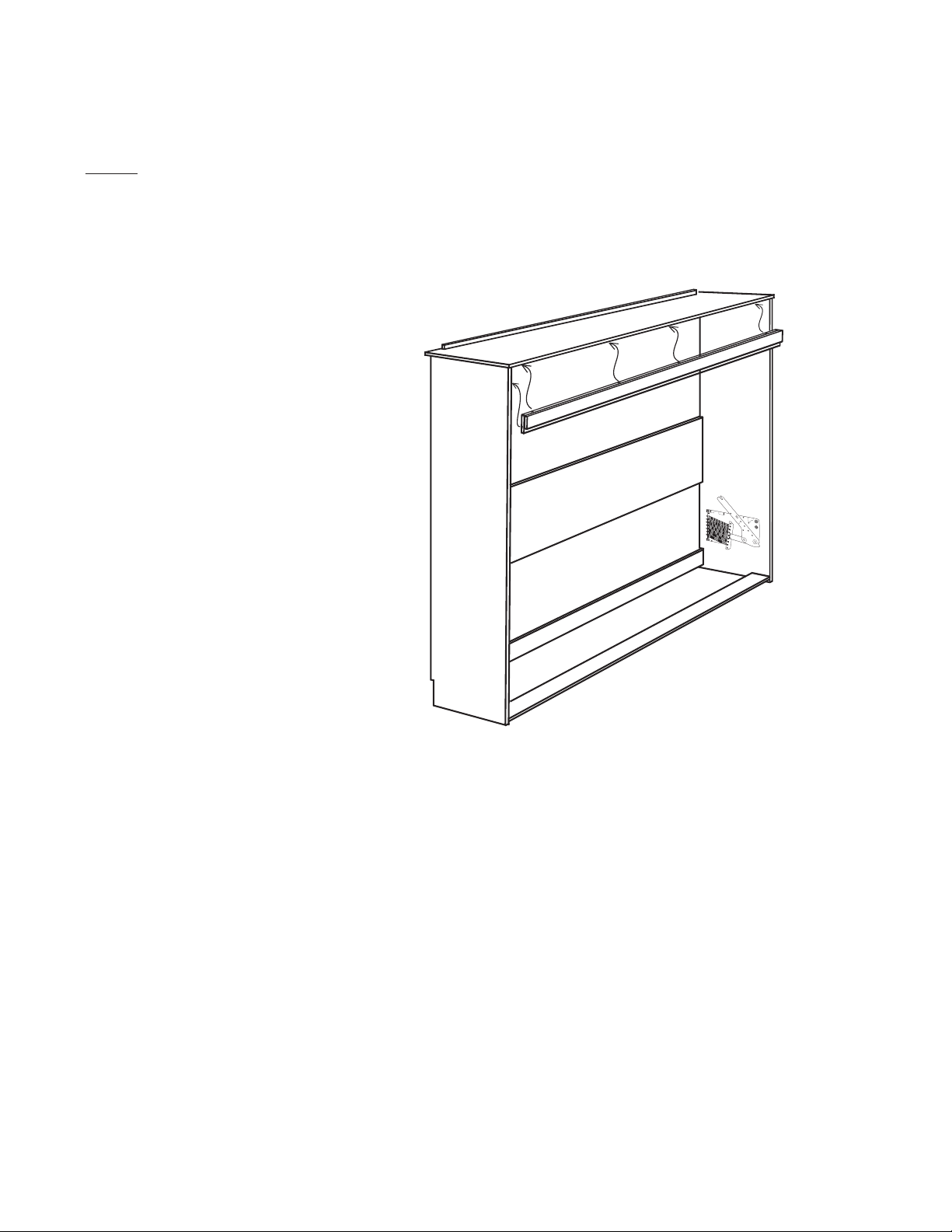

Your bed cabinet is installed on this side
Your bed cabinet is installed on this side
Page 9
Holes for
handle
Holes for
handle
Outer Side Rail
Outer and Inner Side Rails are
identical pieces. In these instruc-
tions they are listed as Outer or
Inner to identify their location on
the Face Panels.
Important note: It is critical to orient the Bed Face panels and the Mattress Rails in the next 5 steps correctly. All of the render-
ings (drawings) in the next 5 steps assume that you are looking away from the wall you just installed the Bed Cabinet against
in the previous step. There is a note under each of the following renderings indicating “your bed cabinet installed on this side”
which indicates that is where the Bed Cabinet is in relation to the face panels and rails.
Note: Number of
face panels will vary
depending on bed
model. But will typi-
cally be either 2 or 4
Step 11: Locate the Front Panel(s)
and lay them on the floor FACE
DOWN (finished side). Position them
in front of where the Bed Cabinet
was installed in the last step and leave
enough room to work around them.
Note that the holes for bed handles
are arranged together and more away
from the wall the Bed Cabinet is
installed against.

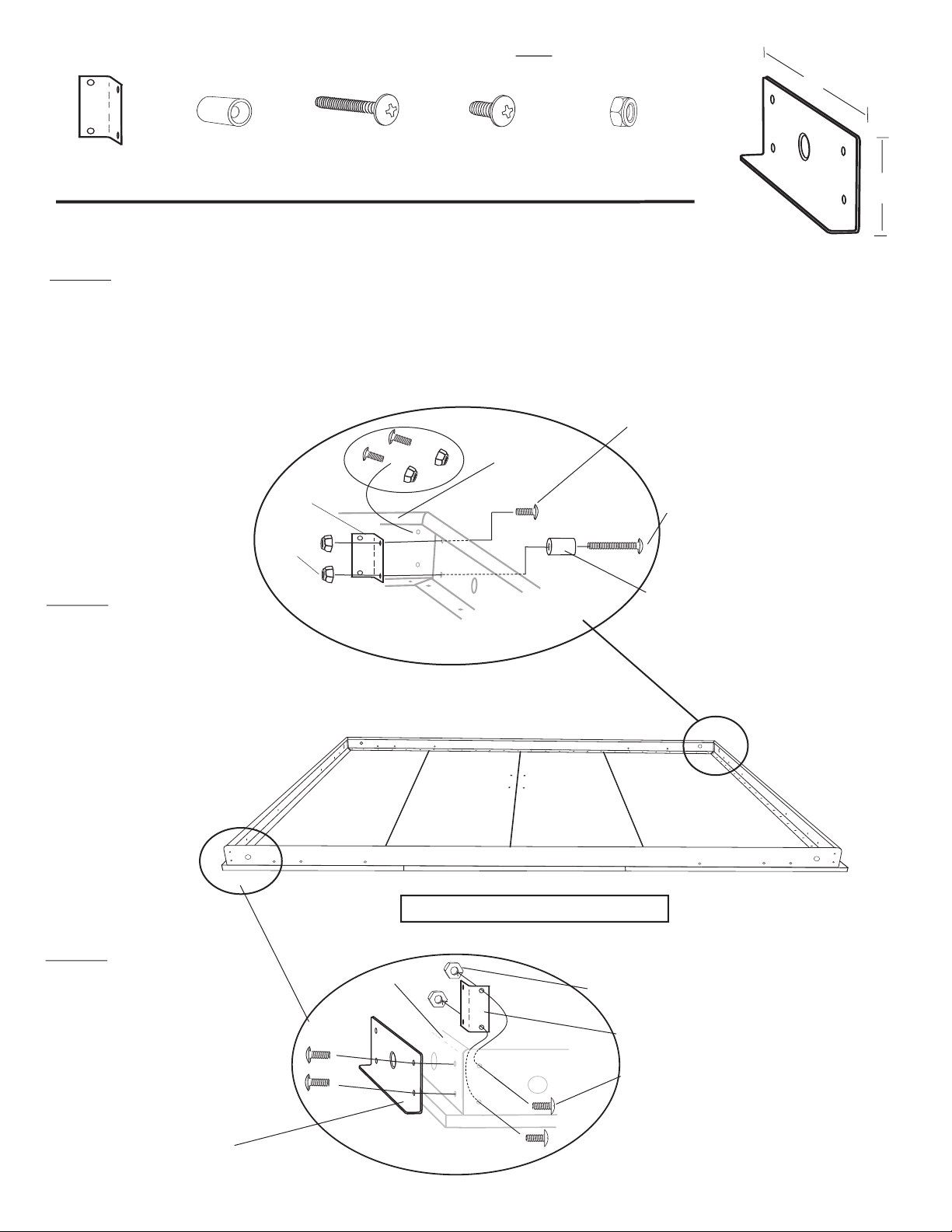

Step 13: From hardware pack 3 locate the hardware shown above. Finger
tighten the hardware as shown in illustration 7 connecting the Outer Side rail
to a Head/Foot rail using a 4 hole corner bracket. Note the lower hole on each
Head/Foot rail uses the Leg Stop with the longer screw (1 1/4” Machine).
Repeat on the opposite side of the Outer Rail corner.
4 hole corner bracket
10-24 Nylock nut
Illustration 7
Step 14: Finger tighten the
hardware as shown in illustra-
tion 8 attaching a 4 hole corner
brackets on the inside of the
Head/Foot Rail and the Panel
Saver on the outside of the Rail.
Now connect the Inner Side Rail
to the Head/Foot rail via the 4
hole corner bracket. Repeat on
the opposite Inner Rail corner.
Step 15: Once all sides
are finger tight go back to
each corner and align the
corners as they are tight-
ened using either a socket
or wrench and a Phillips
screw driver.
Your bed Cabinet installed on this side
Inner Side Rail
4 hole corner bracket
Hardware needed for next 2 steps most from Pack #3
x 4 x 2
10-24 x 1/2” truss head screw
10-24 Nylock nut
4 hole corner bracket
Illustration 8
Page 10
Panel Saver
Outer Side Rail
Panel Saver
(From rails box)
1/2” x 3/4”
Black Barrel
(Leg Stop)
x 16
10-24 Black
Nylock Nut
x 2
10-24 x 1 Black
Machine Screw
1/4’’
x 14
10-24 x 1/2’’ Black
Machine Screw
6’’
2.5’’
Outer Side
Rail
Leg stop (black barrel) 1/2” x 3/4”
10-24 x 1/2” Machine Screw (black)
10-24 x 1 1/4” Machine Screw (black)
Note: The Panel
Savers have 4 holes
but you will only
use two attaching
them to the Head/
Foot Rails.
Head/Foot rail
Inner Side Rail

Frame positioned evenly side to side with wood
face panels protruding by approximately 1” on
either side.
Inner Rail
Outer Rail
Frame inner rail is
flush with face panels
Handle Holes
Step 16: Center the assembled frame side to side on the Face Panels (leaving ap-
proximately 1” space on either side) and bring the Inner Rail flush to the end of the
Face Panels. Once the frame is positioned correctly and the panels and rails are even
and square to each other use 2 screws (5/8 ”square drive) in each corner, as well as
one in each panel at the Inner and Outer rail to hold assembly in place. With the rails
held in place, Use the 5/8” screws in each of the remaining holes around the frame.
Head/Foot Rail
Head/Foot Rail
Caution: DO NOT STRIP SCREW!
Hardware and parts needed for next steps
x 160
5/8” Square Pan head screw
(Hardware pack #7)
x 1
BIRDS EYE (TOP) VIEW
Page 11
(Provided in Manila Envelope)
Square Tip Bit
Handle Holes

Hardware and parts needed for next steps
Wood Mattress
Support
x 3
x 2
1 1/4” Square drive
Wood screw
5/8” Square Pan head screw
(Hardware pack #7)
Square Tip Bit
x 1
Metal Center Stiffeners
Step 17: Position the Wood Mattress Supports evenly over the Face Panel
seams allowing their ends to over lap the Outer and Inner Rails. Use the 1 1/4”
wood screws through the holes provided in the Mattress Support to mend the
Face Panels together. DO NOT STRIP SCREWS.
Helpful hint: Mattress Supports may have an area cut
out to allow for the bed handle holes.
Step 18: Position the 2 Metal Stiffeners evenly in the space provided be-
tween the outer and center Wood Mattress Supports as illustrated below. Now
use the 5/8” square drive screws to fasten the Stiffeners to the Face Panels.
DO NOT STRIP SCREWS.
Page 12
(Provided in Manila Envelope)
Wood mattress
supports positioned
evenly over seems
Inner Rail
Outer Rail
Holes or
Cut out to
provide
opening
for handle
holes
Metal Center Stiffeners
1 1/4” Square drive
Wood screw
5/8” Square Pan
head screw
BIRDS EYE (TOP) VIEW
5/8” Square Pan
head screw
1 1/4” Square drive
Wood screw

x 2
3/4” Washer (pack #5)

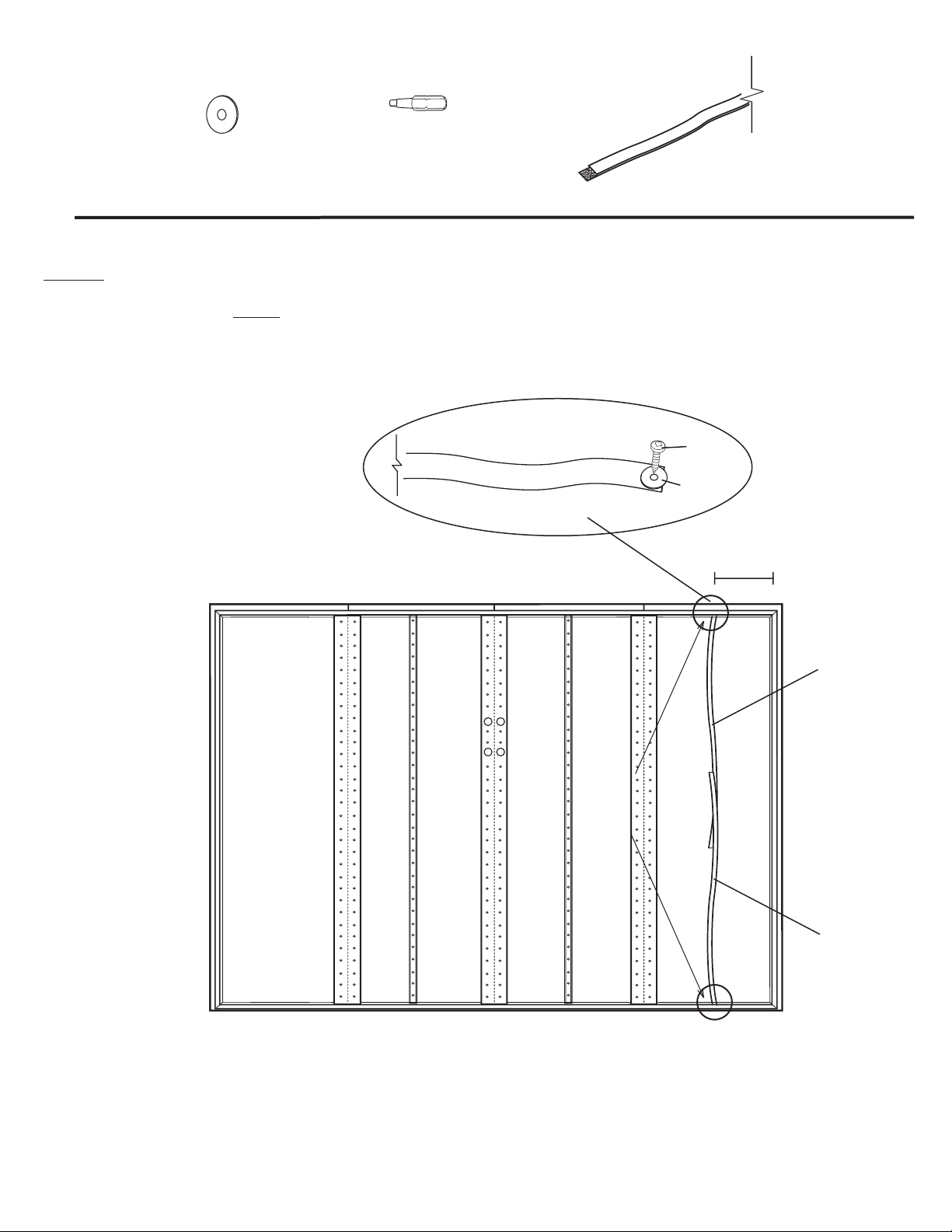

Step 19; Attach the Velcro Strap that
is used for holding the mattress in place
while wall bed is closed. First remove
one of the 5/8” Pan head screws that
attaches the rail to the Face Panels on
each side of the frame at about 18” from
the Head/Foot rail of the frame. Then
put the removed screw through the 3/4”
Washer. Position the end of the Velcro
over the vacated screw hole on the rail
and drive the screw through the Velcro
strap and back into the hole. Repeat the
process on the opposite rail making sure
that the Velcro straps oppose each other
so they hook together in the middle.
Hardware and parts needed for next steps
Velcro Strap (pack #5)
x 1
Square Tip Bit
x 1
Inner Rail
Head/Foot Rail
Head/Foot Rail
Velcro
Strap
anchor
locations
Velcro Strap
Velcro
Strap
Velcro
Strap
3/4”
Washer
5/8”
Screw
18” +/-
BIRDS EYE (TOP) VIEW
Page 13
(Provided in Manila Envelope)
Outer Rail

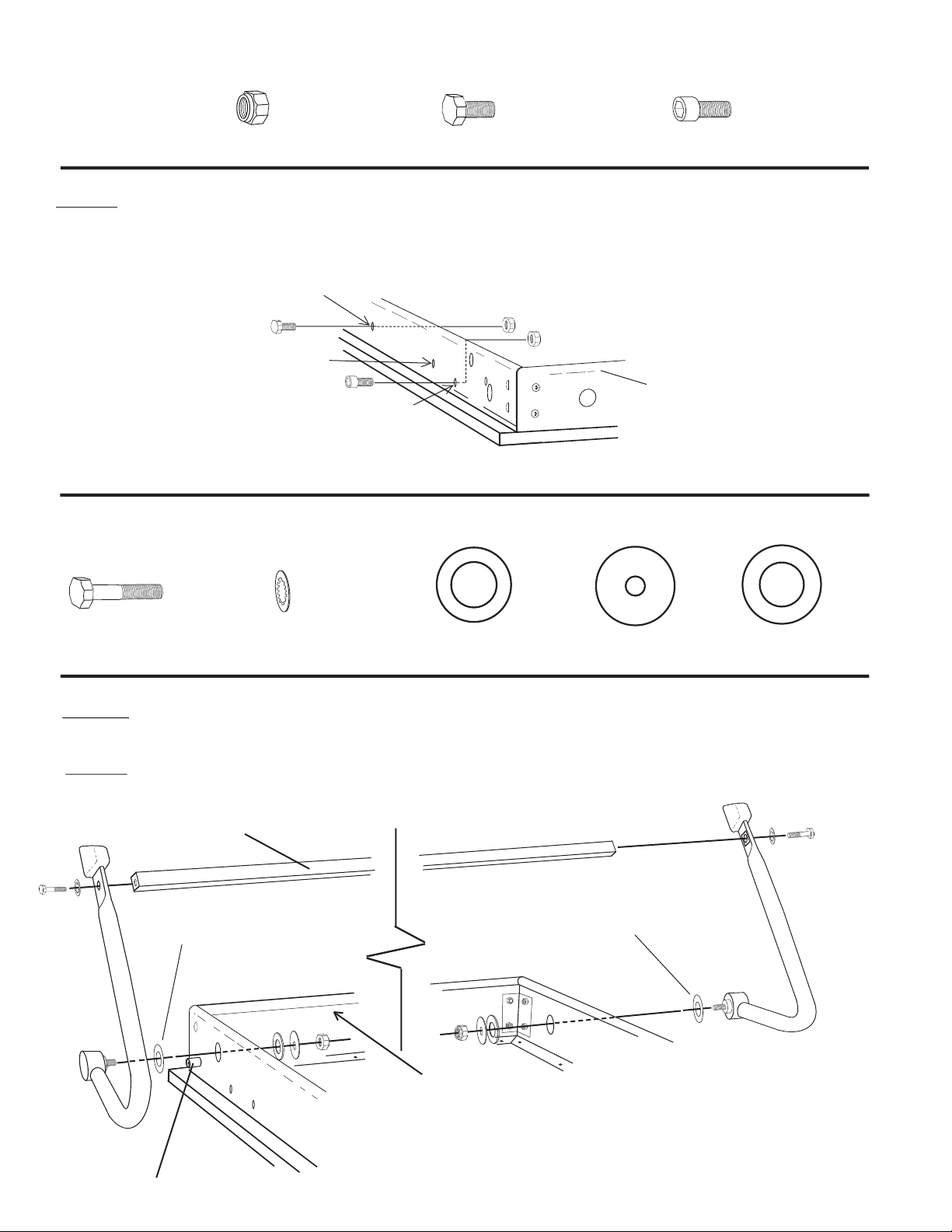

Step 20: As illustrated below, insert the Allen Head Bolt through bolt hole # 1 and tighten it down securely using a Nylock Nut.
Now insert a 5/16” x 1” Hex head bolt through hole # 3 and thread the Nylock nut ONLY UNTIL THE NUT IS FLUSH WITH
THE END OF THE BOLT. Bolt hole #2 will be used in a later step and is left open for now.
Hardware needed for next step from hardware pack #2
5/16” Nylock Nut
X 4 X 2 X 2
5/16” x 1” Allen Head Bolt
Inner Side Rail
Bolt hole 1
Bolt hole 3
Bolt hole 2 (left open)
6.75”
Page 14
Hardware needed for next step from hardware pack #4
Step 21: Attach the Leg Assembly to the OUTER RAIL side of the frame as illustrated below. Use
1 Teflon washers on the out side of the frame for proper spacing.
X 2
1/4” x 1 1/2”
X 2
Star Washer
Step 22: Position the Cross Bar between the Legs. Place the Star washer on one of the 1/4” X 1 1/2” Hex Head bolts. Repeat on
other side.
Cross Bar
Outer Side Rail
Leg Stop
1 1/2” x .765
1 1/2 Nylon washer
X 4 X 2 X 2
1 Thin Teflon washer 1 Thin Teflon washer
5/16” x 1”
Hex Head Bolt
1 1/2” x 5/16” Black
washer

Page 15
Step 24: Stand the Bed face unit up
on its Inner Side Rail. Now with you
and your assistant on either side of
the Bed unit lift until the # 3 bolt on
the Head/Foot Rail is a few inches
above the slotted end of the Tension
Arm on both sides. Gently lower the
Bed Face unit between the Tension
Arms and seat the # 3 bolt into the
slot at the end of the Tension Arms.
Now start pulling the bed face unit
down and away from the Bed Cabinet
the Allen Head bolt will naturally
seat into the notch at the lower end
of the Tension Arms. Lower the bed
unit down and extend the Legs so that
they are on the floor. Someone will
need to hold the bed unit down as it
will want to rise.
Bed Face
#3 Bolt head
Allen Key bolt head
IMPORTANT! As instructed in step 20, Bolt #3 should be loose enough to slip into
the notch at the end of the Tension Arm See illustration below.
Tension Arm
Inner Side Rail
WARNING: There is tremendous force involved in the next step, do not place hands be-
tween the front of the side boards and the tension arms as you set the mechanism.
Helpful hint: As you start to draw the
Tension Arm down with one hand, use
the other hand to position the Arm Lock
on top of the Hex Nut. Now as the Ten-
sion Arm continues to be pulled down
with both hands, the Arm Lock will
naturally drop into place around the
Hex Nut as illustrated.
Tension Arm
Arm Lock
Hexagon Nut
Black Metal Tube
Black Metal Tube

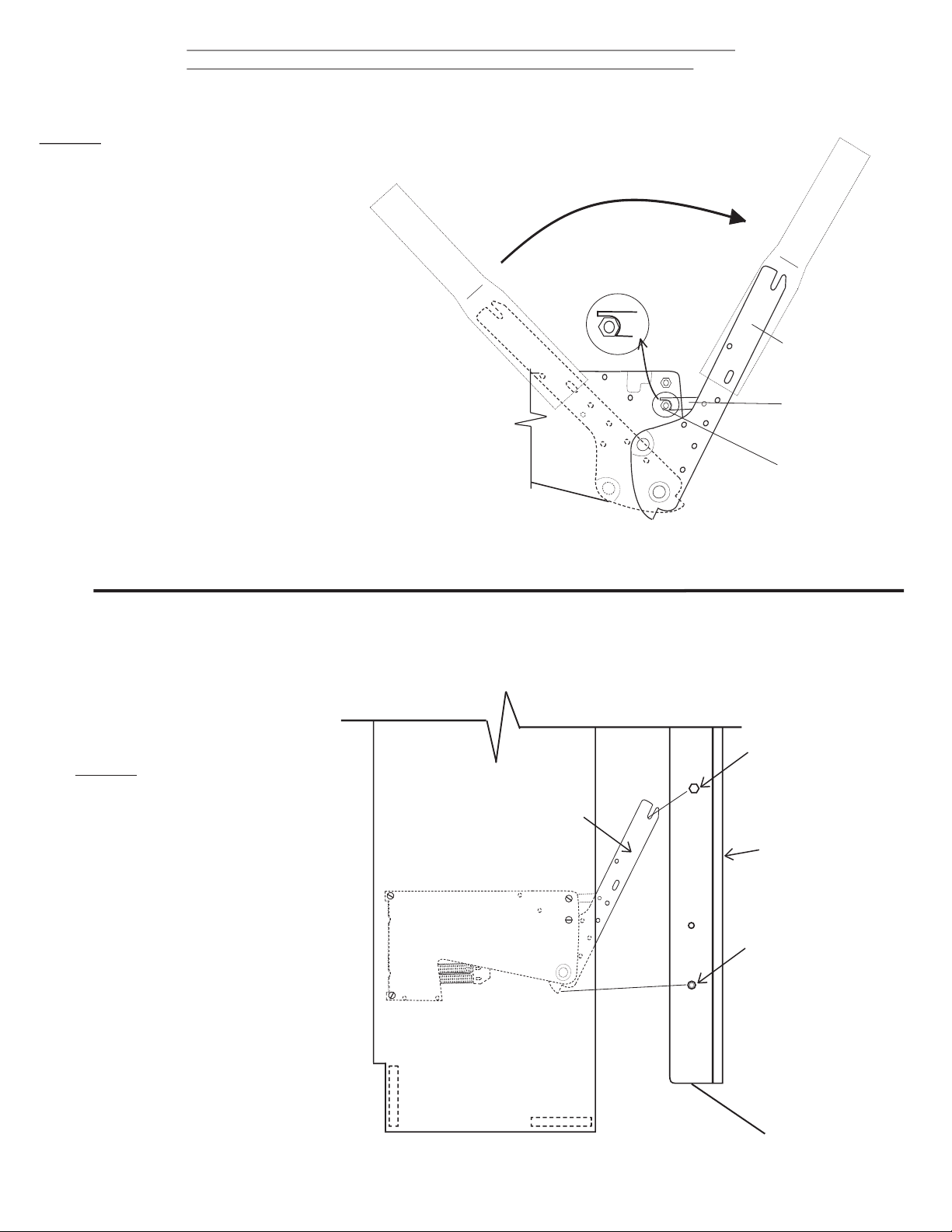

Step 23: Brace one foot against the front edge
of the Side Board and using the 14.5” black metal
tubing provided in hardware kit, lever the Lift
Mechanism’s Tension Arm out and down until
you can secure the Arm Lock onto the Hexagon
Nut shown at right. BE SURE THAT THE LOCK
IS SECURED AGAINST THE HEX NUT BE-
FORE RELEASING THE TENSION ON THE
LIFT MECHANISM.

Page 16
Step 25: Insert a 5/16” x 1” Hex
Head bolt through hole #2 and tighten
a 5/16” Nylock nut onto the bolt. Now
tighten the nut and bolt in hole #3.
Repeat step on the other side of the bed
unit.
Step 26: Slip the Mechanism Cover
over the Mechanism so that the tabs on
the cover fit into the notches provided.
Line up the hole with the barrel support
and anchor in place using the 3/16” x 1
1/4” wood screw provided
Repeat step on the other Mechanism.
Head Board
Black mechanism cover
WARNING! Failure to insert
and tighten all the bolts in step 25 could result
in severe personal injury or
damage to the lift mechanism. Lift mechanism
damage caused by missing or loose hardware
is not covered by warranty.
Hole #2 Hole #3
Left side board
Hardware needed for next step from hardware pack #2
5/16 ”Nylock Nut
X 2 X 2
5/16” x 1” Hex Head Bolt
3/16’’x 1 Black
Wood Screw
1/4’’
2
Hardware needed for next step from hardware pack #2
Anchor spring cover using 3/16” x 1 1/4”
screw here.
Helpful hint: The screw for
attaching the spring cover is
a wood screw not a machine
screw and is in hardware
pack #2.
Warning very important step!
Right side board
