Wilding Wallbeds Monaco User manual

WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND
FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SE-
VERE PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER
SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
Revision 6/16 C190
INSTRUCTION BOOKLET #C190
Bed Style: Monaco

Studsensor
Ratchet
13mm Socket 11mm Socket 8mm Socket
Large regular screwdriver
Phillips screwdriver
13 mm open end wrench
Stud finder
STANLEY
Tape measure
Cordless screw driver
With Phillips bit
6 foot ladder
Tools Needed

Cam Fitting
32
Connecting Bolts
32
Other Hardware
Item Qty
“L” Bracket
3
Hardware Page
5/8’’ Pan head Screw
6
6
2’’ Wood Screw
Square Tip Bit
1
Panel Saver
2
6’’
2.5’’
(In mechanism rails box)
(From Manila Envelope)
1”
2
Wood Dowel 5
2’’ Confirmat Screw
6
1” x 1” x 1 3/4” Four Hole
Corner Bracket
10-24 Black Nylock Nut
10-24 x 1 Black Machine Screw
1/4’’
5/8’’ Pan head Screw
10-24 x 1/2’’ Black Machine Screw
1/2” x 3/4”Black Barrel(Leg Stop)
16
2
160
14
2
4
Item
Item
Qty
Qty
5/16’’ Nylock Hex Nut
5/16’’ x 1” Allen Head Bolt
5/16’’ x 1” Hex Head Bolt
5/16’’ x 1 1/4’’
16
10
2
4
Pack 2
Qty
Item
1 5/8’’ Pan head Wood Screw
2
5/16” Allen
wrench
Pack 3
Pack 7
Tapered Allen Head Bolt
Pack 4
1 1/2” x 5/16” Black washer
1 1/2” X .765” Black washer
1 1/2” Nylon washer
1/4’’ x 1 1/2’’ Hex Head Bolt
Star Washer
2
2
2
2
4
Item Qty
Pack 5
5/8’’ Pan head Screw
2
Item Qty
Velcro Retainer Straps
2
3/4’’ Washer
2
1
Fast Cap
(Adhesive Back)
6
Bed Handle
Machine Screw for
bed Handle
1
Item Qty

Step 1: Locate the two Side Boards. If you pur-
chased a Queen size bed the Side Boards measure
85.25” long. Full and Twin size Side boards will
measure 80.25” long. Then from the small square
cardboard box locate the two Lift Mechanisms,
hardware bags, and springs.
Left Side Board Right Side Board
Lift Mechanism
X 2
Cut out for room
base molding
Step 2: Install Springs in the Lift Mechanisms
Bed Size Number of Springs
Queen
Full/Double
Twin/Single
7
6
4
HELPFUL HINT: You may find it easier to fit the hook
under the Tension Arm if you pry up the Arm Bracket with
a wooden wedge or similar device.
IMPORTANT! Be sure that holes
used on the Mounting Plate corre-
spond to the holes in the Tension
Arm and use the same number of
springs and the same configura-
tion on both Lift Mechanisms
Repeat Step 2 for Left Lift Mechanism.
The required number of springs in the Lift Mechanisms varies with the different weights of
mattresses. If you purchased your mattress with your bed from Wilding Wallbeds refer to the
chart to the right. This will also be a good reference point for mattresses not purchased with
your Wall bed.
Install the first spring in hole #2 for Queen and Full size beds and hole #3 for twin size on both the Mounting Plate and the
Tension Arm. Hook one end of the spring under the upturned edge of the Mounting Plate. Lay the spring down and slide it
under the matching hole in the Tension Arm. See illustration 1.
Continue by working down from,
hole 2 (Queen and Full size beds)
or hole 3, (for twin size), until you
have installed the required number of
springs.
NOTE: After you have completed installing and checking operation of your Wall
bed, you may find it necessary to add or remove springs to achieve the correct lift
effort of between 5 and 10 pounds.
Hole #2
Hole #1
Page 1
Tension Arm
Upturned edge
of mounting
plate
Arm Bracket
Illustration 1
(Right lift mechanism)
Hole #9
(Some springs may be pre-installed)

Page 2
5/16’’ x 1 1/4’’
x 8
5/16’’ Nylock Nut
x 8
Hardware needed for next step from Pack #2
Repeat the step with the Left Side
Board and Lift Mechanism.
IMPORTANT! Over tightening the nuts will
pull the head of the bolt too deeply into the
Side Board. Tighten only until the head of the
bolt is flush with the surface of the Side Board .
Step 3: Install the Lift Mechanism to
the Side Board by inserting a 5/16 x 1
1/4” Tapered Allen head Bolt through
holes A, B, C and D from the outside
(countersunk holes) of the Side Board.
The bolt then goes through the cor-
responding holes of the Right Lift
Mechanism as illustrated. Thread on
four 5/16” Nylock nuts and tighten
(hole A may have threaded collar
instead of bolt)
Hole A
Hole B
Hole C
Hole D
Finished Edge
Base Board
Notch
Right
Side Board All holes are
countersunk in
this side of side-
board
May be threaded
collar instead of
bolt in hole A.
Note:
Tapered Allen Head Bolt
Step 5: Locate the Bridge
Board and insert 5 Wood Dow-
els (2 on one end and 3 on the
other) in the holes provided in
the end of the bridge board as
illustrated.
Optional holes for bed
lights
Wood Dowel 5
Step 4: Lay the right Side Board
down as illustrated and screw 7 Con-
necting Bolts into the holes provided
as shown.
Repeat the step on the left Side
Board.
Connecting Bolts
14
Hardware needed for next step from Manila Envelope
Insert 3Dowels
here
Insert 2 Dowels
here
Hardware needed for next step from Manila Envelope
Note: There are 3 dowels
on one end and 2 on the
other for proper alighment
in a later step.

Page 3
Step 6: Locate the TWO (2) Stretcher Boards
and insert four Cam Fittings into the back of
each Stretcher. Press the Cam Fittings in so they
are tight against the part.
X 2
Hardware needed for next step from Manila Envelope
8
Head Boards have 2 options. Option 1 is for a “standard depth” Wallbed and Option 2 is for an “Extra
Deep” Wallbed. Determine which Wallbed kit you have and then proceed with the correct option below.
STANDARD DEPTH HEAD BOARD
OPTION 1
EXTRA DEEP HEAD BOARD
OPTION 2
Extra depth Head Board shelf
1/2 turn to right
Insert 3 Connecting
Bolts in the bottom
of the Head Board
Shelf.
Turn the Head
Board Shelf over
and insert the Con-
necting Bolts into
the Cam Fittings
and tighten them
with a Phillips
screw driver.
Extra deep Head
Board will need 9
Cam Fittings in-
serted into the back
of the extra deep
Head Board
Standard Head Board will need 6 Cam
Fittings inserted into the back of the Head
Board
Front
Front
Important!
Don’t over-
tighten Cam
Fittings a 1/2
turn is suffi-
cient.
Grommet
Hole
Grommet
Hole

IMPORTANT! Tighten the cam fittings with a hand screw driver by turning the
Phillips head clockwise 1/2 turn to tight.
HELPFUL HINT: It is easier to tighten the Cam Fittings if the two bed parts are
snug together.
Page 4
1/2 Turn to tight
Cam Fitting
Connecting Bolt
Step 7: Start Assembling the Bed Cabinet face down with the bottom of the Bed Cabinet nearer the wall to which it will be
installed.
As illustrated, install the Bridge Board between the Side Boards by inserting the dowels from the Bridge Board into the
holes provided in the Side Boards. Then using 3 Confimat screws on eash side screw the Side Boards to the Bridge board.
Note Tighten the Confirmat Screw only until the head of the screw is flush with
the surface of the Side Boards.
Bed Bottom
Optional holes
for lights
Dowel
Confirmat Screw
2’’ Confirmat Screw
6
Hardware needed for next step from Manila Envelope
Bed Bottom
Front Stretcher
Cam fittings on bottom
Optional holes
for lights
Step 8:
Finish assembling the Bed Cabinet by installing the Head Board and two Stretcher Boards. Slide the parts
between the Side Boards as illustrated attach them using the Cam Fittings. Note the “Front Stretcher” (illustrated
below) should be positioned so the Cam Fittings are at the bottom of the Bed Cabinet.
Left Side Board
Right Side Board
Bridge Board
Three dowels on left
side for proper align-
ment
Warning

Step 9: Stand the bed cabinet up
against the wall where you intend to
have it installed.
(Light Kit instructions are in the Light Kit box)
INSTALLATION WALL
STOP
IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST REFER TO THE
LIGHT KIT INSTRUCTIONS AND INSTALL THE LIGHT KIT BEFORE MOVING ON.
Page 5

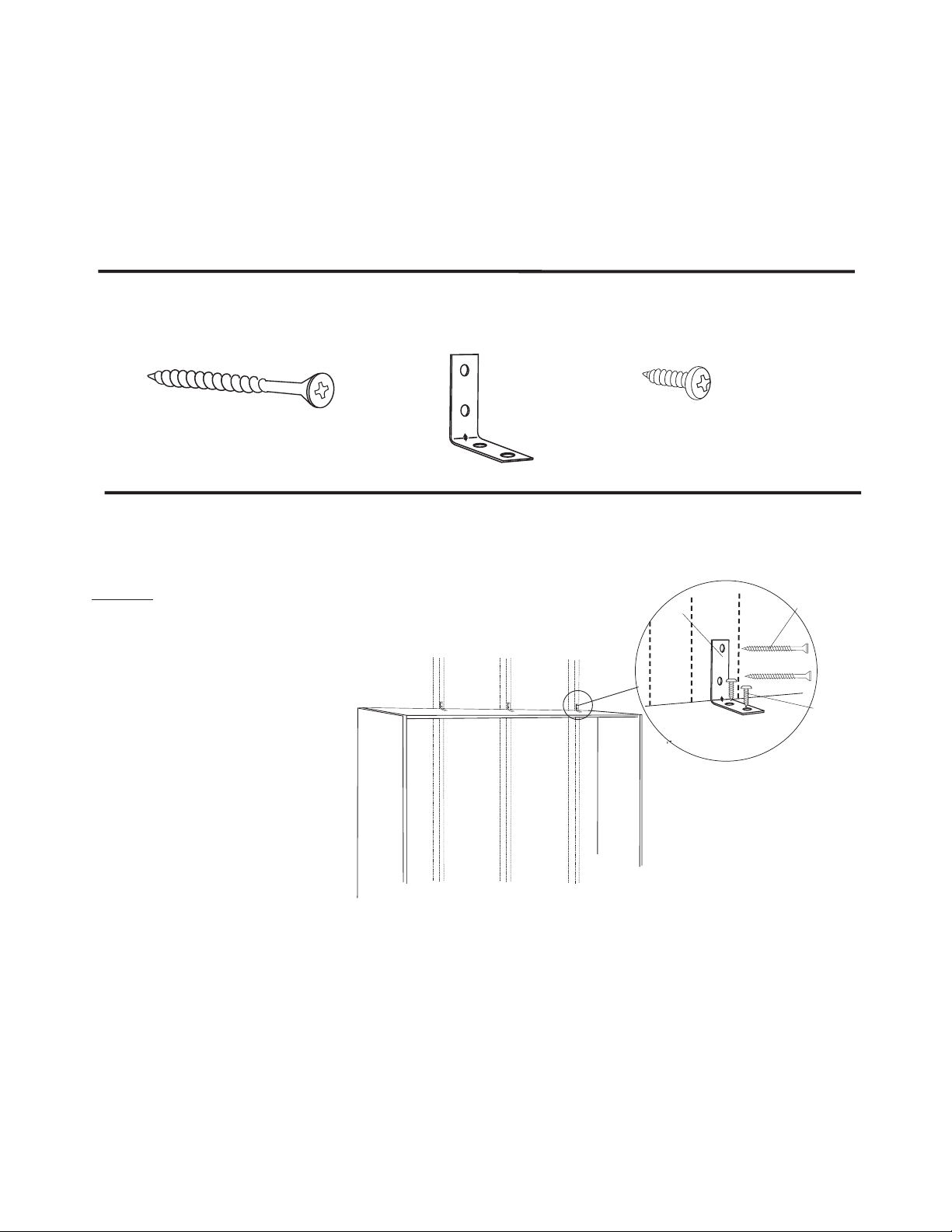

Step 10:: Using a Stud Finder
locate and mark the studs in your
wall behind the Bed Cabinet. At-
tach “L” brackets to the top, back
of the Bed Cabinet using 3/4” Pan
Head screws corresponding to
where the studs are located in your
wall. Now attach the “L” brackets
to the studs in the wall using six 2”
wood screws. See illustration 6
IMPORTANT! Queen and Full
size beds require 3 studs, Twin
size beds require 2 studs. It is
VERY important that the bed
cabinet be anchored securely to
the wall. For technical support
call 866-725-6401 toll free.
Studs in your wall
Bed Cabinet
“L” Bracket
3/4” Pan Head
Screw
2” Wood Screw
STUD
Illustration 6
WARNING! THE NEXT STEP MAY REQUIRE PROFESSIONAL HELP.
IF YOUR WALLS ARE NOT TRADITIONAL WOOD FRAMING, YOU MAY NEED TO HIRE A HANDY
MAN OR CONTRACTOR TO HELP IN ANCHORING THE BED TO YOUR WALL. FAILURE TO PROP-
ERLY ANCHOR CABINET COULD CAUSE SEVERE PERSONAL INJURY. CALL TECHNICAL SUP-
PORT AT 866-725-6401 IF YOU HAVE ANY QUESTIONS.
“L” Bracket
x 3
5/8’’ Pan head Screw
x 6
2’’ Wood Screw
Hardware needed for next step
(From Manila Envelope)
x 6
Page 6

Step 12: Arrange the Mattress
Rails on the face panels as shown.
Head rail
Foot rail
Side rail
Side rail
HELPFUL HINT: the “Head Rail”
refers to the end that is closest to the
Bed Cabinet during assembly and
will be where your head is while
sleeping.
Step 11: Locate the 2 Front Pan-
els and lay them on the floor FACE
DOWN. Position them in front of
where the Bed Cabinet was installed
in the last step and leave enough
room to work around them. Note
that the holes for bed handles must
be arranged so the dimensions are as
illustrated.
Your bed cabinet is installed on this side
Hole for
handle
Hole for
handle
Your bed cabinet is installed on this side
Holes for
handle
Important note: It is critical to orient the Bed Face panels and the Mattress Rails in the next 5 steps correctly. All of the renderings (drawings)
in the next 5 steps assume that you are looking away from the wall you just installed the Bed Cabinet against in the previous step. There is a
note under each of the following renderings indicating “your bed cabinet installed on this side” which indicates that is where the Bed Cabinet is
in relation to the face panels and rails.
14”
14
”
35.5”
Page 7
14”

Step 13: From hardware pack 3 locate the hardware shown above. Finger
tighten the hardware as shown in illustration 7 connecting the Foot Rail to the
Side Rail using the 4 hole corner bracket. Note the lower hole on each Side
Rail uses the Leg Stop with the longer screw (1 1/4” Machine). Repeat step
on the opposite side of the Foot Rail corner.
Head rail
Foot rail
Illustration 7
Illustration 8
Side rail
Page 8
Panel Saver
Note: The Panel Savers have 4
holes but you will only use two
attaching them to the Side Rails.
4 hole corner bracket
Hardware needed for next 2 steps most from Pack #3
x 4 x 2
Panel Saver
(From rails box)
1/2” x 3/4”
Black Barrel
(Leg Stop)
x 16
10-24 Black
Nylock Nut
x 2
10-24 x 1 Black
Machine Screw
1/4’’
x 14
10-24 x 1/2’’ Black
Machine Screw
6’’
2.5’’
4 hole corner bracket
10-24 Nylock nut
Leg Stop (black barrel) 1/2” x 3/4”
10-24 x 1/2” Machine Screw (black)
10-24 x 1 1/4” Machine Screw (black)
Foot Rail
Step 14: Finger tighten
the hardware as shown in il-
lustration 8 attaching a 4 hole
corner bracket on the inside
of the Side Rail and the Panel
Saver on the outside of the
Side Rail. Now connect the
Head Rail to the Side Rail via
the 4 hole corner bracket and
repeat on the opposite Head
Rail corner.
Step 15: Once all
sides are finger tight
go back to each corner
and align the corners
as they are tightened
using either a socket or
wrench and a Phillips
screw driver.
Side Rail
Side rail
Side rail
Head rail
10-24 Nylock nut
4 hole corner bracket
10-24 x 1/2” Machine Screw (black)

Hardware and parts needed for next steps
x 160
5/8” Square Pan head screw
(Hardware pack #7)
Frame Head Rail is
flush
with face panels
Side Rail
Side Rail
Head Rail
Foot Rail
BIRDS EYE (TOP) VIEW
Frame positioned evenly side to side with wood face
panels protruding by approximately 1” on either side.

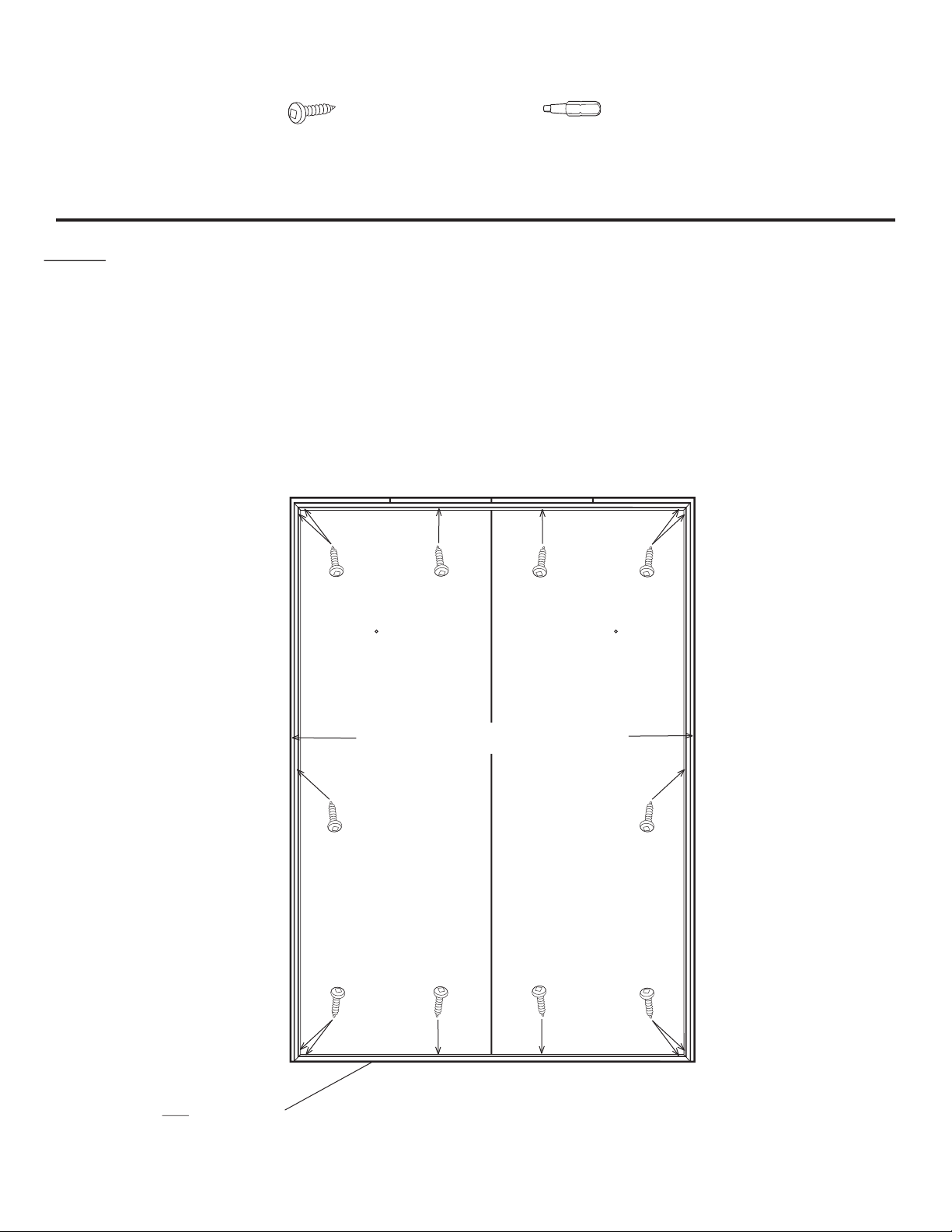

Step 16: Center the assembled Mattress Frame side to side on the Face Panels (leaving approximately 1”
space on either side) and bring the Head Rail flush to the end of the Face Panels. Once the frame is posi-
tioned correctly and the panels and rails are even and square to each other use 2 screws (5/8” square drive)
in each corner, 1 in each panel’s Head and Foot rail, and 1 in the middle of each Side Rail as illustrated to
hold assembly in place. With the rails held in place, Use the 5/8” screws in each of the remaining holes
around the frame.
Caution: DO NOT STRIP SCREW!
Page 9
x 1
(Provided in Manila Envelope)
Square Tip Bit

Hardware and parts needed for next steps
5/8” Square Pan head screw
(Hardware pack #7)
Square Tip Bit
x 1
x 3
Metal Center Stiffeners
Side Rail
Side Rail
Head Rail
Foot Rail
BIRDS EYE (TOP) VIEW

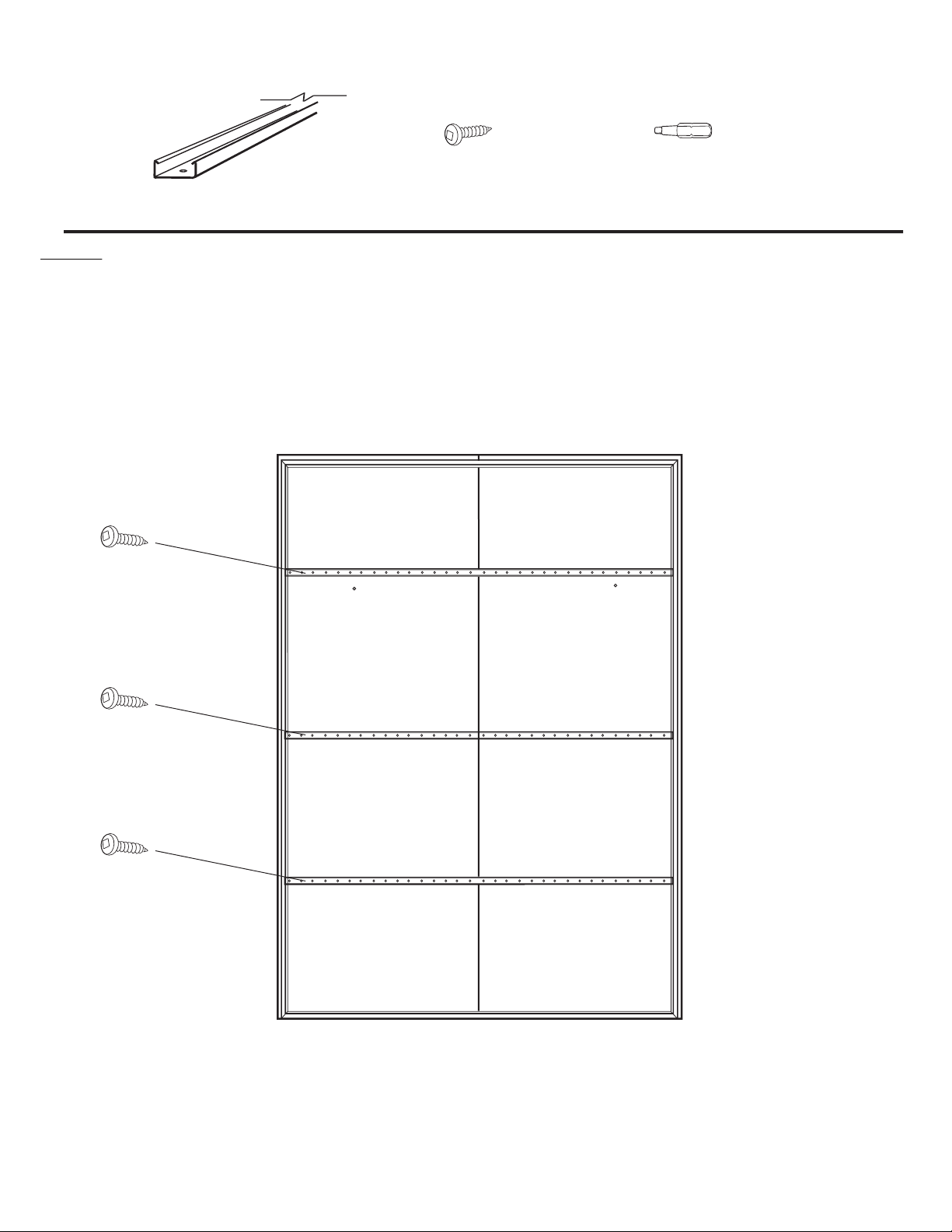

Step 17: Position the 3 Metal Stiffeners evenly in the space provided be-
tween the Head and Foot Rails as illustrated below. Now use the 5/8” square
drive screws to fasten the Stiffeners to the Face Panels using all provided holes
in the Stiffeners. DO NOT STRIP SCREWS.
5/8” Square Pan
head screw
5/8” Square Pan
head screw
5/8” Square Pan
head screw
Page 10
(Provided in Manila Envelope)
Note: Occasionally one of the holes in the
Center Stiffeners will be positioned where
the seam of the face panels come together. In
this case you do not need to put a screw in
where it will wedge between two panels.

Step 18; Attach the Velcro Strap that is used for holding the
mattress in place while wall bed is closed. First remove one
of the 5/8” Pan head screws that attaches the rail to the Face
Panels on each Side Rail of the frame at about 18” from the
Foot Rail of the frame. Then put the removed screw through
the 3/4” Washer. Position the end of the Velcro over the
vacated screw hole on the rail and drive the screw through
the Velcro strap and back into the hole. Repeat the process
on the opposite Side Rail making sure that the Velcro Straps
oppose each other so they hook together in the middle.
Velcro Strap
3/4”
Washer
5/8”
Screw
Side Rail
Side Rail
18” +/-
Head Rail
Foot Rail
BIRDS EYE (TOP) VIEW
Velcro Strap
anchor locations
Velcro
Strap
Velcro
Strap
x 2
3/4” Washer (pack #5)
Hardware and parts needed for next steps
Velcro Strap (pack #5)
x 1
Square Tip Bit
x 1
Page 11
(Provided in Manila Envelope)

Step 19: As illustrated below, insert the Allen Head Bolt through bolt hole # 1 and tighten it down securely using a Nylock Nut.
Now insert a 5/16” x 1” Hex Head bolt through hole # 3 and thread the Nylock nut ONLY UNTIL THE NUT IS FLUSH WITH
THE END OF THE BOLT. Bolt hole #2 will be used in a later step and is left open for now.
Hardware needed for next step from hardware pack #2
5/16” Nylock Nut
X 4 X 2 X 2
5/16” x 1” Allen Head Bolt
Head Rail
Bolt hole 1
Bolt hole 3
Bolt hole 2 (left open)
6.75”
Page 12
Hardware needed for next step from hardware pack #4
Step 20: Attach the Leg Assembly to the FOOT RAIL side of the frame as illustrated below. Use 1
Teflon washers on the out side of the frame for proper spacing.
X 2
1/4” x 1 1/2”
X 2
Star Washer
Step 21: Position the Cross Bar between the Legs. Place the Star washer on one of the 1/4” X 1 1/2” Hex Head bolts. Repeat on
other side.
Cross Bar
Foot Rail
Leg Stop
1 1/2” x .765
1 1/2 Nylon washer
X 4 X 2 X 2
1 Thin Teflon washer 1 Thin Teflon washer
5/16” x 1”
Hex Head Bolt
1 1/2” x 5/16” Black
washer

Page 13
STOP
IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST
RETURN TO THE LIGHT KIT INSTRUCTIONS STEP 6
AND INSTALL
THE SAFETY CUT OFF DEVICE BEFORE MOVING ON.
Step 23: Stand the Bed Face unit up
on its Head Rail. Now with you and
your assistant on either side of the
Bed Face unit lift until the # 3 bolt on
the Side Rail is a few inches above
the slotted end of the Tension Arm on
both sides. Gently lower the Bed face
unit between the Tension Arms and
seat the # 3 bolt into the slot at the
end of the Tension Arms. Now start
pulling the bed face unit down and
away from the Bed Cabinet the Allen
Head bolt will naturally seat into the
notch at the lower end of the Tension
Arms. Lower the bed unit down and
extend the Legs so that they are on
the floor. Someone will need to hold
the bed unit down as it will want to
rise.
IMPORTANT! As instructed in step 19, Bolt #3 should be loose enough to slip into
the notch at the end of the Tension Arm See illustration below.
Bed Face
#3 Bolt head
Allen Key bolt head
Tension Arm
Head Rail
WARNING: There is tremendous force involved in the next step, do not place hands be-
tween the front of the side boards and the tension arms as you set the mechanism.
Tension Arm
Arm Lock
Hexagon Nut
PVC tubing
PVC tubing
Step 22: Brace one foot against the front
edge of the Side Board and using the 13”
length of PVC tubing provided, lever the Lift
Mechanism’s Tension Arm out and down
until you can secure the Arm Lock onto the
Hexagon Nut shown at right. BE SURE
THAT THE LOCK IS SECURED AGAINST
THE HEX NUT BEFORE RELEASING
THE TENSION ON THE LIFT MECHA-
NISM.
Optional Light kit safety
cut off switch. Beds with
light kit only
Helpful hint: As you start to draw the
Tension Arm down with one hand, use
the other hand to position the Arm Lock
on top of the Hex Nut. Now as the Ten-
sion Arm continues to be pulled down
with both hands, the Arm Lock will
naturally drop into place around the
Hex Nut as illustrated.

Page 14
Step 24: Insert a 5/16” x 1” Hex
Head bolt through hole #2 and tighten
a 5/16” Nylock nut onto the bolt. Now
tighten the nut and bolt in hole #3.
Repeat step on the other side of the bed
unit.
Step 25: Slip the Mechanism Cover
over the Mechanism so that the tabs on
the cover fit into the notches provided.
Line up the hole with the barrel support
and anchor in place using the 3/16” x 1
1/4” wood screw provided
Repeat step on the other Mechanism.
Head Board
Black mechanism cover
WARNING! Failure to insert
and tighten all the bolts in step 24 could result
in severe personal injury or
damage to the lift mechanism. Lift mechanism
damage caused by missing or loose hardware
is not covered by warranty.
Hole #2 Hole #3
Left side board
Hardware needed for next step from hardware pack #2
5/16” Nylock Nut
X 2 X 2
5/16” x 1” Hex Head Bolt
3/16’’x 1 Black
Wood Screw
1/4’’
2
Hardware needed for next step from hardware pack #2
Anchor spring cover using 3/16” x 1 1/4”
screw here.
Helpful hint: The screw for
attaching the spring cover is
a wood screw not a machine
screw and is in hardware
pack #2.
Warning very important step!

Page 15
Step 26: When the bed is closed check to see if the gap
on either side is the same. If it looks right skip this step.
If the gap is not right, meaning that the Bed Box is too
close to the side board or even touching it at the top on
one side it will need to be adjusted. The procedure will
require the bottom of the bed to be moved slightly to the
left or right depending on which top corner is too close.
If the Bed Face is too close on the top right side for
instance, the right side (bottom) will need to be slid to the
left slightly. Have one person push the bed at the bottom
with his feet while the second person pulls at the opposite
bottom side.
Push bed
over at the
bottom to
align
Step 27: Place handles on bed using pre-
drilled holes in face panels.
Step 28: Anchor the Side Cabinet to the Bed by
first pre-drilling three 3/16” holes at the inside edge
of the side cabinet. Position the holes close to the
front edge of the Side Cabinet. One hole should be
near the top, one should be inside the drawer area
(remove drawer from cabinet to get to this one), and
the third should be at the bottom (open door if your
cabinet has door, or remove drawer at bottom) for
this hole. Now move the side cabinets next to the
bed and use three 1 1/4” Screws (located in a drawer
or on a shelf of the side cabinet) through pre-drilled
holes to anchor Side Cabinets to the Bed.
3/16” 3/16”
1”
Bed Handle
Machine Screw for
bed Handle
