Winco TransMotion TMM4X PLUS Quick start guide

1. SIDE RAIL - LOWERING/RAISING 2. BACK SECTION QUICK RELEASE
5. Push Bar
4. Battery Pack
(“B” Option)
QUICK NOTES
Lowering the Side Rail
Grasp the top of the side rail and push
slightly inward while pulling out the Red
release tab at the bottom of the rail.
Stowing the Side Rail
Lower the rail into the down position.
Raising the Side Rail
Lift the side rail until it is in the up position.
The Red release tab will engage (lock)
automatically.
After raising, pull on side rail to ensure it is
securely locked.
Location
The (Red) quick release lever is located under the
seat on the patient’s right side.
Activating the Quick Release
Pull the Red lever out towards the side rail. When
weight is applied, the back section will drop until
the lever is released.
Intended for EMERGENCY
purposes ONLY.
3. Caster
Braking System
MAXIMUM PATIENT WEIGHT IS 500 lbs (227 kg.)
TMM4X PLUS MULTI-PURPOSE STRETCHER-CHAIR
WITH SEAT TILT
6. Ten Button
Pendant
*Not shown
1. Padded Side Rails
2. Back Section
Quick Release

Auto-Contour Adjustment
The fourth row of buttons controls the
simultaneous actuation of the leg and
back sections. Press the left button to
place the chair in a stretcher position.
Press the right button to place the unit
into the chair position.
Back Adjustment
The first row of
buttons controls the
angle of the back
section. Press the left
button to raise the
chair back. Press the
right button to lower
the chair back.
To maintain an optimum charge, Winco recommends charging
your battery every 2-3 days.
Battery Pack Removal
Grasp the battery pack’s
integrated handle and lift up
until locks disengage then
pull the battery away from
the mounting bracket.
Installing the Battery Pack
Place the two circular pins located on the back of the battery
pack into the square openings on the battery mounting
bracket. Once the pins are aligned, slide the battery pack
down until the pins lock into place.
4. BATTERY PACK (“B” OPTION) INSTALLATION AND REMOVAL
7. TEN BUTTON PENDANT
Pendant Storage
To prevent damage, the pendant may be
stored at various locations on the chair when
not in use.
Pendant is NOT INTENDED
FOR PATIENT USE.

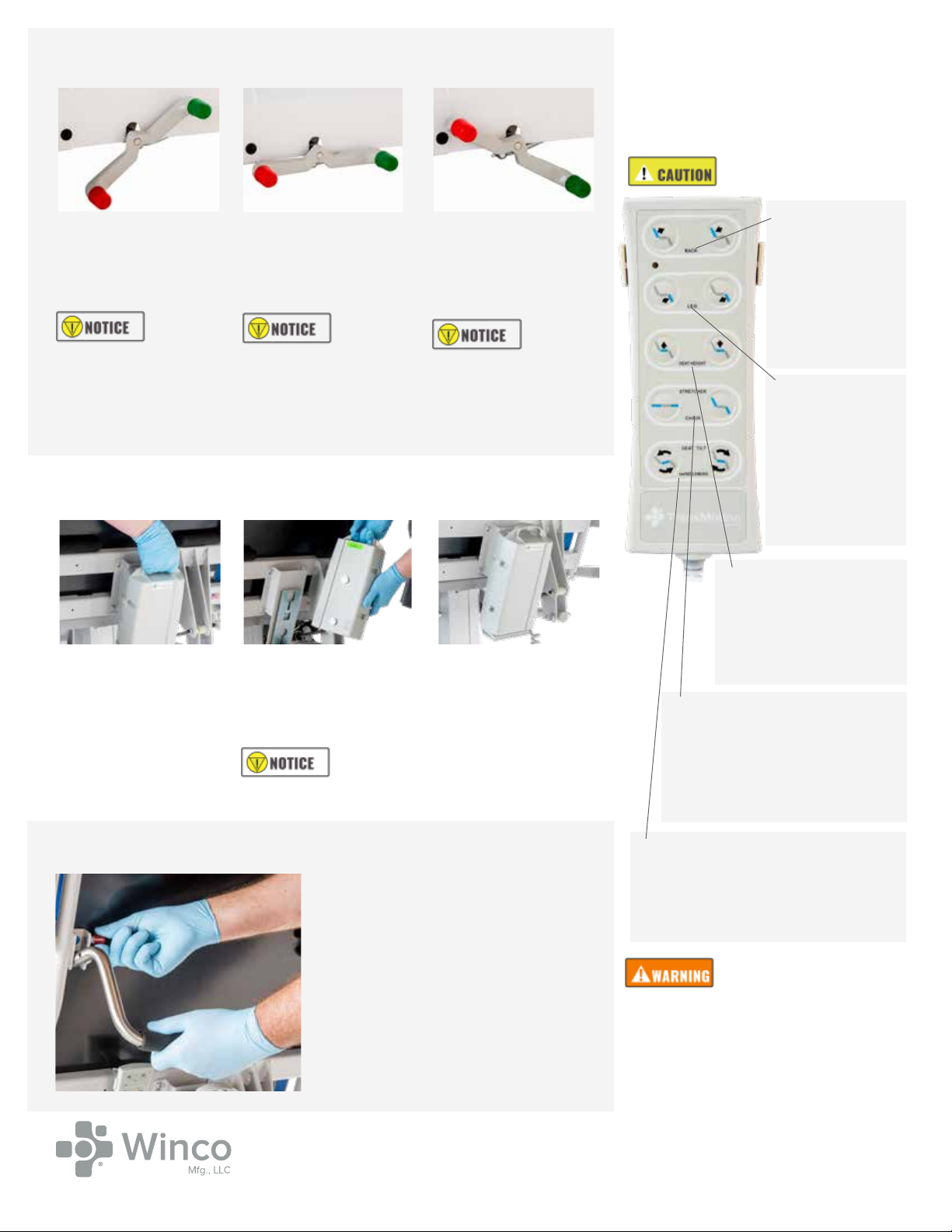

Brake Mode
Activate the braking system
by pressing down on the red
end of either brake pedal.
This mode prevents all
four casters from swiveling
and all four wheels from
spinning.
Steer Mode
Activate the steer-locking
system by pressing down
on the green end of either
brake pedal.
This mode locks front right
caster parallel to the base
but allows the other three
casters to swivel and all four
wheels to spin freely.
Neutral Mode
Activate the neutral mode by
placing either brake pedal
into a horizontal orientation.
This mode allows all four
casters to swivel and all four
wheels to spin freely.
3. CASTER BRAKE OPERATION
Copyright 2019 Winco Mfg., LLC | TMM-2215-13 | REV A
Leg Adjustment
The second row of
buttons controls
the angle of the leg
section. Press the left
button to raise the
leg section. Press the
right button to lower
the leg section.
Seat Height Adjustment
The third row of buttons
controls the seat height.
Press the left button to raise
the seat. Press the right
button to lower the seat.
PATIENT MUST ENTER / EXIT FROM THE SIDE
WITH THEIR BODY WEIGHT CENTERED OVER
SEAT SECTION.
PATIENT INGRESS / EGRESS SHOULD
ALWAYS BE MADE WITH THE UNIT IN AN
UPRIGHTCHAIR POSITION WITH CASTERS
LOCKED.
Seat Tilt / Trendelenburg Adjustment
The fifth row of buttons controls the
incline/recline of the seat section. Press
the left button to tilt the seat backward.
Press the right button to tilt the seat
forward.
Lowering the Push Bar
Grasp the push bar handle while pulling out the Red
release knob and lower the push bar.
Raising the Push Bar
Lift up on the push bar handle until the Red release
knob engages (locks).
5. PUSH BAR OPERATION
For additional assistance, please feel free to contact us at:
800-237-3377 | WincoMfg.com | 5516 SW 1st Lane, Ocala, FL 34474 | [e-mail]
