1. Safety instructions
- An electric scooter is sporting entertainment tool that is not a vehicle, but one you
drive it into a public area, it will also have a vehicle property, so there are also
possible safety risks for all modes of transport. Strictly follow the instructions in this
manual to drive for the maximum extent to protect you and the others’ safety, and
to ensure compliance with national and provincial traffic regulations and traffic
regulations.
- At the same time, you need to understand: Once you have an electric scooter on a
public road or other public place, you may be exposed to the risk of unauthorized
driving/improper operation of others or vehicles, even if you are in full compliance
with this safe driving guide. Like walking or cycling may also be hurt by other meas of
transport. As with all vehicles, the faster the electric scooter is driving, the longer the
brakes need, and the emergency brakes on some smooth surfaces can also cause
the wheel to slip and lose balance or even fall. Therefore, it’s important to be
vigilant and maintain the proper speed during driving, and it’s important to
maintain a reasonable safety distance with others and the transport means. Please
be vigilant and drive at low speed before entering unfamiliar terrain.
- Please respect the right of pedestrian way when driving. Avoid frightening
pedestrains, especially the children. When pedestrians passing through, remind
pedestrians and slowing down when passing. As far as possible from the left side of
the pedestrian( applicable to the country where the vehicle is traveling right). Face to
face with pedestrians, keep on the right and lower speed.
- We must strictly follow the safety requirements of this manual for drivers in
countries and regions, where there are no national standards and regulations for
electric scooters, such as in China. We shall not be liable for any liability, personal
injury, accident, legal dispute, and all other unfavorable events resulting from the use
of violation the instructions indicated in this manual.
- Do not lend the electric scooter to a person who does not operate to avoid injury. If
give the electric scooter to a friend, be sure to be responsible for the safety of your
friends, you should teach him(her), and tell him (her) must wear safety care.
- Please check the electric scooter for each time before driving. If you find the parts
are loose, the battery life is obviously reduced, the tire is slow to leak or excessive
wear, turn to abnormal sound or malfunction, please stop using it immediately, and
do not driving force.
03

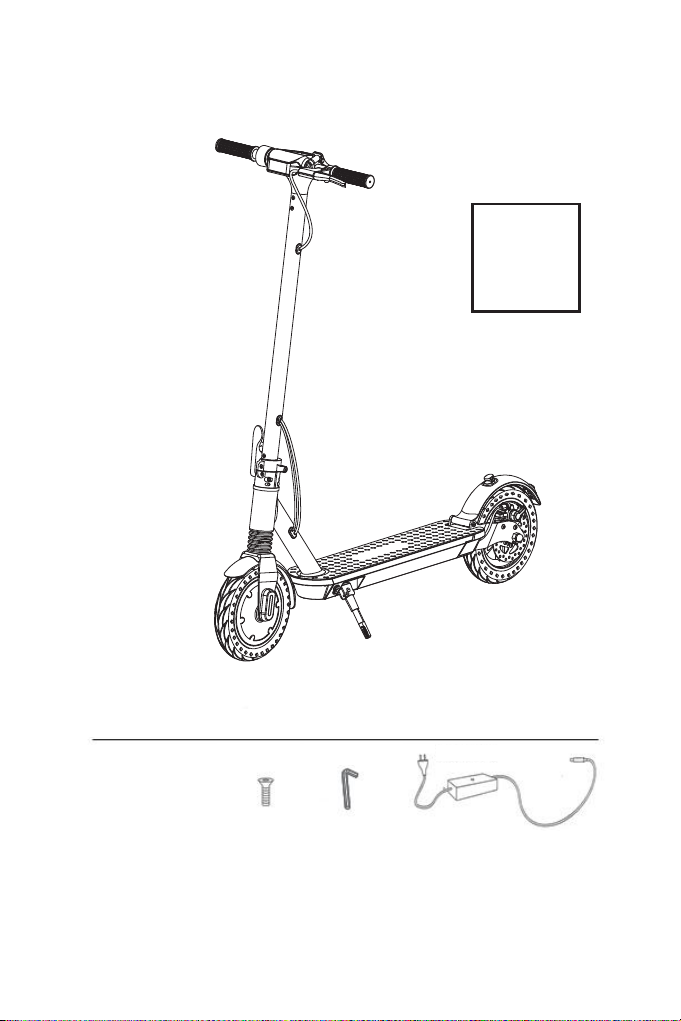

2. Product and parts
Whole Vehicle
Access
Operation Instruction
Electric scooter
operating
manual
Please carefully check whether the contents of the box are intact
04

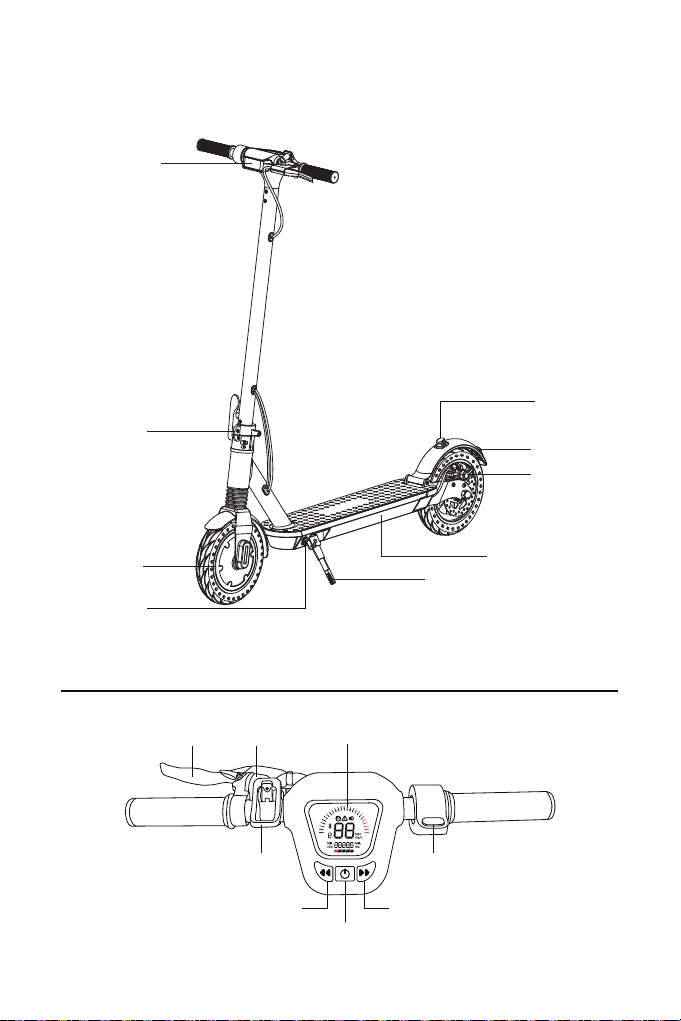

3. Functional sketch
The control panel
05
Head light
Buckle
Disc brake
Kickstand
Battery
Charging port
Motor
Folder
Brake light
Dash boardHornBrake
Folding hook
Down Up
Power button
Throttle

4. Body assembly
1 Secure the scooter standpipe and open
the kickstand
2 Install the crossbar on the standpipe
3 Use the hex wrench in the packing box
to lock the screws on both sides
4 After installation, long press the button
to turn on the machine
5. Operation
Charger connection
Open the
rubber stopper
Insertthe
charging plug
After charging,
close the rubber
stopper
Learn to drive
Wear helmet and other protective gears to
avoid any possible injury while riding
06

Fold Opening
1. Turn on the power and check the power indicator
2. Scooter boosting: slide the scooter with your foot 1-2 meters, then press the accelerator
for running
3. To slow down: simply release the throttle button, use the brake handle on the left for
stronger braking
4. To change direction: lean slightly to the left or right and turn the handlebars slightly
Folding
To fold: Make sure that the electric scooter is turned off, open the pole lock,push down the
base pole and fix the folding hook to the folding lock.
To unfold: Press the folding hook to release and follow the folding step reversely to unfold
the E-scooter.
Fix the handle:
If your standpipe in the electric scooter is shaking, please use the M5 hex wrench to lock
the two screws at the folding mechanism.
Adjusting the brake:
1.Use the M5 hex wrench anticlockwise to release the
plate screws on back wheel, adjust the length of
exposed tail, shorten for tightening and lengthen for
loosing the brake.
2.Lock the pressure plate screws by rotating clockwise.
Inflate the tires:
1.Remove the front and rear tire inflatable mouth cap.
07

2.Connect the pump to inflate and tight it to the inflatable mouth.
3.Replace the mouth cap when finish pumping.
6. Model parameter table
7. Care / maintenance
Cleaning
1. Wipe the exterior with a damp sponge.
Note: Do not use any abrasive cleaning or scouring products. This may damage the
surfaces.
2. Wipe the wheels with a damp sponge to remove any dirt.
Storage
You must store your vehicle in a room away from heat and moisture. Prolonged
08
Performance Index Item Parameter
Unfolded size 1060 * 440 * 1150 mm
Folded size 1060 * 440 * 480 mm
Weight 13.5kg
Material Auminum
Max loading 120kg
Applicable age 16-50 years old
Applicable height 120-200cm
Max speed 25km/h
Average distance 10-25km
Slope max. 15°
Driving eld
Flat dirt road ,no higher than 1cm steps ,no
more than 3cm wide channel
Funcon temperature -10°C +40°C
Storage temperature -20°C +45°C
Suspension Front and rear suspension
Brake Front electrical and rear disc brake
Lamp Front and rear lamp
Voltage 36V
Charge 42V max
Capacity 6.0/7.5/7.8Ah
滚滚长江东逝水
Nominal power 250W
Max power 350W
Nominal power 71W
Rated input voltage (VAC) 110-210V
Rated Output Voltage (VDC) 42V
Current 1.5Ah
Charging me 3.5H
- With display, it shows running speed and baery power.
- With 3 speed selector (low speed 6km/h, middle speed 15km/h, high
speed 25km/h).
- Without Buzzer, but with a small bell.
Products basic parameter
Principal parameters
Baery parameters
Motor parameters
Charging parameters
Other informaon

Battery maintenance
Please do not expose the batteries to an environment higher than 50 ° C or lower than - 20
° C (eg do not leave the battery in the trunk of your car), this could cause ignition of the
batteries or significant damage to your drums. To prevent the battery from being
discharged, try recharging it regularly and not waiting for it to discharge completely. To
make the best use of battery life, it is recommended to use it at normal temperatures.
Below 0 ° C, the battery life drops sharply. When the battery is full, charging is available up
to 90-120 days in pause mode. If the battery is not full, charging is available up to 20-50
days in pause mode. It is important not to leave the discharged battery for too long as this
could cause serious damage.
exposure to the sun or heat can accelerate the aging of your scooter and shorten battery
life.
09

Recycling:
This product’s packaging materials are recyclable and can be reused. This
product and the accessories packed together are the applicable product to the
WEEE directive except batteries. Please dispose of any materials in accordance
with your local recycling regulations. When discarding the unit, comply with your
local rules or regulations. Batteries should never be thrown away or incinerated
but disposed of in accordance with your local regulations concerning chemical
wastes.
Law and Safety:
The CE mark indicates that this product has been manufactured according to
current regulations for electromagnetic felds, which means that it is safe to use if
used according to safety instructions. The product is manufactured according to
current regulations within the EU legislation, limiting the use of hazardous
substances in electrical and electronic equipment.
We
Company name: WINDGOO Technology S.L
Postal address: Avenue of Castell de Barbera, number 21-27. Nave2. Industrial
polygon Santiga.Spain
E-mail address: [email protected]
Declare that the DoC is issued under our sole responsibility and belongs to the following
product:
Product name: Electric scooter
Model: M12
The object of the declaration described above is in conformity with the the
essential requirements of Machinery Directive 2006/42/EC
The following harmonized standards and technical specifications have been
applied:
EN 60335-1:2012+A11:2014+A13:2017
EN ISO 12100: 2010
2006/42/EC Annex I
Signature:
Full name: Alina Su
Position: TQE Manager
Company: Windgoo
Date: 27th April 2021
