Wingsland X1 Instruction manual

Quick Start Manual
V 1.1

2
4-5
4
4
5
6-10
6
6
7
13
Contents
Fly Safety Notice
1 Prepare the Flight
1.1 Aircraft Diagram
1.2 Wingsland X1 APP Main Interface
1.3 Flight Battery
2 Flight Control
2.1 Pre-Flight Checklist
2.2PropellersandPropeller Guards
2.3 Link the Aircraft
2.4 Auto Takeoff/ /Auto LandingPalm Takeoff
2.5 Control Mode
2.6 Photo/Video
3Disclaimer
7
11-12
11
11
10
8
3
Package List
4Product Safety Notice
5 Flight Battery Safety Guidelines
6 Limitation of Liability
X1 Quick Start Manual
1
Copyright © 2017 WINGSLAND All Rights Reserved
DIY Stickers 10

Fly Safety Notice
1. Using the X1 has potential safety risk, children under 14 are not recommended to be the operator.
Install the propeller guards during the using is recommended.
2. For increased safety, flying your aircraft in a nofly zone is prohibited. Please follow the local laws
to fly your aircraft.
3. For your safety flight, please ensure your aircraft flies in an open-area and inyour vision range. Crowds,
trees, tall buildingsand high-tension wires or magnetic field may also affect aircraft’s signal and compass.
Flying your aircraft in such areas is not recommended.
4. When the battery level is low. Users are advised to land the aircraft immediately whenwaring
prompt is showed up. We recommend you continue your flight after the battery is fully charged.
5. For indoor flight, please only fly your aircraft when lighting condition is adequate and on textured
surface. (For more information please refer to the X1 user manual) Optical Flow Position System
may not work properly when the aircraft is flying over monochrome surfaces, transparent surfaces,
highly reflective surfaces and water.
7. Battery capacity is significantly decreased when flying in low temperature environments. We
recommend you turn on the aircraft to warm up the battery close to 20 degrees Celsius or 68
degrees Fahrenheit before the flight.
8. Please choose a wild open area to fly your aircraft. Do not touch the rotating propellers.
9. Be careful when flying the aircraft. Avoid hitting people, and keeping certain distance away from
children and animals.
10. Please do not fly the aircraft into the fireplace, the oven or over other heat source.
11. Do not fly the aircraft into water or landing on a water surface.
12. Do not fly the aircraft through a window from indoor to outdoor.
X1 Quick Start Manual
2
Copyright © 2017 WINGSLAND All Rights Reserved
6. After the flight, pleasetake out the flight battery to avoid excessive discharging. Please store the
battery in a dry place with the temperature around 20°C~30°C. For a long battery life,please keep
the battery level between 70%~80% (3.6-3.9V)before the storing for a relative long period.

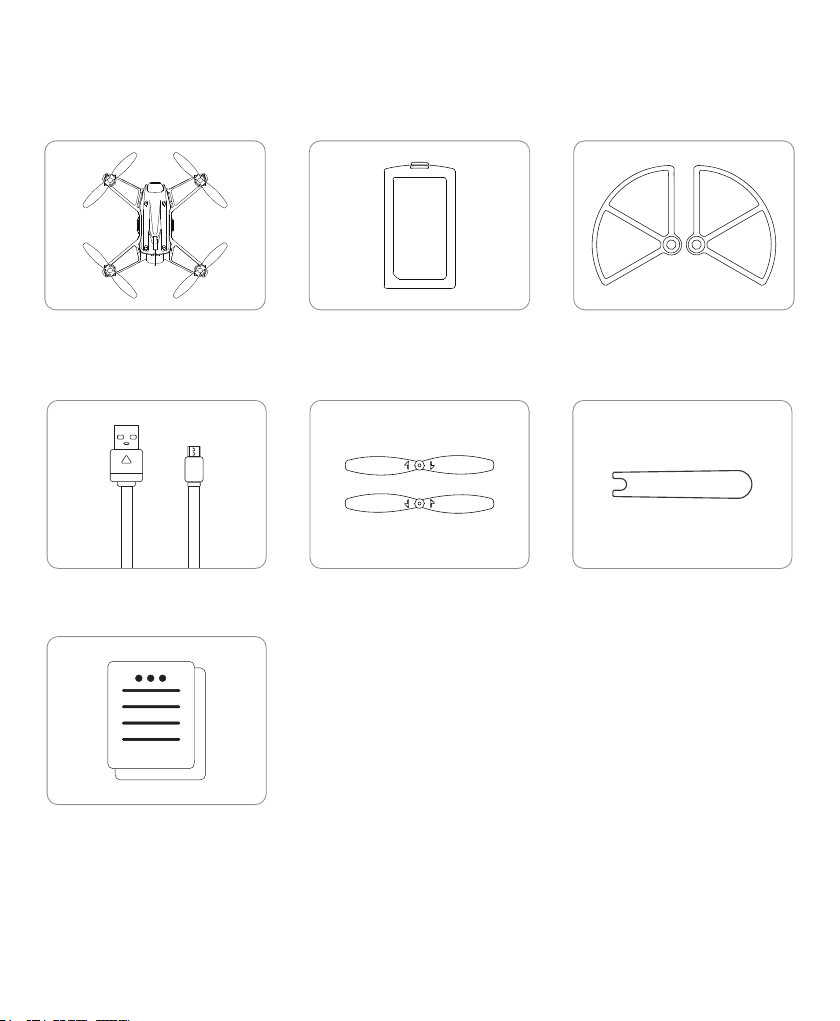

Package List
X1 FightLiPo Battery
x1
WingslandX1Drone 
x1
Backup propeller
x4
USB Cable
x1
Quick Start Manual
x1 MADE IN CHINA
Please contact wingsland after-sales service or the dealers if there is anything missed.
Propeller guards
(1 set)
X1 Quick Start Manual
3
Copyright © 2017 WINGSLAND All Rights Reserved
Propellerquickdismantlingkey
x1

1. Prepare the Flight
1.1 Aircraft Diagram
9
10
13
11
14
12
1
2
3
4
5
6
7
8
1
2
3
5
47
6
8
Propeller guard
Propeller
Arm
Camera
Motor
Antenna
Front light
Footpad
1.2 Wingsland X1 APP Main Interface
Scan the QR code to download and install the latest version of wingsland X1APP.
downloaded fromThe APP can be wingsland official website (www.wingsland.com), Google
Play and APP Store.
( ) Camera Angle is manually adjustable
9
10
11
13
14
12 Back light
Accessory port
Battery
Battery clip
USB port
Optical flow assisted positioning module
X1 Quick Start Manual
4
Copyright © 2017 WINGSLAND All Rights Reserved

5V
● The rechargeable X1 LiPo Battery capacity is 600 mAh, The maximum flight time is 7 minutes.
● Plug the battery into the drone, connect the drone USB port and the charger with USB cable, then
start to charge the battery, the standard input voltage is 5V.
● The X1 front lights will flash slowing when it is under charging. When it is fully charged, the front
lights will be off, please disconnect the power and get the battery out.
● The charging time is about 50 minutes, and charging current >1A.recommended
Charging the drone
1.After flying the drone, if the battery temperature is high, please wait and charge it after it is back to environment temperature.
The maximum flight time is tested in Wingsland lab, for reference only.
2.Power adapters with lower output currents would make charging time longer.
Front LED Lights

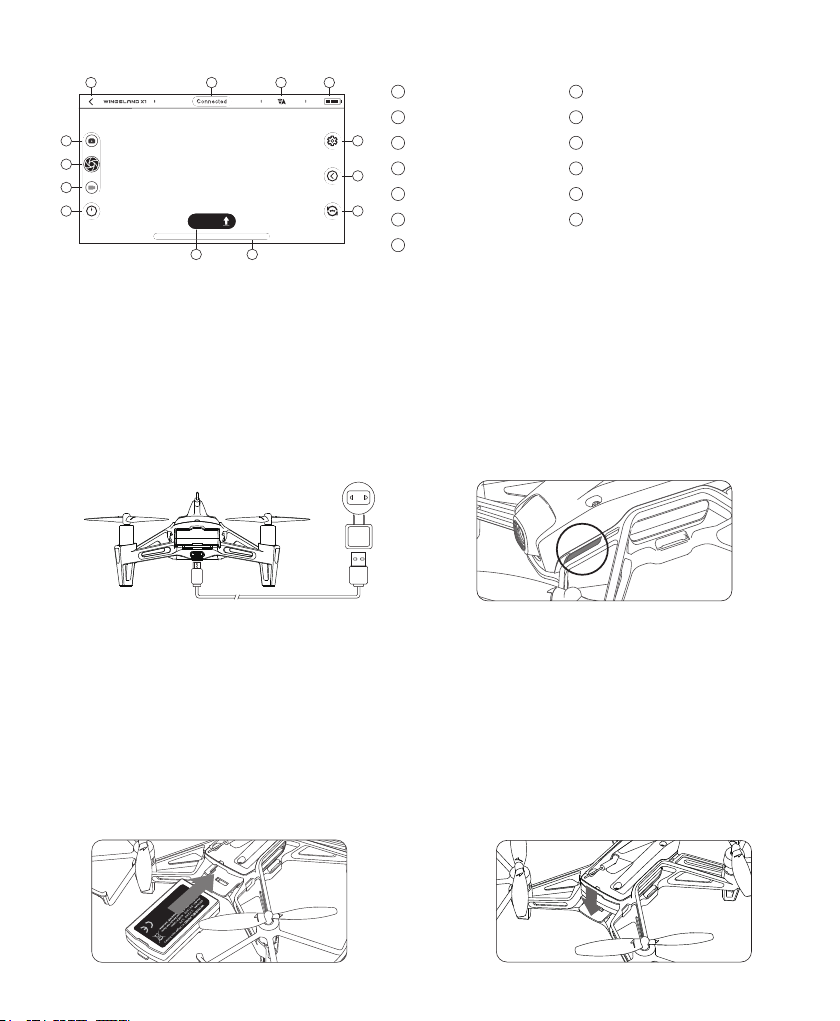

1.3 Flight Battery
Insert the battery into the compartment in
securely correct direction, and make sure it is
clamped, then the drone is powered on and
front lights are on.
Battery Installation
Flip down the battery clip and then pull out
the battery.
Replace the Battery
X1 Quick Start Manual
5
Copyright © 2017 WINGSLAND All Rights Reserved
1
2
3
4
5
6
7
8
9
10
11
12
13
Exit
Connection Status
WiFi Signal
Battery Level
General Settings
IOC Setting
Auto Flipping
Flight Data
Auto Takeoff/Landing Button
(3s)Time-lapse photography
Video
Shutter
90%
21 3 4
5
6
7
8
9
10
11
12
13
TakeOff
H: 0.0 V . S：0 .0 F . T:0 0:00
Wingsland X1 APP Control Interface:
Notice:

2 Operation
● Mobile device and flight battery are fully charged before flight.
2 1 Pre-Flight Checklist.
Counter-clockwise（B）
Clockwise（A）
Clockwise（A）
Clockwise（A）Counter-clockwise（B）
Counter-clockwise（B）
Nose
X1 Quick Start Manual
6
Copyright © 2017 WINGSLAND All Rights Reserved
① First of all , please remove the propellers by dismantling key .
Install the propeller guards onto the motors first and then install the propellers firmly. ②
Make sure direction of arrows on propellers are the same with Aircraft’s.③
③
1. First of all , please remove the propellers by dismantling key .
2. Hold the motor with one hand, twist and pull off the
propeller guard.

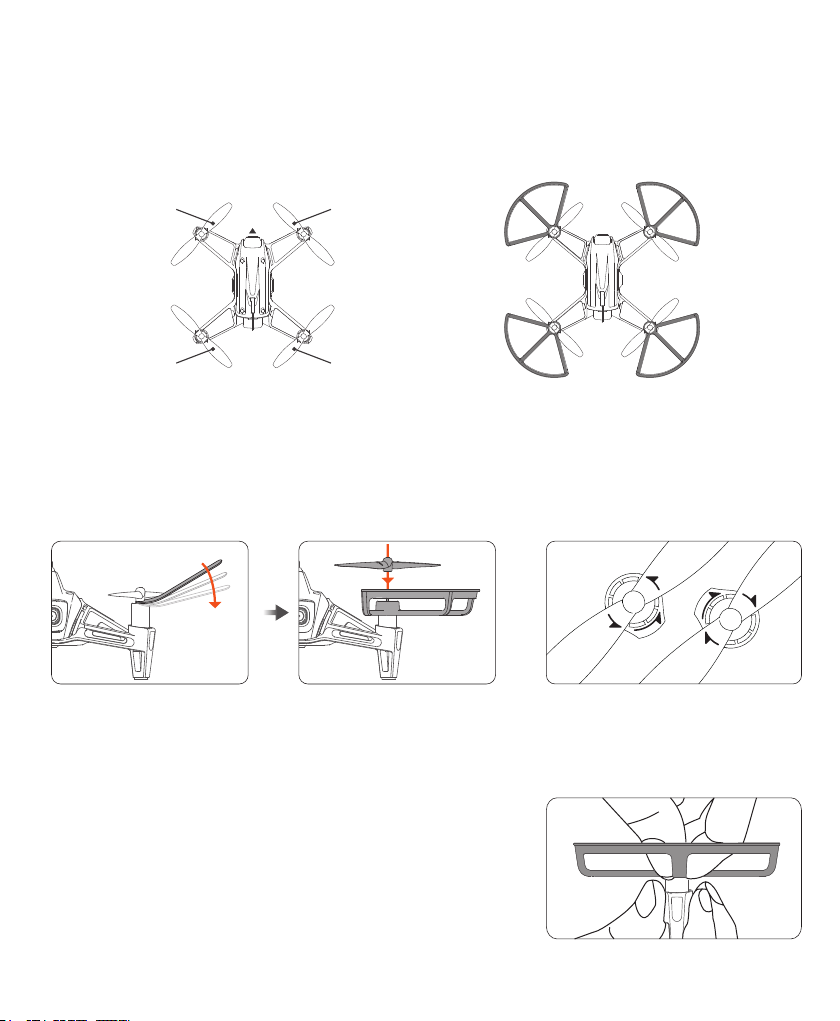

2.2 ropellers and ropeller Guards P P
Notice:
Don’t hold the arms of the aircraft while disassembling the propellers! Otherwise
it would break the connector wires and damage the motors .
① ②
X1 state with propeller guards
How to install the propeller guards:
Notice:
Don’t use the Auto flipping function while flying with propeller guards. Otherwise the drone may lose control while Autoflipping.
Please take off the propeller guards before flipping.
How to uninstall the propeller guards:
X1 state as delivered

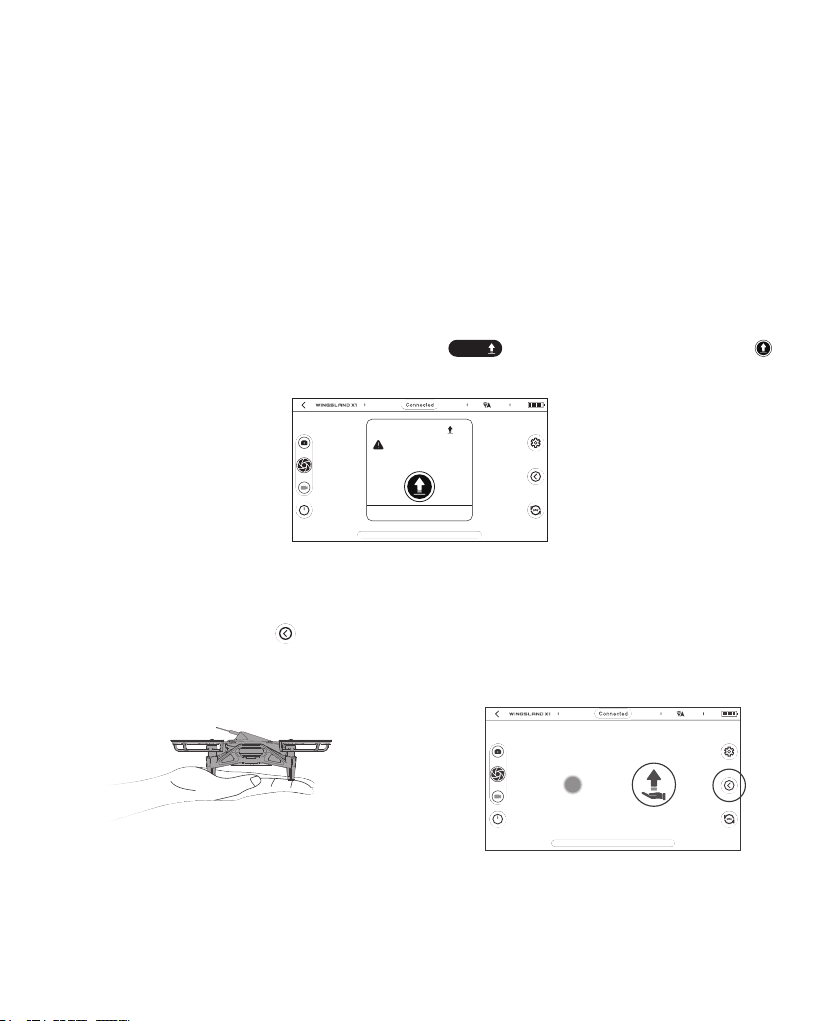

2.4 Auto Takeoff/Palm Takeoff/Auto Landing
Please fly your aircraft when lighting condition is adequate and on textured surface only.
Auto Takeoff
Enter the flying interface, tap the Auto Takeoff icon ,read the warning ,then confirm
to active the feature. The aircraft will automatically take off and hover above the ground.
Takeoff
90%
Confirm take-off
Cancel
Before the ta keo ff, p ut aircraft on a f lat
level groun d. Do n ot to uch t he pr ope llers.
Tap and confirm t o tak e off , the
aircraft wi ll ta ke of f automatica lly.
H: 0.0 V . S：0 .0 F . T:0 0:00
Palm Takeoff
● Connect the X1 drone with mobile device, then put the X1 on your palm and stretch out your arm.
● Tap the “IOC Setting”icon on App,choose “Palm Takeoff ” function, and confirm.Double-
click the image area on the App, the drone will take off automatically.
● X1 will fly upward to 0.5 meter above the palm and hover there.
Notice: Please make sure the upward direction is clear of obstacles before palm takeoff.
Steps of Palm Takeoff Select Palm Takeoff
90%
H: 0. 0 V . S： 0. 0 F .T: 00: 00
Palm Takeoff
Motion Sensitive
Select a Function
X1 Quick Start Manual
7
Copyright © 2017 WINGSLAND All Rights Reserved
2.3 Link tothe Aircraft
● Insert the battery , X1 will power on immediately .
● Open the APP, Tap “Start to Fly ”to enter into operation interface , When image from camera
actived, the connection established .
● Enter into the WiFi setting interface of Mobile device. Select corresponding WiFi of X1 from the
WiFi list. The default WiFi name format is wingsland X1_air_xxxxxx. Enter the default password
wingsland.

2.5 Control Mode
Virtual joystick control
After X1 took off and hovering , touch the screen, the virtual joystick will be displayed on the APP
interface. Drag the dot in middle to control height and directions of X1)
Virtual joystick
90%
H: 0.0 V . S：0 .0 F . T:00 :00
The control mode is set to mode 2 by default, the left joystick controls the throttle and rotation of the
aircraft, the right joystick controls forward, backward, left, right movements of the aircraft.
Mode 2
Nose
Nose
Nose
Nose
X1 Quick Start Manual
8
Copyright © 2017 WINGSLAND All Rights Reserved
Left joystick: Right joystick:
Upward
Downward
Turn Left Turn Right
Forward
Backward
Right
Left
Auto Landing
When aircraft is getting ready to land, Tap icon , and confirm the auto landing , Aircraft will
start landing automatically. After landing the motors will lock automatically and the propellers will stop
turning .
Landing
Notice：make sure there is no obstructions underneath the aircraft before landing.
90%
H: 0.0 V . S：0 .0 F . T:0 0:00
Cancel
Please confirm to one-key land
Please make s ure t he la ndi ng po int
is safe. Do not t ouc h the p rop ell ers .
The joystic k can a dju st th e lan din g point.
Tap the exit butt on to s top l and ing .

90%

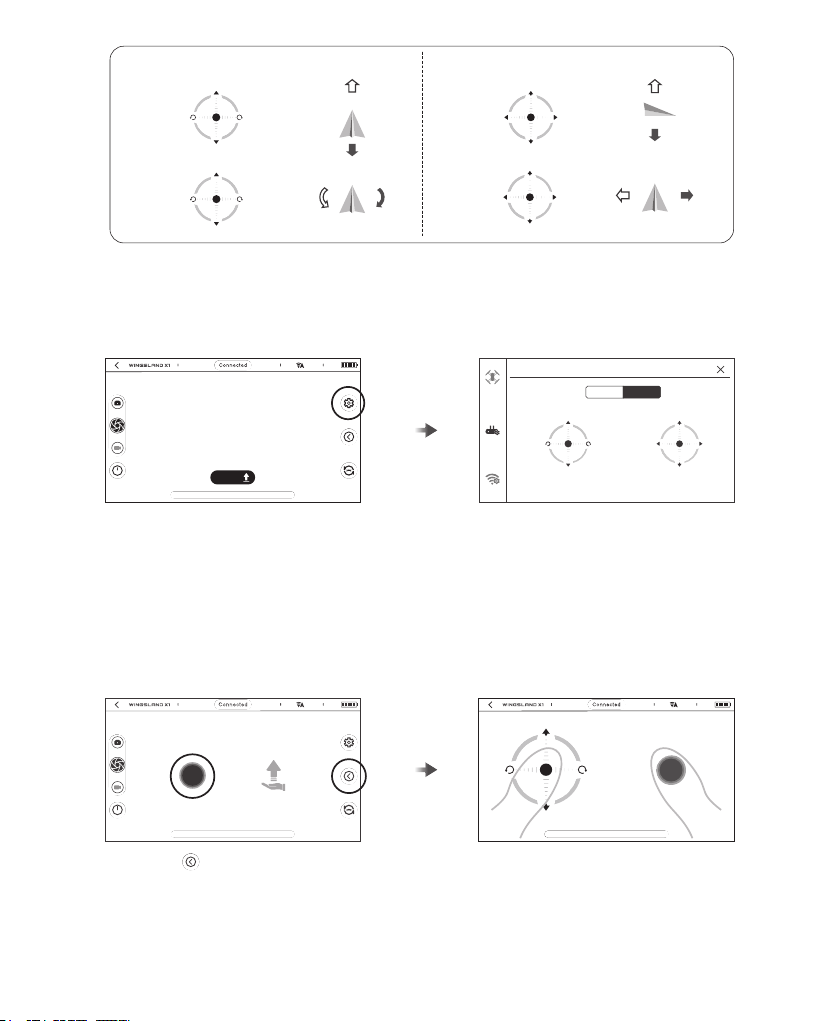

Mode 1 and Mode 2 can be switched under control mode settings. Under Mode 1, the left joystick
controls forward, backward,and rotation of the aircraft, the right joystick controls the throttle and
left,right movements of the aircraft.
Switch to Mode 1 Switch to Mode 1
H: 0.0 V . S：0 .0 F . T:00 :00
TakeOff
90%
Motion-sensitive Mode Interface
H: 0.0 V . S：0 .0 F . T:0 0:00
Switch to motion-sensitive mode：
Tap“IOC Setting”icon ,Select Motion Sensitive and confirm.
90%
H: 0. 0 V . S： 0. 0 F .T: 00: 00
Palm Takeoff
SelectaFunction
Motion Sensitive
Notice:In the motion-sensitive mode, the left joystick is same with the virtual joystick mode 2.
Motion sensitive mode is based on the gravity sensor built in the mobile device, to control the motions of the
craft by tilting the mobile device. Tap the screen, a virtual joystick will be displayed in the left of the APP
screen, which controls the throttle and rotation of the aircraft. Tap and hold the green round on the right of
the APP screen, then tilt the mobile device to control the motions of the aircraft . Tilt the mobile device up/down,
the aircraft will fly forward/backward, tilt the mobile device left/right, the aircraft will fly toward left /right.
X1 Quick Start Manual
9
Copyright © 2017 WINGSLAND All Rights Reserved
Mode 1
Mode 2
Joystick type
Control Mode
Forward
Backward
Turn Left Turn Right
Upward
Downward
Right
Left
Motion Sensitive Mode
Mode 1
Nose
Nose
Nose
Nose
Left joystick: Right joystick:
Forward
Backward
Upward
Downward
Turn Left Turn Right Right
Left

X1 Quick Start Manual
10
Copyright © 2017 WINGSLAND All Rights Reserved
① ②

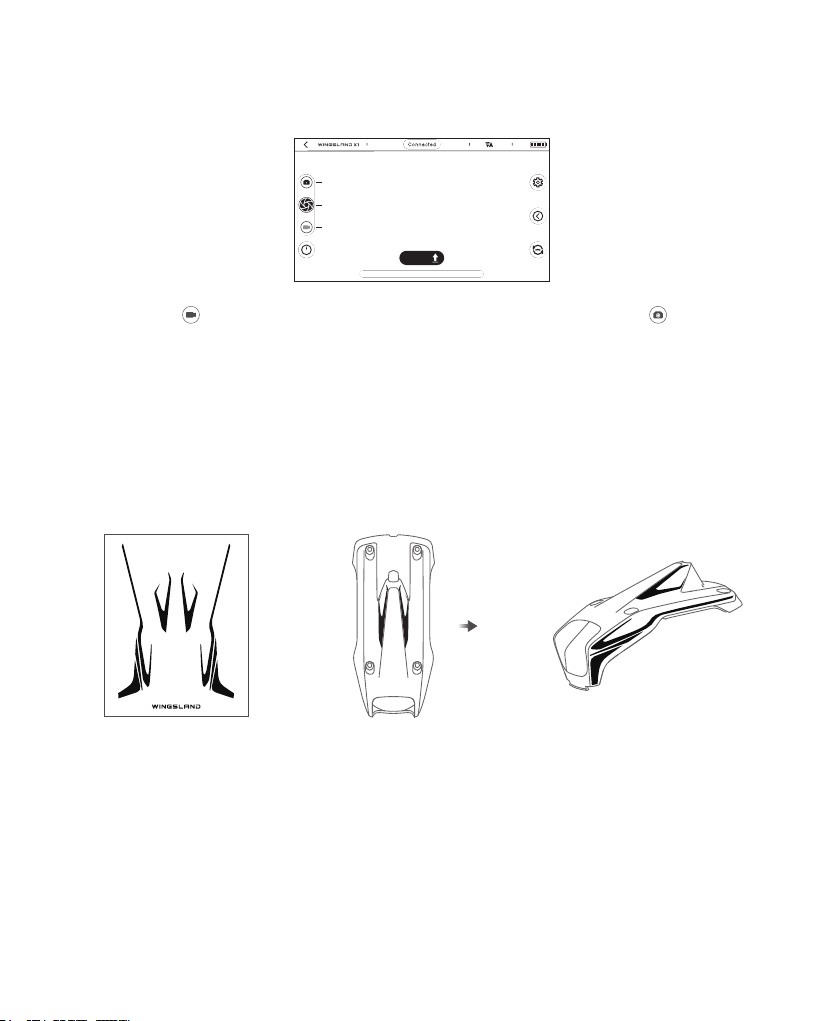

DIY Stickers
Stickers Usage:
① Paste the middle stickers on the middle of the aircraft upper shell.
② Then paste the side stickers on two sides of the aircraft upper shell.
Stickers
2.6 Photo/Video
Photo：Under single shot mode, tap shutter once to take onephoto.
Video：Under video mode, tap record icon to start recordingvideo, then tap the icon again to stop recording.
Notice: 
1.Tap Video Mode iconat photo mode, then it would be switched to video mode.Tap Photo Mode iconat video mode, then it
would be switched to photo mode.
2.The taken photo and video would be saved on mobile devices.
90%
Shutter
Video
H: 0.0 V . S：0 .0 F . T:0 0:00
TakeOff

3Disclaimer
This product has a certain risk, may cause harm to the operator, nearby people and their property. Please
read this document carefully before you use this product. Once you use, we will recognize that you have
understood and accepted all rules and contents of our statement. “Shenzhen Wingsland Technology
Co., Ltd.“ will not undertake liabilities to any direct or indirect personal injury and property loss if users
do not use this product according to below safety guidelines and user manual.
4Product Safety Notice
1. The product is not for children under 14.
2. Only use wingsland approved accessories. wingsland takes no responsibility if any injury or
damage happened caused by a third party accessories.
3. Please choose a wild open area to fly your aircraft. Do not touch the rotating propellers.
4. Rotating propellers may cause serious injury, keep away from crowds.
5. Be careful when flying the aircraft. Avoid hitting people, and keeping certain distance away from
children and animals.
6. Do not fly the aircraft into fireplace or other place may has a extremely high temperature.
7. Do not fly the aircraft into water or landing on a water surface
8. Do not fly the aircraft through a window from indoor to outdoor.
9. Stop using the products if an abnormal performance happened. Contact wingsland after-
service center or an authorized wingsland dealer.
5 Flight Battery Safety Guidelines
Battery Use:
1. DO NOT allow the batteries to contact any liquid. DO NOT use the battery in rain or moist environment.
If the battery pins or inside get in touch with water, it may lead to corrosion or even explosion.
2. Do not put the battery into fire or store in a high temperature environment. Using the battery in
environments above 50℃ may cause fire or explosion.
3. Do not use non-Wingsland batteries, wingsland takes no responsibility for any damage or accidents
caused by non-Wingsland batteries.
4. Do not use or charge swollen, leaky or damaged batteries. If above situation occurs,please
contact Wingsland for after sales service.
5. Storing or using the battery in temperature under 0℃ will heavily cut down the battery lifetime.
6. Do not drop, strike, impale the battery. Do not use a swollen, leaky or damaged battery.
7. Avoid the short-circuit in the battery, and store the battery with no conductor around.
8. Do not put heavy objects on the battery.
9. Clean the battery with a dry cloth if there is any dirt on the battery.
11
Copyright © 2017 WINGSLAND All Rights Reserved

Charging
1. Follow the stipulations of Charging methods in our company’s users manual << >>.
2. Please place aircraft or charger on cement floor , keep away from Flammable, combustible materials. 
Please pay attention on battery while charging to prevent accidents.
3. The perfect charging temperature is 15℃ and 40℃. Do not charge the battery after flight immediately. 
Charging in the heat of a battery may shorten battery life , even catch fire.
4. Disconnect the power and remove the battery when the charging is finished.
1. Keep batteries out of the reach of children.
2. DO NOT leave the battery near heat sources, the ideal storage temperature is 22℃-28℃.
3. Storage of batteries should be kept dry, keep the battery away from the damp environment.
4. Do not transport or store the battery together with metal objects suchas metal necklaces,watches etc.
5. Do not transport damaged batteries.
6. Please follow the relevant regulations of the local airline before bring the battery to the flight.
Storage and Transport:
X1 Quick Start Manual
12
Copyright © 2017 WINGSLAND All Rights Reserved
10.If found the battery leakage, do not contact with skins and eyes. If you do contact,immediately
rinse with plenty of water and seek medical help.
11.If the drone falls into water during flight, please take the battery out immediately and place it in
safe place. Stay away from the battery until it is dry. Please don’t use the battery again and
dispose it according to below section ‘Disposal’.
12.Put out any battery fire using sand or a dry powder fire extinguisher.
13.Store the battery in a dry environment with an appropriate room temperature.
14.The battery performance will be affected after long time storage ata low battery level.
Disposal:
Dispose of the battery in specific recycling boxes only after a complete discharge. Batteries are
dangerous chemical goods. DO NOT place the battery in regular trash containers. Strictly follow your
local regulations regarding the disposal and recycling of batteries.

Wingsland accepts no liability for damage(s), injuries or any legal responsibilities incurred directly
or indirectly from the use of this product in the following conditions, and this limitation of liability applies
to wingsland suppliers, dealers and service providers:
6 Limitation of Liability
1. Any more you paid in amount for this product than the actual purchase price.
2. Any costs and expenses with access to alternative goods, services or rights.
3. Costs, expenses increased, loss caused by the data loss, data corruption or data interruption.
4. Any loss caused by the violation of the provisions of local laws and regulations or the civil
aviation administration laws.
5. Any loss caused by the usage of product without abiding by the User Manual.
6. Any loss caused by the age, physical and mental condition of the Operator who is not in the
proper condition.
7. Damage(s), injuries or any legal responsibilities cause by using a third party alteration products
or fake Wingsland products.
8. Any loss caused by improper use in a strong magnetic field or in a bad environmental condition
(such as in the temperature higher than 40 degrees or below 0 degrees Celsius, and in a wind
speeds exceeding 5m/s,etc.).
9. Any loss caused by Force Majeure.
X1 Quick Start Manual
13
Copyright © 2017 WINGSLAND All Rights Reserved

MADE IN CHINA
Tech Support: [phone] [e-mail] Website : www. wingsland.com
★ Information in this Quick Start could be amended without notice. Please download the latest version from Manual
the technical support page on our website: www.wingsland.com.
