Winix AM90 User manual

•Please read and follow all safety rules and instructions
in this manual before operating.
•The product warranty is printed on the back of this
guide, so please keep it in a safe place for future use.
•This product is manufactured for use only in USA/CA.
WINIX AIR PURIFIER
AM90
User Manual
Model
Use & Care
Guide


AM90English
CONTENTS
This product is suitable for 120V only.
3-STAGE AIR PURIFICATION3
CONTROLS4
WHERE TO USE5
INSTALLING FILTERS6
SAFETY AND CAUTIONS8
INITIAL OPERATION9
AUTO & SLEEP10
MANUAL & PLASMAWAVE
®
11
AIR QUALITY INDICATOR12
FILTER CARE13
CLEANING CARE17
FREQUENTLY ASKED QUESTIONS18
UNIT SPECIFICATIONS20
SAFETY INSTRUCTIONS21
PRODUCT WARRANTY22


English AM90
3-STAGE AIR PURIFICATION
Power cord with plug
Front panel
(This product is suitable
for 120V only.)
PlasmaWave
®
Light sensor
Odor sensor
Odor Absorbing
Carbon Filter
Control Panel
/ Display Panel
Pre-lter
True HEPA lter
1
2
3
User Manual
ㆍ
ㆍ
ㆍ
Pleaseread and follow all safety rules and instructions
inthis manual before operating.
Theproduct warranty is printed on the back of this
guide,so please keep it in a safe place for future use.
Thisproduct is manufactured for use only in USA/CA
WINIX AIR PURIFIER
AM90
UserManual
Model
Use&Care
Guide
Unit Pre-lter/(4) Odor
Absorbing Carbon Filters/
(1) True HEPA Filter


English AM90
CONTROLS
Air
Outlet
Vent
Light Sensor
Detects the
amount of
ambient light
within the
environment,
to adjust the
brightness
of the LED
indicators.
PlasmaWave®
Indicator
Indicates whether
PlasmaWave®
in enabled
or disabled.
PlasmaWave®
Button
Enable or disable
PlasmaWave®.
Power Button
Turns the unit on
or o.
Fan Speed Button
(UP/DOWN)
Enables Manual operation
of the unit. Press to cycle
through and set the desired
fan speed (Auto, Low,
Medium, High, Turbo).
Change Filter Indicator
LED light indicates when it is
time to change the lter.
Wi Button
Enable or disable
the Wi feature.
Sleep Indicator
LED light indicates when
sleep mode is active or disabled.
Fan Speed Indicator
Indicates the current fan speed.
Reset Button
After replacing the lter,
press the RESET button for at
least 5 seconds.
Odor Sensor
When in Auto
Mode, detects the
amount of odor in
the environment
to adjust fan speeds.
Air Quality Indicator
Color-coded LED indicates
one of three levels of air quality.
Wi Indicator
Indicates when
Winix Smart feature is
Enabled or disabled.


English AM90

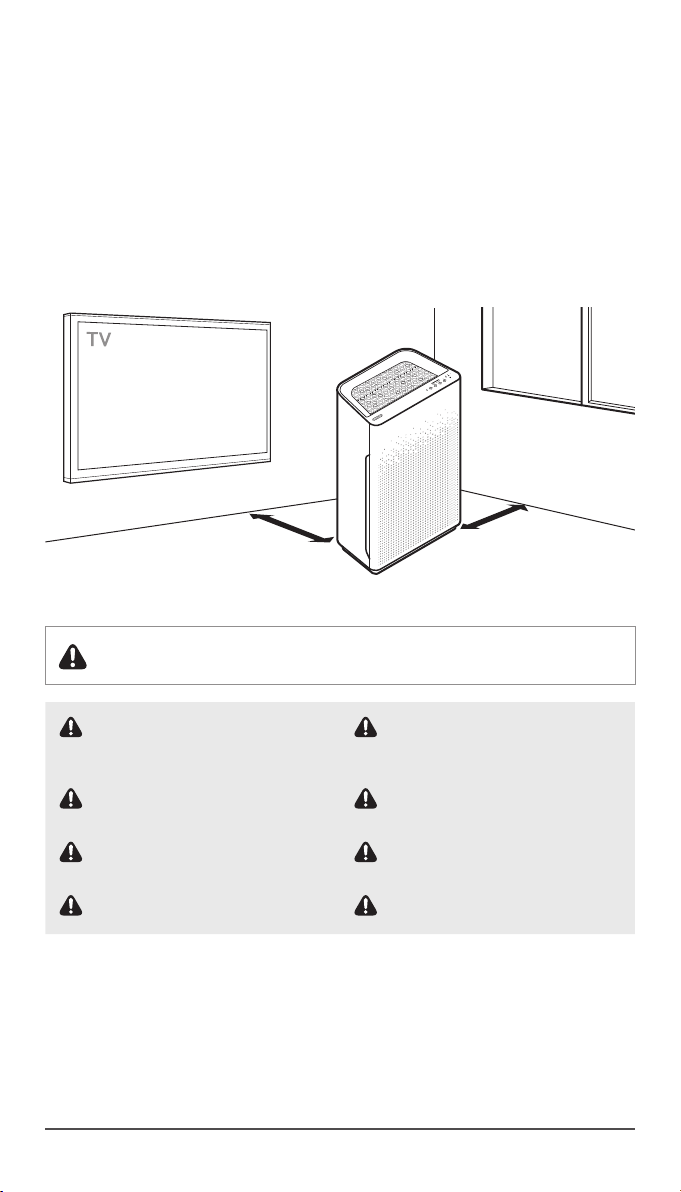

WHERE TO USE
Allow 12 ~ 18 in. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
12~18 in 4 in
WARNING Follow these instructions to reduce the risk of serious injury
or death and to reduce risk of damaging the unit.
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust
Do not place around heating elements
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc.)
Do not place in an area with excessive
amounts of noxious gases
Do not place near any flammable
materials (aerosols, fuel, gases etc.) Do not have unit facing into wind or draft
Do not place below any electrical outlet Do not place in excessively humid areas
where unit may become wet
This unit is not intended to be used to preserve documents or in art conservation.


English AM90
This product comes with all the required filters. The protective plastic wrap must be
removed from the filters before use.
Operating the unit without removing the plastic wrap may result in product failure.
Unplug and make sure the unit is turned off before installing filters.
 

•To remove the front panel release the
latch at the lower edge of the panel.
Latch
 Press the Pre-filter tabs near the top of the
filter, release and remove.
 Remove filters from protective plastic wrap.
•Operating the unit without removing
filters from plastic wrap may cause
abnormal noise, deformation, or fire as a
result of overheating.
INSTALLING FILTERS
NOTE •Refer to pages 13 - 15 for details on how to replace filters.


English AM90
INSTALLING FILTERS
 Install the filters until they fit securely in
place.
Filters must be installed in this order:
3 True HEPA filter (rear)
2 Carbon filter (middle)
1 Pre-filter (front)
•To install the Pre-filter, insert bottom tabs
into the slots on either side of the lower part
of the unit, then rotate upward to insert the
upper tabs into the slots at the top part of
the unit until sides audibly click into place.
Pre-lter
Carbon
Filter
True HEPA
Filter
 Replace the front panel by first inserting
the latch at the bottom edge into the base
of the unit, then rotate the panel upward
toward the top of the unit until the magnets
pull the lid closed.
Latch
 When to service and replace filters:
Filter Indicator Light When to
service When to replace
1 Pre-filter none Clean once every
14days Permanent
2 Carbon filter none
Can NOT be
WASHED
Replace every
3 months
3 True HEPA filter Lasts up to
12 months
Intervals between filter replacement may vary depending on environment.
For optimal use, Pre-filter can be cleaned once every 14 days which can extend the
life of other filters.
To purchase replacement
Winix filters:
(877)-699-4649
www.winixamerica.com
This unit
is compatible
with this
filter
ITEM: 115115
FILTER
A


English AM90
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety cautions
Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal termperatures causing product failure and derformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Do not pull on the power cord when
unplugging the unit
Do not tie or knot power cord when unit
is in operation
If the unit becomes submerged in water,
unplug it and contact customer service
Do not unplug or move the unit while in
operation
Do not plug additional appliances into
the same outlet or power supply Do not touch the plug with wet hands
Unplug unit when not in operation for
extended periods of time
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it


English AM90

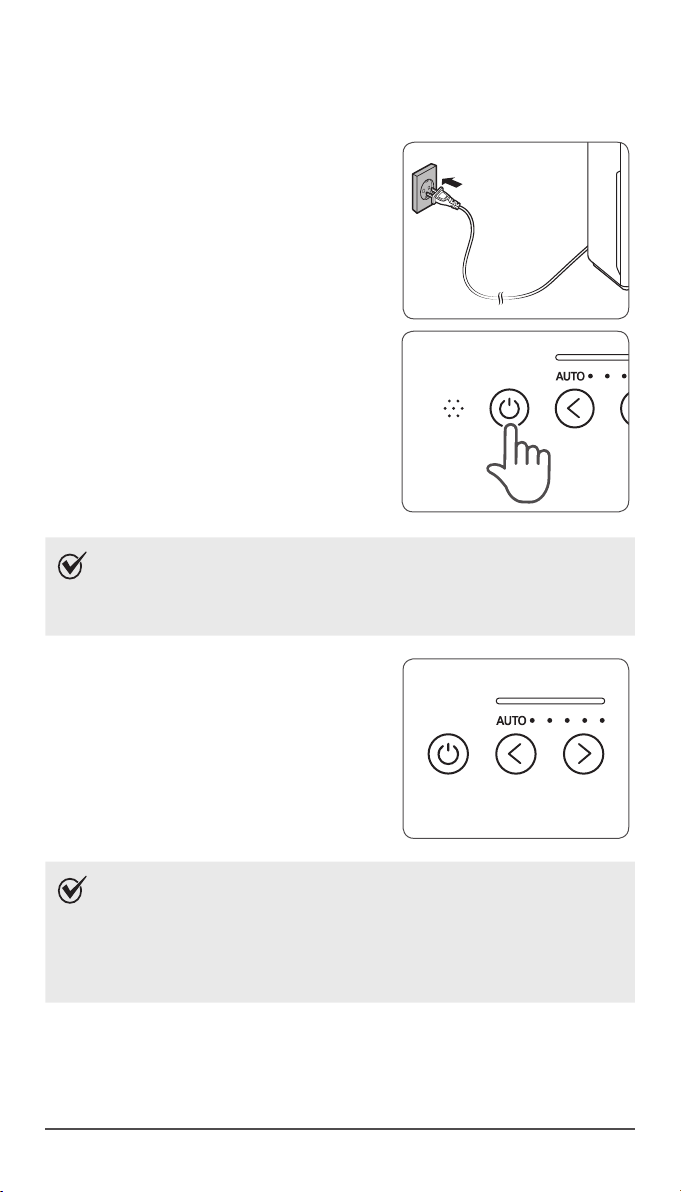

INITIAL OPERATION
 Insert the power cord into an electrical
outlet.
 Press the‘Power’ button.
NOTE •During the first 4 minutes of power up, the Air Quality
Indicator will flash as the Smart Sensors measure the air
quality in the environment, after which normal operation will
begin.
 By default, when the unit first powers on, the
mode will be set to Auto with PlasmaWave
®
enabled.
•When in Auto mode, the fan speed will
be automatically adjusted according to
the environments air quality.
•PlasmaWave® works to remove harmful
airborne contaminants.
NOTE •In Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
•When the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave®, it is normal and does not signify product
failure. To disable PlasmaWave®, see page 12.


English AM90

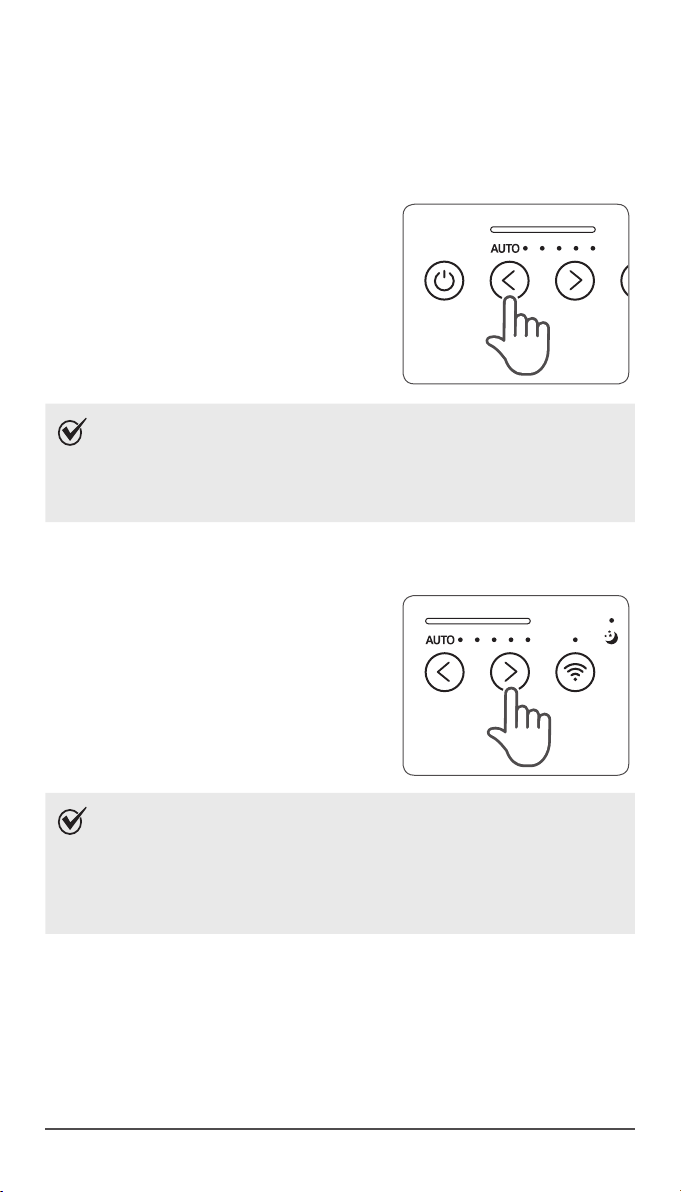

AUTO & SLEEP
1. Auto Mode
Enables auto operation based on the unit's air quality Smart Sensors.
 Press the Mode button to select Auto mode.
•The LED 'Auto' light will indicate when
Auto mode is activated, and operation
will begin.
NOTE •When in Auto mode the fan speed is automatically adjusted
according to the indoor air quality. As the indoor air quality
improves, the fan speed will automatically be reduced. If the
indoor air quality decreases, the fan speed will automatically
increase.
2. Sleep Mode
 Press the Mode button to select Sleep mode.
•The LED 'Sleep' light will indicate when
Sleep mode is activated, and operation
will begin.
NOTE •When Sleep mode is selected, the fan speed is automatically
set to Low. The fan speed can be manually changed by
pressing the Fan Speed button, changing the unit into
manual mode.
•When Sleep Mode is activated, the Air Quality Indicator LED
light is disabled.


English AM90
MANUAL & PLASMAWAVE®
3. Manual Mode (setting fan speed)
Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.
 Press the Fan Speed button to set the
desired fan speed.
NOTE •When Manual Mode is selected, Auto Mode is automatically
disabled.
4. PlasmaWave®
By default, PlasmaWave® is enabled whenever the unit is powered on.
 Press the Plasmawave® button, when the
unit is on, to enable or disable this feature.
NOTE •In Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
•When the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave®, it is normal and does not signify product
failure.


English AM90
AIR QUALITY INDICATOR
5. Air Quality Indicator
When on, the LED light will indicate the current indoor air quality according to three
levels: BLUE (good), AMBER (fair), RED (poor).
Air Quality Indicator
NOTE •Air quality level is displayed on the indicator, based on the
Smart Sensors. Depending on the immediate environment,
the indicator may change frequently in color or stay the
same for lengthy periods of time.


English AM90

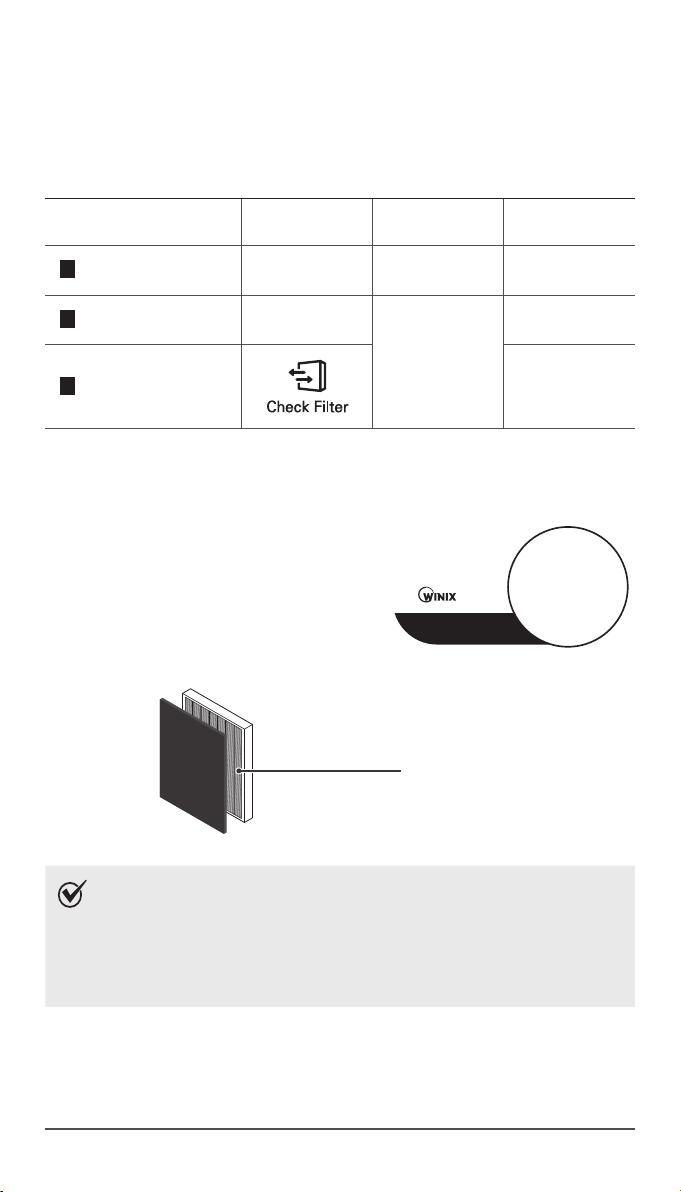

1. Know The Filters
When the Check Filter indicator LED is on, it is time to replace the True HEPA Filter.
Filter Indicator Light When to
service When to replace
1 Pre-filter none Clean once every
14days Permanent
2 Carbon filter none
Can NOT be
WASHED
Replace every
3 months
3 True HEPA filter Lasts up to
12 months
Intervals between filter replacement may vary depending on environment.
For optimal use, Pre-filter can be cleaned once every 14 days which can extend the
life of other filters.
To purchase replacement
Winix filters:
(877)-699-4649
www.winixamerica.com
This unit
is compatible
with this
filter
ITEM: 115115
FILTER
A
Carbon lter/
True HEPA lter
NOTE •The filters’life varies depending on the level of pollutants in
the air. The more dust present in the environment, the more
dust accumulates in the filters, shortening the life.
•If the filters are heavily soiled or have a bad odor, or if the fan
strength is significantly weakened, replace filters even if the
Change Filter indicator has not yet turned on.
FILTER CARE


English AM90
FILTER CARE
2. Removing filters
Turn the unit power off before removing filters.
 Remove the front panel by grasping its
upper edge and gently pulling forward.
•To remove the front panel release the
latch at the lower edge of the panel.
Latch
 Press the Pre-filter tabs near the top of the
filter, release and remove.
Tabs
Pre-lter
 Pull out the Carbon filter and HEPA filter.
3. Preparing New Filters
 Remove replacement filters from protective
plastic wrap.
•Operating the unit without removing
filters from plastic wrap may cause
abnormal noise, deformation, or fire as a
result of overheating.
NOTICE •For optimal performance, only Winix filters should be used
with this unit.


English AM90
FILTER CARE
4. Replacing Filters
 Insert the True HEPA filter first, then the
Carbon filter.
Carbon lter
True HEPA
lter
 Insert the Pre-filter.
•Insert bottom tabs of the Pre-filter into
the slots on either side of the lower part
of the unit, then rotate upward to insert
the upper tabs into the slots at the top
part of the unit until sides audibly click
into place.
Tabs
Pre-filter
 Replace the front panel by first inserting
the latch at the bottom edge into the base
of the unit, then rotate the panel upward
toward the top of the unit until the magnets
pull the lid closed.
Latch
5. Resetting The Unit
 After replacing the filters, turn the power
onto the unit and then use a thin object,
such as a paper clip, to press the RESET
switch for 5 seconds.


English AM90
FILTER CARE
6. Cleaning the filters
Intervals between filter cleaning may vary depending on the air quality.
 Use a vacuum cleaner or soft brush to clean
the Pre-filter. If it is excessively soiled, rinse
in room temperature water.
•Do not use detergent or soap.
•Allow the filter to dry for 24 hours or
more before using.
※If the pre-filter becomes damaged or in any way needs replacement:
Please contact Winix
(877)-699-4649
www.winixamerica.com
NOTICE •Do not use benzene, alcohol, or other volatile fluids, which
may cause damage or discoloration.
•The Pre-filter is reusable after cleaning, ensuring it is
completely dry.
•Do not use hot water over 104

F or volatile fluids such as
paint thinner.
•After washing the filter, allow it to dry completely in a well
ventilated area. Otherwise, it may develop a bad odor.


English AM90
CLEANING CARE
1. Cleaning the Exterior & Interior
 Wipe with a soft damp cloth using room
temperature water. Afterwards, wipe it
down with a clean dry cloth.
•To keep unit in peak condition, clean
every 1-2 months.
 Open the front panel and clean the interior
with a vacuum cleaner.
•For optimal performance, clean every
1-2 months.
NOTICE •When cleaning the unit, always unplug the power cord first
and then wait until the unit has cooled down.
•Never disassemble, repair, or modify this unit yourself.
•Do not use flammable sprays or liquid detergents.
•Do not allow children to clean or maintain the unit.
•Before cleaning or maintaining, ensure unit is unplugged.


English AM90
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
It does not
turn on at all.
•Is the plug securely attached to the outlet?
Make sure the outlet has power going to it, and
ensure the plug is secured.
•Is there a power outage?
Check to see if other lights and electrical
equipment are working and try again.
It doesn’t work
in Auto Mode.
•Has Auto Mode been selected?
Press the Mode button until Auto Mode is
selected.
•Is the sensor blocked or clogged?
Wipe Odour Sensor with wet cloth, then dry.
It vibrates and
makes a lot of
noise.
•Is it running on a slanted or uneven surface?
Move the unit to a hard, flat, even area of the
floor.
The power plug
and outlet feel
hot.
•Is the plug securely plugged in?
Make sure the plug is properly plugged into the
outlet.


English AM90
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
There is a strange
smell.
•Is it being used in a place with a lot of smoke, dust,
or odors?
Clean the air intakes on either side and clean
the pre-filter.
Replace the Carbon filter and True HEPA filter.
The fan strength
is weak.
The unit is not
purifying the air.
•Is the Check Filter indicator light on?
Change the filters as required.
The display panel
is dim.
•Is the Light Sensor blocked by debris?
When Auto Mode is on, Sleep Mode is
automatically activated when the Light Sensor
detects that the room is dark.


English AM90
UNIT SPECIFICATIONS
Model Name AM90
Power Voltage AC 120 V / 60 Hz
Power Rate 70 W
Room Area Served 360 ft
2
Dimensions 14.9 in(W) x 23.6 in(D) x 7.8 in(H)
Net Weight 15.83 lbs
Gross Weight 19.43 lbs
The exterior, design and product specifications may be changed without
prior notice to improve product performance.
Information regarding ENERGY EFFICIENCY RATING LABEL
The energy costs indicated on the ENERGY EFFICIENCY RATING LABEL may differ
from your actual energy costs, depending on your energy consumption, usage
hours, and billing changes, such as utility price increases.
Warning : Change or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note : This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or experienced radio/TV technician for help.
This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the
following two conditions:
•This device may not cause interference and
•This device must accept any interference, including interference that may cause undesired
operation of the device.
