Winix FreshHome PlasmaWave WACP150 User manual

User Manual
xPlease read and follow all safety rules and instructions in
this manual before operating.
xThe product warranty is printed on the back of this guide,
so please keep it in a safe place for future use.
Use & Care
Guide
®
WACP150 WACP300 WACP450

2
English P150, P300, P450
CONTENTS
This product is suitable for 120V only.
Warranty 3
Contents 3
Control Panel 4
Modes of Operation 4
Where to Use 5
Safety and Cautions 6
Features 7
Initial Set Up 8
Filter Replacement 10
Remote Control 12
Frequently Asked Questions 13
Unit Specifications 15
Safety Instructions 16

3
English P150, P300, P450
LIMITED WARRANTY
WINIX FRESHOME AIR CLEANERS LIMITED WARRANTY
Limited Warranty: Winix warrants the parts of the machine to be free of defects in material and
workmanship and provides service and support for one (1) year from the date of purchase by the
original consumer for model WACP150, and three (3) years from the date of purchase by the
consumer for models WACP300 and WACP450.
If any part is found to be defective during the warranty period, your sole and exclusive remedy
will be repair or replacement, at Winix's option and expense, of the defective part.
This warranty does not apply in cases of abuse, mishandling, failure to comply with product
usage standards, operation using an improper power supply (other than listed on the label), or
unauthorized repair.
Winix reserves the right to charge the consumers for any additional costs incurred by Winix to
provide parts or services outside of the country where the air purifier is initially sold by an
authorized reseller. This warranty does not include the air cleaner's replaceable filters, which are
expendable parts that wear out from normal use.
ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY
PERIOD SET FORTH ABOVE.
In no event shall Winix be liable for any consequential or incidental damages attributable to this
product.
This warranty gives you specific legal rights. The duration , terms and conditions of this warranty
are valid worldwide, except where different limitations, restrictions, or conditions may be
required by local law.
For more details or to obtain service under this warranty, please contact your local dealer.
CONTENTS
WACP300, WACP450
• (1) Winix Air Purifier
• (4) Carbon Pre-Filters
• (1) True HEPA Filter
• (1) Use & Care Guide
• (1) Remote control
• (1) 3V Lithium Battery
CR2025 installed in remote
WACP150
• (1) Winix Air Purifier
• (4) Carbon Pre-Filters
• (1) True HEPA Filter
• (1) Use & Care Guide

4
English P150, P300, P450
( A ) Air Quality Sensor: Automatically monitors the air quality with in the
environments.
( B ) Auto Mode: Based on the Air Quality Sensor, Auto Mode adjusts the fan speed
to purify the environment as effeciently as possible.
( C ) Reset: Resets the Check Filter indicator light.
( D ) Check Filter: Lights up to signal when it is time to replace the True HEPA filter.
( E ) PlasmaWave®: Displays whether PlasmaWave® is enabled or disabled.
( F ) Air Quality Indicator: Displays the quality of air (Green / Yellow / Red).
( G ) Fan Speed Indicator: Displays the current fan speed.
( H ) Manual Control: Allows manual control of fan speeds.
( I ) Power: Turns the unit on or off.
( J ) Light Sensor: When in Auto Mode, the Light Sensors detect the amount of
ambient light in the environment and dims the control panel lights.
CONTROL PANEL
MODES OF OPERATION
Auto Mode
By default, the unit is set to Auto Mode on start up. Auto Mode uses
SmartSensors to automatically detect the impurities in the air, automatically
adjusting the fan speed to filter out those impurities to maintain clean air.
Manual Mode
Pressing the Speed button will switch the unit into Manual Mode. This will allow
the Fan Speed to chosen manually.
PlasmaWave®
By default PlasmaWave is activated®. To enable or disable this, press and hold
the Auto Button for 3 seconds.

5
English P150, P300, P450
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
30~46 cm
10 cm
WHERE TO USE
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc.)
Do not place near any flammable materials
(aerosols, fuel, gases etc.)
Do not place below any electrical outlet
Do not place around heating elements
Do not place in an area with excessive
amounts of noxious gases
Do not have unit facing into wind or draft
Do not place in excessively humid areas
where unit may become wet
Allow 12 ~ 18 in. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
This unit is not intended to be used to preserve documents or in art conservation.

6
English P150, P300, P450
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety cautions
and instructions to avoid damage and ensure safe use.
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Do not pull on the power cord when
unplugging the unit
Do not touch the plug with wet hands
Do not plug additional appliances into the
same outlet or power supply
Unplug unit when not in operation for
extended periods of time
Do not tie or knot power cord when unit
is in operation
Do not unplug or move the unit while in
operation
If the unit becomes submerged in water,
unplug it and contact customer service
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it
Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal termperatures causing product failure and derformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.

7
English P150, P300, P450
FEATURES
Quiet Operation
Offering low noise operation
and Quiet speed for night time
operation
Air Quality Sensor
Detects the presence of various
pollutants in the air, controlling
Auto Mode to adjust the fan
speed.
Light Sensor
When in Auto Mode, detects the
amount of ambient light in the
environment and automatically
dims the control panel light and
lowers the fan speed to Quiet.
Multi-Stage Cleaning
3 stage air cleaning returning
clean air back into the room.
PlasmaWave®
Breaks apart airborne pollutants
on a molecular level, without
producing harmful ozone.
Carbon Pre-Filter
Traps large particles such as;
dust, pet hair and lint. Absorbs
odor caused from smoking,
cooking and pets.
xFor optimal performance
replace: Once every 3
months.
True HEPA Filter
Captures up to 99.97% of
particles as small as 0.3 microns;
including smoke, dust and
pollen.
xFor optimal performance
replace: Once every 12
months.
▶When the unit is running, you may hear a chirpping or buzzing
sound. The sound is from large particles passing through
PlasmaWave®, it is normal and does not signify product failure.
To disable PlasmaWave®, see page 4.

8
English P150, P300, P450
INITIAL SET UP

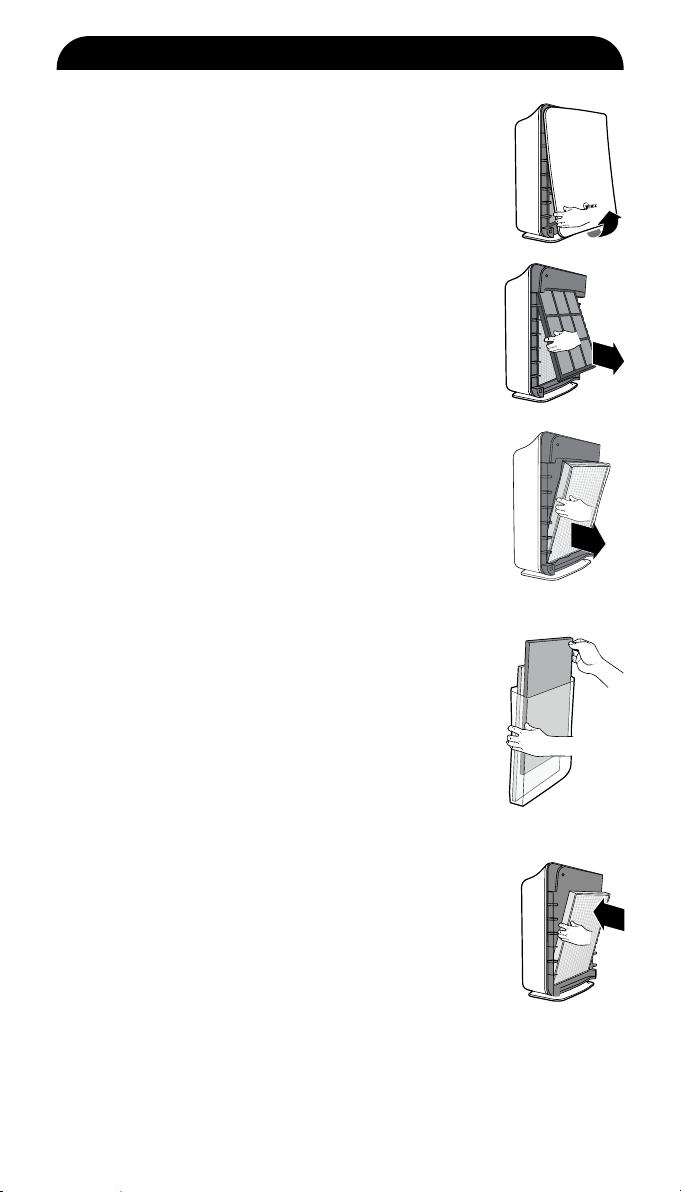

① Remove the front panel by grasping
the lower edge and gently pulling
towards yourself.
② Remove the Plastic Frame from the
unit.
③ Remove the filters from the unit,
they are protected inside a plastic
wrap.
④ Remove filters from protective
plastic wrap.
xOperating the unit without removing
lters from plastic may cause abnormal
noise, deformation, or re as a result of
overheating.
⑤ Insert the filters into the unit until
they fit securely in place.
Filters must be installed in this order:
xTrue HEPA Filter (rear)
xCarbon Pre-Filter (front)

9
English P150, P300, P450
⑥ Insert the Plastic Frame in front of
the Carbon Pre-Filter.
xThe Plastic Frame will ensure the lters
stay in place.
⑦ Replace the Front Cover.
xInsert the cover tabs into the top slots
on the unit, then bring the bottom of
the Front Cover to the bottom of the
unit unti snapping into place.
⑧ Plug the unit into an electrical outlet.
⑨ Press and hold the Power Button
until a short "beep" sounds.
⑩ The unit will take 3 - 4 minutes in
order for the Air Quality Sensor to
calibrate to the environment.
xWhile in calibration the lights will ash
on and o. Once it is complete the
lights will indicate the unit is in Auto
Mode.
⑪ Remove the plastic tab from the
batter within the remote.
xValid only for WACP300 & WACP450
units.
INITIAL SET UP

10
English P150, P300, P450
FILTER REPLACEMENT
When the Check Filter indicator LED is on, it is time to replace the True HEPA filter.
Filter Indicator Light When to
service
When to
replace
Carbon Pre-filter None
Can NOT be
WASHED
Lasts up to
3 months
True HEPA filter Check Filter Lasts up to
12 months
Intervals between filter replacement may vary depending on environment.
① Remove the front panel by grasping
the lower edge and gently pulling
towards yourself.
② Remove the Plastic Frame from the
unit.
③ Remove the current filters from the
unit.
④ Remove new filters from protective
plastic wrap.
xOperating the unit without removing
lters from plastic may cause abnormal
noise, deformation, or re as a result of
overheating.

11
English P150, P300, P450
⑤ Insert the new filters into the unit
until they fit securely in place.
Filters must be installed in this order:
xTrue HEPA Filter (rear)
xCarbon Pre-Filter (front)
⑥ Insert the plastic frame in front of
the Carbon Pre-Filter.
xThe Plastic Frame will ensure the lters
stay in place
⑦ Replace the Front Cover.
xInsert the cover tabs into the top slots
on the unit, then bring the bottom of
the Front Cover to the bottom of the
unit unti snapping into place.
⑧ Reset the Check Filter Indicator.
xUse a thin item, such as a paper clip,
to insert into the Reset area. The light
will ash 5 times before a beeping
sound occurs; which indicates the
Check Filter has been reset.
this unit
is compatible
with this
filter
ITEM: 113050
FILTER
C
this unit
is compatible
with this
filter
ITEM: 115115
FILTER
A
this unit
is compatible
with this
filter
ITEM: 113250
FILTER
E
this unit
is compatible
with this
filter
ITEM: 113050
FILTER
C
this unit
is compatible
with this
filter
ITEM: 115115
FILTER
A
this unit
is compatible
with this
filter
ITEM: 113250
FILTER
E
this unit
is compatible
with this
filter
ITEM: 113050
FILTER
C
this unit
is compatible
with this
filter
ITEM: 115115
FILTER
A
this unit
is compatible
with this
filter
ITEM: 113250
FILTER
E
WACP150
WACP300
WACP450
To purchase replacement
Winix filters:
(877)-699-4649
www.winixamerica.com

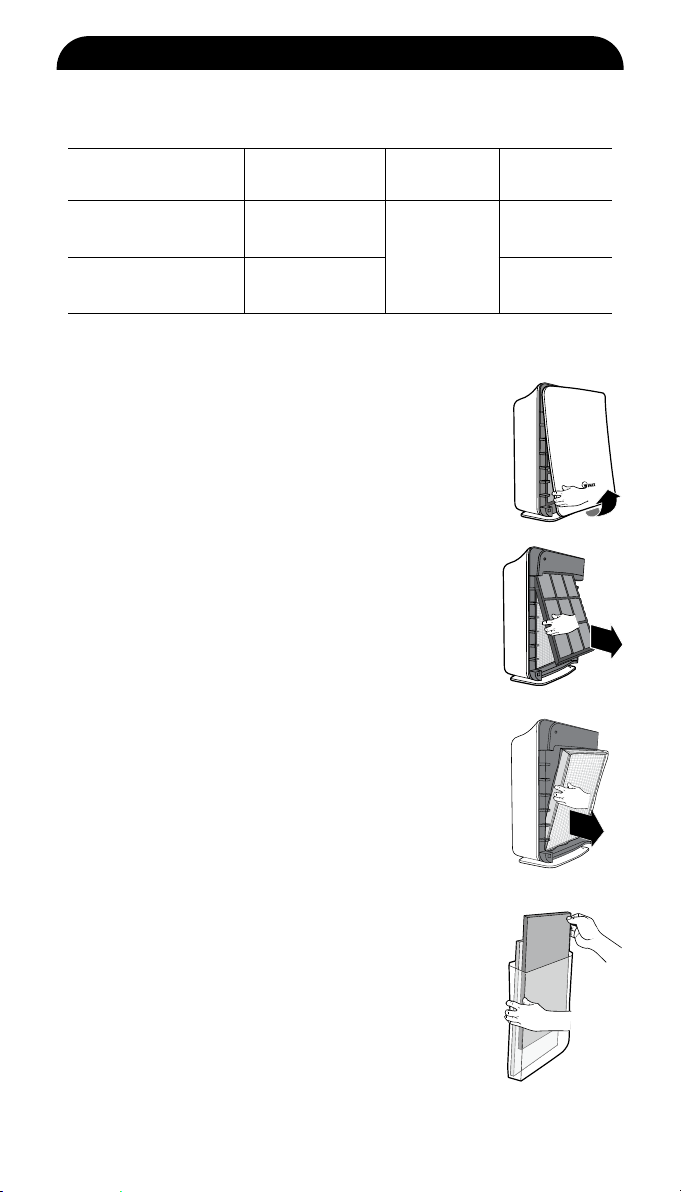

FILTER REPLACEMENT

12
English P150, P300, P450
( A ) Power: Turns the unit on or off.
( B ) Auto: Enables Auto Mode.
( C ) Fan Speed: Enters into Manual Mode
while selecting Fan Speed.
( D ) Turbo: Enters Manual Mode setting
device directly to Turbo Fan Speed.
Cradle
Wall mountable storage cradle.
Battery Replacement
① Squeeze tabs of batter cover
while pulling on the remote
② Remove old battery
③ Insert new batter, with PLUS side
up.
xAlways use CR2025 3V lithium
battery.
WARNING
xIncorrect batter usage may cause battery uid
leakage and/or damage.
xWhen not using remote for extended periods of
time, remove the battery.
xAvoid dropping or damaging the remote.
Remote is only for models WACP300 or WACP450.
operates in a 20 foot radius.
REMOTE CONTROL

13
English P150, P300, P450
Problem Check /Actions to take
The remote control
does not work.
▶Ensure the Remote batter is inserted correctly;
(+) side up.
▶Ensure the Remote has a clear line of sight to
the air cleaner.
▶Ensure the Remote is within a 20 ft. radius.
The unit does not
remove smoke or
odors effectively.
▶Ensure the Air Quality Sensor is not blocked or
clogged.
▶Move the unit closer to the source of the odor.
▶Replace the Carbon Pre-Filter; as they may have
reached their odor absorption capacity.
The unit seems to be
running on High fan
speed all the time.
▶Clear the Air Quality sensor with a vacuum; as it
may be blocked or clogged.
The Air Quality
Indicator is yellow or
red; however the air
seems to be clean.
▶Clear the Air Quality sensor with a vacuum; as it
may be blocked or clogged.
The Air Quality
Indicator is green;
however the air seems
to have dust and odor.
▶The unit captures a high percentage of dust
and particles; however open doors, windows
and Central HVAC may cause additional levels
of dust to be entered into the environment.
▶Clear the Air Quality sensor with a vacuum; as it
may be blocked or clogged.
▶Replace Carbon Pre-Filter and True HEPA Filter.
Unit interferes with
radio or TV reception.
▶Reorient or relocate the receiving antenna on
the unit having issues.
▶Increase the distance between the unit having
issues and the air cleaner.
▶Plug the air cleaner into a different power
outlet.
Check Filter indicator
remains lit; after
replacing the True
HEPA filter.
▶Reset the Check Filter by using a thin item, such
as a paper clip, to insert into the Reset area.
The light will flash 5 times before a beeping
sound occurs; which indicates the Check Filter
has been reset.
FREQUENTLY ASKED QUESTIONS

14
English P150, P300, P450
Problem Check /Actions to take
Can the filters be
washed or cleaned?
▶No; the filters are not designed to be washed
with water or vacuumed. Doing so could cause
them to be rendered unusable.
What is CADR?
▶CADR means Clean Air Delivery Rate and the
ratings are provided from a controlled testing
environment through AHAM. The unit is rated
for the optimal space to purifier air quality.
Can Sleep Mode be
disabled?
▶When the unit is running in Auto Mode, Sleep
Mode is automatically enabled. To disable
Sleep Mode the unit must run in Manual Mode.
View page 4 for details.
FREQUENTLY ASKED QUESTIONS

15
English P150, P300, P450
Model WACP150 WACP300 WACP450
Room Size 150 sq. ft. 300 sq. ft. 450 sq. ft.
Power Supply AC 120V / 60 Hz
Watts 40 W 60 W 110 W
CADR
Smoke (98)
Dust (98)
Pollen (103)
Smoke (197)
Dust (197)
Pollen (214)
Smoke (291)
Dust (298)
Pollen (343)
Unit Dimensions
8.27 in (W) x
18.50 in (D) x
13.78 in (H)
8.66 in (W) x
21.65 in (D) x
16.30 in (H)
10.24 in (W) x
25.59 in (D) x
17.32 in (H)
Unit Weight 11.15 lbs 13.95 lbs 19.40 lbs
Replacement Filter Filter C
Item: 113050
Filter A
Item: 115115
Filter E
Item: 113250
UNIT SPECIFICATIONS
The exterior, design, and product specifications may be changed to improve
product performance without prior notice.
Warning: Change or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, and may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be dteremined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
x
xReorient or relocate the receiving antenna.
x
xIncrease the separation between the equipment and receiver.
x
xConnect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
x
xConsult the dealer or on experienced radio/TV technician for help.
This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the following two
conditions:
x
xThis device may not cause interference; and
x
xThis device must accept any interference, including interference that may cause undesired operation of the
device.

16
English P150, P300, P450
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air cleaner. This product is for household use
IMPORTANT CAUTIONS FOR
USING YOUR AIR PURIFIER
WARNING: Follow the instructions in
this manual to reduce the risk of
electric shock, short circuit, and/or fire.
x
xDo not repair or modify the unit unless
specically recommended in this
manual. All other repairs should be
completed by a qualied technician.
x
xThe plug for this unit is polarized with
one blade wider than the other. Do not
force the plug into an electrical outlet.
Do not alter the plug in any way. If the
does not t into the outlet, reverse the
plug. If it still does not t, contact a
qualied technician to install a proper
outlet.
x
xDo not use if the power cord or plug is
damaged or the connection to the wall
outlet is loose.
x
xUse AC 120V only.
x
xDo not damage, break, forcefully bend,
pull, twist, bundle, coat, pinch, or place
heavy objects on the power cord.
x
xPeriodically remove dust from the
power plug. This will reduce the risk of
shock due to humidity build up.
x
xIf the power plug is damaged, it must
be replaced by the manufacturer or a
qualied technician.
x
xRemove the power plug from the
outlet before cleaning the unit. When
removing the power plug, grasp by
holding the plug itself, never hold by
the cord.
x
xRemove the power plug from the outlet
when not in use.
x
xDo not handle the power plug with wet
hands.
x
xDo not operate the unit when using
indoor smoke-generating insecticides.
x
xDo not clean unit with benzene or paint
thinner. Do not spray insecticides on the
unit.
x
xDo not use the unit where it is humid or
where the unit may become wet, such
as the bathroom.
x
xDo not insert ngers or foreign objects
into air intake or outlet.
x
xDo not use use the unit near ammable
gases. Do not use near cigarettes,
incense, or other spark-creating items.
x
xUnit will not remove carbon monoxide
emitted from heating appliances or
x
xDo not block the intake or outlet vents.
x
xDo not use near hot objects, such as a
stove.
x
xDo not use where the unit may come
into contact with steam.
x
xDo not use the unit on its side.
x
xKeep away from products that generate
oily residue, such as a deep fryer.
x
xDo not use detergent to clean the unit.
x
xDo not operate without a lter.
x
xDo not wash and reuse the True HEPA
Filter or the Carbon Pre-Filter.
x
xHold the handle on the back of the unit
to transport.
x
xDo not hold by the front panel.
IMPORTANT PRECAUTIONS FOR
USING YOUR AIR CLEANER

To expedite service, please specify the model name and number, the nature of the problem, your
contact information, and your address.
151216 Rev.2.1.1
Developed in partnership with
Drexel University
(Philadelphia, PA, USA)
xDedicated Call Center : [phone]
xWebsite : www.winixamerica.com
xContact your local dealer
WINIX USA
WINIX Europe
