Winix ZERO 5 User manual

WINIX ZERO 5 AIR PURIFIER
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
USER MANUAL

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 2
CONTENTS.............................................................................................................2
5-STAGE AIR PURIFICATION ................................................................................3
CONTROLS.............................................................................................................4
WHERE TO USE.....................................................................................................5
INSTALLING FILTERS ............................................................................................6
SAFETY AND CAUTIONS.......................................................................................8
INITIAL OPERATION...............................................................................................9
AUTO & SLEEP.....................................................................................................10
MANUAL MODE, TIMER AND PLASMAWAVE®...........................................................................................11
CHILD LOCK, AIR QUALITY LED LIGHT .............................................................12
FILTER CARE .......................................................................................................13
CLEANING THE DUST SENSOR .........................................................................16
CLEANING CARE .................................................................................................17
FREQUENTLY ASKED QUESTIONS ...................................................................18
UNIT SPECIFICATIONS .......................................................................................19
CONTENTS

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 3

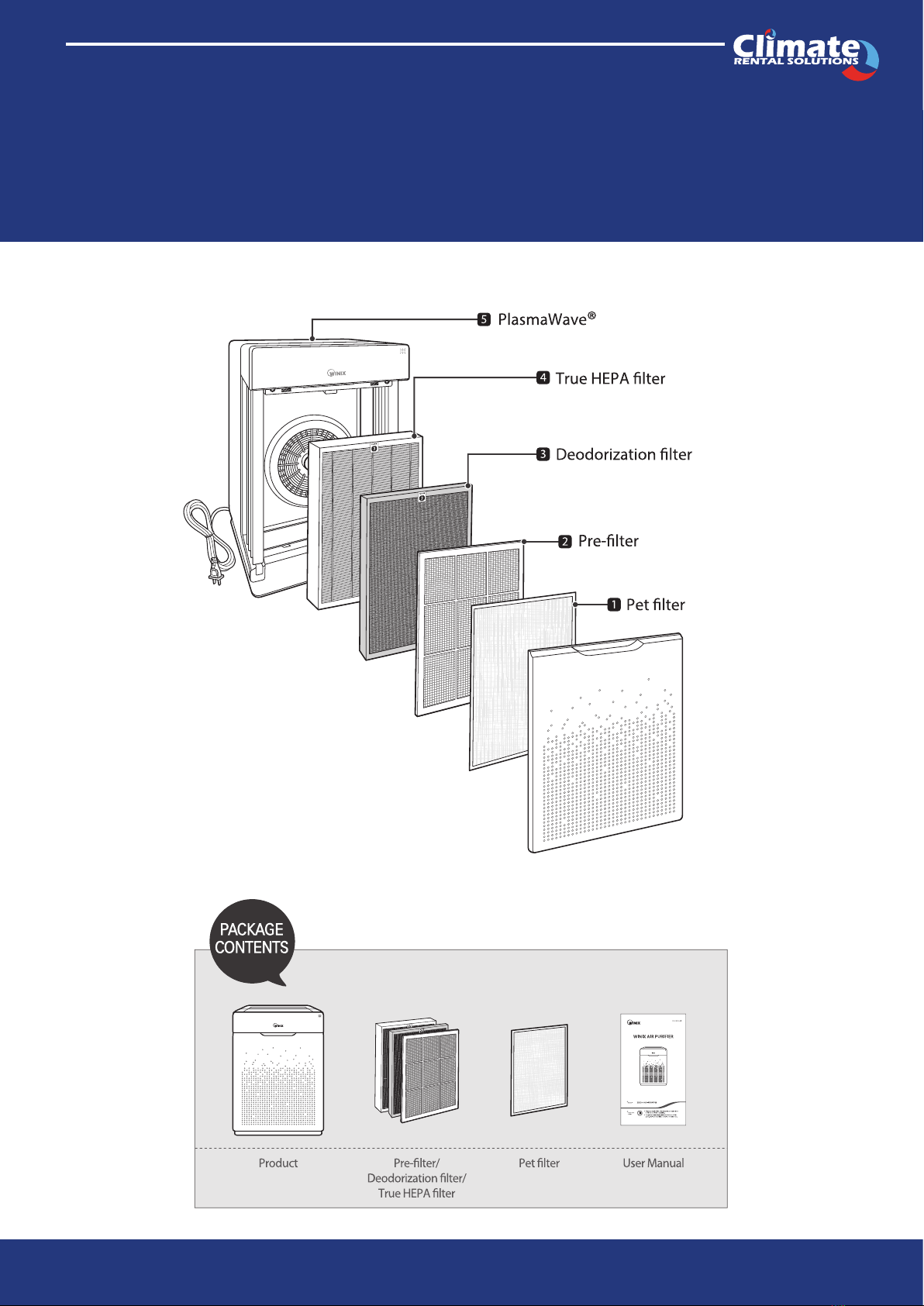

5-STAGE AIR PURIFICATION

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 4
CONTROLS

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 5
Allow 30 ~ 45 cm of space between TVs, radios, and other electronic products electromagnetic interference from
certain electronics may cause product malfunction.
Place indoors away from direct sun light direct exposure may cause product malfunction or failure.
Only place on hard, at surfaces imsy or slanted surfaces may result in abnormal noise and vibrations.
30~45 cm 10 cm
Follow these instructions to reduce the risk of serious injury or death and
to reduce risk of damaging the unit.
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust.
Do not place around heating elements.
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships,
etc.).
Do not place in an area with excessive
amounts of noxious gases.
Do not place near any ammable materials
(aerosols, fuel, gases etc.).
Do not have unit facing into wind or draft.
Do not place below any electrical outlet. Do not place in excessively humid areas
where unit may become wet.
WHERE TO USE

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 6
This product comes with all of the required lters. The protective plastic wrap must be removed from the lters before
use.
• Operating the unit without removing the plastic wrap may result in product failure.
• Unplug and make sure the unit is turned o󰀨 before installing lters.
• The unit will automatically power o󰀨 when front panel is opened.

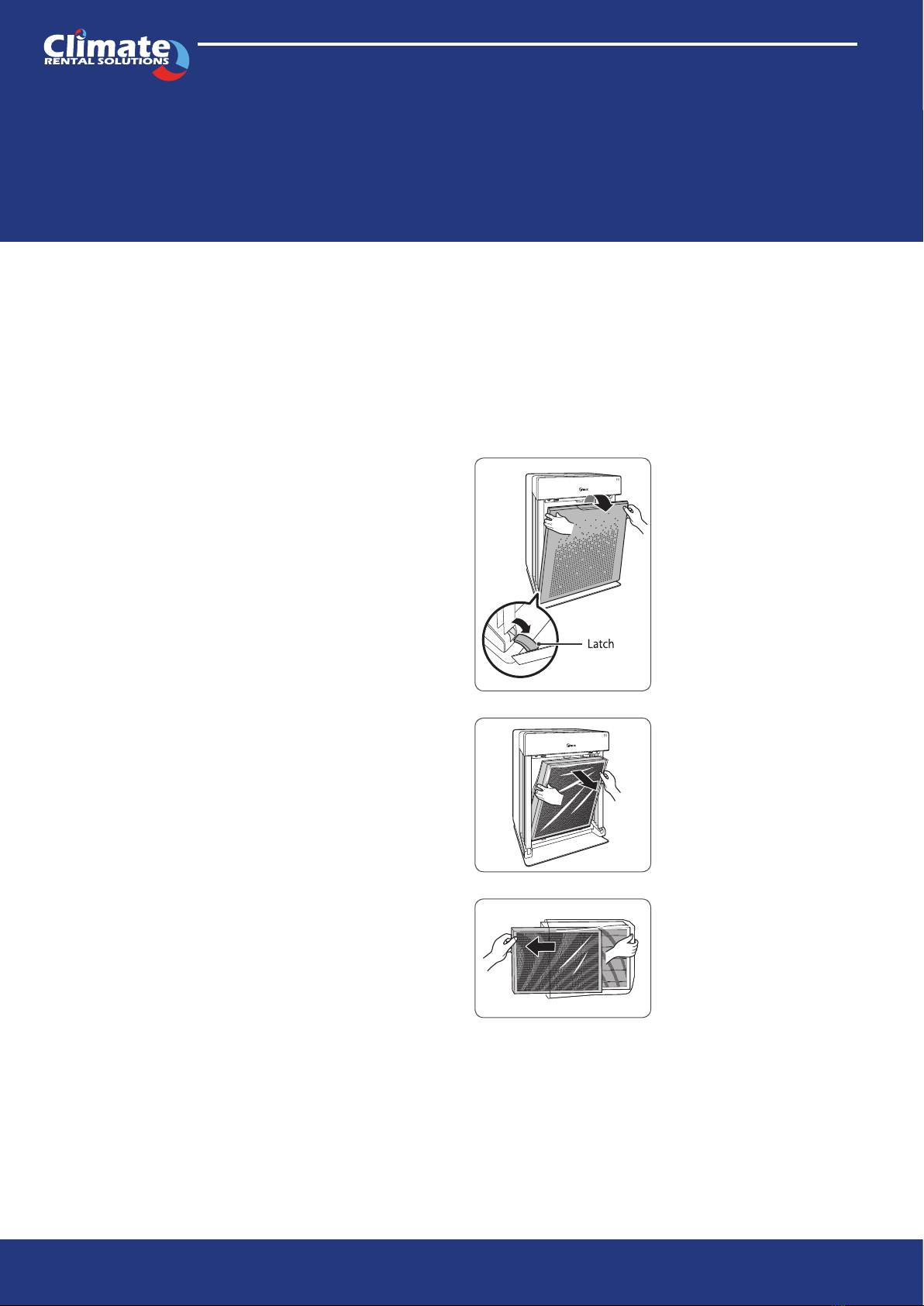

1. Remove the front panel by grasping its upper
edge and gently pulling forward.
• To remove the front panel, the latch at the lower
edge of the panel must be released from its po-
sition.
2. Remove the lters from the unit, they are protect-
ed inside a plastic wrap.
3. Remove lters from protective plastic wrap.
• Operating the unit without removing lters from
plastic may cause abnormal noise, deformation,
or re as a result of overheating.
NOTE : Refer to pages 13 - 16 for detailed information on lter care and how to replace them.
INSTALLING FILTERS

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 7
4. Install the lters until they t securely in place.
Filters must be installed in this order:
3 True HEPA Filter (rear)
2 Deodorization lter (middle)
1 Pre-lter (front)
• To install the Pre-lter, insert bottom tabs into the
slots on either side of the lower part of the unit,
then rotate upward to insert the upper tabs into
the slots at the top part of the unit until sides audi-
bly click into place.
5. Replace the front panel by rst inserting the latch
at the bottom edge into the base of the unit, then
rotate the panel upward toward the top of the unit
until the magnets pull the lid closed.
6. When to service and replace lter:
Filter Indicator Light When to service When to replace
1 Pre-lter none Clean once every 14 days Permanent
2 Deodorization lter
Can NOT be WASHED Lasts up to 12 months
3 True HEPA lter
• Intervals between lter replacement may vary depending on environment.
• For optimal use, Pre-lter can be cleaned every 14 days which can extend the life of other lters.
• Pet lter replacement guide separately mentioned on the Pet lter package board.

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 8

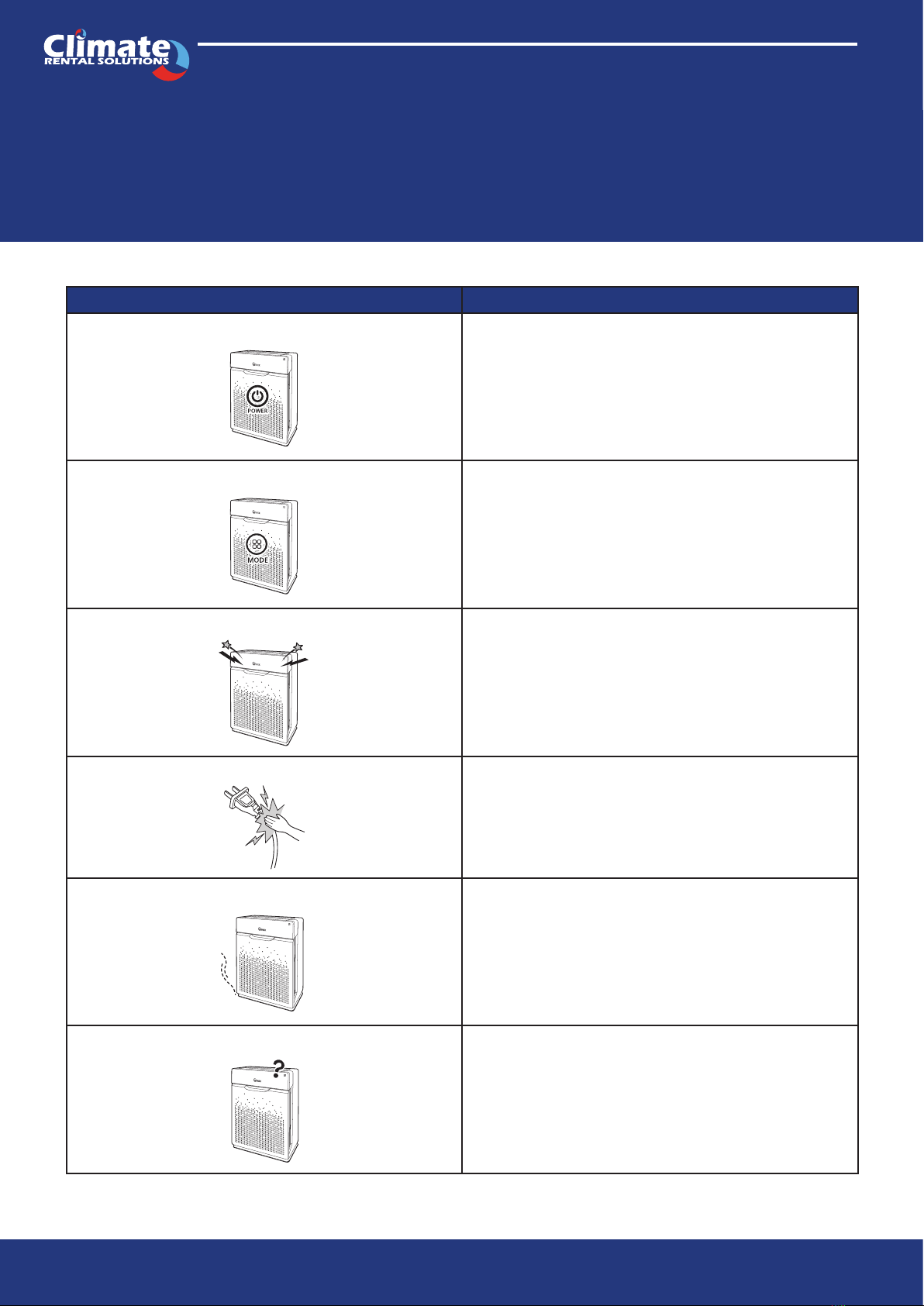

Before operating this equipment, carefully read and follow these safety cautions
Ensure lters are inserted before running unit
running unit without lters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal termperatures causing product failure and derformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.
Follow these instructions to reduce the risk of serious injury or death and
to reduce risk of damaging the unit.
Do not pull on the power cord when
unplugging the unit
Do not tie or knot power cord when unit is
in operation
If the unit becomes submerged in water,
unplug it and contact customer service
Do not unplug or move the unit while in
operation
Do not plug additional appliances into the
same outlet or power supply
Do not touch the plug with wet hands
Unplug unit when not in operation for
extended periods of time
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufac-
turer or its service agent.
• This appliance is not intended for use by a person (including children) with reduced physical sensory or men-
tal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
SAFETY AND CAUTIONS

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 9

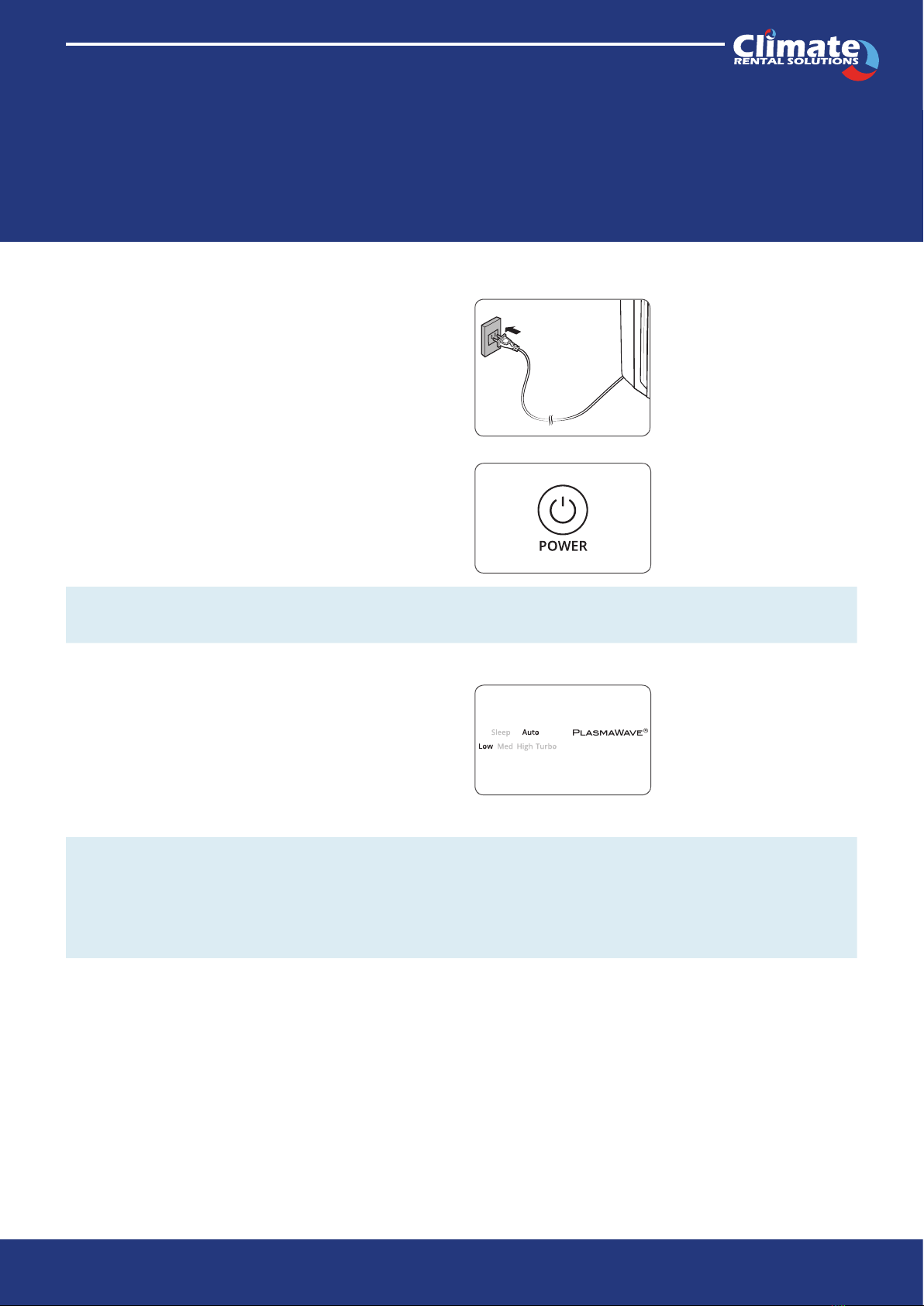

1. Insert the power cord into an electrical outlet.
• The Control Panel lights will turn on and o󰀨.
2. Press the ‘Power’ button.
NOTE : During the rst 4 minutes of power up, the Air Quality light will ash as the Smart Sensors measure the
air quality in the environment, after which normal operation will begin.
3. By default, when the unit rst powers on, the mode
will be set to Auto with PlasmaWave®enabled.
• When in Auto mode, the fan speed will be auto-
matically adjusted according to the environments
air quality.
• PlasmaWave® works to remove harmful airborne
contaminants.
NOTE :
• In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.
• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles pass-
ing through PlasmaWave®, it is normal and does not signify product failure. To disable PlasmaWave®, see
page 11.
INITIAL OPERATION

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 10

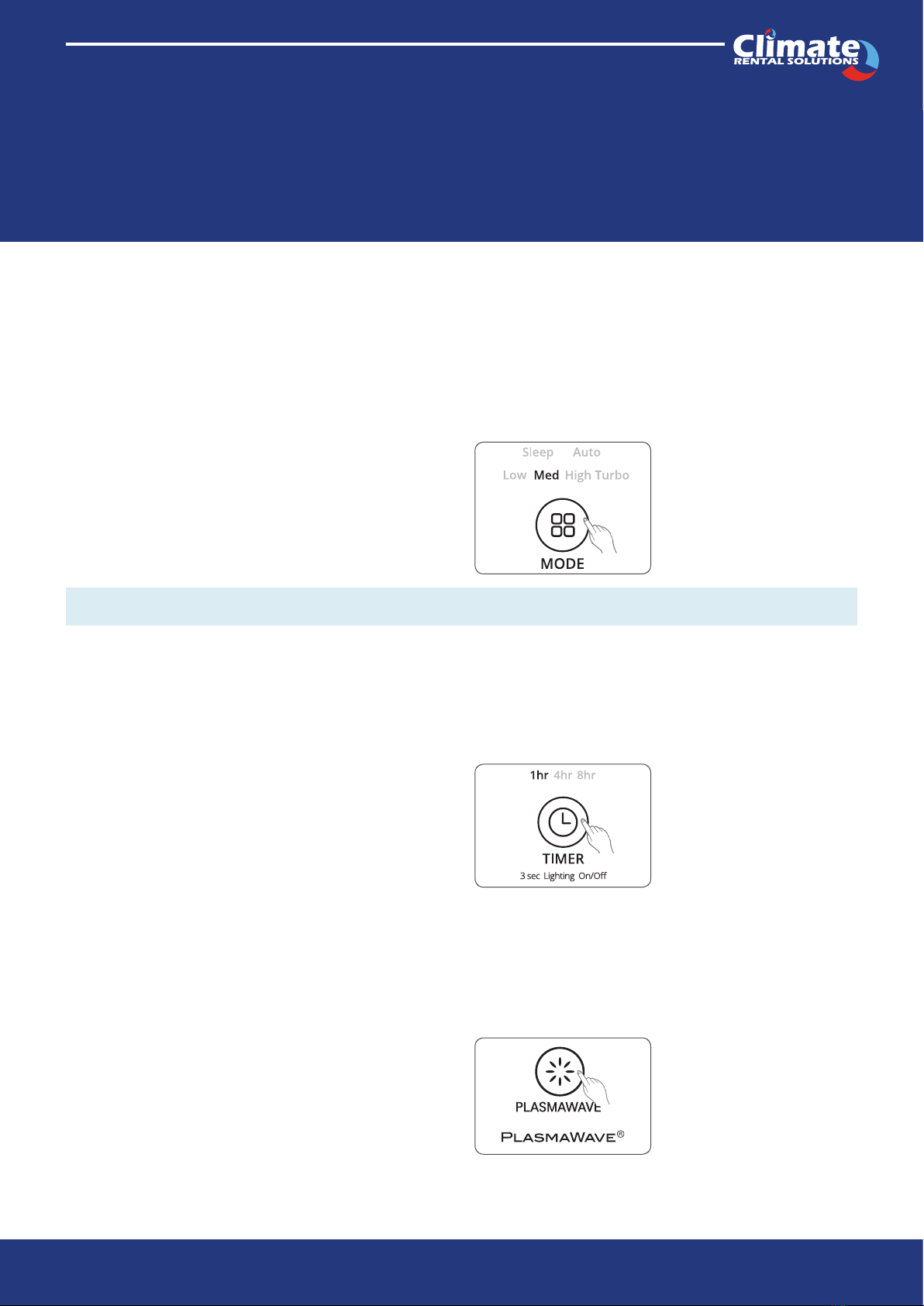

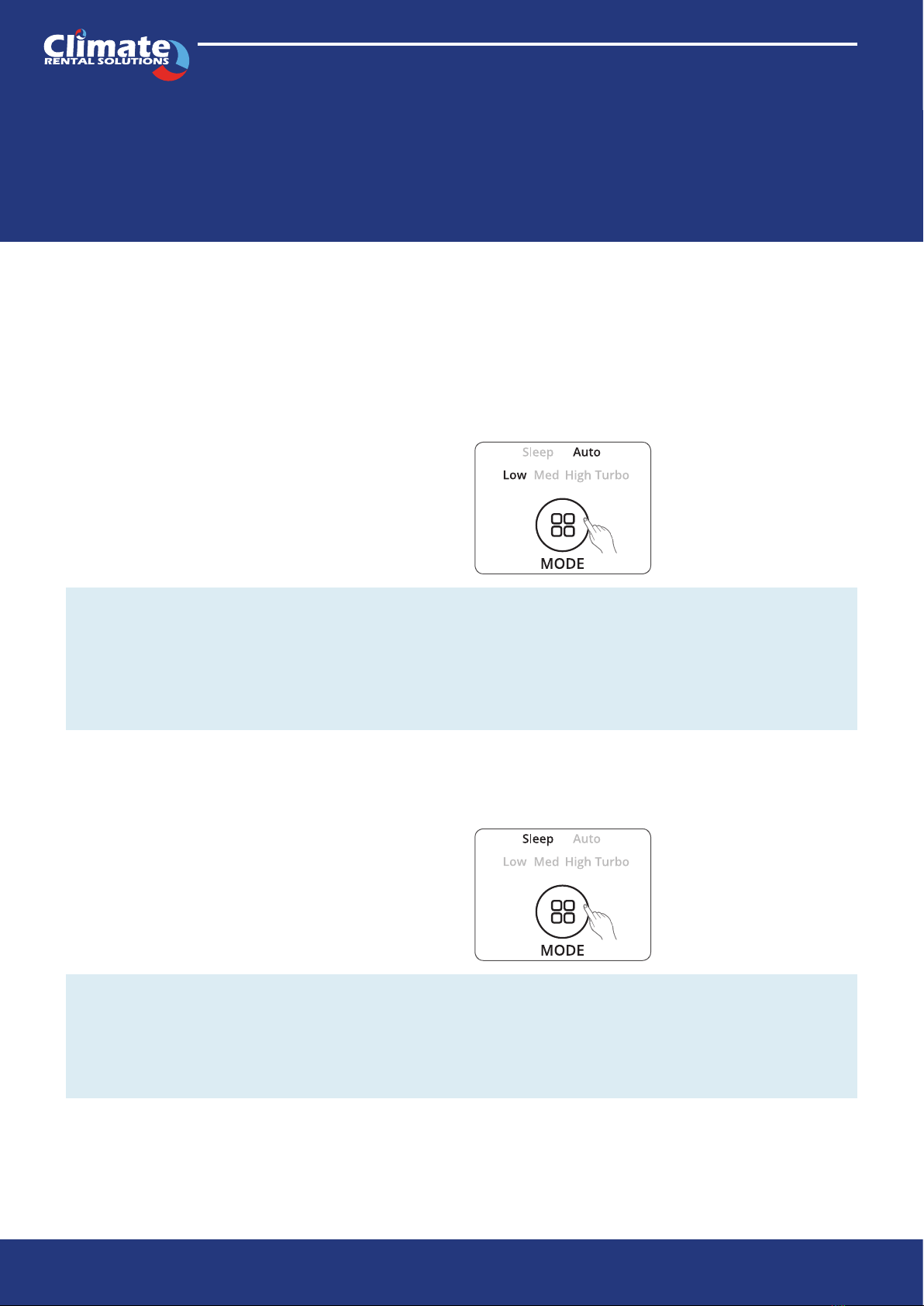

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low,
Medium, High, Turbo)
Auto Mode
Enables Auto operation based on the unit’s air quality Smart Sensors.
1. Press the Mode button to select Auto mode.
• The mode LED light will indicate when ‘Auto’ mode
has been selected, and operation will begin.
• Each time the Mode button is pressed, the modes
will be cycled. (Auto, Sleep, Low, Medium, High,
Turbo).
NOTE :
• When in Auto Mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor
air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases the fan
speed will automatically be increased.
• When unit is rst started, Auto Mode is enabled and set to Low fan speed.
Sleep Mode
1. Press the Mode button to select Sleep mode.
• The mode LED light will indicate when ‘Sleep’
mode has been selected, and operation in that
mode will begin.
NOTE :
• When Sleep mode is selected, the fan speed is automatically set to Low. Fan speed can be changed by
pressing the Fan Speed (Mode) Button.
• When Sleep Mode is enabled, the Air Quality light is disabled.
AUTO & SLEEP

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 11
Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low,
Medium, High, Turbo)
Manual Mode (setting fan speed)
Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.
1. Press the Mode button to select the desired fan
speed.
• The mode LED light will indicate the selected fan
speed, and operation will begin.
NOTE : When Manual Mode is in use, Auto and Sleep modes are automatically disabled.
Timer
The timer can be set for when you want the unit to run for a specied period of time.
1. Select the desired period by pressing the Timer
button.
• The Timer LED light will indicate the selected
length of operation.
• Every time the Timer button is pressed the Timer
LED light will cycle through the settings. (1hr, 4hr,
8hr, [NO TIMER]).
PlasmaWave®
By default, PlasmaWave® is enabled whenever the unit is powered on.
1. Press the Plasmawave button, when the unit is
on, to enable or disable this feature.
MANUAL MODE, TIMER AND PLASMAWAVE®

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 12
Child Lock
This feature prevents children from tampering with the control panel.
1. Press and hold the Child Lock button for 3 sec-
onds to enable or disable the feature.
• When the Child Lock indicator is lit, the feature is
enabled.
• When Child Lock is enabled, the control panel is
locked and the settings cannot be changed.
• To disable, press and hold the Child Lock button
again for 3 seconds.
Air Quality LED Light
The Air Quality LED light may be turned on or o󰀨.
1. To turn the Air Quality LED light on or o󰀨, press
and hold the Timer button for 3 seconds.
• When on, the LED light will indicate the current
indoor air quality according to three levels BLUE/
GREEN/AMBER/RED
NOTE :
• When Auto Mode is enabled the Air Quality LED light may or may not be on, depending on the amount of
ambient light in the room.
• When Sleep Mode is activated, the Air Quality Indicator light is turned o󰀨.
CHILD LOCK, AIR QUALITY LED LIGHT

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 13
Know The Filters
When the Check Filter indicator LED is on, it is time to replace both the True HEPA and Deodorization lters.
Filter Indicator Light When to service When to replace
1 Pre-lter none Clean once every 14 days Permanent
2 Deodorization lter
Can NOT be WASHED Lasts up to 12 months
3 True HEPA lter
• Intervals between lter replacement may vary depending on environment.
• For optimal use, Pre-lter can be cleaned every 14 days which can extend the life of other lters.
• Pet lter replacement guide separately mentioned on the Pet lter package board
Removing Filters
Ensure the unit is turned o󰀨 and unplugged before removing lters.
• The unit will automatically power o󰀨 when front panel is opened.
1. Remove the front panel by grasping its upper
edge and gently pulling towards yourself.
• To remove the front panel, the latch at the lower
edge of the panel must be released from its po-
sition.
FILTER CARE

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 14

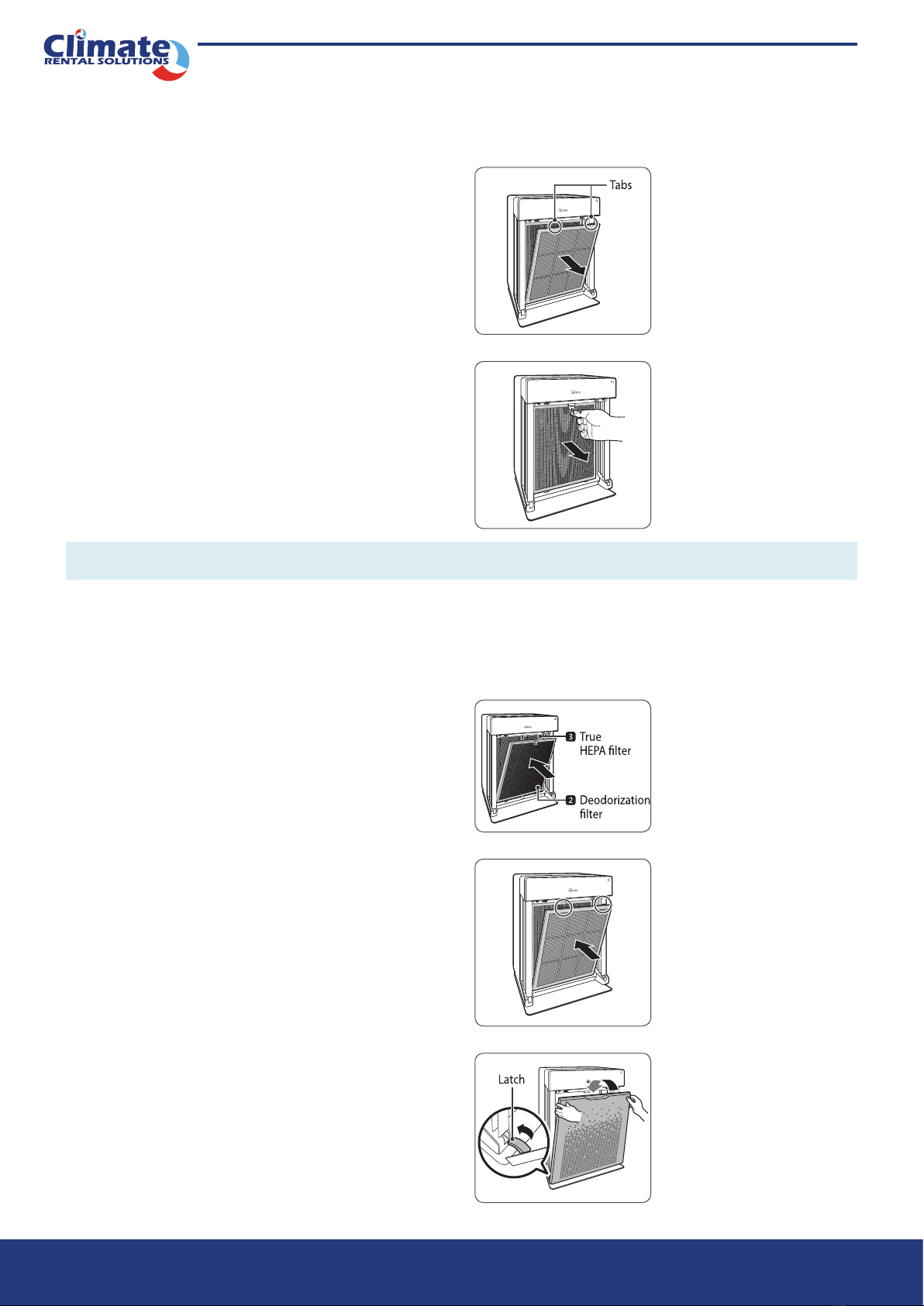

2. Press the tabs on the top edge to remove the 1
Pre-lter.
3. First remove the 2 Deodorization lter and then
the 3 True HEPA lter by pulling on the numbered
tags at the top of each lter.
NOTICE : For optimal performance, only genuine Winix lters should be used with this unit.
Filter Assembly and Replacement
Filters should be re-installed in the reverse order of their removal.
1. Insert the replacement 3 True HEPA lter (rear) 2
Deodorization lter (middle)
• Remove the protective plastic wrap from new l-
ters. Operating the unit without removing the pro-
tective plastic wrap may cause abnormal noise,
deformation, or re as a result of overheating.
2. Insert the 1 Pre-lter (front).
• To install the pre-lter, insert bottom tabs into the
slots on either side of the lower part of the unit,
then rotate upward to insert the upper tabs into
the slots at the top part of the unit until both sides
audibly click into place.
3. Replace the front panel by rst inserting the latch
at the bottom edge into the base of the unit, then
rotate the panel upward toward the top of the unit
until it magnetically snaps closed.

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 15
4. After replacing the lters, power on the unit. Once
the unit running, press and hold the RESET but-
ton for 5 seconds.
Cleaning the Pre-lter
Intervals between lter cleanings may vary depending on the air quality.
1. Use a vacuum cleaner or soft brush to clean the
Pre-lter. If it is excessively dirty, wash with room
temperature water.
• Use only water, do not use volatile substances
such as alcohol or acetone.
• If the pre-lter becomes damaged or in any way needs replacement: Please contact your local dealer
NOTICE :
• Do not use benzene, alcohol, or other volatile uids, which may cause damage or discoloration.
• The Pre-lter is reusable after cleaning, ensuring it has completely dried.
• Do not use hot water over 104°F or volatile uids such as paint thinner.
• After washing the pre-lter, allow it to dry completely in a wellventilated area. Otherwise, it may develop a
bad odor.

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 16
Cleaning the Dust Sensor
For optimal performance of the Dust Sensor, which detects airborne dust and ultrane particles, clean it every two
months. Clean it more frequently when the unit is running in a place with high dust levels.
1. Open the Dust Sensor cover.
2. Use a damp cotton swab to wipe the lens and in-
take area of the Dust Sensor.
• To clean the sensor area, use only water. Do not
use volatile substances such as alcohol or ace-
tone.
3. Wipe away any remaining moisture with a dry cot-
ton swab.
4. Close the Dust Sensor cover.
• The Dust Sensor cover may be cleaned using a
vacuum cleaner.
CLEANING THE DUST SENSOR

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 17

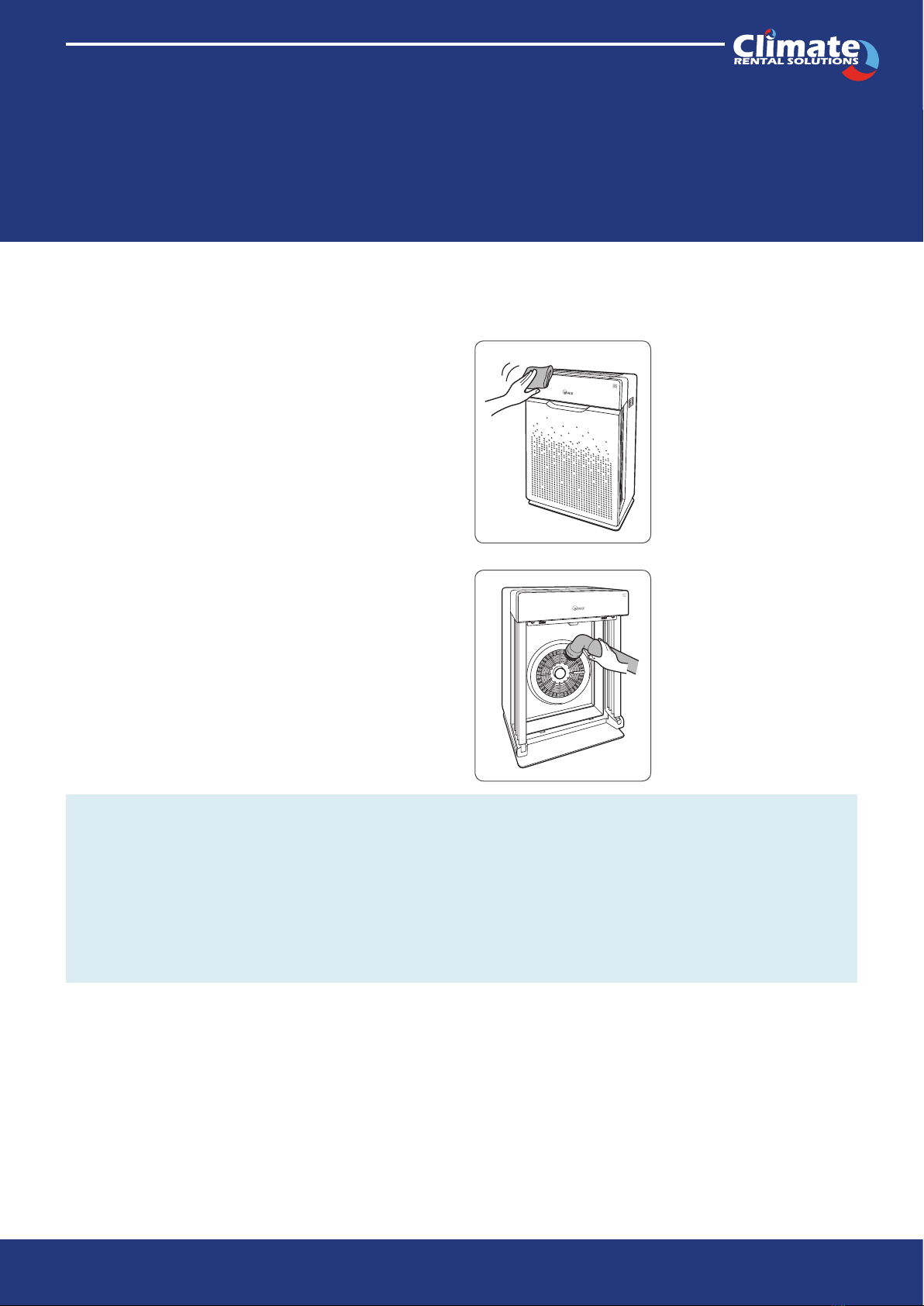

Cleaning the Exterior & Interior
Cleaning the exterior
1. Wipe with a soft damp cloth using room tempera-
ture water. Afterwards, wipe it down with a clean
dry cloth.
• For optimal performance, clean the front panel
1-2 times a month.
Cleaning the interior
2. Open the front panel and clean the interior with a
vacuum cleaner.
• For optimal performance, clean the interior 1-2
times a month.
NOTICE :
• When cleaning the unit, always unplug the power cord rst and then wait until the unit has cooled o󰀨.
• Never disassemble, repair or modify this unit yourself.
• Do not use ammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is o󰀨 and unplugged.
CLEANING CARE

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 18
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
It does not turn on at all.
Is there a power outage?
• Check to see if other lights and electrical equipment are
working and try again.
It doesn’t work in Auto Mode.
Has Auto mode been selected?
• Press the Mode button until Auto mode is selected.
Is the sensor blocked or clogged?
• Clear the sensor using a vacuum cleaner. view page 17.
It vibrates and makes a lot of noise.
Is it running on a slanted surface?
• Move the unit to a hard, at area of the oor.
The power plug and outlet feel hot.
Is the plug securely plugged in?
• Make sure the plug is properly plugged into the outlet.
There is a strange smell.
Is it being used in a place with a lot of smoke, dust, or
odors?
• Clean the air intakes on the front sides of the unit and clean the
pre-lter.
• Contact customer service to conrm the exact cause.
• Replace the Deodorization lter and True HEPA lter.
The product is not purifying the air enough.
Is the Check Filter indicator light on?
• Replace the lters as required.

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 19
Model Name AUS-1050AZBU
Power Voltage 220 - 240 V, 50 / 60 Hz
Power Rate 50 W
Recommended room capacity 49.5 m2
Weight 8.5 kg
Dimensions 415 mm(W) x 245 mm(D) x 600 mm(H)
Replacement Filter FILTER GU, item : 1712-0095-01
FILTER GJ, item : 1712-0092-01
• The exterior, design, and product specications may be changed without prior notice to improve product performance.
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air purier. This product is for household use only.
IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER
WARNING : Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or re.
• Do not repair or modify the unit unless specically recommended in this manual. All other repairs should be
completed by a qualied technician.
• Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.
• Use AC 220 - 240 V only.
• Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.
• Periodically remove dust from the power plug. This will reduce the risk of shock due to humidity build up.
• If the power plug is damaged, it must be replaced by the manufacturer or a qualied technician.
• Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by hold-
ing the plug itself, never hold by the cord.
• Remove the power plug from the outlet when not in use.
• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke-generating insecticides.
• Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the unit may become wet, such as the bathroom.
• Do not insert ngers or foreign objects into air intake or outlet.
• Do not use the unit near ammable gases. Do not use near cigarettes, incense, or other spark-creating items.
• Unit will not remove carbon monoxide emitted from heating appliances or other sources.
UNIT SPECIFICATIONS

USER MANUAL WINIX ZERO 5 AIR PURIFIER
Page 20
IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER
• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove.
• Do not use where the unit may come into contact with steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue, such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a lter.
• Do not wash and reuse the True HEPA Filter or the Deodorization lter.
• Hold the handle on the back of the unit to transport.
• Do not hold by the front panel.
PRODUCT WARRANTY
Product Name Air Purier
Model Name AUS-1250AZPU
Purchase Date
Warranty period Two (2) years
Place of purchase
Place of purchase Tel.
Customer
Address
Name
Tel.
• After purchase, be sure to complete all of the above information.
