Winix HR1000 User manual

WINIX AIR CLEANE
R
HR1000
User Manual
xPlease read and follow all safety rules and instructions in
this manual before operating.
xThe product warranty is printed on the back of this guide,
so please keep it in a safe place for future use.
Model
Use & Care
Guide

2
English HR 1000
CONTENTS
Set Up
Where to use 5
Installing the filters 6
Safety Instructions
Safety and Cautions 8
Operation
Initial Operation 9
Modes of Operation 10
Features and Settings 11
WINIX SMART Set Up 13
Care and Maintenance
Filter Care 14
Smart Sensor Care 18
Cleaning Care 19
Troubleshooting
Frequently Asked Questions 20
Unit Specifications 22
Product Warranty 24
5-Stage Air Purification 3
Controls 4
This product is suitable for 220 ~ 240V only.
French 25
Spanish 49
German 73
Italian 97
Nederlands 121

3
English HR 1000
PlasmaWave®
4 Anti-microbial coated
3 True HEPA filter 2 (CD) Coated Deodorization
Carbon filter
1 Pre-filter
5-STAGE AIR PURIFICATION
non-removable
replaceable
washable
replaceable
5
PACKAGE CONTENTS
Product Pre-filter/CD Carbon Filter/
Anti-microbial True HEPA filter
(Included with the product.)
Power cord with
plug
User Manual

4
English HR 1000
Air
Outlet
Vent
Light Sensor
Detects the amount of
ambient light within
the environment, to
adjust the brightness
of the LED indicators.
Timer Indicator
If timer has been set, the LED
light Indicates the set time of
operation.
PlasmaWave® Indicator
Indicates whether
PlasmaWave® is
enabled or disabled.
Smart Sensor
Automatically
detects indoor air
quality.
Child Lock Indicator
LED light indicates
whether Child Lock mode
is enabled or disabled.
Wi-Fi Strength Indicator
Displays the strength of the Wi-Fi
connection.
Mode / Fan Speed Button
Every time the Mode button is
pressed, the Mode LED light will
cycle through the settings. (Auto,
Sleep, Low, Medium, High, Turbo)
Power Button
Turns the unit on or
off.
Timer / Air Quality Button
Press to cycle through and set
desired length of operation (1hr,
4hr, 8hr, [NO TIMER]).
Press and hold for 3 seconds to
enable or disable the Air Quality
light.
PlasmaWave® / Child Lock Button
Enables or disables PlasmaWave®. Press and hold for 3
seconds to enable or disable the Child Lock mode.
Check Filter
Indicator
LED light indicates
when it is time to
change the filter.
Reset Button
After replacing a filter, press
the RESET button for at least
5 seconds.
CONTROLS
Wi-Fi Button
Enables or disables
Wi-Fi function.
WINIX SMART
Indicator
LED light indicates
when WINIX SMART is
active with your unit.

Installation | Set up
5
English HR 1000
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
WHERE TO USE
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc.)
Do not place near any flammable materials
(aerosols, fuel, gases etc.)
Do not place below any electrical outlet
Do not place around heating elements
Do not place in an area with excessive
amounts of noxious gases
Do not have unit facing into wind or draft
Do not place in excessively humid areas
where unit may become wet
Allow 30 ~ 46 cm. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
This unit is not intended to be used to preserve documents or in art conservation.
30~46 cm
10 cm

6
Set up | Installation
English HR 1000
3 Anti-microbial
True HEPA filter
2
CD Carbon
filter
1 Pre-filter
INSTALLING THE FILTERS
This product comes with all of the required filters. The protective plastic wrap must be
removed from the filters before use.
Operating the unit without removing the plastic wrap may result in product failure.
Unplug and make sure the unit is turned off before installing filters.
The unit will automatically power off when front panel is opened.

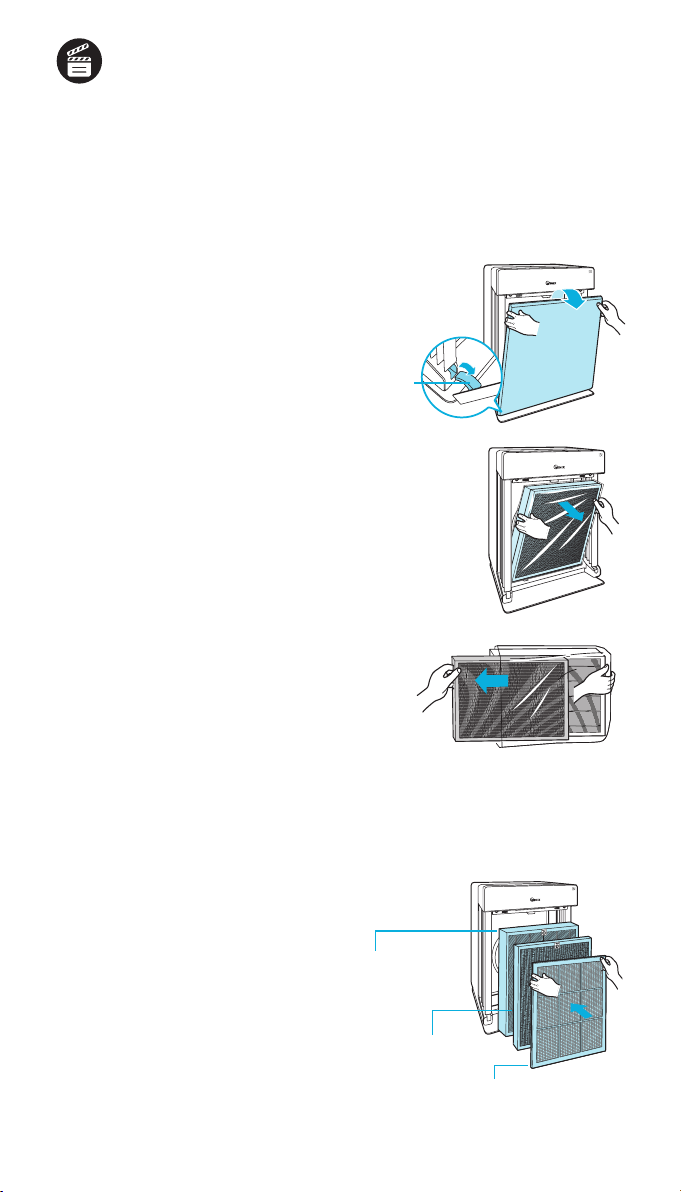

󰴤Remove the front panel by grasping
its upper edge and gently pulling
towards yourself.
xTo remove the front panel, the latch
at the lower edge of the panel must
be released from its position. Latch
󰴥Remove the filters from the unit,
they are protected inside a plastic
wrap.
󰴦Remove filters from protective
plastic wrap.
xOperating the unit without removing
lters from plastic may cause abnormal
noise, deformation, or re as a result of
overheating.
󰴧Install the filters until they fit
securely in place.
Filters must be installed in this order:
3Anti-microbial True HEPA filter
(rear)
2CD Carbon filter (middle)
1Pre-filter (front)

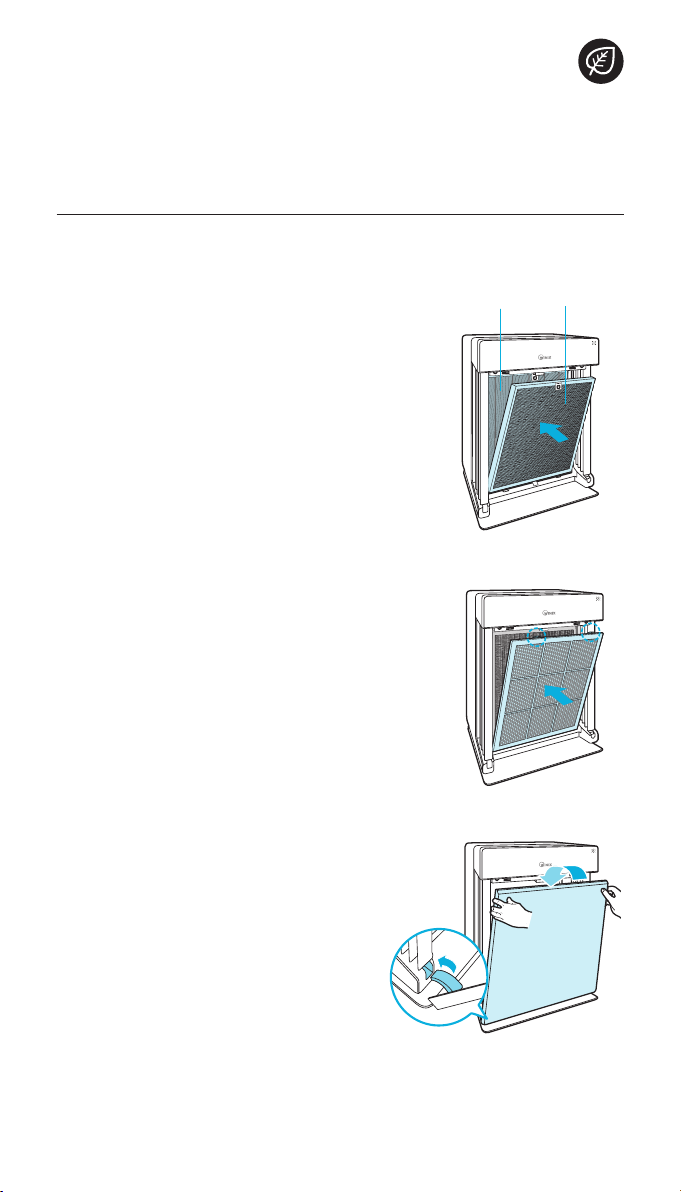

xTo install the pre-lter, insert
bottom tabs into the slots on either side
of the lower part of the unit, then rotate
upward to insert the upper tabs into the
slots at the top part of the unit until both
sides audibly click into place.

Installation | Set up
7
English HR 1000
󰴨Replace the front panel by first
inserting the latch at the bottom
edge into the base of the unit, then
rotate the panel upward toward the
top of the unit until it magnetically
snaps closed.

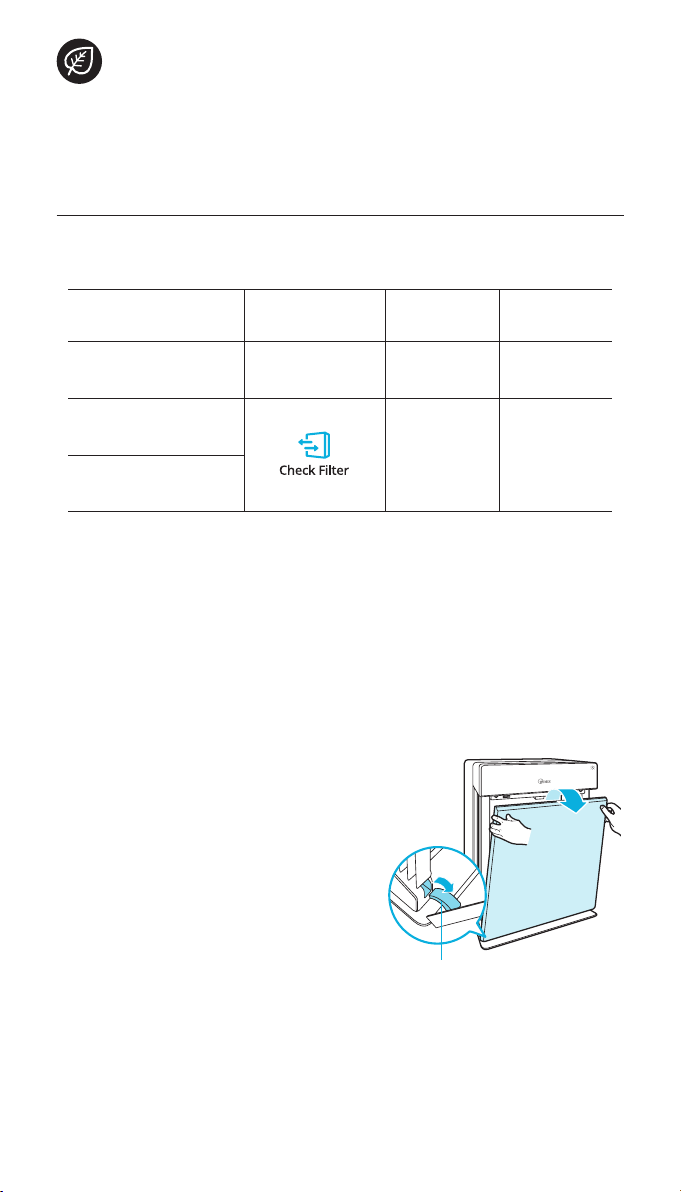

󰴩When to service and replace filters:
Filter Indicator Light When to
service
When to
replace
1Pre-filter none Clean once
every 14 days Permanent
2 CD Carbon filter
Can NOT be
WASHED
Lasts up to
12 months
3 Anti-microbial True
HEPA filter
Intervals between filter replacement may vary depending on environment.
For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of
other filters.
▶Refer to pages 14-18 for detailed information on filter care and
how to replace them.
INSTALLING THE FILTERS
this unit
is compatible
with this
filter
ITEM: 117130
FILTER
J

Safety Instructions | Operation
8
English HR 1000
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety cautions and
instructions to avoid damage and ensure safe use.
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal temperatures causing product failure and deformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.
Do not pull on the power cord when
unplugging the unit
Do not touch the plug with wet hands
Do not plug additional appliances into the
same outlet or power supply
Unplug unit when not in operation for
extended periods of time
Do not tie or knot power cord when unit
is in operation
Do not unplug or move the unit while in
operation
If the unit becomes submerged in water,
unplug it and contact customer service
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it
If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
This appliance is not intended for use by a person (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Operating the air cleaner | Operation
9
English HR 1000

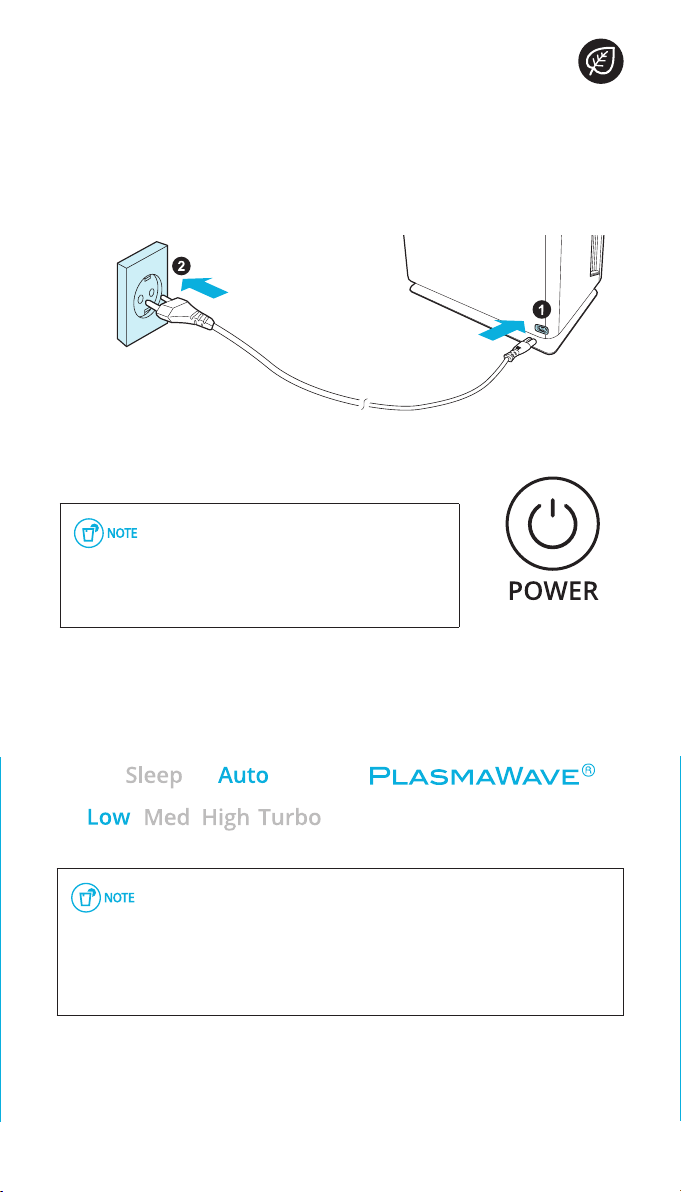

󰴤Insert the unit plug into an electrical outlet.
xThe Control Panel lights will turn on and o.
󰴥Press the [Power] button.
▶During the first 4 minutes of power up,
the Air Quality light will flash as the
Smart Sensors measure the air quality in
the environment, after which normal
operation will begin.
󰴦By default, when the unit first powers on, the mode will be set to Auto
with PlasmaWave® enabled.
xWhen in Auto Mode the fan speed will be automatically adjusted according to the
environments air quality.
xPlasmaWave® works to remove harmful airborne contaminants.
▶In Auto mode, as the indoor air quality improves, the fan speed
will automatically be reduced to Low.
▶When the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave®, it is normal and does not signify product failure. To
disable PlasmaWave®, see page 11.
INITIAL OPERATION

Operation | Operating the air cleaner
10
English HR 1000

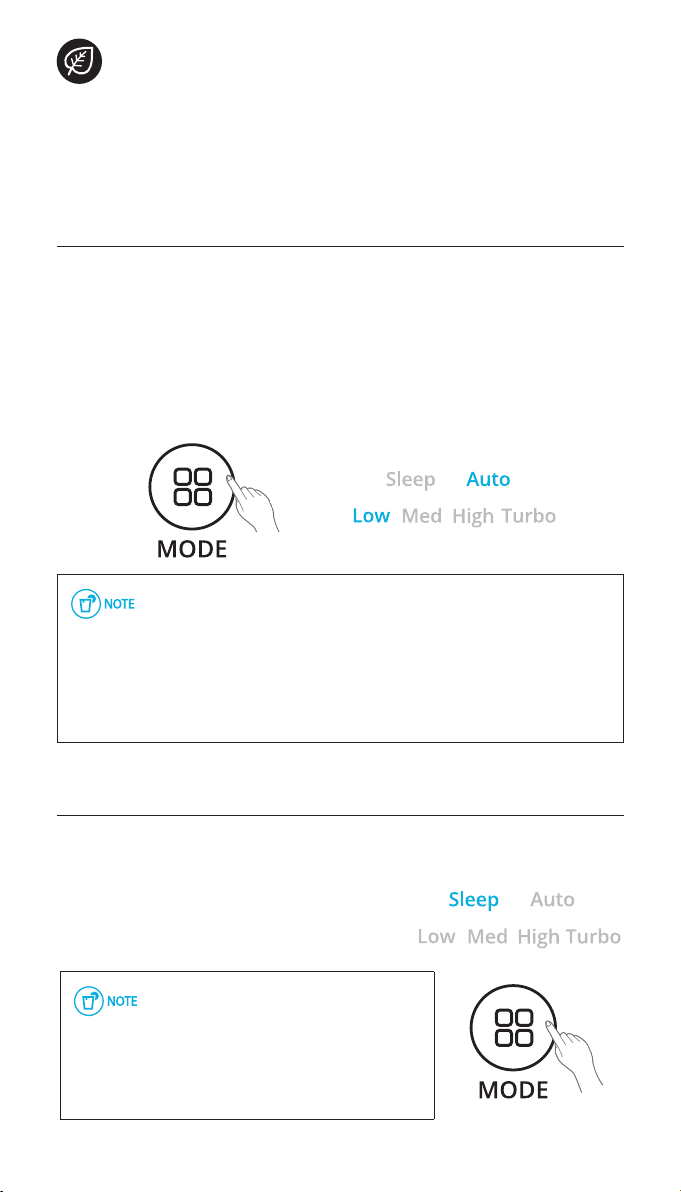

1. Auto Mode
Enables Auto operation based on the unit's air quality Smart Sensors.
󰴤Press the Mode button to select Auto mode.
xThe mode LED light will indicate when‘Auto’ mode has been selected, and
operation will begin.
xEach time the Mode button is pressed, the modes will be cycled.
(Auto, Sleep, Low, Medium, High, Turbo).
▶
▶When in Auto Mode the fan speed is automatically adjusted
according to the indoor air quality. As the indoor air quality
improves, the fan speed will automatically be reduced. If the
indoor air quality decreases the fan speed will automatically be
increased.
▶When unit is first started, Auto Mode is enabled and set to Low
fan speed.
2. Sleep Mode
󰴤Press the Mode button to select Sleep
mode.
xThe mode LED light will indicate when‘Sleep’
mode has been selected, and operation in
that mode will begin.
▶When Sleep mode is selected, the fan
speed is automatically set to Low. Fan
speed can be changed by pressing the
Fan Speed (Mode) Button.
▶When Sleep Mode is enabled, the Air
Quality light is disabled.
AUTO AND SLEEP
Every time the Mode button is pressed, the Mode LED light will cycle through the
settings. (Auto, Sleep, Low, Medium, High, Turbo)

Operating the air cleaner | Operation
11
English HR 1000
3. Manual Mode (setting fan speed)
Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.
󰴤Press the Mode button to select
the desired fan speed.
xThe mode LED light will indicate the selected
fan speed, and operation will begin.
▶When Manual Mode is in use, Auto and Sleep modes are
automatically disabled.
4. Timer
The timer can be set for when you want the unit to run for a specified period of time.
󰴤Select the desired period by pressing
the Timer button.
xThe Timer LED light will indicate the
selected length of operation.
xEvery time the Timer button is pressed
the Timer LED light will cycle through the
settings. (1hr, 4hr, 8hr, [NO TIMER]).

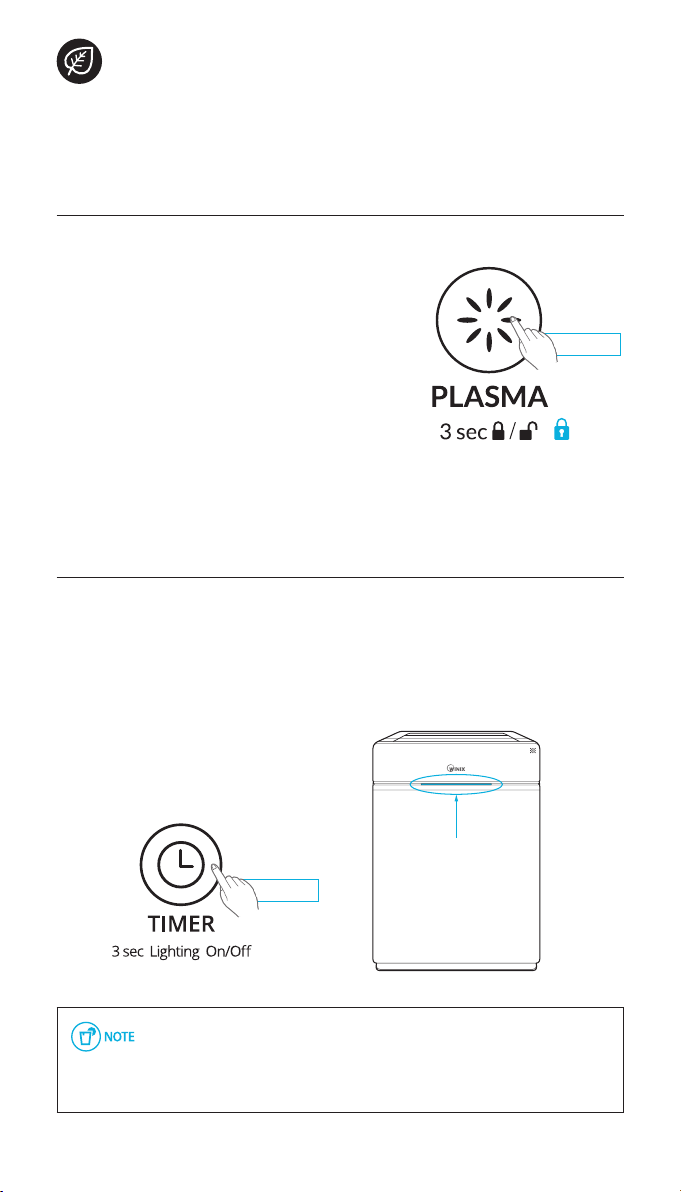

5. PlasmaWave®
By default, PlasmaWave® is enabled whenever the unit is powered on.
󰴤Press the Plasma button when the
power is on to enable or disable this
feature.
MANUAL MODE, TIMER AND PLASMAWAVE®
Every time the Mode button is pressed, the Mode LED light will cycle through the
settings. (Auto, Sleep, Low, Medium, High, Turbo)

Operation | Operating the air cleaner
12
English HR 1000
6. Child Lock
This feature prevents children from tampering with the control panel.
󰴤Press and hold the Plasma/Child Lock
button for 3 seconds to enable or
disable the feature.
xWhen the Child Lock indicator is lit, the
feature is enabled.
xWhen Child Lock is enabled, the control
panel is locked and the settings cannot
be changed.
xTo disable, press and hold the Child Lock
button again for 3 seconds.
3 seconds
7. Air Quality LED Light
The Air Quality LED light may be turned on or off.
󰴤To turn the Air Quality LED light on or off,
press and hold the Timer button for 3 seconds.
xWhen on, the LED light will indicate the
current indoor air quality according to
three levels
BLUE (good), AMBER (fair), RED (poor)
▶When Auto Mode is enabled the Air Quality LED light may or may not
be on, depending on the amount of ambient light in the room.
▶When Sleep Mode is activated, the Air Quality Indicator light is
turned off.
CHILD LOCK, AIR QUALITY LED
3 seconds ▶
Air Quality Indicator

Operating the air cleaner | Operation
13
English HR 1000
8. Connecting to WINIX SMART
WINIX SMART allows you to conveniently control your air purifier from any location.
WINIX SMART is optimized for the following specifications. Depending
on your smart phone capabilities and service parameters, some
functions may not be supported.
Before connecting to Smart Home
• A Wi-Fi wireless router must be installed within range of the air purifier to use WINIX SMART.
• Ensure Wi-Fi router matches the following specifications; 802.11b/g/n 2.4GHZ or for a dual-band wireless
router (2.4GHz/5GHz), be sure to select 2.4GHz.
• Be sure to have the Wi-Fi password handy.
• During registration, please keep the air purifier, wireless router, and smart device within a 32 ft. radius.
• Obstacles between the air purifier, wireless router, and smart device may cause weak reception.
• Before connecting, users with a "Smart Network Switch" on their device should temporarily disable it.
• Once WINIX SMART has been connected, the "Smart Network Switch" on your device can be enabled.
Setup
󰴤Download the WINIX SMART app on your device.
xavailable via Google Play store or iTunes App store
󰴥Run the app and follow the setup
guide to connect your device to the unit.
xSelect "New Unit" and choose HR1000
to connect to this model.
xRead the notice and select "OK".
xEnter the password to your Wi-Fi network.
xPress and hold the Wi-Fi button on the unit's control
panel until it beeps. *The Wi-Fi strength indicator will begin to blink*
xConnect to the WINIX SMART network via your device's network menu.
xSelecting "Next" will connect your unit to your device.
xDene the unit settings (Name and Location).
xWhen set up is complete, the WINIX SMART Indicator will light up.
▶The WINIX SMART Indicator will only light up when the app is in
direct use. If the app is closed it will turn off, but will light up
again when the app is re-opened.
▶The light will turn off if the app controls another Winix unit.
WINIX SMART
ANDROID
iOS
(ICS 4.12 Jellybean or later recommended)
(6.0 or later recommended - iPhone 4S or later)

Care and Maintenance
14
English HR 1000
1. Changing Filters
When the Check Filter indicator LED is on, it is time to replace both the Anti-microbial
True HEPA and CD Carbon filters.
Filter Indicator Light When to
service
When to
replace
1Pre-filter -Clean once
every 14 days Permanent
2 CD Carbon filter
Can NOT be
WASHED
Lasts up to
12 months
3 Anti-microbial True
HEPA filter
Intervals between filter replacement may vary depending on environment.
For optimal use Pre-filter can be cleaned every 14 days which can extend the life of
other filters.
FILTER CARE
Removing Filters
Ensure the unit is turned off and unplugged before removing filters.
The unit will automatically power off when front panel is opened.
󰴤Remove the front panel by grasping its
upper edge and gently pulling towards
yourself.
xTo remove the front panel, the latch at the
lower edge of the panel must be released
from its position.
Latch

Care and Maintenance
15
English HR 1000
󰴥Press the tabs on the top edge to
remove the 1Pre-filter.
Tabs
󰴦First remove the 2CD Carbon filter and
then the 3Anti-microbial True HEPA
filter by pulling on the numbered tags at
the top of each filter.
For optimal performance, only genuine Winix filters should be
used with this unit.
FILTER CARE

Care and Maintenance
16
English HR 1000

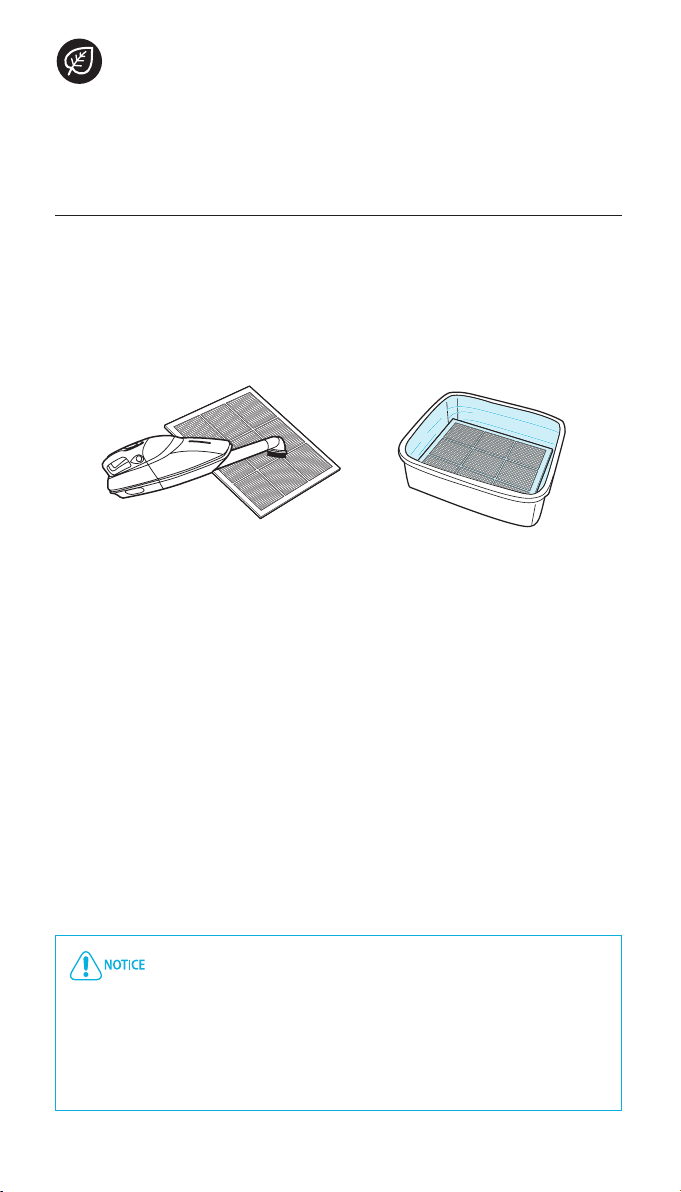

2. Cleaning the Pre-filter
Intervals between filter cleanings may vary depending on the air quality.
Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is
excessively dirty, wash with room temperature water.
xUse only water, do not use volatile substances such as alcohol or acetone.
If the pre-filter becomes damaged or in any way needs replacement:
Please contact your local dealer
Do not use benzene, alcohol, or other volatile fluids, which may
cause damage or discoloration.
The Pre-filter is reusable after cleaning.
Do not use hot water over 104°F or volatile fluids such as paint
thinner.
After washing the pre-filter, allow it to dry completely in a well-
ventilated area. Otherwise, it may develop a bad odor.
FILTER CARE

Care and Maintenance
17
English HR 1000
3. Filter Assembly and Replacement
Filters should be re-installed in the reverse order of their removal.
󰴤Insert the replacement
3 Anti-microbial True HEPA filter (rear)
2CD Carbon filter (middle)
xRemove the protective plastic wrap from
new lters. Operating the unit without
removing the protective plastic wrap may
cause abnormal noise, deformation, or re as
a result of overheating. 3 Anti-microbial
True HEPA filter 2 CD Carbon
filter
󰴥Insert the 1Pre-filter (front).
xTo install the pre-lter, insert bottom tabs
into the slots on either side of the lower part
of the unit, then rotate upward to insert the
upper tabs into the slots at the top part of
the unit until both sides audibly click into
place.
󰴦Replace the front panel by first inserting
the latch at the bottom edge into the
base of the unit, then rotate the panel
upward toward the top of the unit until
it magnetically snaps closed.
FILTER CARE

Care and Maintenance
18
English HR 1000

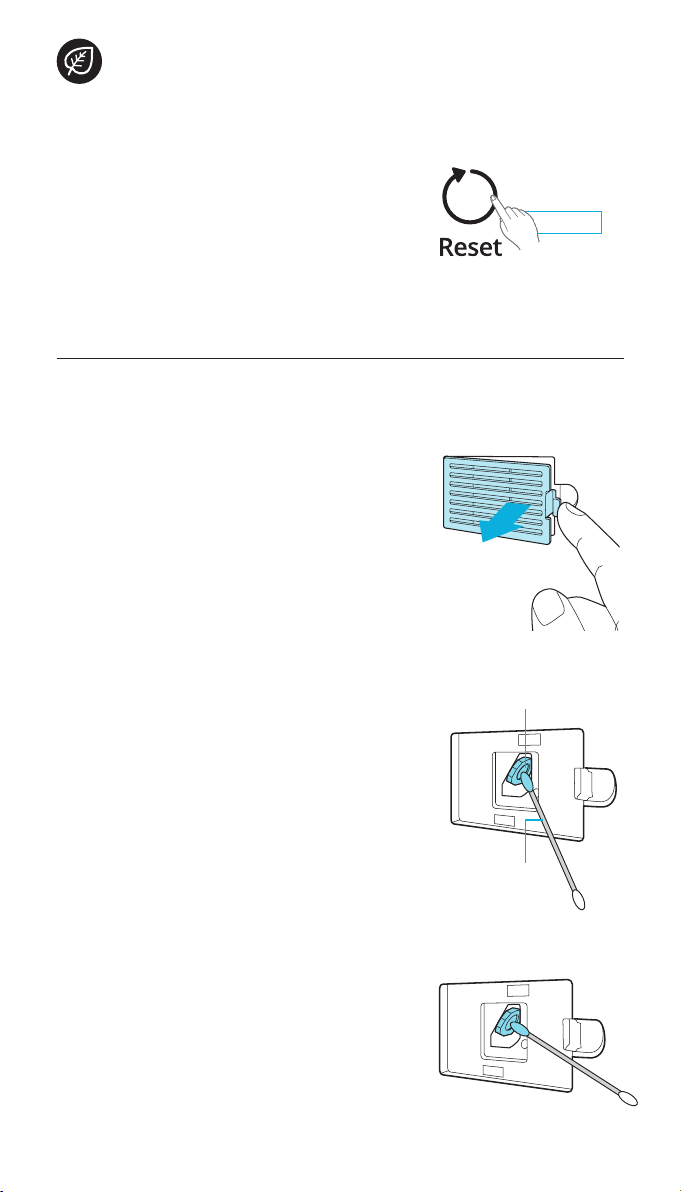

󰴧After replacing the filters, power on the
unit. Once the unit running, press and
hold the RESET button for 5 seconds.
4. Cleaning the Dust Sensor
For optimal performance of the Dust Sensor, which detects airborne dust and
ultrafine particles, clean it every two months. Clean it more frequently when the unit
is running in a place with high dust levels.
󰴤Open the Dust Sensor cover.
󰴥Use a damp cotton swab to wipe the
lens and intake area of the Dust Sensor.
xTo clean the sensor area, use only water. Do
not use volatile substances such as alcohol
or acetone.
Lens
Cotton
swab
󰴦Wipe away any remaining moisture with
a dry cotton swab.
SMART SENSOR CARE
5 seconds

Care and Maintenance
19
English HR 1000
󰴧Close the Dust Sensor cover.
xThe Dust Sensor cover may be cleaned using
a vacuum cleaner.

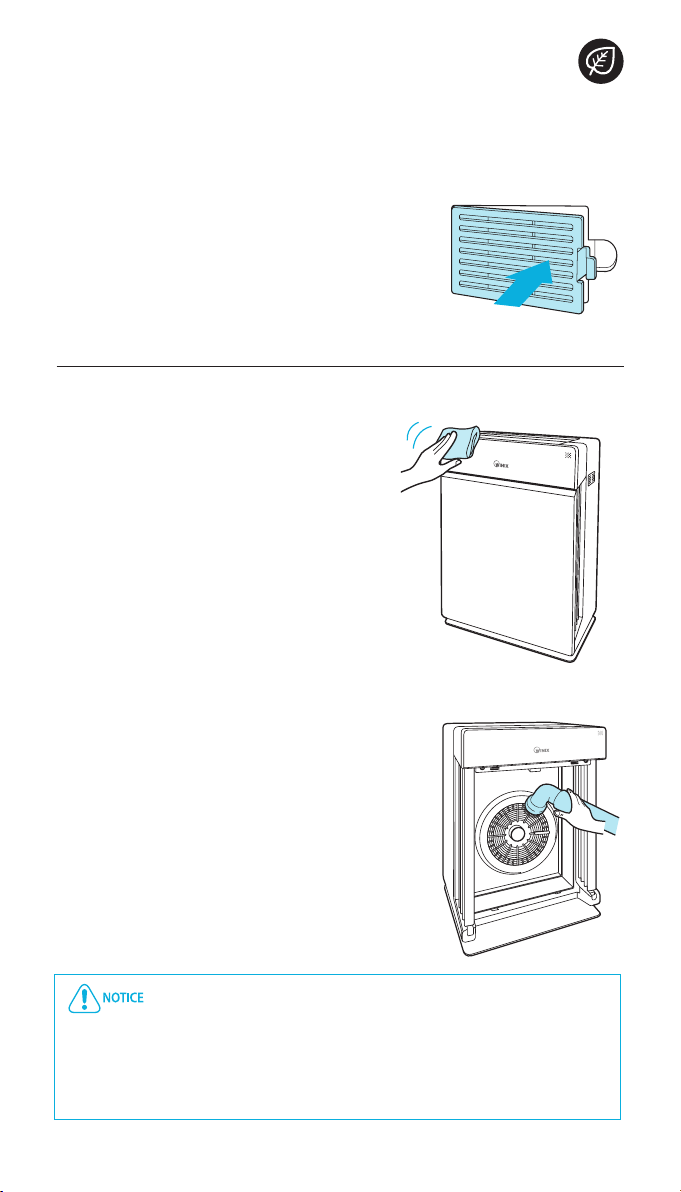

Cleaning the exterior and interior
Cleaning the exterior
Wipe with a soft damp cloth using room
temperature water. Afterwards, wipe it
down with a clean dry cloth.
xFor optimal performance, clean the front
panel 1-2 times a month.
Cleaning the interior
Open the front panel and clean the
interior with a vacuum cleaner.
xFor optimal performance, clean the interior
1-2 times a month.
When cleaning the unit, always unplug the power cord first and
then wait until the unit has cooled off.
Never disassemble, repair or modify this unit yourself
Do not use flammable sprays or liquid detergents
Do not allow children to clean or maintain the unit
Before cleaning or maintaining, ensure unit is off and unplugged
CLEANING CARE
5.

Autre | Dépannage
20
Français HR 1000

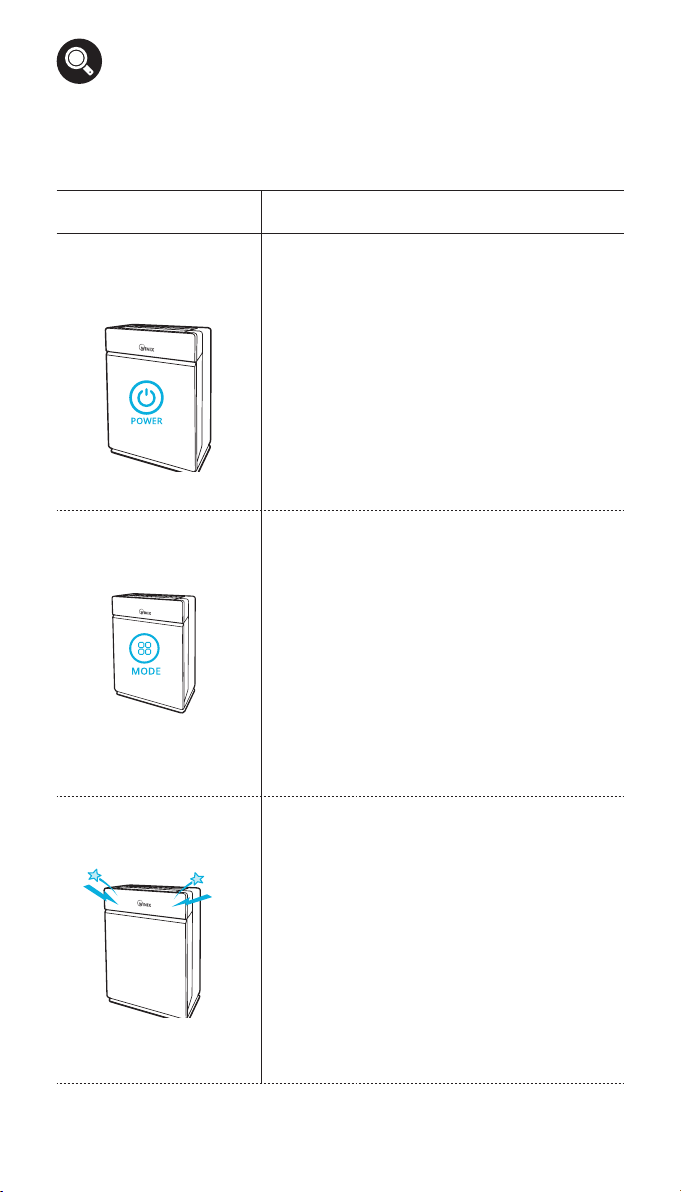

Problem Check /Actions to take
It does not turn on
at all.
▶Is there a power outage?
Check to see if other lights and electrical
equipment are working and try again.
It doesn’t work in Auto
mode.
▶Has Auto mode been selected?
Press the Mode button until Auto mode is
selected.
▶Is the sensor blocked or clogged?
Clear the sensor using a vacuum cleaner.
view page 18
It vibrates and makes a
lot of noise.
▶Is it running on a slanted surface?
Move the unit to a hard, flat area of the floor.
FREQUENTLY ASKED QUESTIONS
