Winix C535 User manual

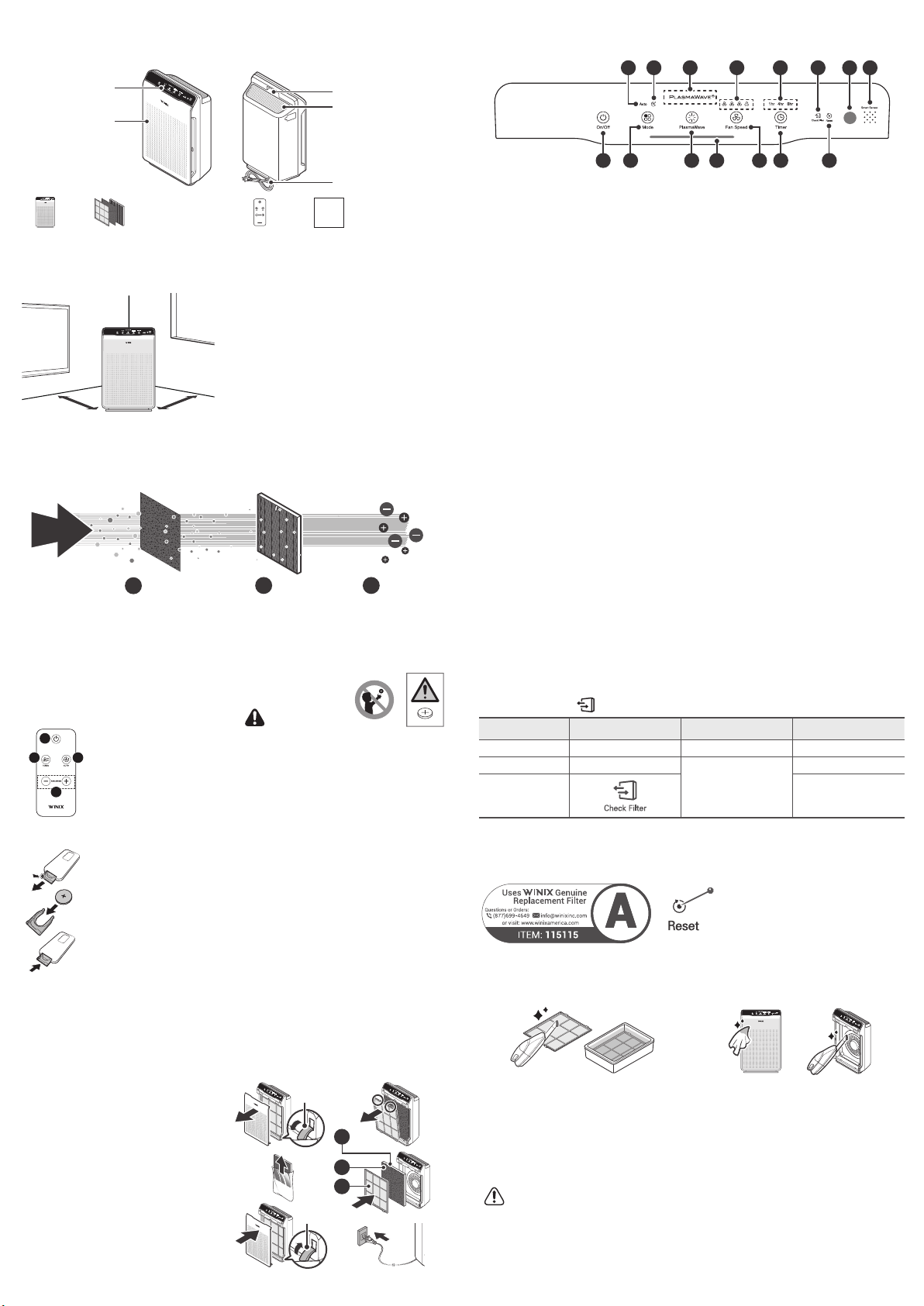

FRONT
PACKAGE CONTENTS
BACK
Air Outlet
Vent
Handle
Power Plug
Remote Control and User Manual will be located
on the top insert after the box is opened.
Control Panel
Front Panel
(1) Pre-Filter
(4) Activated Carbon Filters
(1) True HEPA Filter
Unit User Manual
Remote
Control
MODEL PART DIAGRAM
10 11 14 1512 13
09
02 03 04 05 06 07 0801
01. Auto Indicator
Indicates whether Auto Mode is enabled or disabled.
02. Sleep Indicator
Indicates whether Sleep Mode is enabled or disabled.
03. PlasmaWave®Indicator
Indicates whether PlasmaWave® is enabled or disabled.
04. Fan Speed Indicator
Indicates the current fan speed.
05. Timer Indicator
If timer has been set, the LED light indicates the set time
of operation.
06. Filter Replacement Indicator
LED light indicates when it is time to change the filter.
07. Light Sensor
Detects the amount of ambient light in the environment.
08. Smart Sensor
Detects the amount of odorous gas in the environment.
When in Auto mode, the fan speed adjusts according to
the detected amount of gas.
09. Power Button
Turns the unit on or off.
During the first 30 seconds of powering up, the Air Quality
Indicator will cycle through Blue, Amber and Red colors.
Smart Sensor takes approximately 4 minutes to detect the air
quality in the environment before normal operation begins.
10. Mode Button
Press to cycle through to set the mode of operation (Auto,
Sleep). The unit will default to Auto with PlasmaWave®
enabled when first powered on.
•Auto Mode:
- Auto Mode automatically adjusts fan speeds
according to your indoor air quality. The fan speed
will adjust to low when air quality is good, medium
when fair, and to high when poor.
•Sleep Mode:
- When Sleep Mode is activated, the Air Quality
Indicator LED light is disabled.
- Fan speed will automatically set to minimum speed
(lower than 'Low') which will be nearly silent.
- When Sleep Mode is active, PlasmaWave®will be
disabled, but it can be turned back on.
11. PlasmaWave®Button
Enables or disables PlasmaWave®.
"When the unit is running, you may hear a chirping or
buzzing sound. The sound is from large particles passing
through PlasmaWave®, it is normal and does not signify
product failure."
Press the PlasmaWave®button when the unit is on
to enable or disable this feature.
12. Air Quality Indicator
Color coded LED light indicates one of three levels of
Air Quality: Red (poor), Amber (fair), and Blue (good).
13. Fan Speed Button
Enables manual operation of the unit's fan speeds.
• Press to cycle through and set the desired fan speed
(Low, Medium, High, Turbo).
14. Timer Button
Press to cycle through and set desired length of operation
(1hr, 4hr, 8hr, [NO TIMER]).
15. Filter Reset Button
After replacing the filter, turn on the unit and then use a
thin object, such as a paper clip, to press the Filter Reset
Button for 5 seconds.
CONTROL PANEL
INITIAL OPERATION
1. Remove the front panel by grasping its upper
edge and gently pulling forward.
2. Remove the Pre-Filter, then the plastic bag of
filters behind it.
3. Remove filters from protective plastic bag.
4. Install the filters until they fit securely in place.
03. True HEPA Filter (back)
02. Activated Carbon Filter (middle)
01. Pre-Filter (front)
5. After filters are installed, close the front panel.
6. Insert the power cord into an electrical outlet.
Latch
02
03
01
Latch
When to Replace Filters
Filter Indicator Light When to Service When to Replace
Pre-Filter none Clean once every 14 days Permanent
Activated Carbon Filter none
Can NOT be WASHED
Replace every 3 months
True HEPA Filter Lasts Approx.12 months
• When the Check Filter Indicator LED is on, it is time to replace the True HEPA Filter and Activated Carbon Filter.
• Intervals between filter replacement may vary depending on environment.
MAINTENANCE
CLEANING CARE
Cleaning the Filters:
Use a vacuum cleaner or soft brush to clean the Pre-Filter
• If it is excessively soiled, rinse in room temperature water.
• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more before using.
• Intervals between filter cleaning may vary depending on
the air quality in the environment.
• Do not use hot water over 104oF.
Cleaning the Exterior & Interior:
1. Open the front panel and clean the interior with a
vacuum cleaner.
• A handheld vacuum or hose attachment will work best.
2. Dampen a cloth with room temperature water and wipe
down the interior and exterior of the unit.
3. Wipe the unit down with a clean, dry cloth.
• Ensure no moisture remains before plugging the unit back in.
* For optimal performance, clean every 1 - 2 months.
NOTICE
• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify the unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.
• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
REMOTE CONTROL
Operates in a 20 foot radius:
A
C
B
D
•(A) Power: Turns the unit on or off.
•(B) Auto: Enables Auto Mode.
•(C) Fan Speed: Enables manual
operation of the fan speeds.
•(D) Turbo: Enters Manual Mode
and directly sets the fan speed
to Turbo.
How to replace your remote’s battery:
1. Flip over your remote and open
battery tray.
1.A: Pinch the lever in while,
1.B: Pulling the battery tray out.
2. Insert battery into the battery
tray as shown.
2.A : Make sure the polarities [+]
[-] match when placing in the tray.
3. Close the battery tray.
3.A
: Reinsert battery tray into
remote until you hear a "click"
sound.
1.A
1.B
2.A
3.A
※
Keep all used batteries (CR2025) in safe place.
REPLACING FILTERS
Resetting Filter Life:
After replacing your True HEPA Filter, place the
Pre-Filter back in and close the Front Panel. While
the unit is on, hold the Filter Reset Button for at
least 5 seconds until you hear the beep. After
the beep, the Filter Replacement Indicator will
disappear. Your Winix True HEPA is now reset.
WARNING
•Incorrect battery usage may cause battery fluid
leakage and/or damage.
•When not using remote for extended periods of time,
remove the battery.
•Avoid dropping or damaging the remote.
•WARNING: Chemical Burn Hazard. Keep batteries
away from children.
•This product contains a lithium button/coin cell
battery. If a new or used lithium button/coin cell
battery is swallowed or enters the body, it can cause
severe internal burns and can lead to death in as little
as 2 hours.
•Always completely secure the battery compartment.
•If the battery compartment does not close securely,
stop using the product, remove the batteries, and
keep it away from children.
•If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate
medical attention.
•The batteries should be disposed of properly,
including keeping them away from children. Even
used batteries may cause injury.
WHERE TO USE
12~18 in 12~18 in
Allow 12 ~ 18 in. of space between TVs, radios, and other
electronics
Electromagnetic interference from certain electronics may
cause product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and
vibrations.
Allow at least 12~18 in. from walls for maximum air flow
True HEPA Filter
02
Activated Carbon Filter
01 PlasmaWave
®
03
3-STAGE AIR PURIFICATION
Air Purification means it
removes inanimate particles

Do not pull on the power cord when unplugging
the unit.
Do not tie or knot the power cord when unit is in
operation.
If the unit becomes submerged in water, unplug
it and contact customer service.
Do not unplug or move the unit while in
operation.
Do not plug additional appliances into the same
outlet or power supply.
Do not touch the plug with wet hands.
Unplug the unit when not in operation for
extended periods of time.
Do not place around heating elements.
Do not use around mist or fumes from industrial
oil or around large quantities of metallic dust.
The cord can become damaged by forcefully
bending, pulling, twisting, bundling, pinching or
placing heavy objects on it.
Do not install in any sort of motor or transport
vehicle (trucks, boats, ships, etc.).
Do not place in an area with excessive amounts
of noxious gases.
Do not place near any flammable materials
(aerosols, fuel, gases, etc.).
Do not have the unit facing into wind or draft.
Do not place below any electrical outlet.
Do not place in excessively humid areas where
the unit may become wet.
Do not place unit closer than 12 inches from the
wall during operation. It may cause condensation
to the wall and the surrounding area.
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow
these safety cautions.
Ensure filters are inserted before running unit.
Running the unit without filters can shorten the lifespan of
the unit and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit.
Objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet
hands.
The high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked.
Blockage may lead to increased internal temperatures
causing product failure and derformation.
Do not use the unit as a step stool or place heavy objects on the unit.
Personal injury may occur or product failure and deformation.
• If the power cord is damaged, it must be replaced
by a special cord. Reassembly is available from the
manufacturer or its service agent.
WARNING
Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
• This appliance is not intended for use by a person
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge
of the unit, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• This unit is not intended to be used to preserve
documents or art conservation.
TWO YEARS WARRANTY
The terms of the warranty are as follows:
1. This product is manufactured under stringent quality
control and inspections.
2. The warranty will be voided if product failure is a
result of negligence or misuse by the consumer.
3. A proof of purchase must be presented upon
claiming a Product Warranty.
4. Store the proof of purchase in a safe place or register
your product on winixamerica.com to upload your
proof of purchase.
5. This warranty is valid only in the USA and Canada.
* for more information visit https://winixamerica.com/
terms-and-conditions/
Product Name Air Purifier
Model Name C535
Purchase Date
Warranty Period Two (2) Years
Place of Purchase
Place of Purchase tel.
Customer
Address
Name
Tel.
After purchase, be sure to complete all of the above information.
* Certified Refurbished Air Purifiers come with a 1-year
warranty. All Winix Certified Refurbished Air Purifiers go
through a detailed inspection and refurbishment process
to ensure all quality and performance standards are met.
C535 USER MANUAL
AIR PURIFIER
The energy efficiency of this ENERGY STAR
certified model is measured based on a ratio
between the model’s CADR for smoke and the
electrical energy it consumes, or CADR/Watt.
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air purifier. This product is for household use only.
• Do not repair or modify the unit yourself.
• All repairs should be completed by a qualified Winix
technician.
• The plug for this unit is polarized with one blade wider
than the other. Do not force the plug into an electrical
outlet. Do not alter the plug in any way. If the plug does
not fit into the outlet, reverse the plug. If it still does not
fit, contact a qualified technician to install a proper outlet.
• Do not use if the power cord or plug is damaged or the
connection to the wall outlet is loose.
• Use AC 120V only.
• Do not damage, break, forcefully bend, pull, twist, bundle,
coat, pinch, or place heavy objects on the power cord.
• Periodically remove dust from the power plug. This will
reduce the risk of shock due to humidity build up.
• Remove the power plug from the outlet before cleaning
the unit. When removing the power plug, grasp by holding
the plug itself, never hold by the cord.
• If the power plug is damaged, it must be replaced by
the manufacturer or a qualified technician.
• Remove the power plug from the outlet when not in use.
• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke-
generating insecticides.
• Do not clean unit with benzene or paint thinner.
Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the unit
may become wet, such as the bathroom.
• Do not insert fingers or foreign objects into air intake or
outlet.
• Do not use the unit near flammable gases. Do not use
near cigarettes, incense, or other spark-creating items.
• Unit will not remove carbon monoxide emitted from
heating appliances or other sources.
• Unplugging the product disconnects the remote
functions.
IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER:
WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.
BATTERY IN REMOTE CONTROL:
IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER:
• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove.
• Do not use where the unit may come into contact with steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue, such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter and Carbon Filter.
• Hold the handle on the back of the unit to transport.
• Do not hold by the front panel.
• Do not stick any small objects into the air outlet vents or fan.
• This product contains a button battery. If swallowed, it could cause severe injury or death in just two hours. Seek
medical attention immediately.
• "In French: Cet article contient une pile bouton. De graves blessures ou la mort pourraient suivre dans les deux
heures suivant I'ingestion. Demander I'aide de professionnels de la santé sur le champ."
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two
conditions:
• This device may not cause interference.
• This device must accept any interference, including interference that may cause undesired operation of
the device.
"In French: Cet appareil contient des émetteurs/récepteurs exemptés de licence et conformes aux normes
Innovation, Science et Economic. RSS(s) sans licence de Développement Canada. Le fonctionnement est
soumis aux deux conditions suivantes:
• cet appareil ne doit pas causer d’interférences nuisibles, et
• cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un
fonctionnement non souhaité."
• Dedicated Call Center: ☎[phone]
• Website: www.winixamerica.com
Contact Winix for
product related inquiries and
customer service
To expedite service, please specify the
model name and number, the nature of the
problem, your contact information, and your
address.
SPECIFICATIONS
Model C535
Voltage AC120V/60Hz
Power Rate 70W
Verified Room Size 360sq.ft.
Dimensions 15in(W) × 8.2in(D) × 23.6in(H)
Weight 14.7lbs
Replacement Filter Filter A / SKU: 115115
The exterior, design, and product specifications may be changed without prior notice to improve product performance.
2610-0320-00 Rev.01
