Winix NK105 User manual

NK105
User Manual
xPlease read and follow all safety rules and instructions in
this manual before operating.
xThe product warranty is printed on the back of this guide,
so please keep it in a safe place for future use.
xThis product is manufactured for use only in USA/CA
Model
WINIX AIR CLEANER
Use & Care
Guide

English
4
NK105
CONTENTS
Set Up
Where to use 7
Filter Anatomy 8
Installing the filters 10
Safety Instructions
Safety and Cautions 12
Operation
Initial Operation 13
Modes of Operation 14
Features and Settings 15
WINIX SMART (Wi-Fi) 17
Care and Maintenance
Filter Care 18
Cleaning Care 22
Troubleshooting
Frequently Asked Questions 23
Unit Specifications 25
Product Warranty 26
This product is suitable for 120V only.
4-Stage Air Purification 5
Controls 6

English
5
NK105
VOC Smart Sensor
PACKAGE
CONTENTS
Back panel
Power cord with plug
(This product is suitable for
120V only.)
360o All-in-One True HEPA
Filter
➊ Pre-Filter
➋ True HEPA
➌ CD Carbon Filter
➍ PlasmaWave®
4-STAGE AIR PURIFICATION
Unit 360
o
All-in-One True
HEPA Filter
User Manual

English
6
NK105
CONTROLS
Reset Button
After replacing a filter,
press the RESET button
for at least 5 seconds.
PlasmaWave® Indicator
Indicates whether
PlasmaWave® is enabled or
disabled.
Mode Button
- Press to cycle through manual fan speeds (Low, Medium, High, Turbo).
- Pressing will also cycle through Auto and Sleep Modes.
- When sleep mode is selected the Air Quality Indicator light will be turned off.
- Press and hold for at least 3 seconds to enable or disable PlasmaWave®.
Power Button
Turns the unit
on or off.
Light Sensor
Detects the
amount of
ambient light
within the
environment,
to adjust the
brightness
of the LED
indicators.
Wi-Fi Button
Enables or disables
the Wi-Fi feature.
Change Filter Indicator
LED light indicates when it is time to
change the filter.
Air Quality Indicator
Color-coded LED indicates
one of three levels of air
quality.
Air Outlet Vent
Wi-Fi Indicator
Indicates whether Winix
Smart feature is enabled or
disabled.

English
7
NK105
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
WHERE TO USE
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc.)
Do not place near any flammable materials
(aerosols, fuel, gases etc.)
Do not place below any electrical outlet
Do not place around heating elements
Do not place in an area with excessive
amounts of noxious gases
Do not have unit facing into wind or draft
Do not place in excessively humid areas
where unit may become wet

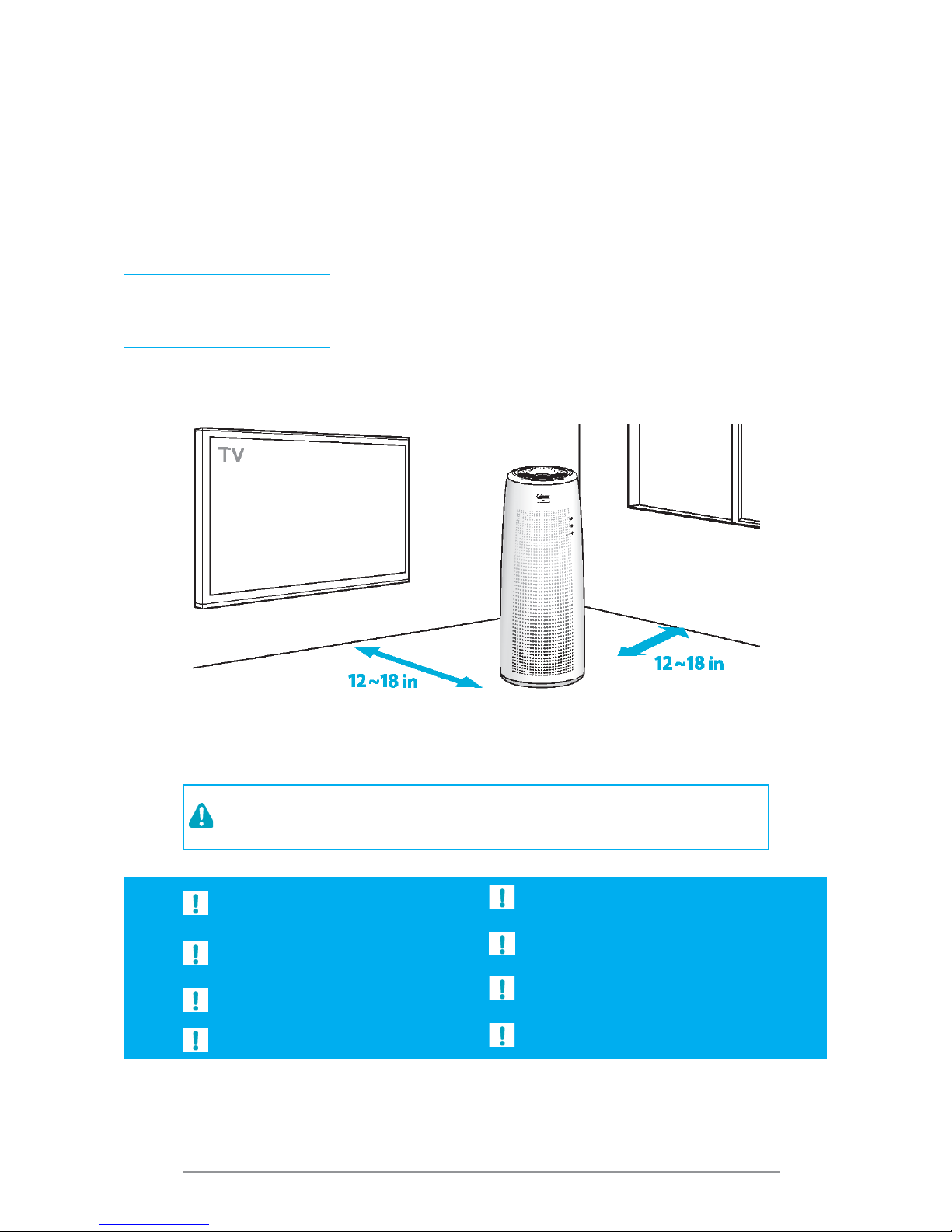

Allow 12 ~ 18 in. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
This unit is not intended to be used to preserve documents or in art conservation.

English
8
NK105
360o All-in-One True HEPA Filter
➊ Pre-Filter ➋ True HEPA ➌ CD Carbon Filter

English
9
NK105
360o All-in-One True HEPA Filter ANATOMY
➊ Pre-Filter
➋ True HEPA
➌ CD Carbon Filter
➊ Pre-Filter designed to catch larger airborne particles
found indoors.
➋ True HEPA captures 99.97%* of airborne allergens
including; pollen, mold spores, dust, pet dander, microbes,
and smoke. *particles as small as 0.3 microns in size
➌ CD Carbon Filter reduces VOCs and household odors
from cooking, pets, and smoke.
• The 360o All-in-One True HEPA Filter is one unit and the
individual components of the filter cannot be purchased
separately.
Note

English
10
NK105
INSTALLING FILTERS
This product comes with all required filters. The protective plastic wrap
must be removed from the filter before use.
※ Operating the unit without removing the plastic wrap may result in
product failure.
※ Unplug and make sure the unit is turned off before installing filter.

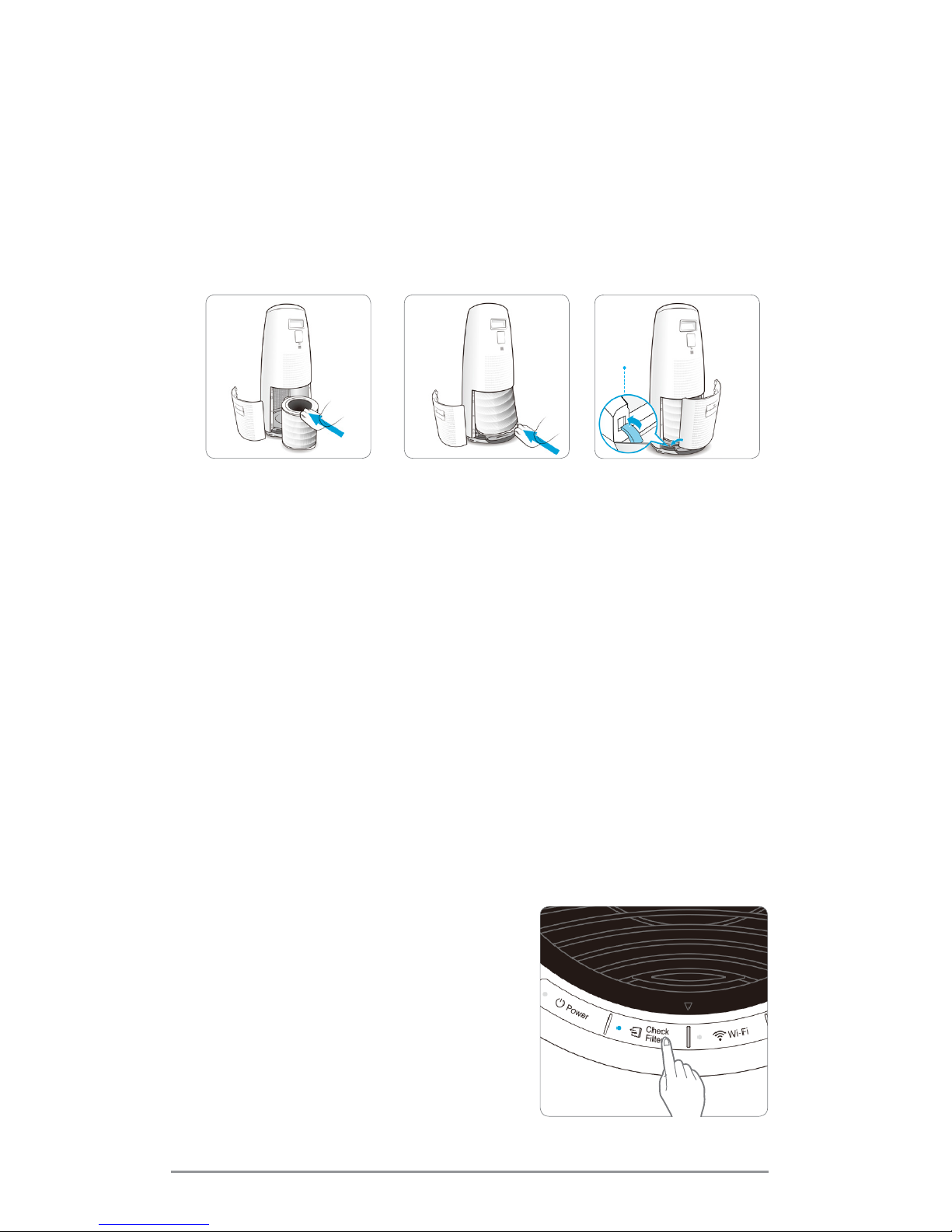

③ Remove the 360
o
All-in-One True
HEPA filter from the unit. Remove the
plastic wrap from the filter.
• Operating the unit without removing
filters from plastic wrap may cause
abnormal noise, deformation, or fire as a
result of overheating.

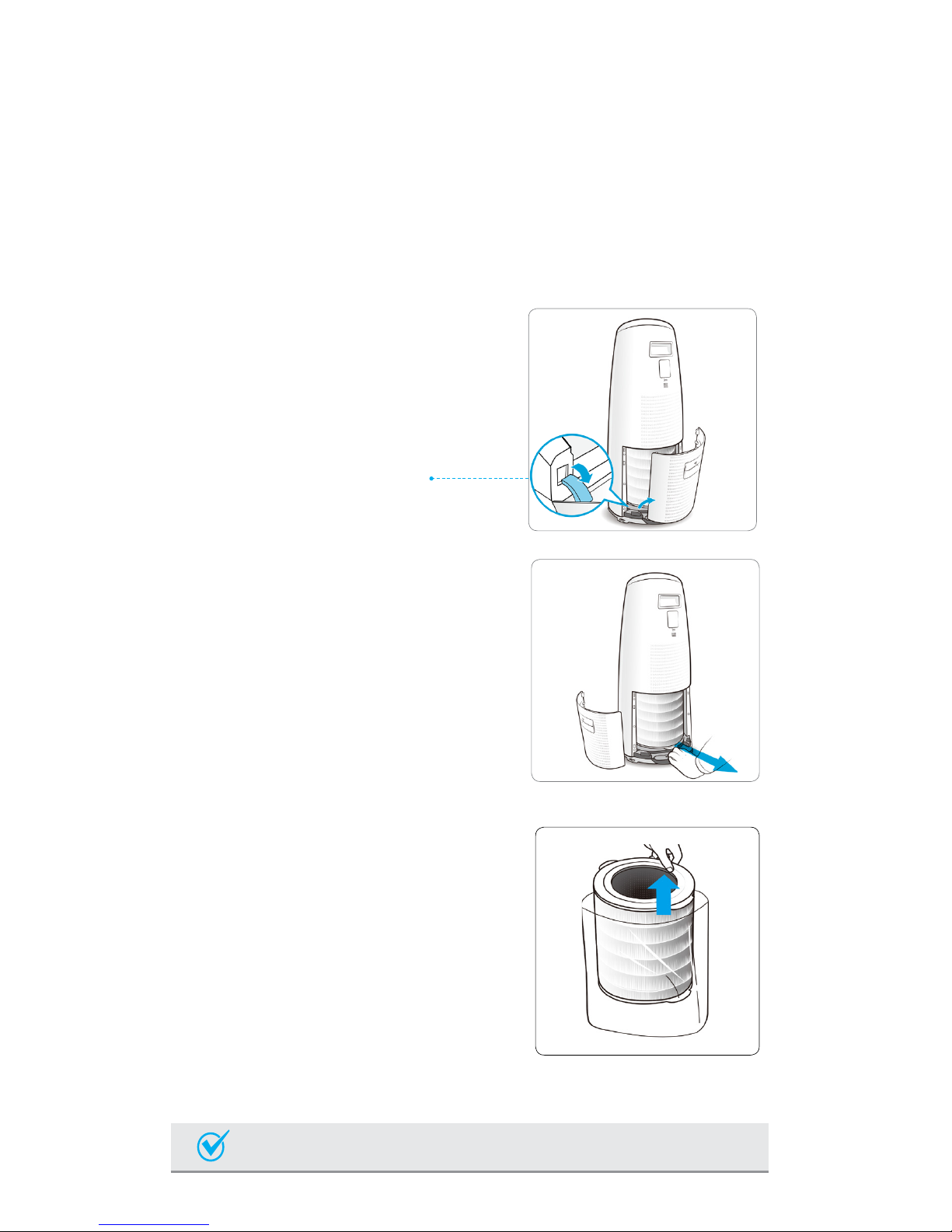

① Remove the back panel by grasping
handle and pulling back, towards
yourself.
Latch
• Refer to pages 18 - 20 for details on how to replace filters.
Note
② Once the back panel is removed, grasp
the handle near the bottom of the unit,
and pull towards yourself to lower and
release the filter.
