Winmate W05TA3S-PCT3AC User manual

Please read these instructions carefully before using this product, and save this manual for future use.
5” S-Series HMI
W05TA3S-PCT3AC
Quick Start Guide
V1.0

Contents
Getting Started 2
Unpacking 3
Accessories 3
Description Of Parts 4
Connector Description 6
DC Input Connector 6
LAN (RJ45) Connector 6
USB A Type Connector 6
Digital Input / Output Connector 7
Turning On or Off 8
Turning ON 8
Turning OFF 9
Using Camera 10
Using Camera 10
Taking pictures 10
Opening the Gallery 11
TARS Test Application 12
Location and Interface 12
Testing LED Light Bar 13
Testing HF RFID Reader 14
HF RFID Reader Introduction 14
Scanning HF RFID Tag 14
Testing DIDO 15
Software Developer Support 16
Software System Diagram 16
Winmate Software Development Kit 16
Technical Specifications 17
HMI Device Specifications 17
HF RFID Reader Specifications 20

2
Please read these instructions carefully before using this product, and save this guide for future use.
Getting Started
Congratulations on purchasing Winmate® 5” S-Series HMI. Interactive and smart
automation systems of intelligent buildings are in a fast growing phase. Winmate®
multi-touch S-Series HMI is suitable for home automation and room management
systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for
any interior. By connecting to centralized database, it can provide real time update
for booking status and available schedule, or perform as a synchronous display in
meetings.
Winmate® 5” S-Series HMI powered by TI Cortex® A8 AM3354 1GHz with DSP
processor and support Android 4.4 operating systems. The HMI device features P-
Cap touch-screen. In addition, the HMI device model supports an exceptional
feature - LED Light Bar. With the help of red, green, blue and orange LED
indicators you can see the status of the machine or processes afar. It significantly
reduces power consumption by keeping the display turned off.
Winmate® 5” S-Series HMI features:
TI Cortex A8 AM3354 1GHz with Android Operating System
Fanless cooling system and ultra-low power consumption
5'' WVGA TFT (LED backlight) with P-CAP touch screen
Gigabit LAN with PoE (IEEE 802.3AT) Solution
Built-in non-contact HF RFID Module
2MP front-facing camera for interactive communication
Multi-Color(G,R,B) Programmable LED Light Bar Indicator
Unidirectional-Mic and Speaker for VoIP application
Wide-distance (10M) RF controller for Digital Out device trigger application
All-in-one design, completed solution for cost-saving and space-saving

3
Unpacking
Carefully remove the box and unpack your device. Please check if all the items
listed below are inside your package. If any of these items are missing or damaged
contact us immediately.
Accessories
Standard factory shipment list:
5” HMI Device
Quick Start Guide
(Hardcopy)
Power Cable
AC Adapter
(12V/ 50W)
Terminal Block 3 pin

4
Please read these instructions carefully before using this product, and save this guide for future use.
Description Of Parts
Front Side:
Rear Side:
Speaker
Kensington
Lock
5” 800*480 LED
panel with
PCAP Touch
Screen
2MP Camera
Mic
RFID Reader
LED Light bar

5
I/O Side:
Dimensions:
SD Card Slot
DC 12V in
Digital I/O
LAN / PoE
Backlight
Switch
Button
USB A Type

6
Please read these instructions carefully before using this product, and save this guide for future use.
Connector Description
DC Input Connector
DC terminal block power source input is a 3-pin terminal block that has to be
secured with screws to the HMI device housing
LAN (RJ45) Connector
The 5” S-Series HMI supports one 10/100/1000 Mbps Ethernet interface for
connecting to the internet.
USB A Type Connector
Use USB A Type (USB2.0) connector to connect your HMI device to other
USB2.0 compatible devices.
Pin No.
Symbol
Description
1
VIN+
12V DC Input +
2
VIN-
12V DC Input -
3
GND
Ground
Voltage
Minimum Voltage 11.4V
Maximum Voltage 12.6V
Maximum Current 4.2A
Pin №
Name
Pin №
Name
1
TX1+
2
TX1-
3
TX2+
4
TX2-
5
TX3+
6
TX3-
7
TX4+
8
TX4-
Pin №
Name
Pin №
Name
1
+5V
2
Data-
3
Data+
4
GND

7
Digital Input / Output Connector
Digital Input and Output 2 in / 2 out (one 12V/1A for electromagnetic lock).
Go Refer to Testing DIDO section in this guide to test the DIDO functions.
Pin
№
Name
Pin
№
Name
1
GND
2
DO0
3
DO1
4
DO_COM
5
DI0
6
DI1
7
GND
Voltage
Digital output:
Open drain to 40V ; Maximum load 2.0A
Digital input:
Level 0: close to GND; Level 1: 2.5~12V

8
Please read these instructions carefully before using this product, and save this guide for future use.
Turning On or Off
Turning ON
Follow the following steps to turn on your device:
1. Connect the power cable to AC to DC adapter.
2. Connect the open wire of AC to DC adapter to the terminal block female
connector and tighten the screws to secure it to the HMI device.
3. Connect the terminal block female connector to the device's male connector.
4. Plug the power cord to the AC outlet and the device will turn on
automatically.
CAUTION
Use only the AC adapter included in your package
(Rating: Output 4.2 A). Using other AC adapters may damage the
device.
ALTERNATING CURRENT
This product must be grounded. Use only a grounded AC outlet.
Install the additional PE ground wire if the local installation
regulations require it.

9
Turning OFF
Remove the power input to shut down the device.
Press this button to turn the backlight off, press again to turn the backlight on.
Backlight Control Button

10
Please read these instructions carefully before using this product, and save this guide for future use.
Using Camera
Winmate® 5” S-Series HMI has a built-in front camera, which allows you to take
photos and record video clips.
Using Camera
1. Tap the launcher and then tap Camera .
Camera opens in Portrait mode, ready to take a picture or shoot a video.
Taking pictures
1. Tap the launcher and then tap Camera .
2. Tap button to start or stop recording.
The photos or video can be previewed in the preview window.
If you want play the video you have recorded, go into the video player
and select the video you want to play.
If you want to view photos, select the picture viewer and choose which
photos you want to see.
3. Tap button to change shooting mode.

11
4. Tap button to change camera setting such as exposure and so on.
Opening the Gallery
1. Tap the launcher and then tap Gallery .
2. Tap a folder to view the pictures or video inside in full screen mode.
3. Flick the pictures left or right to view the previous or next pictur

12
Please read these instructions carefully before using this product, and save this guide for future use.
TARS Test Application
The HMI device comes with pre-installed application –“TARS Test”for testing main
features such as LED Light Bar, DIDO and HF RFID.
Location and Interface
To open the application, go to all APPS menu, then tap TARS Test icon.
TARS Test Application Interface

13

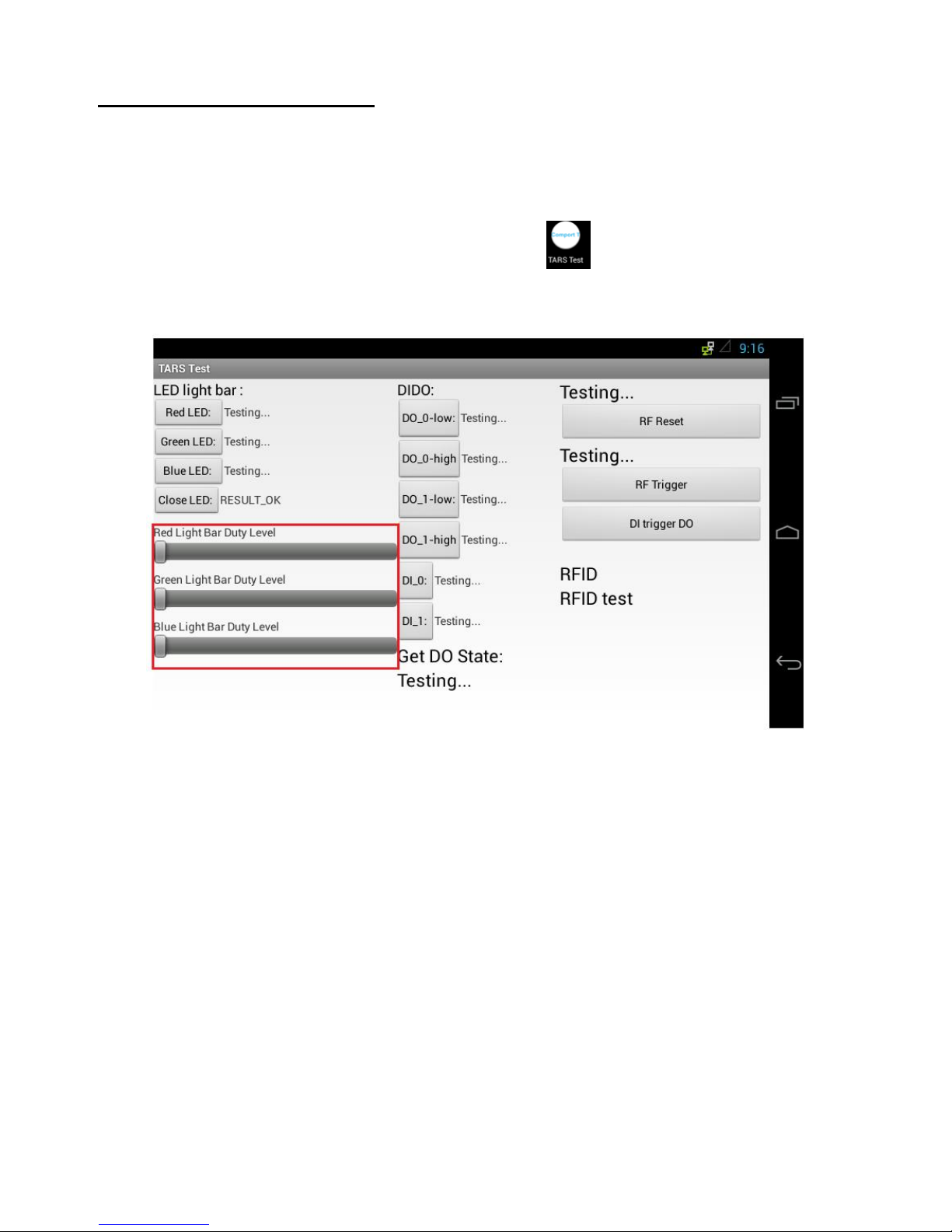

Testing LED Light Bar
The 5” S-Series HMI equipped with LED Light Bar located on the bottom front side
of the device. Users can test this feature with TARS Test APP developed by
Winmate.
1. Go to all APPS menu, then tap TARS Test icon.
2. User can test Red, Green and Blue Light Bar duty level.
Tap the arrow to the right to increase light intensity.
Tap the arrow to the left to decrease light intensity.

14
Please read these instructions carefully before using this product, and save this guide for future use.
Testing HF RFID Reader
HF RFID Reader Introduction
HF RFID is an initial of Radio Frequency Identification, which is also called
electrical tag. The principle of RFID is to tag the target by radio frequency and
process the data reading and transporting instead of mechanic and optical
contact. HF RFID system consists of the hardware and software. The hardware
part includes the HF RFID tag and reader, and software part includes its
application system. HF RFID is commonly used for ticketing, payment, access
control and data transfer applications.
The RFID Reader is located on the bottom right front side of the HMI device.
The RFID’s frequency of electrical tag is 13.56 MHz.
Scanning HF RFID Tag
1. Go to all APPS menu, then tap TARS Test icon.

15
2. While TARS Test application is open, bring a card close to the RFID icon on
the front side of the HMI device.
Number
Description
XXXXXXXXXXXXXABCDEF
Displays the information written in the
card
Testing DIDO
1. Go to all APPS menu, then tap TARS Test icon.
2. In the TARS Testing window, see DIDO.

16
Please read these instructions carefully before using this product, and save this guide for future use.
Software Developer Support
Software System Diagram
This diagram describes the software system of Winmate® 5” S-Series HMI.
Winmate Software Development Kit
Winmate® provides Software Development Kit (SDK). The table below lists SDK
provided by Winmate for 5” S-Series HMI.
Devices
Support
RFID Reader
Not Necessary (Baud rate 9600,8N1 and giving a ASCII string)
DI/DO
4DI,4DO are controlled by Linux file system code
WebCAM
Standard UVC
LCD Backlight
Control
Test AP- Winmate source code reference
UART
Software switch to RS232/422/485
To find Drivers and SDK, please refer to the Driver CD that comes in the package
or contact us.

17
Technical Specifications
HMI Device Specifications
Model Name
W05TA3S-PCT3AC
Display
Specification
Size
5” TFT (LED Backlight)
Pixel Pitch
0.045 (H) x 0.135 (V)
Resolution
800 x 480
Luminance
()
300 (typ.)
Contrast Ratio
500 : 1 (typ.)
Viewing Angle
-70~70(H),-50~70(V)
Touch
PCAP Multi-Touch support 5 points
System
Specification
CPU
TI Cortex® A8 AM3354 1GHz with DSP
Memory
512MB DDR2 SDRAM 533MHz
Graphics
PowerVR SGX 3D Gfx
Storage
1GB 8bit Nand Flash (OS)
Operating
System
Android 4.4.2
I/O Connectors
DC-Input
1 x Phoenix Type Power Jack
Ethernet
1 x RJ 45 10/100/1000
(Support PoE function IEEE 802.3at)
Reset Button
1 x Reset Button with Blue LED indicator
Expansion
Storage
1 x Micro SD Card Slot (with 16GB SD
card)
Digital I/O
2 in / 2 out (one 12V/1A for
electromagnetic lock)
Peripheral
Camera
2 MP front-facing camera
RFID (HF,
13.56MHz)
Supporting 14443A , ISO 15693 /
ISO18092, 3cm (Maximum Reading
Range)
RF Remote
Control
443MHz RF module with controller ,10M
(Maximum Active Range)
Audio Input
MIC (Uni-directional)
Audio Output
1Watt Speaker
LED Light Bar
Indicator
RGB multi-color
Power
Management
Power Input
12V DC-in Power input (Phoenix type)
Power Over
Ethernet
Support IEEE 802.3at (25W)

18
Please read these instructions carefully before using this product, and save this guide for future use.
Power
Consumption
10W (w/o DIDO Device)
Mechanical
Specifications
Dimensions
(W x L x H)
138 x 138 x 29 mm
Mounting
VESA Mount (75 x 75 mm)
Cooling System
Fanless design
Environmental
Considerations
Operating Temp.
0°C ~ +55°C
Humidity
10% ~ 90% (non-condensing, RH)
IP Proof
IP54 (Front side)
