Winmate W07IB3S-PCM1AC User manual

Please read these instructions carefully before using this product, and save this manual for future use.
7” S-Series HMI
W07IB3S-PCM1AC
W07IB3S-PCM1
Quick Start Guide
V1.1
Document Part Number: 9152070I1002

Copyright © Notice
No part of this document may be reproduced, copied, translated, or transmitted in
any form or by any means, electronic or mechanical, for any purpose, without the
prior written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
Winmate Inc. reserve the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to
improve design and/or performance. We assume no responsibility or liability for the
use of the described product(s) conveys no license or title under any patent,
copyright, or masks work rights to these products, and make no representations or
warranties that these products are free from patent, copyright, or mask work right
infringement, unless otherwise specified. Applications that are described in this
manual are for illustration purposes only. We make no representation or guarantee
that such application will be suitable for the specified use without further testing or
modification.
Warranty
Winmate Inc. warranty guarantees that each of its products will be free from
material and workmanship defects for a period of one year from the invoice date. If
the customer discovers a defect, we will, at his/her option, repair or replace the
defective product at no charge to the customer, provide it is returned during the
warranty period of one year, with transportation charges prepaid. The returned
product must be properly packaged in its original packaging to obtain warranty
service. If the serial number and the product shipping data differ by over 30 days,
the in-warranty service will be made according to the shipping date. In the serial
numbers the third and fourth two digits give the year of manufacture, and the fifth
digit means the month (e. g., with A for October, B for November and C for
December).
For example, the serial number 1W15Axxxxxxxx means October of year 2015.

Please read these instructions carefully before using this product, and save this guide for future
use.
Contents
Getting Started 4
Unpacking 5
Accessories 5
Description Of Parts 6
Mounting 8
VESA Mount 8
Flush/ Panel Mount 8
Connector Description 9
DC Input Connector 9
Serial Port Connector 9
LAN (RJ45) Connector 9
USB A Type Connector 10
HDMI Connector 10
Turning ON or OFF 11
Turning ON 11
Turning OFF 12
Operating the HMI Device 13
Hot Tab Menu 13
Utilities 13
Brightness 14
Volume 14
Testing LED Light Bar 15
Performance 15
Touch Lock 15
Using Front Camera 16
Camera Interface 16
Shooting Photos 17
Recording Videos 17
Camera Settings 18
Using HF RFID Reader 19
Reading Mode 20
Writing Mode 21

3
Software Developer Support 22
Winmate Software Development Kit 22
Winmate Download Center 22
Winmate File Share 22
Technical Specifications 23
HMI Device Specifications 23
HF RFID Reader Specifications 25

Please read these instructions carefully before using this product, and save this guide for future
use.
Getting Started
Congratulations on purchasing Winmate® 7” S-Series HMI. Interactive and smart
automation systems of intelligent buildings are in a fast growing phase. Winmate®
multi-touch S-Series HMI is suitable for home automation and room management
systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for
any interior. By connecting to centralized database, it can provide real time update
for booking status and available schedule, or perform as a synchronous display in
meetings.
Winmate® 7” S-Series HMI powered by Intel® Celeron® N2930 1.83GHz
processor and support Windows 10 IoT, Windows Embedded 8.1 Industry Pro,
Windows Embedded 8 Standard, and Windows Embedded Standard 7 –WS7P
operating systems. The HMI device features P-Cap touch-screen. In addition, the
HMI device model supports an exceptional feature - LED Light Bar. With the help of
red, green, blue and orange LED indicators you can see the status of the machine
or processes afar. It significantly reduces power consumption by keeping the
display turned off.
Winmate® 7” S-Series HMI features:
1024 x 600 screen resolution with P-CAP touchscreen
Fanless cooling system and Ultra-low power consumption
Front IP65 water and dust proof, rear IP22
Dual Gigabit Ethernet
LED Light Bar (W07IB3S-PCM1AC)
Optional 2MP Front Camera
Optional RFID Reader
Stylish design for room booking, access control and room information
applications

5
Unpacking
Carefully remove the box and unpack your device. Please check if all the items
listed below are inside your package. If any of these items are missing or damaged
contact us immediately.
Accessories
Standard factory shipment list:
7” HMI Device
Quick Start Guide
(Hardcopy)
Driver CD & User
Manual
AC Adapter
(12V/ 50W)
Power Cable
VESA Plate
75 x 75 mm
VESA Mount
Screws

6
Please read these instructions carefully before using this product, and save this guide for future
use.
Description Of Parts
No.
Description
No.
Description
󰪦
12V DC-in jack
󰪪
2 x RJ-45 Gbe LAN
󰪧
RS-232/422/485
󰪫
1 Watt Speaker
󰪨
1 x USB 3.0, 1 x USB 2.0
󰪬
2MP Camera (optional)
󰪩
HDMI
󰪭
*RGB LED Light Bar
*Note: RGB LED light bar only available for the model number W07IB3S-PCM1AC

7
Dimensions:

8
Please read these instructions carefully before using this product, and save this guide for future
use.
Mounting
7”S-series HMI devices come with different mounting options suitable for most of
the industrial and commercial applications.
VESA Mount
Dimensions
Screw hole diameter
Compatibility
75 x 75 mm
VESA M4x5 mm
Swing arm mountingkits
Flush/ Panel Mount
Wall cutout
Screw hole diameter
131.4 x 175.4 mm
M3x4 mm

9

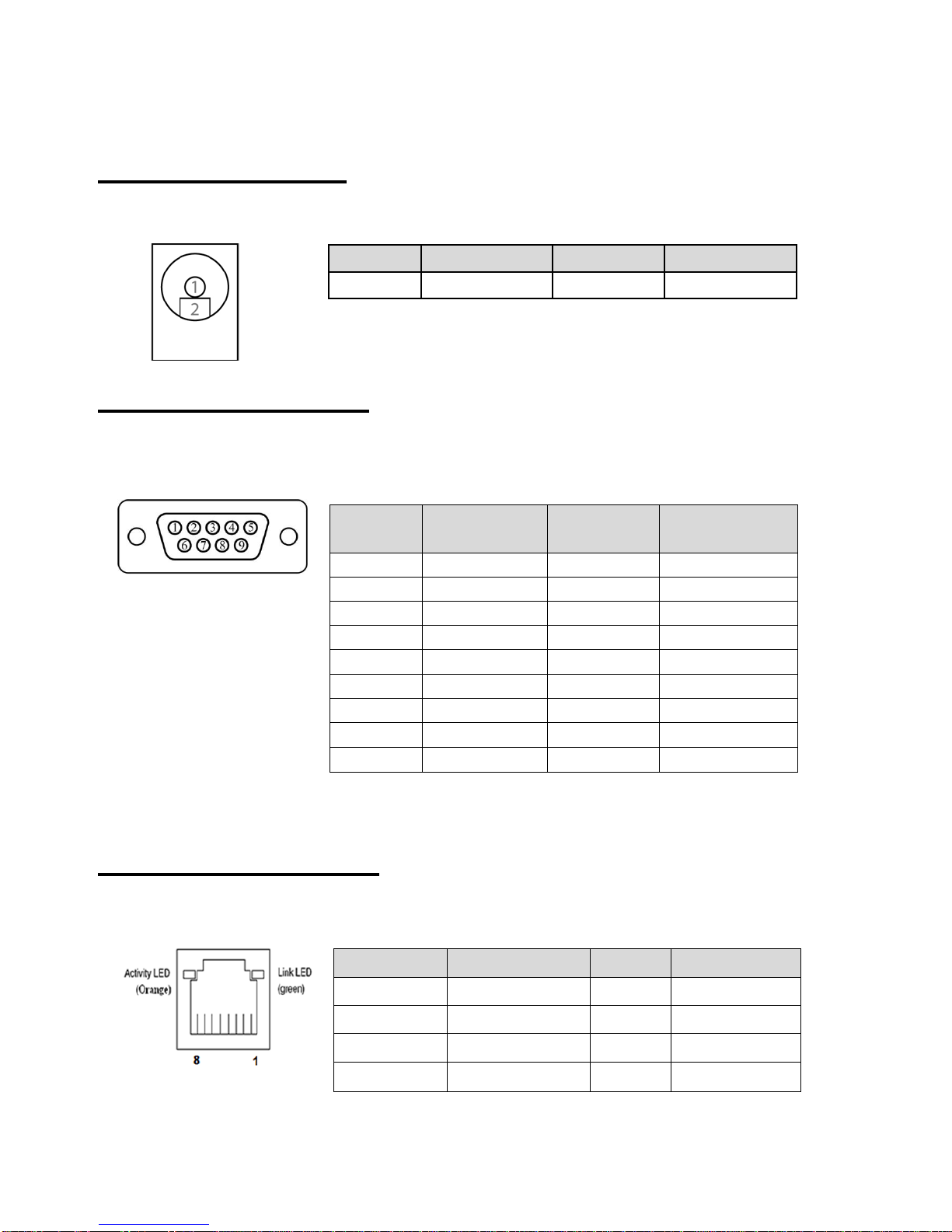

Connector Description
DC Input Connector
DC power source input is a 12V DC-in jack connector.
Serial Port Connector
Use COM1 serial port connector to connect your HMI to external devices such as
mouse, modem or printer.
Serial port settings can be configured by jumpers located on the motherboard.
LAN (RJ45) Connector
The 7” S-Series HMI supports one 10/100/1000 Mbps Ethernet interface for
connecting to the internet.
Pin №
Name
Pin №
Name
1
DC_IN
2
GND
Pin №
RS-232
(Default)
RS-422
RS-485
1
DCD
TxD-
D-
2
RXD
TxD+
D+
3
TXD
RxD+
NC
4
DTR
RxD-
NC
5
GND
GND
GND
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
Pin №
Name
Pin №
Name
1
TX1+
2
TX1-
3
TX2+
4
TX2-
5
TX3+
6
TX3-
7
TX4+
8
TX4-

10
Please read these instructions carefully before using this product, and save this guide for future
use.
USB A Type Connector
Use USB A Type (USB2.0) connector to connect your HMI device to other
USB2.0 compatible devices.
Use USB 3.0 connector to connect your HMI device to other USB3.0 compatible
devices.
HDMI Connector
Use HDMI Type A connector to connect the HMI device to external monitor.
.
Pin №
Name
Pin №
Name
1
+5V
2
USB_D-
3
USB_D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND_DRAIN
8
STDA_SSTX-
9
STDA_SSTX+
10
+5V
11
USB_D-
12
USB_D+
13
GND
Pin №
Name
Pin №
Name
1
TMDS_DATA2+
2
GND
3
TMDS_DATA2-
4
TMDS_DATA1+
5
GND
6
TMDS_DATA1-
7
TMDS_DATA0+
8
GND
9
TMDS_DATA0-
10
TMDS_CLOCK
+
11
GND
12
TMDS_CLOCK-
13
CEC
14
NC
15
DDC_CLOCK
16
DDC_DATA
17
GND
18
5V
19
Hot Plug Detect

11
Turning ON or OFF
Turning ON
Follow the following steps to turn on your device:
1. Connect the AC adapter to the DC-in jack connector on the back side of the
HMI device.
2. Connect the power cord to AC adapter.
3. Plug the power cord to the AC outlet and the device will turn on automatically.
CAUTION
Use only the AC adapter included in your package
(Rating: Output 4.2 A). Using other AC adapters may damage the
device.
ALTERNATING CURRENT
This product must be grounded. Use only a grounded AC outlet.
Install the additional PE ground wire if the local installation
regulations require it.

12
Please read these instructions carefully before using this product, and save this guide for future
use.
Turning OFF
You can Turn OFF the HMI device with the Windows power settings.
To shut down the device:
1. Tap Start >Shut down.
2. Wait for your HMI device to completely turn off before disconnecting the
power cord (if necessary).

13
Operating the HMI Device
Winmate® 7” S-Series HMI comes with HoT Tab, which allows you to operate the
HMI device.
Hot Tab Menu
To open the Hot Tab menu:
1. Double-click the Hot Tab icon
on the Windows desktop.
2. The Hot Tab main menu will
appear on the screen as shown
below.
NOTE:
RFID and LED Light Bar are optional features and may not be present in
your model.
Utilities
Utilities category allows automatically changing
orientation from landscape to portrait mode or
rotating the desktop to a different degree as 0°,
90°, 180°, and 270°.

14
Please read these instructions carefully before using this product, and save this guide for future
use.
Brightness
Tap Brightness button to show current brightness level.
To reduce the brightness, drag by touch this icon to the left.
To enhance the brightness, drag by touch this icon to the right.
Tap Close icon to save the changes and exit the interface.
Volume
Tap Volume button to show current brightness level.
To decrease the volume, drag by touch this icon to the left.
To increase the volume, drag by touch this icon to the right.
Tap Close icon to save the changes and exit the interface.

15
Testing LED Light Bar
Tap Light Bar to access the LED light
bar control panel, and select Red /
Green / Blue/ Orange color to be
displayed on the LED Bar.
Performance
User can adjust the performance level of the HMI device. There are four options
available:
Extreme performance
Office Document
High performance
Power Saving
Touch Lock
To LOCK touch screen, double-click the Hot Tab icon on the Windows
desktop, and tap Touch Lock.
To UNLOCK the touch screen, tap button to the right.

16
Please read these instructions carefully before using this product, and save this guide for future
use.
Using Front Camera
Your device might have built-in camera based on your order.
Camera Interface
Perform one of the following to open the camera:
1. Press the F1 key.
2. Tap then double-tap to display the HotTab screen. Select Camera.
No
Item
Description
1
Video
Tap to record videos
2
Tap to capture photos
3
Settings
Tap to select the destination folder to save captured
photos and videos, enable preview, and select
picture resolution and quality
4
Close
Tap to close the camera
5
Capture Screen
Shows the object to capture

17
Shooting Photos
1. Open the Camera
2. Focus on the object
3. Tap to capture the object
4. By default, the photo preview is displayed briefly on the screen
The preview screen automatically closes after 3 seconds. Alternatively, do one
of the following:
- Tap to delete the photo and return to the camera screen
- Tap to close the preview and return to the camera screen
Recording Videos
1. Open the Camera
2. Focus on the object
3. Tap to record the video. The video recording screen appears

18
Please read these instructions carefully before using this product, and save this guide for future
use.
4. Tap to stop recording and return to the camera screen
5. To playback the video, browse for the video file and play using a media
player application on your device
Camera Settings
1. Tap to open the setting page
2. Modify necessary settings.
No
Item
Description
1
Preview
Setting
Check one of the check boxes to show the preview
screen right after capturing a photo.
• Show Preview: Check this box and enter the preview
duration on Close preview after. When the duration
ends, the preview screen will automatically close.
• Always Show Preview: When this box is checked,
the preview screen will only close when you tap the
return button ( ).
2
Picture Save
Tap this button to browse for the folder directory where
you want to save captured photos.
3
Video Save
Folder
Tap this button to browse for the folder directory where
you want to save recorded videos.
4
Resolution
Select the picture resolution:
• 640 x 480
• 1600 x 1200
5
Picture Quality
Select the picture quality: Low, Medium, High, Best.
3. When settings are complete, tap OK to apply and save change.

19
Using HF RFID Reader
Notice that HF RFID Reader is an optional feature for 7” S-Series HMI and may not
be present in your device.
HF RFID is commonly used for ticketing, payment, and data transfer applications.
The RFID Reader is located on the bottom right front side of the HMI device.
The COM Port setting in RFID Reader is “COM 14”.
1. Double-click the RFID icon on the Windows desktop.
2. Reader menu appears on the screen as shown below.
Note:
The picture below of Reader Demo Version 1.4 is for illustration
purposes only. Your Reader version may differ from the picture below.
