WMF 2000 S User manual

coffee wakes up the world
Service Manual
ENGLISH
Coffee Machine
Series 2000 S Edition 11.2010

2WMF 2000 S Service Manual Edition 11/2010
Table of contents
1 Customer setup
1.1 Setup program 5
1.2 Checklist for setup 5
2 Software service info
2.1 Software service info overview 7
2.2 Notes for service info 7
2.2.1 Where is specific maintenance information displayed?. . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.2 Whereiscleaninginfodisplayed?.........................................7
3 Software machine data
3.1 Machine data overview 8
3.2 Submenu counter 8
3.2.1 Maintenancecountersoverview...........................................8
Machine maintenance counters (always valid). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Grinder maintenance counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Choc portioner maintenance counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mixermaintenancecounter ...............................................9
Boilercounter ..........................................................9
Steam boiler counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Last maintenance date submenu 10
3.4 Temperature submenu 10
3.5 Submenu cleaning 10
3.6 Submenu error list 11
3.7 Submenu portioner 11
3.8 Submenu key operator 11
3.9 Submenu milk 11
3.10 Submenu standards factoryservice/customer 12
Factoryservice/customer menu 1
Factoryservice/customer menu 2
Factoryservice/customer menu 3
Factoryservice/customer menu 4
Factoryservice/customer menu 5
3.11 Submenu Key Operator 14
Key Operator mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Maintenance messages in Key Operator mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Customercheck-up.....................................................14
Summaryofmaintenancemessages:.......................................16
3.12 Additional setting options via laptop (KonfigTool) 16
Page software update
Page cleaning
Page maintenance dates
Page PIN
Page grounds container
4 Software components test
4.1 Component tests overview 17
4.2 Submenu brewer motor 17
4.3 Submenu portioner 17

3
WMF 2000 S Service Manual Edition 11/2010
Table of contents
4.4 Valves 18

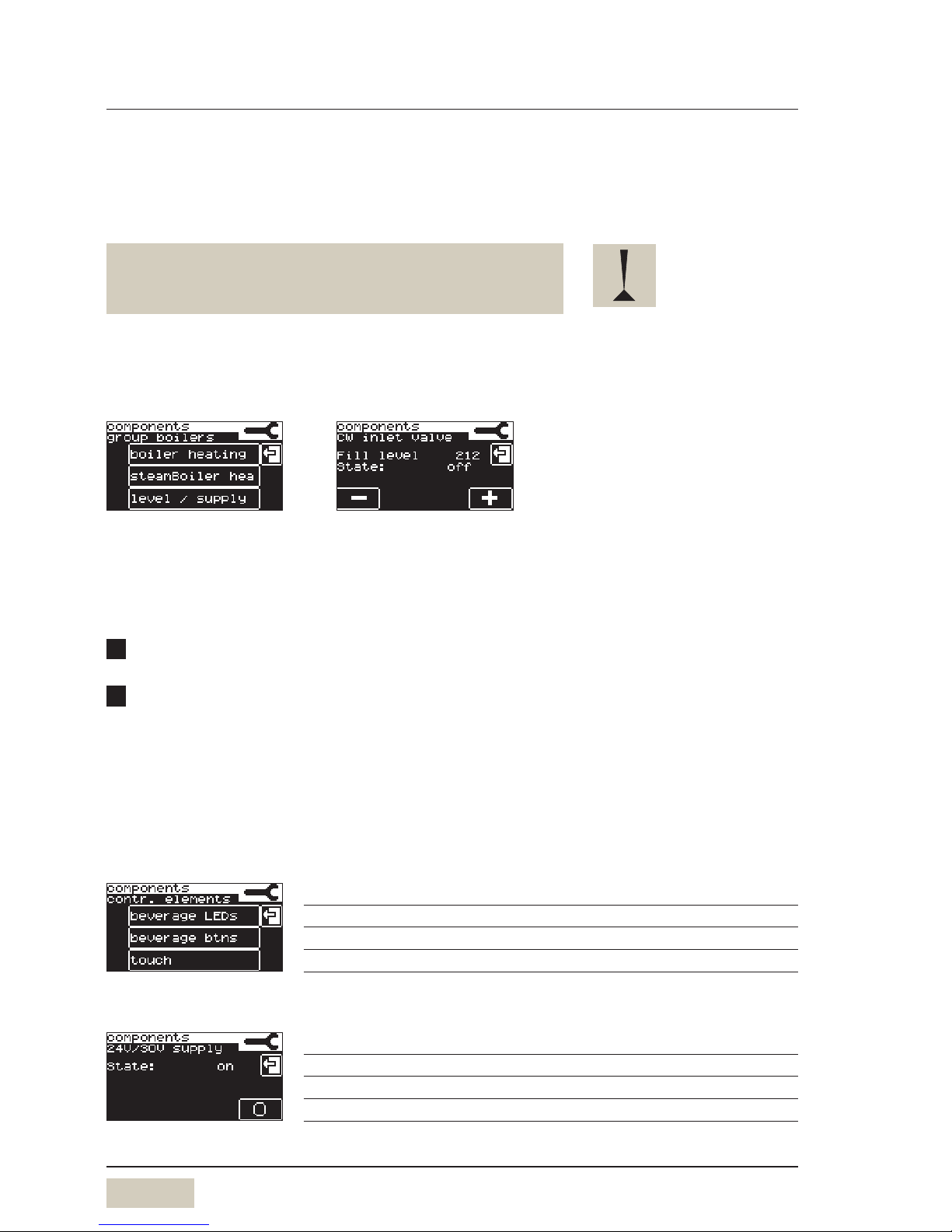

4.5 Submenu SBHWB group (steam boiler and hot water boiler) 18
4.6 Submenu control elements 18
4.7 Current supply 18
4.8 Backup battery 19
4.9 Display illumination 19
4.10 Grounds container 19
4.11 Fan 19

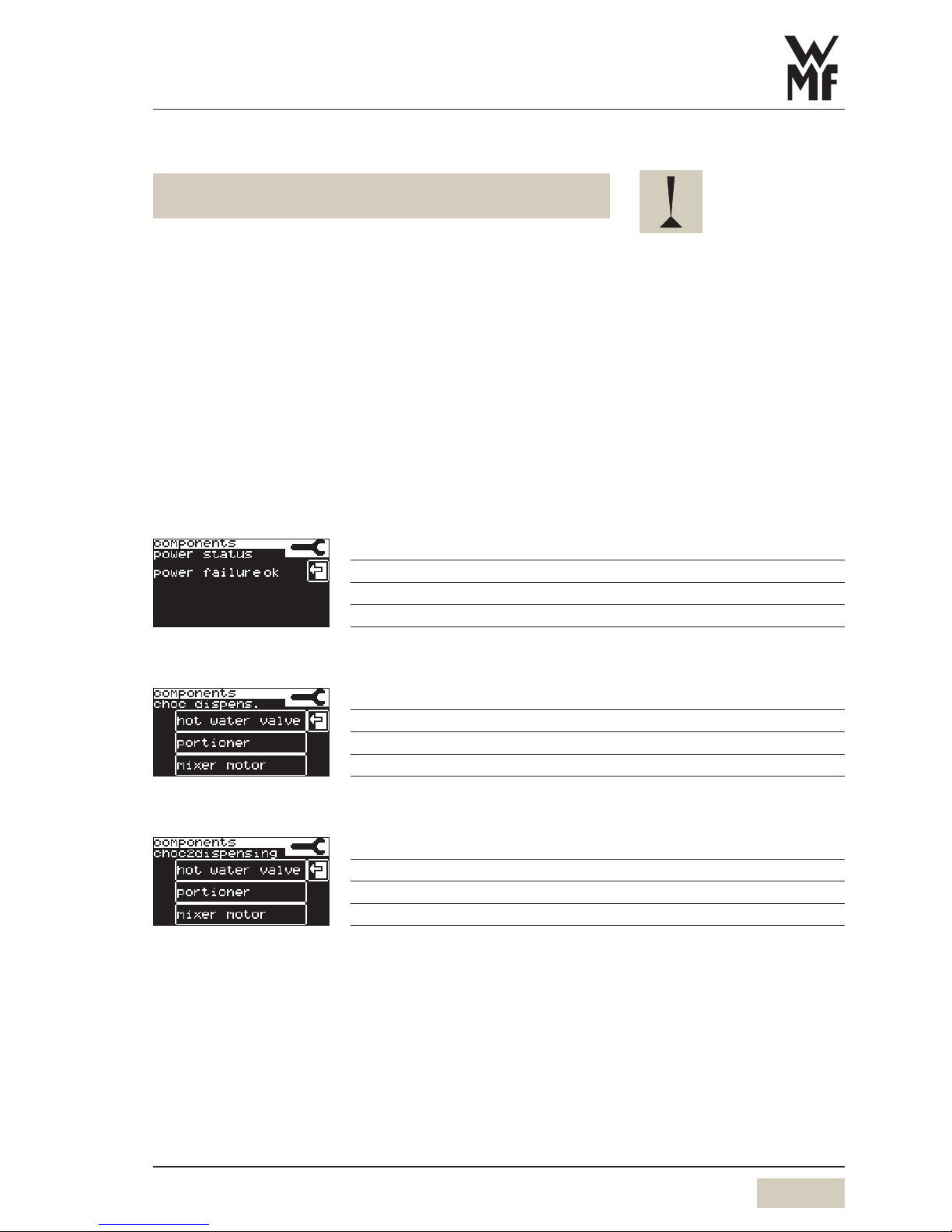

4.12 Power status 19
4.13 Submenu chocdispenser 19
4.14 Submenu choc2dispenser 19
5 Software service routines
5.1 Service routines overview 20
5.2 First Run up 20
5.3 Idling current grinder 21
5.4 Portioner calibration 21
5.5 Filling the boiler 21
5.6 Filling the steam boiler 21
5.7 Exchanging control battery at F 157 22
5.8 Check pressure reducer 22
5.9 Depressurization 22
5.10 Descaling 22
5.11 Customer Care 22
6. Beverage data
6.1 Beverage data overview 23
Overview of beverage data main menu
e.g.cappuccino ........................................................23
6.2 Additional laptop setting options (KonfigTool) 23
7 Error messages and events
7.1 Display messages 24
7.2 Error list 25
7.3 Reasons for reset 29
7.4 Standby causes 29
8 Mechanical settings
8.1 Grinder setting (coarse - fine) 30
8.2 Setting pressure reducer 31
9 Milk nozzles
10 Dual Settings
11 Maintenance concepts
11.1 Customer check-up 35
11.1.1 Customer check-up kit WMF 2000S (3kW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
11.1.2 Customer check-up kit WMF 2000S (5,5kW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4WMF 2000 S Service Manual Edition 11/2010
Table of contents
11.2 Brewer replacement 36
11.3 Service Maintenance 37
11.3.1 Service Maintenance 1 (3 kW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
11.3.2 Service Maintenance 1 (5,5 kW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
11.3.3 Service Maintenance 1 - Additional Choc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
11.3.4 Service-maintenance 2 years . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
11.3.5 Service/maintenance routine 2 years . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Machine without choc
Additional work for machines with choc
Additional work for worn grinding-disks
11.4 Revision 39

5
WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
1 Customer setup
After setup, the service technician must note the
following statement in the assembly invoice:
“At the end of operation, machine has to be turned off at
source. The user manual and accessories were given to the
customer.”
The customer must acknowledge this with his signature.
1.1 Setup program
Condition:
Machine is reset to customer setup and connected to the
power supply.
Run display-guided setup.
The following settings are made:
• Language
• Descaling filter yes/no
• Descaling filter range
• Descaling filter replacement mode
(customer or service)
• Portioner calibration from Software Version 1.1.1 on
Update software to current status
(only possible with laptop program “KonfigTool”)
Set beverages according to customer specifications
(Customer setting  recipes/buttons or by „KonfigTool“
 product configuration)
Enter service point
(only possible with “KonfigTool”).
Save data  Defaults  CustomerService
Backup machine data on laptop
1.2 Checklist for setup
Update software to current status
(only possible with laptop program “KonfigTool”)
Set descaling filter (if existent) and filter range
(„KonfigTool“  Machine configuration  counter page)
Set Key operator mode for customer (machine data
 Key operator or „KonfigTool“  machine configuration
 PIN page)
Calibrate portioners (service program  service
routines)
Checklist to the individual steps
see chapter 1.2
Additional settings for recipes
after the service PIN is entered

6WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
Recommendation:
Adjust foam quality and temperature using nozzle and
under  Setting  foam quality
Set recipes or transfer the given standards to the
machine
Set button functions and beverages according to
customer specifications
(Settings or “KonfigTool“  beverage data)
Set cup volumes (Setting)
Hint: If the filling amount setting is too small for large
vessels, use the "pot" recipe
Enter service point
(only possible with “KonfigTool”).
Save data in service memory (Service Program
 Machine data  Standards  CustomerService)
Backup machine data on laptop
Before regular operation:
Rinse the pipes, dispense three cups of hot water
Push the steam button for about 10 seconds
Perform the cleaning cycle
Fine setting of beverages under
changing recipes:
Amount of coffee powder
Amount of water
Amount of foam
Amount of milk
Foam quality
Additional settings after the
service PIN is entered

7
WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
2 Software service info
2.1 Software service info overview
2.2 Notes for service info
2.2.1 Where is specific maintenance
information displayed?
• Setup start date service
• Date of next maintenance service
• Next descaling care info descaling
• Next filter change care info filter
• Additional maintenance counters under machine data
counters brewer
2.2.2 Where is cleaning info displayed?
• Time elapsed since last cleaning care info cleaning
(How long since last cleaning.)
• Last 100 cleaning operations with date and time care
report
Service info

8WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
3 Software machine data
3.1 Machine data overview
3.2 Submenu counter
3.2.1 Maintenance counters overview
Machine maintenance counters (always valid)
Counters relevant to the maintenance information in the
brewer menu.
Customer check-up (15,000 brewings)
Maintenance service (30,000 brewings)
Revision (90,000 brewings)
Grinder maintenance counter
Counter relevant to grinder maintenance in portioner
menu (maintenance message only displayed in Key
Operator mode).
Control display for grinder disk
For the maintenance report
Choc portioner maintenance counter
Counter relevant to choc portioner maintenance in
portioner menu (maintenance message is only displayed in
Key Operator mode).
Machine data
Reset by tapping on the
respective line

9
WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
Choc maintenance (36,000 dosages)
Mixer maintenance counter
Counter relevant to the mixer maintenance information in
mixer menu (maintenance message only in Key Operator
mode).
Mixer maintenance (18,000 cycles)
1 choc cycle counts 3
1 topping cycle counts 1
With twin choc, the portioner and the motor should be
replaced as soon as the first counter for choc reaches the
limit.
Boiler counter
total amount of water in boiler
amount of water since last descaling
Steam boiler counter
total amount of water in steam boiler
amount of water in steam boiler since
last descaling
Switching off service
messages via KonfigTool
page service dates

10 WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
3.3 Last maintenance date submenu
The service date does not lead to a maintenance message.
Enter maintenance date
Set interval for customer check-up
After entering service date the following requests are
displayed:
3.4 Temperature submenu
Setting range 85- 100°C, default 96° C
Setting range 110 to 130° C, default 128° C
Changing the steam boiler temperature leads to great
changes in the dosage of milk and milk foam. Changes are
not recommended.
3.5 Submenu cleaning
Number of cleanings performed and to be performed
Number of mixer rinsings performed
Number of milk system cleanings performed
Time until request for cleaning/forced cleaning
Delay in foamer rinsing after last beverage dispensing
Audio warning before foamer rinsing yes/no
See chapter Error list

11
WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
3.6 Submenu error list
Delete individual errors: tap on the line
Delete complete error memory: tap C

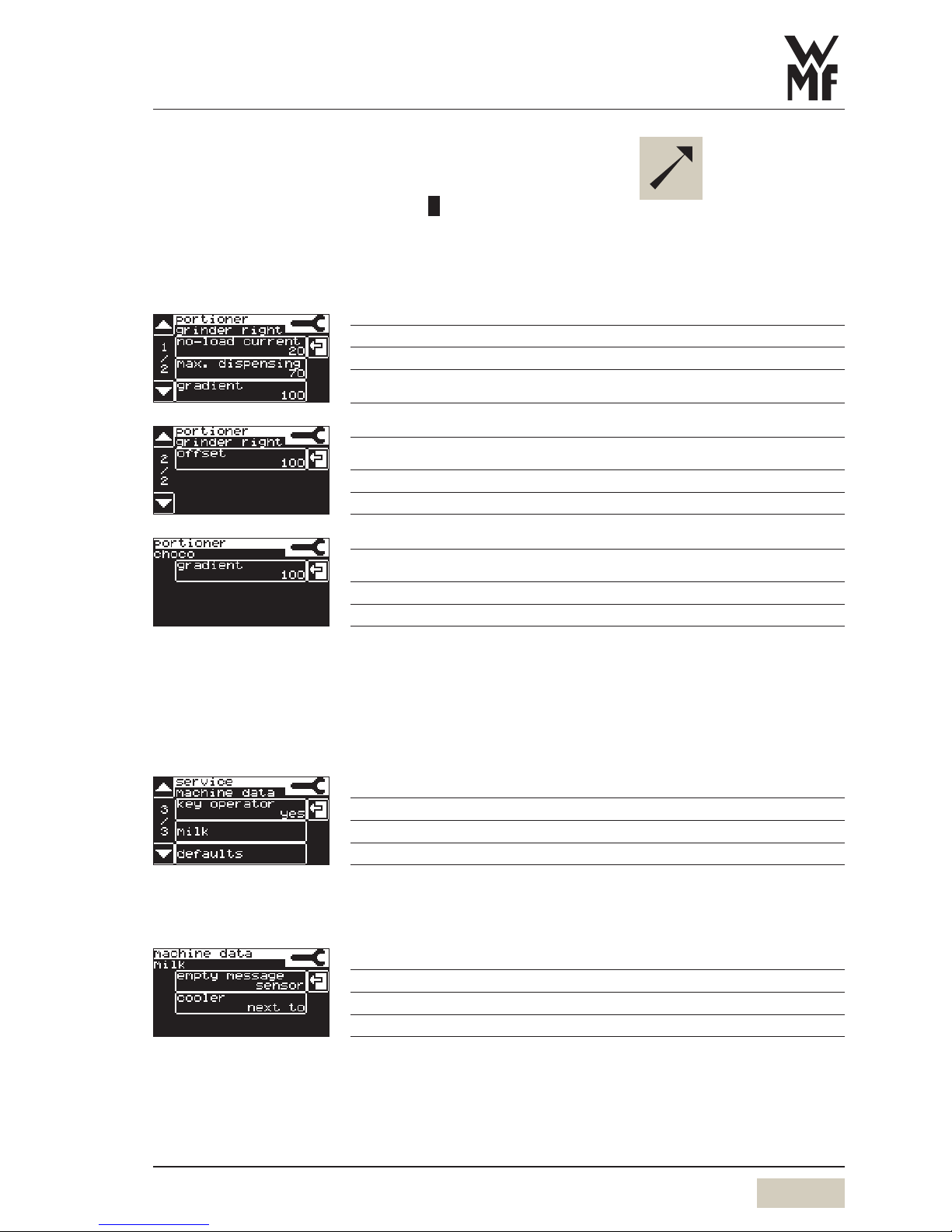

3.7 Submenu portioner
Example right grinder
Idling current (determined via service routine) default 20
Maximum dosage amount in 1/10 seconds; default 70
Gradient will be detected automatically via levelling portioner; can be
adjusted here
Offset will be detected automatically via levelling portioner; can be
adjusted here
Gradient will be detected automatically via levelling portioner; can be
adjusted here
Only the maximum dosage amount can be set for the
powder portioner (default 150). A detection of the idling
current is not possible.
3.8 Submenu key operator
see 3.11
3.9 Submenu milk
milk container empty
cooler next to/ under counter
Malfunction and events list see
chapter Error list

12 WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual

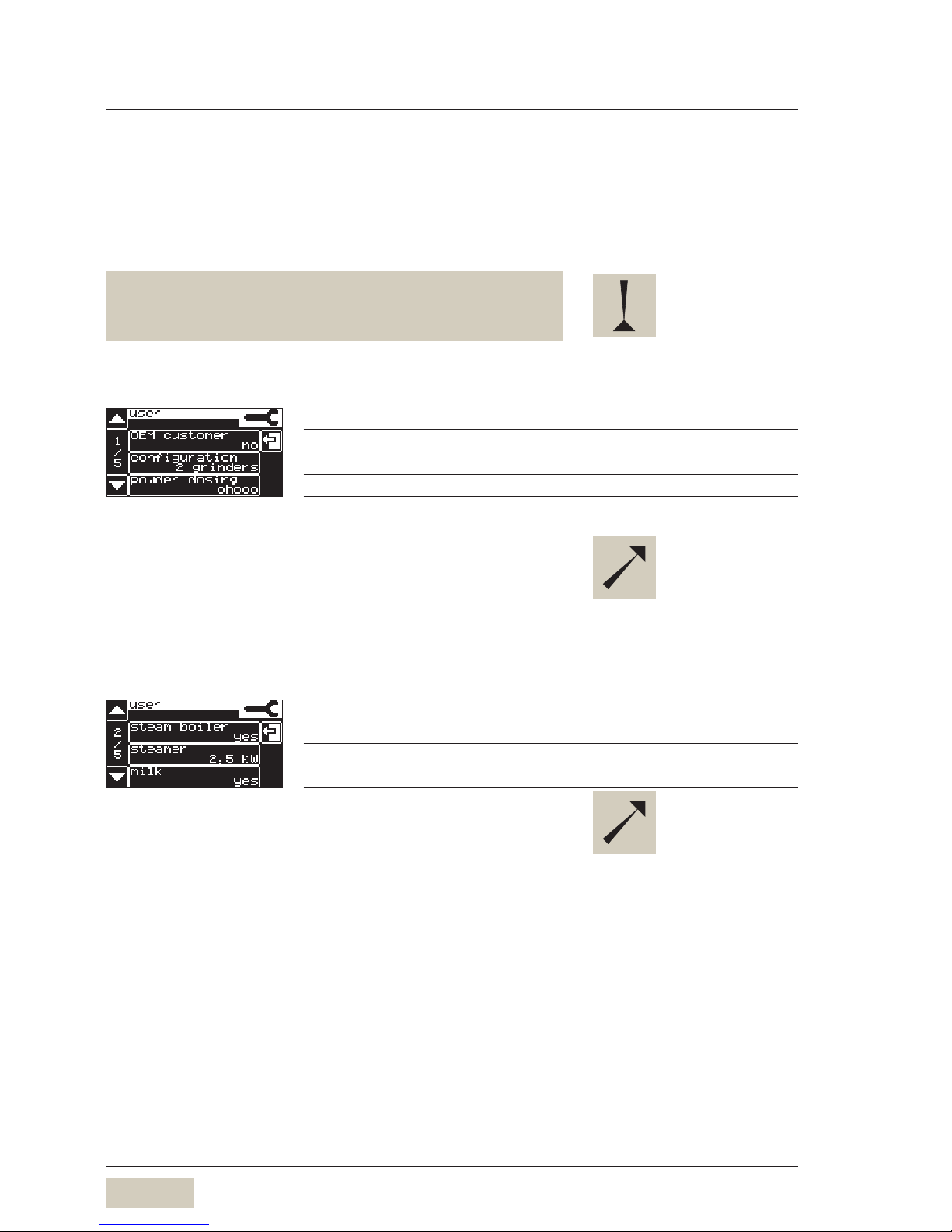

3.10 Submenu standards factoryservice/
customer
After tapping, “self-detect” is first run automatically. All
components operating on 24 V or 30 V are automatically
addressed. The components are automatically identified.
During self-detect the grounds container must be in
place, the adjustable screen closed otherwise the 24/30 V
circuits of the components are interrupted.
Factoryservice/customer menu 1
OEM customer selectable
Configuration of grinders
Configuration of powder dosing
OEM Customer selectable (McDonalds, USA, No).
Configuration of grinders will be detected automatically
(see chapter portioner).
Configuration of powder dosing, will be detected
automatically (see chapter portioner).
Factoryservice/customer menu 2
Steam boiler available
Steamer selectable
Fresh milk (Cappuccino valve) Aquaflex available
Steam boiler will be detected automatically at the infeed
valve (see chapter boiler-water system).
Steamer can be selected.
Milk will be detected automatically
(see chapter boiler-water system).
See chapter engineering, portioner
See chapter engineering, boiler/
steam boiler in Training manual
Part 2 Engineering
See chapter boiler-water system
in Training manual
Part 2 Engineering.

13
WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
Factoryservice/customer menu 3
beverages configurated on 2 levels
manual insert for coffee and cleaning or only cleaning
accounting with add-on device via MDB or serial
2nd level can be set if milk available.
Manual insert („Manual cleaning“) is to be set manually
with more than 2 portioners, up to 2 portioners manual
insert coffee (Manual coffee).
Accounting must be set manually
(MDB or serial).
Factoryservice/customer menu 4
Operation mode grounds container: External = grounds disposal
through counter
button pre-selection for decaf brewing instead steam button
daylight saving time set?
Grounds disposal through counter must be set manually
(default=internal).
Decaf must be set manually.
Daylight saving time automatic change to daylight saving
time can be activated.
Factoryservice/customer menu 5
Option Plug&Clean available?
Function S-M-L available?
accept
Plug&Clean can be activated with option Plug&Clean.
S-M-L Function S-M-L can be activated.
See User Manual and Manual
accounting
see User Manual

14 WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
Safety queries upon acceptance of the variations:
The counters should only be reset in exceptional cases.
If a portioner was added or set to “decaf” the factory
default settings for the beverages should be used.
3.11 Submenu Key Operator
Key Operator mode
If the Key Operator mode has been activated in machine
data by the factory or the authorized maintenance
point the machine automatically reports the individual
components to be prophylactically exchanged due to wear.
The Key Operator also has access to maintenance routines,
component tests and the counters in the machine data.
This access is protected by a customer check-up PIN.
If Key Operator is activated only the cleaning cycles are
available to the customer.
Customer check-up, filter change and filter rinsing are
available in the “service routines” menu.
Maintenance messages in Key Operator mode
Customer check-up
Maintenance after 15,000 brewings
Tasks to be performed analog customer check-up
Key Operator: YES
Only cleaning procedures are
available in the care menu
Additional Customer service PIN
with Key Operator = YES
Reset with C on display counter see
machine data
 counter  brewer  gasket
or
Menu Care  Customer check-up

15
WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
Service-Maintenance
Maintenance after 2 years
will be changed with Software-Version 1.1.1.
Revision
Maintenance after 90,000 brewings
Depending on qualification this maintenance is performed
by the WMF service or by the central unit.
Maintenance after 90,000 grindings
Parts to be replaced:
• the respective grinder
• the grinder drive
Maintenance after 6,000 portionings choc
Parts to be replaced:
• the mixer unit
• the mixer valve
Maintenance after 36,000 portionings choc
Parts to be replaced:
• Powder portioner
• Portioner drive
Replace battery control at F 157
The battery of the control unit must be replaced when the
error message F 157 is reported
Procedure for battery replacement analog service-
maintenance, error message report F 157.
Reset with C on display counter
Counters see machine data
 counter  brewer  brewer
Reset with C on display
Counter see machine data
 counter  drive
Reset with C on display Counter
see machine data
 counter  portioner
Rücksetzen mit C auf Display
Zähler siehe Maschinendaten
 Zähler  Mixer
Reset with C on display
counter see machine data
 counter  portioner
Error list is automatically reset
when battery is replaced.

16 WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
Maintenance operations in Key Operator mode
The replacement of components is described in the
chapters service-maintenance and revision.
Summary of maintenance messages:
3.12 Additional setting options via laptop
(KonfigTool)
Page software update
• Select company logo
• Load selectable languages from the display into the
machine (aside from German and English a maximum of
five additional languages)
• Load predefined machine
Page cleaning
• Deactivate forced cleaning
• Set last descaling date
• Deactivate display of descaling message
If these settings are changed customers must principally
be made aware in writing of the risks of clogging and
malfunctions due to descaling and lack of cleaning.
Page maintenance dates
• Contact data of service technician with phone number
Page PIN
• Block menu items
• Set accounting of unit numbers to “not deletable”
Page grounds container
• Set capacity
The notes to the customer
regarding warranty in chapter
safety in the user manual apply
regardless of the settings for
cleaning and descaling.

17
WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
4 Software components test
4.1 Component tests overview
Depending on the machine configuration the following
tests are available in the software:
4.2 Submenu brewer motor
Run brewer to end switch
Run brewer up
Run brewer down
End switch: 0001 end switch contacted
Current (mA): Display value during procedure
4.3 Submenu portioner
Test right grinder
Test left grinder
Current (mA): Value during portioning procedure is
displayed
During the test the grounds container must be in
position and the adjustable screen closed as the brewer
receives the coffee powder during the test and dumps it
afterwards.
Components

18 WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
4.4 Valves
During the test additional data is displayed, e.g. the
maximum current consumption of the valve(s) or the
number of flowmeter pulses.
When testing the brewer valve the brewer must be in
functioning condition as it receives the brewing water
during the test and discharges it afterwards.
4.5 Submenu SBHWB group (steam boiler
and hot water boiler)
Additional data during tests:
Heating units: display of condition and current
temperature.
Level/feeding:
- - button: The level in the steam boiler is lowered via the
steam valve.
+ - button: The level in the steam boiler is raised by the
supply valve.
Liquid level: the current capacitative value of the sound
is displayed. The trigger value at which the steam boiler is
detected as “full” is 180 digits.
Normally the “full” value is at 212 digits.
4.6 Submenu control elements
Beverage button LEDs are subsequently addressed
Test beverage buttons by pushing them
Test touch fields on the display by touching them
4.7 Current supply
Switch the 24/30 V circuits on and off from the mains.

19
WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
4.8 Backup battery
During the test the battery is short-circuited. This
procedure shortens battery life.
4.9 Display illumination
The display illumination can be switched off for testing.
4.10 Grounds container
Display if the micro switches switch the 24 V circuits of the
grounds container and the adjustable screen.
4.11 Fan
Test of function and current consumption
4.12 Power status
Report “power failure” to the control unit
4.13 Submenu chocdispenser
Test choc valve
Test the portioner, the choc valve is also addressed
Test mixer motor
4.14 Submenu choc2dispenser
Test choc valve
Test the portioner, the choc valve is also addressed
Test mixer motor

20 WMF 2000 S Service Manual Edition 11/2010
WMF 2000 S Service Manual
5 Software service routines
5.1 Service routines overview
5.2 First Run up
The software is restarted, with a “reset event” entered
into the laptop ring memory (see chapter “service”, reset
events).
The cleaning obligation is reset as if a cleaning cycle had
just been done.
A cleaning cycle can be interrupted.
A descaling cycle can be interrupted.
Attention: If a cleaning or descaling cycle has been
interrupted adequate measures must be taken to ensure
that no residues of cleaning or descaling agents remain
in the machine. In this case cleaning or descaling must be
repeated.
The reset of the customer settings program is treated in
the same way by the software, however does not reset the
cleaning and descaling obligations.
Service routines
See chapter software, First Run up
in the training manual
part 4 software
