Congratulations on the purchase of your
WMFCoffee station.
Follow the User Manual
> Read the User Manual carefully prior to use.
> Please refer to the User Manual, paying
special attention to the safety instructions
and Safety chapter.
> Follow the warning instructions on the
coffee machine and the device.
> Ensure that the staff and all users have
access to the User Manual.
Hazard to life due
toelectricalshock
• The voltage inside the device and the coffee
machine is ahazard to life.
> Never open the housing.
> Never loosen the screws, and do not remove
any housing parts.
Conditions for use and installation
• In the event of failure to comply with
maintenance information and the
specifications in the Technical Data chapter,
no liability is accepted for any resultant
damage.
> Follow the User Manual.
> Maintenance and repair work may be
performed only by the WMFService-Center,
using original spare parts.
CAUTION
Follow the User Manual signs and
symbols
wpage 31
Follow the Safety chapter
wstarting on page 24
WARNING
Follow the Safety chapter
wstarting on page 24
IMPORTANT
Technical data
wstarting on page 39
Maintenance
wUser Manual coffee machine
Introduction and general information

23
User Manual WMFCoffee Station
Table of Contents
Table of Contents 23
1 Safety 24
1.1 General safety instructions 24
1.2 Intended use 27
1.3 Conditions for use and installation 28
2 Introduction and general information 30
2.1 Parts of the coffee station 30
2.2 General functional description 32
2.3 Versions 32
3 Coffee station with integrated equipment (optional) 33
3.1 Starting operation 33
3.2 Empty message 34
3.3 With water filter (optional) 34
4 Care 35
4.1 Cleaning 35
5 Service and addresses 36
6 Safety and warranty 36
6.1 Hazards to the coffee machine 36
6.2 Duties of the owner/operator 37
6.3 Warranty claims 38
Appendix: Technical data 39
Coffee station 39
Water Tank System 39
Table of Contents

24 User Manual WMFCoffee Station
Safety
1 Safety
Misuse
• Failure to follow the safety
instructions can result in death or
serious injury.
> Follow all the safety instructions.
WARNING
Intended use
wstarting on
page26
1.1 General safety instructions
Hazards to the operator
At WMF, safety is one of the most essential product features.
Theeffectiveness of the safety devices can only be ensured
ifthefollowing points are observed:
> Do not touch hot device
components.
> Do not use the device if it is
not working properly or if it is
damaged.
> Use the device only when it is
completely assembled.
CAUTION
> Read the User Manual carefully prior to use.
> Built-in safety devices must never be altered.

25
User Manual WMFCoffee Station
Safety
> This device can be used by children
of age 8or greater while under
continuous supervision, as well as
by persons with reduced physical,
sensory, or mental capabilities or
lack of experience or knowledge,
once they have been instructed in
the safe use of the machine and
the risks associated with it.
> Children must not play with the
device.
> Cleaning and user maintenance
must not be performed by children.
CAUTION

26 User Manual WMFCoffee Station
Safety
Despite the safety devices, every coffee machine poses hazard
potential if incorrectly used. Please observe the following
instructions when using the device so as to prevent injury and
health hazards:
Hazard to life due
toelectricalshock
• The voltage inside the device is
ahazard to life.
> Never open the housing.
> Never loosen the screws, and do
not remove any housing parts.
WARNING
> Never use adamaged mains cable.
> Avoid damage to the mains cable. Do not kink or crush it.
> Never immerse the mains plug in water or other liquids,
or pour water or other liquids over the mains plug.
Always keeps the mains plug dry.
1.2 Intended use
Misuse
• If the device is used other than as
intended, this could lead to arisk
of injury.
> The coffee station may be used
only as intended.
WARNING

27
User Manual WMFCoffee Station
Safety
This coffee station is designed to operate acompatible
WMFcoffee machine without requiring awater infeed or drain.
The station can be set up anywhere within aroom, but
must not be pushed across steps, door thresholds, or other
obstacles.
The use of the device is subject to this User Manual. Any other
use or use that goes beyond the aforementioned is considered
incorrect use. Themanufacturer shall not be liable for any
damage resulting from this.
Tipping hazard
• The coffee station can tip over
iftransported without due care.
> Never push the coffee station
across thresholds or around curves
when it is loaded with acoffee
machine and optional add-on
equipment.
> The coffee machine and add-on
equipment must beremoved from
the coffee station before transport.
CAUTION

28 User Manual WMFCoffee Station
Safety
1.3 Conditions for use and installation
Risk of fire and accidents
> The conditions for use and
installation must be met.
> The conditions for use and
installation listed in the
“TechnicalData” chapter must
bemet.
WARNING
Technical data
wpage 39
Any necessary on-site preparatory work for electricity at
the customer‘s premises is to be arranged by the machine
owner/operator. The work must be carried out by authorised
installation technicians in compliance with general, country-
specific and local regulations. The WMFService engineers may
only connect the coffee machine to existing prepared connection
points. WMFService is neither authorized nor responsible for
carrying out any on-site installation work prior to connection.
The potential equalization terminal is installed by WMFService
ifneeded.

29
User Manual WMFCoffee Station
Safety
• Follow the instructions on hazards
and safety from the WMFcoffee
machine user manual.
• Follow the user manual for the
corresponding coffee machine.
• Observe the user manuals safety
chapter.
CAUTION
Tipping hazard
• The coffee station can tip over
iftransported without due care.
> Never push the coffee station
across thresholds or around curves
when it is loaded with acoffee
machine and optional add-on
equipment.
> The coffee machine and add-on
equipment must beremoved from
the coffee station before transport.
CAUTION

30 User Manual WMFCoffee Station
2
1
3
6
7
4
5

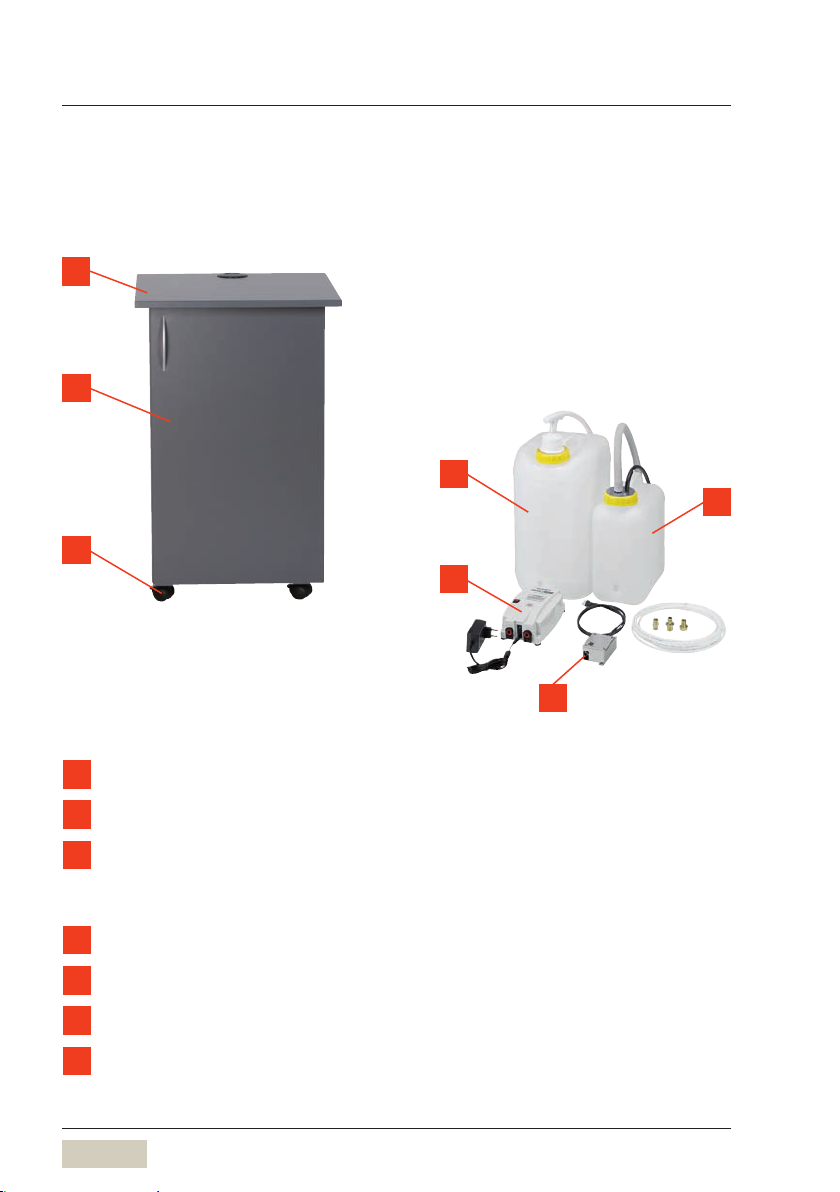

Introduction and general information | Parts of the coffee station
2 Introduction and general information
2.1 Parts of the coffee station
1Table top
2Door
3Steering casters (2lockable)
Integrated equipment (optional)
4Waste water tank
5Fill level switch (sensor for fresh water tank)
6Power module (optional)
7Fresh water tank

31
User Manual WMFCoffee Station
Introduction and general information | Parts of the coffee station

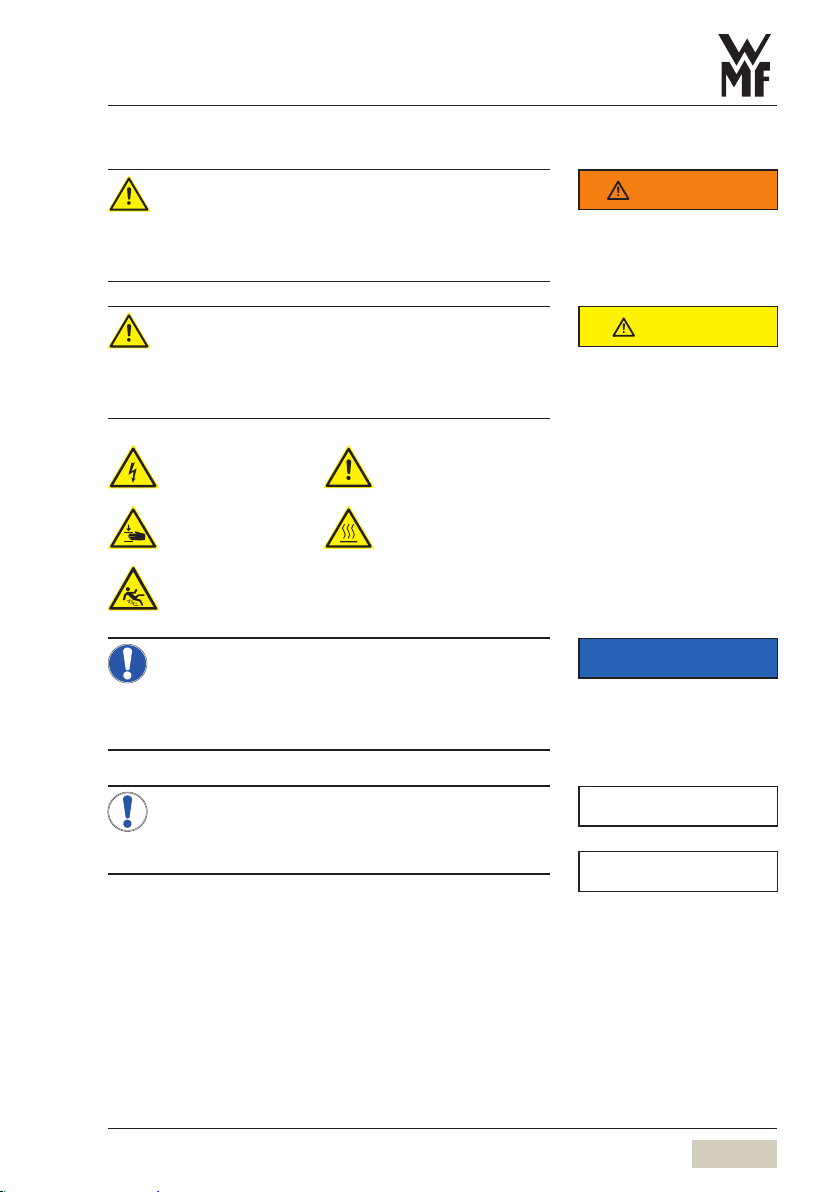

User Manual Signs and Symbols
Personal injury safety instructions
If the safety instructions are not followed, this
could lead to mild to severe injury in case of
improper use.
Personal injury safety instructions
If the safety instructions are not followed, this
could lead to mild injury in case of improper
use.
Electrical shock Tipping hazard
Bruising or
crushing hazard Hot surfaces
Slipping hazard
Notice of property damage
• hazard to the device
• for the installation location
> Always follow the User Manual.
Note/tip
• Instructions for safe use and tips for easier
operation.
WARNING
Follow the Safety chapter
wstarting on page 24
CAUTION
Follow the Safety chapter
wstarting on page 24
IMPORTANT
Follow the Warranty chapter
wstarting on page 38
Technical data
wstarting on page 39
INSTRUCTIONS
TIP

32 User Manual WMFCoffee Station
Introduction and general information
2.2 General functional description
The coffee station can be equipped with asuitable
WMFcoffee machine and matching cooler, or with
anarrow cup rack. The coffee machine sits in the
middle of the cart. If there is no cooler, then the cup
rack can be placed on either the left or right side of
the coffee machine.
2.3 Versions
The coffee station is available in different versions.
• with shelf, no equipment
• with shelf, with grounds container, no equipment
• with equipment, no shelf
• with equipment, with grounds container, no shelf

33
User Manual WMFCoffee Station
Coffee station with integrated equipment (optional)
3 Coffee station with integrated
equipment (optional)
Risk of injury
> Always secure the coffee station by locking
the swivel rollers.
• The coffee station can roll away if
unsecured, causing injury or damage.
> Always secure the coffee station and lock
the swivel rollers.
3.1 Starting operation
Open the door of the coffee station
Remove fresh water tank and waste water tank
Unscrew the lid on the fresh water tank
Fill the fresh water tank with clean, cold water
Replace the lid on the fresh water tank
Check that the waste water tank is empty
Screw the lid, with hose, on to the waste water tank
Replace both tanks in the coffee station
Close the door of the coffee station
Plug the connector into agrounded outlet
Switch on the coffee machine, as described in the
user manual
CAUTION
Follow the Safety chapter
wstarting on page 24
IMPORTANT
Follow the Warranty chapter
wstarting on page 38

34 User Manual WMFCoffee Station
Coffee station with integrated equipment (optional)
3.2 Empty message
Scalding hazard
• The waste water tank does not have afill
level message or overflow safety.
> Empty the waste water tank every time the
fresh water tank is filled.
> If the fresh water tank is removed, coffee
dispensing is automatically locked out.
> Remove the waste water tank only if the
fresh water tank has already been removed.
When the fresh water tank is empty, amessage
appears.
For example
WMF1100 S Display: Check external water tank
After the fresh water tank is filled, the message
disappears, and the coffee machine is once again
ready to use.
Unscrew the lid with the hose from the waste water
tank, and clip it to the bracket on the right inside
the coffee station
Remove and empty the waste water tank
Replace the lid on the waste water tank
3.3 With water filter (optional)
An angle is mounted on the bottom of the
table top for ease in changing the filter. The
filter head is hung on the angle to secure it
during the change.
Optionally, the coffee station can be run with
aWMFwater filter.
CAUTION
Follow the Safety chapter
wstarting on page 24
INSTRUCTIONS
Change water filter
wWater filter instructions

35
User Manual WMFCoffee Station
Care
4 Care
4.1 Cleaning
Daily cleaning of the coffee station is done after close
of business.
Perform the coffee machine cleaning program
Switch off the coffee machine
Unplug the mains plug from the outlet
Open the door
Remove fresh water tank and waste water tank
Unscrew the lids from both tanks
Completely empty both tanks
Remove any soiling and lime deposits with abrush
Rinse out the tanks thoroughly with hot water
Leave the tanks open to dry
Clean the coffee station using adamp cloth
Wipe dry using afine woolen cloth
• There is arisk of causing scratches or
scoring.
> Do not clean with scouring powders or
thelike.
> Do not use any strong cleaning agent.
> Use soft cloths for cleaning.
> We recommend adamp microfiber cloth.
IMPORTANT
Follow the Warranty chapter
wstarting on page 38

36 User Manual WMFCoffee Station
Service and addresses | Safety and warranty
5 Service and addresses
You can reach WMFService if the local service point is
not known.
WMF Group GmbH
Coffee Machines Export Department
Eberhardstraße 35
D-73312 Geislingen (Steige)
6 Safety and warranty
6.1 Hazards to the coffee machine
Follow the manual
We do not accept any warranty for damage
resulting from failure to follow this
requirement.
Follow the conditions for use and installation.
Installation location
• The installation location must be dry and
protected against water spray.
Please observe the following instructions so as to
prevent problems with and damage to the device:
• For insurance reasons always ensure that, at the end
of operation the mains switch is switched off or the
mains plug is unplugged.
• We recommend damage prevention measures:
- e.g. installation of smoke alarms.
• After shut off for several days we recommend
thorough cleaning.
IMPORTANT
Follow the Warranty chapter
wstarting on page 38
Conditions for use and installation
wstarting on page 28

37
User Manual WMFCoffee Station
Safety and warranty | Duties of the owner/operator
6.2 Duties of the owner/operator
The operator of such equipment must ensure regular
maintenance by WMFService technicians, their agents
or other authorised persons, and checking of safety
devices.
Access to the service area is permitted only for persons
with knowledge and practical experience with the
device, especially regarding safety and hygiene.
The coffee machine must be set up by the operator
such that care and maintenance can be performed
without hindrance.
In office/floor supply or similar self-service
operations, only staff instructed in operation of the
coffee machine should supervise the coffee machine.
Trained personnel should carry out care procedures and
be available for questions regarding use.
The operator shall ensure that electrical equipment
and operating facilities are in afit state (e.g., to DGUV
Regulation3) [German Accident Prevention Association
or equivalent]. In order to ensure the operating safety
of your coffee machine, it is essential to perform
regular checks of the safety valves and the pressure
containers, among other checks.
These measures are conducted by WMFService or
by WMFauthorised service personnel as part of the
maintenance work.

38 User Manual WMFCoffee Station
Safety and warranty | Warranty claims
6.3 Warranty claims
Follow the manual
• We do not accept any warranty for damage
resulting from failure to follow this
requirement.
> Follow the conditions for use and
installation.
Whether the purchaser has any rights under warranty,
and the nature of any such warranty rights that the
purchaser may have, is determined by the agreement
made between the purchaser and the vendor. If the
requirements of this User Manual are not followed,
warranty claims will not be recognised.
No warranty is provided:
• On any parts subject to natural wear and tear.
• For malfunctions due to weather, chemical,
electrochemical, or electrical effects, unless
attributable to afault on the part of WMF.
• For malfunctions that occur as aresult of failure
to follow handling instructions and regulations,
intended use, maintenance, and care of the unit
(e.g., user manual).
• With respect to faults which occur as the result of
failure to use original WMFspare parts or incorrect
assembly by the purchaser or by third parties or by
faulty or negligent treatment.
• With respect to the consequences of improper
modifications undertaken without the consent of
WMF, or by repair or reconditioning work on the
part of the purchaser or by third parties.
• With respect to faults caused by inappropriate or
improper use.
IMPORTANT
Conditions for use and installation
wstarting on page 28

39
User Manual WMFCoffee Station
Appendix: Technical data
Appendix: Technical data
Coffee station
Fresh water tank capacity about 25liters
Waste water tank capacity about 13liters
Dimensions:
Width
Depth
Height
580mm
580mm
900mm
Weight empty 33kg
Load capacity (maximum) 150kg
Water Tank System
Nominal power rating 110W (1
Rated voltage 230V
Type of voltage 50/60Hz
Current draw max. 0.2A
Capacity 2.3liters/min
Pressure max. 2.76bar
Dimensions:
Width
Depth
Height
131mm
193.5mm
74.9mm
Type of connection Power supply plug connector
Continuous sound pressure level
(Lpa)
<70dB(A) (2
We reserve the right to make technical modifications.
(1 plus nominal wattage of installed coffee machine and any add-on equipment. Data apply only if the accessory
equipment is used.
(2 The A-weighted sound pressure level Lpa (slow) and Lpa (impulses) are below 70dB(A) at the operating personnel
workplace in any operating mode.

Your nearest WMFService:
© 2018WMFGroup GmbH
All rights reserved, in particular duplication, distribution and translation
rights. No part of this manual may be reproduced in any form or processed,
duplicated or distributed using electronic systems without written consent.
Design and production/typesetting and print presentation:
TecDoc GmbH; Geislingen, [email protected]
Original User Manual. Printed in Germany.
We reserve the right to make technical modifications. 02.03.2018
