Wolf IM15 User manual

INSTALLATI N GUIDE
Multi-Function Cooktop

Important Note
To ensure the safe and efficient use of Wolf equipment,
please take note of the following types of highlighted
information throughout this guide:
IMP RTANT N TE highlights information that is especially
important.
CAUTI N signals a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
Contents
Wolf Multi-Function Cooktop . . . . . . . . . . . . . . . . . . . . 3
Multi-Function Cooktop Specifications . . . . . . . . . . . . 4
Multi-Function Cooktop Installation . . . . . . . . . . . . . . . 8
ServiceInformation...........................10
Features and specifications are subject to change at any time
without notice. Visit wolfappliance.com/specs for the most
up-to-date information.
IMP RTANT N TE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.

Wolf Multi-Function Cooktop 3
wolfappliance.com/specs
Multi-Function Cooktop Installation
IMP RTANT N TE: Installation of the Wolf gas multi-
function cooktop must be completed by a qualified
installer.
Read this entire installation guide prior to installation and
save for the local inspector’s reference. The homeowner
should keep this installation guide for future reference.
This appliance must be installed in accordance with
National Electrical Codes, as well as all state, municipal
and local codes. The correct voltage, frequency and
amperage must be supplied to the appliance from a dedi-
cated, grounded circuit which is protected by a properly
sized circuit breaker or time delay fuse. The proper
voltage, frequency and amperage ratings are listed on the
product rating plate.
The Wolf multi-function cooktop is manufactured for use
with natural gas or LP gas. Check the product rating plate
for type of gas.

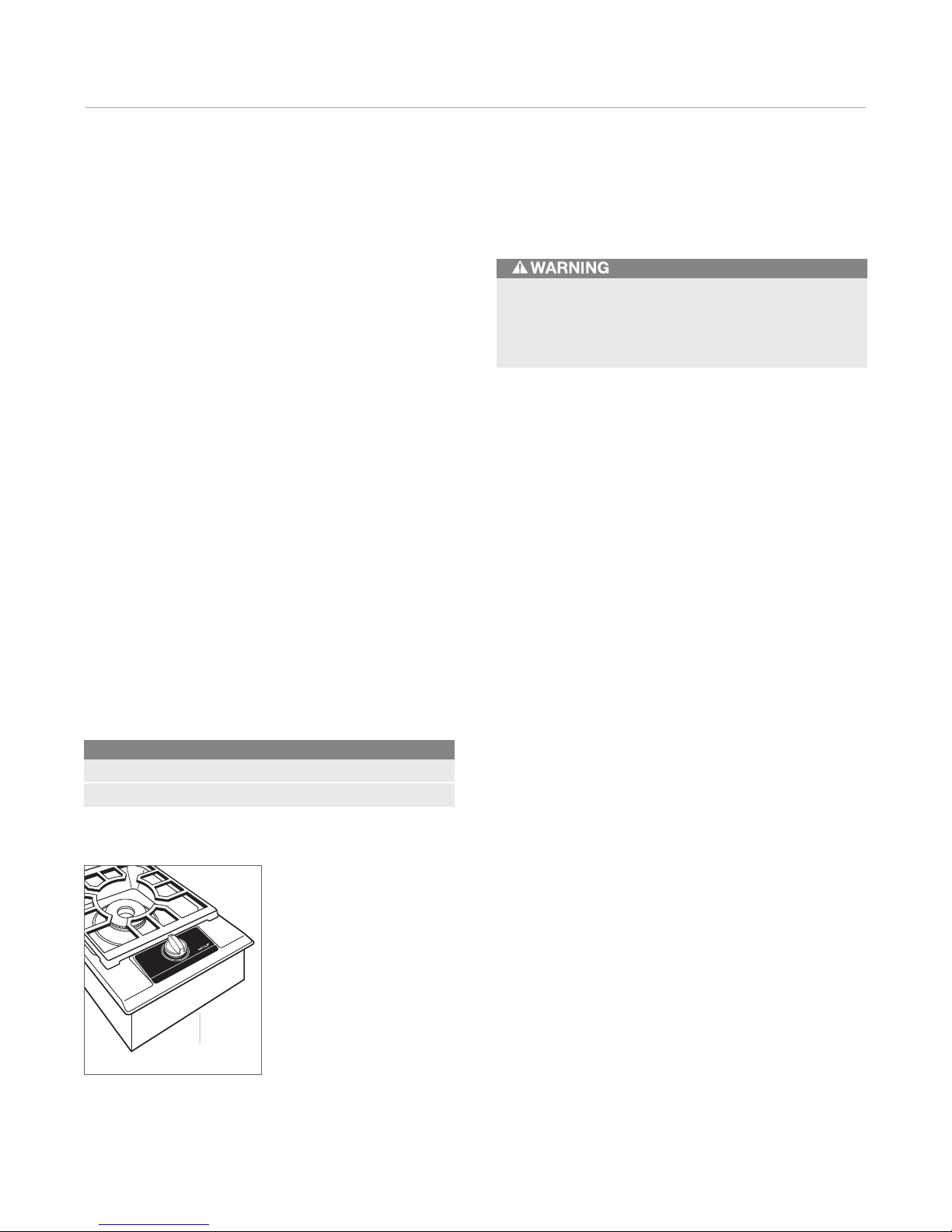

Record the model and serial numbers before installing
the multi-function cooktop. Both numbers are listed on the
product rating plate, located on the underside of the
module. Refer to the illustration below.
Wolf Multi-Function Cooktop
Model Number IM15/S
Serial Number
Location of rating plate.
RATING PLATE
IMPORTANT INSTRUCTIONS
• Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
• Warranty service must be performed by Wolf factory
certified service.
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
• A ventilation hood or downdraft system is recom-
mended for use with the multi-function cooktop.
• In Massachusetts: Installations and repairs must be
performed by a qualified or licensed contractor,
plumber or gasfitter qualified or licensed by the
state, province, or region where this appliance is
being installed. Only use gas shut-off valves
approved for use within the state, province or region
where this appliance is being installed. A flexible gas
connector, when used, must not exceed 3' (.9 m).
WHAT T D IF Y U SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
If the information in this guide is not followed
exactly, a fire or explosion may result, causing
property damage, personal injury or death.

Multi-Function Cooktop Specifications 4

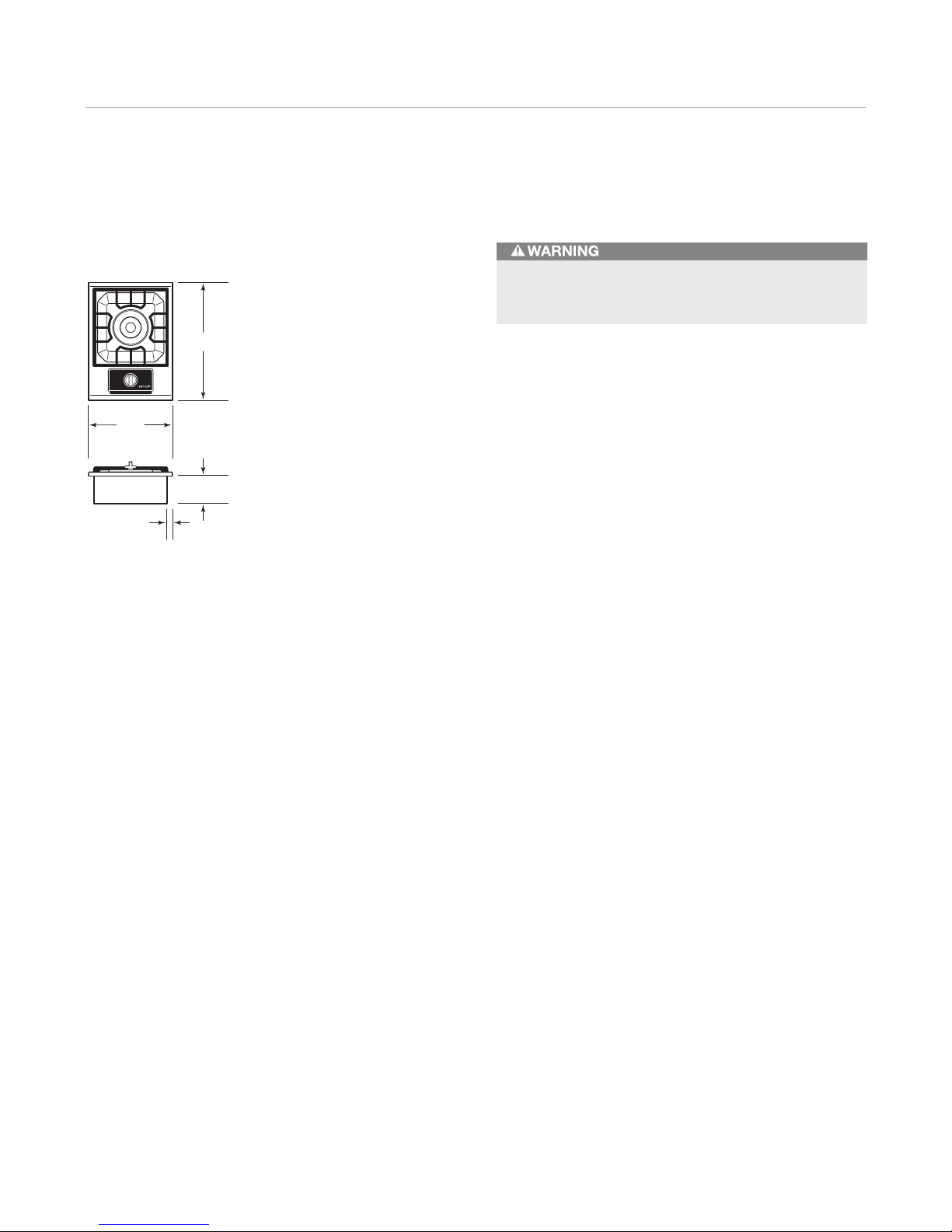

1/2"(13)
SIDES
1" (25) FRONT / BACK
5" (127)
21" (533)
15"
(381)
Overall Dimensions
MULTI-FUNCTI N C KT P
Installation Specifications
IMP RTANT N TE: Installation of the Wolf gas multi-
function cooktop must meet minimum clearance require-
ments shown in the installation specifications illustration
on the following page.
The Wolf multi-function cooktop is intended for indoor
use. An adequate supply of fresh air is required to assure
proper combustion and ventilation. It is designed to fit a
standard 24" (610) deep base cabinet with 25" (635) deep
countertop. Before making the countertop cut-out, verify
that the module will clear the side walls of the base
cabinet.
There should be at least 51/2"(140) clearance between the
countertop and any combustible surface directly below
the multi-function cooktop.
If the multi-function cooktop is not installed above an
oven, the gas service may be supplied through the floor.
When an oven is installed below the cooktop, unless you
are using cabinets deeper than 24" (610), it is recom-
mended that the electrical supply be placed in the base
cabinet to the right of the oven. Refer to the illustration
on the following page for specifics on placement of the
electrical and gas supply.
It is recommended that you use a Wolf cooktop ventilation
hood, downdraft, pro hood or hood liner with the multi-
function cooktop. Refer to the Wolf design guide.
Failure to locate the multi-function cooktop without the
proper clearances will result in a fire hazard.

Multi-Function Cooktop Specifications 5
wolfappliance.com/specs

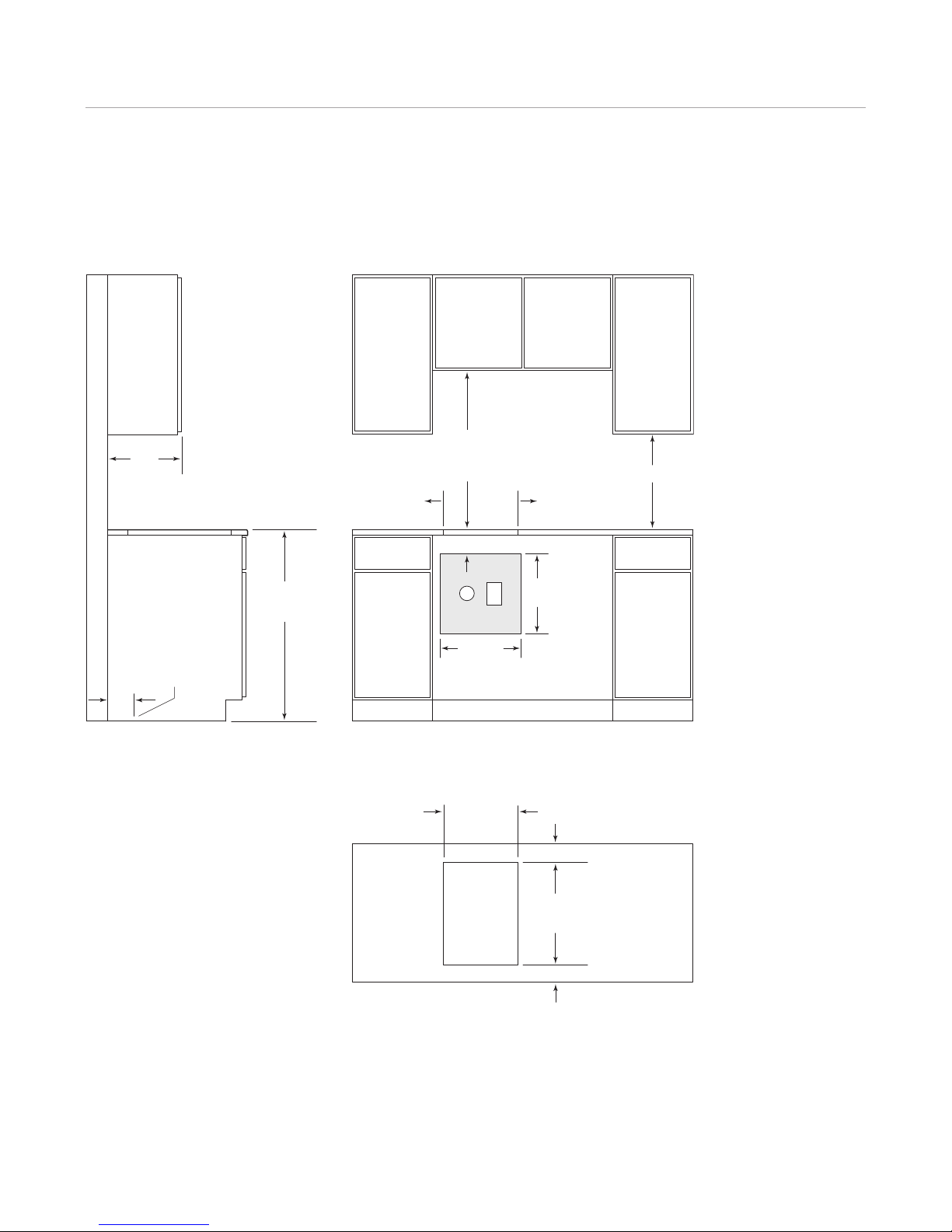

Installation Specifications
MULTI-FUNCTI N C KT P
36" (914)
FLOOR TO
COUNTERTOP
30" (762) min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
SEE COUNTERTOP
CUT-OUT BELOW
14" (356)
CUT-OUT
WIDTH
COUNTERTOP CUT-OUT
FRONT
191/4"(489)
CUT-OUT
DEPTH
21/2"(64) min
7" (178) TO
COMBUSTIBLE*
7" (178) TO
COMBUSTIBLE*
SIDE
CABINET
13" (330)
max
E
15" (381)
15"
(381)
4"
(102)
18" (457) min
5"
(127)
LOCATION OF GAS
AND ELECTRICAL
EXTENDS ON FLOOR
G
21/2"(64) min*
FRONT VIEWSIDE VIEW
*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.
NOTE: Application shown allows for installation of two 15" (381) modules side by side.

Multi-Function Cooktop Specifications 6

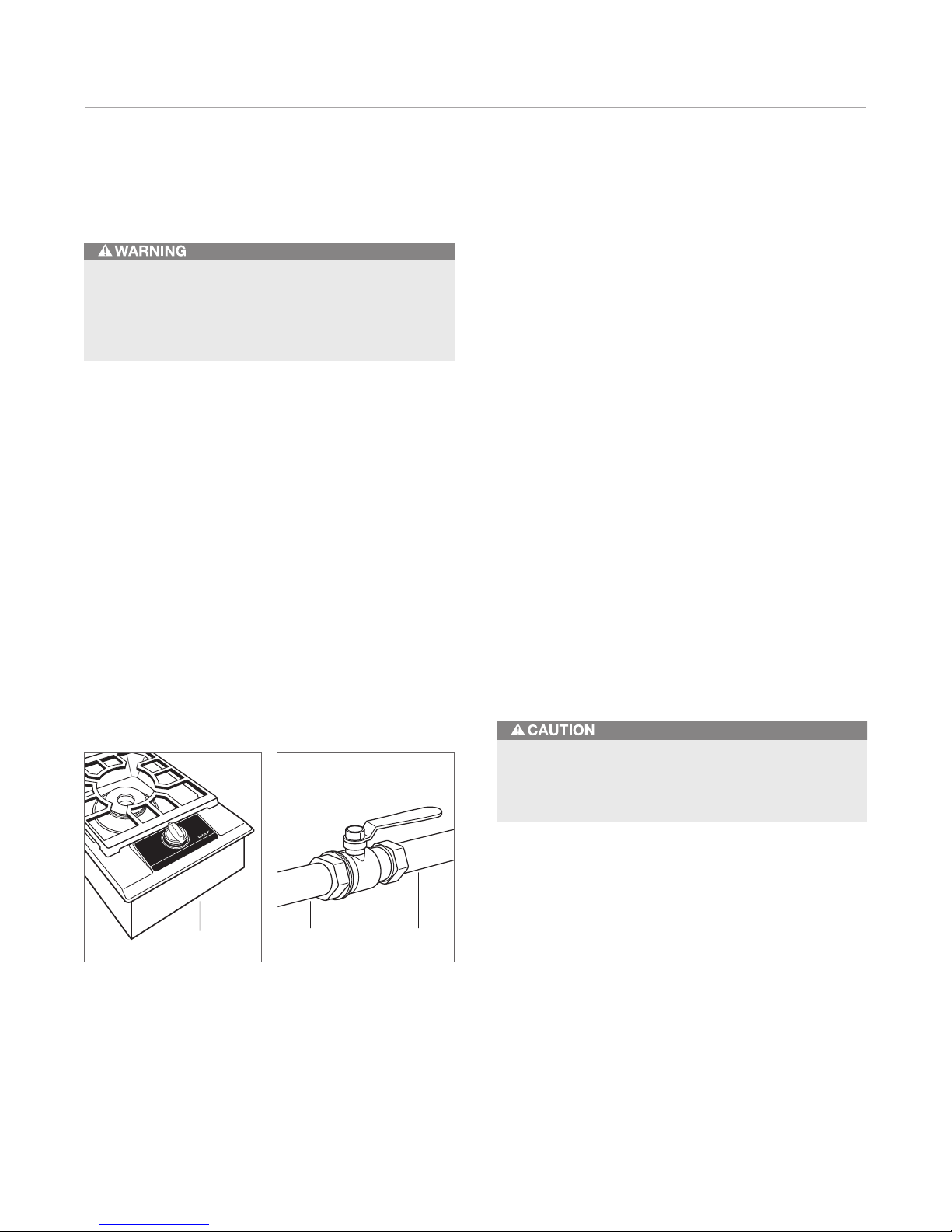

GAS SUPPLY LINE
IMP RTANT N TE: The gas multi-function cooktop must
be connected to a regulated gas supply.
A gas supply line of 3/4"(19) rigid pipe must be provided
to the cooktop. For LP gas, piping or tubing size can be
1/2"(13) minimum. LP gas suppliers usually determine the
size and materials used on the system. If local codes
permit, a certified, 1/2"(13) or 3/4"(19) ID flexible metal
appliance connector is recommended to connect the
cooktop to the gas supply line. The gas pressure regulator
on the cooktop has 1/2"(13) female threads.
IMP RTANT N TE: The supply line must be equipped
with an approved external gas shut-off valve located near
the cooktop in an accessible location. Do not block
access to the shut-off valve. Refer to the illustration below.
The Wolf natural gas multi-function cooktop will function
up to an altitude of 10,250' (3124 m) without any adjust-
ment. LP gas cooktops will function up to 8,600' (2621 m)
without adjustment. If the installation exceeds these eleva-
tions, contact your authorized Wolf dealer for a high
altitude conversion kit.
Gas Supply Requirements
IMP RTANT N TE: This installation must conform with
local codes and ordinances. In the absence of local
codes, installations must conform with American National
Standard, National Fuel Gas Code ANSI Z223.1—latest
edition or CANI—B149.1 or 2.
The gas multi-function cooktop is equipped for use with
natural or LP gas. It is design certified by the Canadian
Standards Association (CSA) for natural or LP gases. The
product rating plate, located on the underside of the
cooktop, has information on the type of gas that should be
used. Refer to the illustration below. If this information
does not agree with the type of gas available, contact your
authorized Wolf dealer or local gas supplier. For local
dealer information, visit the find a showroom section of
our website, wolfappliance.com.

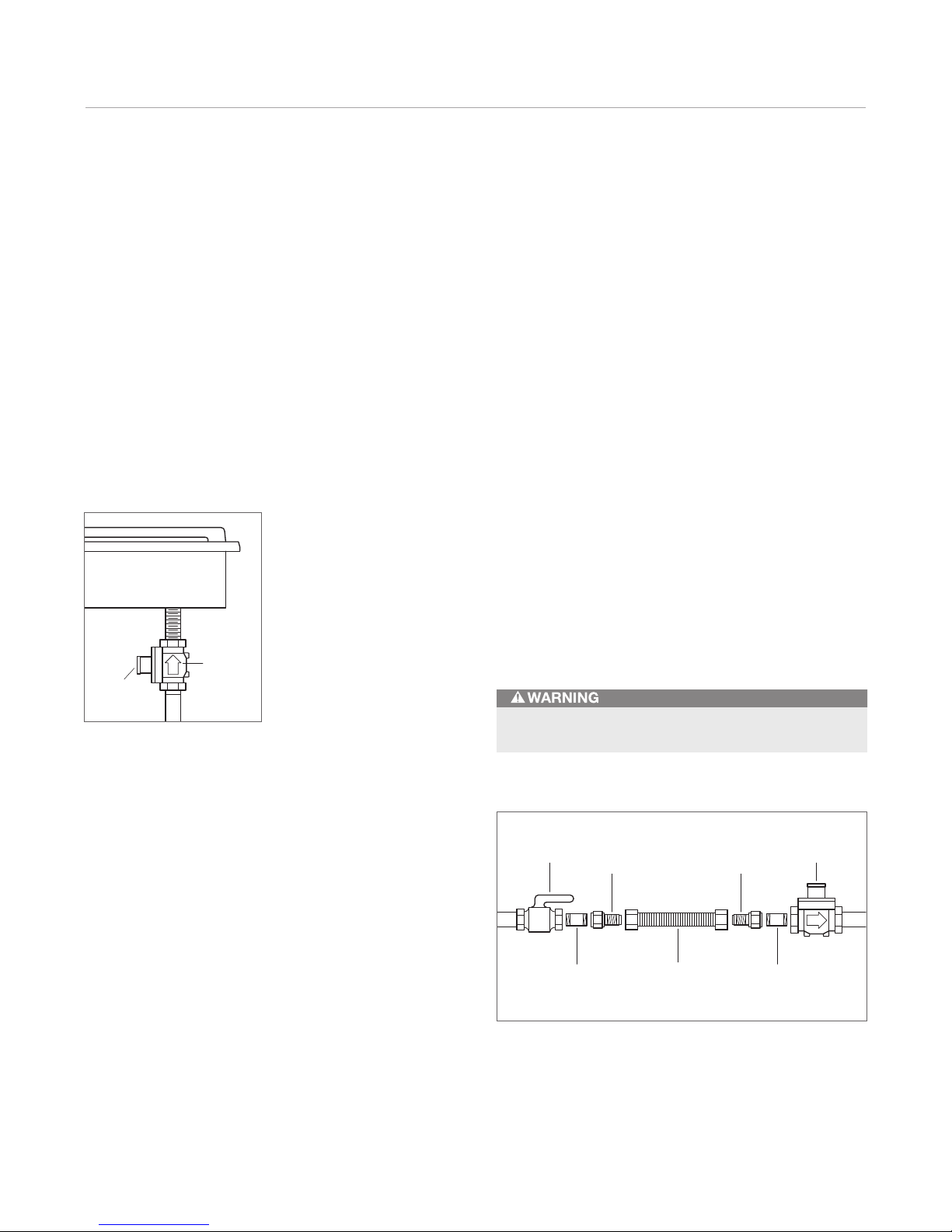

EXPL SI N HAZARD: Use a certified gas supply line
and install a gas shut-off valve. Securely tighten all gas
connections. Failure to follow these instructions can
result in explosion, fire or death.
Before connecting the gas supply, make sure all valves
are in a closed position. Do not connect the gas supply
to an appliance that shows any sign of damage.
Location of rating plate. Gas shut-off valve.
SHUT-OFF VALVE
OPEN POSITION
GAS SUPPLYTO APPLIANCE
RATING PLATE

Multi-Function Cooktop Specifications 7
wolfappliance.com/specs
Gas Supply Requirements
GAS MANIF LD PRESSURE
•Natural Gas: Standard orifices are set for 5" (12.5 mb)
WC (water column).
•LP Gas: Standard orifices are set for 10" (25 mb) WC.
•Gas Supply Pressure: The maximum gas supply
pressure to the regulator should never exceed 14"
(34.9 mb) WC; .5 psi (3.5 kPa) for natural and LP gas.
The minimum line pressure is 7" (17.5 mb) WC for
natural gas and 11" (27.4 mb) WC for LP gas.
•Gas Pressure Regulator: To control and maintain a
uniform gas pressure in the gas manifold, the unit must
be used with a gas pressure regulator. The burner
orifices, etc. are sized for the gas pressure delivered by
the supplied regulator. Do not remove the regulator.
The maximum gas supply pressure to the regulator
should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).

Multi-Function Cooktop Specifications 8
Electrical Requirements
The Wolf multi-function cooktop requires a 120 V AC,
60 Hz, 15-amp, fused electrical supply. A time-delay fuse
or circuit breaker is recommended. It is recommended that
a separate circuit serving only this appliance be provided.
A ground fault circuit interrupter (GFCI) is not recom-
mended and may cause interruption of operation.
ELECTRICAL GR UND
The 6' (1.8 m) power cord is equipped with a 3-prong,
grounding plug for protection against shock hazard. The
power cord must be plugged into a mating 3-prong
grounded outlet, grounded to conform with the National
Electrical Code, ANSI/NFPA 70 latest edition, or Canadian
Electrical Code (CSA) and all local codes and ordinances.
Refer to the illustration below.
IMP RTANT N TE: This appliance must be properly
grounded to avoid electrical shock hazard. Do not ground
to a gas pipe.
GROUNDING
PLUG
GROUNDED
ELECTRICAL OUTLET
Electrical ground.
ELECTRICAL SH CK HAZARD: Plug into a grounded
3-prong outlet. Do not remove ground prong. Do not
use an adapter. Failure to follow these instructions can
result in electric shock, fire or death.
N
A
11
22
BLACK
BLACK
WHITE
WHITE
RED
WHITE
RED
WHITE
RED
SPARK
MODULE 3 CONDUCTOR
POWER CORD
GRN
BLK
IMP RTANT N TE: Electronic ignition systems operate
within wide voltage limits, but proper ground and polarity
are necessary. In addition to checking that the electrical
outlet provides 120 V AC power and is correctly grounded,
the outlet must be checked by a qualified electrician to
see if it is wired with correct polarity.
WIRING DIAGRAM
The wiring diagram below covers the control circuit for the
Wolf multi-function cooktop.
Wiring diagram.

Multi-Function Cooktop Specifications 9
wolfappliance.com/specs
Installation Specifications
MULTIPLE C KT P INSTALLATI N
If the multi-function cooktop is to be used in combination
with additional cooktops or modules with a filler strip, refer
to the chart below for the countertop cut-out width. The
dimensions are derived by adding an additional 11/4"(32)
for each additional unit, to give you the total countertop
cut-out width. Dimensions include the filler strip.
When multiple cooktops are installed side by side, each
unit must have its own separate, recommended electrical
circuit. When multiple gas cooktops are installed next to
one another, they can receive their gas supply from a
common line. However, each unit must have its own gas
pressure regulator.
When two or more cooktops or modules are installed
together, an integrated module filler strip is recommended.
The filler strip and other accessories are available through
your authorized Wolf dealer. For local dealer information,
visit the find a showroom section of our website,
wolfappliance.com.
IMP RTANT N TE: Review specific installation instruc-
tions for product to product capabilities.
Multiple Cooktops
C UNTERT P CUT- UT WIDTH
2 Modules 291/4"(743)
3 Modules 441/2"(1130)
4 Modules 593/4"(1518)
30" (762) Cooktop / Module 441/4"(1124)
30" (762) Cooktop / 2 Modules 591/2"(1511)
36" (914) Cooktop / Module 501/4"(1276)

Multi-Function Cooktop Installation 10
Install the Cooktop
Remove the multi-function cooktop and gas pressure
regulator from its shipping carton and discard packing
materials.
Lower the multi-function cooktop into the countertop
cut-out opening. Center the cooktop in the opening and
check that the front edge of cooktop is parallel to the front
edge of the countertop. Check that all required clearances
are met. Using a pencil, outline the rear edge of the
cooktop frame on the countertop. Remove the cooktop
from the countertop opening.
IMP RTANT N TE: When repositioning the multi-function
cooktop in the countertop opening, lift the entire cooktop
up from the opening to prevent scratching the countertop.
Apply the foam strip, included in the hardware package,
to the underside of the multi-function cooktop frame.
Refer to the illustration below.
Reinsert the multi-function cooktop into the countertop
opening. Align the rear edge of the cooktop frame with the
pencil line and check that it is parallel to the front edge of
the countertop. Lift the entire cooktop to make adjust-
ments.
FOAM
STRIP
BURNER BOX
Foam strip. Installation brackets.
31/2"(89)
CLAMPING
SCREW
BURNER
BOX
COUNTERTOP
BRACKET
CLIP
Attach the brackets to the burner box by inserting the
clips into the rectangular punchouts on the left and right
side of the burner box. Insert the 31/2"(89) clamping
screws into the brackets. Use a screwdriver to tighten the
clamping screws against the underside of the countertop.
Refer to the illustration below. Do not overtighten screws.
IMP RTANT N TE: Do not seal the cooktop to the coun-
tertop. It must be removed if service is necessary.
