Wood Stone MOUNTAIN Series User manual

MOUNTAIN SERIES
Stone Hearth Oven
Wood-Fired with Underfloor
Infrared (IR) Burner Assist Models
MT. CHUCKANUT WS-MS-4-W-IR
MT. ADAMS WS-MS-5-W-IR
MT. BAKER WS-MS-6-W-IR
MT. RAINIER WS-MS-7-W-IR
Installation and
Operation Manual
Toll Free 800.988.8103
Tel [phone]
Fax [phone]
www.woodstone-corp.com
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
DOC NO M0036.14 REVISED DECEMBER 2019

Mountain Series W-IR
Installation and Operation Manual
PG 2 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
TABLE OF CONTENTS
TABLE OF CONTENTS
Mountain Series W-IR� � � � � � � � � � � � � � 3
Cautions & Warnings � � � � � � � � � � � � � � 4
Unloading & Moving the Oven� � � � � � � � 6
Installation Clearances � � � � � � � � � � � � � 7
Facade Details� � � � � � � � � � � � � � � � � � � 9
Outdoor Installations � � � � � � � � � � � � � 10
Gas Specifications � � � � � � � � � � � � � � � 11
Electrical Specifications � � � � � � � � � � � 13
Venting � � � � � � � � � � � � � � � � � � � � � � � 14
Flue Adapter, MS-5, 6, 7� � � � � � � � � � � 17
Flue Adapter, MS-4 � � � � � � � � � � � � � � 18
Venting Do’s & Don’ts � � � � � � � � � � � � 19
Assembly � � � � � � � � � � � � � � � � � � � � � 27
Mantle Mounting � � � � � � � � � � � � � � � � 28
Front Panel Assembly� � � � � � � � � � � � � 29
Stucco Application � � � � � � � � � � � � � � � 30
Controller � � � � � � � � � � � � � � � � � � � � � 31
Initial Start-Up � � � � � � � � � � � � � � � � � � 32
Wood Burning � � � � � � � � � � � � � � � � � � 33
Maintenance � � � � � � � � � � � � � � � � � � � 35
Safety Considerations� � � � � � � � � � � � � 36
Troubleshooting Guide � � � � � � � � � � � � 37
Operation Sequence� � � � � � � � � � � � � � 38
120 VAC Electrical Diagram � � � � � � � � 39
240 VAC Electrical Diagram � � � � � � � � 40
Fuelwood Facts � � � � � � � � � � � � � � � � � 41
Limited Warranty � � � � � � � � � � � � � � � � 43

Mountain Series W-IR
Installation and Operation Manual
PG 3 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
MOUNTAIN SERIES W-IR
INSTALLATION AND OPERATION MANUAL
THE WOOD STONE MOUNTAIN SERIES
STONE HEARTH COOKING EQUIPMENT
WS-MS-(4,5,6,7)-W-IR-(NG,LP,HLP) MODELS
WOOD/GAS COMBINATION OVEN
ADDITIONAL COPIES AVAILABLE UPON REQUEST

Mountain Series W-IR
Installation and Operation Manual
PG 4 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
CAUTIONS & WARNINGS
IN THE EVENT OF A POWER FAILURE, NO ATTEMPT SHOULD BE MADE TO OPERATE THE OVEN.
IMPORTANT: Consult your local gas supplier for a statement outlining a procedure to be followed in the
event you smell gas. Post the statement in a prominent location.
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE
Please read this entire manual before you install the oven. Failure to follow instructions may result in
property damage, bodily injury or even death. Contact your local building or fire officials about restrictions
and installation inspection in your area.
IMPORTANT: It is recommended that this oven be installed, maintained
and serviced by authorized professionals.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual at woodstone-corp�com�
For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�
WHEN THE OVEN IS NOT PROPERLY INSTALLED, A FIRE MAY RESULT.
TO REDUCE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTION.
CAUTION: Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid or similar
liquids to start or freshen-up a fire in this oven. Keep all such liquids well away from the oven when in
use.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this
or any other appliance.
POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser d’essence ou d’autres vapeurs de liquides
inflammables ou des liquides dans les environs de ce ou de tout autre appareil.
Always keep the area under and around this appliance free and clear of any and all combustible materials.
INSTALLATION AND OPERATING INSTRUCTIONS FOR THE
WOOD STONE MOUNTAIN SERIES WOOD / GAS COMBINATION (IR-W) OVEN

Mountain Series W-IR
Installation and Operation Manual
PG 5 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
CAUTIONS & WARNINGS
Wood Stone ovens
have been tested and approved by Intertek Testing Services and
conform to ANSI Z83.11, UL 2162, UL 737 and CGA 2.17;
are certified to CSA 1.8, ULC/ORD 2162 and ULC S627;
and to NSF/ANSI 4.
A MAJOR CAUSE OF OVEN RELATED FIRES IS A
FAILURE TO MAINTAIN REQUIRED CLEARANCES
TO COMBUSTIBLE MATERIAL. IT IS OF UTMOST
IMPORTANCE THAT THIS OVEN BE INSTALLED ONLY
IN ACCORDANCE WITH THESE INSTRUCTIONS.
SAVE THE INSTRUCTIONS
This product must be installed by a licensed plumber or gas fitter when installed within the
Commonwealth of Massachusetts.
USE SOLID WOOD FUEL ONLY
DO NOT USE PRODUCTS NOT SPECIFIED FOR THIS OVEN
CAUTION: DISCONNECT POWER TO THE OVEN BEFORE SERVICING OR CLEANING.
WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property
damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before
installing or servicing this equipment.
AVERTISSEMENT: L’installation, le réglage, la modification, la réparation ou l’entretien incorrect de cet
appareil peut causer des dommages matériels, de blessures ou la mort. Lire attentivement les instructions
d’installation, de fonctionement et d’entretien avant de procéder à son installation ou entretien.
ANSI Z83.11
CSA 1.8
ANSI/NSF 4

Mountain Series W-IR
Installation and Operation Manual
PG 6 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com

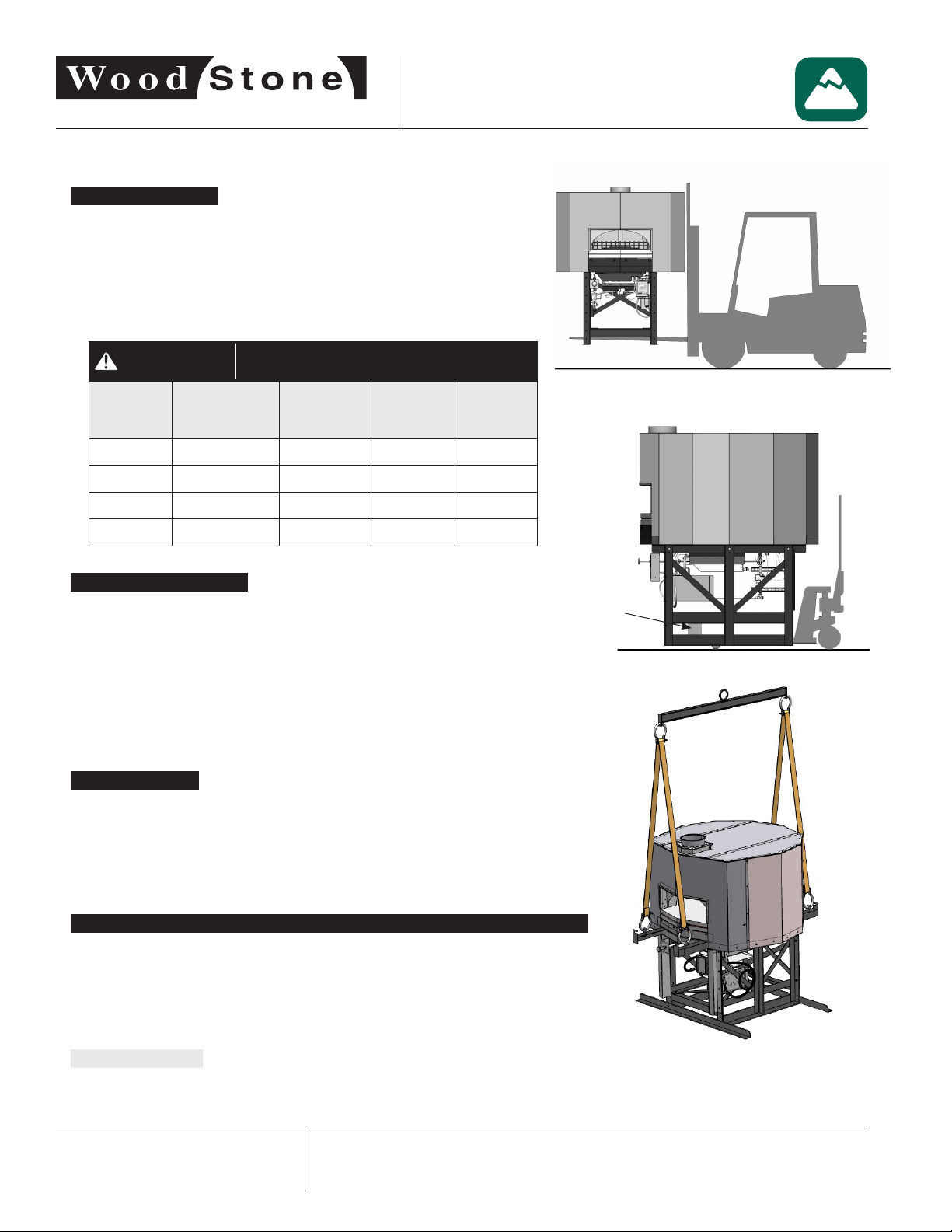

UNLOADING & MOVING THE OVEN
USING A PALLET JACK.
Once the oven has been removed from the delivery vehicle, it can easily be
moved on smooth, flat surfaces using a Pallet Jack� To lift the oven with a Pallet
Jack, remove the front and rear angle iron stabilizers from the base of the oven
stand and place a stout 4x4 post through the Fork Pocket as shown in figure b�
THE OVEN IS VERY TOP-HEAVY. MOVING THE OVEN UP OR DOWN A RAMP
OR INCLINE ON A PALLET JACK IS NOT SAFE!
DELIVERY NOTE: The customer will receive an Oven Shipping Notification when the oven leaves the Wood Stone factory�
This will include a PRO# and a trucking company contact number� Wood Stone recommends that you confirm the delivery date/
time with the trucking company before committing to heavy equipment and/or labor� Our goal is a smooth and safe delivery�
4x4 post
USING A CRANE.
The oven arrives with four lifting eyes attached� When craning a Wood Stone
oven, use a spreader bar with a two-legged sling rigged on each end� The
spreader bar should be of a sufficient length to keep the sling from contacting
the oven� See figure c�
DO NOT TURN THE OVEN ON ITS SIDE!
Contact Wood Stone if the oven must be turned on its side for specific instructions�
Moving a Wood Stone oven can present challenges to even the most experienced
riggers� Take your time, use your head, secure the proper equipment and make safety
your first priority� Please don’t hesitate to call the factory for technical support�
fig. a
fig. b
Minimum Required Forklift Capacities
Model Oven
Approximate
shipping
weight
Minimum
fork length
required
Required
forklift
capacity
WS-MS-4 Mt. Chuckanut 2,400 lbs. 4' 5,000 lbs.
WS-MS-5 Mt. Adams 3,600 lbs. 5' 6,000 lbs.
WS-MS-6 Mt. Baker 4,600 lbs. 6' 8,000 lbs.
WS-MS-7 Mt. Rainier 6,000 lbs. 7' 12,000 lbs.
WARNING
USING A FORKLIFT.
Use a forklift with adequate fork lengths and lifting capacity� If
necessary, fork extensions must be used so the forks extend
through the fork lift pockets to the opposite side of the stand� Lift
from either side as shown in figure a� Do not lift from the front or
back� The oven is very top heavy, so spread the forks as far apart
as possible�
fig. c

Mountain Series W-IR
Installation and Operation Manual
PG 7 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
INSTALLATION CLEARANCES
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL THE OVEN. FAILURE TO FOLLOW
INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. CONTACT YOUR
LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR
AREA.
!
WARNING: Installation and servicing of this product could expose you to glasswool/ceramic
fibers as well as Calcium Silicate dust. ALWAYS WEAR RESPIRATORY AND EYE PROTECTION WHEN
INSTALLING OR SERVICING THIS APPLIANCE. Please read this entire manual before you install the
oven. Failure to follow instructions may result in property damage, bodily injury or even death.
Contact your local building or fire officials about restrictions and installation inspection in your
area.
CLEARANCES
1. The Wood Stone Mountain Series oven must have a minimum 1-inch clearance to combustibles from all sides, and 6-inch
clearance to combustibles from the top (see INSTALLATION CLEARANCES section on next page)� If building materials will
contact the oven, they must be completely non-combustible� Please note that standard Drywall (or Sheetrock) is considered
a combustible� When non-combustible building materials contact the body of the oven, the respective clearances are
transferred to those non-combustibles�
2. Any facade 6 inches to either side of the oven doorway or above, must be constructed of non-combustible building materials�
3. For gas/wood combination models, this oven is suitable for installation on combustible floors (convient à l’installation
sur un plancher combustible)� The minimum hearth extension area to be covered with a non-combustible floor surface must
extend 36 inches in front of and 30 inches to either side of the oven door opening�
NOTICE: For stucco-ready appliances (model numbers including an “-S”), the same clearances as described above apply� Non-
combustible stucco mix must be used and applied to a minimum thickness of 1"�
The floor design and construction must be adequate to handle the weight of the oven� See woodstone-corp.com for floor
loading information�
IF THIS OVEN IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THESE
INSTALLATION INSTRUCTIONS. A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED
CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS OVEN BE
INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
WARNING: DO NOT PACK REQUIRED AIR SPACES WITH INSULATION OR OTHER MATERIAL.

Mountain Series W-IR
Installation and Operation Manual
PG 8 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
INSTALLATION CLEARANCES
THE FOLLOWING CLEARANCE INFORMATION APPLIES TO ALL
WOOD STONE MOUNTAIN SERIES OVENS
1" side clearance to combustible
building materials.
6" top clearance to combustible
building materials.
Any facade materials 6" to either side
of the doorway and above must be
NON-COMBUSTIBLE.
Note: 0" side and top clearance to non-
combustible materials. However, the
respective clearances to combustibles
are transferred to those non-
combustibles.
6"
For gas/wood combination models,
this oven is suitable for installation
on combustible floors (convient
à l’installation sur un plancher
combustible). The minimum hearth
extension area to be covered with a
non-combustible floor surface must
extend 36 inches in front of and 30
inches to either side of the oven door
opening.
Combustible building material
Floor
Any facade wall 6” to either side of the
oven doorway and above MUST be of non-
combustible construction with no exceptions�

Mountain Series W-IR
Installation and Operation Manual
PG 9 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
FACADE DETAILS
Wood Stone Mountain Series (MS-) ovens carry an ETL Sanitation listing� The oven interior only is ETL listed to NSF/ANSI
Standard 4� This means that the surfaces of the oven which are meant to be left exposed after the facade has been put in place
have been evaluated from the standpoint of sanitation and food safety and found to comply with NSF/ANSI Standard 4� To operate
the oven in accordance with NSF/ANSI Standard 4, only pizza and bread products may be cooked directly on the floor of the oven�
Other types of food may be cooked on or in pans, or other suitable containers to prevent spillage onto the oven deck�
Go to www.woodstone-corp.com for detailed instructions for constructing a facade around a Wood Stone oven�
A removable Service Panel or storage box allows
access for service of gas and electrical components.
If this panel is not used, access and air intake of
equivalent dimensions MUST be provided at the
front of the oven.

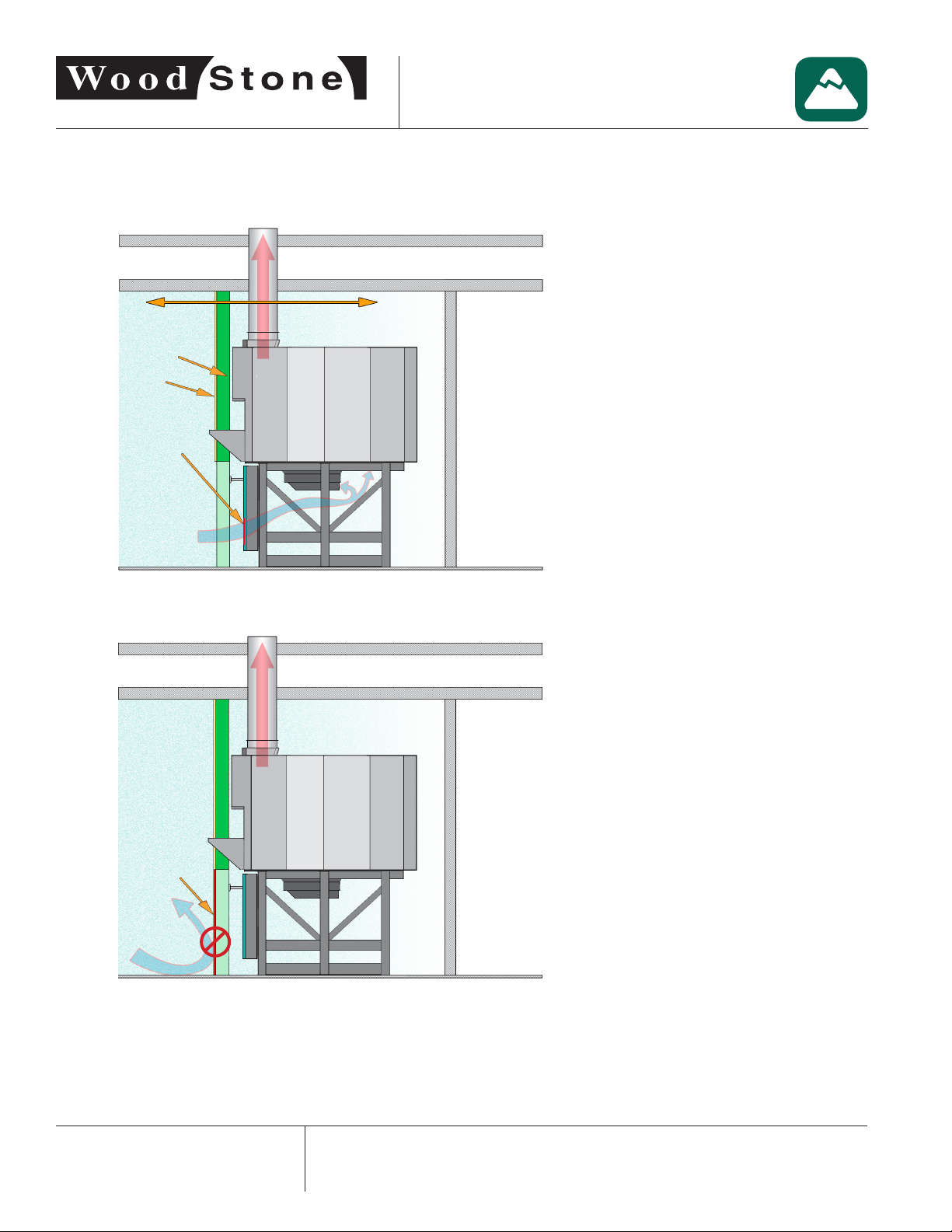

If using an exhaust hood over the oven, make sure
your facade allows proper access for removal of the
hood filters.
Hatched areas shall not be exposed after installation of facade�
Any facade wall 6" to either side of the oven doorway and above
MUST be of non-combustible construction with no exceptions�
Oven Arches
DO NOT REMOVE
Removal will affect
structural integrity,
heat retention, operation
and void the Warranty�

Mountain Series W-IR
Installation and Operation Manual
PG 10 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
OUTDOOR INSTALLATIONS
OUTDOOR INSTALLATIONS
The Mountain Series (MS-) model ovens are ETL approved for outdoor installation� When installed outdoors, the open area
beneath the oven must be enclosed, with the exception of the perforated area on the front Service Panel (or storage box) for
air intake� The oven may be installed in a weatherproof enclosure� If so be sure to maintain all clearances and adhere to the
installation requirements included in this manual�
KEEP THE AREA AROUND AND BENEATH THE OVEN CLEAR OF GRASS, LEAVES
AND OTHER COMBUSTIBLE MATERIALS.
Wood Stone also offers the following options to enclose the area beneath the oven�
Stand Wrap Kit
Lower Lagging Kit

Mountain Series W-IR
Installation and Operation Manual
PG 11 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
GAS SPECIFICATIONS
This oven requires no modifications or adjustments for use at high altitudes.
The installation must conform with local codes, or in the absence of local codes with the National Fuel Gas Code,
ANSI 223.1 or the Natural Gas Installation Code, CAN/CGA-B149.1, as applicable.
SV-1 is the gas control valve that operates the Underfloor Infrared (IR) Burner� The manifold pressure is checked at the outlet port
on the SV-1 gas valve�
The burner manifold pressure has been adjusted and tested at the factory� A variety of factors can influence this pressure, so be
sure to test the burner manifold pressure and adjust the valve as necessary to achieve the specified pressure�
NOTE: The gas valve is shipped in the ON position�
GAS CONNECTION
The Wood Stone Gas ovens are equipped with a 3/4" NPT gas connection located at the rear left of the oven� Have a licensed gas
installer provide the hook-up and test all fittings and pipe connections for leaks� Use approved gas leak detectors (soap solutions
or equivalent) over and around the fittings and pipe connections� DO NOT USE FLAME TO TEST FOR LEAKS.
All gas piping up to the oven must have a minimum inside diameter of 3/4", including all fittings and shut off valves, which should
be of the full flow type�
Wood Stone recommends that the appliance’s individual shutoff valve (supplied by others) be left readily accessible� Wood Stone
also recommends that inspection and maintenance of the burner and gas piping connections of this appliance be performed at
regularly scheduled intervals and only by professional gas appliance service agencies�
Maximum inlet gas pressure must not exceed 14" W.C. (1/2 psi)
FACTORY SPECIFIED INDIVIDUAL BURNER MANIFOLD PRESSURES (W.C.) FOR WS-MS-W-IR MODELS
Natural Gas Equipped Propane (LP) Equipped Propane (HLP) Equipped
Model SV-1 Model SV-1 Model SV-1
WS-MS-4-W-IR-NG 3.5" WS-MS-4-W-IR-LP 9" WS-MS-4-W-IR-HLP 9"
WS-MS-5-W-IR-NG 3.5" WS-MS-5-W-IR-LP 9" WS-MS-5-W-IR-HLP 9"
WS-MS-6-W-IR-NG 3.5" WS-MS-6-W-IR-LP 9" WS-MS-6-W-IR-HLP 9"
WS-MS-7-W-IR-NG 3.5" WS-MS-7-W-IR-LP 9.2" WS-MS-7-W-IR-HLP 9.2"

Mountain Series W-IR
Installation and Operation Manual
PG 12 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
GAS SPECIFICATIONS
MAXIMUM HOURLY BTU INPUT RATES FOR WS-MS-W-IR MODELS
Natural Gas Equipped Propane (LP) Equipped Propane (HLP) Equipped
Model
BTU/hr Input
Rate Model
BTU/hr Input
Rate Model
BTU/hr Input
Rate
WS-MS-4-W-IR-NG 52,000 WS-MS-4-W-IR-LP 53,000 WS-MS-4-W-IR-HLP 52,000
WS-MS-5-W-IR-NG 83,000 WS-MS-5-W-IR-LP 65,000 WS-MS-5-W-IR-HLP 83,000
WS-MS-6-W-IR-NG 83,000 WS-MS-6-W-IR-LP 65,000 WS-MS-6-W-IR-HLP 83,000
WS-MS-7-W-IR-NG 97,000 WS-MS-7-W-IR-LP 85,000 WS-MS-7-W-IR-HLP 97,000
GAS INLET PRESSURE
For ovens running on natural gas, an inlet pressure of 7 to 10" W�C� is recommended to ensure optimum oven performance�
Incoming gas pressure below this range will affect oven performance, the lower the pressure the greater the negative impact� If
the gas supply pressure is greater than 14" W�C� (1/2 psi), an external regulator, supplied by others, is REQUIRED to lower the
gas pressure to the acceptable range� Issues caused by low or high gas pressure are installation issues, and will not be covered
under the Warranty�
For ovens running on Propane (LP or HLP), the recommended inlet pressure to ensure optimum oven performance is 10 to 12"
W�C� Incoming gas pressure below this range will affect oven performance, the lower the pressure the greater the negative
impact� If the gas supply pressure is greater than 14" W�C� (1/2 psi), an external regulator, supplied by others, is REQUIRED to
lower the gas pressure to the acceptable range� Issues caused by low or high gas pressure are installation issues, and will not be
covered under the Warranty�
For all installations, follow best practices for proper gas line pipe sizing for the line serving the oven� To ensure proper operation,
all gas piping and fittings leading up to the oven should have an inside diameter equal to or greater than that of the oven
gas connection� Also make sure that a readily accessible shut off valve (supplied by others) is installed near the oven, and in
accordance with all applicable codes� Shut off valves must be of the full-flow type, and not introduce any restriction into the
gas line�
The connection to the oven should be hard-piped whenever feasible� If this is not possible, use a properly sized flexible connector
approved for this application� When using a flexible connector make sure that its design does not present any reduction in pipe
diameter or other restriction� Oven issues caused by improper pipe sizing, improper shut off valves, restrictive connectors, or any
other deficiency in the gas supply design or installation will not be covered under the oven warranty�
GAS CODE LIMITATIONS
The installation of this appliance must conform with local codes, or in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223�1 or The Natural Gas Installation Code CAN/CGA-B149�1 as applicable�
The appliance and its individual shutoff valve (supplied by others) must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 psi (3�45 kPa)�
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve (supplied by
others) during any pressure testing of the gas supply piping system at test pressure, equal to or less than 1/2 psi (3�45 kPa)�

Mountain Series W-IR
Installation and Operation Manual
PG 13 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
ELECTRICAL SPECIFICATIONS
Incoming power should be connected to the terminal strip located in the Transformer Junction Box beneath the oven (see
diagram below)� The standard oven model comes configured for connection to a 120 VAC circuit� The oven can be ordered
configured for connection to a 240 VAC circuit� Always refer to the equipment data plate beneath the oven to verify the proper
voltage� The voltage is also specified on the Transformer Box cover� Never connect an oven rated 120 VAC to a 240 VAC circuit or
vice versa�
It is recommended that the oven be connected to its own individual branch circuit� Have a license electrician connect the oven to
the appropriate 120 VAC or 240 VAC circuit�
Electrical diagrams are located directly to the right, behind the removable service/intake panel of the appliance as well as inside
the control box� Electrical diagrams are also located near the end of this manual�
ELECTRICAL RATINGS
120 VAC, 1.1 A, 50/60 Hz
240 VAC, 1.1 A, 50/60 Hz
ELECTRICAL CODE LIMITATIONS
Electrical grounding: This appliance must be electrically grounded in accordance with local codes, or in the absence of local
codes, with the National Electrical code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22�1 as applicable�
Terminal Strip location

Mountain Series W-IR
Installation and Operation Manual
PG 14 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
VENTING
THIS MODEL MUST BE VENTED AS A SOLID FUEL APPLIANCE
The following are the manufacturer’s recommendations for venting the Wood Stone MS (Mountain Series) W-IR ovens� It is
never appropriate to use “B vent” in any part of an exhaust system connected to a Wood Stone oven� All duct material must be
manufactured to the specifications of a grease duct� This is a wood/gas combination oven and must be vented as a solid fuel
piece of equipment� Due to the possibility of sparks entering the system, exhaust systems serving solid fuel equipment must be
vented separately from other non-solid fuel equipment� The duct serving this oven should be inspected at least twice a month
during the first two months of operation, to establish rate of creosote buildup and necessary cleaning schedule� Submit your
venting plans to your local authorities before proceeding with your installation, as there may be additional requirements in your
area�
Wood Stone recommends cleaning and inspection at least monthly on any ventilation system serving solid fuel
equipment.
There are two venting options:
VENTING OPTION 1
Direct Connection: A listed building heating appliance chimney, also listed as a grease duct as described in NFPA 96,
connected directly to the oven flue collar and provided with a power ventilator listed for restaurant appliance exhaust� The
power ventilator should be rated for a minimum of 450 °F� Wood Stone does not recommend the use of an in-line fan� A field
built grease duct, constructed and installed to the specifications of a grease duct as detailed in NFPA 96 or the International
Mechanical Code, may also be used�
A static pressure of -0�14 inches water column is necessary at the oven flue collar to ensure that flue gas temperatures do not
exceed 450 °F at the fan inlet� This measurement may be taken by inserting the probe of the magnahelic gauge through the oven
doorway, upwards to the oven flue collar� NOTE: Double door ovens (models ending in “-DD”), have two flue collars, both must be
connected and a static pressure of -0�14 inches must be maintained at each collar� See table below for CFM required to attain
the specified static pressure� NOTE: Solid fuel burning ovens must be vented separately from non-solid fuel burning equipment�
CFM REQUIREMENTS (DIRECT CONNECT)
Model CFM required
WS-MS-4-W-IR 425
WS-MS-5-W-IR 500
WS-MS-6-W-IR 500
WS-MS-7-W-IR 550
Install the venting system in accordance with the duct manufacturer’s instructions and in accordance with all local codes� All field
built components should be built to the applicable codes and standards and are subject to the approval of the authority having
jurisdiction�

Mountain Series W-IR
Installation and Operation Manual
PG 15 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
VENTING
VENTING OPTION 2
A Listed Type 1 exhaust hood or one that is constructed and installed in accordance with all relevant local and national
codes� Wood Stone offers eyebrow-type hoods designed specifically for Wood Stone ovens� See specification sheet on ventilators
for Wood Stone ovens� Note that the notch of the hood is even with the front edge of the oven� The hood should be installed
in accordance with the hood manufacturer's instructions, and with the Standard for Ventilation Control and Fire Protection of
Commercial Cooking Operations, NFPA 96 and/or the applicable local and national codes� Solid fuel burning ovens must be
vented separately from non-solid fuel burning equipment�
It is never appropriate to use “B vent” in any part of an exhaust system connected to a Wood Stone oven. All duct
material must be manufactured to the specifications of a grease duct� Due to the possibility of sparks entering the duct, exhaust
systems serving solid fuel equipment MUST NOT be combined with exhaust systems serving other (non-solid fuel) equipment�
This model is rated as solid fuel equipment and must be vented as such�
VERY IMPORTANT!
WOOD STONE RECOMMENDS THAT YOU CONSULT WITH A QUALIFIED MECHANICAL ENGINEER
AND SUBMIT YOUR VENTING PLANS TO LOCAL CODE AUTHORITIES
BEFORE PROCEEDING WITH INSTALLATION.
Model Oven Flue Collar I.D. (nominal)
WS-MS-4 Mt. Chuckanut 8 inch
WS-MS-5 Mt. Adams
10 inch
WS-MS-6 Mt. Baker
WS-MS-7 Mt. Rainier
NOTE: Mountain Series ovens (MS-5, MS-6 and MS-7) intended for direct connection will have a round flue adapter already
installed at the factory to facilitate direct connection to a round duct� If the oven is to be installed under a hood, it WILL be
necessary to remove the round adapter to properly position the hood and ensure proper flue gas ventilation� This is done by
removing the screws that attach the adapter to the oven�
The MS-4 will have a round flue adapter supplied in a separate box� It should ONLY be installed with direct connect installations�
DO NOT install if the oven is installed under an exhaust hood�
Instructions are included in the manual� Please contact Wood Stone if you have any questions�
10" I.D. Collar
MS-5, MS-6
and MS-7
Direct Connect
Flue Adapter
MS-4
Direct Connect
Flue Adapter
8" I.D. Collar
NOTE: The round collar flue adapter is for direct
connection installations ONLY� This adapter should
NOT be used with an exhaust hood�

Mountain Series W-IR
Installation and Operation Manual
PG 16 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
VENTING
FIRE SUPPRESSION
Check with your local code officials to see if fire suppression is required in your area� If fire suppression is required, you
must vent the oven using a Type 1 hood constructed and installed in accordance with NFPA 96� The fusible link in the
hood must be rated at 450 °F minimum� Wood Stone offers Listed exhaust hoods for our ovens that are pre-piped for
ANSUL R-102 fire suppression� All installations are subject to the approval of the local authority having jurisdiction�
INSTALLATION VIEWS OF A WOOD STONE HOOD
Allow sufficient opening
between any facade
and the inside edge of
the front of the hood to
allow for filter removal
and hood cleaning� Any
front facade wall should
not be built any higher
than the top of the oven
to allow for access to
the filter�
Flat face hood Curved face hood

Mountain Series W-IR
Installation and Operation Manual
PG 17 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
FLUE ADAPTER, MS-5, 6, 7
The flue adapter is for direct connection to a duct system ONLY.
DO NOT install if oven is installed under an exhaust hood.
MOUNTAIN SERIES MS-5, MS-6 & MS-7 OVENS: FLUE ADAPTER INSTALLATION
The flue adapter unit is designed to facilitate connection to a round duct� Use the stainless steel screws and sealant provided to
attach the flue adapter to the exhaust outlet on the oven if it is not already installed�
Note: If using a Selkirk or other modular-type duct, attach according to the manufacturer’s instructions� Otherwise, the duct must
be attached with a full perimeter weld� All duct must be grease-rated duct� If the oven is going to be enclosed, the flue adapter
and exhaust outlet must be wrapped with an insulating material approved for use with a grease-duct�
Apply the supplied Engineered
Grade Ceramic Sealing Compound
to the underside of the Flue Adapter
with an unbroken bead around
the perimeter, and around each
individual screw hole�
Then fasten with the supplied
screws�
Underside of Flue Adapter showing
where Ceramic Sealing Compound
should be applied
FLUE ADAPTER INSTALLATION (If not already installed)
FLUE ADAPTER ATTACHED TO OVEN FLUE COLLAR
10" I.D.
Flue adapter
If the oven
is to be
enclosed,
wrap with
insulation
approved for
use with a
grease duct.

Mountain Series W-IR
Installation and Operation Manual
PG 18 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
FLUE ADAPTER, MS-4
MOUNTAIN SERIES MS-4 OVENS: FLUE ADAPTER INSTALLATION
The flue adapter unit is designed to facilitate connection to a round duct� Use the provided stainless steel screws and sealant
provided to attach the flue adapter (8" I�D�) to the exhaust outlet on the oven�
Note: If using a Selkirk or other modular-type duct, attach according to the manufacturer’s instructions� Otherwise, the duct must
be attached with a full perimeter weld� Grease-rated duct is required throughout the system� If the oven is going to be enclosed,
the flue adapter and exhaust outlet must be wrapped with an insulating material approved for use with a grease-duct�
The flue adapter is for direct connection to a duct system ONLY.
DO NOT install if oven is installed under an exhaust hood.
Note: Vent
Shield not
shown for
clarity
Apply the supplied
Engineered Grade Ceramic
Sealing Compound to
the underside of the Flue
Adapter with an unbroken
bead around the perimeter,
and around each individual
screw hole�
Then fasten with the
supplied screws� Underside of Flue Adapter showing
where Ceramic Sealing Compound
should be applied
FLUE ADAPTER INSTALLATION (If not already installed)
FLUE ADAPTER ATTACHED TO OVEN FLUE COLLAR
Vent Shield not
required for
direct connect
installations.
8" I.D.
Flue adapter
If the oven
is to be
enclosed,
wrap with
insulation
approved for
use with a
grease duct.

Mountain Series W-IR
Installation and Operation Manual
PG 19 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
VENTING DO’S & DON’TS
VENTING DO’S AND DON’TS
When installing a Wood Stone Mountain Series oven there are some basic guidelines to follow regarding oven venting that will
help ensure proper operation and performance of the gas burners on the oven� These guidelines will also help prevent damage
to the oven's gas and electrical components due to improper venting and installation� Damage caused by improper venting and
installation is not covered by the oven warranty� This information applies to all Wood Stone Mountain Series (MS) ovens equipped
with one or more gas burners�
Most Wood Stone Mountain Series ovens are built into some sort of wall structure or enclosure� This creates the potential for
different venting scenarios that can be detrimental to the operation and performance of the oven burners� Here are some basic
rules that to follow that will ensure a properly functioning oven installation� Illustrated examples are included on the following
pages�
RULE 1
The ONLY pathway for air to enter the space beneath the oven should be at the front of the oven at the perforated opening in the
oven Service Panel provided with the oven, or on ovens equipped with an optional Storage Box, through the perforations provided
on the oven Storage Box� This will eliminate the chance of air movement or cross drafts beneath the oven that can disrupt the
oven burners�
RULE 2
DO NOT block the flow of air through the front Service Panel� It is required to provide necessary combustion air to the oven
burners� Airflow and service access MUST be provided from the front of the oven only at this Service Panel� DO NOT relocate the
oven air intake (see Rule 1).
RULE 3
To ensure proper venting of the oven, you must use an appropriate exhaust fan as described in this manual� There must also be
an adequate source of make-up air provided to your kitchen space—the room that the oven opens into� The make-up air supply
should not point directly at the oven� Other than the oven Service Panel, do not provide make-up air or other ventilation into an
enclosure that surrounds the oven (see Rule 1). Without proper make-up air the oven, (or any gas equipment), will not vent and
operate correctly�
Please review the illustrations on the following pages.

Mountain Series W-IR
Installation and Operation Manual
PG 20 OF 44
M0036.14 DECEMBER 2019
An ongoing program of product improvement may
require us to change specifications without notice.
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
TOLL FREE 800.988.8103
TEL [phone]
FAX [phone]
E-MAIL [e-mail]
woodstone-corp.com
VENTING DO’S & DON’TS
DIRECT CONNECT VENTING EXAMPLES
Example 1 shows a proper installation� The
enclosure around the oven is completely
sealed so that the only air entering the space
beneath the oven comes through the oven
Service Panel�
Equal air pressure inside and
outside of oven room
Exhaust
flow
direction
is normal
Stud wall
Facade
surface
Air intake area
on removable
Service Panel
properly
exposed
Intake air flows
through designed
intake vents in the
Service Panel to
oven burners
1 Acceptable venting
Example 2 is not acceptable because the
combustion air intake is blocked, preventing
combustion air from reaching the oven
burners� The burners will not function properly,
and will lead to damage of oven components�
2. Unacceptable venting
Exhaust
flow
direction is
normal
Facade material
improperly placed
over oven air
intake
Insufficient
combustion air
resulting in burner
problems & poor
oven performance
Equal air pressure
inside and outside of
oven room
