Wood Stone WS-PX-4343-RFG User manual

INSTALLATION AND OPERATION MANUAL
FOR
The Wood Stone Phoenix
Natural Gas or Propane Fueled Stone Hearth Oven
Wood Stone Corporation
1801 W. Bakerview Rd.
Bellingham, WA 98226 - USA
Tel.[phone] Fx.1-360-650-1166
[e-mail]
www.woodstone-corp.com
Revised October 2005
Thisapplianceisforprofessionaluseby qualified personnel.Thisappliancemustbe
installed by qualified persons in accordance with the regulations in force. This
appliance must be installed with sufficient ventilation to prevent the occurence of
unacceptable concentrations of substances harmful to health in the room in which it
is installed.This appliance needs an unobstructed flow of fresh air for satisfactory
combustion and must be installed in a suitably ventilated room in accordance with
current regulations. This appliance should be serviced by qualified personnel at
least every 12 months, or sooner if heavy use is expected.
!
WS-PX-4343-RFG-(NG or LP),WS-PX-3030-RFG-(NG or LP)

Wood Stone Bistro
Gas Oven Installation and
Operating Instructions
DO NOT THROW THIS MANUAL AWAY
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Additional copies of this manual and prompt responses to
service/maintenance questions are available fromWood Stone @ 800-988-8103.
IMPORTANT: Consult your local gas supplier for a statement outlining a procedure to be
followed in the event you smell gas. Post the statement in a prominent location.
FORYOUR SAFETY
Do not store or use gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance.
Also, always keep the area under and around this appliance free and clear of
any and all combustible materials.
It is recommended that this oven be installed,maintained and serviced by authorized professionals.
WARNING:Improper installation, adjustment, alteration, service or maintenance can
result in property damage, injury or death. Read the installation, operation and
maintenance instructions thoroughly before installing or servicing this equipment.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 3
Phoenix Installation and Operation Manual
Utility Specifications
WS-PX-4343-RFG
Gas-3/4 inch gas inlet (female threaded)
80,500 Btu Natural Gas
or
68,000 Btu Propane
Electrical
120 VAC, 2 amp, 50/60 Hz, 1 Phase
Also available as:
240 VAC, 2amp 50/60 Hz, 1 phase
Refer to data plate on the oven.
ActualWeight: 1650 Lbs. (750 kg)
ShippingWeight: 2050 Lbs. (930 kg)
SPECIFICATIONS
WS-PX-4343-RFG
(25.4 cm)
(107.3 cm)
(127.7 cm)
(107.3 cm)
(61.6 cm)
(24.8 cm)
(15.2 cm)
(188.6 cm)
(1.9 cm)
(151.8 cm)
(120 cm)
(94 cm)
177.2 cm
75.6 cm
(3.8 cm)
(20.3 cm)
(15.2 cm)

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 4
Phoenix Installation and Operation Manual
WS-PX-3030-RFG
SPECIFICATIONS
Utility Specifications
WS-PX-3030-RFG
Gas-3/4 inch gas inlet (female threaded)
55,000 Btu Natural Gas
or
42,000 Btu Propane
Electrical
120 vac, 2 amp, 50/60 Hz, 1 Phase
240 VAC, 2amp 50/60 Hz, 1 phase
Refer to data plate on the oven.
Actual Weight: 850 Lbs.(386 kg)
Shipping Weight: 1100 Lbs. (499 kg)
(20.3 cm)
(15.2 cm)
(20.3 cm)
(75 cm)
(75 cm)
(95.3 cm)
(3.8 cm)
(0.48 cm)
(47 cm)
(24.8 cm)
(188 cm)
(15.2 cm)
(150.5 cm)
(118.1 cm)
(93.4 cm)
(172 cm)
(71.1 cm)

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 5
Phoenix Installation and Operation Manual
IF THIS OVEN IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO
REDUCE THE RISK OF FIRE, FOLLOW THESE INSTALLATION
INSTRUCTIONS. A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE
TOMAINTAINREQUIREDCLEARANCES (AIRSPACES)TO COMBUSTIBLE
MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS OVEN BE
INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
WARNING: Installation and servicing of this product could
expose you to glasswool/ceramic fibers as well as Calcium
Silicate dust. ALWAYS WEAR RESPIRATORY AND EYE
PROTECTION WHEN INSTALLING OR SERVICING THIS APPLIANCE.
Please read this entire manual before you install the oven. Failure to
follow instructions may result in property damage, bodily injury or even
death. Contact your local building or fire officials about restrictions and
installation inspection in your area.
INSTALLATION CLEARANCES
!
6-inches
1-inch minimum side
clearance to
combustible
construction
Hatched area must be
left accessible and
unobstructed after
installation for air
intake and routine
service of the oven
burner.
Maintain 6-inch
clearance from
the exhaust
transition. 6-inches
1234567890123456789
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1
23456789012345678
9
1234567890123456789
CLEARANCES
a. The Wood Stone Phoenix oven should have a minimum
1-inch (2.5 cm) clearance to combustibles from all sides, 6-inch
(15.2 cm) clearance to combustibles from the top, and 6-inch (15.2
cm) clearance from the exhaust transition and flue collar. If building
a facade that will contact the oven, use completely non-combustible
materials.Please note that standard drywall (or sheet rock) is
considered a limited combustible. Any walls perpendicular to the front of
the oven in the area 30 inches (76 cm)to either side of the doorway and
36 inches (91 cm) in front of the oven should have a non-combustible
surface.
b.This oven should be installed on a non-combustible floor surface.
The non-combustible floor surface must extend 36 inches (91 cm) in
front of and 30 inches (76 cm) to either side of the oven doorway.
123456
1
2345
6
1
2345
6
123456

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 6
Phoenix Installation and Operation Manual

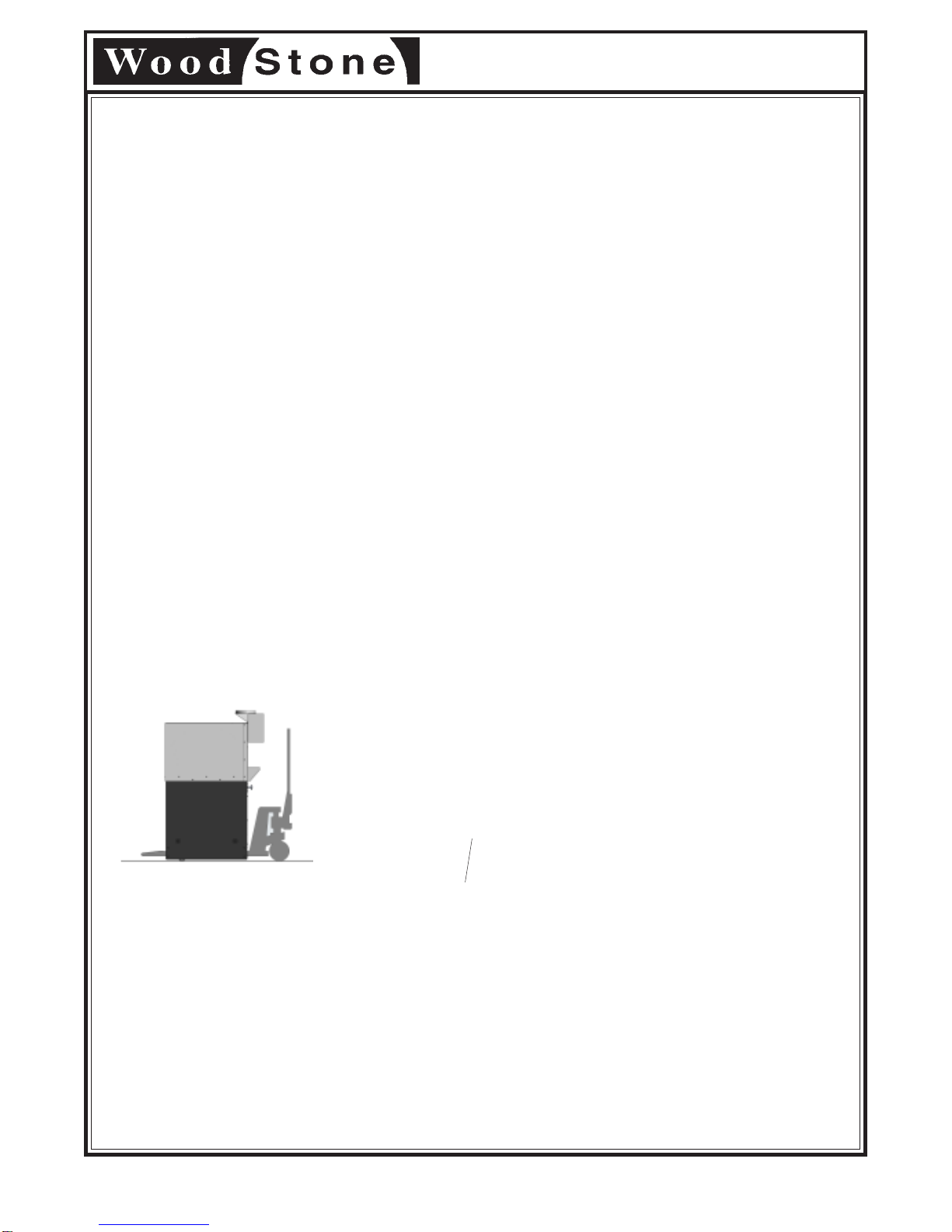

Once assembled, the oven can be moved into place with a pallet jack
using the LOWER forklift pockets. If the oven is to be installed against a
wall, you may need to leave access to the back of the oven to complete the
utility connections.
CAUTION: The 3030 model Bistro weighs 850 LBS (386
kg).The 4343 model Bistro weighs 1700 LBS (771
kg).The oven is very top-heavy. IFTHE OVENTIPS IT
CAN CAUSE SEVERE INJURY OR DEATH!! NEVER
ATTEMPT TO USE A HAND TRUCKTO MOVE THE
OVEN!!The oven should only be moved in this manner
(pallet jack) on a LEVEL FLOOR. If the oven must be
moved over an inclined surface, a forklift or other
suitable means should be employed. If the installer does
not have the equipment or experience required to move
the oven safely, we recommend you secure the services
of a qualified rigging company.
MOVING THE OVEN
See additional moving and assembly intructions on page 7.
Make sure the pallet jack wheels do not contact the underside of
the fork pocket when lifting to avoid damaging the stand.
MOVING THE OVEN

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 7
Phoenix Installation and Operation Manual
MOVING THE OVEN
1. Use a forklift or other suitable
lifting means to set the oven
body onto blocks as shown. If the
oven has the optional decorative
logset, remove it before tipping
the oven.
2. Install the side
pieces of the tipping
assembly.
3.Boltthesidepieceto theoven
asshown, andattachthecross-
piece using the hardware
provided.
Install a clevis in the top hole of
each side piece of the tipping
assembly. Use these for
attachment of a lifting strap or
chain.
For assembly, refer to the exploded parts diagram on
page 9, and go to page 10 for assembly instructions.
If you need to move the oven through a narrow door or
passageway, follow the instructions below...
Cut away view. Bolt
The optional lifting system is available fromWood
Stone.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 8
Phoenix Installation and Operation Manual
MOVING THE OVEN
4. Using an appropriate hoist
or lift, the oven may now be
tilted (on its back) onto a
pallet jack or suitable dolly.
The oven can now be moved
through a narrow doorway
etc. DANGER:
Never attempt to move the
oven in this manner on
any type of incline or
sloped floor.
Continue to the exploded diagram and assembly instructions.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 9
Phoenix Installation and Operation Manual
Exhaust Transition
Oven Stand (6 pieces)
Oven Body
EXPLODED PARTS VIEW
Control Module
Flame Guard
Cowling
Mantle
Burner Tray
Front Panel
Toe Kick
Rear Panel
Shipping Panel
(Only on ovens shipped
disassembled, discard
once removed.)
All parts shown above and provided with the oven (except the shipping
panel) MUST be installed to ensure the safety and proper operation of
the oven.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 10
Phoenix Installation and Operation Manual
ASSEMBLY
Use the 3/8" x 1"carriage bolts to assemble the stand on a level surface. Be sure to use
the washers provided and to tighten nuts and bolts securely.
1.
2.
On 3030 Models only: Use 3/8"x 3/4"
long carriage bolts to attach the sides
instead of the 3/8"x 1" long carriage
bolts.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 11
Phoenix Installation and Operation Manual
3. Using a forklift, carefully lower the
body of the oven on to the stand so
that the bolt holes line up. While
supporting theovenwith the lift,install
the 3/8" x 1" carriage bolts. Use the
washers provided and tighten all nuts
securely. Be sure to use the forklift
pockets when lifting the body of the
oven. Bistro 3030 models - forklift
pockets are on the front only and do
not extend all the way through the
oven.
ASSEMBLY
4. After the the oven body is bolted to the stand, the oven can be moved into
place with a pallet jack using the LOWER forklift pockets. If the oven is to be
installed against a wall, leave access to the back of the oven until the
assembly is completed.
CAUTION: The 3030 model Bistro weighs 800 LBS (386
kg).The 4343 model Bistro weighs 1700 LBS (771
kg).The oven is very top-heavy. IF THE OVENTIPS IT
CAN CAUSE SEVERE INJURY OR DEATH!!The oven
should only be moved in this manner (pallet jack) on a
LEVEL FLOOR. Do not attempt to move the oven with a
hand truck. If the oven must be moved over an inclined
surface, a forklift or other suitable means should be
employed. If the installer does not have the equipment
or experience required to move the oven safely, we
recommend you secure the services of a qualified
rigging company.
Make sure the pallet jack wheels do not contact the underside of
the fork pocket when lifting to avoid damaging the stand.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 12
Phoenix Installation and Operation Manual
ASSEMBLY
5. Remove the shipping
panel from beneath the oven.
The shipping panel is
secured with 2 screws in the
front, and 2 screws in the
back. Discard the shipping
panel.

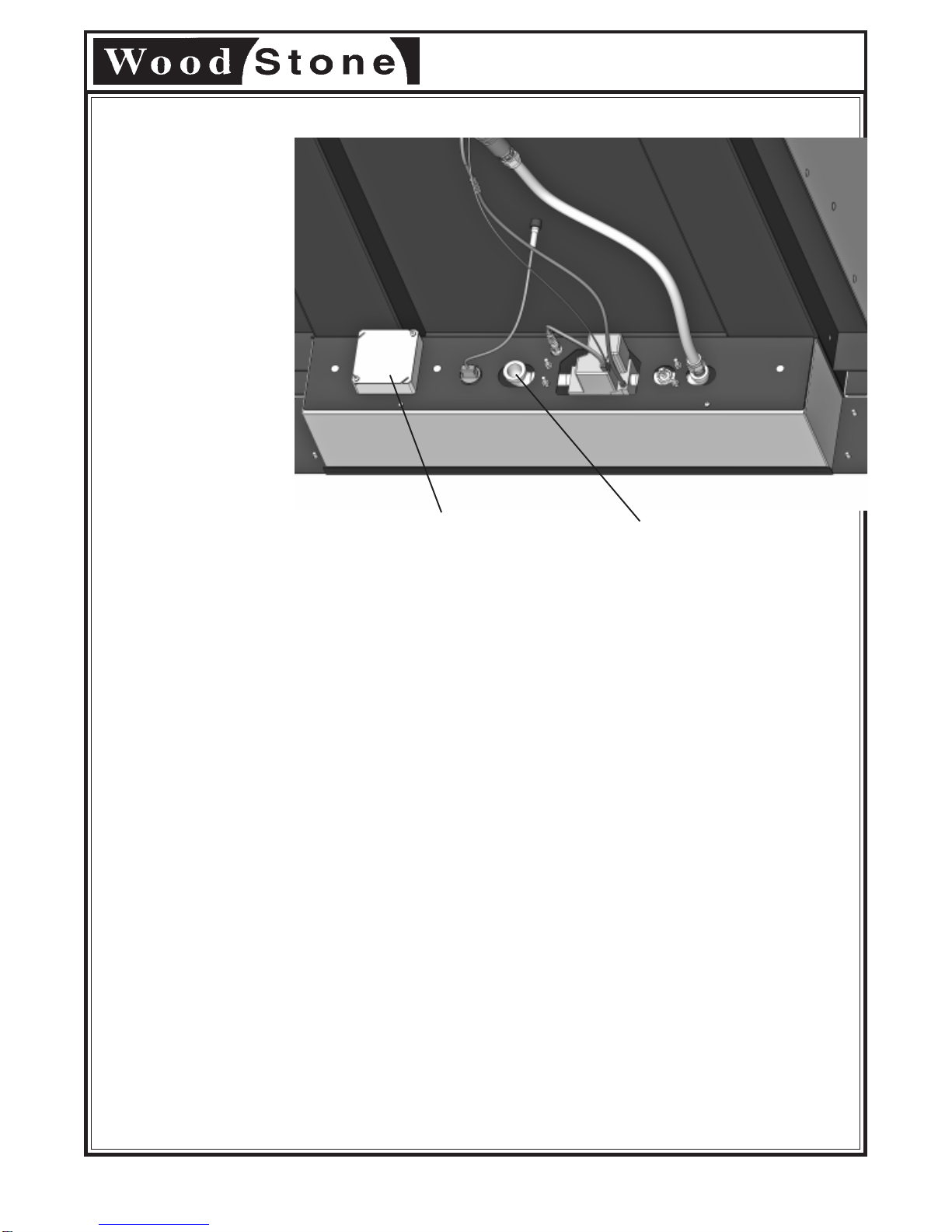

6. Attach the Control Box to the
oven using 4) 1/4-20 screws.The
control box should be oriented so
the knob is on the left side of the
control box.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 13
Phoenix Installation and Operation Manual

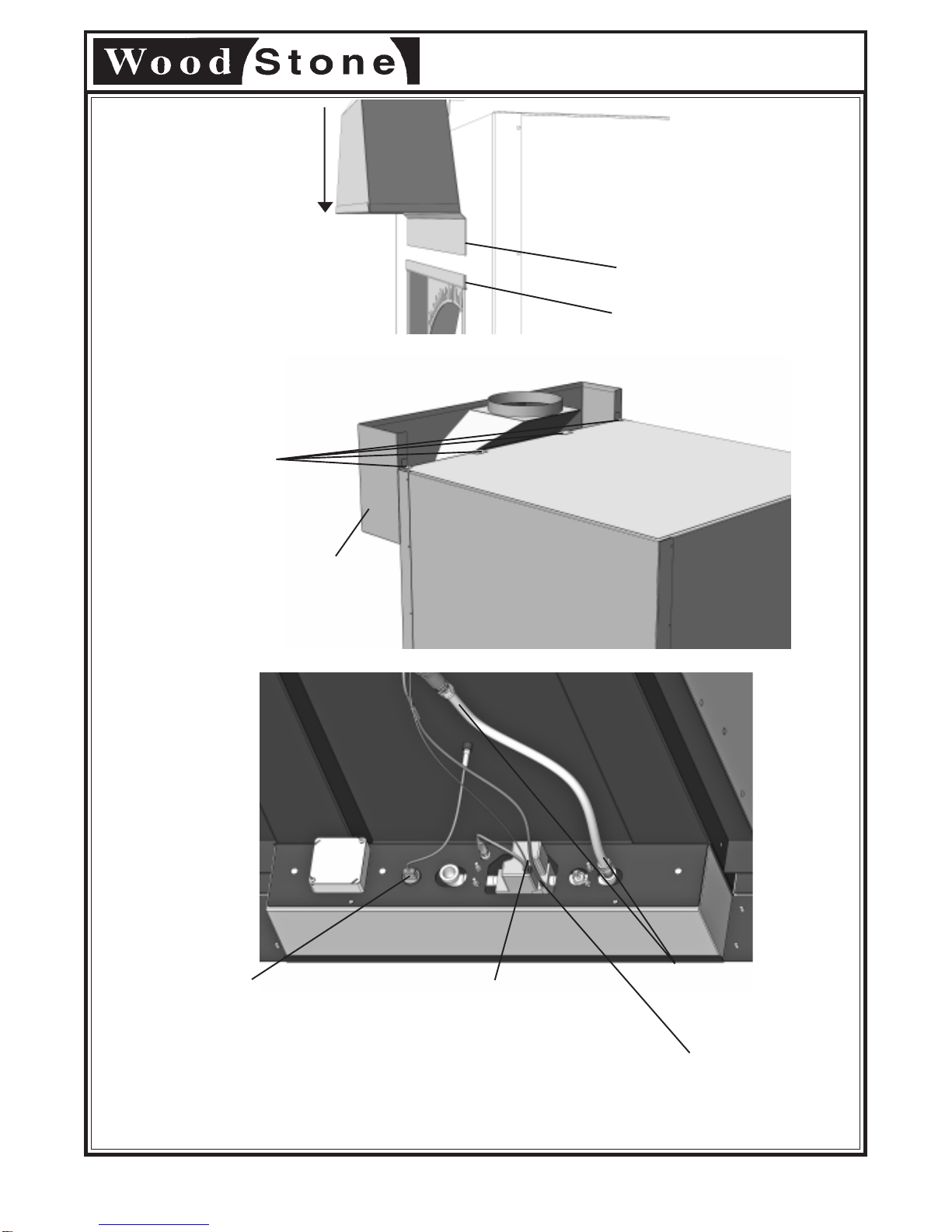

7. Place the exhaust
transition onto the front
of the oven.The lower
flange should slide into
the gap across the top
of the oven doorway.
Make sure the exhaust
transition is centered
over the doorway.
ASSEMBLY
Lower Flange
Gap
8. Use the self -
tapping screws
(provided) to secure
the exhaust
transition and
cowling.The holes in
the top of the oven
have been pre-
drilled. cowling
9. Connect burner assembly components
and thermocouple at the rear of the control
box.
Plug in thermocouple wire
here. SV-2 Gas Valve. Plug in
igniter wires from the
burner here. Attach flexible pilot
tube here.Tighten the
fitting firmly.
Use flexible gas pipe
provided to connect
the burner.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 14
Phoenix Installation and Operation Manual
11. Install the mantle. Install the 3
threaded studs into the clips on the
front of the oven. Slide 2 spacer
washers over each stud.Slide the
mantle over the studs, then slip a
stainless steel washer onto each stud.
Install and tighten the cap nuts
securely.
threaded stud
spacer
washers
stainless
steel washer
12. Run a bead of silicone
(provided) along the joint
between the sides of the
doorway and the front of the
oven, and between the mantle
and the front of the oven as
shown in the drawing.
If the oven has been supplied with a granite mantle, affix the granite slab to the
mounting bracket using a generous amount of the silicone provided.
10. Install the burner tray. Slip front tabs of the burner tray over the lip of the
burner while the rear tab of the burner tray slips over the threaded stud at the
back of the burner. Install the wing nut onto the stud and tighten to secure the
burner tray in place.
front tabs
wing nut
stainless steel
cap nut
Silicone this joint,
do right hand side
in the same
manner.
ASSEMBLY

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 15
Phoenix Installation and Operation Manual
ASSEMBLY
13. Reinstall the burner guard,
and optional logset if supplied.
The lower tab of the guard fits
into the front of the burner
opening.The logset pieces fit
onto the studs on the burner
guard, behind the opening in
the guard, so the logs sit at
the rear of the burner opening.
Continued on following page.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 16
Phoenix Installation and Operation Manual
ASSEMBLY-CONNECTIONS
14. Once oven is in
its desired location,
make utility
connections at the
rear of the control
box. Gas and
electrical
connections must
comply with all
relevant national
and local
codes,and in a
manner acceptable
to the authority
having jurisdiction. Make the electrical
connection to the
terminals in this
junction box.
Connect the incoming
gas supply to the 3/4
inch NPT (female)
gas inlet.
Knockouts are provided on the sides of the oven stand for the incoming gas and
electrical supplies. If necessary, holes may be drilled in the back panel for the
incoming gas and electrical.Gas and electrical supplies should be routed in such
a way that they do not interfere with the removal of the the oven burner, or block
the access to the space under the oven for service.The area beneath the burner
needs to be kept clear of conduit and piping to allow for removal of the burner for
service.The rear panel must be installed!
A 3/4 inch full-flow gas shut-off valve should be installed on the gas supply near
the oven in such a way that it is readily accessible.
This appliance must be electrically grounded in accordance with local and
national codes.
An electrical diagram is provided inside the bottom cover of the control box, and
at the end of this manual.
The installation must conform with local codes, or in the absence of local
codes with the National Fuel Gas Code,ANSI 223.1,Natural Gas Installation
Code, CAN/CGA-B149.1, as applicable. The appliance and its individual
shutoff valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of
1/2 psi (14 inches W.C., 34.5 mbar). The appliance must be isolated from

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 17
Phoenix Installation and Operation Manual
the gas supply piping system by closing its individual manual shutoff valve
during any pressure testing of the gas supply system at test pressures
equal to or less than 1/2 psi.
The incoming gas supply pressure must not exceed 1/2 psi (14 inches
WC, 34.5 mbar). If the incoming gas pressure exceeds 1/2 psi, an
external gas regulator must be installed in the supply line. If the supply
pressure is less than 1/2 psi, no external regulator is required.
The installer should bleed any air out of the gas line supplying the oven.
All gas connections and fittings on the oven should be leak checked
with an approved soap solution.
15. Checking the burner manifold pressure.The burner manifold pressure has
been set at the factory, however it should be checked by the installer.The
pressure should be checked at the outlet tap on the Honeywell gas valve,
located on the back of the control box. Once the manometer is connected,
turn the oven on and use the knob on the oven to adjust the flame to its
maximum height.Then check the manifold pressure.
Natural Gas (NG) 4343 and 3030 Models- 4.5" WC (11.2 mbar)
Propane (LP) 3030 models-7"WC (17.4 mbar)
Propane (LP) 4343 Models-9" WC (22.4 mbar)
This information can also be found on the data plate located beneath the
oven.
16. Install the rear panel, front panel, and toe kick using the 1/4-20 screws
provided.The front panel on the oven must not be covered, so as to allow
access for service to the oven components.The oven should be bolted to the
floor using the holes provided at the base of the stand.
ASSEMBLY-CONNECTIONS

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 18
Phoenix Installation and Operation Manual
Wood Stone ovens should be vented
in accordance with NFPA 96 and/or all
pertinent national and local codes
concerning such appliances; check
ventingplanswiththeauthorityhaving
jurisdiction before proceeding with
installation.
All of the combustion products and cooking vapors from the WS-BL-4343-RFG
and WS-BH-4343-RFG pass through the 10 inch (25.4 cm) diameter flue collar,
8 inches (20.32 cm) for the WS-BL-3030-RFG and WS-BH-3030-RFG), located
atop the exhaust transition. The oven can be connected to a power ventilated
chimney, or placed under a hood.All gas fired models that include a (-W) at the
end of the model number are listed to allow the burning of up to 3 lbs of wood
per hour for flavor, but MUST be vented as SOLID-FUEL equipment.
Flue Collar
VENTING
The following are the manufacturer’s recommendations for venting Wood Stone Bistro Line
ovens. It is never appropriate to use “B vent” in any part of an exhaust system
connected to a Wood Stone oven. All ducting material must be manufactured to the
specifications of a grease duct. Due to the possibility of sparks entering the duct, exhaust
systems serving SOLID-FUEL equipment SHOULD NOT be combined with exhaust
systems serving other (non-solid-fuel) cooking equipment.
There are two options:
1. A Listed building heating appliance chimney, also listed as a grease duct connected
directly to the oven flue collar and provided with a power ventilator listed for restaurant
appliance exhaust and rated for operation at a minimum of 300 degrees F, 450 degrees F
for units burning solid fuel. Use a stack or curb mounted fan. Wood Stone does not
recommend the use of an in-line fan. A single wall chimney/duct connector (of
unspecified length) may be used to connect the oven to a listed building heating appliance
chimney also rated as a grease duct. Any single wall ducting should be a minimum of 0.044"
stainless steel or 16 ga. mild steel (0.055") and must maintain a minimum of 18" clearance
to combustibles.
A static pressure of -0.1 inches water column is necessary at the oven flue collar to ensure
proper flue temperatures at the fan.The airflow required to attain this static pressure will
depend on the configuration of your particular installation but will probably be between 300
and 500 CFM.The exhaust fan must be turned on any time the oven is running. See
instructions for optional interlocking of the oven to the fan at the end of this manual.
2.Wood Stone offers eyebrow-type hoods designed specifically for Wood Stone ovens by
Gaylord Industries.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 19
Phoenix Installation and Operation Manual
INITIAL OVEN STARTUP
Never operate this oven with the stainless steel night door in place!! The
door is for heat retention only, and should only be used when the oven is
turned off!!
FIRST DAY
1. Make sure main gas supply is on (valve parallel with gas line).
2. Push I/O button on controller. It may take a while for the gas to purge all the air
from the gas lines.
3. Once the burner ignites, make sure the flame is at its lowest setting and allow the oven to
operate at this setting for about 4 hours.
4. After 4 hours, raise radiant flame to 25% (~ 5-inch flame), hold this setting for 4 hours.
5. After 4 hours at 25% flame, raise to 50% flame and hold for another 4 hours.
The oven can be left at this setting all night.
SECOND DAY
1. Turn the oven on and adjust the flame to about 50% flame height; hold this setting for 2
hours.
2. Turn the radiant flame(s) to 75% height until the desired cooking temperature is achieved.
OPERATION

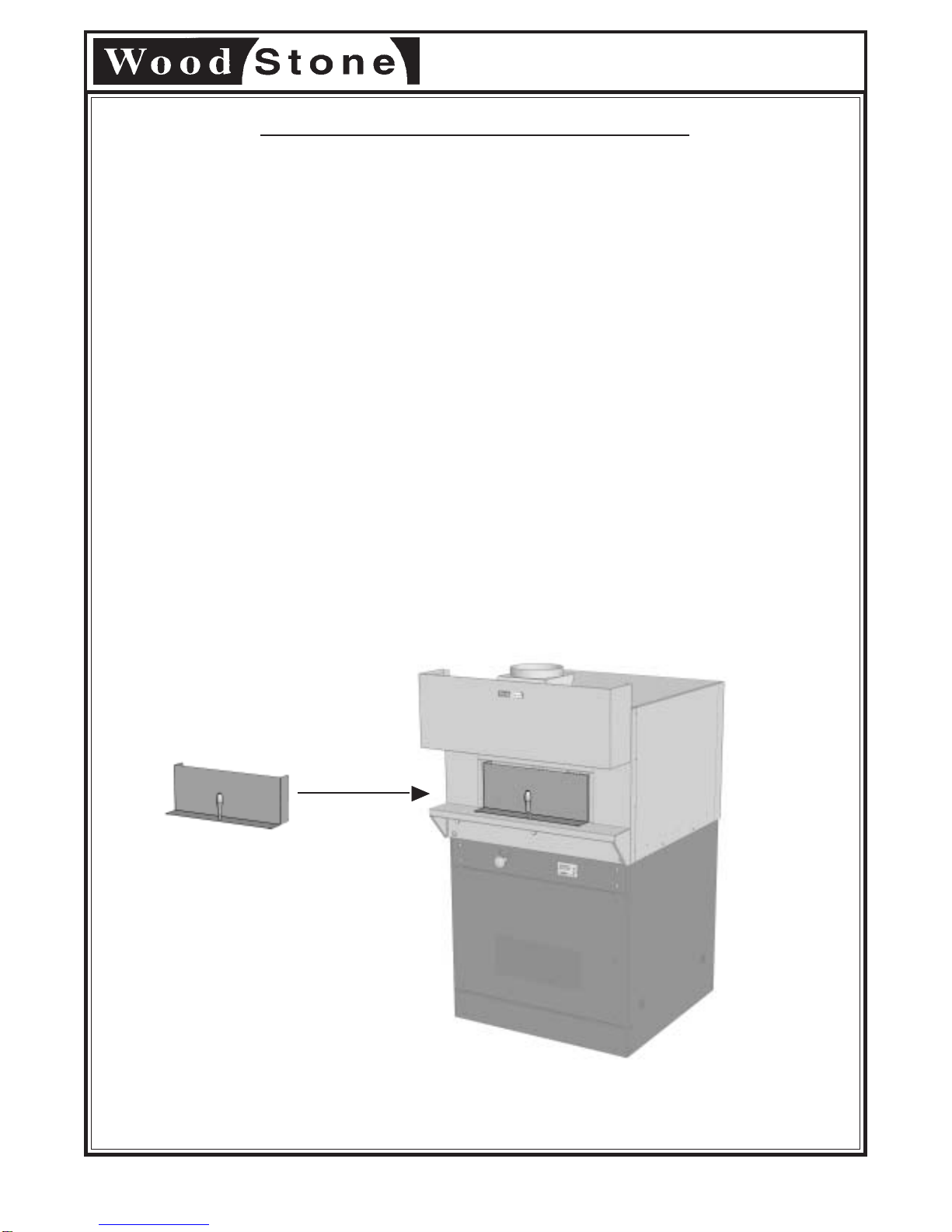

Night Door
The night door should be
removed whenever the
oven is turned ON.

Questions? Contact your distributor, or contact Wood stone at 360-650-1111 www.woodstone-corp.com
October 2005. 20
Phoenix Installation and Operation Manual
General Daily Oven Operation
The oven floor temperature is displayed on the controller readout.
END OFTHE DAY
Push I/O button, all gas will go off, even the pilot. When the oven is turned off, use the night
door to help retain heat in the oven.The night door is placed into the oven doorway.
BEGINNING OFTHE DAY
Make sure the night door is removed.Push I/O button and turn the radiant flame to its highest
setting. Oven should reach the desired cooking temperature within two hours. Use the flame
height knob to control the amount of heat in the oven.
CLEANING THE OVEN
1. As needed (twice per hour), use the floor brush to sweep stray food debris to the doorway,
where it can be easily removed with a dough cutter or spatula.
2. As needed, swab the deck using a damp (not wet) rag wrapped around the floor brush.
NEVER PLACE ANYTHING IN OR ABOVETHE RADIANT FLAME
Gas fired models with a '-W' in the model number are listed for the burning of up to 3 lbs of
wood per hour when properly vented as a Solid-Fuel appliance. Build the fire on the side of
theoven,6-10 inches(15-25cm) awayfromthe doorway of the ovenor useasmokertray. Never
use the gas (radiant) flame as a fire starter, and keep the fire away from the radiant flame.
Keep all ash and debris away from the radiant flame. See next page for ash disposal
guidelines.
BURNERTRAY
At 6 - 12 month intervals, depending on the amount of usage, the burner tray beneath the oven
should be removed and emptied of any accumulated debris.To remove:unscrew the wing nut
at the back of the burner tray.See diagram on page 14.There should be very little debris in the
tray if the oven is being operated properly.
Operation
