Wood Stone PHOENIX 3030 WS-PX-3030-RFG User manual

PHOENIX OVEN
Stone Hearth Oven
Radiant Flame, Gas-Fired Models
Installation and
Operation Manual
woodstone-corp.com
Revised January 2015
Part no: 9500-0219
Doc no: M0029.04
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
PHOENIX 3030
WS-PX-3030-RFG
PHOENIX 4343
WS-PX-4343-RFG-(W)
PHOENIX 4355
WS-PX-4355-RFG-(W)
PHOENIX 4836
WS-PX-4836-RFG

Phoenix Installation and Operation Manual
2
TABLE OF CONTENTS
An ongoing program of product improvement may require us to change
specifications without notice. Phoenix Ovens,
Revised January 2015. Doc no: M0029.04
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
TABLE OF CONTENTS
PHOENIX � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �3
CAUTIONS & WARNINGS � � � � � � � � � � � � � � � � � � � � �4
PX-3030 SPECIFICATIONS � � � � � � � � � � � � � � � � � � � �5
PX-4343 SPECIFICATIONS � � � � � � � � � � � � � � � � � � � �6
PX-4355 SPECIFICATIONS � � � � � � � � � � � � � � � � � � � �7
PX-4836 SPECIFICATIONS � � � � � � � � � � � � � � � � � � � �8
INSTALLATION CLEARANCES � � � � � � � � � � � � � � � � � �9
OVEN VENTING � � � � � � � � � � � � � � � � � � � � � � � � � � �10
MOVING THE OVEN � � � � � � � � � � � � � � � � � � � � � � � �11
LIFTING THE OVEN � � � � � � � � � � � � � � � � � � � � � � � � �12
EXPLODED PARTS DIAGRAM � � � � � � � � � � � � � � � � �14
ASSEMBLY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �15
UTILITY CONNECTIONS � � � � � � � � � � � � � � � � � � � � �21
STORAGE BOX INSTALLATION� � � � � � � � � � � � � � � � �23
DISASSEMBLY � � � � � � � � � � � � � � � � � � � � � � � � � � � �24
CONTROLLER � � � � � � � � � � � � � � � � � � � � � � � � � � � �26
INITIAL START-UP � � � � � � � � � � � � � � � � � � � � � � � � �27
DAILY OPERATION � � � � � � � � � � � � � � � � � � � � � � � � �28
MAINTENANCE � � � � � � � � � � � � � � � � � � � � � � � � � � �29
WOOD BURNING � � � � � � � � � � � � � � � � � � � � � � � � � �30
FUELWOOD FACTS� � � � � � � � � � � � � � � � � � � � � � � � �32
100-120 VAC WIRE DIAGRAMS � � � � � � � � � � � � � � �33
200-240 VAC WIRE DIAGRAMS � � � � � � � � � � � � � � �35
LIMITED WARRANTY � � � � � � � � � � � � � � � � � � � � � � �37

Phoenix Installation and Operation Manual
3
PHOENIX
An ongoing program of product improvement may require us to change
specifications without notice. Phoenix Ovens,
Revised January 2015. Doc no: M0029.04
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
INSTALLATION AND OPERATION MANUAL FOR
THE WOOD STONE PHOENIX
STONE HEARTH COOKING EQUIPMENT
COMMERCIAL INTERNAL TRANSITION MODELS
WS-PX-3030-RFG-(NG, LP)
WS-PX-4343-RFG-(W)-(NG, LP)
WS-PX-4355-RFG-(W)-(NG, LP)
WS-PX-4836-RFG-(NG, LP)
ADDITIONAL COPIES AVAILABLE UPON REQUEST
Shown: WS-PX-4343-RFG

Phoenix Installation and Operation Manual
4
CAUTIONS & WARNINGS
An ongoing program of product improvement may require us to change
specifications without notice. Phoenix Ovens,
Revised January 2015. Doc no: M0029.04
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
WOOD STONE PHOENIX GAS OVEN
INSTALLATION AND OPERATING INSTRUCTIONS
DO NOT THROW THIS MANUAL AWAY
IT IS RECOMMENDED THAT THIS OVEN BE INSTALLED, MAINTAINED AND SERVICED
BY AUTHORIZED PROFESSIONALS.
IMPORTANT: Consult your local gas supplier for a statement outlining a procedure to be followed in the event you
smell gas. Post the statement in a prominent location.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual are available at woodstone-corp�com�
For prompt responses to service/maintenance questions, call your local distributor�
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any
other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property damage,
injury or death. Read the installation, operation and maintenance instructions thoroughly before installing or
servicing this equipment.
IFTHIS OVEN IS NOT PROPERLY INSTALLEDA FIRE MAY RESULT.TO REDUCETHE RISK OF FIRE,FOLLOW THESE INSTALLATION
INSTRUCTIONS. A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES)
TO COMBUSTIBLE MATERIALS. IT IS OF THE UTMOST IMPORTANCE THAT THIS OVEN BE INSTALLED ONLY IN ACCORDANCE
WITH THESE INSTRUCTIONS.
THIS APPLIANCE IS FOR PROFESSIONAL USE BY QUALIFIED PERSONNEL. THIS APPLIANCE
MUST BE INSTALLED BY QUALIFIED PERSONS IN ACCORDANCE WITH THE REGULATIONS
IN FORCE. THIS APPLIANCE MUST BE INSTALLED WITH SUFFICIENT VENTILATION TO
PREVENT THE OCCURRENCE OF UNACCEPTABLE CONCENTRATIONS OF SUBSTANCES
HARMFUL TO HEALTH IN THE ROOM IN WHICH IT IS INSTALLED. THIS APPLIANCE NEEDS
AN UNOBSTRUCTED FLOW OF FRESH AIR FOR SATISFACTORY COMBUSTION AND MUST
BE INSTALLED IN A SUITABLY VENTILATED ROOM IN ACCORDANCE WITH CURRENT
REGULATIONS. THIS APPLIANCE SHOULD BE SERVICED BY QUALIFIED PERSONNEL AT LEAST
EVERY 12 MONTHS, OR SOONER IF HEAVY USE IS EXPECTED.
!

Phoenix Installation and Operation Manual
5
PX-3030 SPECIFICATIONS
An ongoing program of product improvement may require us to change
specifications without notice. Phoenix Ovens,
Revised January 2015. Doc no: M0029.04
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
Electrical
Specify AC Voltage, 1 A, 50/60 Hz
See data plate on oven�
All utility connections made on the
back of the oven control box� Remove
front or rear panel for access� Use
utility knockouts (provided) to route
gas and electrical supplies�
Venting
The Phoenix must be vented using an approved
chimney, or an exhaust hood constructed and
installed in accordance with all relevant local and
national codes� Phoenix models with a -W in the
model number must be vented in accordance with
all regulations pertaining to solid fuel appliances�
UTILITIES SPECIFICATIONS
Gas
19mm (3/4 inch) FNPT gas inlet
42,000 BTU/hr (12�3 kW max�)
Natural Gas (NG)
OR
35,000 BTU/hr (10�25 kW max�)
Propane (LP)
Actual weight: 385 kg
850 lbs.
Ship weight: 499 kg
1100 lbs.

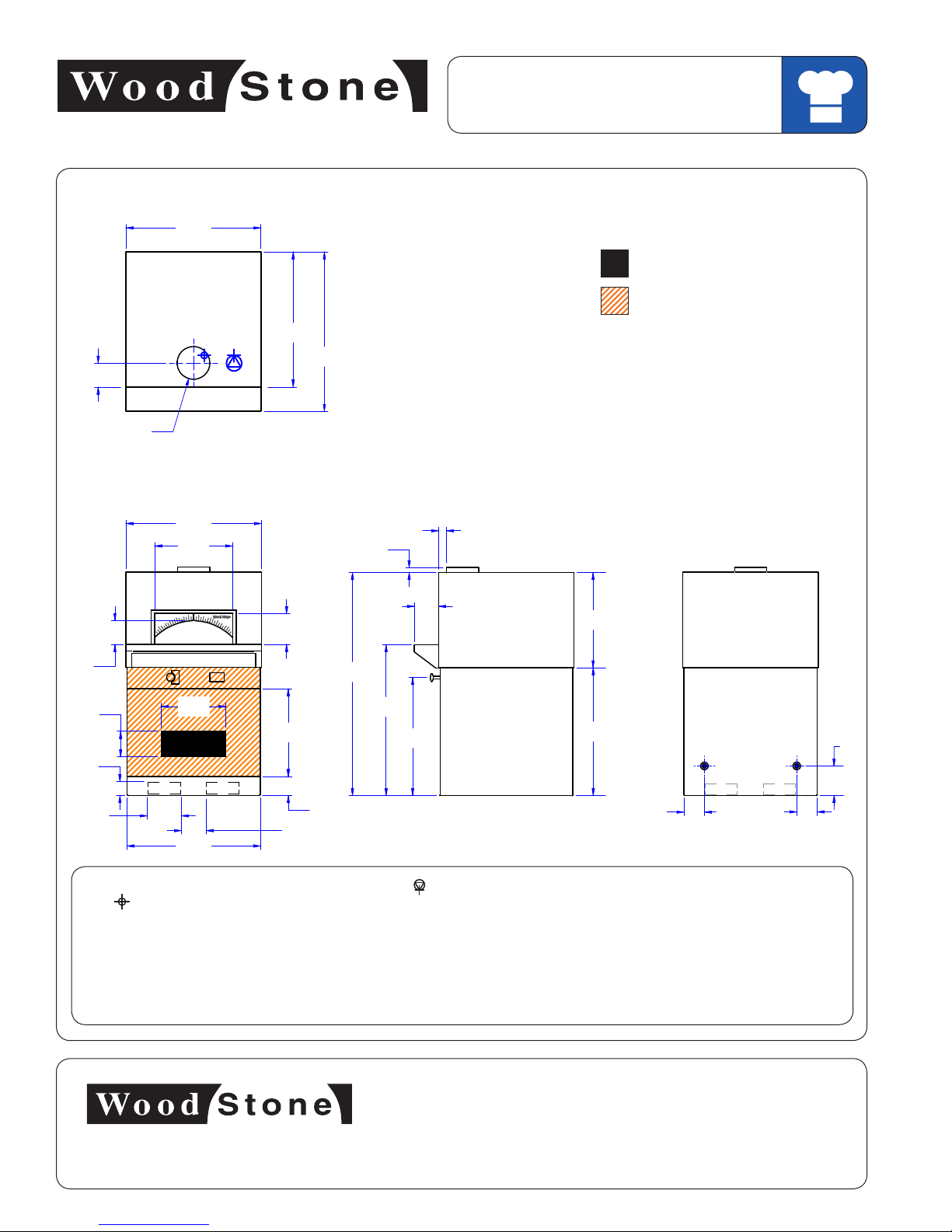

Plan view
Side view Rear viewFront view
Knockouts provided
on rear for
gas/electrical
Air intake: Do not
facade or cover over
Must be left
removable for service
REV:
LEGEND:
PART #:
WS-BL-3030-RFG
Bistro Commercial Series - 3030
General Arrangement
4/19/2013 bena
2
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\WS-BL-3030_General_Arrangement-2.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 3/4" NPT
55,000 BTU, NG
42,000 BTU, LP
1 of 1
AIR INTAKE
G
36 3/4"
940mm
6 1/4"
160mm
O
8"
200mm OD
6 1/2"
160mm 6 1/2"
160mm
27 3/4"
700mm
37"
940mm
46 1/2"
1180mm
7 1/2"
190mm
67 3/4"
1720mm
2 1/4"
60mm
1"
20mm
18 1/2"
470mm
9 3/4"
250mm
7 1/2"
190mm
4"
100mm
29 1/2"
750mm
29 1/4"
740mm
27 1/2"
700mm
28 3/4"
730mm
6"
150mm
7 3/4"
200mm
9 3/4"
250mm
40"
1020mm
9 1/2"
240mm
20 1/4"
510mm
8 1/4"
210mm
11 1/4"
290mm 4"
100mm
20"
